Esco 90425 User manual
Equipment Supply Company
Instruction Manual
AUTOMATIC OTR & MINING TIRE
INFLATION CAGE
ESCO #90425
Copyright © 2017 Equipment Supply Co., All rights reserved
REV.01.17A
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
WARNING:
THIS PRODUCT, AS WELL AS ALL TIRE TOOLS, SHOULD NEVER BE
USED BY PERSONS UNLESS THEY HAVE BEEN TRAINED
PROPERLY ACCORDING TO OSHA REGULATIONS 29CFR 1910.177
ENTITLED “SERVICING SINGLE-PIECE &
MULTIPIECE RIM WHEELS”.
FOR THE SAFE USE OF THIS PRODUCT, PLEASE READ
INSTRUCTIONS. FAILURE TO DO SO CAN LEAD TO A VOID IN
WARRANTY OR SERIOUS INJURY. PLEASE USE THIS TOOL AND
OTHER TIRE SERVICE TOOLS WITH THE UPMOST SAFETY
PRECAUTIONS.
CAUTION
Before using the product, carefully read the instructions manual and all stickers and warnings noted
on the product. This is necessary to avoid injury to the operator and damage to the product.
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
Product Description
The ESCO Model #90425 is the largest tire safety inflation cage built in the world. Able to handle tire diam-
eters up to 115” 2921mm, mining tires from 24.00R49 through 45/65R/45 and even 30.00R51. Equipped
on both of this products doors is a safety system that actives or deactivates the inflation of the tire. In order
to inflate, you must close both (2) doors.
PRODUCT SPECIFICATIONS:
Includes: Air hose and a power cable (110 Volt)
Max. Inflation: 130 PSI | 8.96bar
Dimensions (L x W x H): 136” x 72” x 130” | 3454mm x 1829mm x 3302mm
Max. Tire Size: 115” OD x 48” W | 3000mm OD x 1219mm W
Weight: 8998 lbs. | 4090 kg
PRODUCT WARRANTY:
The MODEL 90425 inflation cage includes a 1-year warranty from the billing date, but is null and void if the cage
has been damaged through misuse, faulty installation, improper maintenance or accidental damage, or unauthorized
modifications or repairs. The cage is considered as unusable and dangerous after a tire exploded in it.
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425

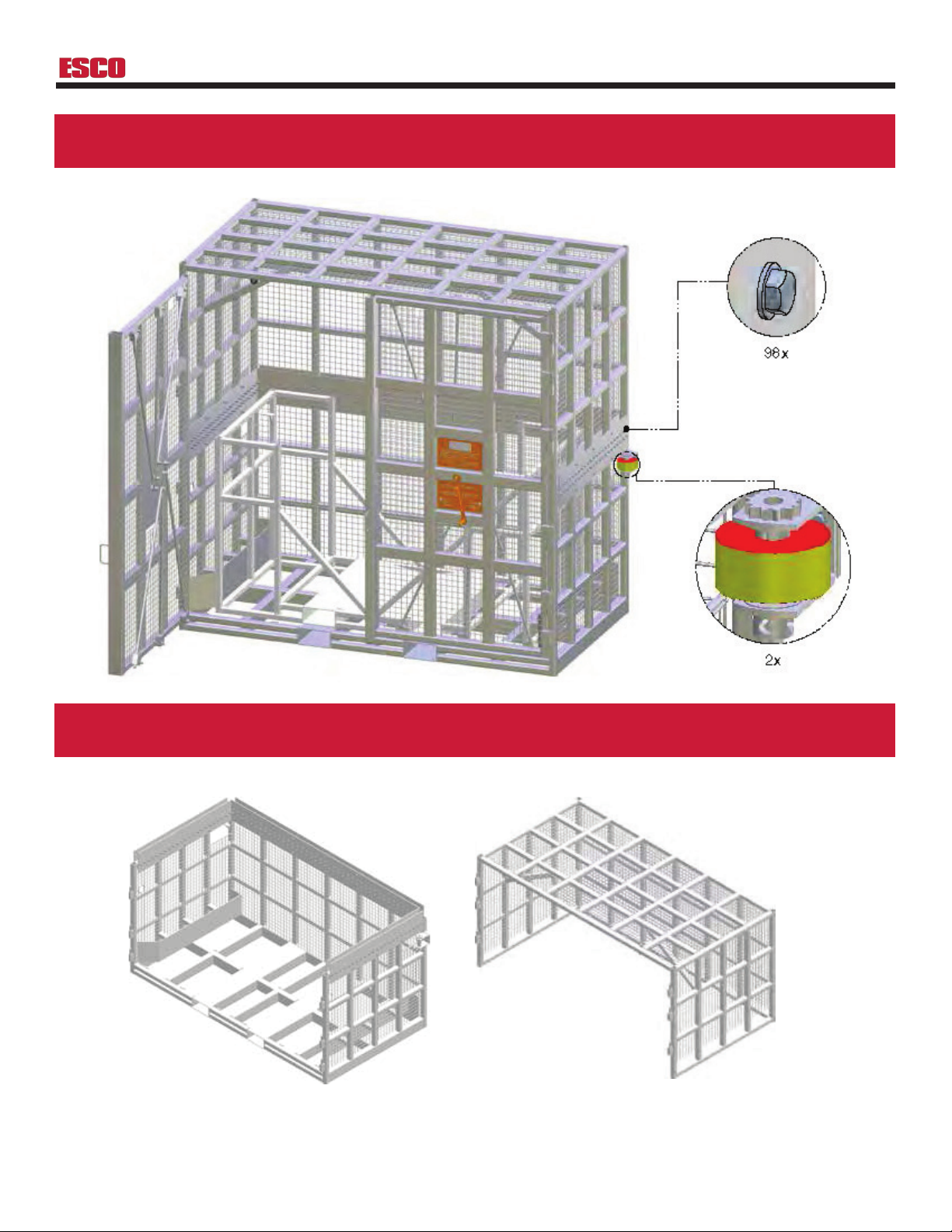

ASSEMBLY
PARTS
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
HARDWARE
PARTS CONT.
HEXAGONAL BOLT 1/2-13UNC
x 4-1/2'' GR5 ZINC
QTY:98
LOCK-NUT 1/2-13UNC
QTY: 98
SAE WASHER 1/2’’
QTY: 196 BELT 3” x 30’ WITH CHAIN AND
HOOK
QTY : 2
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
ASSEMBLY STEPS
1
2
3A B

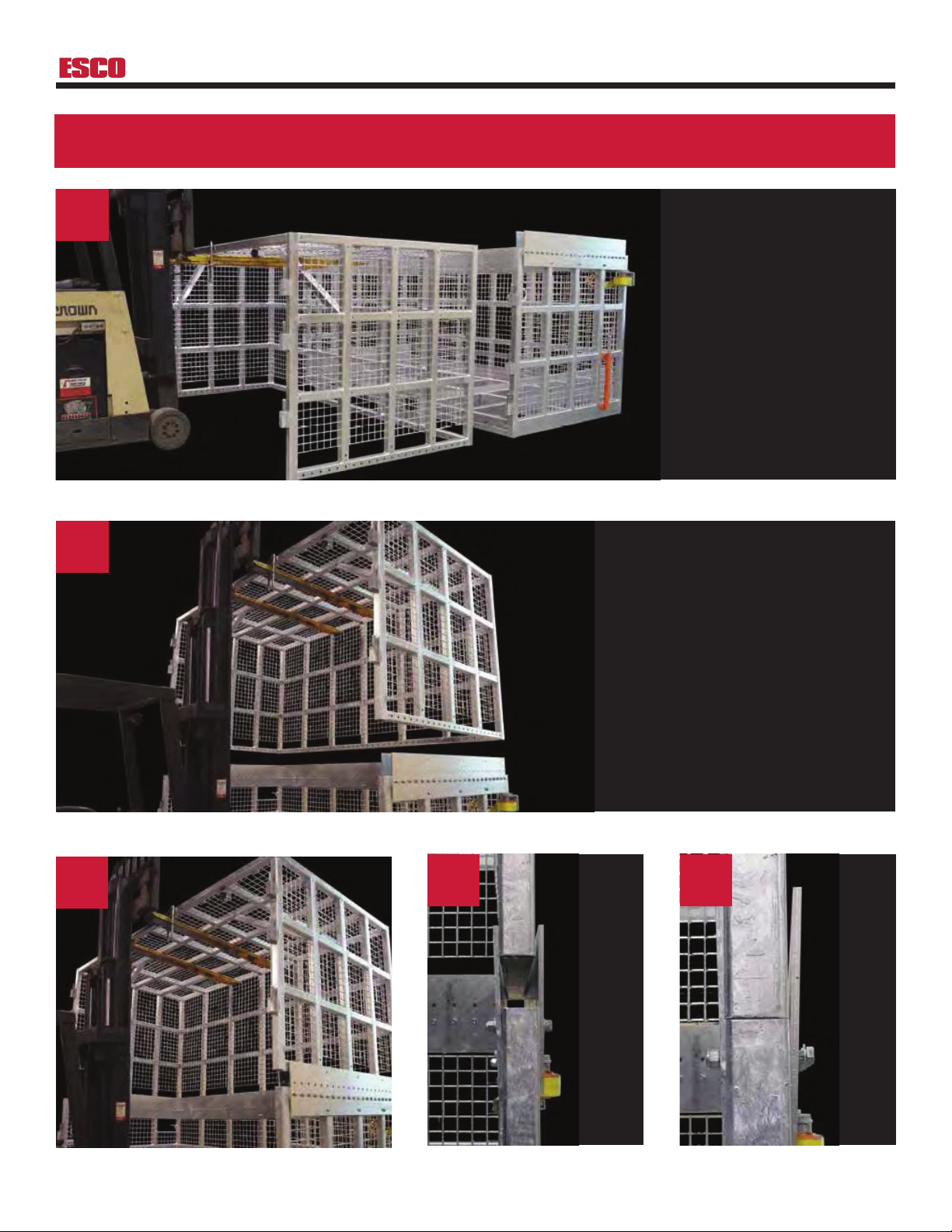

AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425

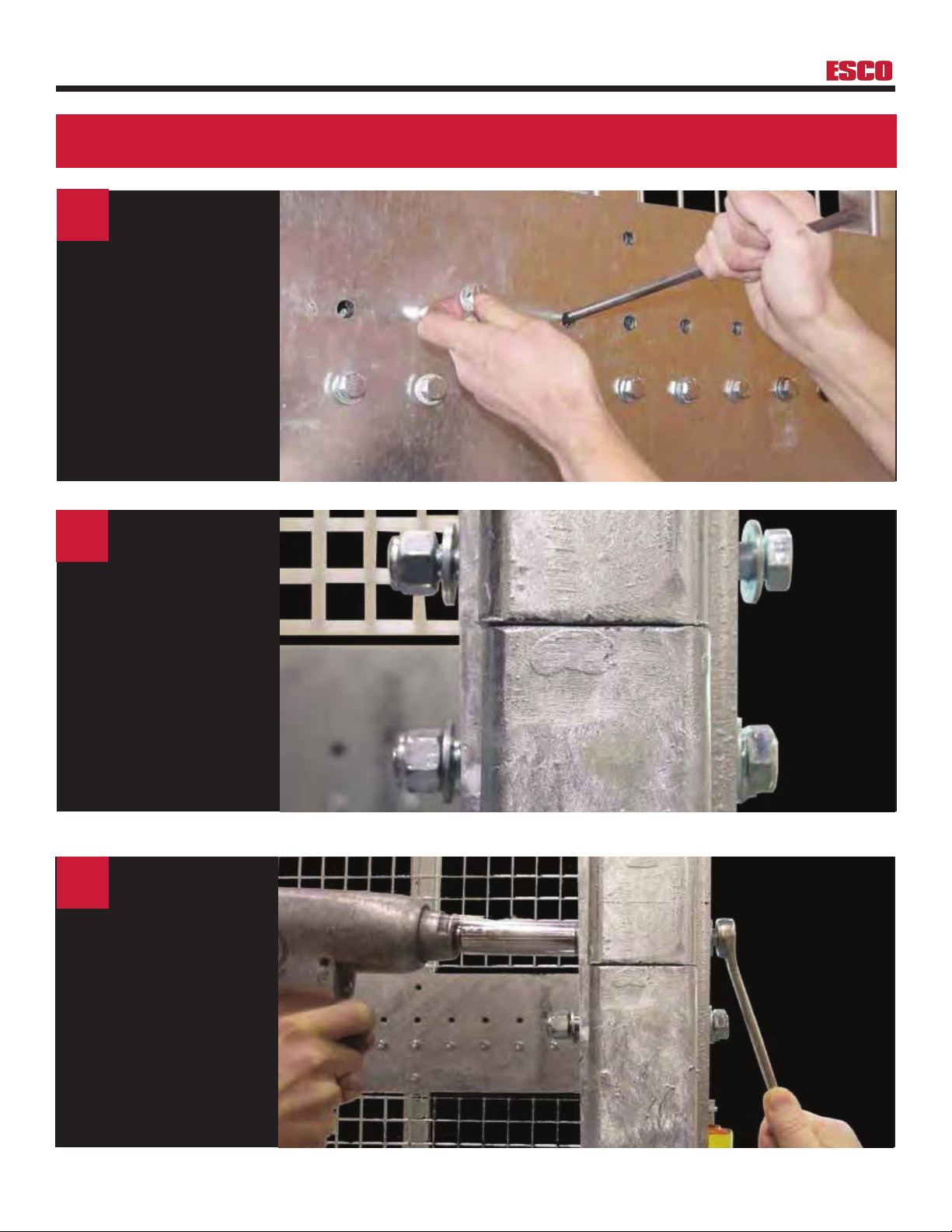

ASSEMBLY STEPS CONT.
4
5
6
Align the holes and
insert the bolts (for
all 98 holes).
Screw slightly the
lock-nuts onto the
bolts.
Align the holes and
insert the bolts (for
all 98 holes).
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
ASSEMBLY STEPS CONT.
7 8
910
Hang the door
with slings.
Install the space washer
on the axis of the hinges.
Grease the hinges if necessary.
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425

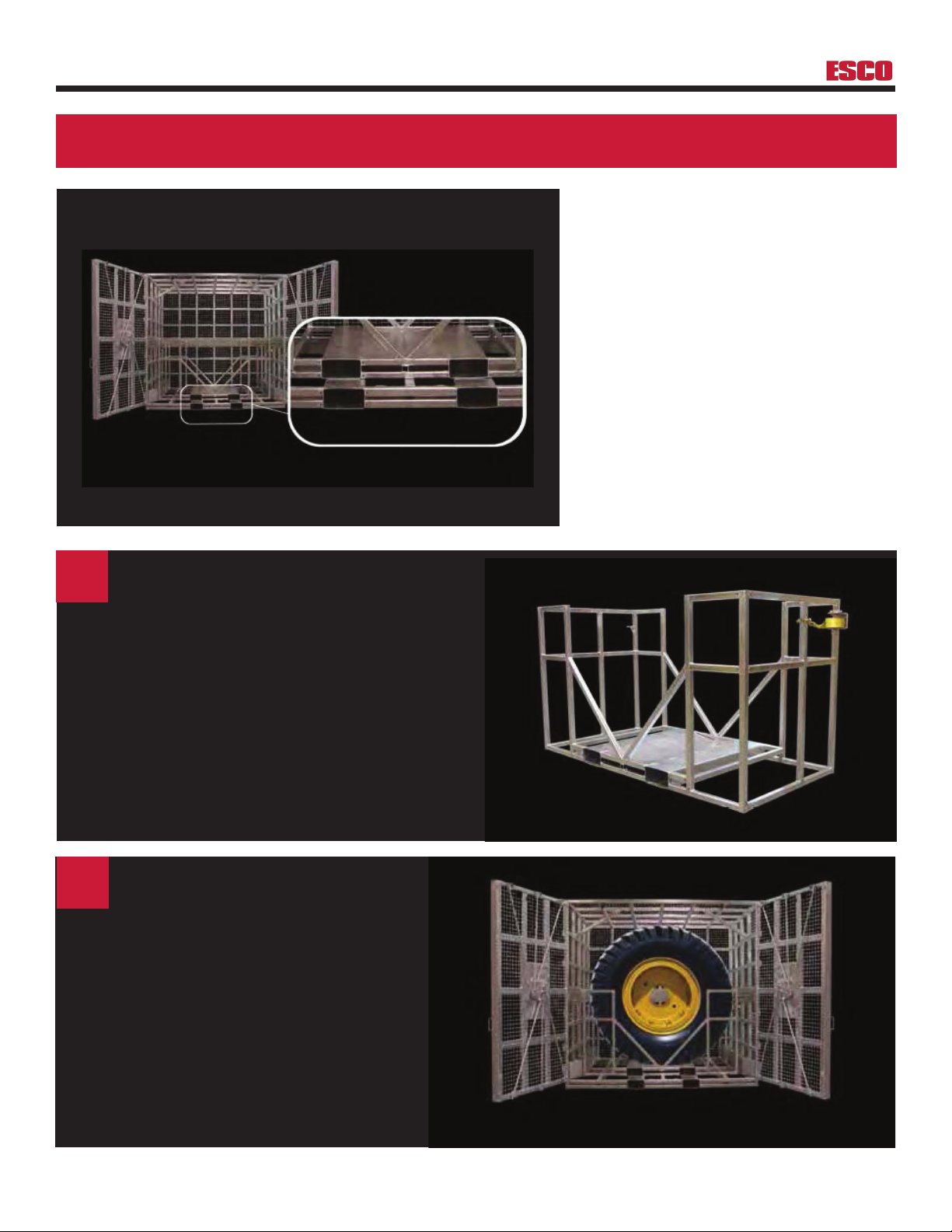

USING THE INFLATION CAGE
1
2
The tire inflation cage can be used with
or without the tire basket (see photo). If
you have a tire handler you do not need
to use the tire basket and the tire can
be placed directly in the inflation cage.
Otherwise the tire must be place in the
basket and handled with a fork truck.
Place the tire in the cage
or in the basket.
Your inflation cage should be
placed on the ground; it should
not be attached to the ground
in any way. The cage must be
installed on a flat surface. You
can use a forklift to facilitate
handling but only by using the
fork guides as shown on the
photo.
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
USING THE INFLATION CAGE
3
4Close the doors and make sure
that the rods of the latches are
behind the frame of the cage.
5
Support the tire while you secure it with
the strap and hook.
B
A
Inflate your tire.
*Inflating a tire is a dangerous operation and no
one should be close to the cage, it is important to
keep a safe distance while the tire is being inflated.
Remove the tire
from the cage.
6 7
Insert your air hose in the air hose
entry on the side of the cage.
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425

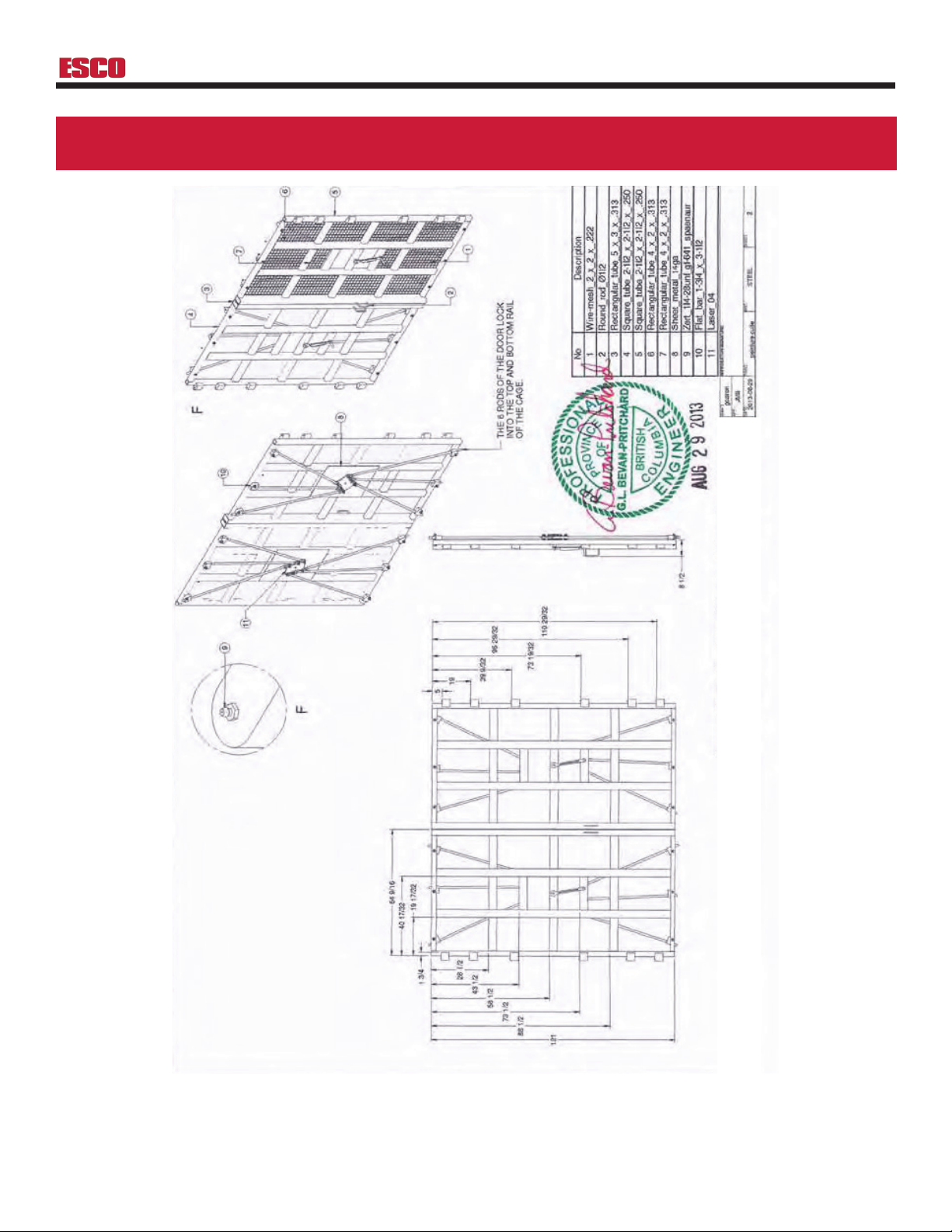

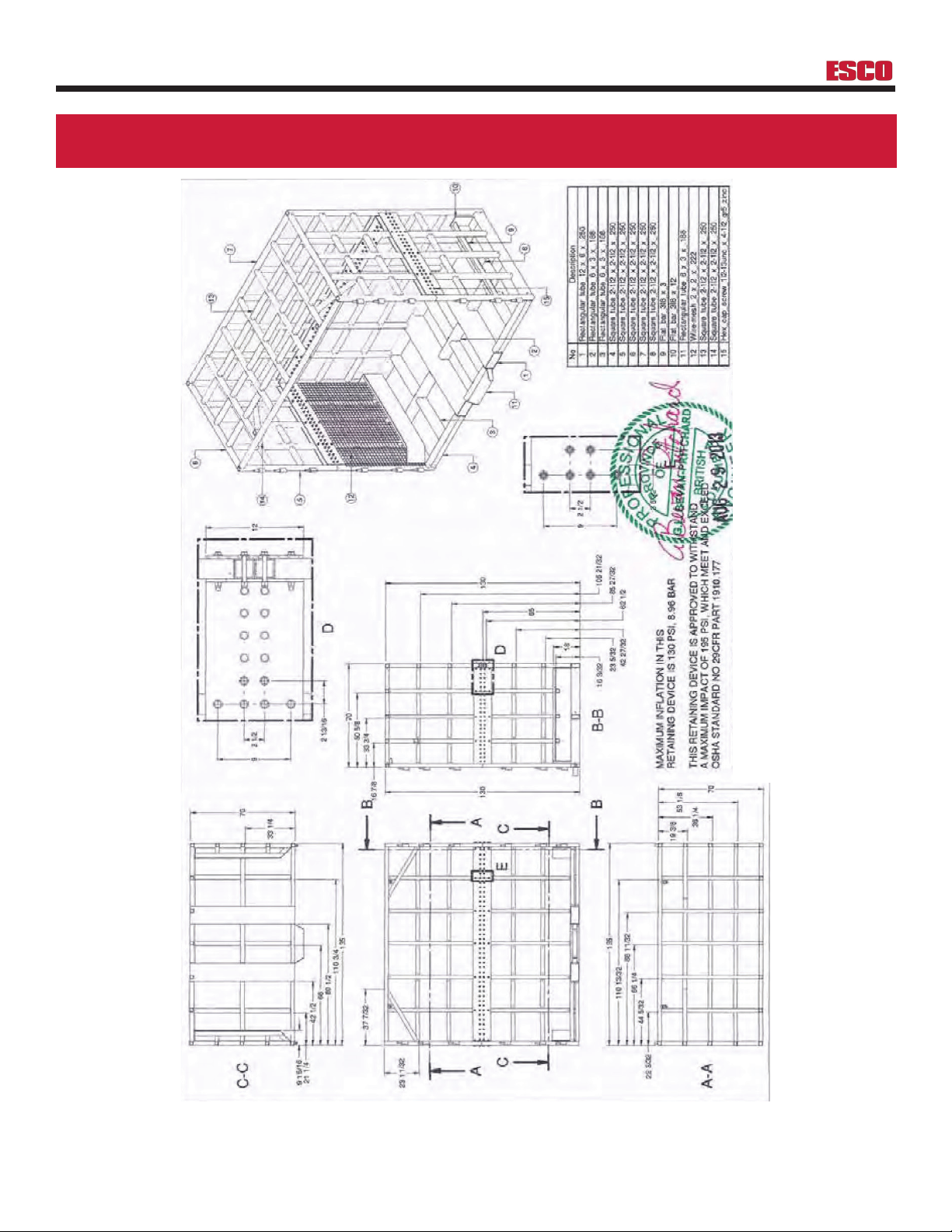

CERTIFICATIONS FOR MODEL 90425
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
CERTIFICATIONS FOR MODEL 90425
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
CERTIFICATIONS FOR MODEL 90425
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
CERTIFICATIONS FOR MODEL 90425
AUTOMATIC OTR & MINING TIRE INFLATION CAGE ESCO #90425
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
NOTES
CONTACT INFO:
15270 Flight Path Drive
Brooksville, FL 34604
PH. 352.754.1117
Toll Free. 1.800.352.9852 (US, Canada Only)
Fax: 352.754.4508
Stay Connected with ESCO...
Scan this Code to Go to
the ESCO website
WWW.ESCO.NET
