Esco miniLIFT Lift & Move Operating instructions

miniLIFT - Lift & Move
Model: 92055
Available Accessories: 92053, 92058
OPERATING AND MAINTENANCE MANUAL
Equipment Supply Company
15270 Flight Path Drive
Brooksville, FL 34604
Main Office: [phone]
Nationwide Toll Free: [phone]
Fax: [phone]
www.esco.net
[e-mail]

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 2
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
INDEX
1. INTRODUCTION 3
1.1. THE COMPANY 3
1.2. THE PRODUCT 3
2. GENERAL SPECIFICATIONS 4
2.1. PRODUCT IDENTIFICATION 4
2.2. TECHNICAL SPECIFICATIONS 5
2.3. OVERALDIMENTIONS 6
3. UNPACKING AND HANDLING 6
3.1.
MACHINE COMPONENTS
7
3.2.
HANDLING OF CONTENTS
8
4. BEFORE USINGTHE MINILIFT 8
4.1. WARNINGS 8
4.2. SECURITYZONE 9
4.3. PERSONALPROTECTION 9
5. INSTALLATION ANDSTART UP _ 9
5.1. WHEELASSEMBLY 9
5.2. STEERINGWHEEL ASSEMBLY _10
5.3. SUPPORTS FITTING 11
5.4. PNEUMATIC CONNECTION 11
5.5. START-UP 12
6. DIRECTIONS FOR USE 13
6.1. LOCATION OFTHELIFT 13
6.2. SET UP THELIFT ATTACHING IT TO THE VEHICLEWITH REGULAR SUPPORTS 15
6.3. SET UPTHELIFT ATTACHING IT TO THE VEHICLEWITH SKATES 16
6.4. SET UPTHELIFT ATTACHING IT TOTHE VEHICLEWITH 4X4 SUPPORTS(OPTIONAL) 18
6.5. SET UPTHELIFT ATTACHING IT TOTHE VEHICLEWITHROUNDSUPPORTS (OPTIONAL) 21
6.6. ENSURE THEWORKAREA 23
6.7. REGULAR LIFTING ANDLOWERING MANEUVRE 23
7. MACHINE SAFETY 25
7.1. SECURITYVALVE 25
7.2. SAFETYSTANDS _ 27
7.3. REMINDER OFTHEWARNINGS AND SAFETYDATA 27
8. INSPECTION, MAINTENANCEAND CLEANING 29
9. WARRANTY 29
10. DESTRUCTION OFTHE MACHINE 29
11. EC DECLARATIONOFCONFORMITY 30
12. MACHINE DIARY 31
3-YEAR EXTENDED WARRANTY
VISIT WWW.ESCO.NET/WARRANTY OR CALL 352-754-1117 TO
REGISTER YOUR PRODUCT WITHIN 30-DAYS OF PURCHASE.
SEE PAGE 27 FOR STANDARD WARRANTY DETAILS.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 3
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]
1. INTRODUCTION
1.1. THE COMPANY
ESCO is the world leader in manufacturing and supplying quality tire service
equipment for the automotive, agricultural, commercial truck, off-the-road (OTR),
and mining markets. ESCO produces a wide range of tire service/handling
products ranging from: heavy duty bead breakers; hydraulic rams; air hydraulic
pumps; heavy duty jacks and stands; tire demounting and mounting tools; tire
wheel dollies, torque wrenches, and many other quality tire service equipment to
better aid in safely and efficiently servicing tire/wheels.
ESCO also has an in-house hydraulic repair facility where we feature our 24-hour
Turnaround Hydraulic Tool Repair Program. ESCO is known in the industry as the
expert in producing equipment for servicing single and multi-piece rims, with over
30 years of experience, ESCO has the Proper Tools to Keep All of Your
Equipment Moving.
Our Mission
To supply innovative industry evolving tire tools and equipment to the marketplace
through expanding relationships with our distribution channels.
Our Vision
We envision ourselves changing the way tire service professionals handle
tires/wheels globally through the use of innovation, market research, consumer
knowledge, and industry trends to better supply relevant products that will continue
to support safety and efficiency.
1.2. THE PRODUCT
miniLIFT “Lift & Move” is a small size scissor lift with two pneumatic actuators,
designed for those workshops which also require a machine that is capable of
partially lifting vehicles up to 5,000 lbs. This lift is able to perform three different
movements highlighting the following: lifting of the front and rear axle and shifting
of the car. This means that, using the miniLIFT, the car will always have the front
or rear wheels raised.
miniLIFT “Lift & Move” is a very versatile and manageable product. Thanks to
the steering wheel, we can move the lift effortlessly to any point of the workshop
and we can also control the lifting of the vehicle.
The pneumatic system is easy to connect so you only need an air intake.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 4
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
2. GENERAL SPECIFICATIONS
miniLIFT “Lift & Move” is a vehicle lift with a structure made of folding scissors and is
driven by two pneumatic actuators. This vehicle lift has been developed for workshops
that work with car bodies of different tare and need to be partially lifted or comfortably
displaced over the surface of the workshop. The vehicle lift must have the same or
less weight than the maximum load indicated in the technical characteristics shown
below (section 2.3).
2.1. PRODUCT IDENTIFICATION
Every machine will be equipped with a name tag on one of its parts and visibly to
differentiate it from other machines of the same model. The tag is like the following
image:
ESCO
Equipment Supply Co.
www.esco.net
MODEL: 92055
MANUFACTURING NR:
.........
YEAR OF MANUFACTURE:
.......
..
MAXIMUM ADMITTED LOAD: 5,000 lbs.
MAXIMUM LIFTING: 2.5 Tons
AIR PRESSURE: 90 – 120 psi
DIMENSIONS (L x H x W): 82 × 25 x 24 in.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 5
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]
2.2. TECHNICAL SPECIFICATIONS
The technical specifications are basic data of interest to the user. These are:
SPECIFICATIONS VALUE
MAXIMUM LOAD 5,000 lbs.
MAXIMUM HEIGHT FROM THE GROUND 21 in.
MINIMUM HEIGHT FROM THE GROUND 5 in.
MAXIMUM WIDTH 25 in.
MINIMUM LENGTH 64 in.
MAXIMUM LENGTH 82 in.
STRUCTURE WEIGHT WITH ACCESSORIES 340 lbs.
PNEUMATIC PRESSURE CIRCUIT 6 - 8 bar
ASCENT TIME 13 seconds
DESCENT TIME 17 seconds

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 6
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
2.3. OVERALL DIMENSIONS
3. UNPACKING ANDHANDLING
All parts of the miniLIFT Lift & Move will be shipped in a single pallet.
We recommend that, at the time of opening the package, the content is
revised in full. This is to ensure that no component has been lost. The
manufacturer is not responsible for any damage caused by
transportation, loading, unloading or unpacking.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 7
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]
1 - Elevador
2
- Timón
3
- Ruedas
4
- Apoyos
5
-
Pasadores
6 - Manual
The transfer and transport of packaging must be done according to safety standards
and by staff with expertise in the transport of mechanical loads.
It is strictly forbidden to manually transport the package containing the lift.
Staff should wear appropriate protective clothing.

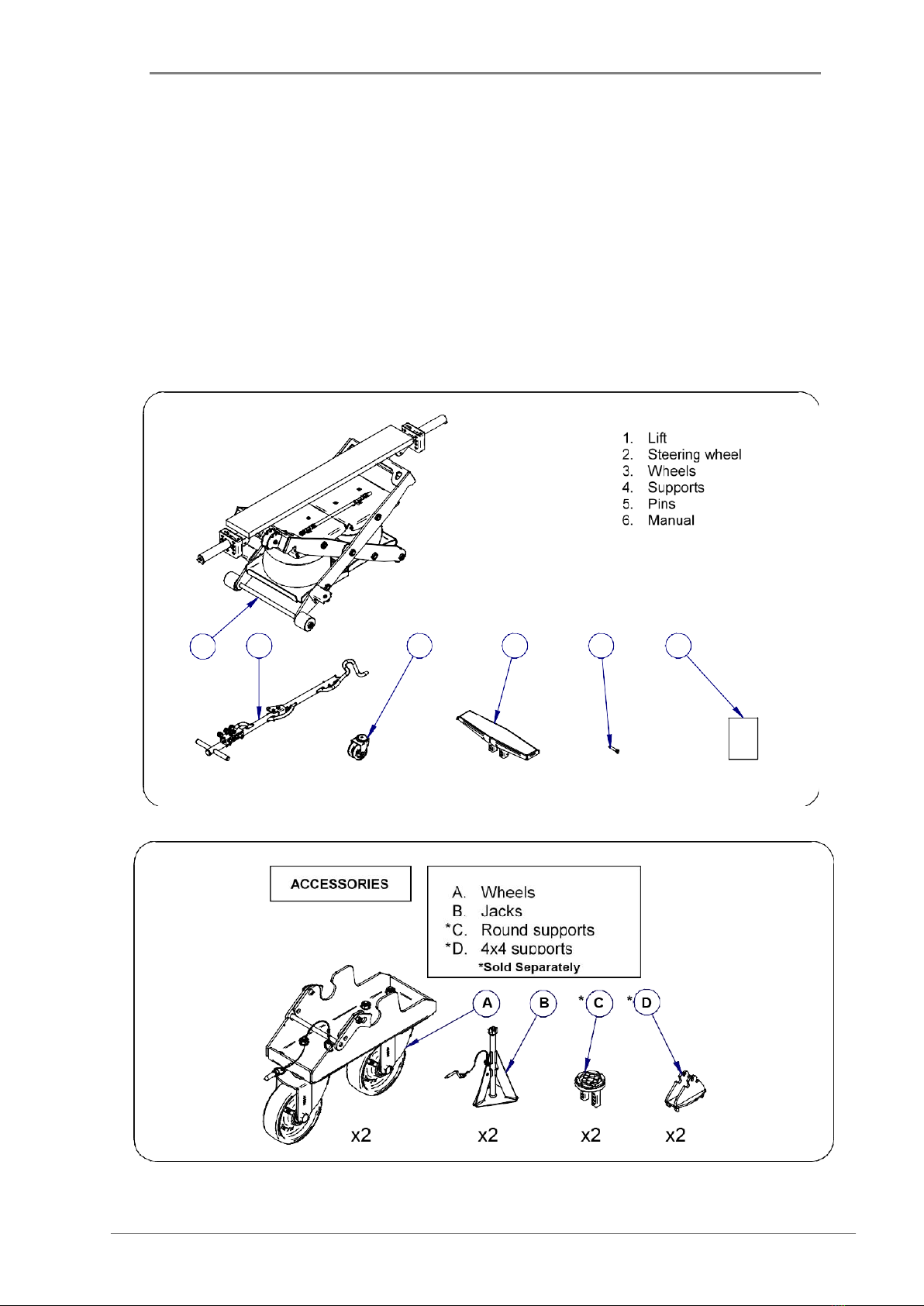

3.1. MACHINE COMPONENTS
Parts are presented separately inside the packaging.
x1
1 2 3 4 5 6
x1 x2 x2 x4 x1
C and D
Sold Separately

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 8
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
3.2. HANDLING OFCONTENTS
The pallet can be manipulated with a forklift or pallet truck. Then, cut the strips that
secure the structure to the pallet and leave the lift so that the wheels are in contact
with the pavement.
If a crane to move the lift is used, work should be performed by qualified staff,
meeting safety standards. Do not touch or place under the load radius of the
crane. Please follow these recommendations:
•Place the Lift in a horizontal position and fix the crane to the Lift with two
ribbons or slings at each end to carry the structurecorrectly.
•Ensure that the ribbons are in good condition and properlyplaced.
•Place the lift on the pavement so that the wheels are in contact with the
pavement.
4. BEFORE USING THEMINILIFT
4.1. WARNINGS
The miniLIFT is a mobile lift that must be used within a workshop with a perfectly
leveled floor, with enough features to support the lift and its maximum load and
protected from adverse factors such as temperature, humidity, wind, rain, etc. it
should not be used on a rough surface or other types of surfaces not meeting the
minimum requirements for proper functioning. However, the miniLIFT is prepared
to also work in preparation areas with grid surfaces, as long as it is free of
obstacles and special attention is paid.
This product has been developed to repair vehicles, not to lift people. The lift is not
designed to work underneath it.
Before starting the installation, the entire area should be rid of any obstacle.
The operation with the lift must be performed by skilled and responsible staff. In
addition, the operator must comply with safety and prevention of occupational risks
in the workplace.
Any other operation not described in this manual will be a risk borne by the owner
and will be considered negligence, which will automatically entail the loss of
warranty.
NOTE: The manufacturer is not responsible in any way for any damage
caused to persons or property due to misuse of the lift.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 9
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]
4.2. SECURITY ZONE
In order to get the necessary security it is advisable to set the space where you
will use the lift at a certain distance from another object orwall.
The operations the user does, like handling, lifting and lowering the car should be
done carefully. There should be no one in the work area except the operator.
4.3. PERSONAL PROTECTION
The operator must always wear appropriate work clothes and take all necessary
measures to maintain security in compliance with the regulation of occupational
risk prevention. During handling, the user must ensure his own personal safety
and the safety of people and objects around him. The operator must take into
account all the recommendations contained in thismanual.
5. INSTALLATION AND STARTUP
5.1. WHEEL ASSEMBLY
Fit the wheels as shown in the following image:

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 10
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
TIRARDELMUELLE
CONUNGANCHOPARA
PA
SARELPERNOPOR
ELORIFICIODELEXTREMO
5.2. STEERING WHEELASSEMBLY
The bolt that attaches the wheel to the ridge must pass through the hole at the end
of the spring that is in the steering wheel. In order to easier understand the
procedure, assemble the steering wheel as follows:
Pull the spring
with a hook to
pass the bolt
through the hole at
the end

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 11
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]

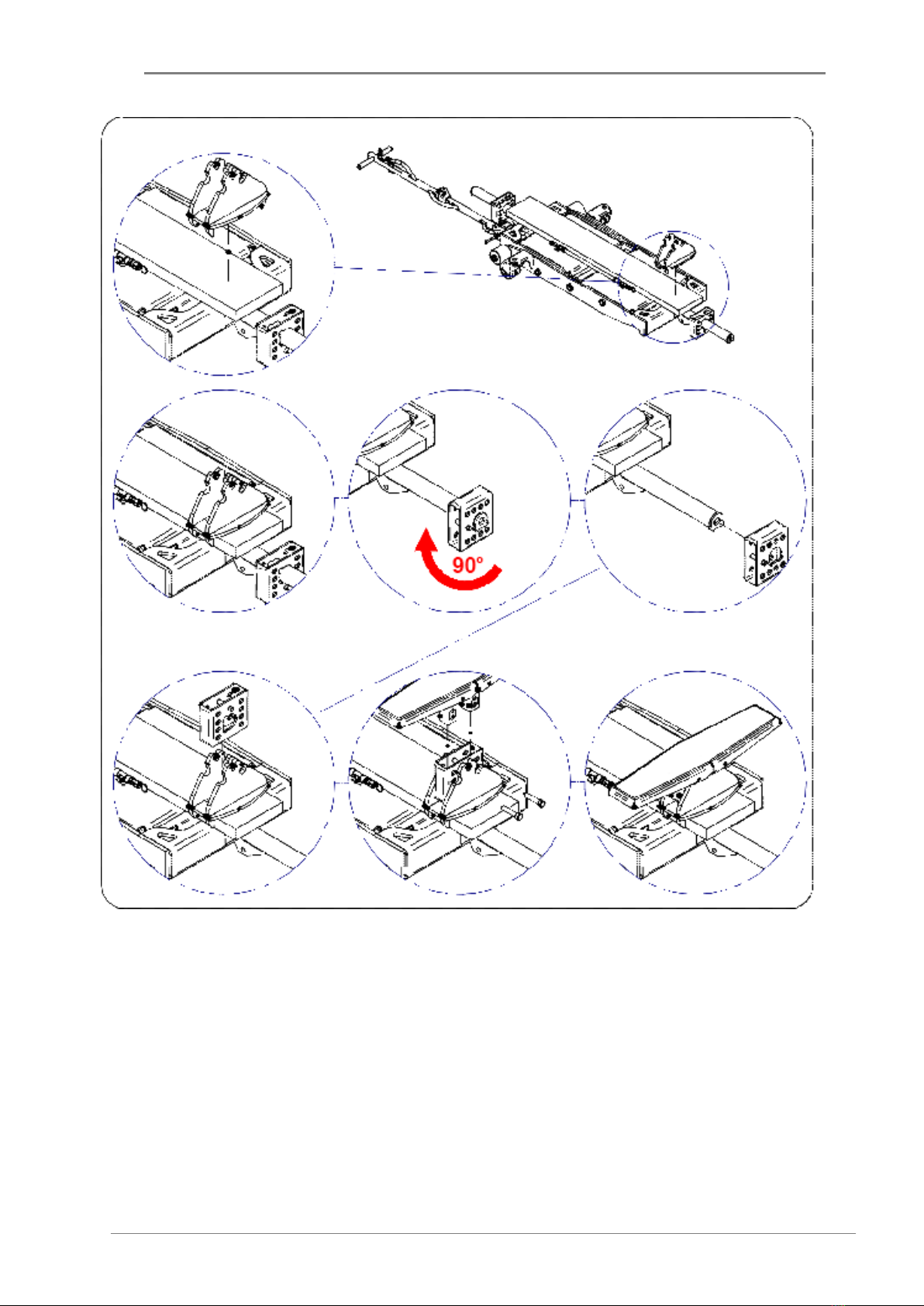

5.3. SUPPORTS FITTING
Attach the supports as shown in the following image:
5.4. PNEUMATIC CONNECTION
The pneumatic system that contains the miniLIFT allows an important freedom of
movement and a clean of oil devoid job.
The drawing of the pneumatic circuit is as follows
The valve that we manipulate to lift and lower the lift is at the steering wheel. To
complete the installation, a fitting must be installed on the valve with a quick
coupling system that fits the needs of the workshop. ESCO does not provide said
fitting. Attach the fitting exactly as indicated in the figure below.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 12
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
5.5. START UP
After making the connections, it is time to make the necessary checks to ensure
that the lift goes up and down properly:
WARNING: Before performing this operation, make sure that no
person or object is under or next to the lift.
To raise the lift, actuate the joystick upward. To lower, press the joystick down. In
any situation, the lift will go up or down as we continue pressing and remain
inoperative when we stop.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 13
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]
6. DIRECTIONS FORUSE
If the operations described in section 5.5 were successful, the Lift & Move is ready for
use. Such operations must be controlled before performing any operation.
In addition, make sure that the vehicle mass to be handled does not exceed 5,000 lbs,
maximum authorized by the lifting load.
6.1. LOCATION OF THE LIFT
The Lift & Move is easily movable thanks to the steering wheel that has an
anatomical shape. It also contains two swivel casters allowing directing it
comfortably and effortlessly.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 14
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
Make sure that the lift is well perpendicular to the length of the car. Otherwise, the
miniLIFT may suffer and not work properly.
Before placing the lift under the vehicle, we must remove the nearest support at
the steering wheel. After entering the miniLIFT, we put the steering wheel in a
horizontal position and place the support again.
The steering wheel is articulated to avoid tripping around the perimeter of the car.
It is advisable to fold and secure it with the bolt.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 15
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]
1. 2. 3.
6.2. SET UP THE LIFT ATTACHING IT TO THE VEHICLE WITH REGULARSUPPORTS
The support system is capable of reaching a large number of points under the
vehicle. This is due to the length of the arms. Support should be moved until it is
under the ideal spot in order to be able to lift (where normally the jack is placed;
generally, the tab or heel). Keep in mind that the two supports have to be placed at
the same length in relation to the platform, as shown in the image, without
exceeding the maximum.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 16
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
PESTAÑAO
TALONERA
In addition, regular support can be adjusted to different heights depending on
vehicle characteristics and location of the tab or heel. This is due to the
configuration between said supports and the holder. The maximum and minimum
height can be seen in the following image.
Tab or
heel
6.3. SET UP OF VEHICLE WITH SKATES (ACCESSORIESINCLUDED)
The main peculiarity of the miniLIFT Lift & Move, unlike the miniLIFT Classic
[Model 92050], is the possibility to freely move the lift alongside the car over the
floor.
This maneuver is made possible by skates that are to be coupled to the lift. To do
this, it is necessary that the lift is at the highest level with the car properly placed
on it. Then decide on which part of the fixed arms we will place the skates. The
holder of the support can be in the middle, before or after, depending on the
configuration of the car and, with a light pressure, the skate is automaticallyfixed.
5 in.
8 in.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 17
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]

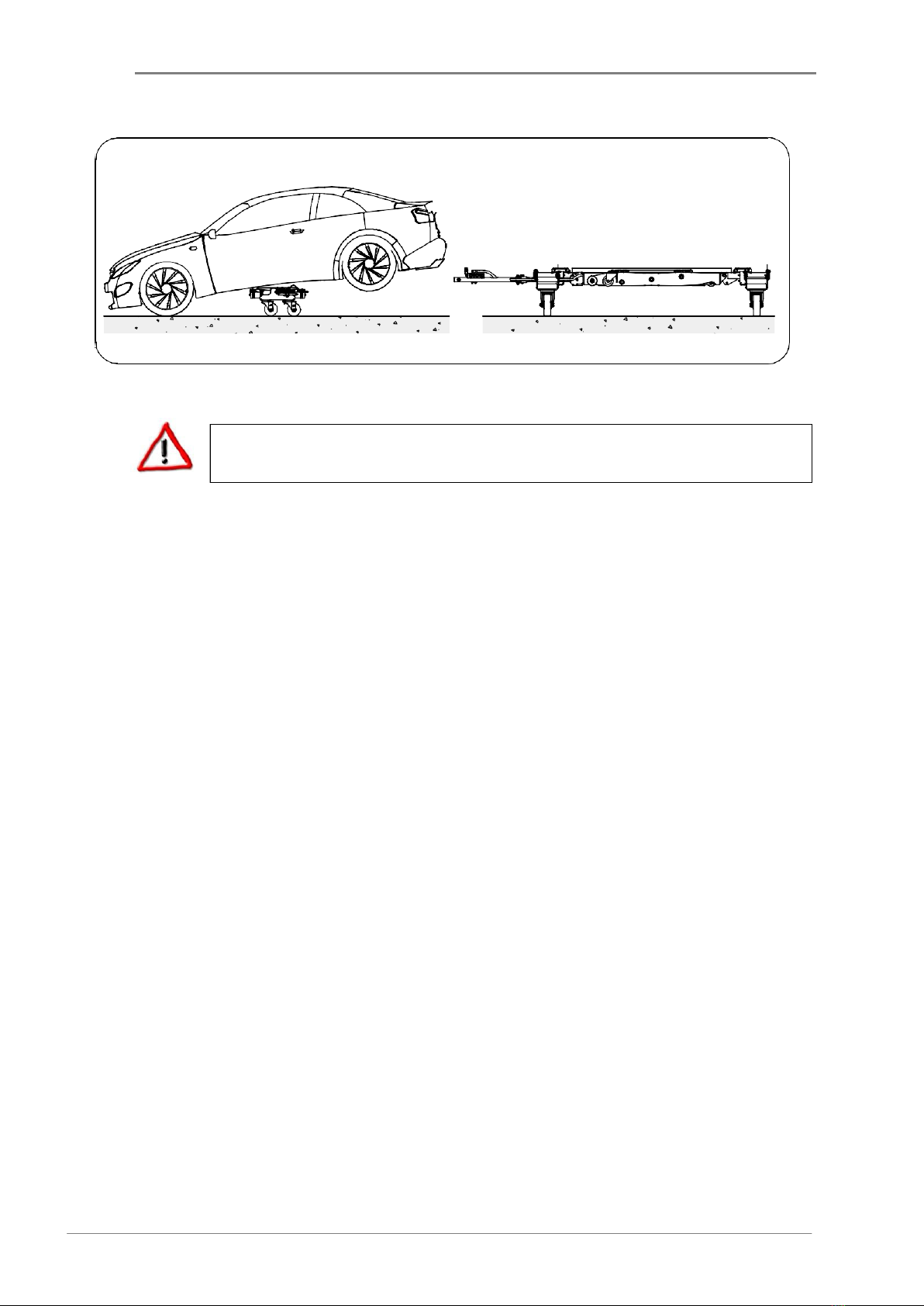

This accessory has a security system that the operator must take into account
when coupling. This system consists of a pin that prevents the lock from coming
out ensuring a perfect coupling without risks. Keep in mind that the skate has an
end with a hole necessary to support the steering wheel in it.
Once coupled, it is necessary to empty the contents of air found inside the
pneumatic cylinders. To do this, the button for lowering and vacuum have to be
pressed simultaneously to let the Lift & Move hold itself only by the 4 swivel
casters. At this time, the car can move freely pushing it and / or lifting it.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 18
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
WARNING: It is forbidden to use the skates while using 4x4 supports.
There is a danger of tipping the lift.
6.4. SET UP THE LIFT ATTACHING IT TO THE VEHICLE WITH 4X4 SUPPORTS (ACCESSORIES
OPTIONAL)
There are cases in which the distance between heels is less than 50 inches In
most of these cases we found as well that the height from ground level to the heel
is very high. That's why we created 4x4 support accessories.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 19
Tel: [phone]
Fax: [phone]
Web: www.esco.net
Email: [e-mail]
4x4 supports can simply be placed on the platform of the Lift & Move and can be
easily combined with regular supporters and so regulate the desired height, as
shown in the image below.

OPERATING AND MAINTENANCE MANUAL – miniLIFT Lift & Move [Model 92055]Page 20
Tel: [phone]
Fax: [phone]
Web: www.esco.net
email: [e-mail]
PESTAÑAO
TALONERA
orificios en los que se permite
colocar los pasadores para
regular los apoyos
Tab or
heel
In addition, and for better performance, it is necessary to respect the distances and
the directions shown in the following images:
Holes in which the pins are allowed to
be placed to regulate the supports
