iMiniPlus PDF
User Guide
Version 2.0

Table of contents
1
Scope of this document ................................................................................... 3
2
Why PDF? .................................................................................................. 3
3
Logger profile ............................................................................................. 3
4
What you need to get started ............................................................................ 4
5
FDA 21 CFR Part 11 compliance .......................................................................... 5
6
How iMiniPlus PDF Logger works ........................................................................ 5
7
PDF report contents ...................................................................................... 5
8
Connecting logger to PC ................................................................................ 12
9
Programming logger with Console Pro ................................................................ 13
9.1
Customizing PDF report and changing details .................................................... 14
9.2
Programming password ............................................................................ 15
9.3
Configure Sensors and Alarm Settings ............................................................ 16
9.3.1 Specification and Alarm .......................................................................... 17
9.3.2 LCD Display ....................................................................................... 18
9.4
Checking the time clock ............................................................................ 19
9.5
Setting the Start, Stop and logging duration ..................................................... 19
9.5.1
Duration of trip, at least ..................................................................... 19
9.5.2
Interval between each reading ............................................................. 19
9.5.3
Start new log trip ............................................................................ 21
9.5.4
Finish log trip ................................................................................ 21
9.5.5
Continuous logging ......................................................................... 21
9.5.6
Enable stop button in this logger(s) ........................................................ 22
10
Viewing logger data with PDF Reader Software ...................................................... 23
11
Downloading logger readings via Console Pro ....................................................... 23
11.1
Download wizard .................................................................................... 23
12
Creating LCF file from LRF file ......................................................................... 25
13
Does Console Pro work with PDF file? ................................................................. 26
14
Device specifications .................................................................................... 27
15
Contact details .......................................................................................... 28

iMiniPlus PDF Logger User Guide v2.0
- 3 -
1 Scope of this document
This document only describes new added functionality of USB and PDF to iMiniPlus logger. With the exception of
USB connection and PDF report this logger is essentially iMiniPlus temperature logger. Please refer to iMiniPlus
Logger User guide for all other important information for this logger.
2 Why PDF?
This logger has been developed to eliminate the need of installing proprietary software on PC to view logger data.
The main application for this was logger shipments to remote areas or places where installation of new software
for just occasional downloading data from logger was not justifiable. Portable Document Format developed by
Adobe ® Systems was chosen since almost all PCs have at least one version of Adobe ® Reader installed. The PDF
file generated by the logger is not encrypted and only intended to provide the user with a simple and convenient
method of examining logger data to make a decision on accepting or rejecting the shipment.
3 Logger profile
The iMiniPlus PDF Logger is available in two models. Both have the same temperature range of sensor;
D-range (-40°C to +70°C).
One model has the thermistor sensor mounted inside the logger (Product code MU-IN-D-8-L)
The other model comes with the same sensor as above but encapsulated inside a stainless steel tip on a 1meter
PVC cable. This sensor assembly is permanently connected to the body of the iMiniPlus (Product code MU-OE-D-
8-L)
The iMiniPlus has a fully functional LCD display and push buttons. A summary of these features and functions is
described below.
Attachment Lug
For fixing to item or wall
High Alarm / Low Alarm
Alarm has been triggered
Start button
Start, Mark reading and scroll
function
READY - Ready to start
IN DELAY - Started with delay
STOPPED – Recording stopped
Low battery icon
Temperature: Latest, highest,
lowest or average
HIGHEST, LOWEST, AVERAGE
Display high, low and average
recording
Latest - displays current
reading
Marked - Reading has been
bookmarked
Stop button
Hold for 3 seconds
External sensor
Only MU-OE-D-16-L model
Front view

iMiniPlus PDF Logger User Guide v2.0
- 4 -
The iMiniPlus PDF Logger comes with water-proof covers for the USB connection and the battery.
Make sure that when logger is in use these covers are in place. This is important in wet or dusty environments. If
covers are lost please contact your distributor for a replacement.
When replacing the battery align one triangular mark on the battery cover against similar shaped mark on the
logger base to avoid damaging plastic lock feature of the battery cover part.
4 What you need to get started
iMiniPlus PDF Logger
Mini B to A USB cable
PC with PDF Reader software
installed
Console Pro Software
installed
USB connector with water
proof cover
Identification sticker with bar
code
Alignment marks
Battery cover
Rear view
+

iMiniPlus PDF Logger User Guide v2.0
- 5 -
5 FDA 21 CFR Part 11 compliance
The PDF report should not be used to provide traceable and auditable data record. The PDF report can be changed
by the user. This is contrary to the FDA 21 CFR Part 11 requirements to data security. In order to produce secure and
traceable record, users have to open LRF with Console Pro and create an LCF file. There is no need to physically
connect logger to PC and download again with Console Pro if logger finished trip. You can just mail LRF and open
it with Console Pro.
6 How iMiniPlus PDF Logger works
iMiniPlus PDF Logger needs to be programmed by Console Pro for logging trip before use.
There is no need to install USB drivers on PC. iMiniPlus PDF Logger is configured as generic USB Mass Storage
Device. All operating systems should install this device automatically using default USB drivers.
iMiniPlus PDF does not require any proprietary software installation to download data from logger after logging
trip is finished.
iMiniPlus normally generates 3 files once connected to USB.
PDF report. This file is used to view logger data. This file is not present if the logger has been configured not
to produce it.
CONTROL.BIN file is used for communication purposes with software
. LRF file is used by Console Pro to create secure. LCF file for traceable data records.
iMiniPlus PDF Logger does not consume battery power when connected to USB and cannot measure or recognize
change in Battery status.
iMiniPlus PDF Logger checks battery status every 15 minutes when not connected to USB and updates Battery
Low icon on LCD.
Console Pro checks battery status of the logger when programming the logger for new trip.
Please note that battery low detect circuit is only accurate when electronics and battery of the is at room
temperatures from 15 °C to 25 °C or from 59 °F to 77 °F. If logger is used in cold environment it may report battery
low prematurely on LCD display. In this case remove logger from cold and check again battery status after 15
minutes or when the temperature of electronics has risen to room temperature range.
7 PDF report contents
You can disable PDF report generation by programming logger with Console Pro software. You can also enable or
disable certain parts of the report as described by the document named “iMiniPlus PDF Logger User guide - working
with Console Pro”.
Accuracy of statistical values displayed in PDF report in Fahrenheit temperature scale is± 0.1 °F.
Accuracy for time out specifications values is ± 1 second.
If first or last reading exceeds specification only half of the log interval is added to the time out of specifications.

iMiniPlus PDF Logger User Guide v2.0
- 6 -
Header:
Each header displays logger serial number and date / time information from logger without time zone and daylight
saving settings.

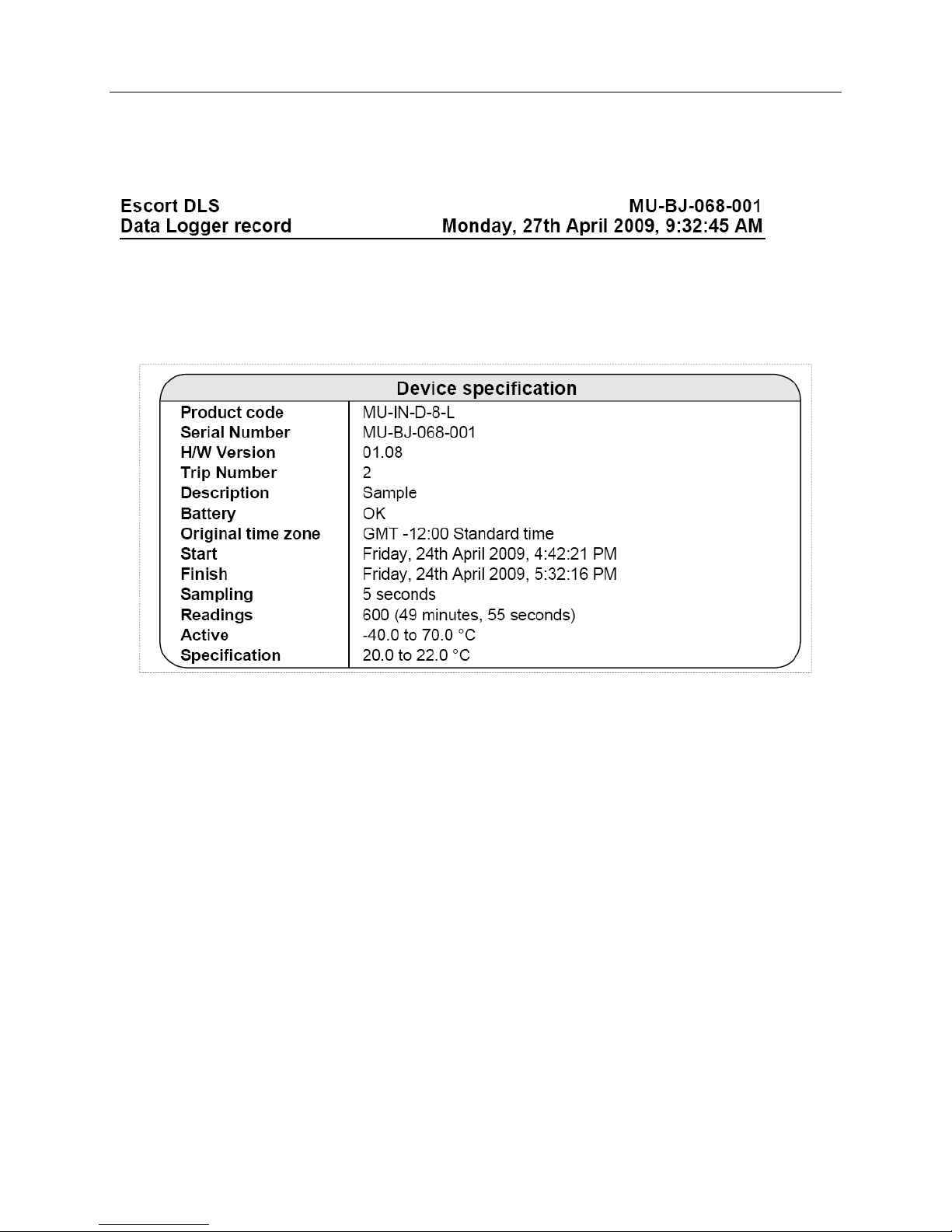

Device specification
Device specification part includes:
Product Code
Serial Number of the logger
Hardware version – this is actually firmware version
Description string programmed to the logger by Console Pro
Battery status last measured by the logger before it has been connected to PC
Time Zone and daylight savings programmed to the logger
Date / Time when logging trip started
Date / Time when logging trip finished
Current number of readings and total duration of the trip
Logger temperature range
Alarm limits programmed to the logger

iMiniPlus PDF Logger User Guide v2.0
- 7 -

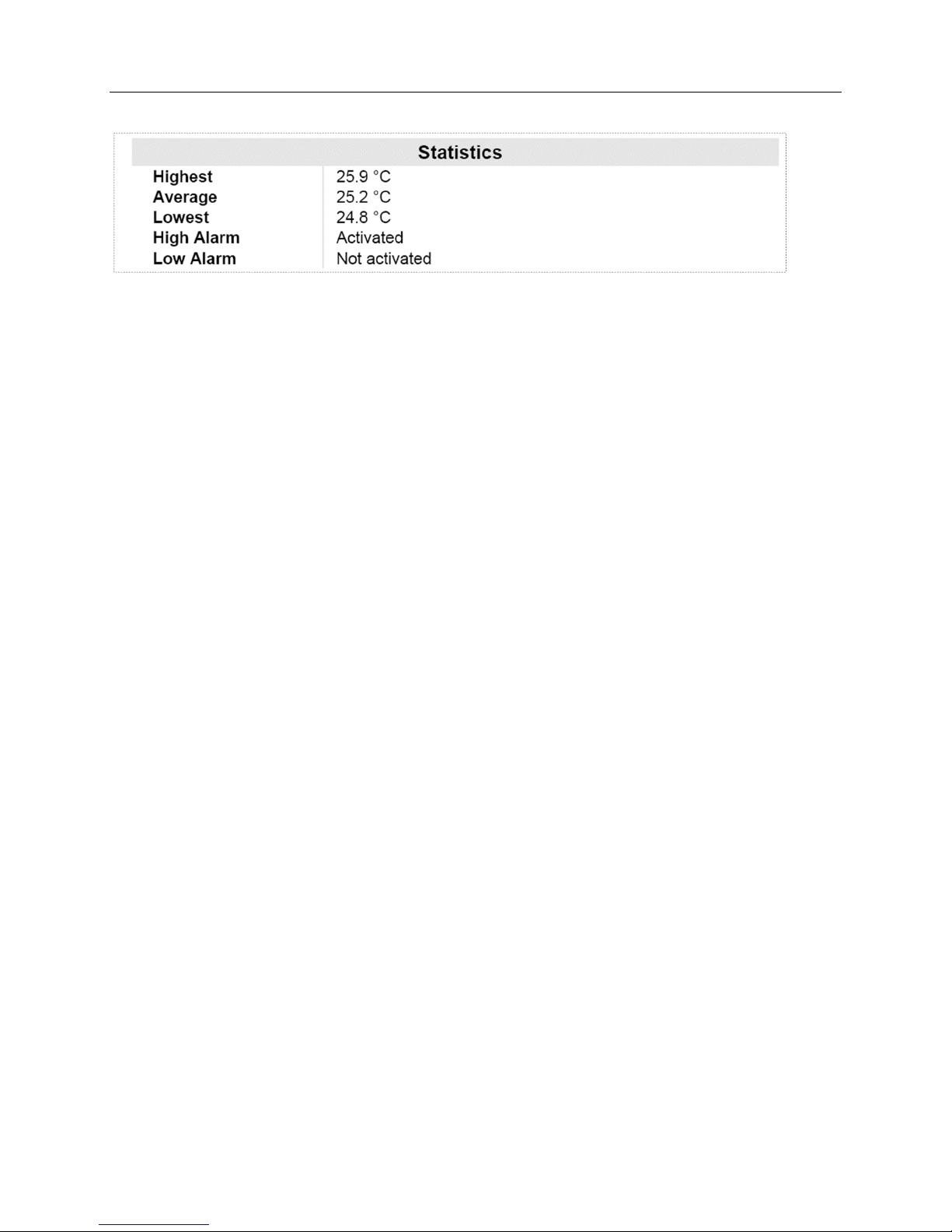

Statistics
Statistics part includes:
Highest temperature reading for the current trip
Average temperature reading for the current trip.
Please note: if the logger is configured for continuous logging, logger memory is getting overwritten and logger
only holds the last 8048 readings. Logger computes average that includes all readings even the ones already
overwritten. Console Pro computes average based on readings retrieved from logger memory and result may
be different.
Lowest temperature reading for the current trip
High Alarm status
Low Alarm status
Both High and Low Alarm can have the following status:
o Disabled – Alarm was not enabled when logger was programmed
o Activated – Alarm has been programmed and triggered
o Not activated – Alarm was programmed but has not been triggered
Record

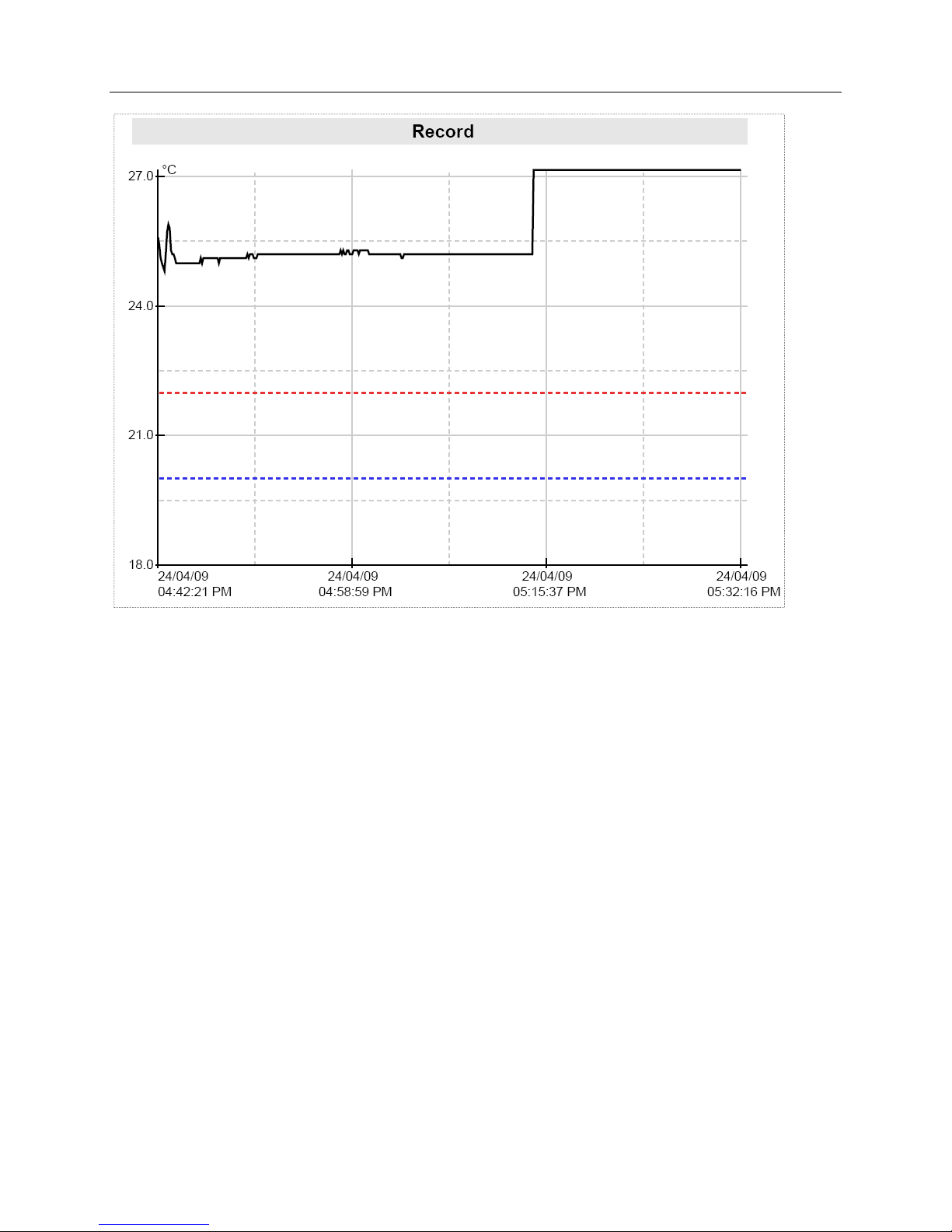

The picture below is an example of a graph section in a report of the logging trip with High Alarm set to 22 °C Low
Alarm set to 20 °C and Catastrophe Alarms disabled. Note that only two coloured dashed lines are displayed for
primary alarm limits.

iMiniPlus PDF Logger User Guide v2.0
- 8 -
The picture below is a graph report of the logging trip with High Alarm set to 22 °C Low Alarm set to 20 °C, High
Catastrophe Alarm set to +60 °C Low Catastrophe Alarm set to -20 °C. Note that the graph contains coloured
dashed lines for primary alarm limits and solid coloured lines for catastrophe alarm limits. Note that the numerical
values of the alarm limits are not shown on a graph. “Specification” field of “Device Specification” section
contains information of High and Low Alarm settings. Numerical information about Catastrophe Alarm limits is
not available in PDF report.

iMiniPlus PDF Logger User Guide v2.0
- 9 -
This part of the report is a graph of readings for the current trip.
This part of the report can be disabled when programming.
You can change date display format to display month first by programming logger.
Date and Time is displayed along the X axis.
Temperature values are displayed up the Y axis.
If Alarms are disabled Alarm limits are not displayed on the graph

iMiniPlus PDF Logger User Guide v2.0
- 10 -
Graph Legend
Symbol Meaning
Logger readings
High Alarm Limit
Low Alarm Limit
High Catastrophe Alarm Limit
Low Catastrophe Alarm Limit
Marked reading
Out of specifications
Out of specification is a report of how long the logger spent outside of alarm limits
This part of the report can be disabled when programming
Each line in this report can be read as:” Logger has spent 49 minutes and 40 seconds between 25 °C and 25.9
°C”, in this case the value of 1 degree per report line is configured by programmable parameter named
“Increment”.
Note: if Fahrenheit temperature unit scale is selected, the accuracy of “Out of specification” report summary
increment limits are ±0.1°F due to the complexity of conversion between Fahrenheit and Celsius. The same report
produced by Console Pro may differ from PDF report produced by the logger in term of temperature by ±0.1°F.
Duration of out of specification and the list of readings will read the same.

iMiniPlus PDF Logger User Guide v2.0
- 11 -

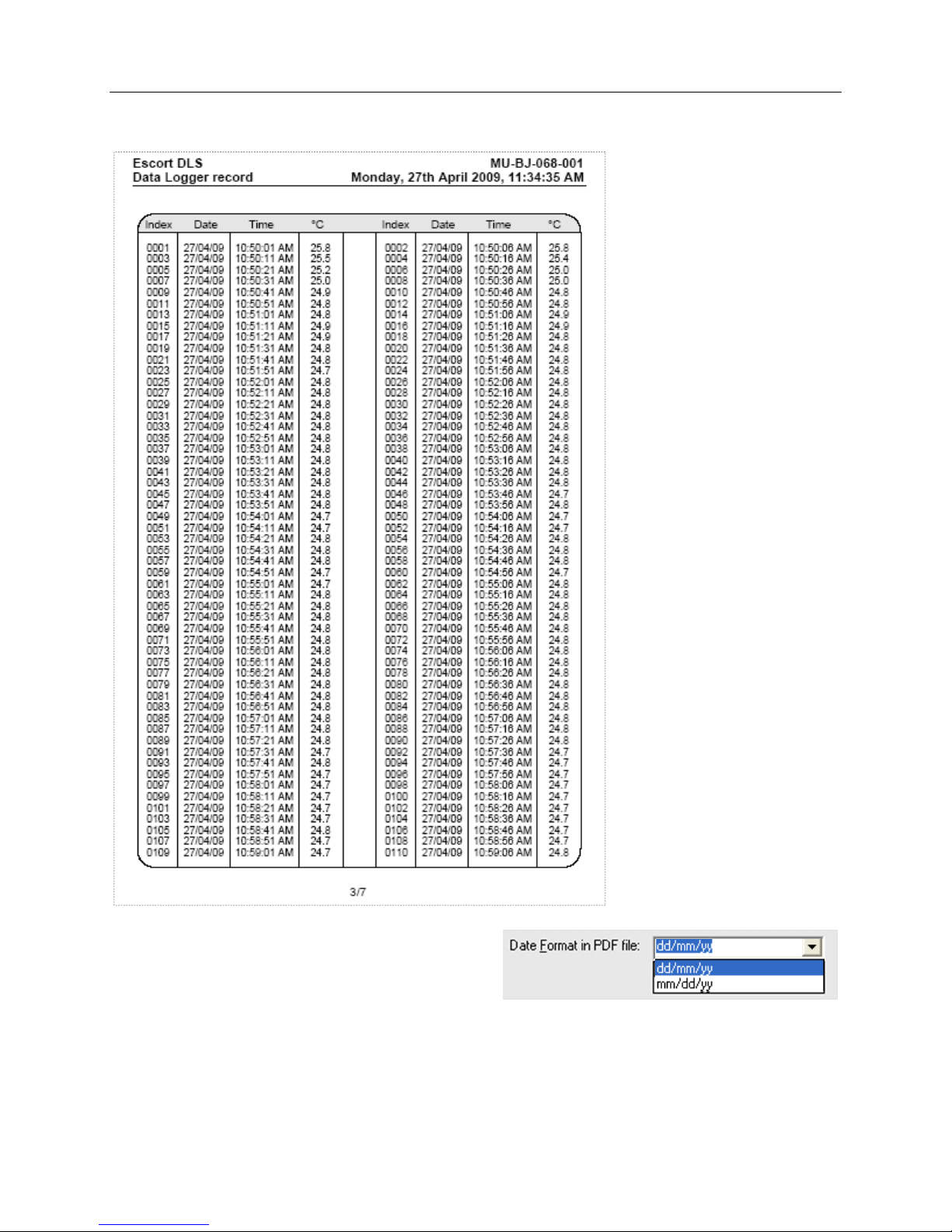

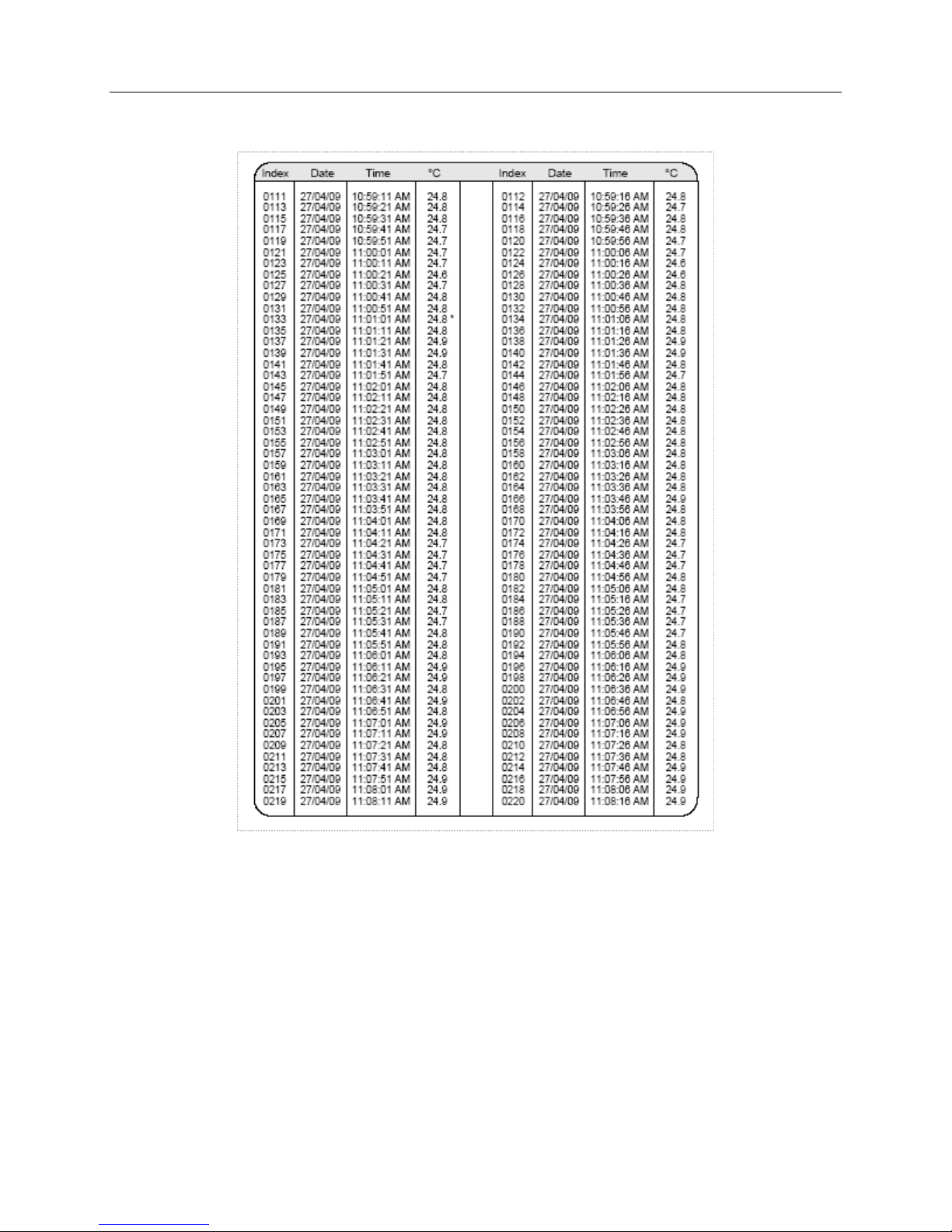

List of readings
This part of the report always has two columns.
This part of the report can be disabled when programming
You can change date display format to display month first by programming logger
Marked readings are displayed with asterisk sign.
If logger has full 8048 readings, the list of readings will be 73 pages long.

iMiniPlus PDF Logger User Guide v2.0
- 12 -
8 Connecting logger to PC
You need to install Console Pro (please download from
www.cryopak.com
) in order to program iMiniPlus PDF.
Please refer to iMiniPlus Logger User guide for information on Console Pro installation. This software runs in
Microsoft Windows only.

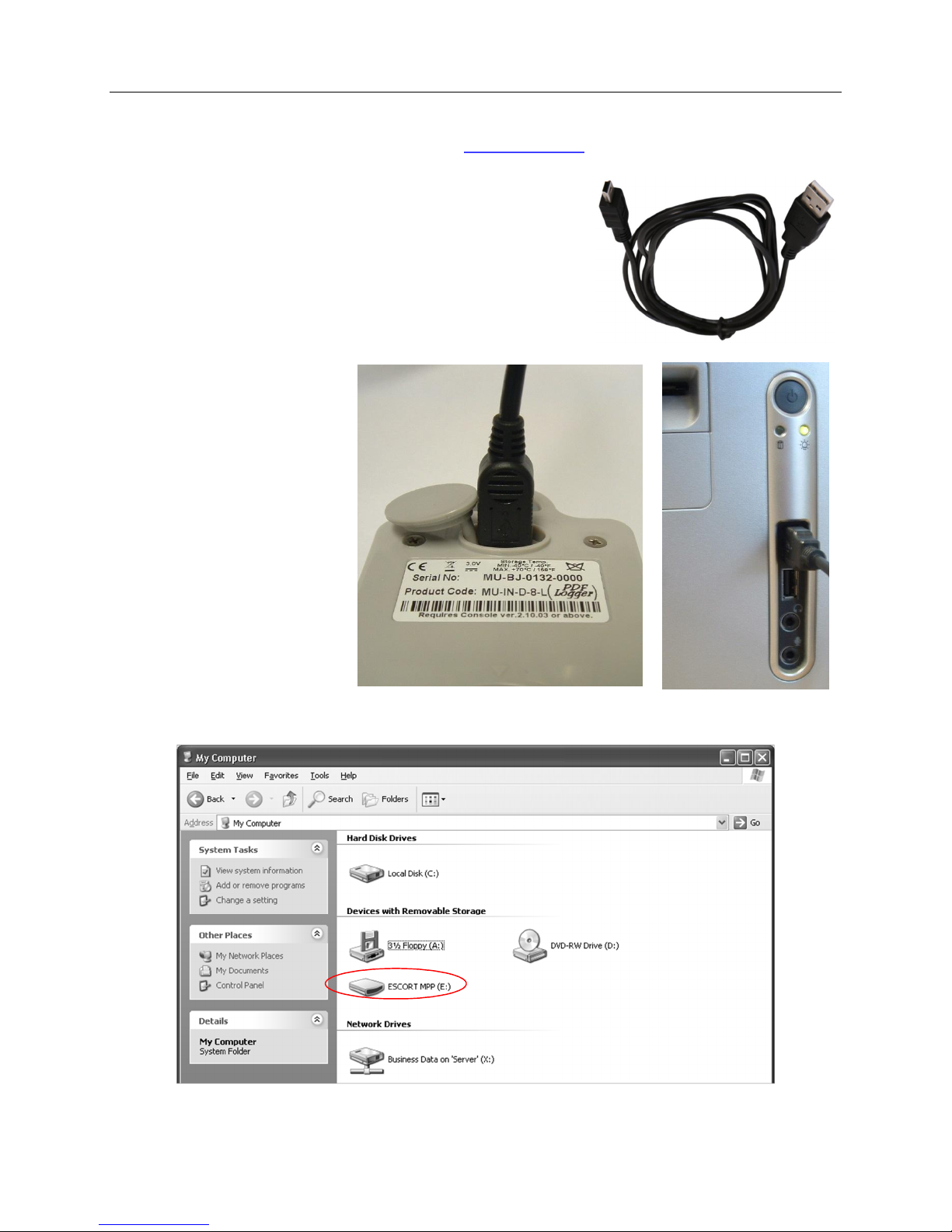

Second step is unpacking the logger. You will find a USB cable in the box
with the logger.
The cable has two different ends. The smaller one is type Mini B and the
bigger one is type A. Connect USB cable with Mini B (smaller) connector
to the logger and A size to PC or laptop computer as illustrated below.
Simply connect the logger to your
PC and wait until the Operating
System installs device drivers.
Please allow Windows sufficient
time to install the device. Please do
not connect multiple loggers at the
same time since it may cause
unexpected behavior.

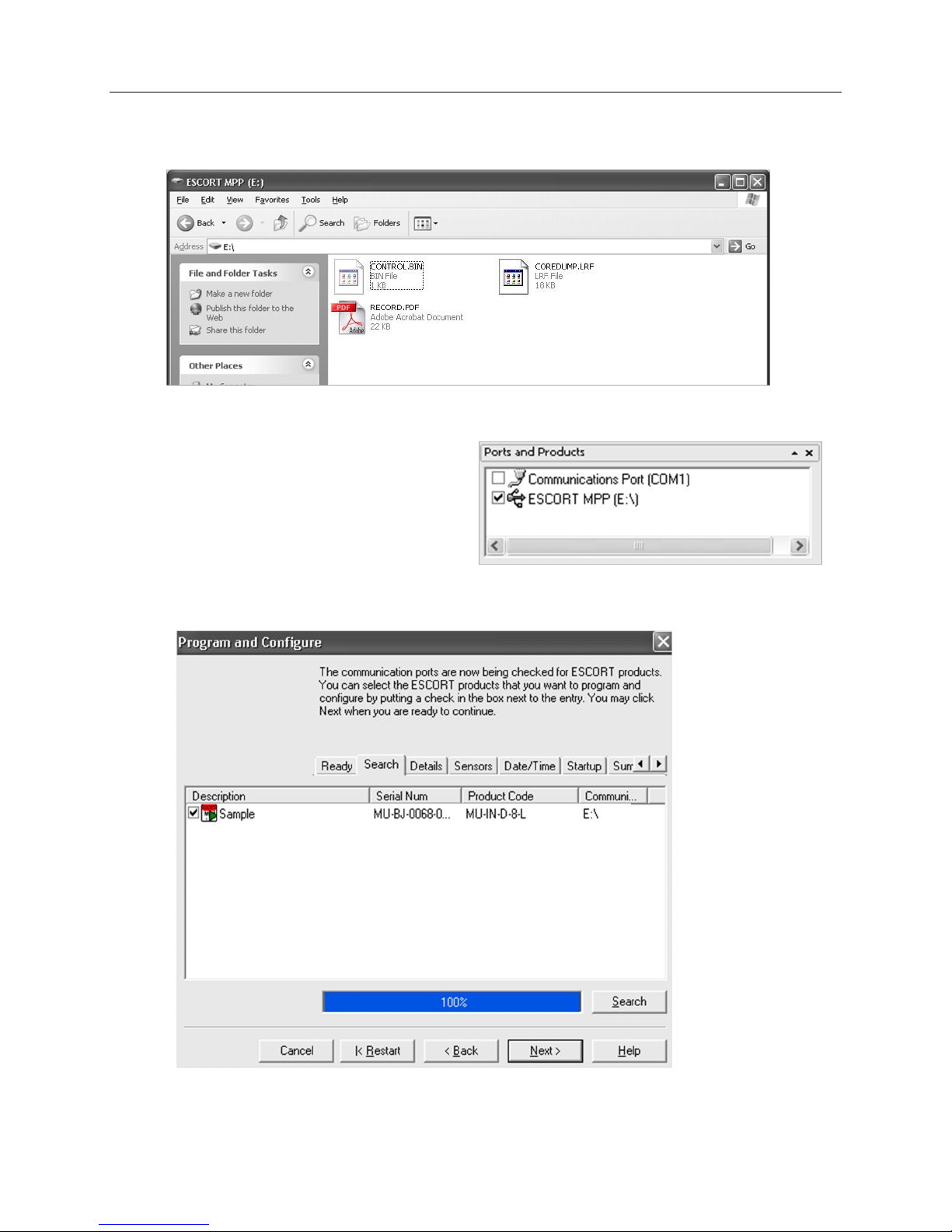

Once the device is installed, you can
see the logger as External
Removable Drive named MPP in
“My Computer” and in Console Pro.

iMiniPlus PDF Logger User Guide v2.0
- 13 -
9 Programming logger with Console Pro
You have to use Console Pro Professional version
2.12.07 or later to program the logger.
Check this check box and click on “Program and
Configure” button on the toolbar.
Program Wizard should start. Then click “Next”. Logger should be recognized and displayed.
Inside this drive you can see the following:

iMiniPlus PDF Logger User Guide v2.0
- 14 -
9.1 Customizing PDF report and changing details
Click on “Next” button. You
can see editable
“Description” field and
options for customizing PDF
report:
You can customise PDF
report generated by the
logger, by checking or un
checking these boxes.
If you check all boxes, the
logger will generate a full
report that can be several
pages long depending on the
number of readings.
If you uncheck “Create PDF
file” checkbox, the logger
will not generate PDF report
at all. You may need this
option to prevent unwanted,
unauthorized or incidental
access to the data from the
logger without Software.
If you uncheck
“Show summary in
PDF file” the logger
will not generate the
section of the report
that summarizes alarm
violations of the logging trip as
shown below:
If you uncheck “Show Graph in
PDF” the logger will not
generate the graph as shown
below:

iMiniPlus PDF Logger User Guide v2.0
- 15 -
If you uncheck “Show list of readings in PDF file”, the logger will not generate the list of readings report as shown
below:
You can configure the logger to display date in month /
day / year or day / month / year format by choosing one
option from drop down box on this tab as shown below:
9.2 Programming password
The iMiniPlus PDF Logger supports a password option that, when enabled, results in users being required to provide
the correct password to gain further access to the iMiniPlus PDF Logger. When the password option is enabled, a
window similar to the following picture will be displayed allowing the user to enter the correct password.

iMiniPlus PDF Logger User Guide v2.0
- 16 -
The Program and Configure process will only continue successfully if the
correct password is supplied by the user. Passwords are digits only, up to 4
characters.
You can enter a password to safeguard your logger from unauthorized
tampering. Make sure that you keep a note of your password and logger
serial number in a safe place. If you lose or forget the password, the logger
will have to be returned to your nearest distributor or Cryopak to restore
default password.
Change Password – if you have password protected the iMiniPlus PDF
Logger or want to add a password for the first time you can do this here.
Protect program settings - Tick this option if you want to protect your
programming settings for the current logger.
Protect retrieval of readings- Tick this option to disallow viewing of data
from the current logger without a password.
After complete the password section, click OK
Select the Next button or Sensors tab.
9.3 Configure Sensors and Alarm Settings
Sensors Tab – this displays the
sensor information some of which
can be changed by using Configure
Sensor(s) and others that remain
fixed i.e. range -40C to 70C. The
description “Internal” refers to the
type of sensor as opposed to
“External” which will display on the
external sensor model.
Configure Sensor(s)… – click on this
button to set up the alarm and LCD
display parameters.

iMiniPlus PDF Logger User Guide v2.0
- 17 -
9.3.1 Specification and Alarm
Raise alarm on below lower spec readings – tick this box if you want to activate the low alarm and select the value
in the box immediately to the right. Note if the lower spec value is 0C, then the alarm is triggered at -0.1C, not
0.0C as this value is considered within specification.
Raise alarm on above upper spec readings – tick this box if you want to activate the high alarm and select the
value in the box immediately to the right. Note if the upper spec value is 50C, then the alarm is triggered at 50.1C,
not 50.0C as this value is considered within specification.
Increment - the grouping size used for listing out-of-specification readings.
Alarm Type
This feature allows the user to specify the conditions that will trigger an alarm.
Standard Alarm
Number of consecutive out of specification readings – the alarm is triggered if the readings are consecutively over
or under the specified threshold. For instance, if the upper spec is 50C and the value for the number of consecutive
out-of-spec readings is 3 and the logging interval is 10minutes, the readings will need to be in excess of 50°C for 30
minutes before the alarm is triggered. If the readings fluctuate outside upper and lower threshold temperatures,
the same rule applies (providing the appropriate “raise alarm” box is ticked). Once the reading(s) return inside alarm
limits, the consecutive alarm is reset.
Total number of out of specification readings (cumulative) – the alarm is triggered if the total number of out of
spec readings equals or exceeds the entered value. In this case the alarm is NOT reset if readings return to within
the specified parameters.
Do not set the Total number of out-of-spec readings value to be less than the Consecutive out-of-spec readings as this
will mean that the Consecutive out-of-spec readings alarm will never be triggered.
Degree-Minutes Alarm (Integrator Alarm)
The Degree-Minutes Alarm is a special feature that
“integrates” temperature and time parameters into one
value.
Total number of degree-minutes below specs exceeds -
the alarm is triggered when the total number of
temperature degrees’ times the minute’s duration below
the low alarm spec is greater than the value entered.
Total number of degree-minutes above specs exceeds -
the alarm is triggered when the total number of
temperature degrees’ times the minute’s duration above
the upper alarm spec is greater than the value entered.
Catastrophe Alarm
This alarm is always additional to the Standard and
Degree-Minute alarms and there is no delay. Do not set
Catastrophe Alarm inside normal alarm limits because other alarms will never be triggered.
Instantly raise alarm on readings below - tick this box if you want to immediately trigger the low alarm and select
the value in the box immediately to the right. Note if the lower spec value is 0 °C, then the alarm is triggered at -0.1
°C, not 0.0 C as this value is considered within specification.

iMiniPlus PDF Logger User Guide v2.0
- 18 -
Instantly raise alarm on readings above - tick this box if you want to immediately trigger the high alarm and select
the value in the box immediately to the right. Note if the upper spec value is 50 °C, then the alarm is triggered at
50.1 °C, not 50.0 °C as this value is considered within specification.
The table below demonstrates arbitrary data from an iMiniPlus PDF Logger and how different alarm sources
will be triggered. This is complicated scenario for alarm settings based on:
Upper spec alarm: +20C
Number of Consecutive out of spec readings: 4
Total number of out of spec readings: 5
Total number of degree-minutes above specs exceeds: 8
Instantly raise alarm on readings above: +23C
Time [min] T [ ºC] Consecutive Total Integrator Catastrophe
0 19 OFF / 0 OFF / 0 OFF/0 OFF
1 20 OFF / 0 OFF / 0 OFF/0 OFF
2 23 OFF / 1 OFF / 1 OFF/3 ALARM ON
3 21 OFF / 2 OFF / 2 OFF/4 ALARM ON
4 19 OFF / 0 OFF / 2 OFF/4 ALARM ON
5 21 OFF / 1 OFF / 3 OFF/5 ALARM ON
6 22 OFF / 2 OFF / 4 OFF/7 ALARM ON
7 24 OFF / 3 OFF /5 ALARM ON /11 ALARM ON
8 22 OFF / 4 ALARM ON /6 ALARM ON /13 ALARM ON
9 21 ALARM ON /5 ALARM ON /7 ALARM ON /14 ALARM ON
10 19 ALARM ON/0 ALARM ON /7 ALARM ON /14 ALARM ON
9.3.2 LCD Display
The iMiniPlus PDF Logger LCD can be configured to display
or not display the temperature information.
Enable Display
Tick this box if you want to enable the display to show the
temperature readings and statistics.
If the box is un-ticked, all other features will be grayed out.
The iMiniPlus LCD will show “d-off” instead of a
temperature value. Additionally, you will not be able to
scroll through the highest lowest, average and out of spec
readings. The word “LATEST” will flash and if any alarm
had been triggered, “HIGH ALARM” or “LOW ALARM”
will be displayed.
The bookmarking function can still be used when the
display is disabled.
When the iMiniPlus is stopped using the Stop button or it
stops because it has reached the end of a logging trip, the
words “d-off” will disappear and the word “STOPPED” will appear.

iMiniPlus PDF Logger User Guide v2.0
- 19 -
Display Units of measurement
You can select the LCD to display the temperature in Celsius or Fahrenheit.
Display change rate
You can select a frequency or 1, 2, 3 or 4 seconds that the LCD scrolls between the Highest, Lowest, Average and
out-of-spec information. Note that the “LATEST” reading will only change at a frequency equal to the logging
interval. So if the iMiniPlus is programmed to log every 1 minute that will be the rate at which the “LATEST”
reading changes.
9.4 Checking the time clock
There may be times when the time clock on the iMiniPlus
PDF Logger may alter. This is the case when the battery is
removed and not replaced within 30seconds.
If you have removed batteries from the iMiniPlus PDF
Logger for any length of time, make sure you either select:
Change to the date and time on this computer
(default)
Set to
The software will always default to the “Change to the
date and time on this computer.” option.
9.5 Setting the Start, Stop and logging duration
9.5.1 Duration of trip, at least
If you are using the iMiniPlus PDF Logger to record the
temperature of a trip (shipment) for instance, you have the
option of setting up the parameters yourself or let the Console
Pro software calculate these automatically for you.
The software takes the total memory available (8048 readings)
and calculates the maximum interval between each reading
and the finish log trip time and date based on the trip duration
you select. You can select 1 day to 60day trip duration this way.
You will notice that each time you select trip duration, the
logging interval will change.
9.5.2 Interval between each reading
This is sometimes called the logging interval or logging rate and is described as the period of time between each
logged reading. If the interval is a low number, then the iMiniPlus memory will be filled quickly compared to a high
number. If you want to record acute changes in temperature over short periods of time, it is best to select a low
number or faster logging interval. If you want a logger to record readings over a long period of time, then you will
be best advised to use a lower logging interval or high number.
The fastest logging interval the iMiniPlus PDF Logger can log at is every 5 seconds.
The slowest logging interval the iMiniPlus PDF Logger can log is every 18 hours.
Date/Time Tab -
Check that the date
and time is correct.
Startup Tab - Configure the start,
recording and stop conditions.

iMiniPlus PDF Logger User Guide v2.0
- 20 -
Table of contents
Other Escort Data Logger manuals
Popular Data Logger manuals by other brands

Hioki
Hioki LR8431-20 Measurement guide

Xylem
Xylem McDonnell & Miller GUARD DOG 750-MT-120 instruction manual

ETI
ETI ThermaData WiFi quick start guide

Computech
Computech DataMaxx Pro Dash 8 instruction manual

sauermann
sauermann KNT 320 user manual

Delta
Delta PPM DC1 100 Series Operation and installation manual
