ESP MAGPRO-WSBIP65 User manual

MAGPRO-WSBIP65
ATTENTION: MAGPRO-WSBIP65 must be connected only to fire panels, which support MAGPRO
communication protocol!
General Description
MAGPRO-WSBIP65 is a waterproof protected deep base specially designed for outdoor installations of addressable sounders
MAGPRO series. The deep base is suitable for wall mounting in applications in aggressive environments requiring IP65
protection of the devices.
MAGPRO-WSBIP65 comes in a kit with a solid rubber gasket, o-ring sealant and IP65 rated cable glands.
MAGPRO-DB standard base is mounted with screws.
Installation
1. Remove the MAGPRO-DB standard base from the deep base body.
2. Remove the knockouts and place the two cable glands from the kit.
3. Fix the deep base and the solid gasket to the mounting surface.
4. Run the loop wires through the cable glands.
5. Mount the MAGPRO-DB standard base back in place as observe the short mark on its narrow side to align with the short
mark of the deep base. Then fix the standard base to the deep base body with the screws from the kit.
6. Connect the loop wires to the standard base terminals according the connection diagram. Please, also refer to the
installation manual of the mounted sounder to perform a correct wiring - the electrical connection may differ according that the
sounder is with or without built-in isolator module.
Technical Specifications
2
Installation wires.........3mm
Material (plastic), color . . . . ABS, red
Operation temperature . . . . -10°C ÷ +60°C
Relative humidity . . . . . . . . ≤93% @ +40°C
Weight . . . . . . . . . . . . . . . . ~140.5g
INSTALLATION INSTRUCTIONS
Waterproof IP65 deep base
for use with sounder models :
MAGPRO-WS
MAGPRO-WSS
MAGPRO-WSS23
18020932; RevA; 01/2018
EN 60529+A1:2004

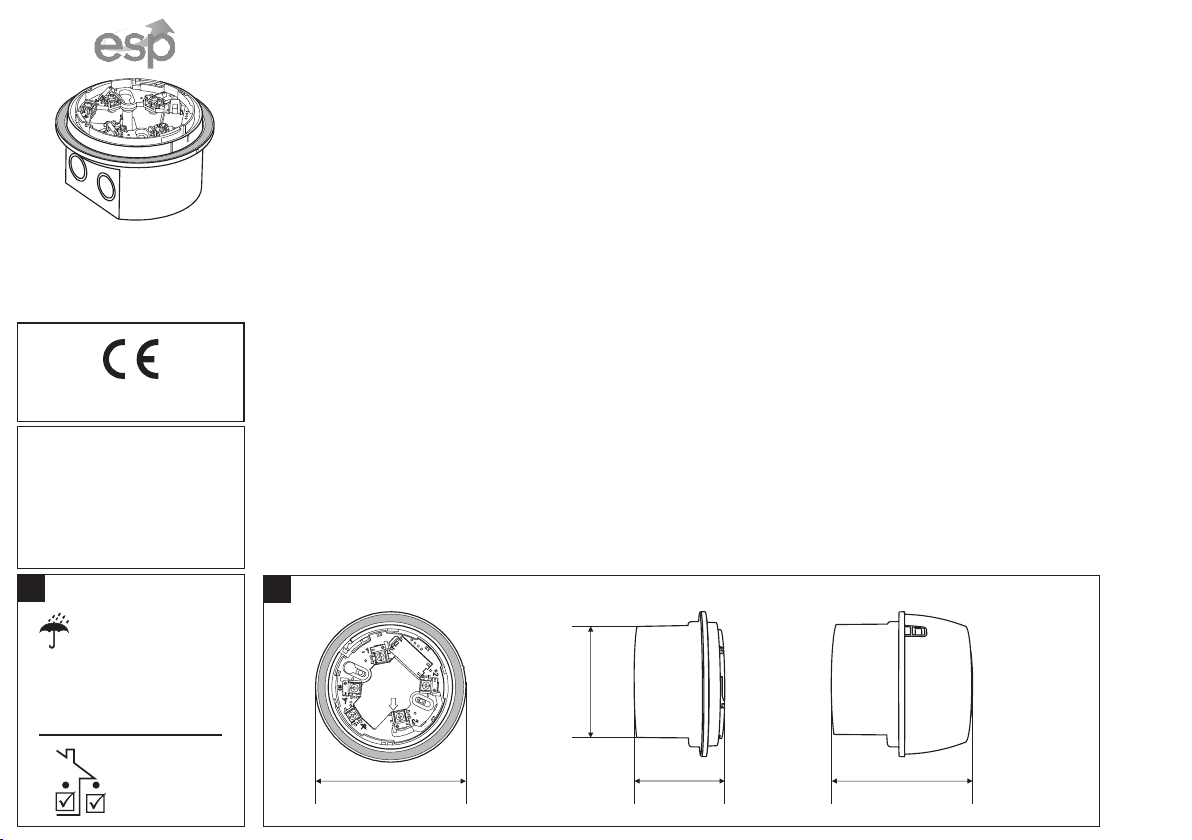

!Dimensions
120mm 68mm
88mm
108mm
With mounted
sounder
Distributor:
Elite Security Products Ltd, Unit 7
Target Park, Shawbank Road Lakeside,
Redditch B98 8YN, UK
http://www.espuk.com
Manufacturer:
Teletek Electronics JSC,
Address: 14A Srebarna Str,
1407 Sofia, Bulgaria
IP65*
Installation
!
Indoor and
Outdoor Use
* With mounted sounder:
- MAGPRO-WS
- MAGPRO-WSS
- MAGPRO-WSS23
The declared IP65 is
achieved only when using
IP65 or higher rated cable
glands!

Structure
(1) - Solid rubber gasket;
(2) - Deep base body;
(3) - Cable glands IP65 (2 pcs.);
(4) - O-ring rubber sealant;
(5) - MAGPRO-DB standard base;
(6) - Screws for fixing the standard base to the deep base (2 pcs.).
1Surface Mounting 2
Remove the knockouts of the cable
gland holes.
Place the back box in upright position;
Mount cable glands with IP65 into the
holes and tighten the nuts underneath.
Connection Diagram
3
Attention:
The o-ring sealant must be
correctly fitted in the channel
to provide the declared IP65
rating!
Mount the deep base to the wall placing the solid rubber gasket behind.
Attention:
Do not drill holes in the solid
rubber gasket in advance!
Place the gasket behind the
deep base and fix them
together to the installation
surface.
ATTENTION: Disconnect the loop power before
installing the base!
Fire Panel
Earth
RI
+Loop
-Loop
-Loop
+Loop
MAGPRO-DB
L
D
L
D
RI - Remote Indicator
+Loop - Positive loop wire
-Loop - Negative loop wire
Earth - Earth point
MAGPRO-DB
