ESPRIT Elite Voltario T30 User manual

Esprit Tech (1) 321.729.4287
P.O. Box 360815 [e-mail]
Melbourne, FL https://www.espritmodel.com
32936, USA
USER MANUAL
FEATURES
Voltario combines touch switch functionality and a telemetry sensor in a single device. It uses advanced
technology to reach minimum size with an enhanced set of features.
Voltario T30 is designed to turn on/off the electronics in your model. If you use a dedicated receiver battery,
the Voltario can be used to directly replace a mechanical switch. Specifically in thin glider fuselages or models
equipped with a small BEC circuit, the device will offer great benefits like a small size and receiver battery
monitoring. The device remembers its last operating state, and if the battery is accidentally disconnected, the
Voltario will automatically boot up again as soon as the battery is connected again.
Touch switch function.
Duplex EX, Multiplex MSB and Graupner Hott telemetry support (current, voltage, capacity).
Optional low voltage shutdown.
Remembers the last operating state.
Voltario S30 is designed for monitoring power consumption of a single servo. It offers additional possibility to
set the overcurrent protection shutdown.
Duplex EX, Multiplex MSB and Graupner Hott telemetry support (current, voltage, capacity).
Optional high current shutdown with regeneration.
Programmable overcurrent protection (0.1A - 20A)
Voltario T30
Voltario S30
Dimensions
25x12x5mm
25x12x5mm
Weight incl. cables
9g
4g
Cables
0.5mm2(20AWG)
0.25mm2 (23AWG)
Continuous current
10A
Peak current (2s)
30A
Standby current
80 µA (touch button active)
Operating current
20mA
Operating temperature
-20 –85°C
Supply Voltage
4 –12V
Telemetry
Duplex EX, Multiplex MSB and Graupner Hott
Touch switch support
Yes
No
Overcurrent protection
No
Yes
Selectable touch / mechanical switch/ RC switch
Yes
No
Status LED
Yes (touch button)
No

T30 INSTALLATION
Plug the device between receiver and battery. If you use a BEC, plug the Voltario between battery and the BEC.
Remember, in this case you need remove the red wire from the extension between the Voltario telemetry port
and the receivers telemetry port.
Direct installation (without BEC):
Installation with BEC:

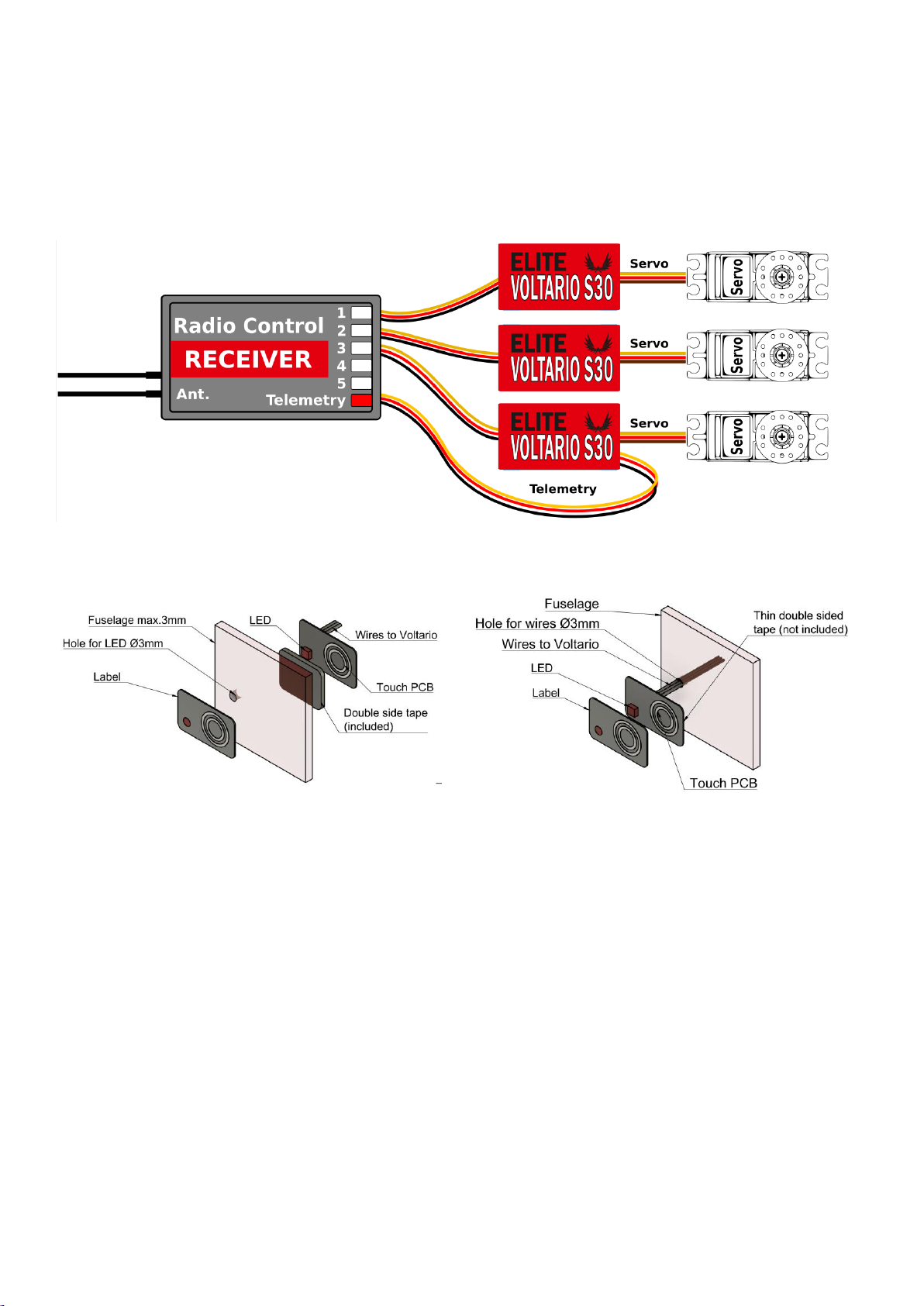

S30 INSTALLATION
Plug the device between receiver output channel and a servo. Voltario S30 works fully autonomously as a
programmable fuse (this function has to be configured first). To view the telemetry data you can link the
Voltario S30 with the receiver telemetry port using a JR-style cable.
If you wish to configure the device using JETIBOX, you must supply the JETIBOX with external voltage since the
red wire is not connected internally inside the Voltario S30.
Installation inside the fuselage.
Installation on top of the fuselage.
TOUCH SWITCH BEHAVIOR
Place the touch button anywhere on your model on the surface made of nonconductive material. You
can place the touch button also inside the fuselage with maximum thickness up to 3mm.
Make the status LED visible from outside the fuselage and put the “touch” sticker on top of the touch
surface.
Connect the receiver battery to the Voltario and briefly touch the button. Status LED should blink once.
If not, please increase the touch sensitivity parameter in the configuration.
Touch and hold the button for about 2 seconds. After the initial blink, the LED will start blinking again.
At this moment, release the button. The main output will be activated:

TELEMETRY AND SETTINGS
The device is compatible with JETIBOX and you can use it for programming. The JETIBOX menu is divided into
three sections:
Actual values –displays the latest telemetry values (current, voltage, capacity, temperature) together
with minimums and maximums.
oIn the Capacity screen, you can press left+right buttons together to reset the measured capacity.
oReset Min/Max - press left+right buttons together to reset all minimums and maximums.
Setting –basic settings of the sensor
oLanguage –you can choose the language of the JETIBOX screen.
oSwitch type (Touch/Standard) –Only Voltario T30. You can specify which type of switch will be
used to the device on and off.
oTouch sensitivity –if the touch switch is used, you can increase its sensitivity by editing this
value. Please note that increasing the sensitivity will allow you to install the Voltario directly
inside thicker fuselages. On the other hand, this will also make the touch sensor more
vulnerable to erroneous inputs.
oCapacity reset –Setting up this parameter will specify at which moment the capacity is reset to
zero. Available options:
Power-On (default) –capacity is reset every time after connecting the battery.
Voltage-Change –capacity is reset after connecting the battery with different voltage (by
15% or more). This way the sensor may distinguish between charged and discharged
battery.
Manual –capacity is never reset automatically.
oShutdown voltage (T30) –you can specify the minimum voltage for safe operation of the
model. If the voltage goes below the specified level for more than 30 seconds, the Voltario will
shut down.
oShutdown current (only S30) –you can specify the maximum allowed current before the
Voltario shuts down the load. By default, after reaching the shutdown current, it takes
approximately 0.5 seconds before the fuse reacts. But the overcurrent shutdown reacts
proportionally faster if the current is higher.
Service –In this menu you can view the device version and reset it to the default factory configuration.

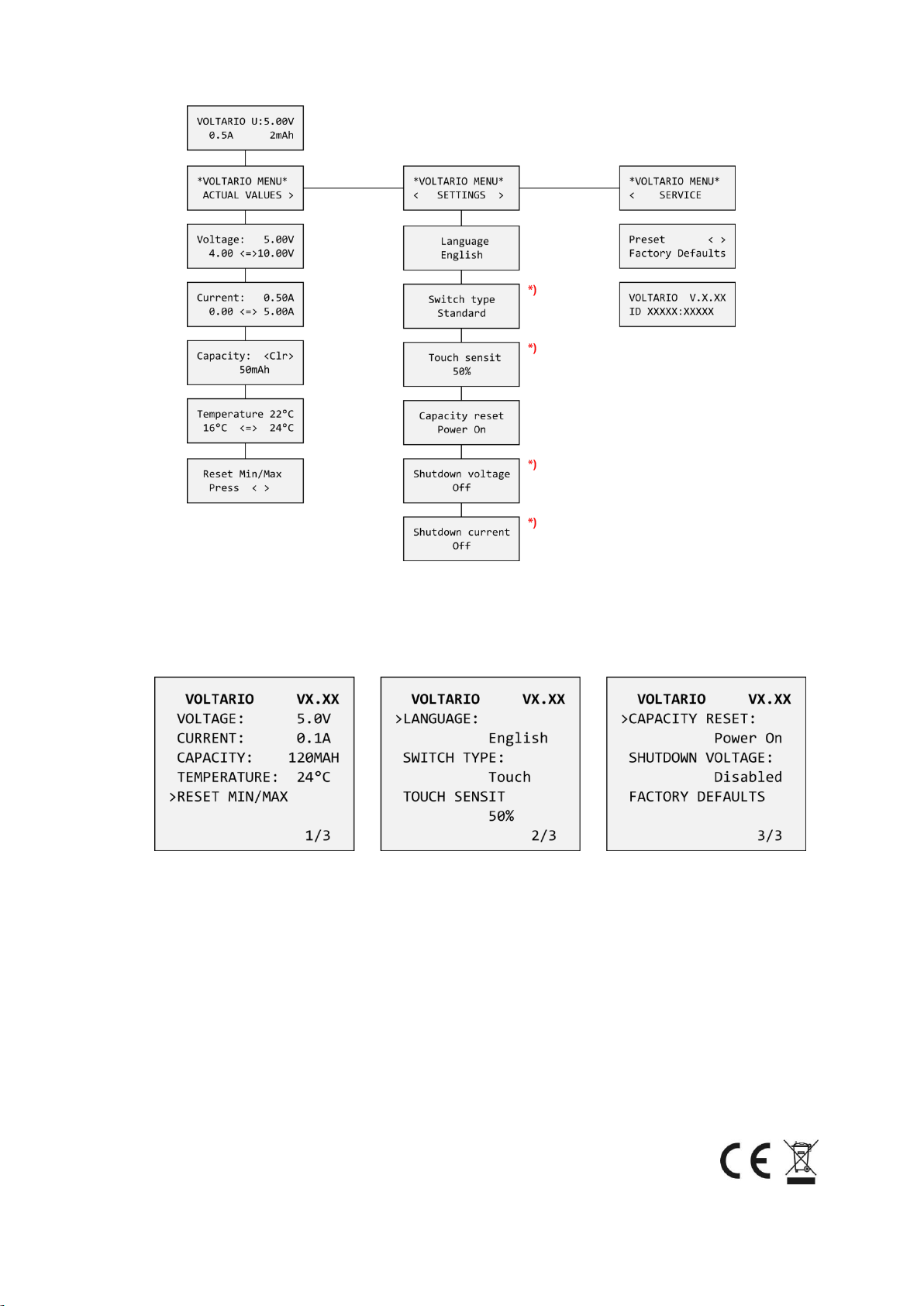

Complete menu structure:
*) The option is not available in all product variants.
Graupner Hott Menu Structure:
Voltario offers telemetry like an “Air-ESC” speed controller.
SAFETY INFORMATION
Operate the Voltario always in dry environment and within the device limits stated in this guide. Never
expose the device to excessive heat or cold.
Do not remove the heat shrink tube from the device and do not try to implement any changes or
modifications. This can lead to a total destruction and to the denial of any warranty claims.
Always check the polarity of the cables. Never inverse the polarity –this could lead to total destruction.
WARRANTY
We grant a warranty of 24 months from the day of purchase under the assumption that they have been
operated in conformity with these instructions at recommended voltages and that they were not damaged
mechanically. Warranty and post warranty service is provided by the manufacturer.
