Pakedge SX-24P16 User manual

QUICK START GUIDE
SX-24P16
Enterprise-Class, Fully Managed 24 Port Gigabit Switch with 16 PoE+ Capable Rear Facing Ports
Version 1.0
pakedgedevice&software inc

2 3
Contents
Switch Overview 3
Preparing to Install the Switch 4
Installation 4
Logging Into the Switch 5
Changing the IP Address of the Switch 6
Pakedge Zone & VLAN Setup 7
Pakedge Zone Wizard 7
Pakedge Zone Template 7
Manually Conguring VLANs 8
Console Into the Switch 10
Resetting IP address through the console 11
Factory defaulting through the console 11
The SX-24P16 switch is a fully managed gigabit switch, designed to address a wide range of
networking needs. This switch provides 16 PoE+ capable ports with the ability to utilize full 802.3at
(30W) PoE+ output on 8 ports simultaneously or full 802.3af (15.4W) PoE on 16 ports simultane-
ously. The SX Series switches are encased in AV like housings to appeal to customers demand for
aesthetics.
The following chart denes the features of the SX-24P16.
*PoE is supplied on a power budget. This means 120W are available for total PoE power on the SX-24P16. A mix of PoE and PoE+
devices may be used at the same time, as long as the total power usage from PoE is under 120W. This allows for 4 devices to be
fully powered using PoE+, or 8 devices to be fully powered using PoE.
Port Speeds 10/100/1000 mbps High Powered PoE Yes
Console Port Yes High Powered PoE Ports* 8
Web GUI Yes SFP Yes
Ethernet Ports 24 SFP Ports 4
PoE Capable Yes Shared SFP Yes
PoE Ports 16
Switch Overview

4 5
Installing the SX-24P16 is similar to installing any other Pakedge switch. If you have installed a
managed switch before, the process will be very similar. The GUI for all of the SX Series switches
will be the same so the conguration steps discussed later in this quick start guide can be used on
any of the switches.
Tools required:
• Philips Screwdriver (if using rack-mount brackets).
• Computer with Ethernet interface and a modern web browser.
• Optional: An integrated “DB-9” port or USB-To-DB9 adapter may be necessary in order to
use the console interface.
• Ethernet Cable.
1. Connect the SX-24P16 to power. The PWR LED will light up and the fans will start.
2. Connect a PC or laptop to any LAN port on the switch.
3. Congure the PC with a static IP address of 192.168.1.10 and subnet mask of
255.255.255.0 (Default Gateway and DNS can be left blank) and then open any browser.
4. In the browser, enter the switch’s default IP address of 192.168.1.205 into the Address Bar
and press <ENTER>.
5. A web page will appear asking you for a Username and Password. The default username is
pakedge and the password is pakedges.
6. Once you have logged into the switch you will have access to the GUI and will be able to

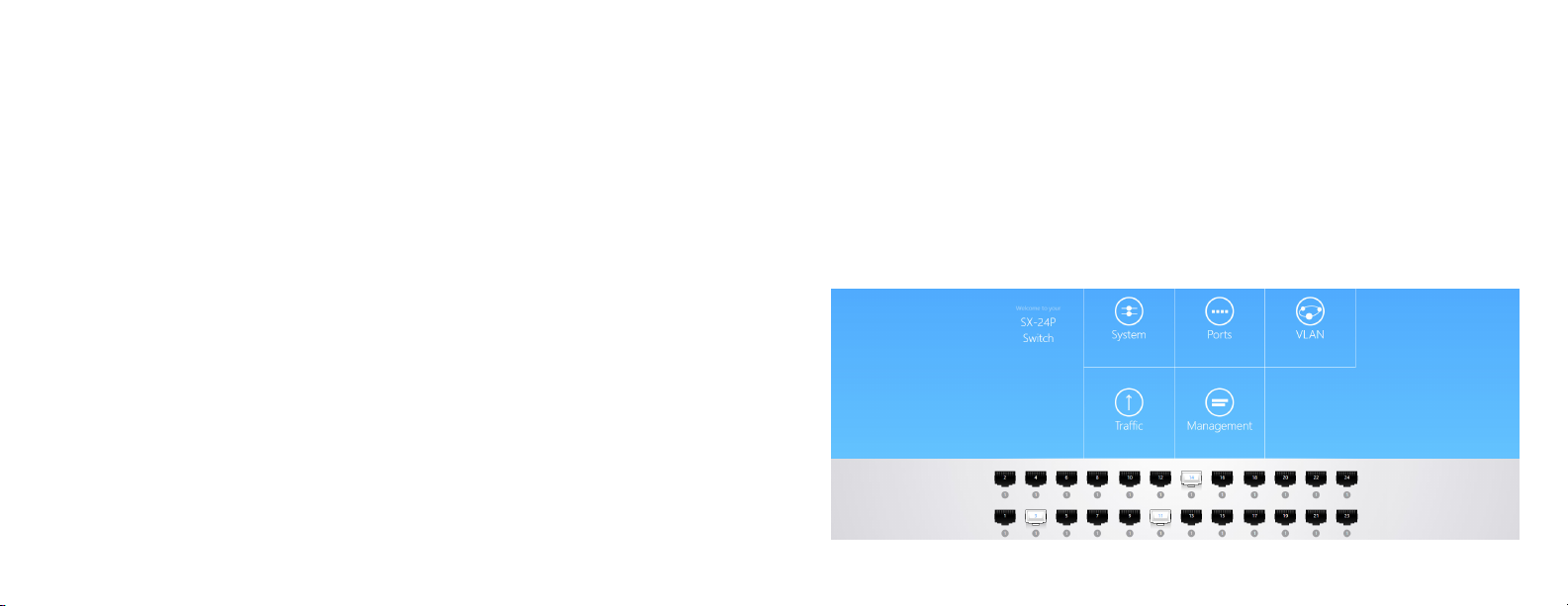

make any changes you wish. The following is an example of the switch dashboard.
Preparing to Install the Switch Logging Into the Switch
Installation
1. Remove the switch from the box.
2. Optional: If mounting the switch in a standard 19” AV rack, attach the rack-mounting
brackets that come with the switch to the sides. If not rack-mounting, ensure that the
switch is physically mounted near power and network connections (i.e, backbone switch or
rewall/router).
3. Connect power to the device.
4. Connect an Ethernet cable from your computer to any LAN port on the switch.
5. You are now ready to congure the switch with an IP address in your network range.

6 7
1. There are two ways to reach the IP Address settings on the switch. From the Dashboard at
the center of the screen or the menu at the top of the page, click “System” and then go to
“System Settings > Basic Settings”.
2. In this section you can enter the switch IP address in the box next to “IP Address”. By
default the switch IP is 192.168.1.205. You will also need to enter the “Subnet Mask” and
“Gateway” settings for your network. By default on a Pakedge network subnet mask is
255.255.255.0 and the Gateway will be 192.168.1.99.
3. Click on “Apply” at the bottom of the page and the switch will be updated with the new IP
settings. If the IP address you have changed the switch to is in the same IP subnet range
you will be redirected automatically. Otherwise you will need to update your computers IP
settings to match the new IP of the switch in order to access it again.
The Pakedge Zone wizard oers the simplest way to individually congure all switch ports with the
specic VLAN settings required for the network. The wizard provides a step-by-step guide through
the conguration process.
Changing the IP Address of the Switch Pakedge Zone & VLAN Setup
New to the SX Series switches are the Pakedge Zones. Pakedge Zones provide a simple way to
congure the switch to use the specialized VLAN settings of a Pakedge network.
There are two options for conguring the switch using Pakedge Zones.
Pakedge Zone Wizard
Pakedge Zone Template
The Pakedge Zone Template option provides a quick setup option based on several
pre-dened Pakedge Zone port congurations. Simply select a Template and apply the congura-
tion.

89
1. To manually add and congure VLAN settings go to VLAN>Conguration>Advanced.
2. Under the “Manage VLANs” section you can click “Add” to input a new VLAN ID number
and name.
Then click “Apply” to save that VLAN to the switch. VLAN ID’s 1 - 6 are color coded to
match the Pakedge Zones these are used for.
3. To congure ports as dierent VLANs, use the “Port Assignments” section.
4. To set ports with the ability to only access a single VLAN, click the VLAN you want to use
under “Access”.
Then click on the ports above you wish to set with that VLAN. Once you have the ports
you want selected, click Apply at the bottom of the page to save those settings.
5. To set ports in Hybrid mode (one Default VLAN and multiple Tagged VLANs), rst click the
“+” symbol under “Hybrid”. You will then be in the Hybrid prole conguration mode.
6. First select the Untagged Default VLAN to be used on the port (normally VLAN1).
7. Next select one or more other VLANs to be used for tagged VLAN trac.
8. Lastly, click on the box under “Assigned Port” and then click on one of the ports above to
set this prole on a switch port.
9. Once the changes have been made you can click “Apply” at the bottom of the page to
save the settings.
Manually Conguring VLANs

10 11
The SX Series switches have a console port to serve as a back door entrance to the switch. This
can be benecial in case the switch is not functioning properly or if the incorrect IP address was
congured. To console into the switch please take the following steps:
1. Connect the console cable to the console port on the back of the switch and then connect
the other end to your computer. You may use a USB to serial adapter in case your com-
puter doesn’t have a serial port. You will also need to have either PuTTY or Terra Term to
connect to the switch’s command line console.
2. Open PuTTY or Terra Term and enter the COM port that your computer is using and then
set the following settings:
Baud Rate: 115200
Character Size: 8
Parity Code: None
Stop Bits: 1
Flow Control: None
The following is an example if you are using putty:
3. If you are using putty you need to go to Session on the left hand side and select Serial for
the connection type and then click open to actually initiate the console session.
4. Once the connection is established you should black terminal window
5. You now have console access into the switch.
Console Into the Switch
You can reset the IP address of the switch through the console. This can be helpful in case of miss-
conguration. To do this you will rst need to console into the switch as previously described and
then take the following steps:
1. Type show ip and press enter to see the current IP address
2. Type congure terminal and press enter
3. Type ip address 192.168.1.205 255.255.255.0 and press enter
4. The switch should now be accessible on its default IP address
Resetting IP address through the console
Factory defaulting through the console
You can factory default the switch through console in case it is not functioning prop-
erly. To do this you will rst need to console into the switch as previously described
and take the following steps:
1. Type erase startup-cong and press enter
2. Type reload and press enter
3. The switch will now reboot and come back up at default settings
