Etac Molift Nomad Cart User manual

Molift Nomad Cart
EN - User manual
BM15401 Rev. B 2014-08-07

2
Molift Nomad Cart / www.etac.com

3
Molift Nomad Cart / www.etac.com
Content
General.....................................................4
Conditions for Use ..................................4
Warranty ................................................4
Molift Nomad Cart....................................5
Cart components....................................5
About Nomad Cart.................................5
Technical Data...........................................6
Product identification..............................6
Assembly ..................................................7
Basket ....................................................7
Permanent mounted basket (optional) .....7
Checklist after assembly..........................7
How to use Nomad Cart ...........................8
Connecting Nomad to rail
with extension arm .................................8
Accessories ...............................................9
Battery charger .......................................9
Extension arm.........................................9
Maintenance ...........................................10
Cleaning and disinfection ......................10
Recycling ..............................................10
Spare Parts ...........................................10
Troubleshooting ...................................... 11
Important
This User Manual contains important safety
instructions and information regarding the use of
this product and accessories.
Warning!
This symbol indicates important
information related to safety.
Follow these instructions carefully.
Read User Manual before use!
It is important to fully understand
the content of the user manual
before attempting to use the
equipment.
Visit www.etac.com for download of documenta-
tion to ensure you have the latest version.
English Manual

4
Molift Nomad Cart / www.etac.com
General
Conditions for Use
Only for transportation of Molift Nomad lifter and accessories. Only trained personnel are allowed to
use the equipment and accessories mentioned in this user manual.
Modifications and use of components made by other manufacturers.
We recommend only using Etac Molift components and spare parts. Etac is not responsible for warranty
if any modifications are made to the product. Etac shall not be liable for faults or accidents that can
occur when using components made by other manufacturers.
Only certified personnel are allowed to perform service or repair.
Warranty
2-year warranty against defects in workmanship and materials of our products.
For Terms and conditions, see www.etac.com

5
Molift Nomad Cart / www.etac.com
Molift Nomad Cart
Extension Arm
holder
Push handle
Castor
Battery
charger
mounting
plate
Product label
Extension arm
cup
Upper basket
Lower basket
Molift Nomad Cart is an accessory for the trans-
portable Molift Nomad ceiling hoist. The Nomad
Cart is intended for storing, transportation and
charging (optional) of the Molift Nomad ceiling
hoist.
The cart is made of steel, has 4 castors, 2 baskets
for storing of Nomad ceiling hoist and slings.
It also has an holder for Nomad Extension arm
(accessory).
It is ideal for hospital and institutional care settings
but can also be used in privates homes.
About Molift Nomad Cart
Molift Nomad Cart components:

6
Molift Nomad Cart / www.etac.com
Product label
The Product labels barcode contain article number
and EAN code
NOMAD CART 7071865 000064
Etac AS, Etac Supply Gjøvik
Hadelandsveien 2
N-2816 Gjøvik NORWAY
Nomad Cart
Art.no: 1200005
www.etac.com
Product identification
Technical Data
Dimensions (Width, Length, Height):
559 x 485 x 959 mm
Weight of unit:
8,2 kg/ 18 lbs
Material:
Steel, Plastic
Turning diameter:
100 cm (39.4 inches)
Max load:
Upper basket: 10 kg (22 lbs)
Lower basket: 25 kg (55 lbs)
445
559
826
485
959
110
360 675
94
64
490
545
460
445
559
826
485
959
110
360 675
94
64
490
545
460
Forwards direction of travel

7
Molift Nomad Cart / www.etac.com
Assembly

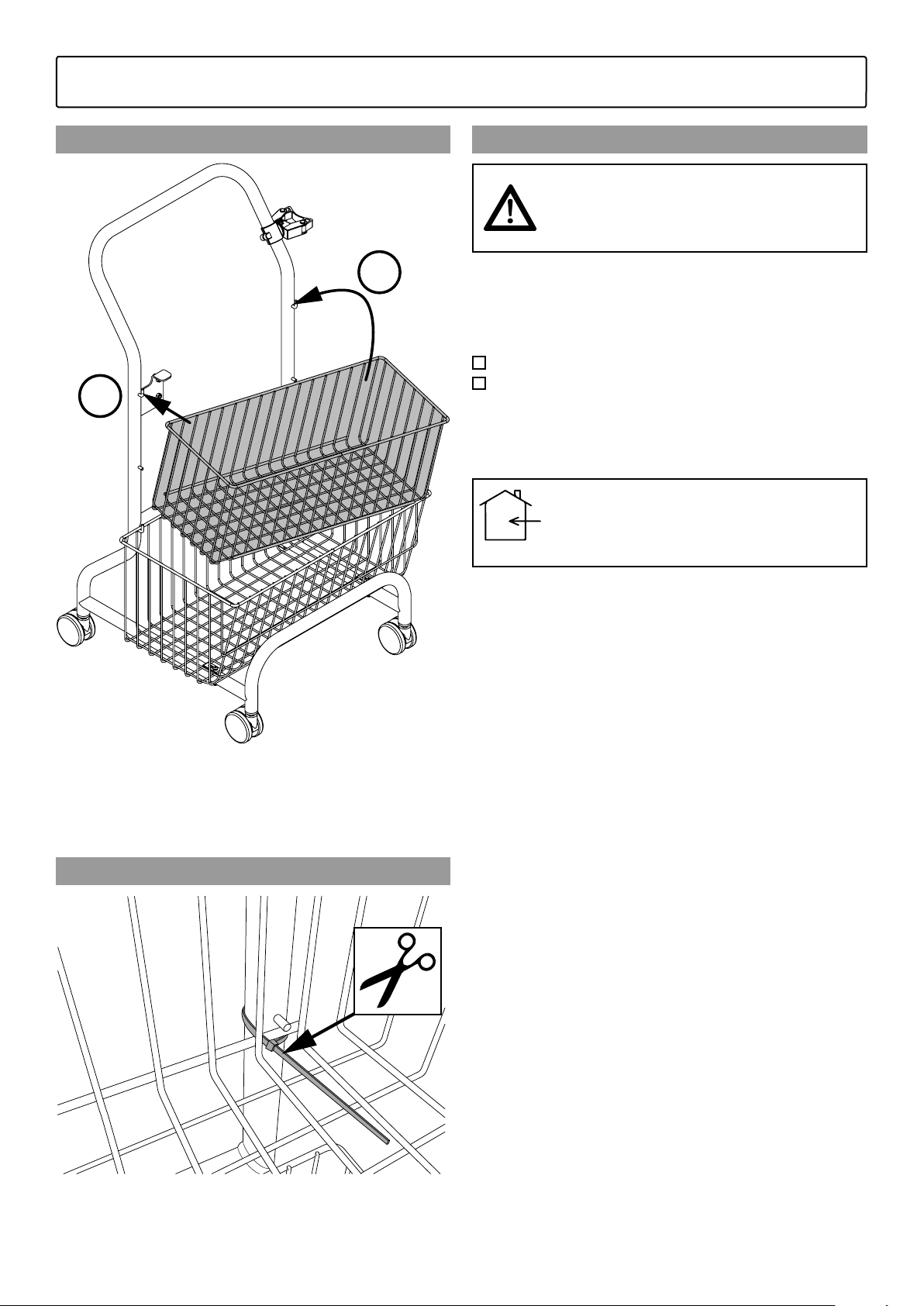

Basket
1
2
Stand in front of the Nomad Cart and attach the
upper basket first on the left side hook (1) and
thereafter on the right side hook (2).
Fixed basket (optional)
Upper basket can be permanently mounted with
the cable tie. Fasten around basket and frame on
right side. Cut away excess of cable tie.
Checklist after assembly
Do not start using cart before
completing control according to
checklist after assembly.
Use this checklist to verify that the Nomad cart is
properly assembled and can operate correctly and
safely before use.
Make sure basket is properly fastened
Make sure cart feels steady and all 4 wheels
rolls freely. The cart should move in a straight
line and not steer away in any direction when
pushed on an even floor.
The cart is intended for indoor use
only.

8
Molift Nomad Cart / www.etac.com

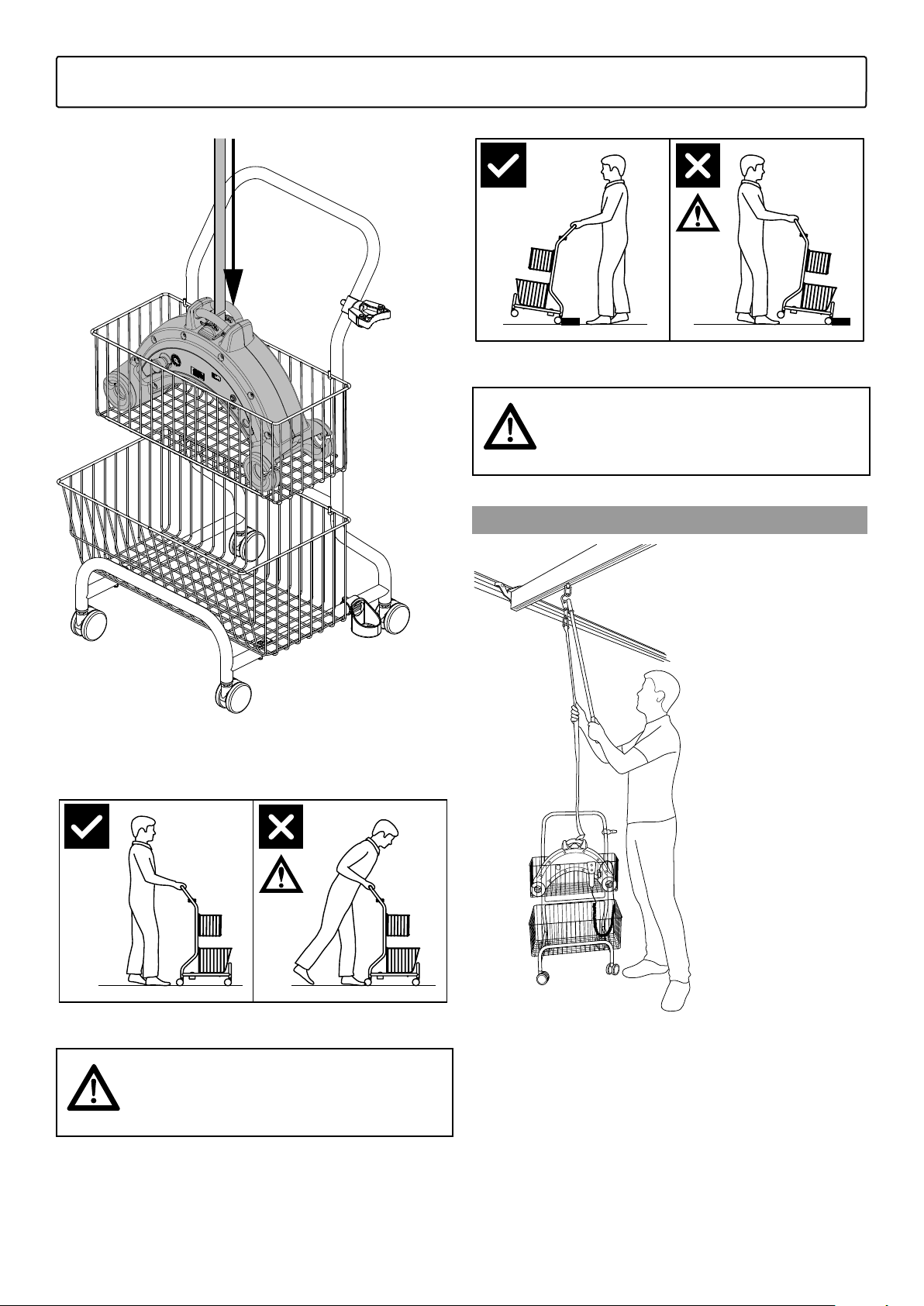

Nomad ceiling hoist fits in the upper basket.
Lower basket can be used for storing slings.
Stand behind and push the cart with push handle.
Do not lean over or put your own
weight on the cart.
Pull the cart over thresholds or other obstacles.
Do not push cart on deep pile car-
pets, over high thresholds or other
obstacles.
Connecting Nomad to rail with extension arm
Place Nomad ceiling hoist in upper basket. Push
down button on hand control to drive out lifting
strap. Use extension arm (accessory) to connect
lifting strap to trolley in rail.
How to use Molift Nomad Cart

9
Molift Nomad Cart / www.etac.com
Accessories
Recommended optional equipment and acces-
sories for Molift Nomad Cart.
Battery charger
Nomad ceiling hoist is charged through the hand
control. The hand control charger can be mounted
on the Nomad Cart. Use the screws and nuts
supplied with the Nomad Cart and mount on the
battery charger mounting plate.
Charger for handcontrol Molift Nomad/AIR.
Art. no.: 1240100
Extension arm
Molift Extension Arm is made for safe and easy
mounting of Molift Nomad to the trolley in a rail
system. The Nomad Cart has a holder for the
extension arm. The extension arm is available in 2
different lengths.
Molift Extension Arm 900 mm
Art. no.: 1200004
Molift Extension Arm 1050 mm
Art. no.: 1200006

10
Molift Nomad Cart / www.etac.com
Maintenance
Cleaning and disinfection
Clean on a regular basis. Clean surfaces with
a damp cloth using an appropriate pH-neutral
detergent. Do not use solvents or strong liquids,
this may damage surfaces on the lifter. For
disinfection when needed; use isopropyl alcohol.
Avoid abrasive cleaning products. Remove hair
and pile from the castors and verify that the
castors rotates freely.
Make sure not to damage or
remove labels when cleaning.
Recycling
Nomad Cart can be disposed of as metal waste
without battery charger. Battery charger must be
removed and disposed of as Electrical equipment.
Spare Parts
Wheel Ø65
Art. no.: 0421107
Extension arm holder parts
Toolflex holder (top)
Art. no.: 1220200
Toolflex tube mount (part around tube)
Art. no.: 1220201
Toolflex cup (bottom)
Art. no.: 1220202

11
Molift Nomad Cart / www.etac.com
Troubleshooting
Symptom Possible Cause/Action
The nomad cart moves unevenly on a plane
surface
The castors move unevenly because of pile and
dust.
Clean the castors. Remove hair and dirt.
Castors may be loose
Check castors and make sure they are properly
fastened. Tighten properly with 13mm wrench.

Etac AS
Etac Supply Gjøvik
Hadelandsveien 2, 2816 Gjøvik, Norway
Tel [phone]
[e-mail] www.etac.com
