1 About this Document
1.1 Classification of Safety Messages
The safety messages used here warn of dangers that can lead to personal
injury or damage to property:
1.2 Presentation of Instructions
The target to be achieved is defined in the heading. The necessary steps for this
are in a step-by-step guide:
Target definition
1. Step 1
2. Step 2
3. Step 3
> Result
Presentation of Supporting Information
1.3 Scope of Supply
Prior to the initial commissioning of the module, please check whether the
product was delivered with all required components and cables (see chapter
"Ordering Information").
DANGER
indicates a hazardous situation with a high risk of death or serious injury if
not avoided
WARNING
indicates a hazardous situation of medium risk which could result in death or
serious injury if not avoided.
CAUTION
indicates a hazardous situation of low risk which may result in minor or
moder-ate injury if not avoided.
NOTICE
indicates a situation which may result in damage to property if not avoided.
NOTE
Contains additional supporting information.

ETAS About this Document
ETP2 -User Guide 6
Additional cables and adapters can be obtained separately from ETAS. A list of
accessories and their order designation is available in this manual and at the
ETAS Home Page.
1.4 Additional Information
The configuration instructions for the product can be found in the correspond-
ing software documentation.

ETAS Basic Safety Notices
ETP2 -User Guide 7
2 Basic Safety Notices
This chapter contains information about the following topics:
• “General Safety Information” on page 7
• “Requirements for Users and Duties for Operators” on page 7
• “Intended Use” on page 7
• “Identifications on the Product” on page 11
• “Taking the Product Back and Recycling” on page 12
• “CE Declaration of Conformity (European Union)” on page 12
• “UKCA Declaration of Conformity (Great Britain)” on page 12
• “RoHS Conformity” on page 12
• “Declarable Substances” on page 13
• “Use of Open Source Software” on page 13
2.1 General Safety Information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol-
lowing safety notices to avoid health issues or damage to the device.
ETAS GmbH does not assume any liability for damages resulting from
improper handling, unintended use or non-observance of the safety precau-
tions.
2.2 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the
necessary qualification and experience for this product. Incorrect operation or
operation by users without sufficient qualification may lead to injuries or death
or property damages.
General Safety at Work
The existing regulations for safety at work and accident prevention must be
followed. All applicable regulations and statutes regarding operation must be
strictly followed when using this product.
2.3 Intended Use
An ETK is an electronic component that is installed in a vehicle control unit
(ECU) to read data from the ECU or write data to the ECU.
Application Area of the Product
This product was developed and approved for automotive applications. For use
in other application areas, please contact your ETAS contact partner.
NOTE
Carefully read the documentation (Product Safety Advice and this User's
Guide) that belongs to the product prior to the startup.

ETAS Basic Safety Notices
ETP2 -User Guide 8
Requirements for Operation
The following requirements are necessary for safe operation of the product:
• Use the product only according to the specifications in the correspond-
ing User's Guide. With any deviating operation, the product safety is no
longer ensured.
• Observe the regulations applicable at the operating location concerning
electrical safety as well as the laws and regulations concerning work
safety!
• Do not apply any voltages to the connections of the product that do not
correspond to the specifications of the respective connection.
• Connect only current circuits with safety extra-low voltage in accordance
with EN 61140 (degree of protection III) to the connections of the prod-
uct.
• The power supply for the product must be safely disconnected from the
supply voltage. For example, use a car battery or a suitable lab power
supply.
• Use only lab power supplies with double protection to the supply system.
• Ensure that the connections of the power supply are easily accessible.
• The module does not have an operating voltage switch.
– Switch on the product by connecting the power supply cable with the
power supply or by switching on the power supply.
– Switch off the product by disconnecting it from the power supply or
by switching off the power supply
DANGER
Connect the power cord only with a vehicle battery or with a lab power sup-
ply! A connection to power outlets is prohibited.
Route the power cord in such a way that it is protected against abrasion,
damages, deformation and kinking. Do not place any objects on the power
cord.
Never apply force to insert a plug into a socket. Ensure that there is no con-
tamination in and on the connection, that the plug fits the socket, and that you
correctly aligned the plugs with the connection.
Do not use the product in a wet or damp environment.
Do not use the product in potentially explosive atmospheres.
Keep the surfaces of the product clean and dry.

ETAS Basic Safety Notices
ETP2 -User Guide 9
Potential Equalization
Requirements for the technical State of the Product
The product is designed in accordance with state-of-the-art technology and
recognized safety rules. The product may be operated only in a technically flaw-
less condition and according to the intended purpose and with regard to safety
and dangers as stated in the respective product documentation. If the product
is not used according to its intended purpose, the protection of the product
may be impaired.
Maintenance and Cleaning
The product is maintenance-free. Use a lightly moistened, soft, lint-free cloth
for cleaning the product. Ensure that no moisture can enter. Never spray clean-
ing agents directly onto the product. Do not user any sprays, solvents or abra-
sive cleaners which could damage the product.
Transport and Installation
CAUTION
Danger from inadvertent current flow!
Depending on the design, the shield of the Ethernet cables can be connected
with the housing of the module. Install the products only on components with
the same electrical potential or isolate the products from the components.
CAUTION
The ETK can be damaged or destroyed!
Some components of the ETK board may be damaged or destroyed by elec-
trostatic discharges. Please keep the ETK in its storage package until it is
installed.
The board should only be taken from its package, configured, and installed at
a workplace that is protected against static discharge.
CAUTION
During installation and removal, ECU and ETK must be in a de-energized
state!
CAUTION
Risk of short circuiting the internal signals of the ETK!
When you mount the ETK to the ECU, you must ensure that the screws and
washers used will not penetrate the ETK printed circuit board.

ETAS Basic Safety Notices
ETP2 -User Guide 10
Cabling
Use exclusively ETAS cables at the connections of the product! Adhere to the
maximum permissible cable lengths! Observe the assignment of the cables to
the connectors! Detailed information about cabling is located in the ETK User's
Guides.
CAUTION
Differences in case ground potentials can cause high currents to flow
through the shields of the cables that connect various system modules.
Ensure that the module mounting surfaces are at the same electrical poten-
tial or insulate the modules from their mounting surfaces.

ETAS Basic Safety Notices
ETP2 -User Guide 11
2.4 Identifications on the Product
Fig. 2-1Adhesive Label (Example: Label for XETK-S14.0)
The following symbols are used for identifications of the product:
Symbol Description
The User's Guide must be read prior to the startup of the
product!
Symbol for WEEE, see chapter 2.5 on page 12
Symbol for CE conformity, see chapter 2.6 on page 12
Symbol for UKCA conformity, see chapter 2.7 on page 12
Symbol for China RoHS, see chapter 2.8.2 on page 13
Symbol for China RoHS, see chapter 2.8.2 on page 13
Symbol for electrostatic sensitive components
XETK-S14.0A Product designation (example)
F00K 110 722 Order number of the product (example)
SN: yyxxxxx Serial number (7-digit)
XXXX/YY Product version
ZZZZ Year of manufacture
ETAS GmbH,... Manufacturer's address
NOTE
For symbols and product information one or several adhesive labels can be
used.

ETAS Basic Safety Notices
ETP2 -User Guide 12
2.5 Taking the Product Back and Recycling
The European Union has passed a directive called Waste Electrical and Elec-
tronic Equipment, or WEEE for short, to ensure that systems are setup through-
out the EU for the collection, treating and recycling of electronic waste.
This ensures that the devices are recycled in a resource-saving way represent-
ing no danger to health or the environment.
Fig. 2-2WEEE-Symbol
The WEEE symbol (see Fig. 2-2 on page 12) on the product or its packaging
shows that the product must not be disposed of as residual garbage.
The user is obliged to collect the old devices separately and return them to the
WEEE take-back system for recycling. The WEEE directive concerns all ETAS
devices but not external cables or batteries.
For more information on the ETAS GmbH Recycling software, contact the ETAS
sales and service locations.
2.6 CE Declaration of Conformity (European Union)
With the CE mark attached to the product or its packaging, ETAS confirms that
the product corresponds to the applicable product-specific European Direc-
tives. The CE Declaration of Conformity for the product is available upon
request.
2.7 UKCA Declaration of Conformity (Great Britain)
With the UKCA mark attached to the product or its packaging, ETAS confirms
that the product corresponds to the product-specific, applicable standards and
directives of Great Britain. The UKCA declaration of conformity for the product
is available on request.
2.8 RoHS Conformity
2.8.1 European Union
The EU Directive 2011/65/EU limits the use of certain dangerous materials for
electrical and electronic devices (RoHS conformity).
This product does not contain any of the restricted substances specified in the
EU Directive 2011/65/EU or exceeds the maximum concentrations stipulated
therein. For individual electronic components used in our products, there are
currently no equivalent alternative substances, which is why we make use of
the exception 7C-I in Annex III of this Directive.
ETAS confirms that the product corresponds to this directive which is applica-
ble in the European Union.

ETAS Basic Safety Notices
ETP2 -User Guide 13
2.8.2 China
ETAS confirms that the product meets the product-specific applicable guide-
lines of the China RoHS (Management Methods for Controlling Pollution
Caused by Electronic Information Products Regulation) applicable in China
with the China RoHS marking affixed to the product or its packaging.
2.9 Declarable Substances
European Union
Some products from ETAS GmbH (e.g. modules, boards, cables) use compo-
nents with substances that are subject to declaration in accordance with the
REACH regulation (EU) no.1907/2006.
Detailed information is located in the ETAS download center in the customer
information "REACH Declaration" (www.etas.com/Reach). This information is
continuously being updated.
2.10 Use of Open Source Software
The product uses Open Source Software (OSS). This software is installed in the
product at the time of delivery and does not have to be installed or updated by
the user. Reference shall be made to the use of the software in order to fulfill
OSS licensing terms. Additional information is available in the document "OSS
Attributions List" at the ETAS website www.etas.com.

ETAS Introduction
ETP2 -User Guide 14
3 Introduction
This section contains general safety instructions, information about the basic
features and applications of the ETP2 Power Supply Interface for ETK.
3.1 General Safety Instructions
This manual addresses qualified personnel working in the fields of automobile
control unit development and calibration. Specialized knowledge in the areas of
measurement and control unit technology is required.
Liability cannot be accepted for damage caused by non adherence to the
instructions contained in this document!
3.2 Applications
The ETP2 Power Supply Interface for ETK is used as a front end power supply
for ETAS ETKs.
3.3 Features
• Input voltage of 4.3 V to 36 V DC (minimum startup voltage is 5 V)
• Output voltage of 12 V DC +/-25 %
• Output current of 0.5 A
• Standby current of 15 mA at 12 V input
• Temperature range: - 40 °C to +110 ºC
• Dimensions: 50 x 35 x 12 mm
• Included power supply cable for ETK
NOTE
Some components of the interface board may be damaged or destroyed by
electrostatic discharges. Please keep the board in its storage package until it
is installed.
The board should only be taken from its package, configured, and installed at
a work place that is protected against static discharge.

ETAS Hardware Description
ETP2 -User Guide 15
4 Hardware Description
In this chapter, the individual function blocks of the ETP2 hardware are
explained in detail.
4.1 Architecture
The ETP2 is a device used as the front end power supply for ETAS ETKs. The
ETP2 is connected between the vehicle battery and the ETK’s power supply
connector.
Fig. 4-1 shows the block diagram which illustrates the ETP2 functional blocks.
Fig. 4-1ETP2 Architecture
The ETP2 galvanically isolates the power supply (typically the vehicle battery)
from the ETK using a DC-DC converter with an isolation transformer. In addi-
tion to galvanic isolation, the ETP2 also extends the ETK input voltage range to
a minimum of 4.3 V and a maximum of 36 V (see Chapter “Power Supply” on
page 18)."
4.2 Application
Signal integrity can be compromised when the ETK power supply and the ETK
signals share the same current paths. Galvanically isolating the ETK from the
power supply separates the power supply currents from the ETK signal cur-
rents. The result is improved ETK signal integrity and prevents the ETK power
supply current from flowing into the ECU.
The ETP2 is powered from its input connector, which is normally the vehicle
power supply or battery. The ETP2 transfers the input power via a transformer
to the ETK through the ETP2 output connector. The typical output for the ETP2
is 12 V (see Chapter “Power Supply” on page 18). Refer to Fig. 4-3 on page 17
for typical application diagram with an ETK.
LowVoltage
Bootstrap
Power
Reverse Polarity
and surge
Protection Isolation
Transformer
Switching Regulator
Feedback Isolation
Output rectification
and Filtering
Isolation Barrier
DC Input:
4.3 to 36V
DC Output
12V +/-25%

ETAS Hardware Description
ETP2 -User Guide 16
4.3 Power Supply
The ETP2 is intended to be powered directly from a permanent power supply
(vehicle battery), see Fig. 4-3.

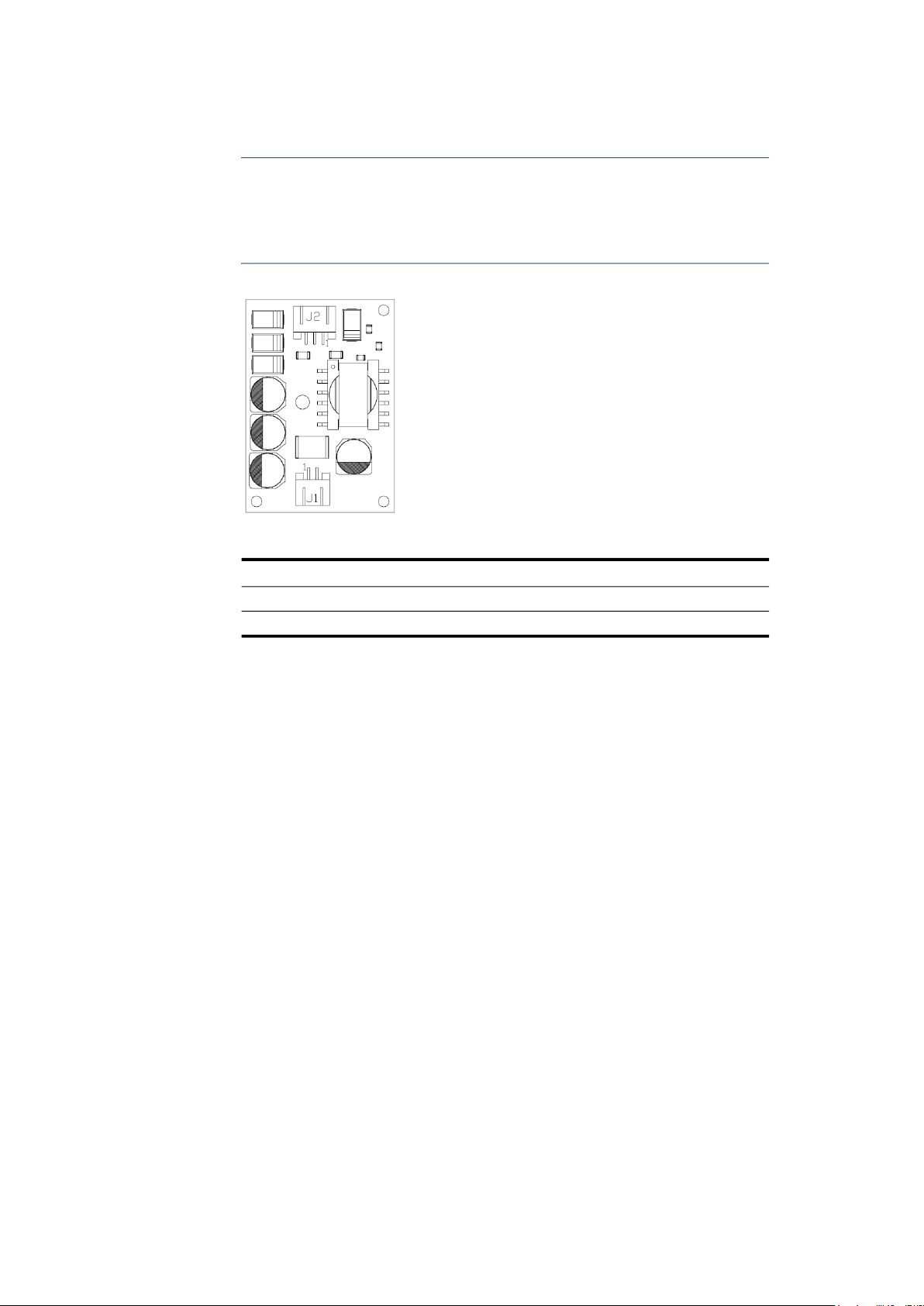

4.4 Connector Layout
The ETP2 has two connectors (see Fig. 4-2).
Fig. 4-2Connector Layout
Tab. 4-1ETP2 Interface Connectors
4.4.1 DC Input
The input of the ETP2 is connector "J1". It is connected directly to the vehicle
power supply or battery.
4.4.2 DC Output
The output of the ETP2 is connector "J2". It is to be connected to the power
supply input (battery input) for the ETK.
Connector Interface
J1 DC input ( from vehicle battery)
J2 DC output (to ETK)

ETAS Hardware Description
ETP2 -User Guide 17
4.5 Cabling
The ETP2 is connected between the permanent power supply and the ETK
power supply connector (see Fig. 4-3). The ETK is connected to the ETP2 using
the CBM200 cable.
Fig. 4-3Isolated Power Supply ETP2 inside ECU
ECU
12V
Permanent Supply
ECU
Connector
4,8V… 36V
Input
Output
12 V
-
++
-
ETK
Pad for Power Supply
ca.
18 V
Power Supply Connector
Vehicle
Battery
Vehicle
Wiring
Cable
CBM200
Cable ETV2
Isolated Power Supply

ETAS Technical Data
ETP2 -User Guide 18
5 Technical Data

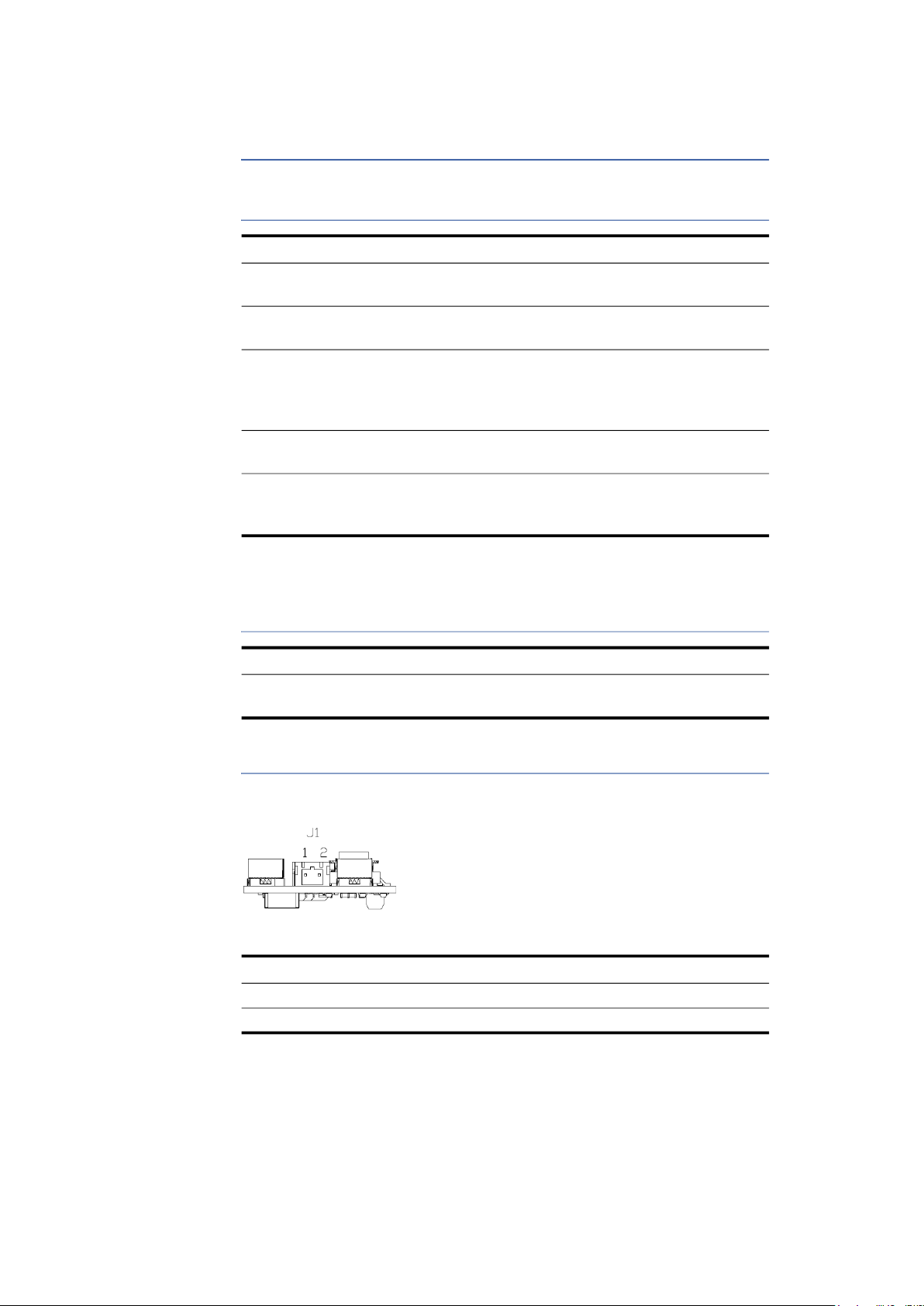

5.1 Power Supply
1) Minimum startup voltage for Vin is 5 V. Operation down to 4.3 V.
5.2 Environmental Conditions
5.3 Pin Assignment
5.3.1 Connector J1 (Input)
Fig. 5-1Connector J1 Pinout
Tab. 5-1Connector J1 Pin Assignment
Parameter Symbol Condition Min Typ Max Unit
Permanent power
supply1) (car battery)
Vin T = -40 °C to
+110 °C
4.3 12 36 V
ETK supply voltage Vout -40 °C to
+110 °C
9 12 15 V
Supply current IBatt VBatt = 12 V;
ECU on;
T = 20 °C;
Load = 25 Ohm
0.9 A
Output current Iout T = -40 °C to
+110 °C
0.5 A
Standby current ISTBY VBatt = 12 V;
ETK off (no
load); T = 20 °C
15 mA
Item Characteristics
Temperature range - 40 °C to + 110 °C
- 40 °F to + 230 °F
Pin Signal Description
1 Vin+ To battery "+"
2 Vin- To battery "-"

ETAS Technical Data
ETP2 -User Guide 19
5.3.2 Connector J2 (Output)
Fig. 5-2Connector J2 Pinout
Tab. 5-2Connector J2 Pin Assignment
5.4 Mechanical Dimensions

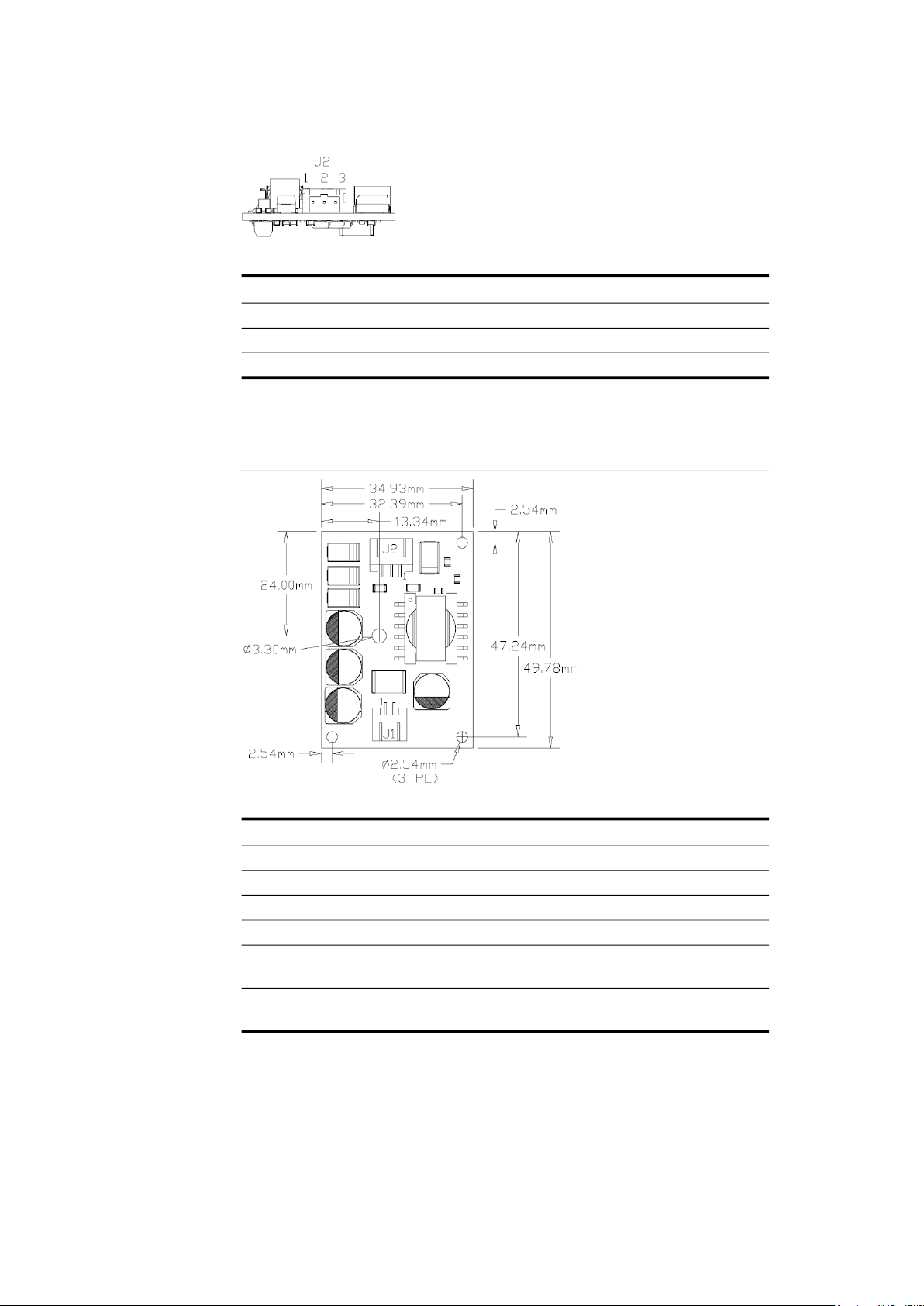

Fig. 5-3ETP2 Dimensions - Top View
Pin Signal Description
1 Vout+ To ETK "+" (power supply)
2 Vout- To ETK "GND"
3 N/C Not connected
Dimensions Millimeters Inches
Length 49.78 1.96
Width 34.93 1.375
Height max. 13.58 max. 0.513
Thickness of PCB max. 1.7 max. 0.067
Height of components
(upper side)
max. 7.88 max. 0.310
Height of components
(lower side)
max. 4.0 max. 0.157

ETAS Cables
ETP2 -User Guide 20
6 Cables
6.1 Cable CBM200-0m1
Fig. 6-1ETP2 to ETK Power Supply Cable CBM200-0m1
6.2 Cable ETV
Fig. 6-2Power Supply Cable ETV
6.3 Cable with Filtercoil ETV2
Fig. 6-3Power Supply Cable with Filtercoil ETV2
NOTE
The ETP2 to ETK cable (CBM200-0m1) is included in the ETP2 delivery. The
ETP2 power cable is not included in the delivery. Either the ETV or ETV2
cables described below should be purchased seperately. For order numbers
refer to chapter 7 on page 21.
Dim Millimeters Inches
A 100.00 3.94
Dim Millimeters Inches
A 190.00 7.480
Dim Millimeters Inches
A 190.00 7.480
B 50.00 1.969
A
