ETAS ES600.2 User manual

ETAS ES600.2
Synchronization and Power Management
Module
User Guide

Copyright
The data in this document may not be altered or amended without special noti-
fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in
relation to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license.
Using and copying is only allowed in concurrence with the specifications stipu-
lated in the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language
without the express written permission of ETAS GmbH.
© Copyright 2021 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
ES600.2 - User Guide R06 EN - 05.2021

ETAS Contents
Contents
ES600.2 - User Guide 3
1 About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Classification of Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Presentation of Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Presentation of Supporting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Scope of Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Basic Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Requirements for Users and Duties for Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.1 Front side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.2 Rear side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5 Functional Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Block diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.3 Ethernet switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3.1 "FE-HOST" host connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3.2 "GE-HOST" host connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3.3 Ethernet connections "ETH1" to "ETH6". . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.4 Time synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.5 "Wake-Up" function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.6 Firmware update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1 Assembly and Interlocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1.1 General installation recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1.2 Fastening the module on a carrier system . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1.3 Mechanically connecting several modules . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.2 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.3 Cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.3.1 Putting a simple module compound in operation . . . . . . . . . . . . . . . . . . . 27
6.3.2 Putting a complex module compound in operation . . . . . . . . . . . . . . . . . 28
Contents

ETAS Contents
ES600.2 - User Guide 4
7 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1 General data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.1 Identifications on the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.2 Standards met . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.1.3 Ambient conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.1.4 Maintenance of the product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.1.5 Cleaning the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.1.6 Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.2 RoHS conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.3 CE conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.4 UKCA conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.5 KCC conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.6 Product return and recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.7 Declarable Substances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.8 Use of Open Source software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.9 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.9.1 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.9.2 Supported applications and software prerequisites . . . . . . . . . . . . . . . . . 34
7.10 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.10.1 Voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.10.2 "GE-HOST" connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.10.3 "FE-HOST" connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.10.4 Ethernet connections "ETH1" to "ETH6" . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.11 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7.11.1 Connection "7-29 V" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7.11.2 "FE-HOST" connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7.11.3 "GE-HOST" connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
7.11.4 Connections "ETH1" to "ETH6". . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8 Cables and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.1 Cable for the "7-29 V DC" connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.1.1 CBP120 Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
8.1.2 CBP1205 Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.2 Cable for the "FE-HOST" connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.3 Cable for the "GE-HOST" connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.4 Cable for the connections "ETH1" to "ETH6". . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.4.1 Cable CBE130-x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.4.2 Cable CBE140 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.4.3 Adapter cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9 Order Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.1 ES600.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.1.1 ES600.2 with CBP120 Power Supply Cable . . . . . . . . . . . . . . . . . . . . . . . . 44
9.1.2 ES600.2 with CBP1205 Power Supply Cable . . . . . . . . . . . . . . . . . . . . . . . 44
9.2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.2.1 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.2.2 Housing accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

ETAS Contents
ES600.2 - User Guide 5
10 Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

ETAS About this Document
ES600.2 - User Guide 6
1 About this Document
1.1 Classification of Safety Messages
The safety messages used here warn of dangers that can lead to personal
injury or damage to property:
1.2 Presentation of Instructions
The target to be achieved is defined in the heading. The necessary steps for his
are in a step-by-step guide:
Target definition
1. Step 1
2. Step 2
3. Step 3
> Result
DANGER
indicates a hazardous situation with a high risk of death or serious injury if
not avoided.
WARNING
indicates a hazardous situation of medium risk, which could result in death or
serious injury if not avoided.
CAUTION
indicates a hazardous situation of low risk, which may result in minor or mod-
erate injury if not avoided.
NOTICE
indicates a situation, which may result in damage to property if not avoided.

ETAS About this Document
ES600.2 - User Guide 7
1.3 Typographical Conventions
Hardware
1.4 Presentation of Supporting Information
Bold Menu commands, buttons, labels of the product
Italic Emphasis on content and newly introduced terms
NOTE
Contains additional supporting information.

ETAS About this Manual
ES600.2 - User Guide 8
2 About this Manual
This chapter contains information about the following topics:
• “Scope of Supply” on page 8
• “Additional Information” on page 8
2.1 Scope of Supply
Prior to the initial commissioning of the module, please check whether the
module was delivered with all required components and cables (see chapter
9.1 on page 44).
Additional cables and adapters can be obtained separately from ETAS. A list of
available accessories and their order designation is located in chapter “Acces-
sories” on page 44 of this manual or in the ETAS product catalog.
2.2 Additional Information
The configuration instructions for the module under INCA can be found in the
corresponding software documentation.

ETAS Basic Safety Notices
ES600.2 - User Guide 9
3 Basic Safety Notices
This chapter contains information about the following topics:
• “General Safety Information” on page 9
• “Requirements for Users and Duties for Operators” on page 9
• “Intended Use” on page 9
3.1 General Safety Information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol-
lowing safety notices to avoid health issues or damage to the device.
ETAS GmbH does not assume any liability for damages resulting from
improper handling, unintended use or non-observance of the safety precau-
tions.
3.2 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the
necessary qualification and experience for this product. Improper use or use by
a user without sufficient qualification can lead to damages or injuries to one's
health or damages to property.
General safety at work
The existing regulations for safety at work and accident prevention must be
followed. All applicable regulations and statutes regarding operation must be
strictly followed when using this product.
3.3 Intended Use
Application area of the product
This product was developed and approved for applications in the automotive
sector. The module is suitable for use in interiors, in the passenger cell or in the
trunk of vehicles. The module is not suitable for installation in the engine com-
partment and similar environments. For use in other application areas, please
contact your ETAS contact partner.
NOTE
Carefully read the documentation (Product Safety Advice and this User's
Guide) that belongs to the product prior to the startup.

ETAS Basic Safety Notices
ES600.2 - User Guide 10
Requirements for the technical state of the product
The product is designed in accordance with state-of-the-art technology and
recognized safety rules. The product may be operated only in a technically flaw-
less condition and according to the intended purpose and with regard to safety
and dangers as stated in the respective product documentation. If the product
is not used according to its intended purpose, the protection of the product
may be impaired.
Requirements for operation
• Use the product only according to the specifications in the correspond-
ing User's Guide. With any deviating operation, the product safety is no
longer ensured.
• Observe the requirements on the ambient conditions.
• Do not use the product in a wet or damp environment.
• Do not use the product in potentially explosive atmospheres.
Electrical safety and power supply
• Observe the regulations applicable at the operating location concerning
electrical safety as well as the laws and regulations concerning work
safety!
• Connect only current circuits with safety extra-low voltage in accordance
with EN 61140 (degree of protection III) to the connections of the mod-
ule.
• Ensure that the connection and setting values are being followed (see
the information in the chapter "Technical data").
• Do not apply any voltages to the connections of the module that do not
correspond to the specifications of the respective connection.
Power supply
• The power supply for the product must be safely disconnected from the
supply voltage. For example, use a car battery or a suitable lab power
supply.
• Use only lab power supplies with double protection to the supply net-
work (with double insulation/reinforced insulation (DI/ RI)).
• The lab power supply must be approved for an operating altitude of
5000 m and for an ambient temperature of up to 70 °C.
• In regular operation of the modules as well as very long standby opera-
tion, a discharge of the vehicle battery is possible.

ETAS Basic Safety Notices
ES600.2 - User Guide 11
Connection to the power supply
• The power cable must not be connected directly to the vehicle battery or
lab power supply, but via a fuse of up to 20 A.
• Ensure that the connections of the lab power supply, the power supply at
the module and the vehicle battery are easily accessible!
• Route the power cord in such a way that it is protected against abrasion,
damages, deformation and kinking. Do not place any objects on the
power cord!
Disconnecting from the power supply
The module does not have an operating voltage switch. The module can be de-
energized as follows:
• Disconnecting the module from the lab power supply
– Separating device is the lab plug of the power cord or
– Separating device is the plug of the power cord at the connection of
the module
• Disconnecting the module from the vehicle battery
– Separating device is the lab plug of the power cord or
– Separating device is the plug of the power cord at the connection of
the module
• Disconnecting the vehicle battery.
Approved cables
• Use exclusively ETAS cables at the connections of the module!
• Adhere to the maximum permissible cable lengths!
• Do not use any damaged cables! Cables may be repaired only by ETAS!
• Never apply force to insert a plug into a socket. Ensure that there is no
contamination in and on the connection, that the plug fits the socket, and
that you correctly aligned the plugs with the connection.
Requirements for the location
• Position the module or the module stack on a smooth, level and solid
underground.
• The module or the module stack must always be securely fastened.
Fixing the modules on a carrier system
• When selecting the carrier system, observe the static and dynamic
forces that could be created by the module or the module stack on the
carrier system.
DANGER
Dangerous electrical voltage!
Connect the power cable only with a suitable vehicle battery or with a suitable
lab power supply! The connection to power outlets is not allowed!
To prevent an inadvertent insertion in power outlets, ETAS recommends to
equip the power cables with safety banana plugs in areas with power outlets.

ETAS Basic Safety Notices
ES600.2 - User Guide 12
Requirements on the ventilation
• Keep the module away from heat sources and protect it against direct
exposure to the sun.
• The free space above and behind the module must be selected so that
sufficient air circulation is ensured.
Assembling (interconnecting) the modules
• Prior to assembling (interconnecting) or separating a module stack, the
modules must be disconnected from the supply voltage or they have to
be in the standby operating mode.
Transport
• Stack and connect the modules only at the location of the startup!
• Do not transport the modules at the cable of the module or any other
cables.
Maintenance
The product is maintenance-free.
Repair
If an ETAS hardware product should require a repair, return the product to
ETAS.
Cleaning the module housing
• Use a dry or lightly moistened, soft, lint-free cloth for cleaning the module
housing.
• Do not user any sprays, solvents or abrasive cleaners which could dam-
age the housing.
• Ensure that no moisture enters the housing. Never spray cleaning agents
directly onto the module.
Ambient conditions
The housing and the connectors of the module as well as the plug connectors
of the cables meet the degree of protection IP40.
Opening the module
CAUTION
Damage to the module and loss of properties based on IP40!
Do not open or change the module housing!
Work on the module housing may only be performed by ETAS.

ETAS Basic Safety Notices
ES600.2 - User Guide 13
Potential equalization
Cabling
For detailed information about cabling, see the User's Guide of the module.
CAUTION
Potential equalization in the vehicle is possible via the shield of the
connecting cables of the modules!
Install the modules only at locations with the same electrical potential or iso-
late the modules from the installation location.

ETAS Hardware Description
ES600.2 - User Guide 14
4 Hardware Description
This chapter contains information about the following topics:
• “Overview” on page 14
• “Housing” on page 15
• “Connections” on page 16
• “Indicators” on page 17
4.1 Overview
The ES600.2 Synchronization and Power Management Module is an Ethernet
switch with integrated voltage supply and time synchronization for connecting
several data acquisition or interface modules to a host PC. The ES600.2 mod-
ules can be cascaded so that you can also build larger module blocks.

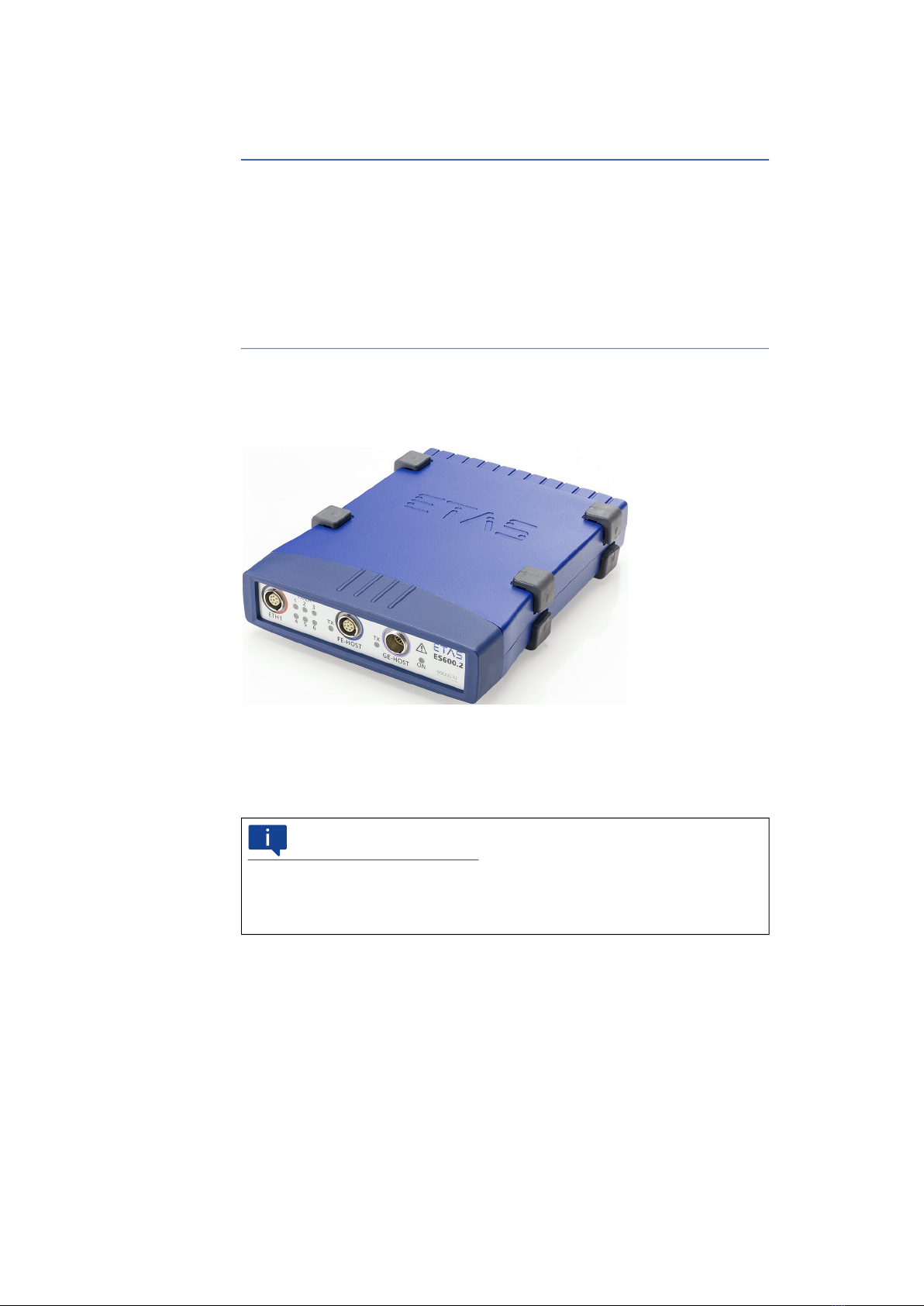

Fig. 4-1ES600.2 Synchronization and Power Management Module
The ES600.2 module is equipped with two upstream Ethernet connections (one
Gigabit Ethernet and one Fast Ethernet connection) for the data exchange with
the host PC or a drive recorder.
The six downstream Ethernet connections of the module can be connected
with network, measuring, calibration and rapid prototyping modules. ECUs that
are equipped with an XETK or feature a separate Ethernet interface, can be con-
nected directly to these Ethernet connections.
The ES600.2 supplies connected measuring modules of the series ES4xx /
ES6xx with current and carries out the data exchange with the modules using a
common cable. The integrated power management function sequentially
switches in the connected modules This allows preventing high start-up peaks.
NOTE
The host PC can be connected either with the "GE-HOST" or "FE-HOST" con-
nection.
The drive recorder ES720.1 can be connected with the "FE-HOST" connection.

ETAS Hardware Description
ES600.2 - User Guide 15
The ES600.2 module synchronizes all connected modules and their measuring
channels. Such a system offers a high time stability with the support of INCA.
A phase shift of the signals is ruled out and a time-synchronous scanning of the
measuring channels of the connected modules and module arrangements is
ensured.
The ES600.2 module and the corresponding cables are designed for use in the
lab, at the test bench and in the passenger cell of motor vehicles.
Properties
The most important properties of the ES600.2 at a glance:
• Ethernet switch with 10/100/1000 Mbit/s data rate
• A host connection (upstream, Gigabit Ethernet)
• A host connection (upstream, Fast Ethernet)
• Six connections for compatible modules (downstream, Fast Ethernet)
• Status indicator for every connection
• Sequential switch-on of the connected modules to avoid high start-up
peaks
• Automatic standby function for the connected modules
• Precise synchronization of all connected modules and their measuring
channels
• Automotive-capable module that is suitable for use in the development
environment and in the vehicle on test courses.
– Electrical isolation of the channels from each other, from device
ground and from the supply voltage
– Immune to ambient conditions (temperature, EMC)
– Wide supply voltage range
– High level of mechanical stability and robustness
The complete technical data of the ES600.2 are located in the chapter “Techni-
cal Data” on page 30.
4.2 Housing
For the ES600.2, a housing with connections on the device front side and the
device rear side is used. The robust metal housing of the ES600.2 is fitted with
non-slip plastic feet.
It can easily be screwed onto a carrier system for fastening in a vehicle or lab.
The housings of this device family can also be connected with each other
quickly and easily (see chapter 6.1 on page 23).

ETAS Hardware Description
ES600.2 - User Guide 16
4.3 Connections
4.3.1 Front side
Fig. 4-2ES600.2 front side of device
The front side of the ES600.2 features the following connections:
• ETH1 (Fast Ethernet, downstream, SYNC-OUT)
• FE-HOST (Fast Ethernet, upstream, SYNC-IN)
• GE-HOST (Gigabit Ethernet, upstream)
The ETH1 connection is a combined Ethernet/power supply connection.
4.3.2 Rear side
Fig. 4-3ES600.2 rear side of device
The rear side of the ES600.2 features the following connections:
• 7-29 V DC (operating voltage)
• ETH2 (Fast Ethernet, downstream, SYNC-OUT)
• ETH3 (Fast Ethernet, downstream, SYNC-OUT)
• ETH4 (Fast Ethernet, downstream, SYNC-OUT)
• ETH5 (Fast Ethernet, downstream, SYNC-OUT)
• ETH6 (Fast Ethernet, downstream, SYNC-OUT)
The connections ETH2 to ETH6 are combined Ethernet/power supply connec-
tions.

ETAS Hardware Description
ES600.2 - User Guide 17
4.4 Indicators
The front side of the module features LEDs for indicating the operating, error
and synchronization state of the module (see Fig. 4-2 on page 16.
The FE-HOST connection is assigned a TX LED.
NOTE
The flashing of the LED is differentiated in slow (3 times per second), medium
(6 times per second) and fast (12 times per second).
LED Indication Operating state
ON Off No power supply
Flashing green
(0.1 s on,
1.9 s off)
Module in operating mode "Standby", mini-
mum current consumption.
Changing to the "Normal" state requires a
Wake-Up event (see chapter 5.5 on page 21).
Green Module in operating mode "Normal"
Green
(briefly flash-
ing brighter)
Module is synchronization master, module is
not externally synchronized
Green
(briefly flash-
ing darker)
Module is synchronization slave, module is
externally synchronized: at FE-HOST connec-
tion
Flashing red Firmware update is being performed
Red Error
LED Indication Operating state
TX Off No Ethernet connection
Green Ethernet connection (upstream) active
Flashing green
(slow)
Data transfer with 10 Mbit/s
Flashing green
(medium)
Data transfer with 100 Mbit/s
t
t

ETAS Hardware Description
ES600.2 - User Guide 18
The GE-HOST connection is assigned a TX LED.
The connections ETH1 to ETH6 are each assigned an LED
(TX/ER1 to TX/ER6).
All LEDs light up briefly when switching on the ES600.2.
LED Indication Operating state
TX Off No Ethernet connection
Green Ethernet connection (upstream) active
Flashing green
(slow)
Data transfer with 10 Mbit/s
Flashing green
(medium)
Data transfer with 100 Mbit/s
Flashing green
(fast)
Data transfer with 1000 Mbit/s
LED Indication Operating state
TX/ER Off No Ethernet connection
Green Ethernet connection (downstream) active
Flashing green
(slow)
Data transfer with 10 Mbit/s
Flashing green
(medium)
Data transfer with 100 Mbit/s
Red Current overload by the connected module

ETAS Functional Description
ES600.2 - User Guide 19
5 Functional Description
This chapter contains information about the following topics:
• “Block diagram” on page 19
• “Power supply” on page 19
• “Ethernet switch” on page 20
• “Time synchronization” on page 21
• “"Wake-Up" function” on page 21
• “Firmware update” on page 22
5.1 Block diagram
Fig. 5-1Block diagram
To meet the requirements for operation in the vehicle, the connections of the
ES600.2 are each routed to a Lemo socket.
5.2 Power supply
The power supply connection "7-29 V DC" is routed to a 2-pin plug connector
(Lemo socket) to the rear side of the module. An external power supply or the
vehicle battery supply the module with current.
When connecting the ES600.2 with operating voltage and an active Ethernet
connection to HOST, the module boots. If the Ethernet connection does not
exist, the module changes to the "Standby" operating state.
NOTE
The ES600.2 must physically be isolated from all supply voltages so that the
module does not consume any current.
Time Synchronization Unit
7..29 V DC
CPU
Ethernet Switch
Traffic
Detection
GE-HOST
Power
Supply
WakeUp /
Standby
Controller
FE-HOST
ETH1
ETH2
ETH3
ETH4
ETH5
ETH6
ETH5
ETH6
FE-HOST
GE-HOST
LED
ETH4
ETH3
ETH2
ETH1

ETAS Functional Description
ES600.2 - User Guide 20
5.3 Ethernet switch
The integrated Ethernet switch is used for connecting the ES600.2 module and
additional measuring or interface modules to a user PC. The data acquisition of
the connected modules is done synchronized (ETAS device synchronization,
see chapter 5.4 on page 21). The Ethernet switch can be cascaded with addi-
tional network modules so that you can also build larger blocks of measuring
and interface modules.
The switch is equipped with a host connection (Fast Ethernet), a host connec-
tion (Gigabit Ethernet) and six Ethernet connections (10/100BaseT Ethernet).
All connections of the switch, except for the Ethernet connections "ETH1" to
"ETH6", are electrically isolated from each other and from the power supply.
5.3.1 "FE-HOST" host connection
The upstream "FE-HOST" Ethernet interface connects the ES600.2 module with
the user PC or the downstream Ethernet interface of another module. This
interface enables the ETAS software tools to access the connected modules.
"Wake-Up" function
The "FE-HOST" Ethernet interface supports the "Wake-Up" function (see chap-
ter 5.5 on page 21).
Compatible modules
A list of the compatible modules is located in chapter 7.10.3 on page 35.
5.3.2 "GE-HOST" host connection
The upstream "GE-HOST" Ethernet interface connects the ES600.2 module with
the user PC or the downstream Ethernet interface of another module. This
interface enables the ETAS software tools to access the connected modules.
"Wake-Up" function
The "GE-HOST" Ethernet interface supports the "Wake-Up" function (see chap-
ter 5.5 on page 21).
Compatible modules
A list of the compatible modules is located in chapter 7.10.2 on page 35.
5.3.3 Ethernet connections "ETH1" to "ETH6"
The ES600.2 module provides six downstream Ethernet interfaces for addi-
tional modules. The Ethernet interfaces "ETH1" to "ETH6" based on the 10/
100BaseT standard can be operated either with 10 or 100 Mbit/s, half or full
duplex. The switchover is done automatically to the highest possible connec-
tion speed.
ECUs that are equipped with an XETK or feature a separate Ethernet interface,
can be connected directly to the module and communicate with the application
software via XCP-on-Ethernet.
