Etec LED Six Hole User manual
LED Six Hole
Page | 2
Congratulations!
You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest
possible performance of the device, read this manual carefully and familiarize yourself with the most
important functions. This manual contains important information on the operation and maintenance
of this unit. Please keep this manual for future reference, together with the device.
Unpacking:
Please unpack the product immediately after receipt and check it for completeness and integrity. If
you notice any damage to the transport of one or more parts of the product or package, please notify
the seller immediately and collect the packaging material for later inspection. Keep the carton and all
related packaging materials. If the product needs to be returned, please make sure you return it in
the original packaging.
Provisional useful life of the LED headlamp:
The brightness of LEDs decreases with time. The main cause is HEAT because it speeds up the
process. When LEDs are placed very close together, they are exposed to a higher operating
temperature than when an ideal distance is maintained or operated under optimal conditions, ie
individually. For this reason, the useful life is significantly reduced when all color LEDs are operated
with maximum brightness. The service life achievable under normal operating conditions is
approximately between 40,000 and 50,000 hours. If the prolongation of the service life is of great
importance to you, you should ensure that the operating temperature is kept low. An air-conditioned
operating environment and the reduction of the overall luminous intensity can contribute to this.
Warnings
ATTENTION!
Protect the device from rain and moisture!
Disconnect the power cord before opening the housing!
PLEASE READ THESE INSTRUCTIONS FOR YOUR SAFETY CAREFULLY,
BEFORE OPERATING THE UNIT FOR THE FIRST TIME!
Safety instructions:
All persons who install, operate and maintain this equipment must:
Be qualified and
Follow the instructions in this manual.
ATTENTION! Be careful when handling this unit. In the case of
dangerous mains voltages, you could get a life-threatening electric
shock when you touch the cables!
Before using the appliance for the first time, ensure that the product has not been damaged by
transport. If it is damaged, please contact the seller and do not use it. In order to ensure the perfect
Page | 3
condition and the safe handling, the safety instructions and warnings in this manual must be
observed.
Please note that we assume no liability for damages caused by manual changes. This device does not
contain any user-serviceable parts. Only carry out maintenance work by qualified technicians.
Important safety information
The manufacturer is not liable for damage caused by the failure to observe this manual or
unauthorized modifications to this product.
• The power cord must never come into contact with other cables! Use the power cord and
all connections to the power supply.
• Do not remove the warnings and information labels from the product.
• The grounding contact must never be tampered.
• Make sure that no cables are around.
• Do not insert objects into the ventilation slots.
• Never connect this unit to another dimmer pack.
• Do not open or modify the unit.
• Never use the appliance during a thunderstorm. In the event of a thunderstorm, unplug the
power cord immediately.
• Do not turn the unit on and off at short intervals as this will reduce the lifetime of the unit.
• Do not expose the unit to shocks. Do not use excessive force when installing or using the
device.
• Use the product only in indoor areas and avoid contact with water or other liquids.
• Check that the housing is tightly closed and that all screws are tightened before using the
appliance.
• Do not place the product near open fires or flammable liquids or gases.
• Always allow at least 50cm clearance around the unit to ensure adequate ventilation.
• Always unplug the unit when not in use or when you want to clean it. Only hold the mains
cable at the provided area on the plug. Never unplug the cord from the wall outlet.
• Protect the product from extreme heat, moisture or dust.
• Make sure that the available mains voltage is not higher than indicated on the back of the
unit.
• Do not crush or damage the power cord. Check the unit and the power cord at regular
intervals for possible damage.
• If the connection cable is clearly damaged, it must be replaced.
• If the lens is clearly damaged, it must be replaced so that the functions of the unit are not
affected by cracks or scratches.
• Disconnect the appliance immediately from the power supply if it falls or becomes severely
damaged.
• Have the unit checked for safety by a qualified technician before using it again.
• Do not turn off the unit immediately after exposure to strong temperature fluctuations (eg
during transport). The resulting condensation could damage the unit. Do not turn the unit on
until room temperature is reached.
• Turn the power off immediately if it is not working properly. Pack the device carefully
(preferably in the original package) and send it to your dealer.
Page | 4
• Suitable for adult use only. The appliance must be placed out of the reach of children.
Never leave the connected device unattended.
• Only use replacement fuses of the same type and performance as the fuses already
contained.
• The user is responsible for the correct positioning and correct operation of the device. The
manufacturer is not liable for damages caused by incorrect use or incorrect installation.
• The unit falls under protection class I. Therefore it must be earthed with the yellow-green
cable.
• There may be too little smoke or odor during initial start-up. This is not unusual and does
not necessarily mean that the device is not working properly.
• Repairs, maintenance and electrical connections may only be carried out or handled by
qualified technicians.
ATTENTION! EYE DAMAGE!
Never look directly into the light source.
(Especially epileptics)!
Intended Use
• This unit is not suitable for continuous operation. Maintaining regular operating breaks
increases the life of the unit.
• The minimum distance between the light source and the illuminated area is 0.5 meters
• The maximum ambient temperature for operation is ta = 45 ° C and must never be
exceeded.
• The relative humidity must not exceed 50% at an ambient temperature of 45 ° C.
• If the appliance is not used as described in this manual, it could be damaged and the
warranty void.
• Any improper use will lead to risks such as: Short circuits, burns,
• Electric shock, crashes, etc.
Your safety and the people you surround are in danger!
Installation:
Page | 5
Observe the European and international guidelines for installation, mounting on trusses and all other
safety measures. Do not attempt to install the unit yourself! Always have the installation carried out
by qualified personnel!
The mounting stand or the installation wall must be capable of carrying 10 times the weight of the
appliance without deforming. When attaching, the device must be secured with a second safety
fixture, such as a suitable safety cable. Never place yourself directly underneath the unit during
fixing, dismantling or maintenance.
Overhead mounting requires a professional experience, including calculating the load capacities, the
mounting material used, and periodic safety inspections of the entire mounting material and
equipment. If you do not have these qualifications, you should refrain from performing an
installation yourself. The installation should be inspected once a year by a suitably trained specialist.
Power connections:
Connect the device to the power supply with the mains cable. Always ensure that the colored cables
are connected to the appropriate, correct locations.
International
Europe Cable
UK Cable
USA Cable
PIN
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
ZERO
YELLOW-GREEN
GREEN
GREEN
GROUND
Make sure that the device is always properly grounded!
Disposal
Do not throw the appliance into normal household waste at the end of its useful life. This product is
subject to European Directive 2002/96 / EC.
Dispose of the product via an approved disposal company or through your municipal waste
disposal facility.
Observe the current regulations. If in doubt, contact your disposal facility.
The packaging is certified by a dual system. Dispose of all packaging materials in
an environmentally friendly manner according to local regulations.
Page | 6
Maintenance
The device is almost maintenance-free. Nevertheless, the device should be cleaned regularly. If the
unit is not cleaned regularly, the light output of the unit will be considerably reduced over time.
Disconnect the unit from the mains and wipe it with a damp cloth. Never immerse the unit in any
liquid. Clean the unit with a soft cloth. Do not use alcohol or solvents. The connections should also be
cleaned regularly. Disconnect the device from the mains and wipe the connections with a cloth.
Ensure that all connections are completely dry before you connect or reconnect the device to other
devices.
The operator must ensure that all safety-relevant and mechanical devices are subjected to a
technical inspection test by qualified personnel after four years. The operator must ensure that all
safety-related and mechanical devices are inspected once a year by qualified personnel.
The following points must be considered during the inspection:
1. All screws used to install the product or parts of the product must be secured and not
corroded.
2. Neither the housing nor the fixtures or the places where the product is attached may be
deformed.
3. Mechanically moving components, such as axes, lenses, etc., must not have any wear marks.
4. Power cables must be undamaged and must not show any signs of material fatigue.
Page | 7
Replace fuse
Overvoltages, short circuits or unsuitable mains connections can cause a fuse to burn through. The
device does not work when the fuse is blown. If your device burns a backup, perform the following
steps.
1. Disconnect the mains plug.
2. Insert a flat screwdriver into the slot of the fuse cover. Lever the cover gently. The fuse now
comes to light.
3. Remove the old backup. If you look brown or milky, it is burned.
4. Insert the new fuse into the holder. Close the cover. Use only a fuse of the same type and the
same specifications. Observe the label with the technical data.
Product description:
The LED Six Hole Light produces countless LED Beams, which are thrown into the room through its 6
lenses. With its RGBWY color LEDs, it changes the colors according to its movement. The DMX,
automatic mode and the master slave function enable many areas of application, from the party
cellar to the club.
Technical specifications:
Power consumption: 30W
Power supply: 90 - 260V
Voltage frequency: 50 / 60Hz
Operating modes: DMX512, automatic, master / slave,
music-controlled
Diod type: 5in1 LEDs
Number of diodes: 5 per 3 watts
Color: RGBWY
Dimmer: 0 - 100%
Number of DMX channels: 3, 5 or 8
DMX standard: DMX 512
AC IN: IEC - C14
DMX IN: XLR - 3-pin
DMX OUT: XLR - 3-pin
Protection class: IP20
Fan cooled
Height: [cm] 25
Width: [cm] 26
Depth: [cm] 25
Weight: [kg] 3,6
1.
Page | 8

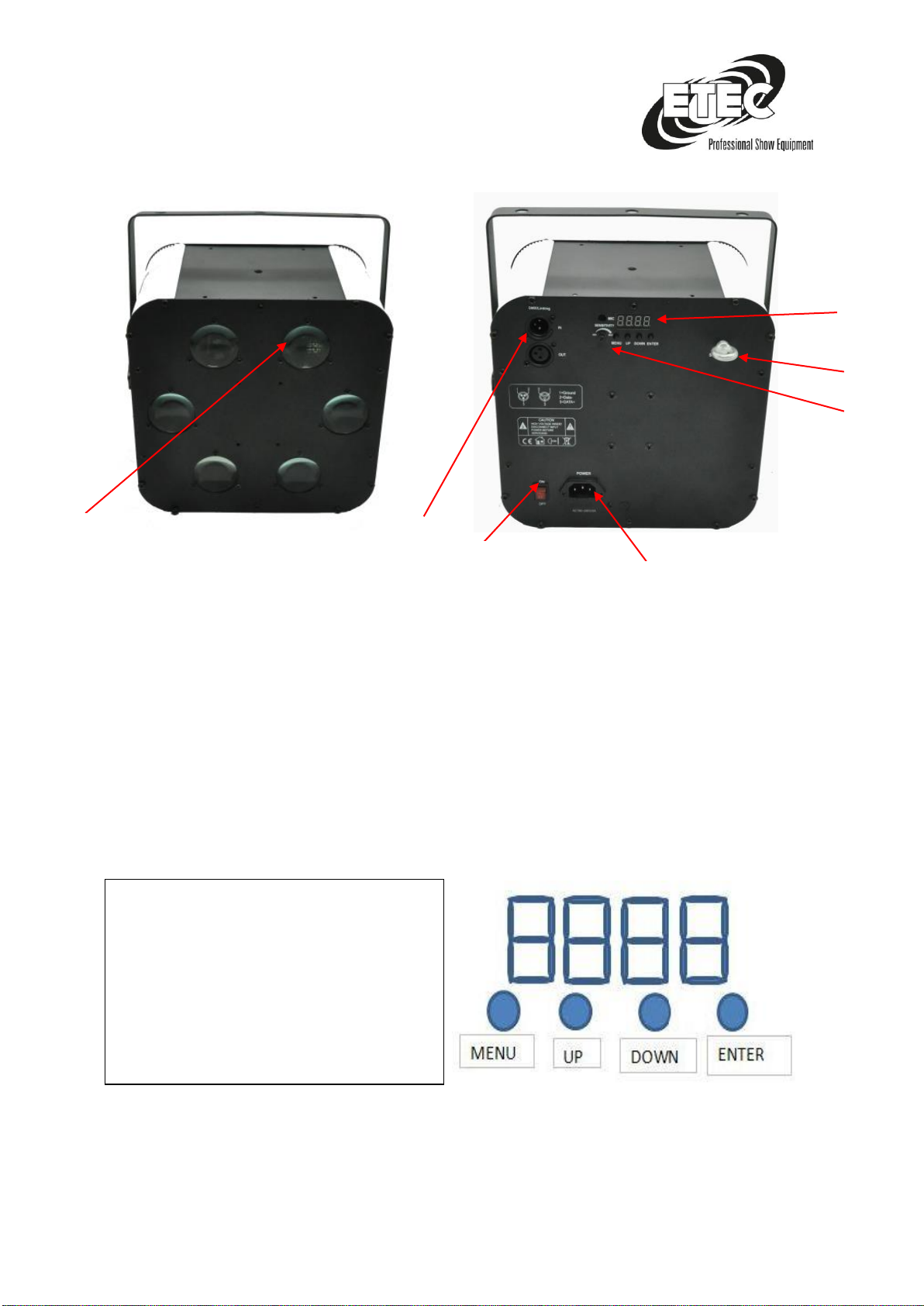

Product Overview:
1. LED Diode
2. DMX linking IN/OUT
3. ON / OFF switch
4. Power connection IEC –C14
5. Audio sensitivity knob
6. safety eyelet
7. Display and menu buttons
Functions and settings:
MENU: Function selectionDMX512, Master-
Slave, AUTO, Strobe, Music-controlled,
Manual control, Brightness adjustment
UP/DOWN: Previous or next function, value
adjustment positive or negative
ENTER: Select or Save value
1.
7.
5.
2.
3.
4.
6.
Page | 9
Functional Overview:
LS01---LS64
SPEd
rS01---rS64
chSE
CH08
CH05
CH03
SLAu
d001-d512
d001-d512
Soud
Sod1
Sod9
AuTo
Au.01
Au.09
Automatic mode
Sound mode
DMX512 addressing
Slave Function
DMX chanal selection
Speed settings
Page | 10
Automatic mode
1. Use the UP / DOWN buttons to display [AuTo], press ENTER to enter the auto mode
2. Use the UP / DOWN buttons to select one of the six automatic programs (Au.01-Au.06) and
confirm with ENTER
The automatic programs at a glance:
Au.01
RGBWY 5 colors LED circular movements and strobe effect changing
Au.02
RGBWY 5 Colors LED - Automatic color change
Au.03
RGBWY 5 colors LED - Automatic double color change
Au.04
RGBWY 5 colors LED - Automatic triple color change
Au.05
RGBWY 5 Colors LED - Automatic single-double triple quadruple color change
Au.06
RGBWY 5 Colors LED - Automatic single-double triple quadruple color change and strobe
effect alternating
Sound control
1. Use the UP / DOWN buttons to display [Soud], press ENTER to enter the sound mode
2. Use the UP / DOWN buttons to select one of the six music programs (Sod1-Sod6) and confirm
with ENTER
Soud
Sod1
Sod6
AuTo
Au.01
Au.06
Page | 11
The music programs at a glance:
Sod1
RGBWY 5 colors LED circular movements changing to the beat of the music
Sod2
RGBWY 5 colors LED color changing in tact of music
Sod3
RGBWY 5 Colors LED - double color change to the beat of the music
Sod4
RGBWY 5 colors LED-triple color change to the beat of the music
Sod5
RGBWY 5 Colors LED Single Triple Triple Quad Color Change to the beat of the music
Sod6
RGBWY 5 Colors LED - Automatic single-double triple quad color change and strobe effect
to the beat of the music
Master / Slave function
1. Use the UP / DOWN buttons to display [SLAu], press ENTER
The device now operates in slave mode and takes over all functions from the master device.
Important:
Please note that the devices are connected to each other by means of a DMX cable.
DMX addressing
1. Use the UP / DOWN buttons to display [d001] to display, press ENTER
2. Use the UP / DOWN buttons to select the desired DMX address 001 to 512 and confirm with
ENTER
SLAu
d001 - d512
Page | 12
Setting up a DMX connection
DMX is a standardized transmission protocol that allows all DMX-compatible models of the various
manufacturers to be connected to one another and controlled by a single mixer. Free DMX data
transfer between different DMX devices are used.
The connection arrangement between the devices has no influence on the DMX addressing. For
example, DMX address 1 has been assigned to a device and it can be positioned at any point of the
DMX connection, at the beginning, at the end or anywhere in the middle.
Therefore the first device, which is controlled by a controller, can be the last one in a row at the
same time. When DMX address 1 has been assigned to a device, the DMX controller knows to which
address the data transfer set, regardless of the location of the DMX cable device.
Resistance 120 ohms 1 / 4w between PIN 2 DMX -) and PIN 3 (DMX +) of the last headlight.
Attention: Avoid the contact between the general and the housing earthing of the spotlight. The
general grounding may cause a loop and your headlight could only work irregularly. Test the cables
with a resistance meter to check the correct polarity and to ensure the correct polarity.
Connect the headlights:
If you want to control light shows with one or more devices with a DMX-512 controller, or you want
to play synchronized shows with two or more devices in master / slave mode, you must use a serial
data transmission line. The total number of channels required by all devices determines the number
of devices that the data transmission line can support.
The devices connected to a serial data transmission line must be connected in series. According to
the standard EIA-485, no more than 30 devices should be connected to a data transmission line.
However, if you connect more than 30 devices to a serial data transfer line without using an optical
splitter, the quality of the DMX signal may be degraded.
Maximum recommended length of the DMX data transmission line: 100m
Maximum recommended number of headlights on a DMX data transmission
line: 30 devices
Page | 13
DMX Channel assignment:
3DMX channels
Channel
Function
Value
Description
1
LED
Steuerung
0----1
LED Off
2----15
LED On
16---75
Position 1 - 8 / Control via channel No. 7
76---85
Clockwise movement / control via channel No. 7
86---95
Automatic color change of an LED / control via channel no. 7
96---105
Contrary color change of two LEDs / control via channel No. 7
106--115
Automatic color change of two LEDs / control via channel no. 7
116---125
Each two LEDs are switched off clockwise / control via channel No. 7
126---135
Contrary color change of four LEDs / control via channel No. 7
136---145
Each four LEDs are switched off clockwise / controlled via channel no. 7
146---155
Switch-off and switching on of each LED / control via channel No. 7
156---165
Counter-switching off two LEDs / control via channel No. 7
166---175
Individual LEDs are turned off clockwise / music control
176---185
Individual LEDs change to the beat of the music / music control
186---195
Two LEDs each are turned off clockwise / music control
196---205
Two LEDs change to the beat of the music / music control
206---215
Two LEDs each are turned off clockwise / music control
216---225
Contrary color changes of four LEDs / music control
226---235
Each four LEDs are turned off clockwise / music control
236---245
Switch-off and switch-on of each LED / music control
246---255
Counter-switching off two LEDs / music control
2
LED Position
0----255
32 positions
Speed from slow to fast
3
Strobo
0----15
No strobo
16----223
Automatic Strobo
224---255
Music-controlled strobo
Page | 14
5 DMX Channels
Channel
Function
Value
Description
1
LED Steuerung
0----1
LED Off
2----15
color selection
16----47
Single colors R-G-B-W-Y / Automatic mode
48----79
2 colors RG-WB-GY-RB-WG-RY-GB-RW-BY-WY / Automatic mode Control via
channel No. 2
80---111
3 colors RGB-RWY-GBY-RGW-BWY-GRW-RBY-GWY-RBW / Automatic mode
Control via channel No. 2
112---143
4 colors RGBW-RGBY-RBWY-GBWY / Automatic mode Control via channel No. 2
144---175
1, 2, 3, 4 Color mix / automatic mode Control via channel No. 2
176---191
Single colors R-G-B-W-Y to the beat of the music / music-controlled
192---207
2 colors RG-WB-GY-RB-WG-RY-GB-RW-BY-WY to the beat of the music / music-
controlled
208---223
3 colors RGB-RWY-GBY-RGW-BWY-GRW-GBW-RBY-GWY-RBW to the beat of
music / music-controlled
224---239
4 colors RGBW-RGBY-RBWY-GBWY to the beat of the music / music-controlled
240----255
1, 2, 3, 4 mix of colors with music / music control
2
Color speed
0----255
Speed from slow to fast
3
Strobo
0----15
No strobo
16----223
Automatic Strobo
224---255
Music-controlled strobo
4
Rotation
0----10
No rotation
11----127
Rotation counterclockwise
128---255
Clockwise rotation
5
Rotation speed
0----255
Speed from slow to fast
Page | 15
8 DMX Channels
Channel
Function
Value
Description
1
LED control
0----1
LED Off
2----15
color selection
16----47
Single colors R-G-B-W-Y / Automatic mode
48----79
2 colors RG-WB-GY-RB-WG-RY-GB-RW-BY-WY / Automatic mode Control via
channel No. 2
80---111
3 colors RGB-RWY-GBY-RGW-BWY-GRW-RBY-GWY-RBW / Automatic mode
Control via channel No. 2
112---143
4 colors RGBW-RGBY-RBWY-GBWY / Automatic mode Control via channel No. 2
144---175
1, 2, 3, 4 Color mix / automatic mode Control via channel No. 2
176---191
Single colors R-G-B-W-Y to the beat of the music / music-controlled
192---207
2 colors RG-WB-GY-RB-WG-RY-GB-RW-BY-WY to the beat of the music / music-
controlled
208---223
3 colors RGB-RWY-GBY-RGW-BWY-GRW-GBW-RBY-GWY-RBW to the beat of
music / music-controlled
224---239
4 colors RGBW-RGBY-RBWY-GBWY to the beat of the music / music-controlled
240----255
1, 2, 3, 4 mix of colors with music / music control
2
Color speed
0----255
Speed from slow to fast
3
Strobo LEDs
Center
0----15
No strobo
16----223
Automatic Strobo
224---255
Music-controlled strobo
4
Rotation
0----10
No rotation
11----127
Rotation counterclockwise
128---255
Clockwise rotation
5
Rotation speed
0----255
Speed from slow to fast
6
LED control
0----1
LED Off
Page | 16
2----15
LED ON
16---75
Position 1 - 8 / Control via channel No. 7
76---85
Clockwise movement / control via channel No. 7
86---95
Automatic color change of an LED / control via channel no. 7
96---105
Contrary color change of two LEDs / control via channel No. 7
106--115
Automatic color change of two LEDs / control via channel No. 7
116---125
Each two LEDs are switched off clockwise / control via channel No. 7
126---135
Contrary color change of four LEDs / control via channel No. 7
136---145
Each four LEDs are switched off clockwise / controlled via channel no. 7
146---155
Switch-off and switching on of each LED / control via channel No. 7
156---165
Counter-switching off two LEDs / control via channel No. 7
166---175
Individual LEDs are turned off clockwise / music control
176---185
Individual LEDs change to the beat of the music / music control
186---195
Two LEDs each are turned off clockwise / music control
196---205
Two LEDs change to the beat of the music / music control
206---215
Two LEDs each are turned off clockwise / music control
216---225
Contrary color changes of four LEDs / music control
226---235
Each four LEDs are turned off clockwise / music control
236---245
Switch-off and switch-on of each LED / music control
246---255
Counter-switching off two LEDs / music control
7
LED Position
0----255
32 positions
Speed from slow to fast
8
Circle Strobo
0----15
No strobo
16----223
Automatic Strobo
224---255
Music-controlled strobo
Page | 17
Concluding note
Technical and optical changes within the scope of product improvement are reserved - even without
prior notice.
No liability shall be accepted for printing errors and resulting faulty operation. If in doubt, consult
your ETEC dealer!
Space for your notes:
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
This manual suits for next models
1
Table of contents
Other Etec Dj Equipment manuals
