Etec LED PARTY BAR E216 RGB User manual

LED PARTY BAR E216 RGB

Page | 2
Inhaltsverzeichnis
Introduction........................................................................................Fehler! Textmarke nicht definiert.
Warnings ............................................................................................Fehler! Textmarke nicht definiert.
Important safety information.............................................................Fehler! Textmarke nicht definiert.
Intended Use ......................................................................................Fehler! Textmarke nicht definiert.
Power connections.............................................................................Fehler! Textmarke nicht definiert.
Disposal ..............................................................................................Fehler! Textmarke nicht definiert.
Maintenance ......................................................................................Fehler! Textmarke nicht definiert.
Replace fuse .......................................................................................Fehler! Textmarke nicht definiert.
Product Overview...............................................................................Fehler! Textmarke nicht definiert.
Technical specifications......................................................................Fehler! Textmarke nicht definiert.
Menu Display Overview ........................................................................................................................ 11
Color brightness setting .....................................................................Fehler! Textmarke nicht definiert.
Static color adjustment ......................................................................Fehler! Textmarke nicht definiert.
AUTO mode setting ............................................................................Fehler! Textmarke nicht definiert.
SOUND Mode setting .........................................................................Fehler! Textmarke nicht definiert.
DMX mode setting..............................................................................Fehler! Textmarke nicht definiert.
Master / Slave mode setting ..............................................................Fehler! Textmarke nicht definiert.
DMX channel setting ..........................................................................Fehler! Textmarke nicht definiert.
DMX channel assignment...................................................................Fehler! Textmarke nicht definiert.
Remote Control ..................................................................................Fehler! Textmarke nicht definiert.
Installation / projector mounting.......................................................Fehler! Textmarke nicht definiert.
Setting up a DMX connection.............................................................Fehler! Textmarke nicht definiert.
Concluding note .................................................................................Fehler! Textmarke nicht definiert.
Space for your notes ..........................................................................Fehler! Textmarke nicht definiert.

Page | 3
Introduction
Congratulations!
You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest
possible performance of the device, read this manual carefully and familiarize yourself with the most
important functions. This manual contains important information on the operation and maintenance
of this unit. Please keep this manual for future reference, together with the device.
Unpacking:
Please unpack the product immediately after receipt and check it for completeness and integrity. If
you notice any damage to the transport of one or more parts of the product or package, please notify
the seller immediately and collect the packaging material for later inspection. Keep the carton and all
related packaging materials. If the product needs to be returned, please make sure you return it in
the original packaging.
Provisional useful life of the LED headlamp:
The brightness of LEDs decreases with time. The main cause is HEAT because it speeds up the
process. When LEDs are placed very close together, they are exposed to a higher operating
temperature than when an ideal distance is maintained or operated under optimal conditions, ie
individually. For this reason, the useful life is significantly reduced when all color LEDs are operated
with maximum brightness. The service life achievable under normal operating conditions is
approximately between 40,000 and 50,000 hours. If the prolongation of the service life is of great
importance to you, you should ensure that the operating temperature is kept low. An air-conditioned
operating environment and the reduction of the overall luminous intensity can contribute to this.

Page | 4
Warnings
ATTENTION!
Protect the device from rain and moisture!
Disconnect the power cord before opening the housing!
PLEASE READ THESE INSTRUCTIONS FOR YOUR SAFETY CAREFULLY,
BEFORE OPERATING THE UNIT FOR THE FIRST TIME!
Safety instructions:
All persons who install, operate and maintain this equipment must:
Be qualified and
Follow the instructions in this manual.
ATTENTION! Be careful when handling this unit. In the case of
dangerous mains voltages, you could get a life-threatening electric
shock when you touch the cables!
Before using the appliance for the first time, ensure that the product has not been damaged by
transport. If it is damaged, please contact the seller and do not use it. In order to ensure the perfect
condition and the safe handling, the safety instructions and warnings in this manual must be
observed.
Please note that we assume no liability for damages caused by manual changes. This device does not
contain any user-serviceable parts. Only carry out maintenance work by qualified technicians.

Page | 5
Important safety information
The manufacturer is not liable for damage caused by the failure to observe this manual or
unauthorized modifications to this product.
• The power cord must never come into contact with other cables! Use the power cord and
all connections to the power supply.
• Do not remove the warnings and information labels from the product.
• The grounding contact must never be tampered.
• Make sure that no cables are around.
• Do not insert objects into the ventilation slots.
• Never connect this unit to another dimmer pack.
• Do not open or modify the unit.
• Never use the appliance during a thunderstorm. In the event of a thunderstorm, unplug the
power cord immediately.
• Do not turn the unit on and off at short intervals as this will reduce the lifetime of the unit.
• Do not expose the unit to shocks. Do not use excessive force when installing or using the
device.
• Use the product only in indoor areas and avoid contact with water or other liquids.
• Check that the housing is tightly closed and that all screws are tightened before using the
appliance.
• Do not place the product near open fires or flammable liquids or gases.
• Always allow at least 50cm clearance around the unit to ensure adequate ventilation.
• Always unplug the unit when not in use or when you want to clean it. Only hold the mains
cable at the provided area on the plug. Never unplug the cord from the wall outlet.
• Protect the product from extreme heat, moisture or dust.
• Make sure that the available mains voltage is not higher than indicated on the back of the
unit.
• Do not crush or damage the power cord. Check the unit and the power cord at regular
intervals for possible damage.
• If the connection cable is clearly damaged, it must be replaced.
• If the lens is clearly damaged, it must be replaced so that the functions of the unit are not
affected by cracks or scratches.
• Disconnect the appliance immediately from the power supply if it falls or becomes severely
damaged.
• Have the unit checked for safety by a qualified technician before using it again.
• Do not turn off the unit immediately after exposure to strong temperature fluctuations (eg
during transport). The resulting condensation could damage the unit. Do not turn the unit on
until room temperature is reached.
• Turn the power off immediately if it is not working properly. Pack the device carefully
(preferably in the original package) and send it to your dealer.
• Suitable for adult use only. The appliance must be placed out of the reach of children.
Never leave the connected device unattended.
• Only use replacement fuses of the same type and performance as the fuses already
contained.
• The user is responsible for the correct positioning and correct operation of the device. The
manufacturer is not liable for damages caused by incorrect use or incorrect installation.
• The unit falls under protection class I. Therefore it must be earthed with the yellow-green
cable.

Page | 6
• There may be too little smoke or odor during initial start-up. This is not unusual and does
not necessarily mean that the device is not working properly.
• Repairs, maintenance and electrical connections may only be carried out or handled by
qualified technicians.
ATTENTION! EYE DAMAGE!
Never look directly into the light source.
(Especially epileptics)!

Page | 7
Intended Use
• This unit is not suitable for continuous operation. Maintaining regular operating breaks
increases the life of the unit.
• The minimum distance between the light source and the illuminated area is 0.5 meters
• The maximum ambient temperature for operation is ta = 45 ° C and must never be
exceeded.
• The relative humidity must not exceed 50% at an ambient temperature of 45 ° C.
• If the appliance is not used as described in this manual, it could be damaged and the
warranty void.
• Any improper use will lead to risks such as: Short circuits, burns,
• Electric shock, crashes, etc.
Your safety and the people you surround are in danger!
Power connections:
Connect the device to the power supply with the mains cable. Always ensure that the colored cables
are connected to the appropriate, correct locations.
International
Europe Cable
UK Cable
USA Cable
PIN
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
ZERO
YELLOW-GREEN
GREEN
GREEN
GROUND
Make sure that the device is always properly grounded!

Page | 8
Disposal
Do not throw the appliance into normal household waste at the end of its useful life.
This product is subject to European Directive 2002/96 / EC.
Dispose of the product via an approved disposal company or through your municipal waste
disposal facility.
Observe the current regulations. If in doubt, contact your disposal facility.
The packaging is certified by a dual system. Dispose of all packaging materials in
an environmentally friendly manner according to local regulations.
Maintenance
The device is almost maintenance-free. Nevertheless, the device should be cleaned regularly. If the
unit is not cleaned regularly, the light output of the unit will be considerably reduced over time.
Disconnect the unit from the mains and wipe it with a damp cloth. Never immerse the unit in any
liquid. Clean the unit with a soft cloth. Do not use alcohol or solvents. The connections should also be
cleaned regularly. Disconnect the device from the mains and wipe the connections with a cloth.
Ensure that all connections are completely dry before you connect or reconnect the device to other
devices.
The operator must ensure that all safety-relevant and mechanical devices are subjected to a
technical inspection test by qualified personnel after four years. The operator must ensure that all
safety-related and mechanical devices are inspected once a year by qualified personnel.
The following points must be considered during the inspection:
1. All screws used to install the product or parts of the product must be secured and not
corroded.
2. Neither the housing nor the fixtures or the places where the product is attached may be
deformed.
3. Mechanically moving components, such as axes, lenses, etc., must not have any wear marks.
4. Power cables must be undamaged and must not show any signs of material fatigue.

Page | 9
Replace fuse
Overvoltages, short circuits or unsuitable mains connections can cause a fuse to burn through. The
device does not work when the fuse is blown. If your device burns a backup, perform the following
steps.
1. Disconnect the mains plug.
2. Insert a flat screwdriver into the slot of the fuse cover. Lever the cover gently. The fuse now
comes to light.
3. Remove the old backup. If you look brown or milky, it is burned.
4. Insert the new fuse into the holder. Close the cover. Use only a fuse of the same type and the
same specifications. Observe the label with the technical data.
Product description
1.

Page | 10
Technical specifications
Power supply: 200 - 250 V
Voltage frequency: 50 / 60Hz
Diodent Type: Single LED
Number of diodes: 216 (72 red, 72 green, 72 blue) / 8 sections
Display: LCD matrix
Color: RGB
Dimmer: Linear: 0 - 100%
Number of DMX channels 6/24
DMX standard: DMX 512
Operating modes: automatic, DMX, master, slave, sound-to-light
AC IN: IEC - C14
DMX IN: XLR - 3-pin
DMX OUT: XLR - 3-pin
Protection class: IP33
Housing: aluminum
Dimensions (L x W x H): 108 x 12 x 12 cm
Weight [kg]: 2.5
Functions and settings
MENU: Function mode selection, such as DMX, Master / Slave, Auto, Sound Mode and Brightness
settings
DOWN/UP: Previous or Next function
Enter: Confirm and save the selection

Page | 11
Menü-Anzeige Übersicht
Ch
CH06
CH24
d001-d512
d001-d512
Soud
Sod1
Sod5
AuTo
AuLL
Au.01
Au.06
S 01 ---S 16
CC01-CC64
CoLo
b000-b255
rgbu
r000-r255
r000-r255
g000-g255
b000-b255

Page | 12
Color brightness setting
Press MENU [rgbu] to enter the color selection
Press UP / DOWN, then press ENTER to adjust the color brightness setting. Press MENU for
the previous setting
Press UP / DOWN for the increase / decrease value 0-255, press ENTER to store the value.
Press MENU for the previous setting
Press S00-S16 to adjust the strobe speed. Value to 00, no strobe; Value 01-16, strobe speed
is 1HZ-16HZ
Static color adjustment
In the [CoLo] menu, press ENTER to adjust the color
Press UP / DOWN, value 01-64 there are 63 kinds of statistical color choices. Press ENTER to
save the setting, press MENU for the previous setting
CC01-CC64
CoLo
b000-b255
rgbu
r000-r255
r000-r255
g000-g255
b000-b255

Page | 13
AUTO mode setting
Under [AuTo], press ENTER to enter AUTO mode
Press UP / DOWN to select AuLL A01.XX --- A15.XX (XX: 01--06), 9 kinds of AUTO mode. Press
ENTER to enter the AUTO speed S01-S16 setting. Press MENU to enter the main menu.
In the running speed setting, press UP / DOWN to set 15 kinds of speed steps 01-16. Increase
value for high speed. Press ENTER to store the speed level. Press MENU to enter the AUTO
running speed mode.
AuLL
AUTO Operation Au.01XX-Au15 all effects, change one minute
Au.01
All 8 sections AUTO-FLASH, R-RG-G-GB-B-RB-RGB AUTO Change every 10s
Au.02
Each individual section AUTO change, color flow flash change. AUTO-Flash 5
times, AUTO change selection and color
Au.03
All 8 sections Dimmer together RG ↑-R ↓G-GB ↑-G ↓B-R ↑B-RB ↓
Au.04
Section 1 & 2-3 & 4-5 & 6-7 & 8 AUTO Dimmer Section change. RG ↑-R ↓G-
GB ↑-G ↓B-R ↑B-RB ↓AUTO Dimmer in one cycle, then AUTO section
change once
Au.05
All 8 sections AUTO color change, R - RG-G-GB-B-RB-RGB
Au.06
R-G-B AUTO Color Change, Section 1-2-3-4-5-6-7-8 Auto Section Change
Au.07
R-G-B AUTO Color change one cycle, then AUTO section change once. R-G-B
AUTO Color Change, Section 12-34-56-78 Auto Section Change
Au.08
R-G-B AUTO Color change one cycle, then AUTO section change once. R-G-B
AUTO Color Change, Section 13-57-24-68 Auto Section Change
Au.9
R-G-B AUTO Color change one cycle, then AUTO section change once. R-RG-G-
GB-B-RB-RGB AUTO Color Change, Section 12-23-34-45-56-67-78-81 Auto
Section Change. Color change and section change simultaneously.
Au.10
R-RG-G-GB-B-RB-RGB AUTO Color change one cycle, then AUTO section change
once. 1357-2468-1234-5678-2367-1458 Auto section change. Color change and
section change simultaneously.
AuTo
AuLL
Au.01
Au.15
S 01-----S 16

Page | 14
Au.11
Section 1-2-3-4-5-6-7-8 Auto Section Replacement. R-RG-G-GB-B-RB-RGB AUTO
Color change. Auto section change one cycle, then AUTO color change once.
Au.12
Section 12-34-56-78 Auto section replacement. R-RG-G-GB-B-RB-RGB AUTO
Color change. Auto section change one cycle, then AUTO color change once.
Au.13
Section 12-23-34-45-56-67-78-81 Auto section replacement. R-RG-G-GB-B-RB-
RGB AUTO Color change. Auto section change one cycle, then AUTO color
change once.
Au.14
Section 1-12-123-1234-12345-123456-1234567-12345678-2345678-345678-
45678-5678-678-78-8 Auto Section Change. R-G-B AUTO Color change. Auto
section change one cycle, then AUTO color change once.
Au.15
All 8 sections AUTO-Stream
SOUND Mode setting
In [Soud], press ENTER to start running SOUND
Press UP / DOWN to select 3 types of sound modes (Sod1 --- Sod8). Press ENTER to save the
selection. Press MENU for the previous selection
Sod1
Includes: Sod2-Sod6 All SOUND running effects, 1 minute each time
Sod2
All 8 sections SOUND -Flash
Sod3
All 8 sections SOUND - jump
Sod4
Section 13-57-24-68 Sound Section Change R-RG - G-GB - B-RB-RGB Sound Color
Change
Sod5
Section 1-2-3-4-5-6-7-8 Sound Section Replacement. R-RG-G-GB-B-RB-RGB
Sound Color Change
Sod6
Section 12-23-34-45-56-67-78-81 Sound Section Replacement. R-RG-G-GB-B-
RB-RGB Sound Color Change.
Sod7
Section 12-34-56-78 Sound Section Change. Sound section change one cycle,
then R-RG-G-GB-B-RB-RGB Sound color change once.
Sod8
Section 1-12-123-1234-12345-123456-1234567-12345678-2345678-345678-
45678-5678-678-78-8 Sound Section Replacement. Sound section change one
Soud
Sod1
Sod8

Page | 15
cycle, then R-G-B sound color change once.

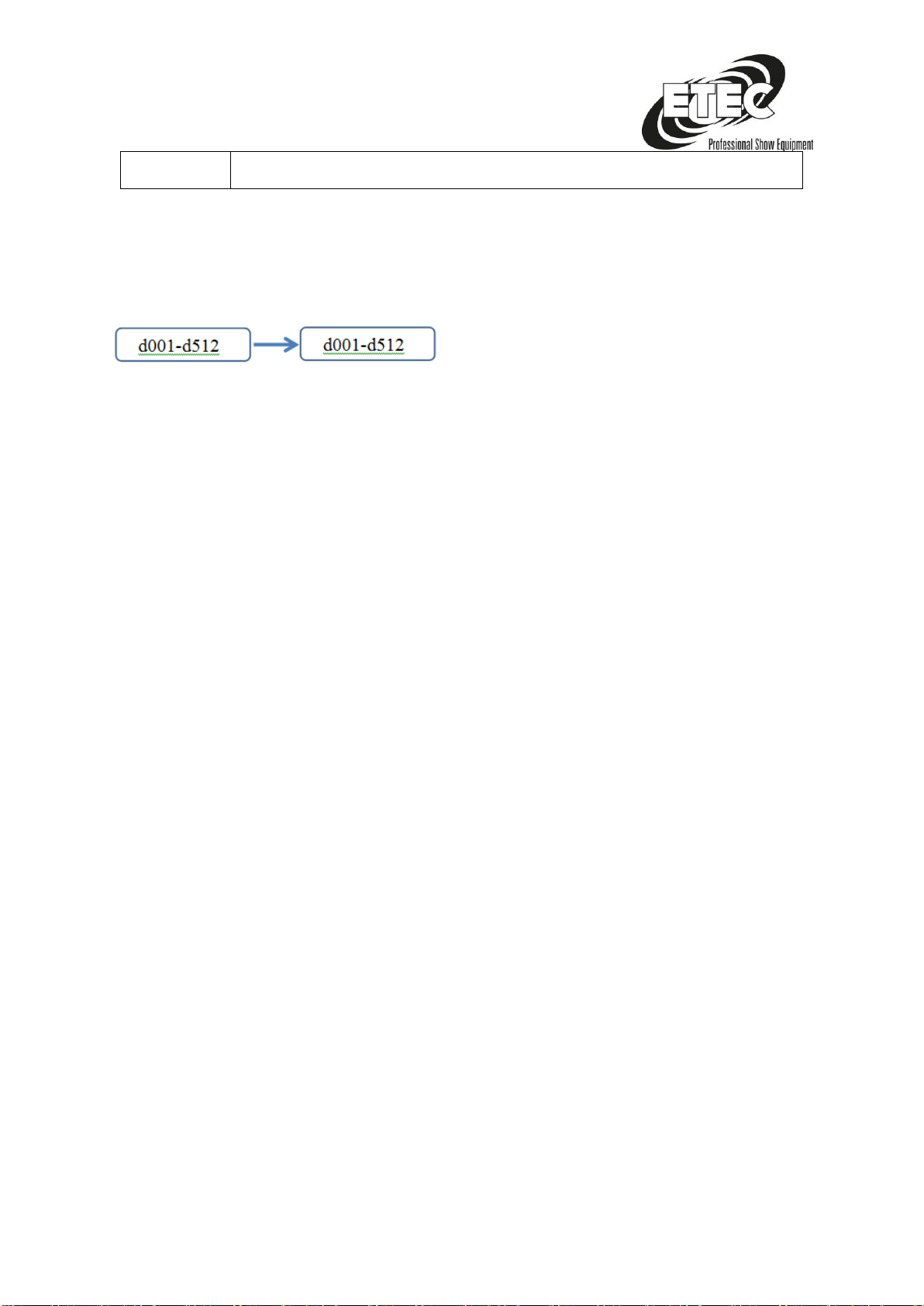

DMX mode setting
Under [dxxx], (xxx: 001--512), press ENTER to enter the DMX512 mode setting
Under DMX512 setting mode, press UP / DOWN to increase or decrease the address 001 ---
512, then press ENTER to save the setting. Press MENU for the previous setting.
As soon as the DMX512 signal can be received normally, it displays d.xxx (xxx: means DMX
address)

Page | 16
Master / Slave mode setting
Under [SLAu], press ENTER to enter slave mode. As soon as the master device is linked to the
slave device, the LCD display shows SLAu.
Press MENU to return to the previous setting.
DMX channel setting
Under [CH], press ENTER to enter the DMX512 channel setting.
Press UP / DOWN to select channel CH06 or CH24, press ENTER to save the selection. Press
MENU to return to the previous setting.
Ch
CH06
CH24
SLAu

Page | 17
DMX channel assignment
6 Channels
Channel
Function
Value
Description
CH1
Brightness
0～255
Red brightness, dark to light
CH2
0～255
Green brightness, dark to light
CH3
0～255
Blue brightness, dark to light
CH4
Color selection
0～7
Color is controlled by CH1-CH3
7～35
R—RG—G—GB—B—RB—RGB
36～71
R-RG-G-GB-B-RB-RGB AUTO Change speed from slow (1.5S)
to fast (0.1S)
72～107
R-G-B AUTO Change, speed from slow (1.5S) to fast (0.1S)
108～
143
R-RG-RGB AUTO change, speed from slow (1.5S) to fast
(0.1S)
144～
179
Color AUTO-Fade, speed from slow to fast. RG ↑-R ↓G-
GB ↑-G ↓B-R ↑B-RB ↓Color change in one cycle, slow
speed (3S) too fast (0.8S)
180～
187
R—RG—G—GB—B—RB—RGB SOUND Change
188～
195
R—G—B AUTO Change
196～
203
R—G—B SOUND Change
204～
219
R-RG-G-GB-B-RB-RGB AUTO Change, speed is controlled by
CH6 (96-215). AUTO section change one cycle, color change
every time.
220～
235
R-G-B AUTO change, speed is controlled by CH6 (96-215).
AUTO section change one cycle, color change every time.
236～
255
R-G-B AUTO change, speed is controlled by CH6 (96-215).
AUTO section change one cycle, color change every time.

Page | 18
CH5
Flash control
0～63
No Flash
64～239
AUTO Flash, speed from slow to fast
240～
255
SOUND Flash
CH6
Section control
0～95
Section selection 12345678-1-2-3-4-5-6-7-8-12-34-56-78-
13-- 57-24-68-1357-2468-1234-5678-2367-1458
96～111
Section 1-2-3-4-5-6-7-8 AUTO Section Change, Speed from
Slow (1.2S) to Fast (0.1S)
112～
127
Section 12-34-56-78 AUTO change, slow speed (1.2S) too
fast (0.1S)
128～
143
Section 13-- 57-24-68 AUTO change, slow speed (1.2S) too
fast (0.1S)
144～
159
Section 12-23-34-45-56-67-78--81 AUTO change, speed
from slow (1.2S) to fast (0.1S)
160～
175
Section 1357-2468-1234-5678-2367-1458 AUTO change,
slow speed (1.2S) too fast (0.1S)
176～
191
Section 1-12-123-1234-12345-123456-1234567-12345678-
2345678-345678-45678-5678-678-78-8 AUTO section
stream, slow speed (1.2S) too fast (0.1S)
192～
195
Section 1-2-3-4-5-6-7-8 SOUND Section Replacement
196～
199
Section 12-34-56-78 SOUND Section Change
200～
203
Section 13-- 57-24-68 SOUND Section Change
204～
207
Section 12-23-34-45-56-67-78--81 SOUND Section Change
208～
211
Section 1357-2468-1234-5678-2367-1458 SOUND Section
Change
212～
215
Section 1-12-123-1234-12345-123456-1234567-12345678-
2345678-345678-45678-5678-678-78-8 SOUND Section
Change Stream

Page | 19
216～
223
Section 1-2-3-4-5-6-7-8 AUTO Section Change, speed is
controlled by CH5 (36-203). AUTO color change speed.
AUTO color change one cycle, then AUTO section change
once.
224～
231
Section 12-34-56-78 AUTO Section Change, speed is
controlled by CH5 (36-203). AUTO color change speed.
AUTO color change one cycle, then AUTO section change
once.
232～
239
Section 13-- 57-24-68 AUTO Section Change, speed is
controlled by CH5 (36-203). AUTO color change speed.
AUTO color change one cycle, then AUTO section change
once.
240～
243
Section 12-23-34-45-56-67-78-81 AUTO Section Change,
speed is controlled by CH5 (36-203). AUTO color change
speed. AUTO color change one cycle, then AUTO section
change once.
244～
247
Section 1357-2468-1234-5678-2367-1458 AUTO Section
Change, speed is controlled by CH5 (36-203). AUTO color
change speed. AUTO color change one cycle, then AUTO
section change once.
248～
255
Section 1-12-123-1234-12345-123456-1234567-12345678-
2345678-345678-45678-5678-678-78-8 AUTO Section
Change Stream, speed is controlled by CH5 (36-203). AUTO
color change speed. AUTO color change one cycle, then
AUTO section change once.

Page | 20
24Kanäle
Kanal
Funktion
Wert
Beschr.
Kanal
Funktion
Wert
Beschr.
CH1
Section 1, red
0～255
Helligkeit
dunkel bis
hell
CH13
Section 5, red
0～255
Helligkeit
dunkel bis
hell
CH2
Section 1, green
0～255
CH14
Section 5,
green
0～255
CH3
Section 1, blue
0～255
CH15
Section 5, blue
0～255
CH4
Section 2, red
0～255
CH16
Section 6, red
0～255
CH5
Section 2, green
0～255
CH17
Section 6,
green
0～255
CH6
Section 2, blue
0～255
CH18
Section 6, blue
0～255
CH7
Section 3, red
0～255
CH19
Section 7, red
0～255
CH8
Section 3, green
0～255
CH20
Section 7,
green
0～255
CH9
Section 3, blau
0～255
CH21
Section 7, blue
0～255
CH10
Section 4, red
0～255
CH22
Section 8, red
0～255
CH11
Section 4, green
0～255
CH23
Section 8,
green
0～255
CH12
Section 4, blue
0～255
CH24
Section 8, blue
0～255
