ETL EF-14A User manual

Wall Mounted Electric Fireplace
(With Remote Control)
Model#EF-14A(95056)
Please read all instructions carefully and
Retain for future reference
-1-
Getting Started
Remove the appliance from the box.
Remove any packaging from the product.
Place the packaging inside the box and either store or dispose of safely.

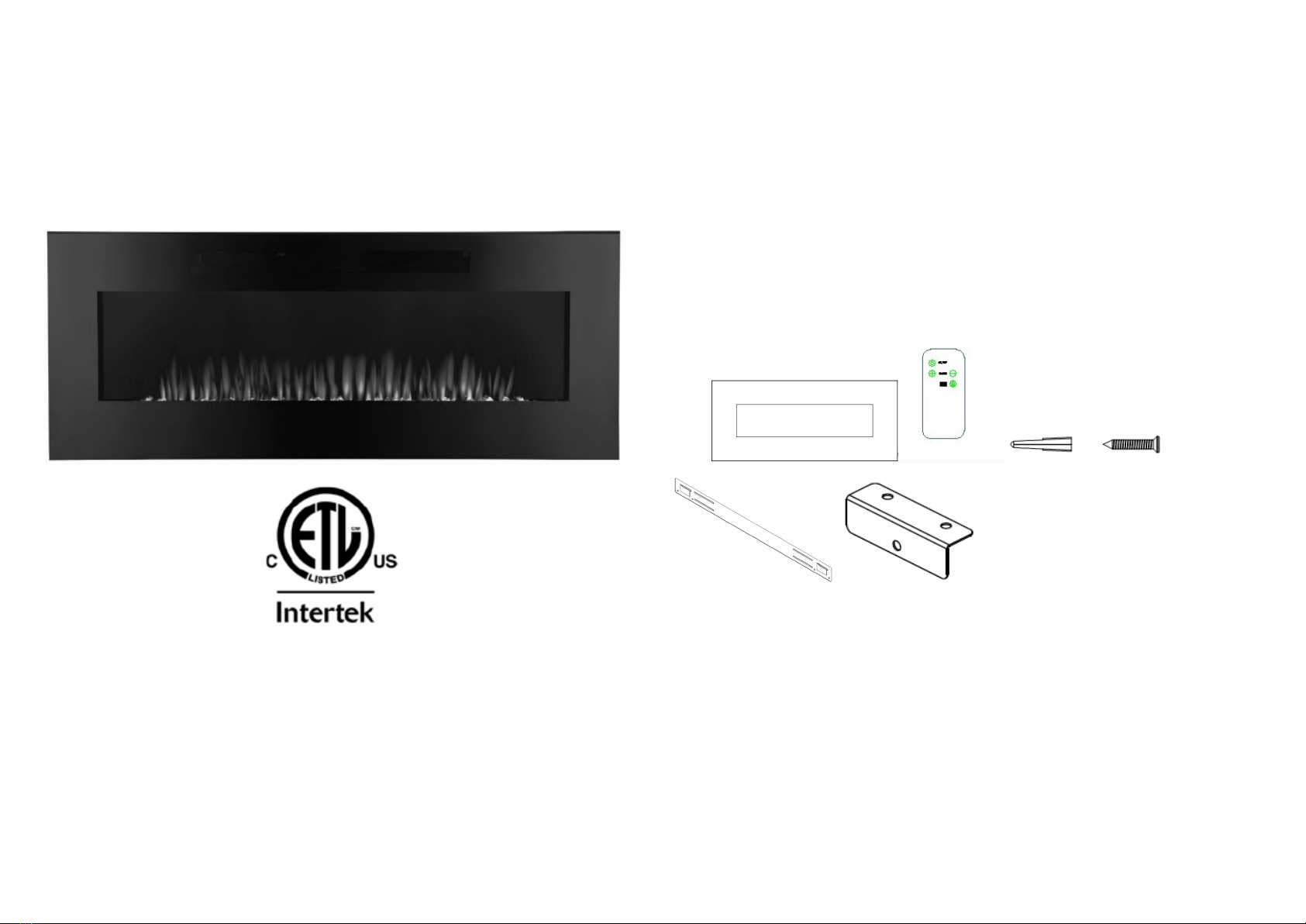

Contents of Carton
Heater
Wall fixing bracket and screws
Remote control
one pc bracket and one pc bottom bracket
8pcs 4x30mm back bracket; 4pcs 4*8mm to fix tempered glass
2pcs 4*8mm and 1pcs 4x30mm to fix bottom bracket
1 Instruction Manual
Helpful Advice before Fitting
Please retain all packaging until you have checked and counted all the parts and the
contents of the hardware pack against the parts list.
The hardware pack contains small items which should be kept away from young
children.
We suggest that you open the hardware pack and place all the contents into a container,
therefore reducing the risk of losing any small pieces.
-2-
Installation (see Fig1 ~ Fig 7)
Do not connect the appliance until properly fixed to the wall and the instructions are
fully read.
The minimum distances must be observed in the diagrams.

For installation of the appliance, care must be taken not to damage concealed cables.
Please be careful while drilling the holes.
Wall Mount Instructions
This appliance is designed to be fixed to a wall at a minimum height of 300mm and the
minimum distance from the top of the heater to the ceiling should be 1000mm. The
wall bracket must be fitted horizontally and the cable routed to the bottom right of the
heater.
A distance of 600mm from the bottom of the heater to the floor is recommended for
optimum viewing of the fuel bed; see Fig.1 below for recommended fixing
dimensions.
Fig.1
For optimum viewing, mark the top four screws ( fixing positions on the wall in
accordance with the recommended fixing dimension; See Fig.2
-3-
First, Remove the Mounting Bracket
Remove the Mounting Bracket from the back of the Fireplace by removing the two pre -
attached Screws at the back of the unit.
Remove the four white screws that fasten the front panel at both sides.
Fig.2
Note: Ensure the bracket is level by using a spirit level whilst marking out the hole
positions.
Drill holes with a No.6 drill bit.
Fix the wall bracket using the plug and 4x30mm screws provided.
Carefully lift up the heater ensuring the top rear ledge of the heater engages with the
wall bracket(see Fig.3) and is sitting centrally. This process should be carried out by
two people to avoid injury or damage to property or the appliance.
Fasten the small bottom bracket one end on wall with 2 pcs of 4*30mm screws and the
other end on appliance with 2 pcs of 4*8mm screws.(See Fig.4)
Put the crystal to the white boarder , then gently bring the heater down against the wall,
see fig.5
-4-

Fig.3
Fig.4 Fig.5
Fig.6
Place the front glass surround over the front of the fire aligning the slots in the bracket
at each side of the glass panel with the lugs on the sides of the fire; See Fig.6
Again, two people will be required for this operation.
Fix the tempered glass with 4pcs of white 4*8mm screws .(Fig.7)
Fig.7
Manual Operation
The switches located at the center right hand side of the fire .The standby switch must

be first switch on.
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE
Instructions for Use
The appliance can be operated either by the switches located on the top right hand side
of the fire or by supplied remote control.
TO ACCESS CONTROL PANEL
It takes some time for the receiver to respond to the transmitter. Do not PRESS the
buttons more than once within two seconds for correct operation.
Press once the button ON/OFF on the remote control this turns ON/OFF the appliance
and fire effect.
Press the DIMMER button for operates the dimmer mode. Each time the dimmer
button is Pressed, the intensity of the flame decrease. There are 5 brightness levels you
can cycle through and the OFF setting.
Press once the HEAT button for the low heat setting(750W); press twice for the high
heat setting(1500W); press again to turn off the heater.
Temperature setting. The highest temperature of the thermostat is 82F. There are
several thermostat levels you can cycle through between 62F and 82F, and the OFF
settings.
Timer setting. Press the TIMER button to cycle through the timer settings (1Hour,
2H,3H,4H,5H,6H,7H,and 8H) and the OFF setting.
Colorful Setting. Press the remotes’, it can change the flame color.
Press the first time, it will change from RED color to Blue color. Press the second
Time, it will change from Blue to RED & BLUE color. Press the third time, it will
Come back to red color.
Infrared Remote control
Warning: Remote control requires two AAA batteries

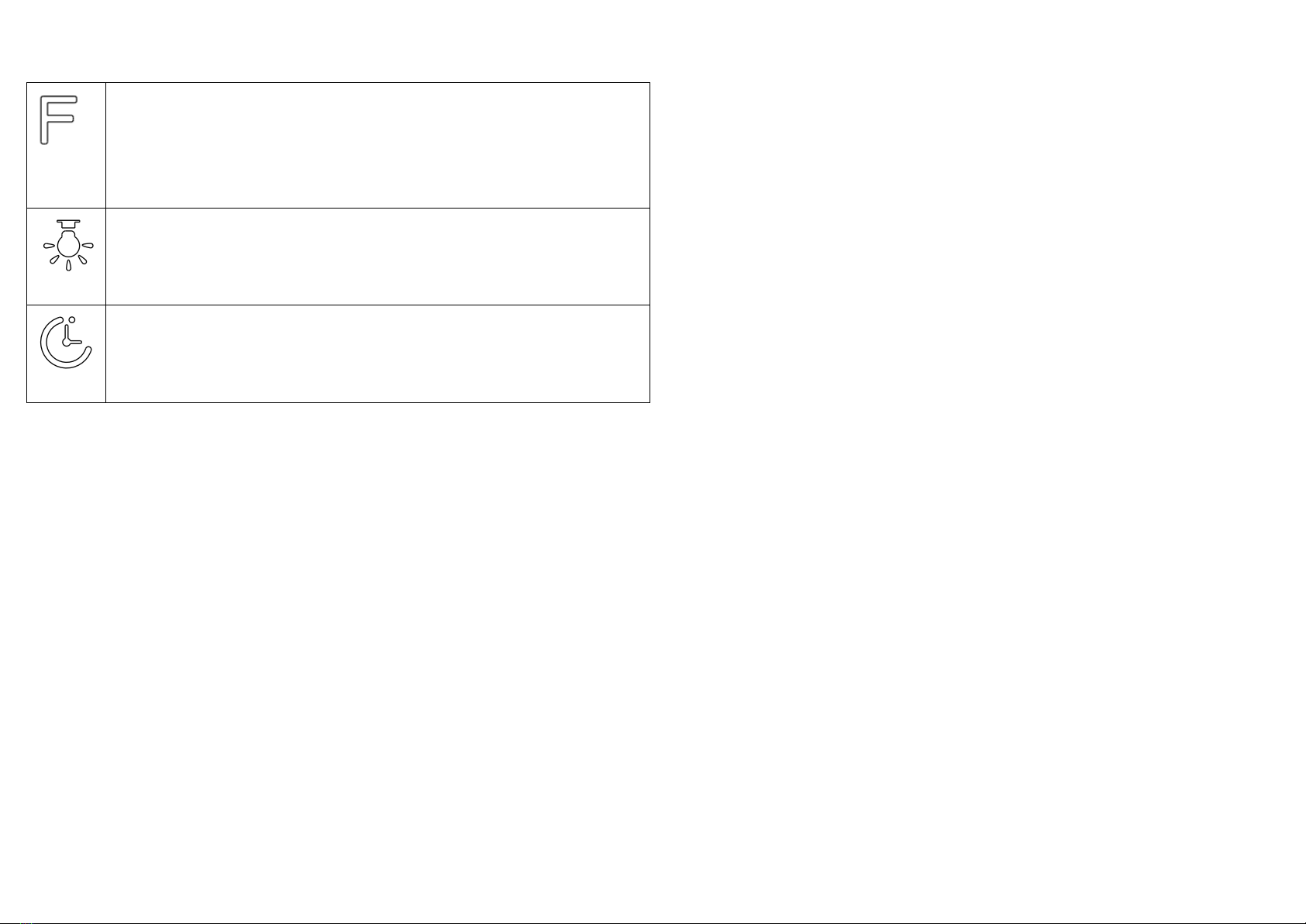

Remote control Operation
BUTTON
FUNCTION
POWER
ON: Enables control panel functions and remote control.Turn on flame effect.
OFF: Disables control panel functions and remote control.Turn off flame effect.
FLAME
FLAME button: Makes flame effect dimmer and brighter.
NOTE: Flame effect stays on until power button is turned off. Flame effect must
be on for heater to turn on.
HEATER
HEATER button:Turn heater on and off.
NOTE: To prevent overheating, the heater fan will blow out cool air for 30
seconds after the heater turn off.
1. Press once. Indicator lights up. 750W heater turns on and blows warm air.
2. Press again. Indicator lights up. 1500W heaters turns on and blows hot air.
3. Press again. Heaters turn off.
The fan blows cool air for 30 seconds to allow heater to cool down, then turns
off.

TEMP.
1. TEMPERATURE button: Control temperature settings to choose temperature
as desired. Setting range from 62F to 82F. Press once. Indicator light turn on.
Temperature is set to 62F. 21Settings:
(62F,63F,64F,65F,66F,67F,68F,69F,70F,71F,72F,73F,74F,75F,76F,77F,78F,79F,8
0F, 81F,82F)
COLOR
COLOR button: Makes the color flame effect changing.
1. Press once. Flame color effect gets changing.
2. Press again until desired setting is reached.
TIMER
TIMER button: Control timer settings to turn off fireplace at selected time.
8 Settings range 1H,2H,3H,4H,5H,6H,7H,8House.
DO NOT mix old and new batteries.
DO NOT use rechargeable silver oxide cell batteries with remote control unit.
DO NOT mix alkaline. Standard (Carbon-zine). Or rechargeable (Nickle - Cadmium)
batteries.
DO NOT dispose of batteries in fire. Improper disposal may cause batteries to leak or
explode.
-10-
Important Safety Instructions
When using this electrical appliance, basic precautions should be followed to reduce the
risk of fire, electric shock, and injury to person, including the following ：
This heater must be used on an AC supply only and the voltage marked on the heater
must correspond to the supply voltage.
Do not switch the appliance on until it properly installed and described in this manual.
Do not leave the appliance unattended during use.
Do not leave the appliance unattended whilst connected to the mains supply.
Keep out of reach of children and do not allow them to operate this appliance.
From time to time, check the cord for damage .Never use the appliance if the cord or
any part of the appliance shows signs of damage.
Do not operate this appliance with a damaged plug or cord, after a malfunction or after
being dropped or damaged in any way.
Repairs to electrical appliances should only be performed by a qualified electrician.
Improper repairs may place the user at serious risk.
-11-
Do not run the cable under carpets, rugs etc.
Do not allow the mains cable to hang over sharp edges or come into contact with hot
surfaces.
WARNING: In order to avoid overheating, do not cover or obstruct the heater in any
way.
Overheating will result if it is accidentally covered.
Never immerse the product in water or any other liquids.
LED Bulb Replacement

Note: The flame effect on this electric fireplace insert is created by LED Bulbs.
The life of these LED bulbs will be 100,000 hours. The users are not recommended to
Replace the LED Bulbs. For any reason should the bulbs stop working properly, contact a
Qualified technician.
Cleaning:
Turn heater OFF and unplug from electrical outlet before any cleaning or maintenance
is performed. Wait at least 10 minutes to allow all components to cool properly.
Use a vacuum or duster to keep heater and vent area clean from dust and dirt.
The exterior of the fireplace should be cleaned with a damp cloth or duster.
Do not use abrasive cleaners or liquid sprays.
WARNINGS AND CAUTIONS
WARNING To avoid electrical shock not open the back panel of the insert unless
the
Power has been turned off. And the insert has been unplugged.
WARNING Any electrical repairs.to this electric fireplace. Should only be
Performed by a qualified technician.
WARNING Any electrical wiring repairs should only be performed by a qualified
Technician. And also must comply with local buildings codes.
WARNING Discontinue use of this electric fireplace if any of the follow has
-12-
Occurred: Water damage. If insert has been or dented. If power cord has
Become broken. If power cord becomes hot to touch, if unit smokes or
Smells like smoke.
Note: When the heat functions is used for the first time. A slight odor may be
Present. This is normal and should be occur again unless heater is not used
For extended periods of time and dust is allowed to accumulate on heater
Element.
Technical Specification
Supply: 120V/60Hz
Rated power:750W/1500W
Meaning of crossed - out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities.
Safety Cut-Off
This appliance is fitted with a safety cut-off which will operate if the fire overheats
(e.g. due to blocked air vents) .For safety reasons, the fire will NOT automatically
reset.
To reset the appliance, disconnect the appliance from the mains supply for at least 15
minutes. Reconnect the supply to the mains and switch on the appliance.
Troubleshooting
Symptom
Solution
No operation/no fan, Check fuse by replacement,
Check for safety cut-off operation,
No fire effect light,
Check the LED light with technician.
-13-
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities.
Contact you local government for information regarding the collection systems
available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can
leak into the groundwater and get into the food chain, damaging your health and

well-being.
When replacing old appliances with new ones, the retailer is legally obligated to
take back your old appliance for disposals at least free of charge.
