Jøtul GI 350 DV User manual

Universal GI 350 DV
Direct Vent Gas Fireplace Insert
AVERTISSEMENT: Assurez-vous de
bien suivreles instructions données
dans cette notice pour réduire
auninimum le risque d’incendie ou
d’explosion ou pour éviter tout
dommage matériel, toute blessure
ou la mort.
Installation and
Operation Instructions
WARNING: If the information in
these instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
– Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or any
other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical
switch; do not use any phone in
your building.
• Immediately call your gas supplier
from a neighbor’s phone.
Follow the gas supplier’s
instruction.
• If you cannot reach your gas
supplier, call the fire department.
– Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
– A carbon monoxide (CO) detector
shall be installed in the same
room as the appliance.
– QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
• Ne pas tenter d’allumer l’appareil.
• Ne touchez à aucum interrupteur.
Ne pas vous servir des téléphones
se trouvant dans le bâtiment où
vous trouvez.
• Appelez immédiatement votre
fournisseur de gaz depuis un
voisin. Suivez les instructions du
fournisseur.
• Si vou ne pouvez rejoindre le
fournisseur de gaz, appelez le
service des incendies.
– L’installatione l’entretien doivent
être assurés par un installateur ou un
service d’entretien qualifié ou par le
fournisseur de gaz.
– Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.

2
Suggested Tools for
Installation and Service
• External regulator (for Propane only)
• Piping which complies with local code
• Manual shut-off valve -
T-Handle required in Massachusetts
• Sediment trap - if required by code
• Tee joint
• Pipe wrench
• Pipe sealant
• 10 mm open end wrench
• 1/2”, 7/16”open end wrench
• Phillips head screwdriver
• Flat head screwdriver
• 1/4” nut driver
• Gloves
• Safety glasses
• Torx T-20 screwdriver
PLEASE READ THESE INSTRUCTIONS IN THEIR
ENTIRETY AND MAKE THEM AVAILABLE TO
ANYONE USING OR SERVICING THIS
APPLIANCE.
THIS PRODUCT MUST BE INSTALLED BY A
LICENSED MASTER OR JOURNEYMAN PLUMBER
OR GAS-FITTER WHEN INSTALLED IN THE
COMMONWEALTH OF MASSACHUSETTS.
We recommend that our gas
products be installed and
serviced by professionals who
are certified in the U.S. by the
National Fireplace Institute®
(NFI) as NFI Gas Specialists.

3
Table of Contents
InstallaInstalla
InstallaInstalla
Installation & Sertion & Ser
tion & Sertion & Ser
tion & Servicvic
vicvic
vicee
ee
e TT
TT
Toolsools
oolsools
ools ....... 2
SpecificaSpecifica
SpecificaSpecifica
Specificationstions
tionstions
tions ............................................................
............................................................
.............................. 4
GenerGener
GenerGener
General Infal Inf
al Infal Inf
al Informaorma
ormaorma
ormationtion
tiontion
tion ....................................
....................................
.................. 5
SafSaf
SafSaf
Safety Infety Inf
ety Infety Inf
ety Informaorma
ormaorma
ormationtion
tiontion
tion ....................... 6
InstallaInstalla
InstallaInstalla
Installationtion
tiontion
tion
Fireplace Requirements ............. 7
Hearth Protection ......................... 8
Clearances ....................................... 8
Masonry Fireplaces ..................... 10
Prefabricated Fireplaces ............. 11
Vent Requirements ...................... 13
FF
FF
Firir
irir
ireplaceplac
eplaceplac
eplace Assemblye Assembly
e Assemblye Assembly
e Assembly
Gas Connection ............................14
Gas Pressure .................................. 15
Fuel Conversion ........................... 16
Wall Thermostat ...........................18
Remote Control.............................18
Blower Power Requirement .......18
Optional Wall Panel Kits ............ 19
Log Set Installation .....................20
System Check ................................ 21
Surround Assembly .................... 22
OperOper
OperOper
Operaa
aa
ationtion
tiontion
tion
Burner Controls........................... 23
Blower Controls .......................... 24
MainMain
MainMain
Maintenanctenanc
tenanctenanc
tenancee
ee
e
Annual Cleaning .......................... 24
Glass Replacement ..................... 25
IllustrIllustr
IllustrIllustr
Illustraa
aa
ated Pted P
ted Pted P
ted Parar
arar
artt
tt
tBrBr
BrBr
Breakeak
eakeak
eakdodo
dodo
downwn
wnwn
wn ..........
..........
.....26
RR
RR
Replaceplac
eplaceplac
eplacemenemen
emenemen
ementt
tt
tPP
PP
Parar
arar
arts Listts List
ts Listts List
ts List ........................
........................
............ 27
Appendix A:Appendix A:
Appendix A:Appendix A:
Appendix A: Remote Installation .... 28
SerSer
SerSer
Servicvic
vicvic
vice Le L
e Le L
e Logog
ogog
og ..................................................................
..................................................................
................................. 30
LighLigh
LighLigh
Lighting Instructing Instruc
ting Instructing Instruc
ting Instructionstions
tionstions
tions..................................
..................................
................. 31

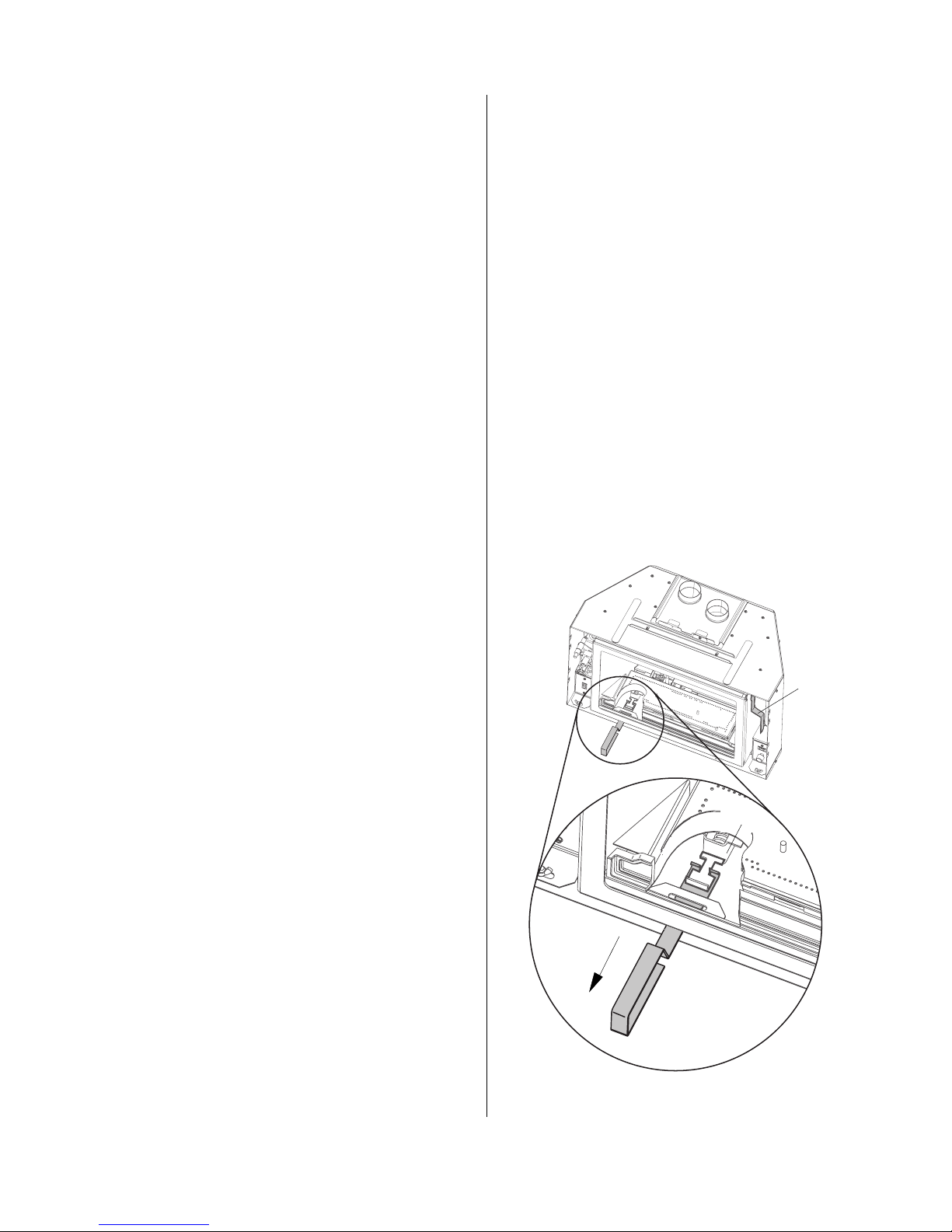

Figure 1. Pull each Spring Latch out and down to
disengage it from the Glass Frame.
Latch
Release
Tool
storage
Latch
Release
Tool
Left
Latch
Release
Unpacking the Fireplace
1.1.
1.1.
1. The Log Set is packaged inside the firebox. Remove
the Glass Panel Frame to unpack the firebox:
• Locate the Glass Frame Latch Release tool
packed in the bag with this manual.
• See the cut-away view in fig. 1 below to locate
the right and left spring latches on the underside
of the firebox floor. Release each latch by engag-
ing the tangs of the tool with the latch throat,
pulling it forward and down.
• Pull the Glass Frame away from the Firebox and
lift to disengage it from the retaining lip at the
top of the firebox. Set the glass out of the way.
• Remove the Log Set. Do not unpack the log parts
until you are ready to install them.
2.2.
2.2.
2. Follow the instructions in this manual for insert
installation and optional equipment as appropriate.

4
Specifications
Input Rates
NaNa
NaNa
Naturtur
turtur
tural Gasal Gas
al Gasal Gas
al Gas
28,000 BTU/hr. maximum input
16,500 BTU/hr. minimum input
PrPr
PrPr
Propaneopane
opaneopane
opane
28,000 BTU/hr. maximum input
14,300 BTU/hr. minimum input
Inlet Pressure: MIN MAX
Natural Gas: 5.0 WC (1.24 kPa) 7.0 WC (1.74 kPa)
Propane: 12.0 WC (2.98 kPa) 14.0 WC (3.48 kPa)
ManifManif
ManifManif
Manifold Prold Pr
old Prold Pr
old Pressuressur
essuressur
essure:e:
e:e:
e: MIN MAX
Natural Gas: 1.2 WC (0.29 kPa) 3.8 WC (0.95 kPa)
Propane: 2.9 WC (0.72 kPa) 11.0 WC (2.74 kPa)
Steady State Efficiency: 77.3%
A.F.U.E. Efficiency: 67.9%
Piezo Ignitor / Standing Pilot
Universal GI 350 DV
Direct Vent Gas Fireplace Insert
Manufactured and Distributed by:
Jøtul AS
Fredrikstad, Norway
Jøtul North America
Gorham, Maine USA
Test Standards
This appliance complies with
National Safety standards and
is tested and listed by Intertek
Testing Services of Middleton,
Wisconsin.
In addition, the Jøtul GI 350 DV gas fireplace
insert has been tested and listed as a direct vent gas
fireplace heater and listed to ANSI Z21.88-1998 (NFPA
54) and CSA 2.33-M98 for Canada.
Basket Screen (for Cast Iron Double Doors) ................. #156416
Reversible Brick Panel Kit, Corduroy Blk/Gry .......... #156417
Reversible Brick Panel Kit, Antique/Border ............. #156418
Fuel Conversion Kit - NG to LP .......................... #156444
Fuel Conversion Kit - LP to NG .......................... #156445
Wall Thermostat .................................................. #750003
Remote Control .....................................................#129706
Cast Iron Surrounds
34 1/2”Wide x 24 1/2” High. (26 1/2” w/ plinth option)
Matte Black Paint ............ #351043 Little Diamond
Blue Black Enamel .......... #351044 Little Diamond
Jøtul Iron Paint ................ #351045 Little Diamond
w/ included Wide Surround Panel
38”Wide x 26” High. (28” w/ plinth extensions)
Cast Iron Double Doors
Matte Black .................................................... #351047
Blue Black Enamel ........................................ #351048
Jøtul Iron ......................................................... #351049
Steel Surround Kits
Grand Forge - 38”Wide x 28”High
Charcoal Gray ................................................ #156410
Natural Iron .....................................................#156411
Black Powder Coat ........................................ #156412
Cathedral Arch Doors & Surround w/ Screen, 38” x 28”
Charcoal Gray................................................. #156413
Natural Iron .................................................... #156414
Black Powder Coat ........................................ #156415
Scan 65i Sliding Glass Panel & Surround, 40”x 27”
for 1” Riser - includes Mantel Heat Shield
Black Powder Coat .................................... #K156440
Stainless Steel ............................................ #K156441
Scan 65i Sliding Glass Panel & Surround, 40” x 28”
for 2” Riser - includes Mantel Heat Shield
Black Powder Coat .................................... #K156460
Stainless Steel ............................................ #K156461
Accessories
This fireplace is equipped to burn natural gas only.
If propane gas is desired, the fireplace must be
converted for use with propane. Install the LP
Conversion Kit included with the fireplace accord-
ing to the instructions in this manual.

5
General Information
IMPORTANT: SAVE THESE INSTRUCTIONS.
1. The installation and repair of this appliance must
be done by a qualified service person. Failure to
properly install and maintain this heater could
result in an unsafe or hazardous installation,
which may result in a fire, explosion, property
damage, personal injury or loss of life.
2. This appliance should be inspected before use and
at least annually. More frequent cleaning may be
required due to excessive lint from carpeting,
bedding material, etc. It is imperative that control
compartments,burners and circulating air pas-
sageways of the appliance be kept clean.
`S’assurer que le bruleur et le compartiment des
commandes sont propres.Voir les instructions
d’installation et d’utilisation qui accompagnent
l’appareil.
3. This appliance may be installed in an aftermarket
permanently located,manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type(s) of
gas indicated on the rating plate.This appliance is
not convertible for use with other gases, unless a
certified kit is used.
Cetappareil peut être installé dans un maison
préfabriquée (mobile) déjà installée à demeure si
les règlements locaux le permettent.
Cet appareil doit être utilisé uniquement avec les
types de gas indiqués sur la plaque signalétique.
Ne pas l’utiliser avec d’autres gas sauf si un kitde
conversion certifié est installé.
4. The installation must conform to local codes.Your
local Jøtul authorized dealer can assist you in
determining what is required in your area for a
safe and legal installation. Some areas require a
permit to install a gas burning appliance. Always
consult your local building inspector or authority
having jurisdiction to determine what regulations
apply in your area.
THIS HEATER MUST BE INSTALLED AND MAIN-
TAINED BY A QUALIFIED SERVICE AGENCY.
DO NOT ATTEMPT TO ALTER OR MODIFY THE
CONSTRUCTION OFTHIS APPLIANCE OR ITS
COMPONENTS.ANY MODIFICATION OR ALTER-
ATION WILL VOID THE WARRANTY, CERTIFICA-
TION AND LISTING OF THIS APPLIANCE.
In the absence of local codes, the installation
requirements must comply with the current
National codes. In the U.S., these requirements are
established in the National Fuel Code, ANSI
Z223.1.(NFPA 54). In Canada, the codes have been
established in CAN/CGA B149 Fuel Installation
Code.
Installer l’appareil selon les codes ou reglements
locaux, ou, en l’absence de tels reglements, selon
les Codes d’installation CAN/CGA-B149.
5. Do not operate this fireplace if any part of it has
been under water..
Immediately call a qualified service technician to
inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
Ne pas se servir de cet appareil s’il a ete’ plonge
dans l’eau, completement ou en partie. Appeler un
technicien qualifie pour inspecter l’appareil et
remplacer toute partie du syste’me de controle et
toute commande qui ont ete plonges dans l’eau.
6. Do not operate the fireplace with the glass front
removed, cracked or broken. Replacement of the
glass should be done by a licensed or qualified
service person. Only remove glass for routine
service. Always handle glass carefully.
Pour utilisation avec les portes en verre cerifiers
aved l’appareil seulemend ou. Ne pas utiliser avec
des portes on verre.
7. Notify your insurance company before proceding
with installation of this fireplace.
Approved Vent Manufacturers
The Jøtul GI 350 DV fireplace insert is approved for
installation with direct vent chimney components
supplied by the following manufacturers:
Simpson Dura-Vent, Inc.
P.O. Box 1510
Vacaville, CA 95696-1510 800-835-4429
Selkirk Corporation
1301 W. President George Bush Hwy, Suite 330
Richardson,TX 75080-1139 800-992-8368
American Metal Products (Amerivent)
8601 Hacks Cross Rd.
Olive Branch, MS 38654 800-423-4270
Security Chimneys International Limited
2125 Monterey, Laval, Québec
Canada, H7L 3T6 450-973-9999
Metal-Fab, Inc.
P.O. Box 1138
Wichita, KS 67201 316-943-2351

6
Safety Information
Due to the high operating temperatures this
appliance should be located out of traffic and
away from furniture, draperies, etc. Maintain
proper clearance to combustible mantels and
fireplace trim.
Children and adults should be alerted to the
hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
Young children should be supervised while they
are in the same room as the fireplace.
Clothing or other flammable materials should not
be placed on or near the fireplace.
Surveiller les enfants. Garder les vêtements, les
meubles, l’essence ou autres liquides à vapeur
inflammables lin de l’appareil.
Never allow anyone to use the fireplace if they are
unfamiliar with its operation.
NEVER store or use gasoline or any other flam-
mable vapors or liquids in the vicinity of the
fireplace.
Never burn any solid materials (wood, cardboard,
paper, coal, etc.) in this gas fireplace. Use with
natural gas or propane fuel ONLY.
Any safety screen, glass or guard removed for
servicing the appliance must be replaced prior to
operating the appliance.


Do not slam or strike the glass panel.


This appliance is NOT for use with aftermarket
glass doors.This appliance is approved for use
only with the door facings, surround panels and
glass panel options listed on page 4 of this
manual.
Cet appareil ne sert pas avec des portes en verre
de marché des accessoires. Cet appareil est
approuvé pour l’usage seulement avec les
revêtements de porte, entoure les options de
panneau et en verre de panneau énumérées à la
page 4 de ce manuel.


Wear gloves and safety glasses while performing
maintenance procedures.
Electrical Hazards


Be aware of electrical wiring locations when
cutting holes in walls and ceilings for termination.


The Jøtul GI 350 DV Blower must be electrically
grounded in accordance with local codes or, in the
Installation Requirements
The Universal GI 350 DV Gas Insert can be installed in
most solid fuel burning fireplaces of either masonry
construction or a prefabricated factory built fireplace.
Prior to any installation, the existing chimney
exhaust flue must be thoroughly cleaned and
completely inspected by a qualified chimney sweep
or fireplace service person.
Do not install this insert into a chimney that is
damaged. Any repairs must be made prior to install-
ing the insert. If you are unsure of the condition of
your fireplace and chimney, contact a professional
fireplace technician or your local authorized Jøtul
dealer for professional assistance.
DO NODO NO
DO NODO NO
DO NOT RT R
T RT R
T REMEM
EMEM
EMOO
OO
OVE BVE B
VE BVE B
VE BRR
RR
RICIC
ICIC
ICKK
KK
KS OR MS OR M
S OR MS OR M
S OR MOROR
OROR
ORTT
TT
TAR FRAR FR
AR FRAR FR
AR FROO
OO
OMM
MM
M
TT
TT
THH
HH
HE FIE FI
E FIE FI
E FIRR
RR
REPLEPL
EPLEPL
EPLAA
AA
ACC
CC
CE OR CE OR C
E OR CE OR C
E OR CHH
HH
HIMNIMN
IMNIMN
IMNEE
EE
EY SY S
Y SY S
Y STT
TT
TRUCRUC
RUCRUC
RUCTT
TT
TUU
UU
URR
RR
RE.E.
E.E.
E. However,
masonry or steel may be removed from the smoke
shelf and adjacent damper frame area to accommo-
date installation of a chimney liner, provided that
their removal will not weaken the structure of the
fireplace or chimney, and will not reduce protection
for combustible materials.
IfIf
IfIf
If the firthe fir
the firthe fir
the fireplaceplac
eplaceplac
eplace has been modifiede has been modified
e has been modifiede has been modified
e has been modified tt
tt
to aco ac
o aco ac
o accc
cc
com-om-
om-om-
om-
modamoda
modamoda
modate installate installa
te installate installa
te installation,tion,
tion,tion,
tion,use anchors or masonry nails to
attach the metal Fireplace Conversion Notice Plate to
the back wall of the masonry fireplace firebox where
it will be readily seen should the insert be removed.
THIS APPLIANCE MUST NOT BE CONNECTED TO A
CHIMNEY OR FLUE SERVING ANY OTHER APPLIANCE
OF ANY KIND.
All venting components must be installed in
accordance with the terms of their listing and
manufacturer’s instructions. Refer to the pipe
manufacturer’s instructions for proper pipe clear-
ances.
This fireplace insert is specifically designed for
use with 3”Type B vent pipe components or a Listed
Flexible gas liner.
absence of local codes, with the current ANSI/
NFPA 70, National Electrical Code or CSA C22.1-
Canadian Electrical Code.


The GI 350 DV Blower is supplied with a three-
prong (grounding) plug for protection against
shock hazard and should be plugged directly into a
properly grounded three-prong receptacle. DO
NOT CUT OR REMOVE THE GROUNDING PRONG
FROM THE PLUG.


Always disconnect the power supply when per-
forming routine service on the fireplace.

7
Minimum Fireplace
Requirements
The Universal GI 350 DV gas insert has been specifi-
cally designed to be installed into a solid fuel
burning factory built fireplace or a code approved
solid fuel burning masonry fireplace with a tile flue
liner. An acceptable fireplace cavity must have the
minimum dimensions specified in fig. 3.
Do not modify or alter the construction of the
gas insert or any of its components to enable it to fit
into a fireplace. Any modification of the insert will
void the warranty, certifications and approvals of the
unit and could be dangerous.

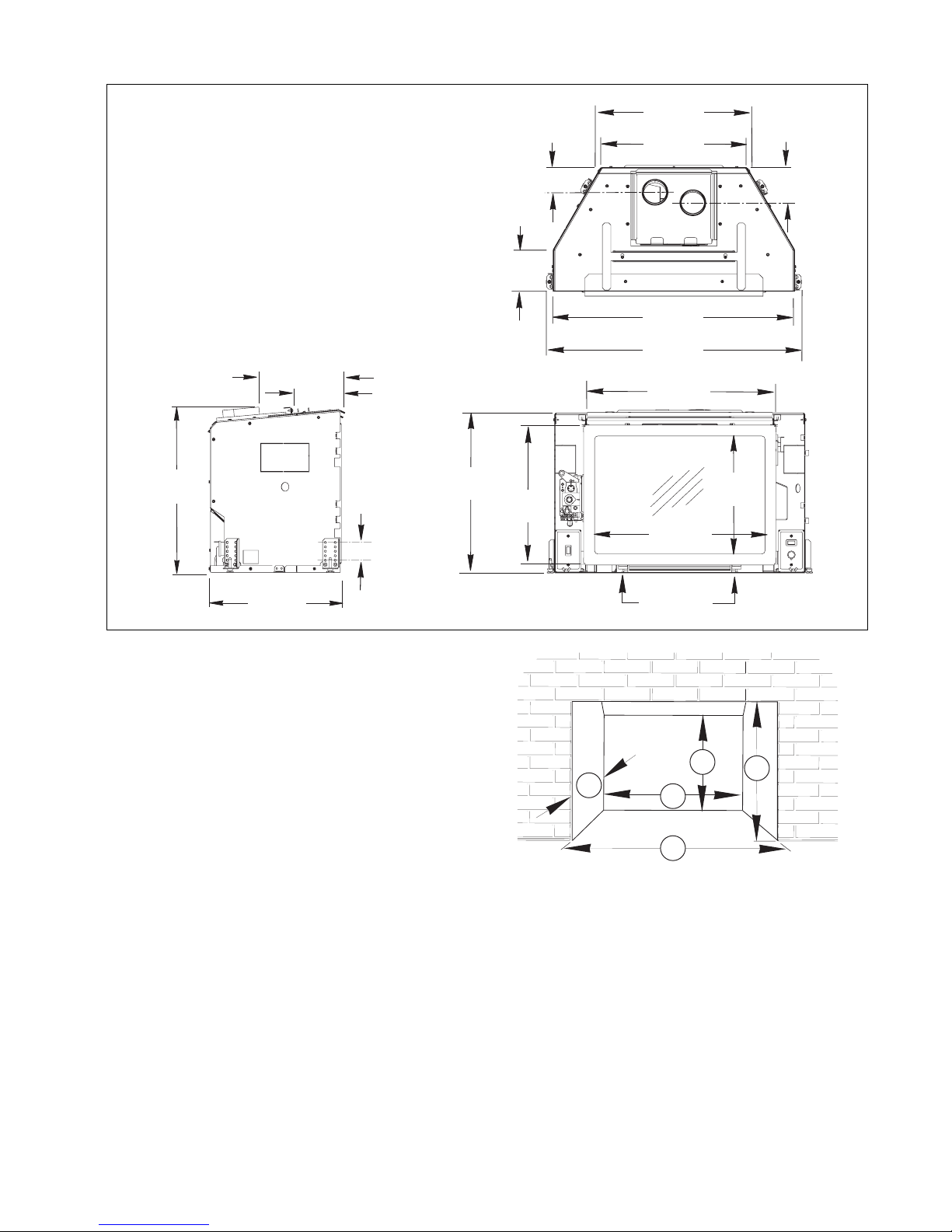

Figure 2. Universal GI 350 DV dimensions.
A:A:
A:A:
A: Opening Width = 31” (787 mm)
without leveling brackets = 30” (762 mm)
B:B:
B:B:
B: Opening Height = 20” (520 mm)
with Scan 65i 1” riser = 21” (533 mm)
with Scan 65i 2” riser = 22” (559 mm)
C:C:
C:C:
C: Back Wall Width = 19” (483 mm)
without levelling brackets = 18” (457 mm)
D:D:
D:D:
D: Back Wall Height = 19” (483 mm)
w/ Scan 65i 1”riser = 20” (508 mm)
w/ Scan 65i 2”riser = 21” (533 mm)
E:E:
E:E:
E: Depth = 16” (406 mm)
Figure 3. Minimum fireplace cavity dimensions.
EC
D
A
B
9 3/8
238 mm 5 5/8
143 mm
15
381 mm
18 3/4
575mm
2 1/2
64 mm
Height
Adj.
17 1/2
444 mm
5
127 mm
3
76 mm 4 1/4
108 mm
30 1/2
775 mm
19
483 mm
29
737 mm
22
559 mm
13 1/2
343 mm
19 1/2
495 mm
16
406 mm
Glass Frame
atches
18 3/8
466 mm

8
Figure 4. Hearth, Trim and Wall clearances.
Clearance to Combustible
Materials
A combustible material is anything that can
burn (i.e. sheet rock, wallpaper, wood, fabrics etc.).
These surfaces are not limited to those that are
visible and also include materials that may be
behind non-combustibles.
If you are unsure of the combustible nature of a
material, consult your local fire officials.“Fire
Resistant”materials are considered combustible:
they are difficult to ignite, but will burn.“Fire-rated”
sheet rock is also considered combustible.
The following clearances and hearth specifications
are the minimum requirements for installation into
a masonry or factory built fireplace. Mantel and
wall clearances will vary, depending upon the
fireplace facing and riser height, if needed.Use the
tables and illustrations in figs. 4 and 5 to determine
the minimum clearances for your installation.
Hearth Requirements
Hearth protection in front of the GI 350 DV must be
composed of any noncombustible material. It must
extend 16”forward of the firebox glass panel and
extend 18” to either side of the fireplace centerline.
See fig. 4.
Fireplace Facing Options
Jøtul Cast Iron Surround - 34 1/2” x 24 1/2”
w/ Plinth - 34 1/2” x 26 1/2”
w/Wide Surround Panel -38” x 26”
w Plinth Extensions - 38 1/2” x 28”
Steel Door Kits - includes Surround Panels
38”Wide x 28” High
SCAN 65i Surround Assembly
- with 1” Riser: 40”Wide x 27” High
- with 2” Riser: 40”Wide x 28” High
E
C
B
D
A
A:A:
A:A:
A: Hearth Protection Width - 18”from centerline.
B:B:
B:B:
B: Hearth Protection Depth - 16”
C:C:
C:C:
C: Side Trim Clearance, 1.5” thick (25 mm) Shown mea-
sured from fireplace centerline = 1”from Surround.
D:D:
D:D:
D: Side Room Wall Clearance shown measured from
the fireplace centerline = 24” from Surround.
E:E:
E:E:
E: Top Trim Clearance = Same as 3.5” deep mantel-
See fig. 5.
Table 1. Hearth, Trim and Wall clearances.
AB C D E
18” 16” 18 1/4” 41 1/4” 35”
18” 16” 41 1/4” 37”
18” 16” 20” 43” 38”
18” 16” 21” 44”
18” 16” 44”
Surround
Type
Jøtul
Cast Iron
Jøtul
Cast Iron
w/ Plinth
Steel
Double
Doors
Scan 65i
w/ Mantel
Heat Shield
Scan 65i
without
Mantel
Heat Shield
37”: 1”
Riser
38”: 2”
Riser
Use
noncom-
bustible
materials
only.
Use
noncom-
bustible
materials
only.
20”
w/ Wide
Surround
18 1/4”

9
Mantel Clearance Requirements

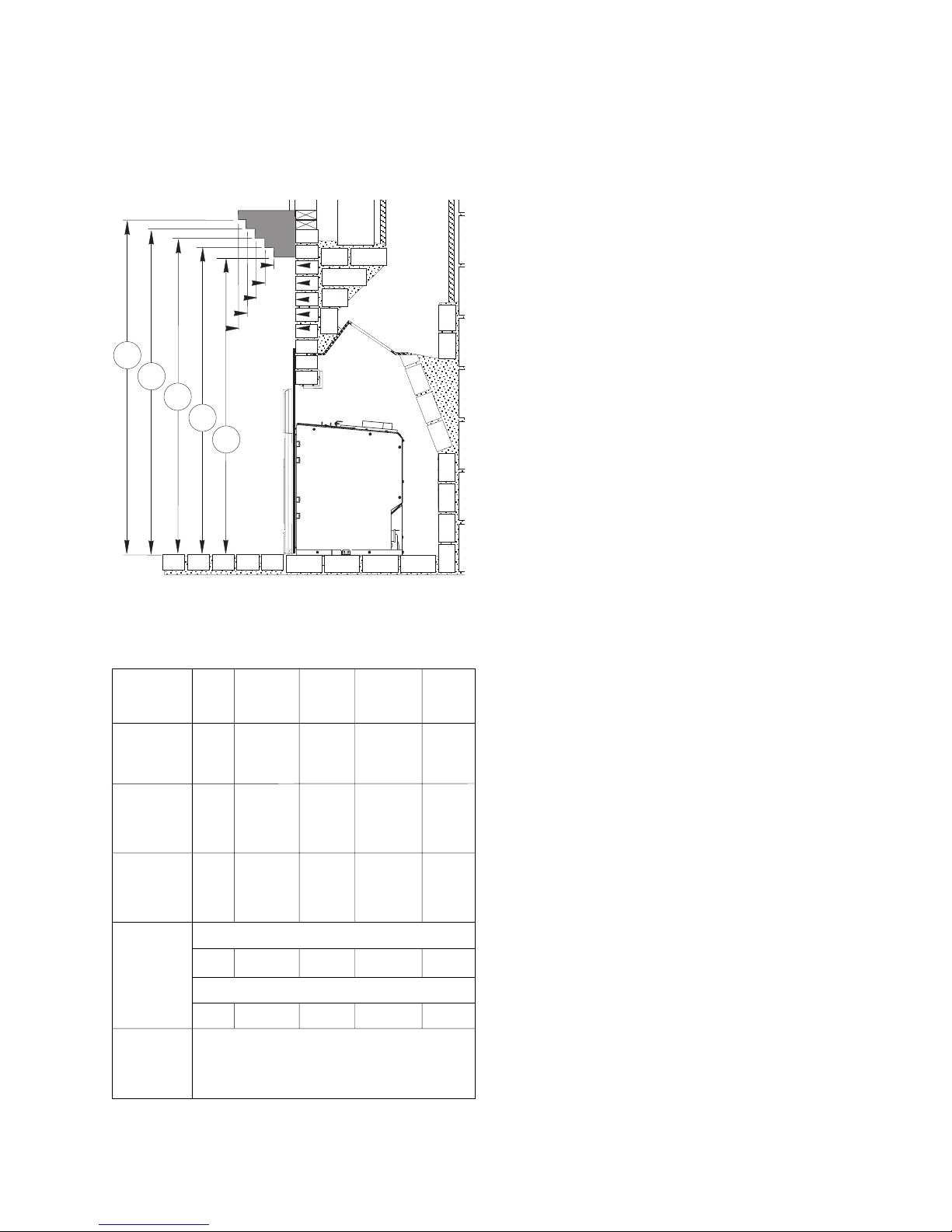

Figure 5. Minimum Mantel Clearances shown
measured from the hearth surface to the mantel
surface.
11.5
9.5
7.5
5.5
3.5
MANTEL
AREA
A
B
C
D
E
Vent Guidelines
• All vent components must be installed in accor-
dance with the listing terms and manufacturer’s
instructions.
• Vent Height: Measured from the top of the insert
to the top of the termination cap.
Minimum: no less than 10'10'
10'10'
10'
Maximum: no greater than 35'35'
35'35'
35'.
The minimum vent height above the roof or
adjacent walls is specified by building codes. As a
general guide, follow the Gas Vent Rule on page 12.
• HORIZONTAL RUNS ARE NOT PERMITTED ANY-
WHERE IN THE VENTING SYSTEM.
• Venting liners used on this appliance may not be
less than 3” in diameter or greater than 3” in
diameter.
• Any unused flue or masonry enclosure can be used
as a passageway for venting provided the flue is
relined using 3” Listed flexible gas liner.
• The remaining space around the liner in a masonry
or zero-clearance flue CANNOT be used to vent any
other appliance.
• Flexible liner components may not be exposed in
any living space.
• Installation of any components not manufactured
or approved by Jøtul or failure to meet all clearance
requirements will void all warranties and could
result in property damage, bodily injury, or serious
fire.
• Never modify any venting component,or use any
damaged venting product.
• THE GAS APPLIANCE AND VENT SYSTEM MUST BE
VENTED DIRECTLY TO THE OUTSIDE OF THE BUILD-
ING, AND NEVER ATTACHED TO A CHIMNEY
SERVING ANOTHER SOLID FUEL OR GAS-BURNING
APPLIANCE.
• Use vent component supplied by one of the vent
manufacturers listed on page 5 of this manual.
Do notDo not
Do notDo not
Do not mix cmix c
mix cmix c
mix componenomponen
omponenomponen
omponents frts fr
ts frts fr
ts from difom dif
om difom dif
om difff
ff
ferer
erer
erenen
enen
entt
tt
tmanu-manu-
manu-manu-
manu-
ff
ff
facac
acac
acturtur
turtur
turers in a single installaers in a single installa
ers in a single installaers in a single installa
ers in a single installation.tion.
tion.tion.
tion.
Table 2. GI 350 DV Mantel clearances.
AB C D E
41” 39 1/2” 38” 36 1/2” 35”
43” 41 1/2” 40” 38 1/2” 37”
44” 42 1/2” 41” 39 1/2” 38”
43” 41 1/2” 40” 38 1/2” 37”
44” 42 1/2” 41” 39 1/2” 38”
Surround
Type
Jøtul
Cast Iron
Jøtul
Cast Iron
w/ Plinth
Steel
Double
Doors
Scan 65i
w/ Mantel
Heat Shield
Scan 65i
without
Mantel
Heat Shield
Use noncombustible
materials only.
With 1” Riser
With 2” Riser

10
Masonry Fireplace Vent Installation
1.1.
1.1.
1. Measure height of the chimney to fireplace open-
ing. Determine if both the intake and exhaust will
be extended to the top of the chimney.
2.2.
2.2.
2. Use tin snips to cut the appropriate lengths of flex
for both the intake and exhaust.
3.3.
3.3.
3. Attach the appropriate ends of the flex to the
chimney termination kit.
44
44
4..
..
. Drop the liners down the chimney from the top
and rest the termination kit atop the chimney.
55
55
5..
..
. Seal the chimney termination kit to the top of the
chimney flue with high temperature sealant.
6.6.
6.6.
6. Secure the appropriate DIRECT VENT CAP to the
termination kit.
77
77
7..
..
. Inside the fireplace, fully extend the flex liner pipe
and cut off the excess so that the liners hang
approximately 15”from the floor of the fireplace.
8.8.
8.8.
8. If the Air Intake pipe will not be attached to the
chimney termination kit:(See IMPORTANT NOTICE on
this below.)
a.a.
a.a.
a. It will be necessary to install a minimum length
of 6 ft. flex pipe up into the flue.
bb
bb
b..
..
. A metal damper block off plate must be con-
structed and installed in the fireplace damper area
to completely seal off the flue from the room. Cut
holes in the plate for both the intake and exhaust
flex pipes.
cc
cc
c..
..
.A direct vent cap is required to bring fresh air
into the chimney flue and Air Intake flex pipe.
d.d.
d.d.
d. Attach the Fireplace Conversion Notice to the
back of the fireplace if appropriate.
Masonry Fireplaces
A solid-fuel fireplace chimney must be clean and in
good working order. It must be constructed of no-
combustible materials. Chimney clean-outs must fit
properly.
When installing the Universal GI 350 DV gas
insert into a masonry fireplace, the insert will be
vented through dual 3” flexible gas aluminum liners.
This co-linear installation includes a pair of 3”
flex ducts that run from the insert completely
through the existing chimney to the termination cap.
One liner is attached to the Exhaust Outlet on
the back of the unit and will carry the exhaust gases
to the outside of the house. This exhaust liner must
be directly connected to the unit and run the full
length of the chimney. See fig. 6.
The other 3” liner will be attached to the Air
Intake Collar on the back of the unit to provide fresh
air for combustion. The Intake Collar is labeled for
easy identification. The liner must extend a mini-mini-
mini-mini-
mini-
mum omum o
mum omum o
mum of 6’f 6’
f 6’f 6’
f 6’ off the back of the unit and extend
through the damper area of the fireplace into the tile
liner of the chimney. This liner can also extend the
full length of the chimney and connect to the
termination cap.
IMPORTANT
If the intake flex does not extend the full length
of the chimney, forming a direct connection between
the unit and the termination cap, A METAL BLOCK
OFF PLATE MUST BE INSTALLED to seal the air intake
from room air. Normally this sealing plate will be
installed within the existing fireplace damper area.
See fig. 6.The sealing plate is not necessary if a direct
connection is made between the cap and the fire-
place. WW
WW
WARAR
ARAR
ARNN
NN
NII
II
ING!NG!
NG!NG!
NG! Avoid cross venting the insert.
Before installation,label both ends of the exhaust flex
pipe to ensure connection to the appropriate collars on
the fireplace unit and vent termination cap.
Cutting of any sheet metal parts on a solid-fuel
fireplace is prohibited. CC
CC
CANADANAD
ANADANAD
ANADA RA R
A RA R
A REQUEQU
EQUEQU
EQUII
II
IRR
RR
REMENEMEN
EMENEMEN
EMENTT
TT
T::
::
:BothBoth
BothBoth
Both the Inthe In
the Inthe In
the Intaktak
taktak
takee
ee
e
andand
andand
and the Ethe E
the Ethe E
the Exhaustxhaust
xhaustxhaust
xhaust liners mustliners must
liners mustliners must
liners must ee
ee
extendxtend
xtendxtend
xtend thethe
thethe
the
full length ofull length o
full length ofull length o
full length off
ff
f the chimnethe chimne
the chimnethe chimne
the chimney and be secury and be secur
y and be secury and be secur
y and be securelyely
elyely
ely
cc
cc
conneconnec
onneconnec
onnectedted
tedted
ted tt
tt
to botho both
o botho both
o both the unitthe unit
the unitthe unit
the unit andand
andand
and thethe
thethe
the termi-termi-
termi-termi-
termi-
nana
nana
nation kittion kit
tion kittion kit
tion kit..
..
.
IfIf
IfIf
If the firthe fir
the firthe fir
the fireplaceplac
eplaceplac
eplace has been modifiede has been modified
e has been modifiede has been modified
e has been modified tt
tt
too
oo
o
acac
acac
accc
cc
commodaommoda
ommodaommoda
ommodate installate installa
te installate installa
te installation,tion,
tion,tion,
tion,use anchors or
masonry nails to attach the metal Fireplace
Conversion Notice Plate supplied with this
unit to the back wall of the masonry fireplace
firebox where it will be readily seen should
the insert be removed.
IMPORTANT NOTICE:
THE USE OF AN EXISTING CHIMNEY AS AN AIR
INTAKE IS NOT COVERED UNDER THE ANSI Z21.88-
1999-CSA 2.33-M99 TEST METHODS AND RESULT-
ING ITS/WHI PRODUCT CERTIFICATION. THE CODE
AUTHORITY HAVING JURISDICTION MUST BE
CONSULTED PRIOR TO PROCEEDING WITH THIS
INSTALLATION METHOD.
Smoke shelves, shields, and baffles may be
removed if attached with mechanical fasteners.

11
WARNING:
FAILURE TO POSITION THE PARTS IN ACCORDANCE
WITH THIS DIAGRAM OR FAILURE TO USE ONLY
PARTS SPECIFICALLY APPROVED WITH THIS APPLI-
ANCE MAY RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
Listed Direct Vent
Termination Cap
Metal block-off plate is
required to seal flue from
the living area if Air Intake
pipe does not connect
directly to a Direct Vent
Termination at the top of
the chimney
Maintain proper
clearance to Mantel
and Trim
Sealed Chimney
Cap Anchor Plate
Listed Flexible
Gas Liners
Max. Height 35 ft.
Min. Height 10 ft.
12345678
12345678
AIR INTAKE FLEX PIPE
EXHAUST FLEX PIPE
To Air
Intake
Collar
To
Exhaust
Collar
Figure 6. Masonry Fireplace Venting Configuration.
Attach Fireplace
Conversion Notice
Plate to Rear Wall
of Fireplace if the
damper has been
modified.
Prefabricated Fireplaces
A prefabricated fireplace chimney must be clean and
in good working order. It must be constructed of
noncombustible materials. Chimney clean-outs
must fit properly.
A factory-built prefabricated fireplace will require a
few modifications before installation of the fireplace
insert.
Modification Steps:
1. Remove any fuel grate or other components
attached to the firebox. On most models the fire
grate is attached to the unit with brackets which
should be cut or pried off.
2. Remove the damper assembly. This includes the
damper blade, handle and any linkage.
Two 3” liners must be able to pass through the
damper area.
3. Remove any fire screen or door assembly. This is
usually done by removing a support rod on the
inside of the fireplace frame. Smoke shelves,
shields, and baffles can be removed if attached
with mechanical fasteners.
4. If there is a metal ash lip, it too should be re-
moved to allow the unit to sit flat in the fireplace.
Be sure to reinstall any screws removed.
IMPORTANT:
BEFORE STARTING THIS INSTALLATION,MAKE SURE
THAT A GAS LINE CAN BE INSTALLED OR IS INSTALLED
TO THE FIREBOX. THIS SHOULD ONLY BE DONE BY A
QUALIFIED OR LICENSED PLUMBER OR GAS FITTER.
The GI 350 DV gas insert is specifically designed
to be vented using a co-linear system.
Installation includes a pair of 3” flex ducts that
run from the insert completely through the existing
chimney to the termination cap. See figure 7, page 12.
One liner is attached to the exhaust port on the
back of the unit and will carry the exhaust gases to
the outside of the house. This exhaust liner must
be directly connected to the unit and run the full
length of the chimney.
IMPORTANT NOTICE:
THE USE OF AN EXISTING CHIMNEY AS AN AIR
INTAKE IS NOT COVERED UNDER THE ANSI Z21.88-
1999-CSA 2.33-M99 TEST METHODS AND RESULT-
ING ITS/WHI PRODUCT CERTIFICATION. THE CODE
AUTHORITY HAVING JURISDICTION MUST BE
CONSULTED PRIOR TO PROCEEDING WITH THIS
INSTALLATION METHOD.

12
GAS VENT RULE
Flat to 6/12 1’0” 0.3M
Over 7/12 to 9/12 2’0” 0.6M
Over 10/12 to 12/12 4’0” 1.2M
Over 13/12 to 16/12 6’0” 1.8M
Over 17/12 to 21/12 8’0” 2.4M
Minimum Height
From Roof
ROOF SLOPE
The minimum vent height above the roof or
adjacent walls is specified by major building codes. A
general guide to follow is the Gas Vent Rule below.
The other 3” liner will be attached to the intake
port on the back of the unit and will provide fresh air
for combustion to the unit. This liner must extend a
minimum ominimum o
minimum ominimum o
minimum of 6 ff 6 f
f 6 ff 6 f
f 6 ftt
tt
t..
..
. off the back of the unit and
extend through the damper area of the fireplace and
into the first section of pipe. This liner can also
extend the full length of the chimney and connect to
the termination cap. See figure 7.
IMPORTANT:
If the intake flex does not extend the full length of
the chimney and connect to the unit and the termi-
nation cap - THEN A METAL BLOCK OFF PLATE MUST
BE CONSTRUCTED AND INSTALLED ABOVE THE UNIT
PRIOR TO THE END OF THE INTAKE FLEX (normally at
the damper area).
CC
CC
CANADANAD
ANADANAD
ANADA RA R
A RA R
A REQUEQU
EQUEQU
EQUII
II
IRR
RR
REMENEMEN
EMENEMEN
EMENTT
TT
T::
::
:BothBoth
BothBoth
Both the Inthe In
the Inthe In
the Intaktak
taktak
takee
ee
e
andand
andand
and the Ethe E
the Ethe E
the Exhaustxhaust
xhaustxhaust
xhaust liners mustliners must
liners mustliners must
liners must ee
ee
extendxtend
xtendxtend
xtend thethe
thethe
the
full length ofull length o
full length ofull length o
full length off
ff
f the chimnethe chimne
the chimnethe chimne
the chimney and be secury and be secur
y and be secury and be secur
y and be securelyely
elyely
ely
cc
cc
conneconnec
onneconnec
onnectedted
tedted
ted tt
tt
to botho both
o botho both
o both the unitthe unit
the unitthe unit
the unit andand
andand
and thethe
thethe
the termi-termi-
termi-termi-
termi-
nana
nana
nation kittion kit
tion kittion kit
tion kit..
..
.
IfIf
IfIf
If the firthe fir
the firthe fir
the fireplaceplac
eplaceplac
eplace has been modifiede has been modified
e has been modifiede has been modified
e has been modified tt
tt
too
oo
o
acac
acac
accc
cc
commodaommoda
ommodaommoda
ommodate installate installa
te installate installa
te installation,tion,
tion,tion,
tion,use anchors or
masonry nails to attach the metal Fireplace
Conversion Notice Plate supplied with this
unit to the back wall of the masonry fireplace
firebox where it will be readily seen should
the insert be removed.
1234
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1234
12345
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
12345
123456789012
1
2345678901
2
1
2345678901
2
123456789012
INTAKE FLEX MUST
EXTEND AMINIMUM
OF 6’ AND INTO
THE CHIMNEY PIPE
1234567890123456789012
1
23456789012345678901
2
1
23456789012345678901
2
1234567890123456789012
Factory-built
Listed Gas
Chimney
123456
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
123456
Figure 7. Factory-built fireplace vent configuration.
Metal block-off plate is
required to seal flue
from the living area if
Air Intake pipe does not
connect directly to a
Direct Vent Termination
at the top of the
chimney
Maintain proper
clearance to Mantel
and Trim
Listed Flexible
Gas Liners
Max. Height 35 ft.
Min. Height 10 ft.
AIR INTAKE FLEX PIPE
EXHAUST FLEX PIPE
To Air
Intake
Collar
To
Exhaust
Collar
Listed Direct Vent
Termination Cap
Attach Fireplace
Conversion Notice
Plate to Rear Wall
of Fireplace if the
damper has been
modified.
Cutting of any sheet metal parts on a solid-fuel
fireplace is prohibited.
If the factory-built fireplace has no gas access
hole(s) provided,an access hole 1.5”diameter or less
may be drilled through the lower sides or bottom of
the firebox in a proper workmanship-like manner.This
access hole must be plugged with noncombustible
insulation after the gas supply line has been installed.

13
Prefabricated Fireplace Vent Installation
1.1.
1.1.
1. Measure height of the chimney to fireplace
opening. Determine if both the intake and exhaust
will be extended to the top of the chimney.
2.2.
2.2.
2. Cut the appropriate lengths of flex for both the
intake and exhaust.
3.3.
3.3.
3.
IfIf
IfIf
If the inthe in
the inthe in
the intaktak
taktak
take flee fle
e flee fle
e flex will be ax will be a
x will be ax will be a
x will be attachedttached
ttachedttached
ttached tt
tt
too
oo
o the chim-the chim-
the chim-the chim-
the chim-
nene
nene
neyy
yy
y terminatermina
terminatermina
termination kit:tion kit:
tion kit:tion kit:
tion kit: Attach the appropriate ends
of the flex to the chimney termination kit. Label
the end of the exhaust pipe.
44
44
4..
..
. Drop the liners down the chimney from the top
and rest the termination kit atop the chimney.
55
55
5..
..
. Seal the chimney termination kit to the top of the
chimney pipe with high temperature sealant.
6.6.
6.6.
6. Secure the appropriate DIRECT VENT CAP to the
termination kit.
77
77
7..
..
. Inside the fireplace, fully extend the flex and cut
off the excess flex so that the liners hang approxi-
mately 15” from the floor of the fireplace.
8.8.
8.8.
8.
IfIf
IfIf
If the inthe in
the inthe in
the intaktak
taktak
take flee fle
e flee fle
e flex is NOx is NO
x is NOx is NO
x is NOT aT a
T aT a
T attachedttached
ttachedttached
ttached tt
tt
too
oo
o the chim-the chim-
the chim-the chim-
the chim-
nene
nene
neyy
yy
y terminatermina
terminatermina
termination kit:tion kit:
tion kit:tion kit:
tion kit: See NOTICE on page 12.
A.A.
A.A.
A. It is necessary to install a minimum 6 foot
length of flex pipe into the flue for the intake air.
BB
BB
B..
..
. A METAL damper block off plate must be
constructed and installed in the damper area to
completely seal off the flue from the room. Cut
holes for both the intake and exhaust liners in the
block off plate.
C.C.
C.C.
C. A direct vent cap is still required to allow fresh
air into the chimney flue and ultimately into the
intake flex and insert.
DD
DD
D..
..
.Attach the Fireplace Conversion Notice to the
back of the fireplace if appropriate.
9.9.
9.9.
9. Surround panels must not block or seal any
ventilation openings on the prefabricated fire-
place.
Vent Connection
The Vent Collar Plate, located on top of the cabinet,
is removable to ease connection of the vent liners in
those cases where access within the fireplace is
restricted. Whether you are venting through a
masonry chimney or a prefabricated chimney, the
flex liner is connected to the insert in the same way.
Use the following procedure.
WW
WW
Wear Safear Saf
ear Safear Saf
ear Safety Gloety Glo
ety Gloety Glo
ety Glovv
vv
ves!es!
es!es!
es!
1.1.
1.1.
1. Disengage the Vent Collar tool from the top of
the fireplace cabinet by loosening the two
retainer screws, then sliding the tool over and up as
in fig. 8.
2.2.
2.2.
2. Remove the retainer screw that attaches the
Collar Plate to the cabinet top and slide the plate
back off of the cabinet. Secure the flex liners to
the appropriate collars on the Vent Collar Plate
using sheet metal screws or hose clamps, as
shown in fig. 9. Confirm that the liners are not
cross-vented.
3.3.
3.3.
3. Position the insert, without surround panels,
halfway inside the fireplace and engage the Vent
Collar Plate within the rails on the cabinet top
enough to get it started. Engage one end of the
tool over the tabs on the flue collar plate as in fig.
9. Use a striking motion to hammer the collar
plate fully forward and secure it to the cabinet
flange using the sheet metal screw previously
removed.
44
44
4..
..
. Store the Vent Adaptor tool beside the insert
cabinet inside the fireplace for future use when
servicing the unit.
Figure 9.
Use the tool to pull the collar plate into place.
Figure 8. Remove the Flue Collar tool. Also, remove the
Upper Deflector if a Cast Iron surround is to be installed.
Loosen these screws enough to disengage
the tool, then retighten.
ExhaustIntake
Upper Deflector

14
Connecting the Gas Supply
Gas Supply Requirements
ALL INSTALLATIONS MUST COMPLY WITH LOCAL
CODE OR IN THE ABSENCE OF LOCAL CODE,MUST
COMPLY WITH THE MOST RECENT EDITION OF THE
NATIONAL FUEL GAS CODE ANSI Z223.1/NFPA 54 OR
CAN-B149.
Shut-off Valve
All codes require a gas Shut-off valve (gas cock)
and union to be installed in the supply line and in
the same room as the appliance. This allows for the
disconnection of the fireplace for servicing and
maintenance. See Fig. 11.
The fireplace and gas control valve must be
disconnected from the gas supply piping during any
pressure testing of the system at test pressures in
excess of 1/2 psig. For pressures lower than 1/2 psig,
isolate the gas supply by closing the manual shut-off
valve.
Control Valve Connection
As mounted, the gas supply line connection is
made to the upper end of the valve. The gas supply
line should be a minimum 3/8" diameter, or the
appropriate size to provide sufficient gas pressure to
the valve regardless of the input setting.
The use of flexible gas appliance connectors is
acceptable in many areas in the U.S. In Canada,
methods vary depending on local code. If local codes
permit, use flexible gas line for ease of installation
and service. For those locales where flexible gas lines
are not permitted, use the 3/8” iron fitting to make
the connection at the top side of the Control Valve.
See fig. 11.
Secure all joints tightly using appropriate tools
and sealing compounds (for propane units, be sure to
use compounds that are propane resistant). Turn on
gas supply and test for gas leaks using a 50/50 soapy
water solution or a gas detector. Never use an open
flame to check for leaks.
A T-HANDLE GAS SHUT-OFF VALVE IS
REQUIRED IN MASSACHUSETTS IN COMPLIANCE
WITH CODE 248CMR.
THIS PRODUCT MUST BE INSTALLED BY A
LICENSED MASTER OR JOURNEYMAN
PLUMBER OR GAS-FITTER WHEN INSTALLED IN
THE COMMONWEALTH OF MASSACHUSETTS.
Final Positioning
1. Blower Power Cord:
Extend the blower power cord out forward of the
fireplace, routing it to the nearest power source.
2. Level and Plumb the Cabinet:
With the fireplace cabinet in its final position,
confirm that it is level and plumb.
Adjust the leg levelers at each corner as
appropriate to fine-tune the level up to 1/2”. If a
greater height increase is required, the brackets
can be lowered in 1/2” increments, to raise the
cabinet up to 2 1/2”.
3. Insert Height Adjustment
• Plinth: If a Cast Iron or Wide Surround is being
installed with the a plinth option, adjust the leg
leveler brackets to raise the unit 2”.
• Scan 65i Fronts::
::
:Adjust the leg brackets 1“ or 2”,
depending upon which size riser trim is being
used.
NOTE:THE APPROPRIATE MANTEL CLEARANCES
MUST BE MAINTAINED AS SPECIFIED ON PAGE 9.
IF RAISING THE INSERT MORE THAN 1/2”, USE
NONCOMBUSTIBLE SUPPORT MATERIALS,SUCH
AS TILE OR PAVERS, UNDER THE CENTER OF THE
CABINET.
4. Extend the Surround Bracket Tabs:
Use pliers to bend back the Surround Bracket Tabs,
located on the forward edge of each cabinet side,
as shown in fig. 10.
• Tabs 1 and 2 bend inboard - for use with all cast
iron surrounds, steel door facings,and the Scan
65i facing.
• Tabs 3 and 4 bend outboard - for use with Wide
Surround Panels only.
Figure 10. Surround bracket tab orientation.
1
3
2
4
1
3
2
4
Leg Leveler Bracket Leg Leveler Bolt

15
Soap Solution Leak Test
• Mix a 50-50 solution of water and dish soap.
• Light appliance- see lighting instructions on page
23 of this manual or on the fireplace’s rating plate.
• Brush or spray all joints and connections with the
soapy water solution.
• If bubbles appear at any connection or seam or a
gas odor is detected, immediately turn gas control
knob to the OFF position.
Tighten or reconnect the leaking joint and retest
for any gas leaks.

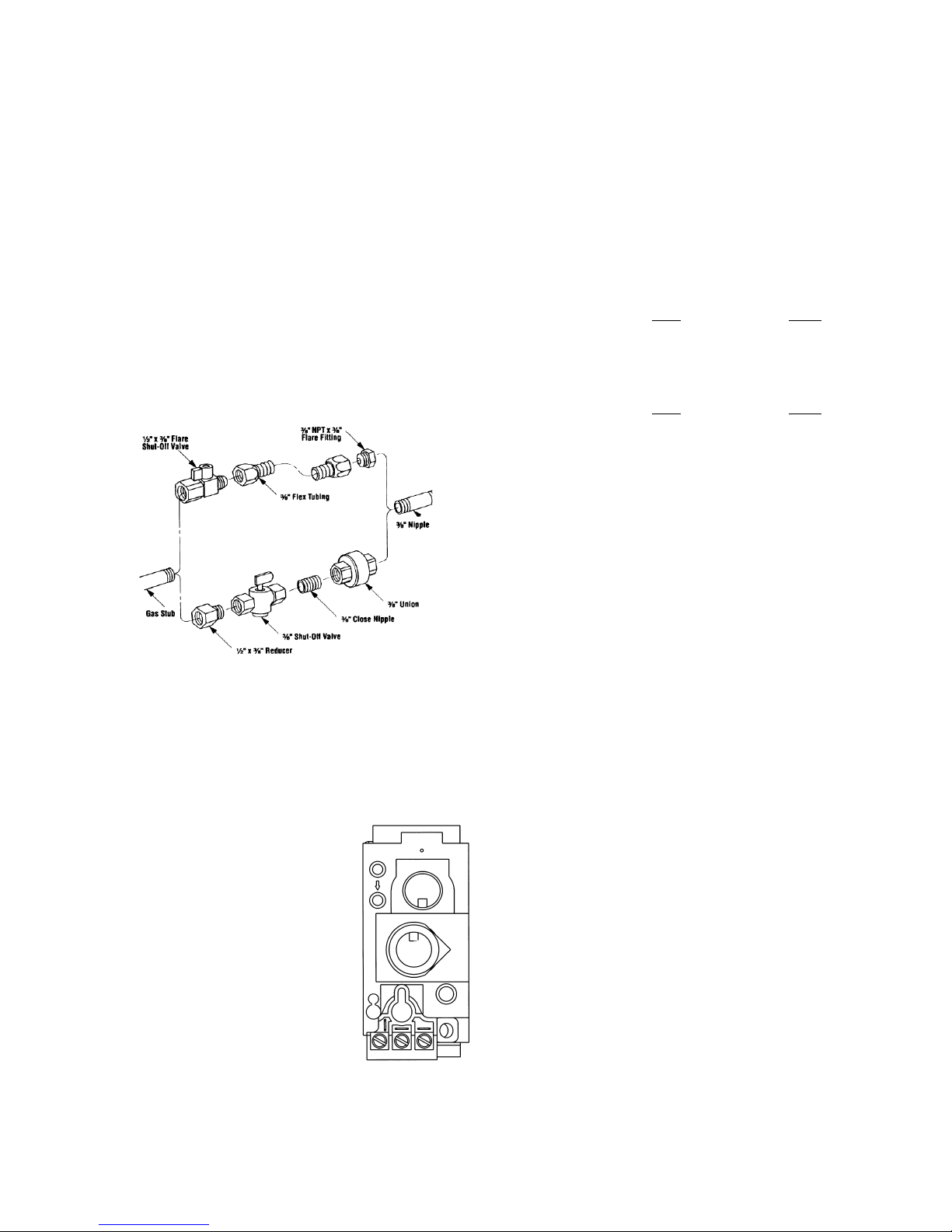

Figure 11. Gas supply line fittings.
Gas Pressure
Proper gas pressure provides a consistent flow of
gas to the appliance and is instrumental in checking
for gas leaks. The gas control valve on the fireplace is
equipped with pressure test
points for gauge connections.
The gauge connections are
located on the front of the
valve next to the On/Off/Pilot
knob. Gauge connections are
identified by:
••
••
•II
II
IN / EN / E
N / EN / E
N / E for inletinlet
inletinlet
inlet or supply
pressure (the amount of
gas coming to the valve.)
••
••
•OUOU
OUOU
OUT / AT / A
T / AT / A
T / A for manifmanif
manifmanif
manifoldold
oldold
old
pressure (the amount of
gas that is coming out of the
valve to the burner.)
E
A
The appliance must be isolated from the gas
supply line by closing its individual manual gas shut-
off valve (gas cock) during any pressure testing of the
gas supply piping system that is equal to or exceeds
pressures of 1/2 psig (3.5 kPa).
Inlet Pressure
MIN MAX
Natural Gas: 5.0WC (1.24 kPa) 7.0 WC (1.74 kPa)
Propane: 12.0 WC (2.98 kPa) 13.0 WC (3.23 kPa)
ManifManif
ManifManif
Manifold Prold Pr
old Prold Pr
old Pressuressur
essuressur
essuree
ee
e
MIN MAX
Natural Gas: 1.2WC (0.29 kPa) 3.8 WC (.95 kPa)
Propane: 2.9 WC (0.72 kPa) 11.0 WC (2.74 kPa)
ALAL
ALAL
ALWW
WW
WAA
AA
AYY
YY
YSS
SS
S TT
TT
TESES
ESES
EST PRT PR
T PRT PR
T PRESSUESSU
ESSUESSU
ESSURR
RR
REE
EE
E WW
WW
WII
II
ITT
TT
THH
HH
H VV
VV
VALAL
ALAL
ALVE CVE C
VE CVE C
VE CONON
ONON
ONTT
TT
TRR
RR
ROLOL
OLOL
OL
KNOB SET ON HKNOB SET ON H
KNOB SET ON HKNOB SET ON H
KNOB SET ON HIGH.IGH.
IGH.IGH.
IGH. Symptoms of incorrect gas
pressure include:
InsufInsuf
InsufInsuf
Insufficienficien
ficienficien
ficientt
tt
tgg
gg
gas pras pr
as pras pr
as pressuressur
essuressur
essure:e:
e:e:
e:
• Small pilot flame which can result in insufficient
millivolts.
• Little variation in flame picture between HI and LO
settings.
• Insufficient gas to support more than one appli-
ance causing nuisance outages or gas surges.
EE
EE
Exx
xx
xcc
cc
cessivessiv
essivessiv
essive ge g
e ge g
e gas pras pr
as pras pr
as pressuressur
essuressur
essure:e:
e:e:
e:
• Permanent damage to valve causing complete
appliance shut down.
• Too large a pilot flame resulting in overheating of
the power generator and consequent shut down.
• Sooting due to impingement and/or incorrect fuel
to air mix.
High Altitude Adjustment
Installations located at altitudes from 2000 - 4250 ft.
(610 M - 1370 M), DO NOT require adjustment. Do not
derate this appliance for altitude.
Figure 12. Pressure test points located on the front
of the valve.

16
Conversion Kit Contents:
#156444 - LP #156445 - NG
• 1 Regulator Tower labeled for Propane
• 3 Regulator Tower Screws
• 1 Burner Orifice (#38” NG, 1.50 mm LP)
• 1 Pilot Orifice (#30 for LP, #51 for NG)
• Label A - to be completed and applied to the
control valve.
• Label B - apply to the fireplace Rating Plate as
designated on the plate.
Tools required:
• 1/2” or 13 mm deep well socket and wrench
• Torx T-20 or small spade screwdriver
• 4 mm hex key, included in kit
CC
CC
CAA
AA
AUU
UU
UTT
TT
TION:ION:
ION:ION:
ION: Before proceeding with the gas conver-
sion, the gas supply must be shut off prior to
disconnecting electrical power.
Fuel Conversion Procedure
1.1.
1.1.
1. RR
RR
Remoemo
emoemo
emovv
vv
vee
ee
e the Burner assemblythe Burner assembly
the Burner assemblythe Burner assembly
the Burner assembly::
::
:
••
••
• If you have not already done so, remove the fettle
and log set from the firebox. CAUTION: THE LOGS
ARE FRAGILE. Handle them with care and set aside
out of the way. See fig. 13.
• Remove the Log Support attached to the rear of the
firebox.
• Loosen the wingnut on the Air Shutter Stem,
located under the center of the firebox floor, and
push the stem as far as it will go toward the back of
the insert. Disengage the burner assembly with the
Air Shutter by lifting it up and back, out of the
firebox. Swing the Air Shutter out of the way to
access the burner orifice. Fig. 14.
2.2.
2.2.
2. ChangChang
ChangChang
Changee
ee
e the Burner Orificthe Burner Orific
the Burner Orificthe Burner Orific
the Burner Orifice:e:
e:e:
e:
• Using a 13 mm deep well socket, remove the
burner orifice and replace with the appropriate
orifice, supplied in the kit.Tighten securely.
3.3.
3.3.
3. ChangChang
ChangChang
Changee
ee
e the Air Shutter position:the Air Shutter position:
the Air Shutter position:the Air Shutter position:
the Air Shutter position: Lift the shutter
tube up in its hinge pin slots and turn the tube
over, so that the appropriate fuel type indicator
(LP or NG) is oriented facing you. See fig. 15.
44
44
4..
..
.ChangChang
ChangChang
Changee
ee
e the Pthe P
the Pthe P
the Pilotilot
ilotilot
ilot OrificOrific
OrificOrific
Orifice:e:
e:e:
e:
••
••
• Disengage the Pilot Hood by releasing the
retainerclip as shown in Fig. 16. Using a 4 mm
allen wrench,unscrew the pilot orifice (counter-
clockwise). Replace with the orifice from the kit.
Tighten new orifice securely into the base of the
pilot assembly.
Fuel Conversion
The Jøtul GI 350 Fireplace is designed to for use with
either Natural gas or Propane. It is shipped from the
factory configured to use Natural gas. A conversion
kit is included for conversion to Propane use if
desired. Check the identification label on the Control
Valve to confirm that the correct fuel is used.
WARNING:
THE CONVERSION KIT IS TO BE INSTALLED BY AN
AUTHORIZED JØTUL SERVICE TECHNICIAN IN ACCOR-
DANCE WITH THE MANUFACTURER’S INSTRUCTION
AND ALL CODES AND REQUIREMENTS OF THE AUTHOR-
ITY HAVING JURISDICTION. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE. THE QUALIFIED AGENCY PER-
FORMING THIS WORK ASSUMES RESPONSIBILITY FOR
THIS CONVERSION.
IN CANADA:
THE CONVERSION SHALL BE CARRIED OUT IN ACCOR-
DANCE WITH THE REQUIREMENTS OFTHE PROVINCIAL
AUTHORITIES HAVING JURISDICTION AND IN ACCOR-
DANCE WITH THE REQUIREMENTS OF THE CAN1-B149.1
AND .2 INSTALLATION CODE.
Cet equipement de conversion sera installe par une
agence qualifiee de service conformement aux
instructions du fabricant et toutes exigences et codes
applicables de l’autorises avoir la juridiction. Si
l’information dans cette Instruction n’est pas suivie
exactement, un fey, explosion ou production de
protoxyde de carbone peut resulter blessure
personnelle de vie. L’agence qualifiee de service est
esponsable de l’installation n’est pas propre et
complete jusqu’a l’operation de l’appareil converti est
cheque suivant les criteres etablis dans les instruc-
tions de proprietaire provisionnees avec
l’equipement.
Figure 13. Firebox component identification.
Burner
Fettle
Air Shutter Stem under firebox floor
Log Support
Pilot Assembly

17
• Replace Pilot Hood by pushing it into the base.
55
55
5..
..
.RR
RR
Replaceplac
eplaceplac
eplacee
ee
e the Burner Assemblythe Burner Assembly
the Burner Assemblythe Burner Assembly
the Burner Assembly::
::
:SlideSlide
SlideSlide
Slide the
venturi tube into the Air Shutter and engage
the tube fully over the orifice. The burner
should engage with the three support brackets
on the floor of the firebox. Properly located,
the burner will be level and locked into correct
alignment with the pilot assembly as in fig. 13.
6.6.
6.6.
6. AdjustAdjust
AdjustAdjust
Adjust the Air Shutterthe Air Shutter
the Air Shutterthe Air Shutter
the Air Shutter::
::
:
• Slide the shutter forward (toward yourself)
to open the inlet. Slide it back to the rear to
close. The shutter is set fully closed at the
factory. This is an optimum setting for most
installations using natural gas. Propane use,
however, may require a more open setting. See
the section, Flame Appearance / Air Shutter
Adjustment on page 22 for further details.
77
77
7..
..
.ChangChang
ChangChang
Changee
ee
e the Rthe R
the Rthe R
the Regulaegula
egulaegula
egulatt
tt
toror
oror
or::
::
:See Fig. 17.
• Using a Torx T-20 screwdriver or small spade
screwdriver, remove the three specialty screws
from the front of the valve regulator.
• Remove the regulator tower and gasket.
BB
BB
BE SUE SU
E SUE SU
E SURR
RR
REE
EE
E TT
TT
TO RO R
O RO R
O REMEM
EMEM
EMOO
OO
OVEVE
VEVE
VE TT
TT
THH
HH
HE BE B
E BE B
E BLL
LL
LAA
AA
ACC
CC
CK RUK RU
K RUK RU
K RUBB
BB
BBB
BB
BERER
ERER
ER
GG
GG
GAA
AA
ASKET FRSKET FR
SKET FRSKET FR
SKET FROO
OO
OMM
MM
M TT
TT
THH
HH
HEE
EE
E VV
VV
VALAL
ALAL
ALVE.VE.
VE.VE.
VE.
• Install the new variable regulator tower with
the new rubber gasket. ThorThor
ThorThor
Thoroughlyoughly
oughlyoughly
oughly tighten
new regulator to valve body.
8.8.
8.8.
8. ApplyApply
ApplyApply
Apply the Cthe C
the Cthe C
the Conon
onon
onvv
vv
version Labels:ersion Labels:
ersion Labels:ersion Labels:
ersion Labels:
••
••
• Apply LABEL A to the cabinet floor so that it
may be seen by anyone servicing the fireplace.
• Apply LABEL B to the Rating Plate in the
space provided.
9.9.
9.9.
9. RR
RR
Reassembleeassemble
eassembleeassemble
eassemble the firthe fir
the firthe fir
the fireplaceplac
eplaceplac
eplace,e,
e,e,
e, apply gapply g
apply gapply g
apply gasas
asas
as tt
tt
too
oo
o thethe
thethe
the
ss
ss
syy
yy
ystem and check fstem and check f
stem and check fstem and check f
stem and check for gor g
or gor g
or gas leakas leak
as leakas leak
as leakss
ss
s including all
gas lines before and after the valve. NEVER USE
AN OPEN FLAME TO CHECK FOR GAS LEAKS.
Use an electronic gas detector or 50/50 soapy
water solution to check for leaks at all connec-
tion joints.The soap solution will actively
bubble if a leak is present. Tighten connections
until no leaks are detected.
IMPORTANT: Correct gas pressure is essential for
efficient and safe operation. It is important
that the correct gas pressure be established at
the time of the installation. For more details,
see the Gas Pressure section of this manual on
page 15 and the Rating Plate.
WW
WW
WHH
HH
HEN LIGHEN LIGH
EN LIGHEN LIGH
EN LIGHTT
TT
TII
II
INGNG
NGNG
NG TT
TT
THH
HH
HIS APPLIANCIS APPLIANC
IS APPLIANCIS APPLIANC
IS APPLIANCE,E,
E,E,
E, ALAL
ALAL
ALWW
WW
WAA
AA
AYY
YY
YSS
SS
S
RR
RR
REFEREFER
EFEREFER
EFER TT
TT
TOO
OO
O TT
TT
THH
HH
HE LIGHE LIGH
E LIGHE LIGH
E LIGHTT
TT
TII
II
ING ING I
NG ING I
NG INSNS
NSNS
NSTT
TT
TRUCRUC
RUCRUC
RUCTT
TT
TIONS ONIONS ON
IONS ONIONS ON
IONS ON
TT
TT
THH
HH
HE IE I
E IE I
E INSINSI
NSINSI
NSIDE BDE B
DE BDE B
DE BAA
AA
ACC
CC
CK CK C
K CK C
K COO
OO
OVER OFVER OF
VER OFVER OF
VER OF TT
TT
THH
HH
HIS MIS M
IS MIS M
IS MANAN
ANAN
ANUU
UU
UALAL
ALAL
AL..
..
.
Remove the
black rubber
gasket from
the valve.
Figure 17.
Valve Regulator replacement.
Figure 14. Main orifice location with burner skirt and
burner assembly removed.
Figure 15. Changing the Air Shutter orientation.
Figure 16. Pilot Orifice replacement.
Pilot Assembly
Pilot Hood
Pilot Orifice
Retainer
Clip
Burner Orifice
N
G
L
P
Lift
shutter in
slot and
reverse
position.
Apply small conversion
notice label here.

18

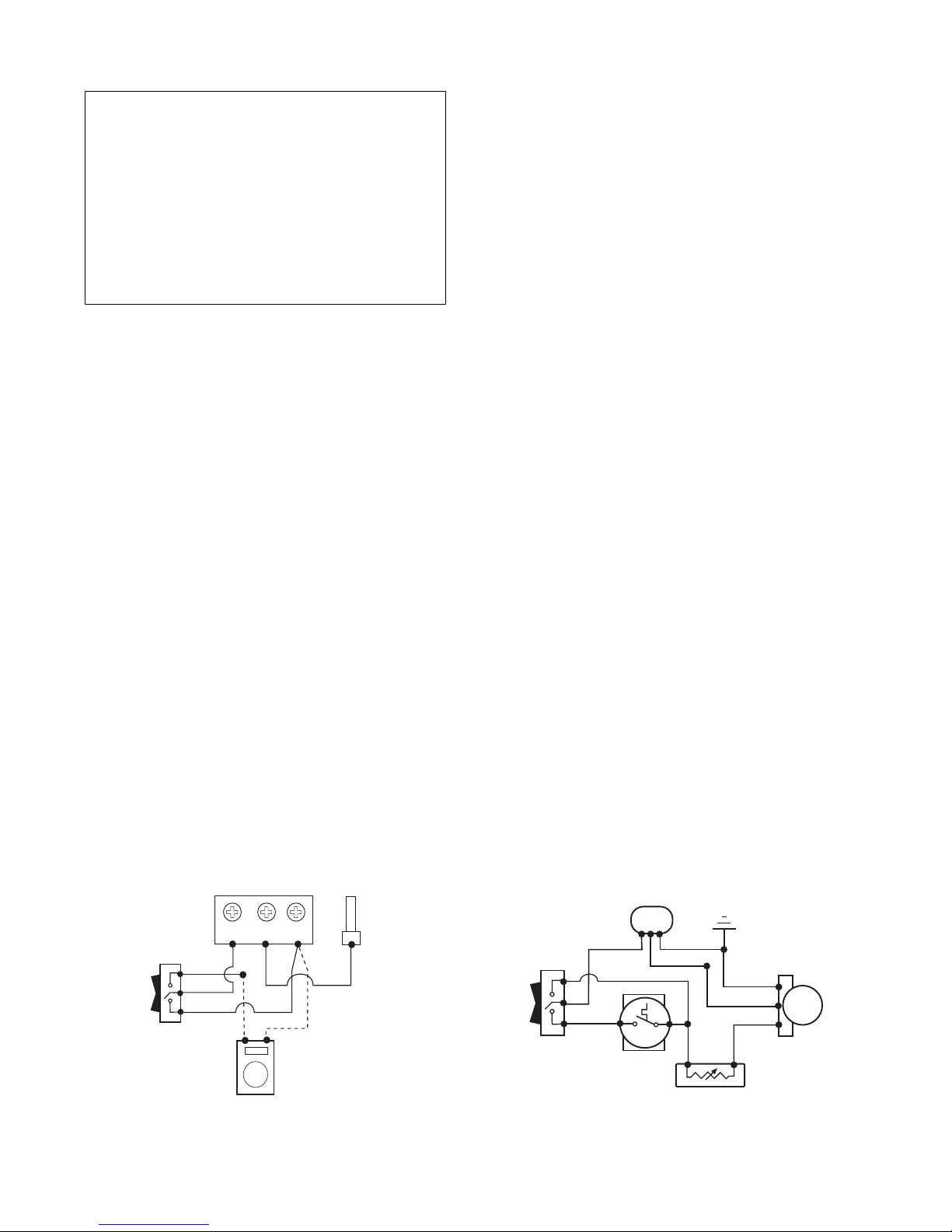

Figure 19. Blower Wiring Diagram
MANUA
OFF
AUTO
SNAPSTAT
BK
W
GN
B OWER
POWER
SUPP Y
GY
BK
RHEOSTAT
BK
BK
BU
SWITCH
GN
BK
BK
THERMOPI E
OPTIONA
THERMOSTAT
TH TP TP TH
SWITCH
VA VE
T-Stat
Off
On
OR
V
YE
Figure 18. Wiring Diagram for optional thermostat.
Blower Power Requirement
The blower is fully assembled and requires no
adjustment.
Run the 10 ft. power cord out forward from the
fireplace to the nearest grounded power outlet.
The blower must be electrically grounded in
accordance with local codes or, in the absence of
local codes, with the current NFPA 70- National
Electrical Code or CSA C22.1-Canadian Code.
A three-prong (grounding) power supply plug is
included for protection against shock hazard and
should be plugged directly into a properly
grounded three-prong receptacle. DO NOT CUT OR
REMOVE THE GROUNDING PRONG FROM THE
PLUG.
ALWAYS DISCONNECT THE POWER SUPPLY BEFORE
SERVICING THE BLOWER.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNEC-
TION WHEN SERVICING THE CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND DANGEROUS
OPERATION. ALWAYS VERIFY PROPER OPERATION
AFTER SERVICINGTHE APPLIANCE.
ATTENTION: AU MOMENT DE L’ENTRETIENDES
COMMANDES,ETIQUETEZTOUS LES FILS AVANT LE
DEBRANCHEMENT. DES ERREURS DE CABLAGE
PEUVENT ENTRAIUN FONCTIONNEMENT
INADEQUAT ET DAGEREUX.
Remote Control
The optional Jøtul Remote Control 129706 may be
installed in place of the factory-installed manual
Burner switch.
1. Remove the switch box from the valve compart-
ment. Remove the switch coverplate and discon-
nect the wires from the TH and TH/TP terminals
under the valve.
2. Install the Receiver switch/battery box assembly
supplied with the remote control onto the front
of the insert burner switch box. Install the
Reciever coverplate. See Appendix A, page 28 for
additional details.
3. Run the wires out the back of the switch box and
connect the leads to the TH and TH/TP terminals
on the valve. DO NOT DISCONNECT ANY WIRES
FROM THE VALVE.
4. Reinstall the switch box to the valve compart-
ment floor using the same nut previously re-
moved.
Wall Thermostat Installation
Use Wall Thermostat #750003, or a 750 millivolt DC
two-wire circuit thermostat, to automatically control
your fireplace operation.The thermostat should be
placed in the same room as the heater, typically 5’ off
the floor. Avoid drafty areas or any area that may
effect the accuracy of the thermostat.
The thermostat should be connected to the
insert using a minimum 16 gauge wire with a
maximum length of 35 feet of wire.
1. Remove the Burner switch box to access the wire
harness. Connect one of the thermostat leads to
the orange pigtail lead extending from the wire
harness.
2. Connect the other thermostat lead to the TH
terminal on the valve. DO NOT DISCONNECT ANY
WIRES. See fig. 18.
At the wall thermostat, the two wires should be
connected to the two connection terminals on the
thermostat base plate per the manufacturer’s
instructions.
For thermostatic function,place the rocker switch
in the T-STAT position. The pilot flame must be lit.

19

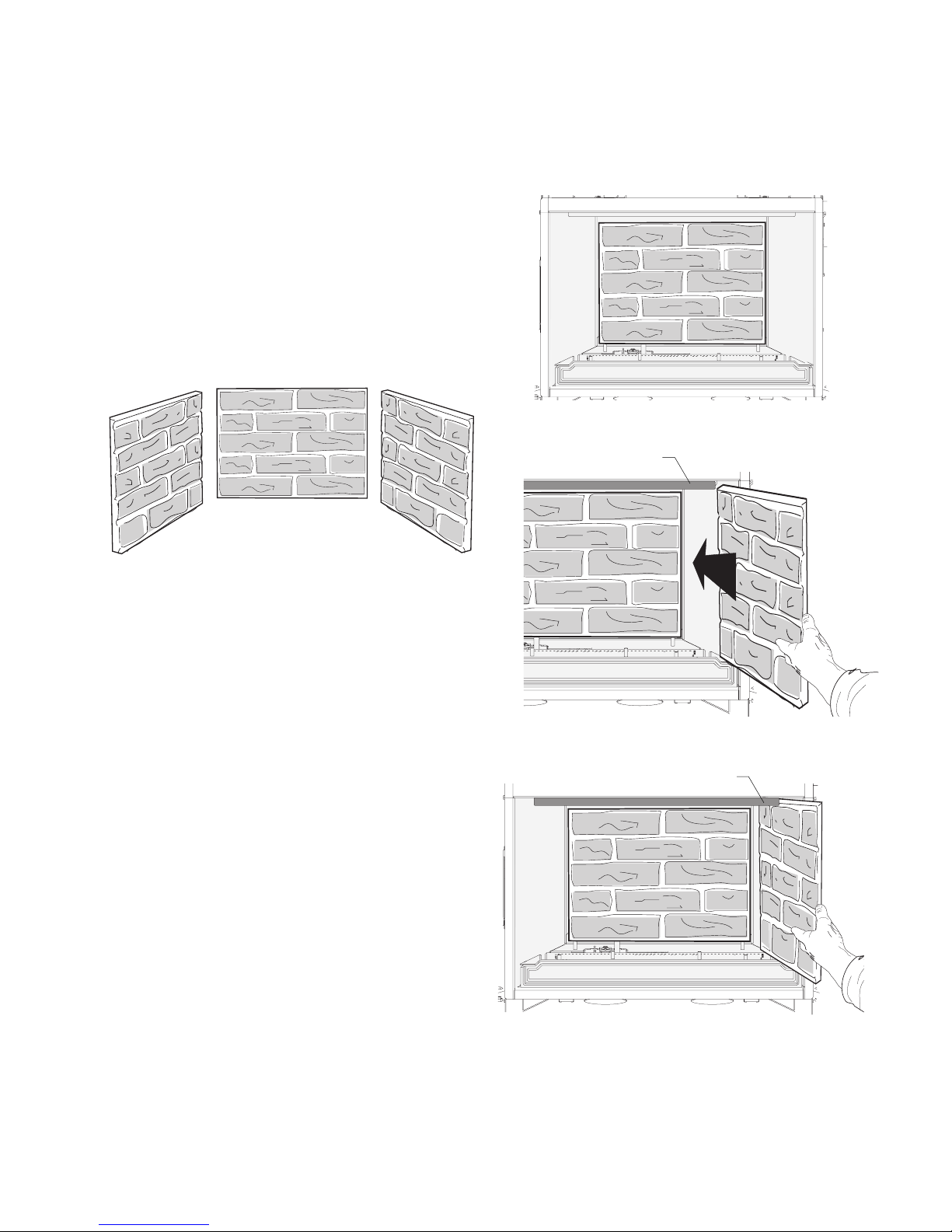

Optional Brick Panel Kit
Assembly
CC
CC
CAA
AA
AUU
UU
UTT
TT
TION:ION:
ION:ION:
ION:TT
TT
THH
HH
HESE PESE P
ESE PESE P
ESE PANAN
ANAN
ANELEL
ELEL
ELS ARS AR
S ARS AR
S ARE EE E
E EE E
E EXX
XX
XTT
TT
TRR
RR
REMELEMEL
EMELEMEL
EMELY FRY FR
Y FRY FR
Y FRAA
AA
AGIGI
GIGI
GILE!LE!
LE!LE!
LE!
SUSU
SUSU
SUPPPP
PPPP
PPOROR
OROR
ORT ET E
T ET E
T EAA
AA
ACC
CC
CH PIH PI
H PIH PI
H PIECEC
ECEC
ECEE
EE
E WW
WW
WII
II
ITT
TT
TH BH B
H BH B
H BOO
OO
OTT
TT
TH HANH HAN
H HANH HAN
H HANDS ANDS AN
DS ANDS AN
DS ANDD
DD
D
HANHAN
HANHAN
HANDLEDLE
DLEDLE
DLE
TT
TT
TENEN
ENEN
ENDERDER
DERDER
DERLL
LL
LYY
YY
Y..
..
.
Install the optional Brick Panel Kits before installing
the log set. No fasteners or tools are required. Brick
panels are shown here, however, Corrugated panels
install in the same way. Both style panels are revers-
ible.
1.1.
1.1.
1. RR
RR
Remoemo
emoemo
emovv
vv
vee
ee
e the Glass Fthe Glass F
the Glass Fthe Glass F
the Glass Frr
rr
rame,ame,
ame,ame,
ame, if yif y
if yif y
if you haou ha
ou haou ha
ou havv
vv
ve note not
e note not
e not
alralr
alralr
already done soeady done so
eady done soeady done so
eady done so..
..
. See fig. 1, pg. 3.
2.2.
2.2.
2. RR
RR
Remoemo
emoemo
emovv
vv
vee
ee
e the Lthe L
the Lthe L
the Log Setog Set
og Setog Set
og Set..
..
. These parts are not fastened.
Simply lift them out of the firebox.
3.3.
3.3.
3. InstallInstall
InstallInstall
Install the Rthe R
the Rthe R
the Rear Pear P
ear Pear P
ear Panel.anel.
anel.anel.
anel. Orient the rear panel to
align with the brick courses on the Side Panels as
shown in fig. 20. Place the panel against the back
wall of the firebox, resting on the log shelf as in
fig. 21.
44
44
4..
..
.InstallInstall
InstallInstall
Install the Side Pthe Side P
the Side Pthe Side P
the Side Panels.anels.
anels.anels.
anels. Orient the panel straight
upright, with the leading edge on the support
shelf. Slide the panel all the way back, keeping it
sandwiched between the side wall and the end of
the air deflector. See fig. 22.
55
55
5..
..
. Replace the Log Set, and Glass Assembly.
Figure 22b.
Install the Side Panels taking care to clear the Air
Deflector.
Figure 21. Install Rear Panel.
Figure 20. Align the Rear panel mortar joints with
those in the side panels.
Left Side
Panel
Rear Panel
Right Side
Panel
Air Deflector
Air Deflector
Figure 22a. Install Side Panel verically.

20

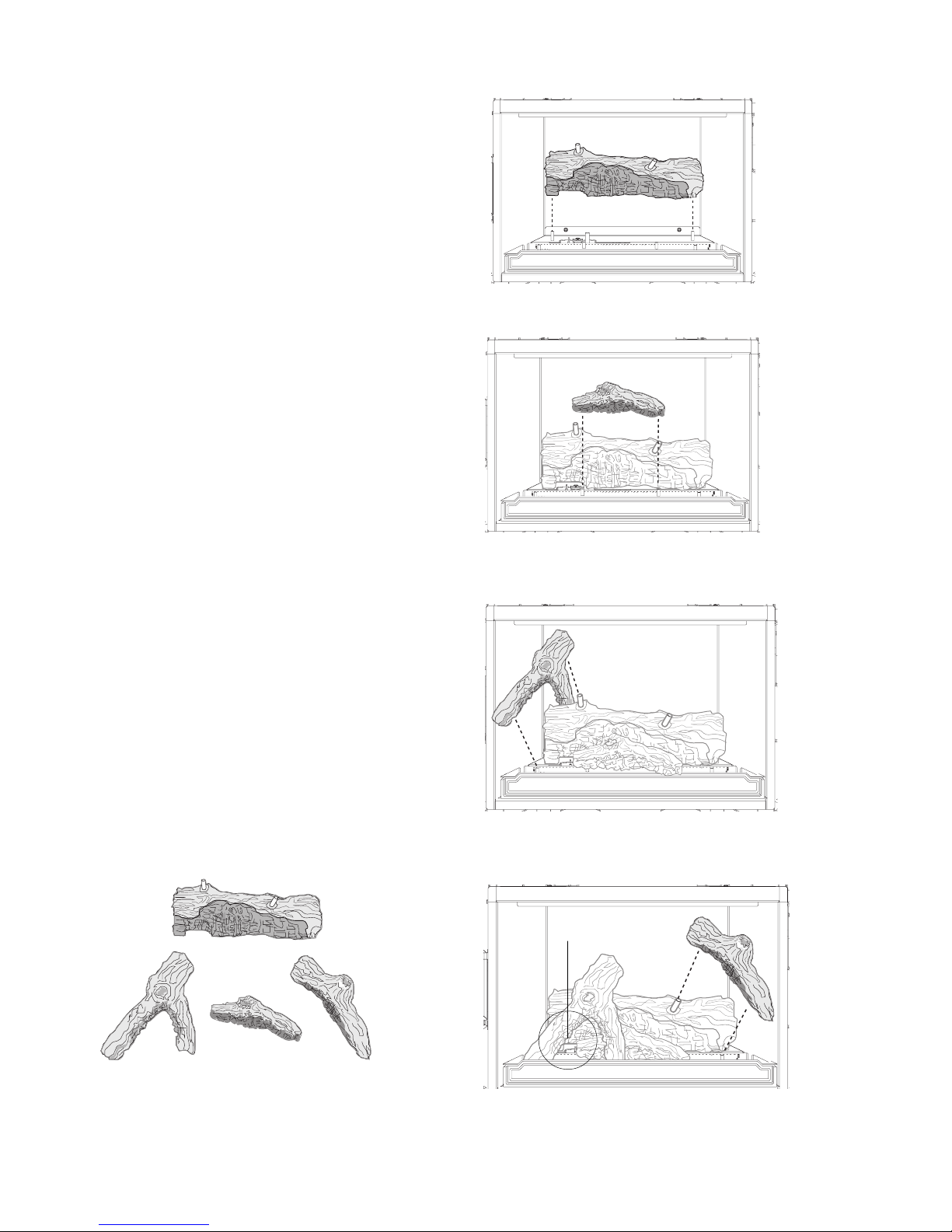

Log Set Assembly
This is the heart of your fireplace. Much time and
effort has been devoted to attaining a lively,
realistic flame picture while simultaneously
achieving efficient fuel combustion and effective
heat output under a variety of installation condi-
tions.The flame picture you experience,however,
will be affected by a number of variables peculiar
to your installation such as venting configuration,
environmental and weather conditions, and fuel
type. Log placement is critical to the final flame
picture. Pay particular attention to placing the log
pieces as illustrated here. Carefully unpack and
arrange the logs as outlined below. CC
CC
CAA
AA
AUU
UU
UTT
TT
TION:ION:
ION:ION:
ION:TheThe
TheThe
The
logs arlogs ar
logs arlogs ar
logs are fre fr
e fre fr
e fragileagile
agileagile
agile..
..
.Please handle each piecPlease handle each piec
Please handle each piecPlease handle each piec
Please handle each piece withe with
e withe with
e with
carcar
carcar
caree
ee
e..
..
.
Use safety gloves to handle the log parts as the
ceramic fibers can irritate skin.
1.1.
1.1.
1. Place the Rear Log in position on the pegs in the
log support at the back of the firebox as shown
in fig. 24.
2.2.
2.2.
2. Set the Middle Log in place on the burner plate
pegs as shown in fig. 25.
3.3.
3.3.
3. Set the Left Log on the appropriate pegs as
shown in fig. 26.
44
44
4..
..
. Set the Right Log on the appropriate pegs as
shown in fig. 27.
55
55
5..
..
. Lightly scatter the Ember Stones, included in the
Log Set package, over the burner plate. Place
them directly on top of the burner base and
around the log parts. DO NODO NO
DO NODO NO
DO NOT ALLT ALL
T ALLT ALL
T ALLOO
OO
OW EMBW EMB
W EMBW EMB
W EMBERER
ERER
ER
SS
SS
STT
TT
TONON
ONON
ONESES
ESES
ES TT
TT
TO BO B
O BO B
O BLL
LL
LOO
OO
OCC
CC
CKK
KK
K TT
TT
THH
HH
HE PIE PI
E PIE PI
E PILL
LL
LOO
OO
OT AT A
T AT A
T ASSEMBSSEMB
SSEMBSSEMB
SSEMBLL
LL
LY ARY AR
Y ARY AR
Y AREE
EE
EA.A.
A.A.
A.
The burner porThe burner por
The burner porThe burner por
The burner ports dirts dir
ts dirts dir
ts direcec
ecec
ectly in frtly in fr
tly in frtly in fr
tly in fronon
onon
ontt
tt
too
oo
off
ff
f the pilotthe pilot
the pilotthe pilot
the pilot
mustmust
mustmust
must rr
rr
remain clear femain clear f
emain clear femain clear f
emain clear for pror pr
or pror pr
or proper pilotoper pilot
oper pilotoper pilot
oper pilot ignition.ignition.
ignition.ignition.
ignition.
6.6.
6.6.
6. Replace the Glass Panel Frame using the Latch
Release tool to engage the latches with the
frame. See fig. 1.
Figure 25. Place middle log on the two center pegs.
Figure 24 Engage rear log with base pegs.
Figure 26. Engage left log on its pegs.
Figure 27. Engage right log on its pegs.
KEEP PILOT AREA
CLEAR
Figure 23. Log Set Parts.
Rear Log
222446
Middle
Log
222449
Left Log
222448
Right Log
222447
