ETNA VW149M User manual

INSTRUCTIONS FOR USE
GEBRAUCHSANLEITUNG
DISHWASHER
GESCHIRRSPÜLER
VW149M

EN User instruction EN 3 - EN 23
DE Anleitung DE 3 - DE 23
Pictograms used - Benutzte Piktogramme
Important information - Wissenswertes
Tip - Tipp

SAFETY REGULATIONS
Contact a registered installer to fit your appliance
(see “Installation instructions”). Do not connect the
appliance to the electrical mains until the installation is
complete.
This appliance is intended to be used in household and
similar applications such as:
▷staff kitchen areas in shops, offices and other working
environments;
▷farmhouses;
▷by clients in hotels, motels and other residential type
environments;
▷bed and breakfast type environments.
For EN60335-1:
• This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without
supervision.
Original instruction
NO
GBNL BE DK ES
FI
SE
FR BE
DE DEATLU
IE
NO
GB
NL BE DK ES
FI
SE
FR BE
DE DEATLUIE

SAFETY REGULATIONS
For IEC60335-1:
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing
maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Earthing Instructions
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped
with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet
that is installed and earthed in a ccordance with all local
codes and ordinances.
• Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.

SAFETY REGULATIONS
• Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
• Do not modify the plug provided with the appliance, if it
does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack
of the dishwasher.
• Do not operate your dishwasher unless all enclosure
panels are properly in place.
• Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
▷Locate sharp items so that they are not likely to
damage the door seal;
▷Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points facing
down or placed in a horizontal position.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open.

SAFETY REGULATIONS
• Check that the detergent powder is empty after
completion of the wash cycle.
• Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the
manufacturer’s recommendations.
• Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
• The door should not be left open, since this could
increase the risk of tripping.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• During installation, the power supply must not be
excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water
valve using new hose sets. Old sets should not be
reused.
• To save energy, the appliance will go to standby mode
automatically when there is no operation during some
time.

EN 3
CONTENTS
Your dishwasher
Introduction 4
Description
Control panel 5
Interior 6
Operation
Switching on 7
Cycle selection table 9
Regeneration salt (water softener) 10
Reset 11
Setting the water hardness 11
Rinse agent reservoir 11
Dishwasher detergents 13
Loading
Loading the baskets 15
Damage to glassware and other crockery 17
Maintenance
Filter system 18
Cleaning the spray arms 19
Cleaning the door 19
Errors
What should I do, if... 20
Interference table 20
Error codes 22
Appendix
Disposal 23

EN 4
Introduction
You have opted to purchase an Etna dishwasher.
Optimum user comfort and easy operation were paramount during
the development of this product.
This manual describes how you can get the most out of your
dishwasher. It provides you with information on how to operate the
appliance, as well as background information about how it works.
You will furthermore also find maintenance tips.
The safety instructions that are relevant during the installation are
included in the installation guide. This is intended for the installation
technician.
Read this manual before using the appliance.
Keep this manual in a safe place so that the next possible user can also
benefit from it.
YOUR DISHWASHER

EN 5
DESCRIPTION
Control panel
3 4 51 2
1. On/Off button
2. Program button
3. Half load button
4. Delayed start button
5. Salt/Rinse aid/End program indicators

EN 6

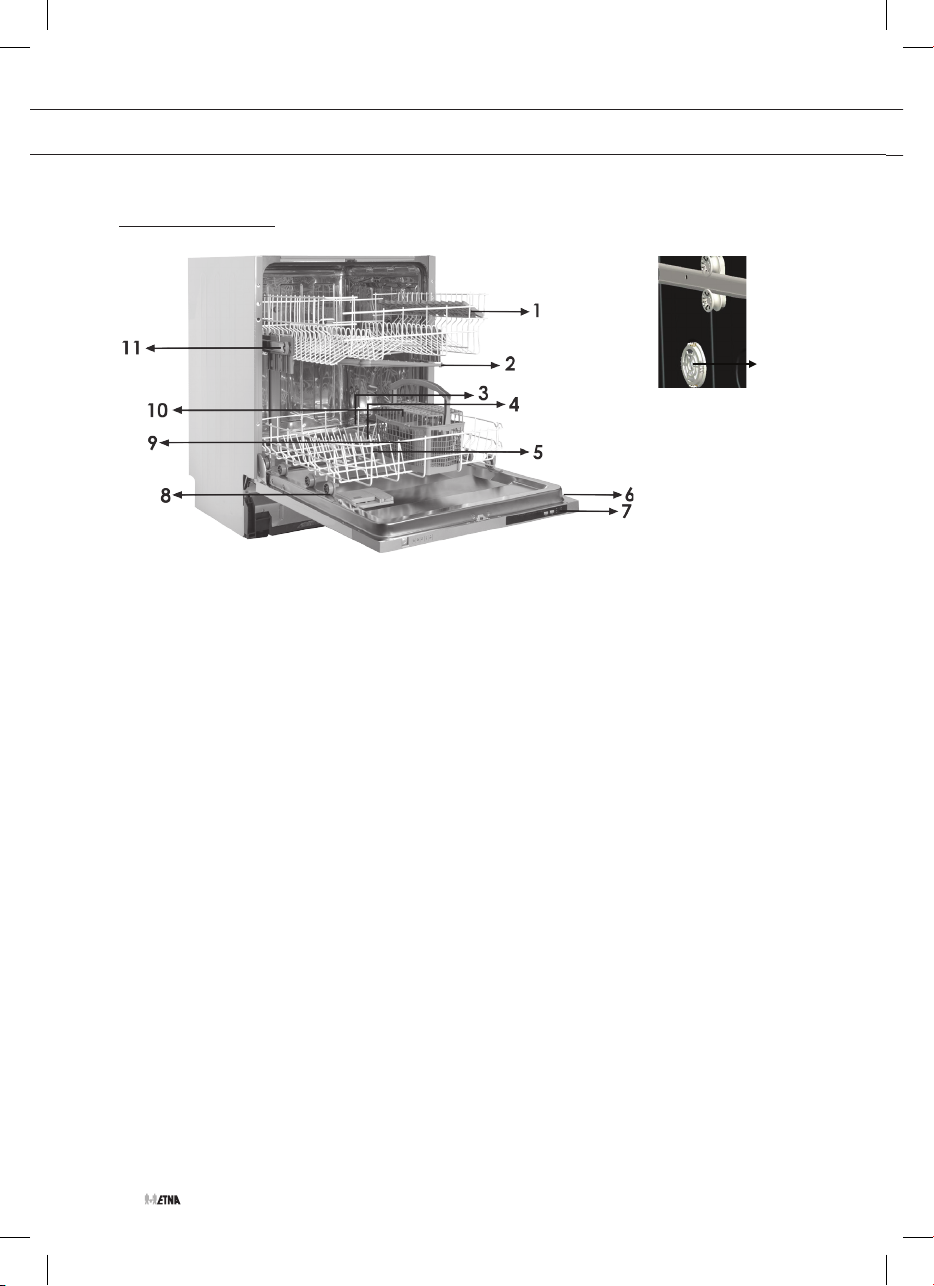

Interior
1. upper basket
2. upper spray arm
3. lower basket
4. lower spray arm
5. filters
6. type plate
7. operating panel
8. detergent and rinse aid reservoir
9. cutlery basket
10. salt reservoir
11. guide rail top basket
12. active drying unit
DESCRIPTION
12

EN 7
OPERATION
Switching on
1. Open the door of the dishwasher.
2. Press the ‘on-off’ button to switch on the device.
The check light End Program is on.
3. Select the desired program (see ‘program selection table’).
Select a cycle using the programming button.
The check light that is part of the selected program is on.
4. Close the door of the dishwasher.
The dishwasher will automatically start running the selected cycle.
Half load
Press the Half Load button to reduce the duration of the selected
program and therefore decrease your energy and water consumption.
When Half Load option is selected, the half load indicator lights up.
Delayed start time
If you want the dishwasher to switch on at a later time, you can use the
‘delayed start’ button. You can choose between a delay time of 3, 6 or
9 hours. Each press of the button changes the delay time.
The indicator of the selected delay time is on.
Then select the desired program and close the door of the dishwasher.
Indicators
• Salt.
The indicator shows that you have to fill the salt container with
regeneration salt.
• Rinse aid.
The indicator shows that you have to fill the rinse aid reservoir.
• End program.
The indicator shows that the washing program has finished.
In addition, you will hear a sound signal five times.
Changing a wash cycle
1. Open the door.
2. Press the program button to select a new program.
The check light that is part of the selected program is on.
3. Close the door of the dishwasher.
The dishwasher will automatically start running the selected cycle.

EN 8
Stopping a wash cycle
1. Open the door.
2. Press and hold the programming button for 3 seconds.
The ‘End Program’ indicator is flashing.
3. Close the door of the dishwasher.
The machine pumps out for about 30 seconds Following the end of
this, a sound signal will click 5 times and the indicator shows that
the program has finished.
Note! A cycle that has already begun can only be changed in the start-
up phase. After this, the detergent will be sprayed all over the dishes or
the machine may have already pumped out the water. In that instance,
you must refill the detergent compartment (see section on Dishwasher
detergent).
Warning!
Opening the door fully during the wash cycle is dangerous. You may be
splashed with hot water from the machine.
Following the end of the wash cycle
After the washing program has finished, the ‘End program’ indicator
is flashing and a sound signal will click 5 times. Open the door of the
dishwasher Switch off the device with the on/off button.
Wait a few minutes before unloading the dishwasher. The dishes
and cutlery will still be very hot immediately following the end of the
cycle. There is a chance that dishes may break as a result of the
heat. Moreover, the dishes dry better when allowed to stand for a few
minutes.
Flood protection switch
Your dishwasher is fitted with a safety switch that prevents too much
water from running into the appliance. The safety switch closes the
inlet valve and instructs the dishwasher to pump out the surplus
water. If there is water in machine (due to too much water being fed in
previously, or as a result of a leak), this must first be removed before the
appliance is switched on again.
OPERATION

EN 9
OPERATION

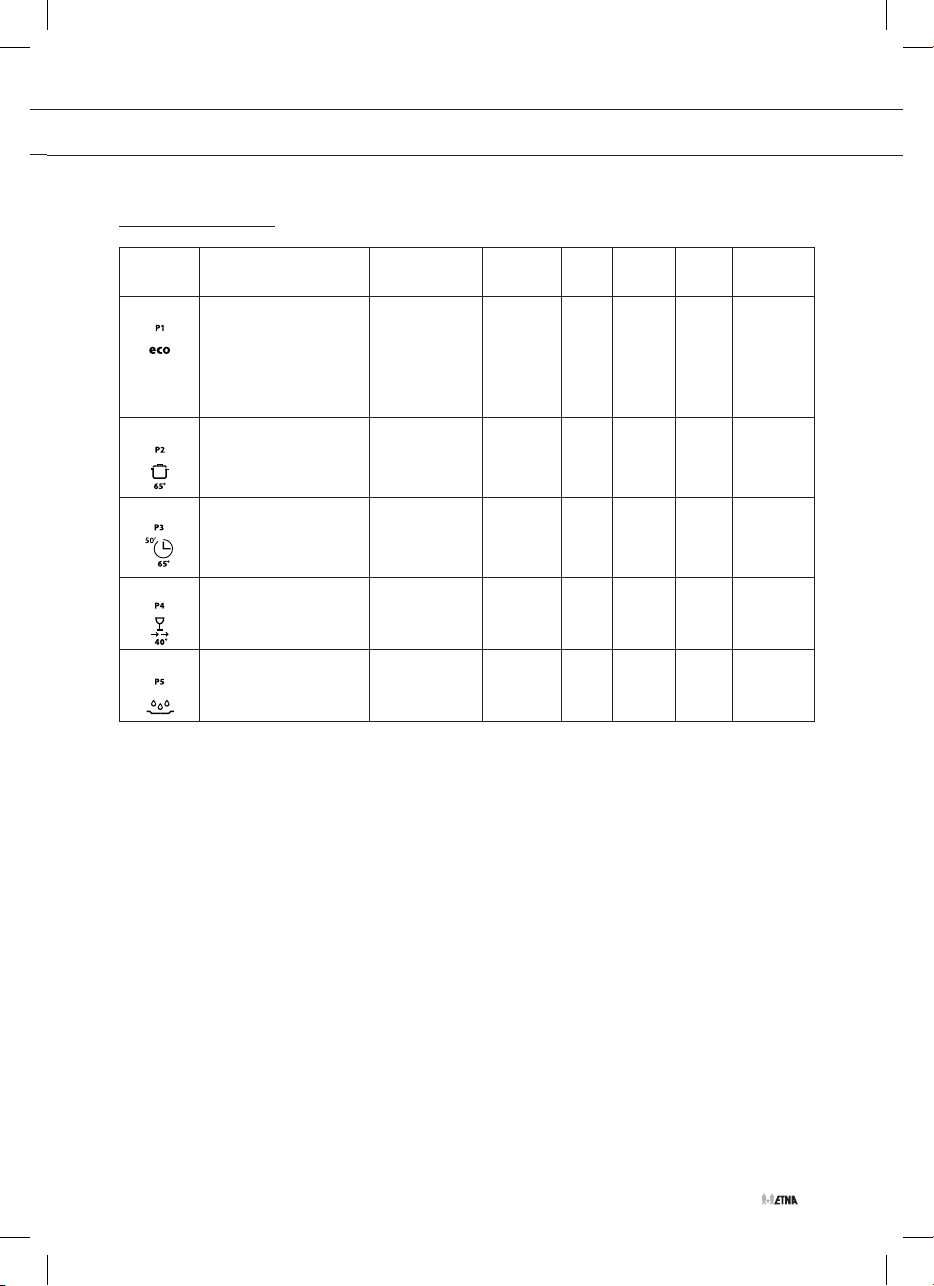

Cycle selection table
Program Cycle selection
information
Description of
cycle
Detergent
pre/main
Time
(min.)
Energy
(KWh)
Water
(L)
Water Half
Load (L)
Eco(1) This is the standard program,
it is suitable to clean
normally soiled tableware
and it is the most efficient
programme in terms of its
combined energy and water
consumption for that type of
tableware.
Prewash
Main wash (50 °C)
Hot rinse (55 °C)
Dry
5/25 gr. 205 0.907(2)
0.923(3)
12.0 12.0
Intensive Heavily soiled dishes, such
as dishes pans, casseroles,
plates plates with dried-on
leftover food.
Prewash (40 °C)
Main wash (65 °C)
Cold Rinse
Hot rinse (70 °C)
Dry
5/25 gr. 117 1.700 17.2 12.9
50 minutes Daily dishes in 50 minutes.
For day-to-day dishes, such
as lightly soiled or normal
plates and pans.
Main wash (65 °C)
Cold Rinse
Hot rinse (70 °C)
Dry
25gr. 50 1.100 12.0 12.0
Quick Lightly soiled dishes, such as
glasses, crystal and fragile
porcelain. No drying.
Main wash (40 °C)
Cold Rinse
Hot rinse (50 °C)
25 gr. 30 0.740 12.4 -
Prewash To rinse dishes that you plan
to wash later that day.
Prewash 15 0.020 4.5 -
(1) This program is the test cycle.
The information for comparability test in accordance with EN 50242/EN 60436.
(2) According to standard EN 50242
(3) According to standard EN 60436

EN 10
Regeneration salt (water softener)
This machine is equipped with a water softener. To use the water softener,
fill the dishwasher with salt.
• After first having removed the bottom basket, loosen the cap
of the reservoir (1 and 2).
• Prior to filling the reservoir for the first time, pour one litre of water
in it (3).
• Place the funnel in the reservoir opening. Pour about 2 kg of salt in
it (4). It is normal for a little water to flow out of the opening when
doing this. Note! Clear up any spilled salt and always run a full
cycle immediately afterwards to prevent damage to the bottom.
• Carefully tighten the cap of the reservoir.
Note! Always fill the salt reservoir and adjust the water hardness
setting before using the dishwasher. Refill the salt reservoir when the
water softener indicator (2) lights up. It is possible that the light will
remain lit for a short while after the salt reservoir is filled. It will go out
automatically when enough salt has been dissolved in the water.
Setting the salt consumption
Adjust the salt consumption according to the table below:
Water
hardness
level
German
hardness
dH
French
hardness
dF
English
hardness
dE
Indicator
1 0-5 0-9 0-6 P1-9h LEDs are on
2 6-11 10-20 7-14 P2-9h LEDs are on
3 12-17 21-30 15-21 1/2-9h LEDs are on
4 18-22 31-40 22-28 3h-9h LEDs are on
5 23-31 41-55 29-39 6h-9h LEDs are on
6 32-50 56-90 40-63 P1-6h-9h LEDs are on
Your local water authority can inform you how hard your mains water is.
Adjustments can then be made according to the above table.
The standard water hardness is set at level 3.
OPERATION
1
2
3
SALT
4

EN 11
OPERATION
Reset
Open the door of the dishwasher
The indicator of the program selected last is flashing.
Press and hold the programming button for more than 3 seconds.
The ‘End Program’ indicator is flashing. The indicator of the program
selected last turns off
Close the door of the dishwasher.
The machine pumps out for about 30 seconds. Following the end of
this, a sound signal will click 5 times and the indicator shows that the
program has finished.
Switch off the dishwasher with the on/off button.
Setting the water hardness
Press the program button and keep it pressed.
Switch on the dishwasher simultaneously with the on/off button.
Keep the program button pressed until the indicators P1-P2-P3-P4-P5
and the indicator ‘End program’ light up and then turn off.
Set the desired water hardness by repeatedly pressing the program
button.
After selecting the desired setting, press the on/off button.
The set value is stored in the memory.
Rinse aid reservoir
Rinse aid is added during the final rinse. Rinse aid prevents traces of water
droplets being left behind on the clean dishes. Moreover, it ensures that the
dishes dry quicker, since the water drains off more easily.

EN 12
OPERATION

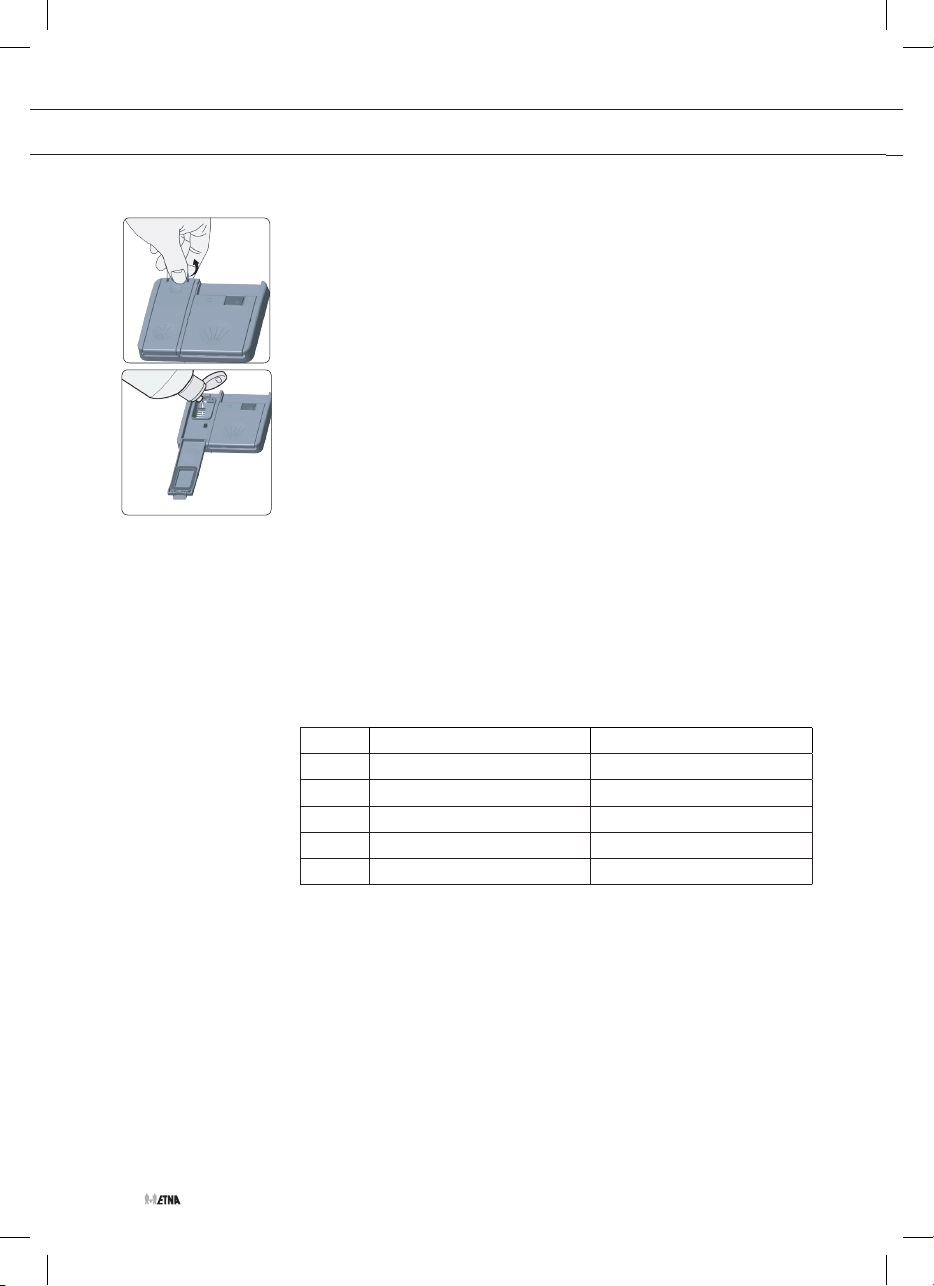

Filling the rinse-aid and setting
To fill the rinse aid compartment, open the rinse-aid compartment cap.
Fill the compartment with rinse aid to the MAX level and then close the
cap.
Be careful not to overfill the rinse aid compartment and wipe up any
spills.
In order to change the rinse aid level, follow the below steps
before turning on the machine:
1. Push the programme button and hold it down.
2. Turn on the machine.
3. Hold down the programme button until all leds blink twice.Rinse aid
set follows water hardness set.
4. The machine will display the current setting.
5. Set the level by pushing the programme button.
6. Switch off the machine to save the setting.
The factory setting is “4”.
• If the dishes are not drying properly or are spotted, increase the
level. If blue stains form on your dishes, decrease the level.
Level Brightener Dose Indicator
1Rinse-aid not dispensed P1-9h LEDs are on
21 dose is dispensed P2-9h LEDs are on
32 doses are dispensed 1/2-9h LEDs are on
43 doses dispensed 3h-9h LEDs are on
54 doses dispensed 6h-9h LEDs are on

EN 13
Dishwasher detergents
The chemicals in the dishwasher detergents remove the dirt, break it
down and make sure that the dirt is drained from the dishwasher. Most
dishwasher detergents available in stores are suitable for this purpose.
Warning!
Dishwasher detergent is a corrosive product. It should therefore be kept
out of the reach of children. If swallowed, consult a doctor immediately
and take the packaging with you.
Concentrated detergent
Based on their chemical composition, 2 different types of concentrated
detergent can be distinguished:
• Conventional alkaline detergents with corrosive ingredients.
• Low-alkaline concentrated detergents with natural enzymes.
The use of concentrated dishwasher detergent in combination with
“normal” wash programs produces less contamination and is good for
your dishes: these wash programs are specifically geared to the dirt-
dissolving characteristics of the enzymes in the concentrated dishwasher
agent. This means that “normal” wash cycles with concentrated
detergent achieve the same results as an intensive wash cycle.
Dishwasher tablets
Dishwasher tablets from different manufacturers dissolve at different
rates. This means that, during short wash cycles, certain types of
dishwasher tablet do not fully dissolve, as a result of which their
cleaning action is reduced. Dishwasher tablets should therefore chiefly
be used in combination with long wash cycles, so that the dish washer
tablet has time to fully dissolve.
When you switch from dishwashing tablets to a traditional dishwashing
agent, you have to make sure that the salt reservoir and the rinse agent
reservoir are completely filled.
OPERATION

EN 14
OPERATION
Detergent compartment
Your dishwasher uses less detergent and rinse agent than conventional
dishwashers. Generally speaking, just one measuring spoon of detergent
powder is needed for a normal wash cycle. Use more detergent if your
dishes are more heavily soiled. Fill the soap compartment immediately
prior to starting the cycle. Filling it prior to this may result in the detergent
becoming damp and therefore not fully dissolving.
Note! The table on page 9 shows the amount of detergent required for
the different cycles. These are averages. A different dosage may be
necessary, depending on the hardness of the water and how soiled the
dishes are.
Filling
1. Press the release catch if the lid is closed.
The lid will slide open.
2. Fill the detergent compartment immediately prior to starting a wash cycle.
The markings in the detergent compartment indicate the dosage.
• The container has a capacity of maximum 45 gr.
Fill up the container with 25 gr. of the detergent for very dirty dishes
and 15 gr. for normal dishes.
Use only detergents that are specifically designed for dishwashers. Store
the detergent in a cool and dry place. Only fill the detergent compartment
with detergent when you are running a wash cycle immediately afterwards.
DETERGENT

EN 15
LOADING
Loading the baskets
Using the upper basket
The upper basket is designed for fragile, light dishes, such as glasses,
cups and saucers, plates, small bowls and shallow (not particularly
dirty) pans.
Place the dishes in the basket in such a way as to ensure they cannot
move when sprayed. The height of the top basket can be adjusted.
Height Adjustable Rack
The height adjustable racks enable glasses and cups to be placed on
or under the racks. The racks can be adjusted to 2 different heights.
Cutlery and utensils can also be placed on the racks horizontally.
Using the lower basket
We advise you to place large objects that are hardest to clean in the
bottom basket: pots, pans, pan lids, oven dishes and bowls. Casserole
dishes and pan lids should preferably be placed at the side of the
basket. This will ensure that they do not obstruct the spray arm when it
is turning.
• Saucepans, serving dishes etc. must always be placed upside
down in the basket.
• Deep bowls should be tilted, with the opening facing downwards to
allow water to escape.
• The lower basket can be adjusted to allow for larger, or more, pots
and pans.
1
2

EN 16
LOADING
Cutlery basket
The cutlery basket is used in the bottom basket. Cutlery should be
placed in the cutlery basket with the handles pointing down. Long
kitchen utensils such as wooden spoons have to be in a position lying
down (horizontal) on the middle rack in the top basket.
Warning!
Take care to ensure that no objects are sticking through the bottom
of the cutlery basket, as this will obstruct the spray arm.
Cutlery/crockery unsuitable for the dishwasher
• Cutlery with a wooden, porcelain or mother of pearl handle
• Plastic objects that are not heat-resistant
• Cutlery with glued elements that are not heat-resistant
• Glued cutlery or crockery
• Pewter or copper objects
• Lead crystal glassware
• Steel objects that are prone to rust
• Wooden dishes
• Objects manufactured from synthetic fibres
Cutlery/crockery with limited suitability for use in the dishwasher
• Certain types of glass can become dull after undergoing a large
number of wash cycles
• Silver and aluminium may tarnish after use in the dishwasher
• Glazed patters may fade as a result of regular washing
Note! Do not place any objects soiled with cigarette ash, candle wax,
varnish or paint in the dishwasher. When buying new kitchen utensils,
ensure that they are suitable for the dishwasher.
Do not overload the dishwasher. There is only room for 12 standard
settings. Do not place cooking utensils that are unsuitable for
dishwashers inside. This is essential to ensure good washing results
and a low energy consumption.
