ETNA VW247M User manual

INSTRUCTIONS FOR USE
BEDIENUNGSANLEITUNG
DISHWASHER
GESCHIRRSPÜLER
VW247M

EN Instructions for use EN 3 - EN 25
DE Bedienungsanleitung DE 3 - DE 25
Pictograms used - Benutzte Piktogramme
Important information - Wissenswertes
Tip - Tipp

SAFETY REGULATIONS
Contact a registered installer to fit your appliance
(see “Installation instructions”). Do not connect the
appliance to the electrical mains until the installation is
complete.
This appliance is intended to be used in household and
similar applications such as:
▷staff kitchen areas in shops, offices and other working
environments;
▷farmhouses;
▷by clients in hotels, motels and other residential type
environments;
▷bed and breakfast type environments.
For EN60335-1:
• This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without
supervision.
Original instruction
NO
GBNL BE DK ES
FI
SE
FR BE
DE DEATLU
IE
NO
GB
NL BE DK ES
FI
SE
FR BE
DE DEATLUIE

SAFETY REGULATIONS
For IEC60335-1:
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing
maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Earthing Instructions
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped
with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet
that is installed and earthed in a ccordance with all local
codes and ordinances.
• Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.

SAFETY REGULATIONS
• Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
• Do not modify the plug provided with the appliance, if it
does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack
of the dishwasher.
• Do not operate your dishwasher unless all enclosure
panels are properly in place.
• Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
▷Locate sharp items so that they are not likely to
damage the door seal;
▷Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points facing
down or placed in a horizontal position.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open.

SAFETY REGULATIONS
• Check that the detergent powder is empty after
completion of the wash cycle.
• Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the
manufacturer’s recommendations.
• Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
• The door should not be left open, since this could
increase the risk of tripping.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• During installation, the power supply must not be
excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water
valve using new hose sets. Old sets should not be
reused.
• To save energy, the appliance will go to standby mode
automatically when there is no operation during some
time.

EN 3
CONTENTS
Your dishwasher
Introduction 4
Description
Control panel 5
Interior 6
Operation
Switching on 7
Cycle selection table 10

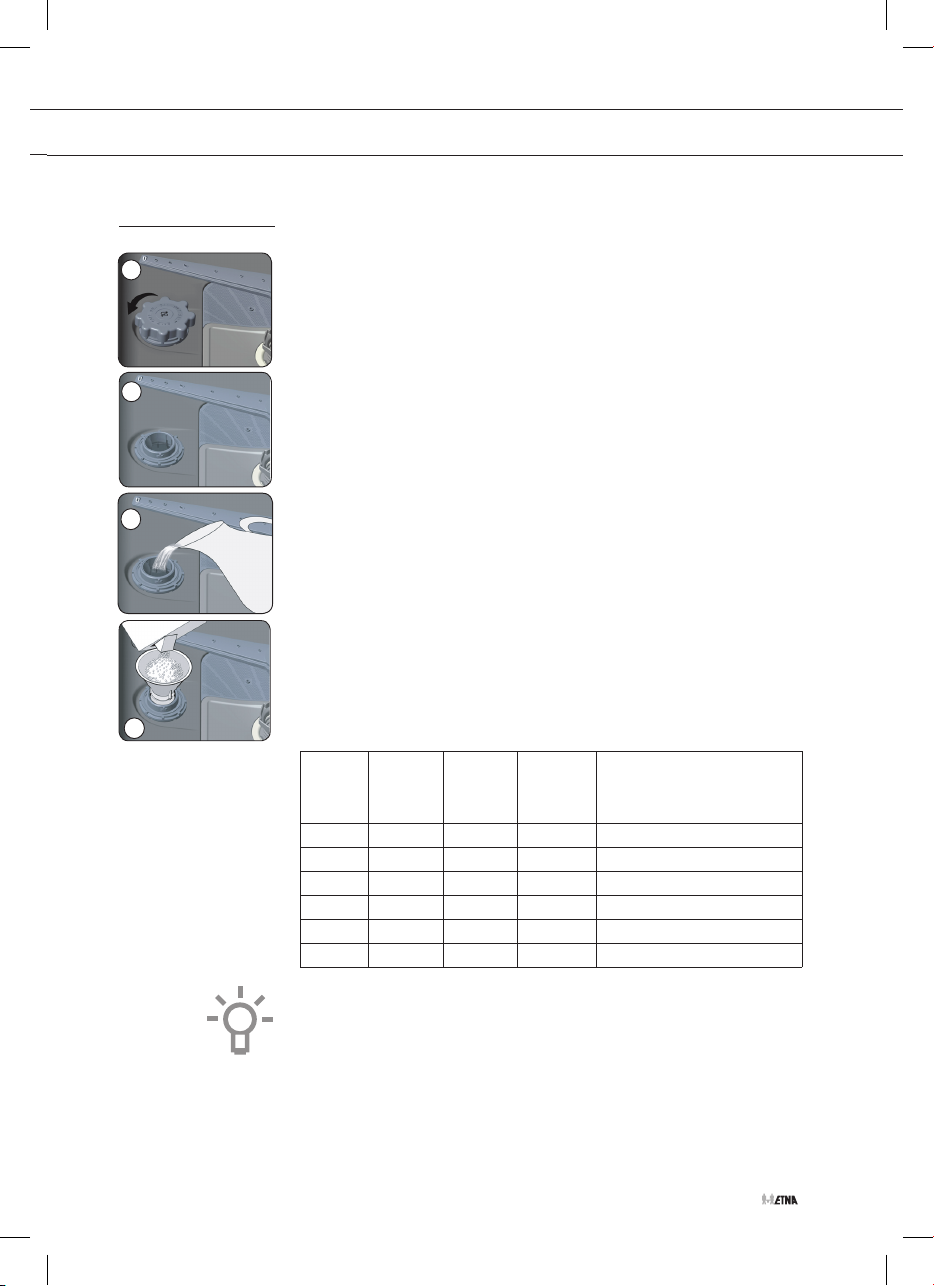

Regeneration salt (water softener) 11
Reset 12
Setting the water hardness 12
Rinse aid reservoir 12
Dishwasher detergents 14
Loading
Loading the baskets 16
Damage to glassware and other crockery 19
Maintenance
Filter system 20
Cleaning the spray arms 21
Cleaning the door 21
Errors
What should I do, if... 22
Interference table 22
Error codes 24
Appendix
Disposal 25

EN 4
Introduction
You have opted to purchase an Etna dishwasher.
Optimum user comfort and easy operation were paramount during
the development of this product.
This manual describes how you can get the most out of your dishwasher.
It provides you with information on how to operate the appliance, as well
as background information about how it works. You will furthermore also
find maintenance tips.
The safety instructions that are relevant during the installation are included
in the installation guide. This is intended for the installation technician.
Read this manual before using the appliance.
Keep this manual in a safe place so that the next possible user can also
benefit from it.
YOUR DISHWASHER

EN 5
DESCRIPTION
Control panel
1. On/Off button
2. Program button
3. Program display
4. Half load button
5. Delayed start button
6. Options button
7. Extra hygiene / extra dry indicators
8. Salt / rinse aid indicators
9. Upper basket / lower basket half load indicators
3 1 2 4 5 6 8
9 9 7

EN 6

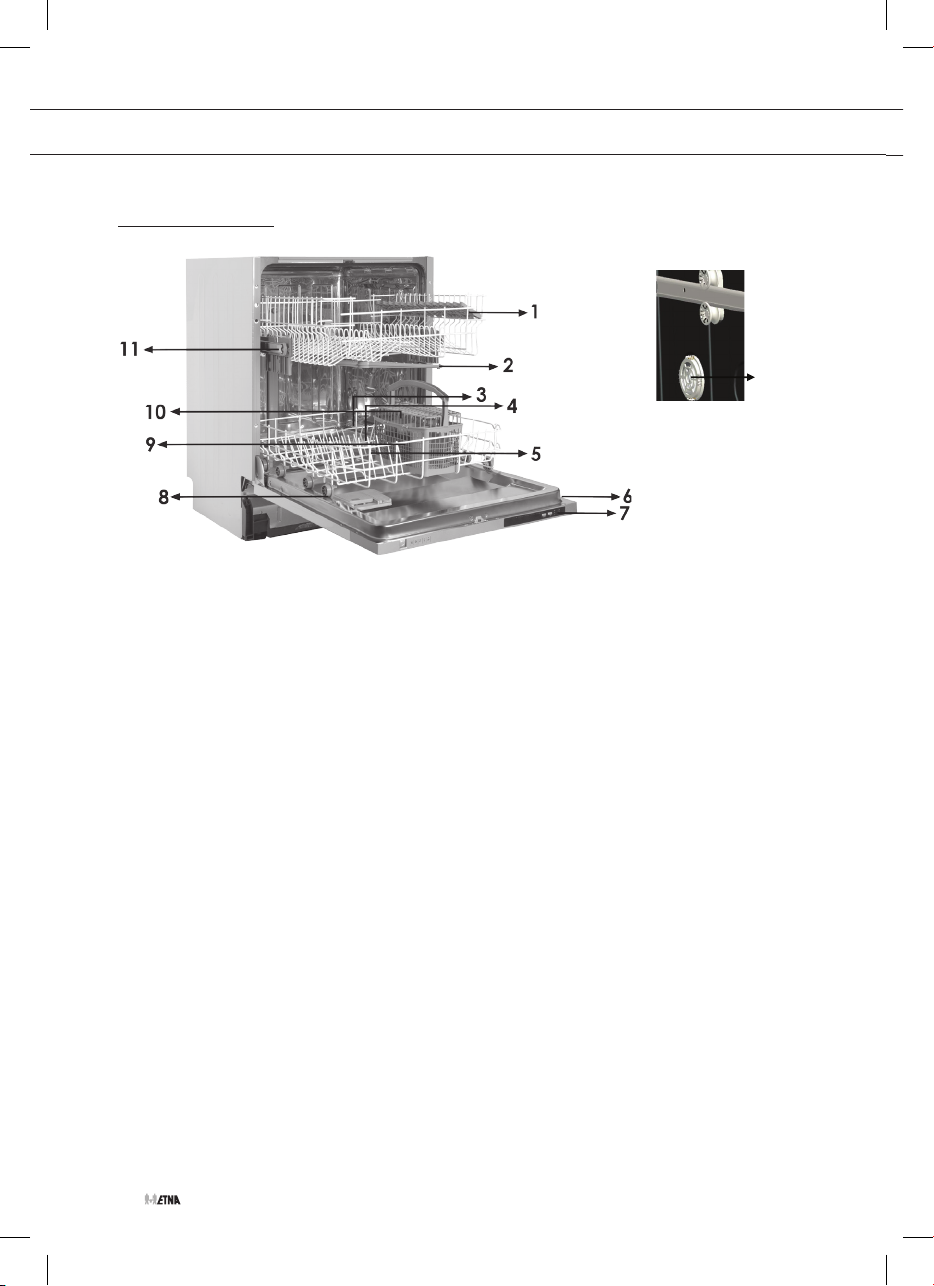

Interior
12
1. upper basket
2. upper spray arm
3. lower basket
4. lower spray arm
5. filters
6. type plate
7. operating panel
8. detergent and rinse aid reservoir
9. cutlery basket
10. salt reservoir
11. guide rail top basket
12. active drying unit
DESCRIPTION

EN 7
OPERATION
Switching on
1. Open the door of the dishwasher.
2. Press the ‘on-off’ button to switch on the device.
The check light End Program is on |
3. Select the desired program (see ‘program selection table’). Select a
cycle using the programming button.
The check light that belongs to the selected program is on.
4. Close the door of the dishwasher.
The dishwasher will automatically start running the selected cycle.
The remaining program time appears on the display.
Selecting a half load
Press the ‘half load’ button to activate the half load cycle. In the half
loading program, you can use both the upper and lower basket and
both baskets simultaneously.
For a small quantity of dirty dishes, in both the upper and lower basket,
repeatedly press the ‘half load’ button until the indicators of upper and
lower basket light up.
For a small quantity of dirty dishes in the upper basket, repeatedly
press the ‘half load’ button until the indicator of the upper basket
lights up.
For a small quantity of dirty dishes in the lower basket, repeatedly press
the ‘half load’ button until the indicator of the lower basket lights up.
Delayed start time
If you want the dishwasher to switch on at a later time, you can use the
‘delayed start’ button. You can choose between a delay time of 1, 2...
19 hours. Each press of the button changes the delay time.
The display shows the delayed start time.
Then select the desired program and close the door of the dishwasher.
Options
Press the options button once to activate the extra hygiene option.
When you activate it, the extra hygiene indicator will light up and the
washing temperature and duration changes on the selected program.
This ensures a more hygienic wash.

EN 8
Press the options button twice to activate the extra dry option. When
you activate it, the extra dry indicator will light up and extra heating/
drying steps will be added to the selected program.
Press the button a third time to deactivate the functions, both lights will
switch off.
If an extra feature has been used on the most recent wash program,
this feature will remain active on the next selected program. To cancel
this feature on the newly selected wash program, press the feature
button until the light on the button switches off.
Note! If you decide not to start the selected program, please see the
“Stopping or changing a wash cycle” section.
When there is insufficient softening salt, the salt indicator will light up to
indicate the salt container needs filling. When there is insufficient rinse
aid, the rinse aid indicator will light up to indicate the rinse aid reservoir
needs filling.
Indicators
• Salt.
The indicator shows that you have to fill the salt container with
regeneration salt.
• Rinse aid.
The indicator shows that you have to fill the rinse aid reservoir.
Stopping or changing a wash cycle
1. Open the door.
The last selected program appears on the display.
2. Press and hold the programming button for more than 3 seconds.
The ‘End program’ indicator is blinking. ‘1’ appears on the display.
3. Close the door of the dishwasher.
The machine pumps out for about 30 seconds. Following the end
of this, an alarm signal will sound and the indicator shows that the
program has finished.
4. You can again select the desired program (see program selection
table).
5. Now close the door.
OPERATION

EN 9
Note! A cycle that has already begun can only be changed in the start-
up phase. After this, the detergent will be sprayed all over the dishes or
the machine may have already pumped out the water. In that instance,
you must refill the detergent compartment (see section on Dishwasher
detergent).
Warning!
Opening the door fully during the wash cycle is dangerous. You may be
splashed with hot water from the machine.
Following the end of the wash cycle
After the washing program has finished, the ‘End program’ indicator
flashes and an alarm signal sounds 5 times. Open the door of the
dishwasher. Switch off the device with the on/off button. Wait a few
minutes before unloading the dishwasher. The dishes and cutlery will still
be very hot immediately following the end of the cycle. There is a chance
that dishes may break as a result of the heat. Moreover, the dishes dry
better when allowed to stand for a few minutes.
Flood protection switch
Your dishwasher is fitted with a safety switch that prevents too much
water from running into the appliance. The safety switch closes the
inlet valve and instructs the dishwasher to pump out the surplus
water. If there is water in machine (due to too much water being fed in
previously, or as a result of a leak), this must first be removed before the
appliance is switched on again.
OPERATION

EN 10
OPERATION
Cycle selection table
Program Cycle selection information Description of cycle Detergent
pre/main
Time
(min.)
Energy
(KWh)
Water
(L)
Water Half
Load (L)
Eco(1) This is the standard program,
it is suitable to clean
normally soiled tableware
and it is the most efficient
programme in terms of its
combined energy and water
consumption for that type of
tableware.
Prewash
Main wash (50 °C)
Hot rinse (55 °C)
Dry
5/25 gr. 222 0.907(2)
0.923(3)
9.0 9.0
Smart Auto program for heavily
soiled dishes.
Prewash
Hot prewash (50 °C)
Main wash (60 or 70 °C)
Cold rinse
Intermediate rinse (+ or -)
Hot rinse (70 °C)
Dry
5/25 gr. 97-178 1.300-
2.000
11.8-
24.0
7.6-19.8
Smart Auto program for normally
soiled dishes.
Prewash
Main wash (50 or 60 °C)
Cold rinse
Intermediate rinse (+ or -)
Hot rinse (70 °C)
Dry
5/25 gr. 89-121 1.100-
1.300
10.9-
18.5
6.7-14.3
Smart Auto program for normally
soiled delicate dishes.
Prewash
Main wash (30 or 50 °C)
Cold rinse
Intermediate rinse (+ or -)
Hot rinse (60 °C)
Dry
5/25 gr. 69-92 0.700-
0.900
10.6-
17.7
6.6-13.7
50 minutes Daily dishes in 50 minutes.
For day-to-day dishes, such
as lightly soiled or normal
plates and pans.
Main wash (65 °C)
Cold Rinse
Hot rinse (70 °C)
Dry
25 gr. 50 1.000 9.5 9.5
Easy care Suitable for normally soiled
daily dishes.
Prewash
Main wash (60 °C)
Cold Rinse
Hot rinse (70 °C)
Dry
5/25 gr. 94 1.320 14.4 11.1
Delicate Suitable for lightly soiled
delicate dishes.
Prewash
Main wash (40 °C)
Cold Rinse
Hot rinse (60 °C)
Dry
5/25 gr. 74 0.800 13.9 10.0
Quick Lightly soiled dishes, such as
glasses, crystal and fragile
porcelain. No drying.
Main wash (40 °C)
Cold Rinse
Hot rinse (50 °C)
25 gr. 30 0.670 10.9 10.9
Prewash To rinse dishes that you plan
to wash later that day.
Prewash 15 0.020 4.2 4.2
(1) This program is the test cycle.
The information for comparability test in accordance with EN 50242/EN 60436.
(2) According to standard EN 50242
(3) According to standard EN 60436

EN 11
Regeneration salt (water softener)
This machine is equipped with a water softener. To use the water
softener, fill the dishwasher with salt.
• After first having removed the lower basket, loosen the cap of the
reservoir (1 and 2).
• Prior to filling up the reservoir for the first time, pour one litre of
water in it.
• Place the funnel in the reservoir opening. Pour about 2 kg of salt
in it. It is normal for a little water to flow out of the opening when
doing this. Note! Clear up any spilled salt and always run a full
cycle immediately afterwards to prevent damage to the bottom.
• Carefully tighten the cap of the reservoir.
Note! Always fill the salt reservoir and adjust the water hardness setting
before using the dishwasher. Refill the salt reservoir when the water
softener indicator lights up. It is possible that the light will remain lit for
a short while after the salt reservoir is filled. It will go out automatically
when enough salt has been dissolved in the water.
Setting the salt consumption
Adjust the salt consumption according to the table below:
Water
hardness
level
German
hardness
dH
French
hardness
dF
English
hardness
dE
Indicator
1 0-5 0-9 0-6 L1 appears on the display
2 6-11 10-20 7-14 L2 appears on the display
3 12-17 21-30 15-21 L3 appears on the display
4 18-22 31-40 22-28 L4 appears on the display
5 23-31 41-55 29-39 L5 appears on the display
6 32-50 56-90 40-64 L6 appears on the display
Your local water authority can inform you how hard your mains water is.
Adjustments can then be made according to the above table.
The standard water hardness level is set at level 3.
OPERATION
1
2
3
SALT
4

EN 12
OPERATION
Reset
Open the door of the dishwasher
The indicator of the program selected last is flashing.
Press and hold the programming button for more than 3 seconds.
The ‘End Program’ indicator is flashing. The indicator of the program
selected last turns off
Close the door of the dishwasher.
The machine pumps out for about 30 seconds. Following the end of
this, a sound signal will click 5 times and the indicator shows that the
program has finished.
Switch off the dishwasher with the on/off button.
Setting the water hardness
Press the program button and keep it pressed.
Switch on the dishwasher simultaneously with the on/off button.
Keep the program selection button pressed until “SL” disappears from
the display. Release the program selection button after “SL” disappears
from the display.
Your machine displays the latest entered water hardness setting.
Water hardness can be adjusted by the program selection button
according to Table of Water Hardness Level Settings.
After selecting the desired setting, press the on/off button.
The set value is stored in the memory.
Rinse aid reservoir
Rinse aid is added during the final rinse. Rinse aid prevents traces of water
droplets being left behind on the clean dishes. Moreover, it ensures that the
dishes dry quicker, since the water drains off more easily.
The dishwasher is designed for use with liquid rinse aid. The rinse aid
reservoir is located on the inside of the door, alongside the detergent
compartment.

EN 13
OPERATION
Filling the rinse-aid and setting
To fill the rinse aid compartment, open the rinse-aid compartment cap.
Fill the compartment with rinse aid to the MAX level and then close the
cap.
Be careful not to overfill the rinse aid compartment and wipe up any
spills.
In order to change the rinse aid level, follow the below steps
before turning on the machine:
1. Push the programme button and hold it down.
2. Turn on the machine.
3. Hold down the programme button until “rA” disappears from the
display.
▷Rinse aid set follows water hardness set.
▷The machine will display the current setting.
4. Set the level by pushing the programme button.
5. Switch off the machine to save the setting.
The factory setting is “4”.
• If the dishes are not drying properly or are spotted, increase the
level. If blue stains form on your dishes, decrease the level.
Level Brightener Dose Indicator
1Rinse-aid not dispensed r1
21 dose is dispensed r2
32 doses are dispensed r3
43 doses dispensed r4
54 doses dispensed r5

EN 14
Dishwasher detergents
The chemicals in dishwashing detergents remove the dirt, break it
down and make sure that the dirt is drained from the dishwasher.
Most dishwashing detergents available in the store are suitable for this
purpose.
Warning!
Dishwasher detergent is a corrosive product. It should therefore be kept
out of the reach of children. If swallowed, consult a doctor immediately
and take the packaging with you.
Concentrated detergent
Based on their chemical composition, 2 different types of concentrated
detergent can be distinguished:
• Conventional alkaline detergents with corrosive ingredients.
• Low-alkaline concentrated detergents with natural enzymes.
The use of concentrated dishwashing detergent in combination with
“normal” washing programs produces less contamination and is good
for your dishes: these washing programs are specifically intended for
dirt-dissolving characteristics of the enzymes in concentrated dishwashing
detergents. This means that “normal” wash cycles with concentrated
detergent achieve the same results as an intensive wash cycle.
Dishwasher tablets
Dishwasher tablets from different manufacturers dissolve at different
rates. This means that, during short wash cycles, certain types of
dishwasher tablet do not fully dissolve, as a result of which their
cleaning action is reduced. Dishwasher tablets should therefore chiefly
be used in combination with long wash cycles, so that the dish washer
tablet has time to fully dissolve.
When you switch from dishwashing tablets to a traditional dishwashing
detergent, you have to make sure that the salt conttainer and the rinse
agent reservoir are filled.
OPERATION

EN 15
OPERATION
Detergent compartment
Your dishwasher uses less detergent and rinse agent than conventional
dishwashers. Generally speaking, just one measuring spoon of detergent
powder is needed for a normal wash cycle. Use more detergent if your
dishes are more heavily soiled. Fill the soap compartment immediately
prior to starting the cycle. Filling it prior to this may result in the detergent
becoming damp and therefore not fully dissolving.
Note! The table on page 10 shows the amount of detergent required
for the different cycles. These are averages. A different dosage may be
necessary, depending on the hardness of the water and how soiled the
dishes are.
Filling
1. Press the release catch if the lid is closed.
The lid will slide open.
2. Fill the detergent compartment immediately prior to starting a wash cycle.
The markings in the detergent compartment indicate the dosage.
• The container has a capacity of maximum 45 gr.
Fill up the container with 25 gr. of the detergent for very dirty dishes
and 15 gr. for normal dishes.
Use only detergents that are specifically designed for dishwashers.
Store the detergent in a cool and dry place. Only fill the detergent
compartment with detergent when you are running a wash cycle
immediately afterwards.
DETERGENT

EN 16
LOADING
Loading the baskets
Using the upper basket
The upper basket is designed for fragile, light dishes, such as glasses,
cups and saucers, plates, small bowls and shallow (not particularly
dirty) pans.
Place the dishes in the basket in such a way as to ensure they cannot
move when sprayed. The height of the upper basket can be adjusted.
Height adjustment upper basket
Top basket of your machine is in upper position. When it is in this
position, you can place big items such as pans, etc. on lower basket.
When you take top basket to lower position, you can place and wash
big sized plates on the top basket.
1. Open the basket retaining parts at the end of top basket rails by
turning them to the sides.
2. Take the basket out.
3. Change the position of the wheels; reinstall the basket to the rail.
4. Close basket retainer parts.
Height Adjustable Rack
The height adjustable racks enable glasses and cups to be placed on
or under the racks. The racks can be adjusted to 2 different heights.
Cutlery and utensils can also be placed on the racks horizontally.
Using the lower basket
We advise you to place large objects that are hardest to clean in the
lower basket: pots, pans, pan lids, oven dishes and bowls. Casserole
dishes and pan lids should preferably be placed at the side of the basket.
This will ensure that they do not obstruct the spray arm when it is turning.
• Saucepans, serving dishes etc. must always be placed upside
down in the basket.
• Deep bowls should be tilted, with the opening facing downwards to
allow water to escape.
• The lower basket can be adjusted to allow for larger, or more, pots
and pans.
1
2
