Etneo 202D User manual

1
Scientific technological Center
Via Bovio 6 –28100 Novara - NO - Italy
Tel [phone] - Fax [phone] - Email: [email protected]
www.etneo.com
Intelligent Lead Free Soldering Station 202D
Sensor in front Digital Calibration
High frequency Rapid recovery of temperature
OPERATION MANUAL
1. Safety Instruction
WARNING: In this instruction manual, “Warning” “Caution” and“ Note” are defined as follows:
WARNING: Misuse may potentially cause death of, or serious injury to the user.
CAUTION: Misuse may potentially cause injury to the user or physical damage to the objects involved.
NOTE: A Note indicates a procedure or point that is important to the process being described.

2
CAUTION
When the power is on, the tip temperature is very high. Mishandling may lead to burns or fire, be sure to
comply with the following precautions:
Please use the unit only as the described manner, and avoid abusing it
Do not touch the metallic parts near the tip
Do not use the searing-iron near the flammable items
Advise other people in the working area to turn the power off when in a break or after using the
equipment because the unit can reach a very high temperature and may cause potentially
dangerous
No replace any parts or install the tips before turning the power off and cooling down the searing-
iron to room temperature
The unit shall only be used with rated voltage and frequency (Refer to the trademark back of the
equipment)
A periodically maintenance (description see in this manual) of the unit is necessary. Do not use the
unit if it is damaged, especially the power supply cord and the case
The unit is equipped with a 3-wires grounding plug and must be plugged into a 3-terminal grounded
socket. Do not modify plug or use an ungrounded power socket. If an extension cord is necessary,
use only a 3-wire extended grounding cord
Do not use the iron for the other applications except soldering
Do not rap the soldering iron against the work bench to shake off residual solder, otherwise the iron
will be damaged by shocks
Do not modify the unit by oneself
Replace only with genuine parts
Do not wet the soldering station. Don’t use or disconnect it with wet hands, and without to force
the supply cord
The soldering process will produce smoke, so make sure the area is well ventilated
Children do not recognize the risks of the electrical appliance. Therefore use and keep the unit out
of the reach from children.
2. Summary
This device is an intelligent lead free soldering station with rapid temperature recovery. The soldering
station’s temperature adopts LCD double temperature display and digital calibration, rapid and
convenience. The sensor is designed in the front of tip and the temperature induction is very exact and
sensitive, the speed of heating and recovery of temperature is very fast. So it is one of the most perfect
tools for lead free soldering.

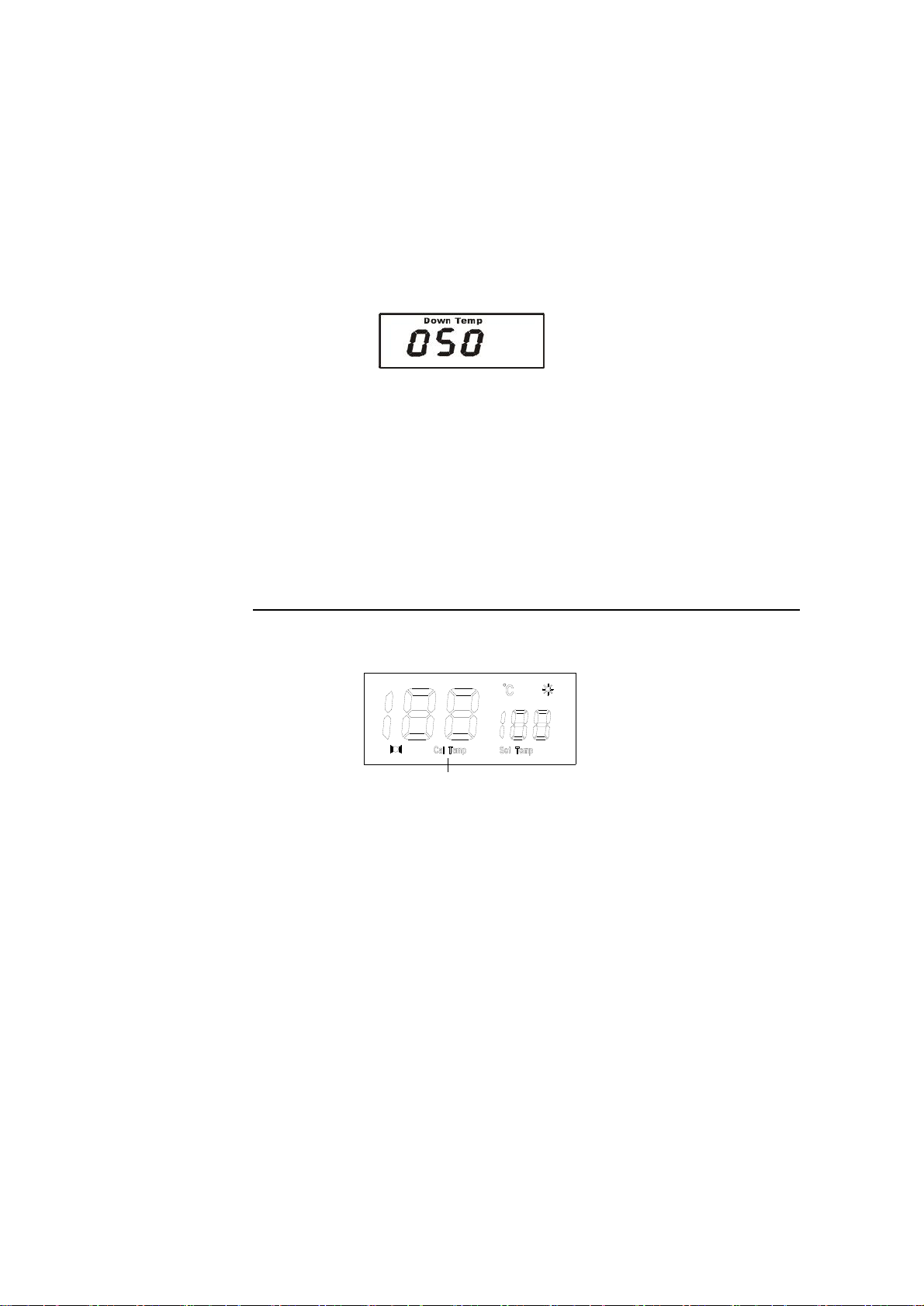

heating indication
setting temperature
real temperaturealarming mark

3
3. Specification and characteristic
3.1 Specification
-Power 120W
-Output voltage 48V
-The temperature range of the iron 80℃~480℃
-The temperature range of the sleeping 50℃~250℃
-The time range of the sleeping 0~250 (unit: minute)
-The time range of the shutting 0~250 (unit: minute)
-Temperature Stability ±2℃(Without air flow and no load)
-Highest Ambient Temperature 40℃
-Tip to Ground Resistance <2Ω
-Tip to Ground Potential <2mV
-Heating Element Electromagnetic heater
-Handle Power Cord 1.4mt
-Length of Handle (Without Cord) 180mm
-Outer Dimension 15.5*7.8*12(unit: mm)
-Weight (Without power cord) 1Kg
* The tip temperature is measured by the thermometer 191or 192.
* The length of the handle cord can be ordered.
* Above specifications and designs will be changed without notice.
3.2 Characteristic
1) The thermocouple sensor locates on the top of tip. Recovery of the temperature and calefactive is
rapid and exactly. Display the double temperature with the large LCD by microcomputer and
Control the temperature by PID. Especially it is suitable to the lead free soldering
2) The switch power supplies the power supply and protects the short circuit, over temperature and
over voltage and reduces the loss of the copper and the iron. Besides, the output power is stable
and not fluctuating with the voltage fluctuating
3) Lock the calibration and the parameter setting with the password
4) Set the parameters by three keys. Sleep or turn off automatically at the setting time
5) The up and down limited temperature can be set according to the demands. If the temperature
exceeds the setting limit value, the soldering station sounds alarm
6) Digital calibration and operate conveniently and easy
7) Various types of tips are available and replace tips conveniently
8) The weight is light and the appearance is original
9) ESD safe design
4. Operation instruction
Note: please check the power supply is according to the rating voltage on the nameplate of the
device before installing the solder station.

4
4.1 Iron Holder and Sponge
1) Dampen the small cleaning sponge with water and then squeeze it dry. Place it in the groove of the
iron holder base
2) Add a little water to the iron holder. The small sponge will absorb the water to keep the large
sponge above it wet all times. It may only use big sponge and not use small one
3) Dampen the larger cleaning sponge and place it on the iron holder base
Note: If the sponge becomes dry during working, add appropriate water.
4.2 Connection
CAUTION: Be sure to turn off the power switch before connecting or disconnecting the soldering
iron. Failure to do so may damage the soldering station.
1) Connect the connector plug of the iron handle cord to the socket in front of the soldering station.
Take notice of the inserting position of connector plug
2) Place the soldering iron in the iron holder
3) Insert the power plug into the grounding power socket
4) Connect one end of grounding cord to the grounding hole of the soldering station and the other to
ground
5) Switch on the power supply
4.3 Setting the parameters
4.3.1 Setting the password
The initial password is 000 and the temperature can be set after turning on the power supply at this state.
If administrator wants to limit the authority and he can change the password and then those being
authorized can set the parameters.
1. Enter the password setting:
Turn off the power supply. press and hold “△”and “▽”keys simultaneously and then press the power
switch until the display shows .It means in the password setting state.
2. Enter the initial password:
Press “*” key after the display shows , and then the display shows . In the
state, input the initial password by pressing “△”and “▽”keys. And press“*” key after inputting the
right password.
a) If the inputted password is error:
The soldering station will jump over the password setting process into the normal working
process after the display shows the setting password about four seconds. But the
temperature cannot be changed in normal working process because of inputting the error
password.

5
b) If the inputted password is correct:
If the display shows , this means the inputting password is correct. After displaying
about four seconds, the station will come into the normal work process, and it can set the
temperature.
3. Input the new password:
Note: the next inputted password must be same with the last inputted password, and
then the new password will be recorded in the soldering station and change the
password successfully. (Operation as follows)
1) Input the new password: when inputting the correct initial password, the display shows and
then press “*” and “▽”keys simultaneously in about four seconds then showing . It is in the
new password setting process. Press “*” key and the display shows . After that, press “△”
or “▽”key to input the new password
2) Repeat the new password: after inputting the new password and then press “*” key to .
Now it must input the new password again. Press “*” key and the display shows . After
that, press “△”or“▽”key to input the new password
3) If the next inputted password is same with the last inputted password: press “*” key and then the
new password will be recorded in the soldering station and change the password successfully
4) If the next inputted password is not same with the last time:
Press “*” key to and then input the new password again until the lately two passwords are
identical.
4.3.2 Setting the temperature
Note: * Make sure the temperature of the station can be adjusted (inputted password is correct or the
password is initial 000).
* Do not turn off the power supply when setting the temperature, or else the setting value will not
be memorized.
1. The process of temperature setting
a) If the password is 000 and can jump into the temperature setting process when turning on
the power supply
b) If the password has been changed, it must input the correct password firstly
2. Temperature setting
Temperature up: Don’t press “*” key, and press“△”key directly. And the “Set Temp” will raise
1℃and the display will show the setting temperature. If pressing the “△”key
about one second, the setting temperature will rise rapidly. And then loose
the“△”key till the needed temperature.
Temperature down: press“▽”key directly. And the “Set Temp” temperature will drop1℃and
the display will show the setting temperature. If pressing the“▽”key about one
second, the setting temperature will drop rapidly. And then loose the“▽”key
till the needed temperature.

6
4.3.3 Mode setting
When inputting the correct password and the display shows , press “△” and “*”keys
simultaneously to the mode setting. The display shows the current setting value and change the type of the
modes by pressing “△”and “▽”keys. The changing series as following:
Working mode table
4.3.4 Other setting
Press the “△”or “▽”key can change the setting value.
1) Sleep time setting
The station has an auto-sleep function. When not operating the station during a certain period of time
(the setting sleep time), the power supply will be cut off and the station will come into the sleep state.
a) Select the needing mode and then press “*” key to the process of “sleep time” setting. The display
shows and then press “△”or “▽”key to change the sleeping time. The range of sleeping time
is from 0 minute to 250 minutes
b) After finishing setting the sleeping time, press “*” key to the process of off time setting
c) To resume soldering, there are several ways as follows:
Turn the power switch off and then turn on
Press “*”
Working
mode
Temperature
range
Handle type
Tip type
Remark
0
80℃~480℃
Electromagnet
Normal tip
is a
alarming
mark.
1
80℃~480℃
Electromagnet
Big tip
0
80℃~480℃
Electromagnet
Normal tip
1
80℃~480℃
Electromagnet
Big tip
1
0
0
1
Press △
Press ▽
Press ▽
Press △
Press △
Press ▽
Select working mode
Press* key
Setting temperature
Press * key
Press * key
Press * key
Press* key

7
Take up the iron- handle
Note: * The soldering iron must be placed at the soldering iron station. And only in this state, the
soldering station can sleep automatically when up to the setting time.
* The solder station will not into sleep when the sleeping time is 000. And the solder will sleep at
once when the setting sleeping time is 001 and the handle is placed at the solder holder.
2) Off time setting
If the station isn’t resumed during the sleeping time, the power supply will be shut off automatically, and
the station will stop working. Turn on the power switch to resume working.
a) The process of setting “off time” is after the process of setting “sleep time”. At the “off time ”
status, the display shows and then press “△”or “▽”key to change the off time
b) The range of sleeping time is from 0 minute to 250 minutes
c) After finishing the off time setting, press “*” key to the process of off time setting
Note: * the off time should be longer than the sleep time, otherwise, the soldering station will be turned
off immediately after it comes into sleep state.
3) Sleeping temperature setting
a) In the process of “sleeping temperature” setting, the display shows “sleep” and “set temp” ,
and then press “△”or “▽”key to change the sleeping temperature
b) The range of sleeping temperature is from 50℃to 250℃
c) In the sleeping state, if the sleeping temperature is less than the setting temperature of the
soldering station, the temperature will fall down to the sleeping temperature. Otherwise, down
to the soldering station’s setting temperature
Such as: If the setting sleeping temperature is 200℃and the setting work temperature is 280℃, in
sleeping state, the iron’s temperature will fall down to 200℃.
If the setting sleeping temperature is 200℃and the setting work temperature is 150℃, in
sleeping state, the iron’s temperature in sleeping will fall down to 150℃.
4) Up temp setting
a) In the up temp setting state, the display shows “Up Temp”(refer to the picture) and press “△”
or “▽” key to change the temperature. Once difference in temperature between the real
temperature (Real Temp) and the setting temperature (set temp) is bigger than the up temp,
the soldering station will alarm when in the alarming mode
b) The range of the “up temp” setting is from 0℃to 99℃

8
5) Down temp setting
a) In the down temp setting, the display shows “Down Temp”(refer to the picture) and press “△”
or “▽” key to change the temperature. Once difference in temperature between the real
temperature (Real Temp) and the setting temperature (set temp) is bigger than the Down
Temp, the soldering station will alarm when in the alarming mode
b) The range of the “Down Temp” is from 0℃to 99℃.
4.4 Calibrating the temperature
1) The soldering iron should be recalibrated every time after replacing the iron, the heating element
or the tip
2) This device adopts digital calibration mode and input the revision value by pressing key
3) Methods of recalibrating the temperature:
I. Set the temperature of the soldering station to a certain value
II. When the temperature stabilizes, measure the tip’s temperature with thermometer
and write down the values
III. Press “*” key unlooseningly and then press the “△”and“▽”keys simultaneously, the
soldering station enters the temperature calibration mode and LCD displays “Cal
Temp”.
Calibrating temperature
4) The number is not flash and press “△” or “▽” key to record the temperature tested by the
thermometer to the soldering station. After that, press “*” key and the process of temperature
calibration is end
5) If the temperature still has some departure, you can repeat calibration in according with the above
steps.
Note: * Suggest using the 191 or 192 thermometer to measure the tip’s temperature.
* If the soldering station is locked by the password, it will not be able to calibrate the tip
temperature and you must input the correct password.

9
5. Use / care and maintenance
5.1 Select a correct tip
1. Select a tip which maximizes contacting area between the tip and solder joint. Maximizing contact
area transfers the heat more efficient, helping the operators to produce high quality solder joints
quickly
2. Select a tip with transferring the heat to the solder joint well. A tip with shorter length can control
more precise. And the Longer or angled tip may be needed for soldering densely populated boards.
Tips
5.2 Tip’s using caution
1) High soldering temperature can degrade the function of the tip and use the tip with the lowest
possible soldering temperature. The excellent thermal recovery characteristics ensure efficient
and effective soldering event at low temperatures. This also can protect the sensitive components
from thermal damage
2) When using the soldering iron continuously, be sure to loosen the tip and remove all oxides on the
tip at least once a week. This helps prevent reducing of the tip temperature

10
3) Never keep the soldering iron at high temperature for a long time when not using,. Because the tip
will be covered with oxide that can greatly reduce the tip's heat conductivity
4) Wipe the tip and coat it with fresh solder after using. This helps to prevent tip oxidation
5) Clean the tip regularly with a cleaning sponge. Oxides and carbides deriving from the solder and the
flux can form impurities on the tip. These impurities can result in defective joints or reduce the
heating conductivity of the tip
6) Use fine tips only when necessary. The plating on fine tips is less durable than the plating of the
blunter tips
7) Do not use the tip as a detecting tool. Bending the tip can cause the plating to crack and shorten
the tip’s life
8) Use the minimum activation flux necessary to do the job. Higher activation flux is more corrosive to
the tip plating
9) Don’t apply pressure to the tip. More pressure does not equal more heat. To improve heat transfer,
use solder to form a thermal bridge between the tip and the solder joint
5.3 Check and clean the tip
1) Set the temperature to 250℃
2) When the temperature stabilizes, clean the tip with the cleaning sponge and check the condition of
the tip
3) If there is black oxide on the solder-plated portion of the tip, coat new solder (containing flux) and
then wipe the tip on the cleaning sponge. Repeat until the oxide is completely removed and then
coat with the new solder
4) If the tip is deformed or heavily eroded, replace it with a new one
5.4 Renew a detinned tip
Why does a detinned tip fail to work?
A detinned tip is one not wetted with solder. This exposes the plating to oxidation and degrades the heat
transfer efficiency of the tip.
Detinning is caused by:
a. Failure to keep the tip coating with fresh solder while not in using
b. High temperatures
c. Insufficient melting in soldering operations
d. Wiping the tip on dirty or dry sponges or rags (It should use a clean, wet, industrial grade, sulfur-
free sponge)
e. There are impurities in the solder, iron plating, or on the surfaces to be soldered
Renew a detinned tip
a) Remove the tip from the handle after the tip cooling down
b) Remove the dirty and oxides from the tip with 80-grit abrasive polyurethane foam stock or a 100-
grit emery
c) Wrap the stannum including rosin (φ0.8mm or larger) around the newly exposed iron surface,
insert the tip into the handle, and turn on the power switch
Note: *Never file the tip to remove oxide.
*Proper daily care can prevent the tip from detinned.

11
5.5 Error messages
Various error messages will be displayed when there is something wrong with the device. If the following
message is displayed, refer to the 5.6.
Sensor error: if there is some malfunction in the sensor or anywhere in the sensor
circuit, “S-E” will be displayed and the power supply to the soldering iron will be cut
off.
Heater error: If there is something wrong with the heating element, “H-E” will be
displayed and the power supply to the soldering iron will be cut off.
5.6 Check and replace the soldering iron
When there is something wrong with soldering iron, you can check and test it. If it is broken, replace the
broken element.
5.6.1 Check the soldering iron
1) Turn the power switch off and disconnect the power plug
2) Disconnect the handle connector from the station, and disassemble it after it cooling down
3) Don’t use metal tools such as pliers to remove the tip or the tip enclosure from the handle
instead of using heat resistant pad
4) Screw down the sheath at the end of the handle
5) Pull the heating element out from the handle towards the handle cord
S–E
H - E

12
5.6.2 Checking the heating element
Pull out the plug and measure the resistance value between the pins of the connecting plug when the
heating element cooling down to the room temperature.
1) If the values of ‘a’ and ‘b’ are different from the values in the following table, replace the heating
element or sensor or cord assembly. Refer to the following steps
2) If the value of ‘c’is over the below value, remove lightly the oxidation in the joint part of the tip and
the heat element with sandpaper or steel wool
Note: * When checking b and c items in the table, the soldering iron must be equipped with tip.
* The pin’s sequence above picture is same with the socket of soldering station and in the
socket of the soldering iron handle after disconnecting the handle. Please find the
corresponding pins when check the sensor or the heating element of the handle.
5.6.3 Replace the heating element
1. Cut off the strap connecting the heating element and the handle cord and pull out the sensor’s
pin and desolder each wire of handle cord from heating element
2. Remove the broken heating element and replace a new one
3. Solder each wire of handle cord to its pin according to connection way of desoldering. Connect
black and white wires to two heating pins of the heating element and connect the grounding
wire (shield cord) to the grounding pin
4. Put the sensor pin on the red wire into the sensor pin jack of the heating element
5. After replacing the heating element, test heating element according to the following “5.5.4 test
the heating element” and install it after confirming it is well
6. Tie up the heating element and the handle cord with the strap
7. Put the heating element into handle according to the opposite order of disassembling, and the
heating element must be put into bottom. The bulge of the sensor pin jack should be put into
handle’s flute
8. Screw down the screw cap at the end of the handle
9. Install tip, the sensor pin jack part must be put into the handle’s flute
a.
Between pins 4&5 (Heating Element)
Under 1Ω(Normal)
b.
Between pins 1&2 (Sensor)
Under 10Ω(Normal)
c.
Between pins 1& Tip
Under 2Ω
1
6
7
5
2
43
Check the heating element
Check the sensor

13
Note: * The joint between wire and pin should be covered with a shrinkable hose.
* No heating when not installing the tip or else the heating element will be damaged.
5.6.4 Test the heating element
1.Measure the resistance values between pin 4 and pin1 or pin4 and pin2, between pin5 and pin 1or
pin 2, between pins 3 and pin 1 or pin 2, between pin 3 and pin 4 or pin 5. If they are not ∞, the
heating element and sensor or vibrator switch are touched. This will damage the PCB
2.Measure the resistance value ‘a’, ‘b’ and ‘c’ (refer to the above form) to confirm that the leads are
not twisted and that the grounding wire is properly connected.

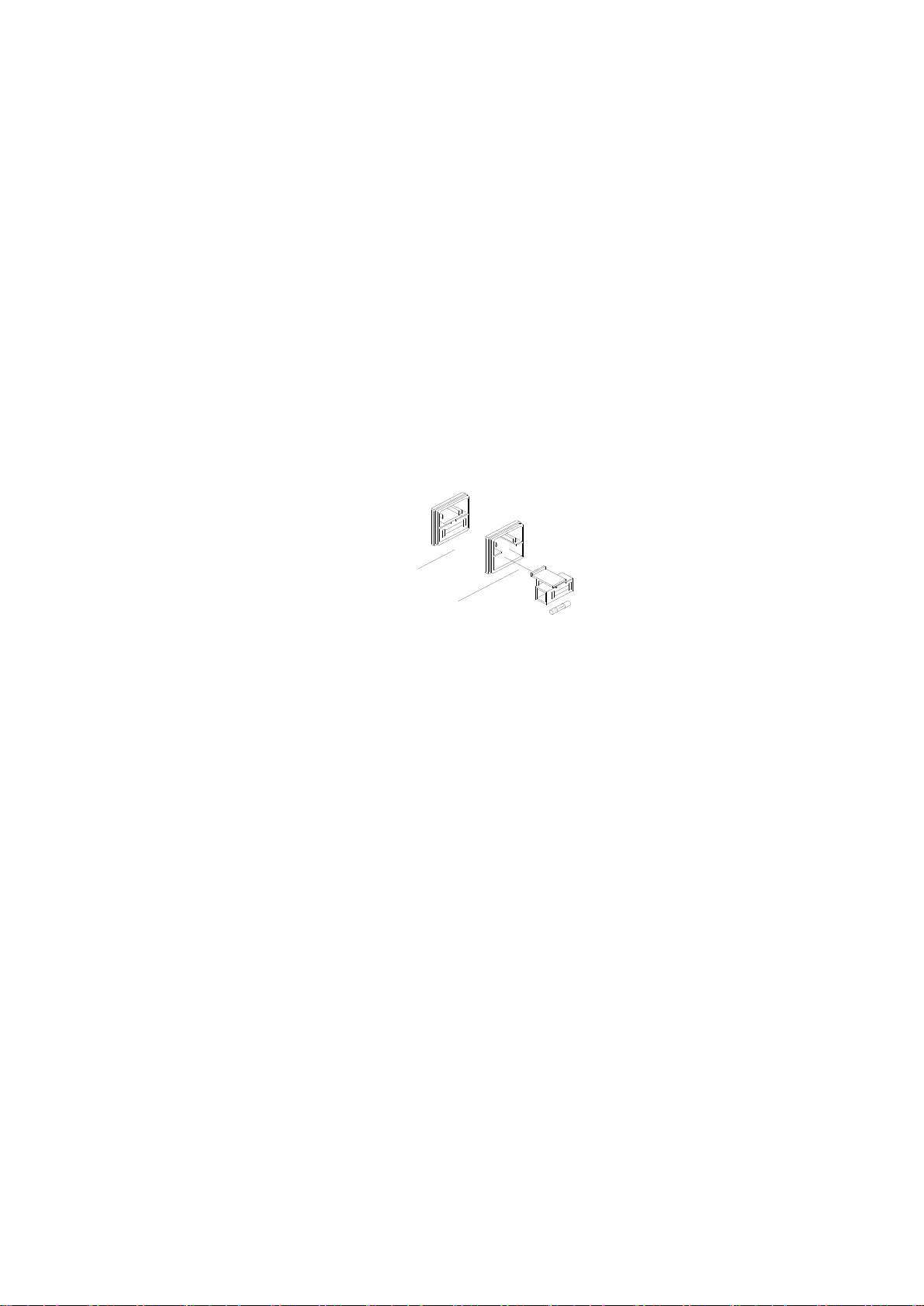

5.7 Replace the fuse
1. Turn off the power switch and then pull out the fuse plug in the power plug
2. Open the fuse cover board and take out the broken fuse
3. Replace a new fuse and put back the fuse cover board in place
