ETS 5532/5533 Environmental Chamber Family
Start-up Manual
Document D01042 Revision B

D01042 Revision B - ETS 5532-5533 Startup - Page 2 of 15
Start-up Manual for ETS Model 5532 and Model 5533 Chambers
The Start-up Manual is a streamlined manual designed to help the user get started
quickly. For more details and step-by-step instructions, consult the 5532/5533
Operating Manual D01011.
This manual covers the ETS 5532 chamber and the ETS 5533 chamber. Operating
systems and set-up are identical for these two chambers. The essential difference is
the depth of the environmental chamber –6” larger in the case of 5533.
Table of Contents
I. Important Safety Information.....................................................................3
II. Description of System Components..........................................................4
III. Set-Up Guide............................................................................................5
IV. Quick Start Guide.....................................................................................7
V. Functional Description .............................................................................8
VI. Calibration / Maintenance / Troubleshooting .........................................12
VII. Warranty ..............................................................................................15

D01042 Revision B - ETS 5532-5533 Startup - Page 3 of 15
I. Important Safety Information
SAFETY INSTRUCTIONS
The equipment described in this Manual is designed and manufactured to operate within defined
design limits. Any misuse may result in electric shock or fire. To prevent the equipment from being
damaged, the following rules should be observed for installation, use and maintenance. Read the
following safety instructions before operating the instrument.
POWER
POWER CORD: Use only the power cord specified for this equipment and certified for the country of use. If the
power (mains) plug is replaced, follow the wiring connections specified for the country of use. When installing
or removing the power plug, hold the plug, not the cord.
The power cord provided is equipped with a 3-prong grounded plug (a plug with a third grounding pin).
This is both a safety feature to avoid electrical shock and a requirement for correct equipment operation. If the
outlet to be used does not accommodate the 3-prong plug, either change the outlet or use a grounding
adapter.
FUSES: Replace fuses only with those having the required current rating, voltage and specified type such as
normal blow, time delay, etc. DO NOT use makeshift fuses or short the fuse holder. This could cause a shock
or fire hazard or severely damage the instrument.
OPERATION CAUTION
DO NOT OPERATE WITH COVERS OR PANELS REMOVED. Voltages inside the equipment consist of line
(mains) that can be anywhere from 100-240VAC.
DO NOT OPERATE WITH SUSPECTED EQUIPMENT FAILURES. If any odor or smoke becomes apparent
turn off the equipment and unplug it immediately. Failure to do so may result in electrical shock, fire or
permanent damage to the equipment. Contact the factory for further instructions.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE: Operating the equipment in the presence of
flammable gases or fumes constitutes a definite safety hazard. For equipment designed to operate in such
environments the proper safety devices must be used such as dry air or inert gas purge, intrinsic safe barriers
and/or explosion-proof enclosures.
DO NOT IMPEDE THE CHAMBER FROM VENTING EXCESS PRESSURE. The humidification and
dehumidification systems are open loop systems that pump external air into the chamber. If the chamber is not
allowed to vent, pressure could build up and cause serious damage to the chamber.
IF YOUR UNIT INCLUDES OPTIONAL LIQUID NITROGEN COOLING CAPABILITES, REVIEW ALL
SAFETY INFORMATION IN THE LIQUID NITROGEN SAFETY ADDENDUM.
DO NOT USE IN ANY MANNER NOT SPECIFIED OR APPROVED BY THE MANUFACTURER:
Unapproved use may result in damage to the equipment or present an electrical shock or fire
hazard.

D01042 Revision B - ETS 5532-5533 Startup - Page 4 of 15
II. Description of System Components
ETS 5532 and ETS 5533 Environmental chambers. Standard items:
Item
Qty.
Description
Chamber
1
Acrylic construction, clear and white panels, with doors, glove ports, or
iris ports as requested. On the right-hand side is an equipment
enclosure which houses user controls and systems for humidity control
of the chamber. On the left-hand side, the controlled section of the
chamber contains heating and cooling equipment, a circulation fan, and
lighting, as ordered.
Controller & Sensor
1
Mounted on the front panel of the equipment enclosure, the Controller
contains user controls for setting temperature and humidity setpoints
and selecting or disabling operating systems. The Controller monitors
chamber condition using the calibrated temperature/humidity sensor
which enters the controlled section of the chamber through the right-
hand wall.
Operating systems
(if included)
1
A. Heating. Heating elements are mounted inside a panel at the rear of
the controlled area.
B. Cooling. A thermoelectric cooler is mounted at the rear of the
controlled area.
C. Humidification. An ETS Model 5482 humidification system is built
inside the equipment enclosure and supplies humidified air to the
chamber through a 1” tube.
D. Dehumidification. An ETS Model 5471 dehumidification system is
built inside the equipment enclosure and exchanges air with the
chamber through ¼” tubing.
5 gallon water tank
1
Plastic tank with valve. NOTE: Shipped with valve inside the tank –
remove valve and screw onto tank.
Desiccant column
1
2.5 lb. column filled with MS desiccant with blue indicating dots.
¼” OD opaque tubing
1
One 10-foot length of tubing is provided to be used for connecting the
dehumidification system to the chamber.
Sealing Putty
1
A roll of Mortite for sealing small open ports.
Power Cord
1
AC line cord for connecting the control unit to power.
Pair of Iris Ports
1
If requested, attached to chamber and ready for use.
Pair of Glove Ports
1
If requested, Gloves attach to removable ports. Ready to exchange with
Iris ports.
Pair of Glove hands
1
If requested, Extra pair of glove hands for replacement.

D01042 Revision B - ETS 5532-5533 Startup - Page 5 of 15
III. Set-Up Guide
Part 1: Unpacking Chamber
The standard Model 5532/5533 Controlled Environment Chamber is shipped in 2 separate
cartons. The chamber is double boxed in a double-wall custom carton, and the accessories,
shown in Figure 3-1, are packed in a second double-walled carton.
Figure 3-1 Accessory box contents
Upon receipt, immediately inspect the cartons for any visible damage. If any shipping
damage is noticed, unpack the chamber and inspect it for damage. Take pictures of any
abnormalities observed. Save all cartons until it is certain that they will no longer be needed.
If the Chamber has to be returned to ETS for any reason, the original packaging must be
used.
NOTE: Report any damage immediately to the common carrier delivering the System
and to ETS. All damage claims must originate from the recipient. Failure to report
damage in a timely manner may result in the claim not being paid. ETS will not be
responsible for damaged or lost components if not reported to ETS within 30 days of
shipment.
Save all cartons and packing material in case the Model 5532/5533 System needs to be
shipped to a new location.
Comm Cables
(5 lb. MS Desiccant.
Replacement must be
ordered separately)
1 L. MS
Desiccator
Column
¼” Polyflo tubing (~10’)
½” Clear tubing (~6’)
5/16” Clear tubing (~6’)
AC Power Cable
¼” NPT,
5/16” Barb
CALGrafix
Software Disc
RS485/USB Converter
5 gal. Water Tank

D01042 Revision B - ETS 5532-5533 Startup - Page 6 of 15
Part 2: Connect all Operating Systems
Tools Needed: Adjustable wrench
IMPORTANT!
REVIEW ALL SAFETY PRECAUTIONS
AND INSTRUCTIONS
Switches OFF
Before applying power to the
system, verify that all controller
switches on the front panel are in
the OFF (0) position.

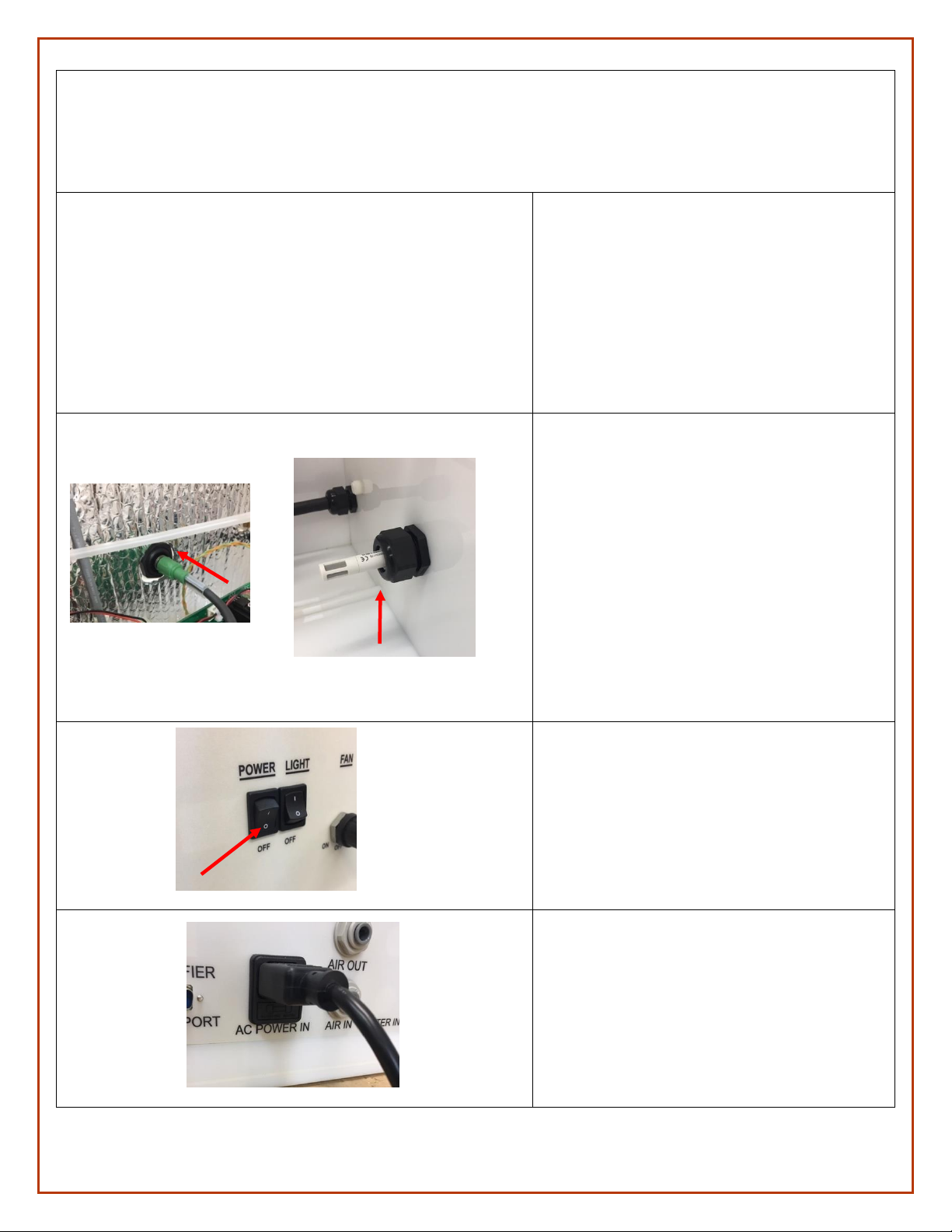

Step 1 –Verify sensor position
The sensor should be inserted into the
environmental chamber from the equipment
enclosure until the metal portion extends
beyond the fitting as shown.
If necessary, loosen the nut, adjust the
sensor position, and then tighten the nut to
hold the sensor in place.
Step 2 –Connect the controller
Make sure this power switch is OFF.
Step 3 –Connect main power
1. Plug in the AC cable to the chamber.
2. Plug in the to an electrical outlet.
Note: Using 10A 120VAC 60Hz service.

D01042 Revision B - ETS 5532-5533 Startup - Page 7 of 15
IV. Quick Start Guide
IMPORTANT!
REVIEW ALL SAFETY PRECAUTIONS
AND INSTRUCTIONS
Step 1 –Switches OFF
Before applying power to the
system, verify that all controller
switches on the front panel are in
the OFF (0) position.
Step 2 –Turn on Power
Turn on Power (I = on). Do NOT turn on
“COOL” switch on front panel.

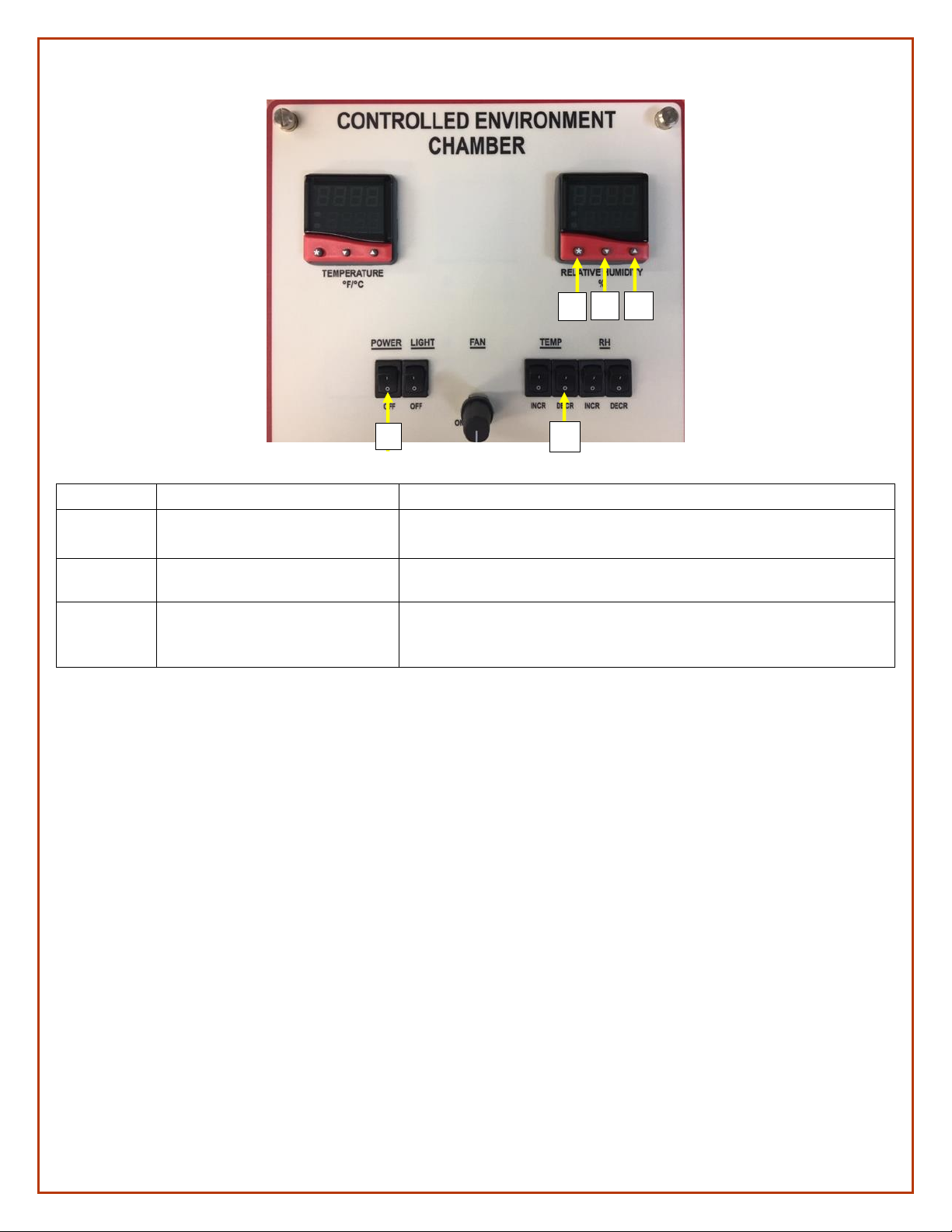

Step 3 –Set Temperature
Set your set point by pressing and
holding the * key and using
increase/decrease buttons to adjust to
your desired temperature.
Step 4 –Turn on Operating Systems
Flip ONLY the operating system needed
to the ON position (I = on):
Heating: TEMP INCR ON
Cooling: TEMP INCR & DECR ON
Humid.: RH INCR ON
Dehumid.: RH DECR ON

D01042 Revision B - ETS 5532-5533 Startup - Page 8 of 15
V. Functional Description
The Model 5532/5533 Microprocessor Controlled Environmental Chamber is a completely
integrated system providing a controlled environment for testing, fabricating or storage.
The controllers, pumps and the humidifier operating system are housed in a separate
compartment on the right side of the Chamber as shown below.

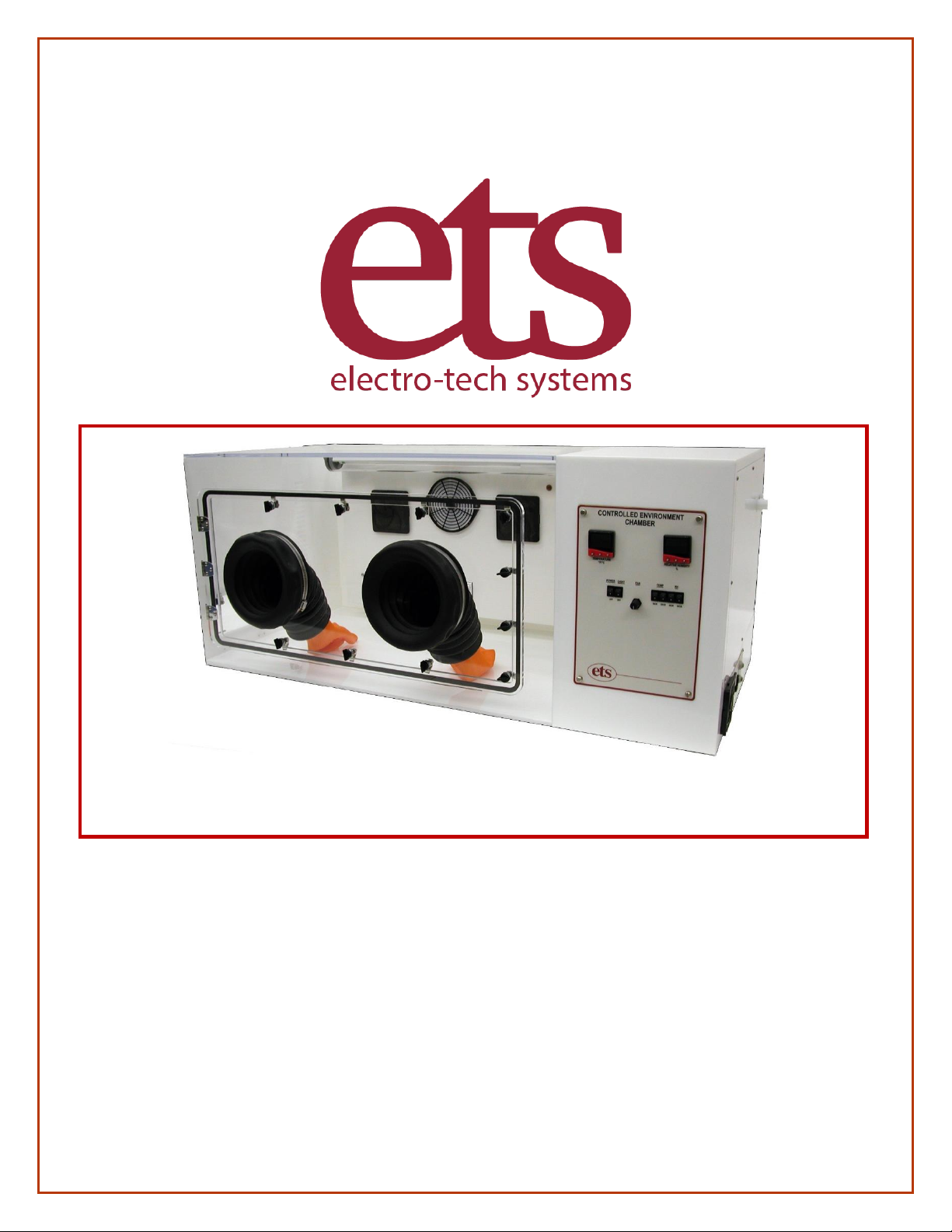

Figure 5-2: Model 5532 Controlled Environment Chamber
All systems are accessible via the removable white acrylic panel on the right side of the Chamber.
Controllers and operating systems that are available with the Model 5532/5533 are as follows:
1. Microprocessor Temperature Controller (multi ramp/soak, set point display; Std.)
2. Model 556 Temperature compensated RH and Temperature Sensor (Std.)
3. Integrated 500 Watt Heater (Std.)
4. Choice of Cooling Systems: (5473-150W - Std.)
a. Model 5473-(150W-400W) 510-1360 BTU Thermoelectric Cooling System
b. Model 5463 Liquid CO2Cooling System
c. Model 5466 Liquid Nitrogen Cooling System
5. Microprocessor Humidity Controller (multi ramp/soak, set point display, Std)
6. Model 5482 Ultrasonic Humidification System (Std)
7. Choice of Dehumidification Systems:
a. Model 5471 Desiccant/Pump Dehumidification System, 2.5 lbs. of MS Desiccant (Std.)
b. Model 5478 Self-Regenerating Dehumidification System (requires external air
compressor or house air at 50-100 psi)
c. Model 5465 Dry Gas Dehumidification System
8. CALGrafix Computer Software/Interface Package. Allows remote monitoring, charting
and reprogramming of the Microprocessor Controllers from a PC (Std).
Equipment enclosure
Conditioned chamber
Chamber
Vent
Water & Air
Connections

D01042 Revision B - ETS 5532-5533 Startup - Page 9 of 15
General Specifications.
NOTE: The entire humidity range cannot be obtained at all temperatures due primarily to
dew point considerations as shown below.

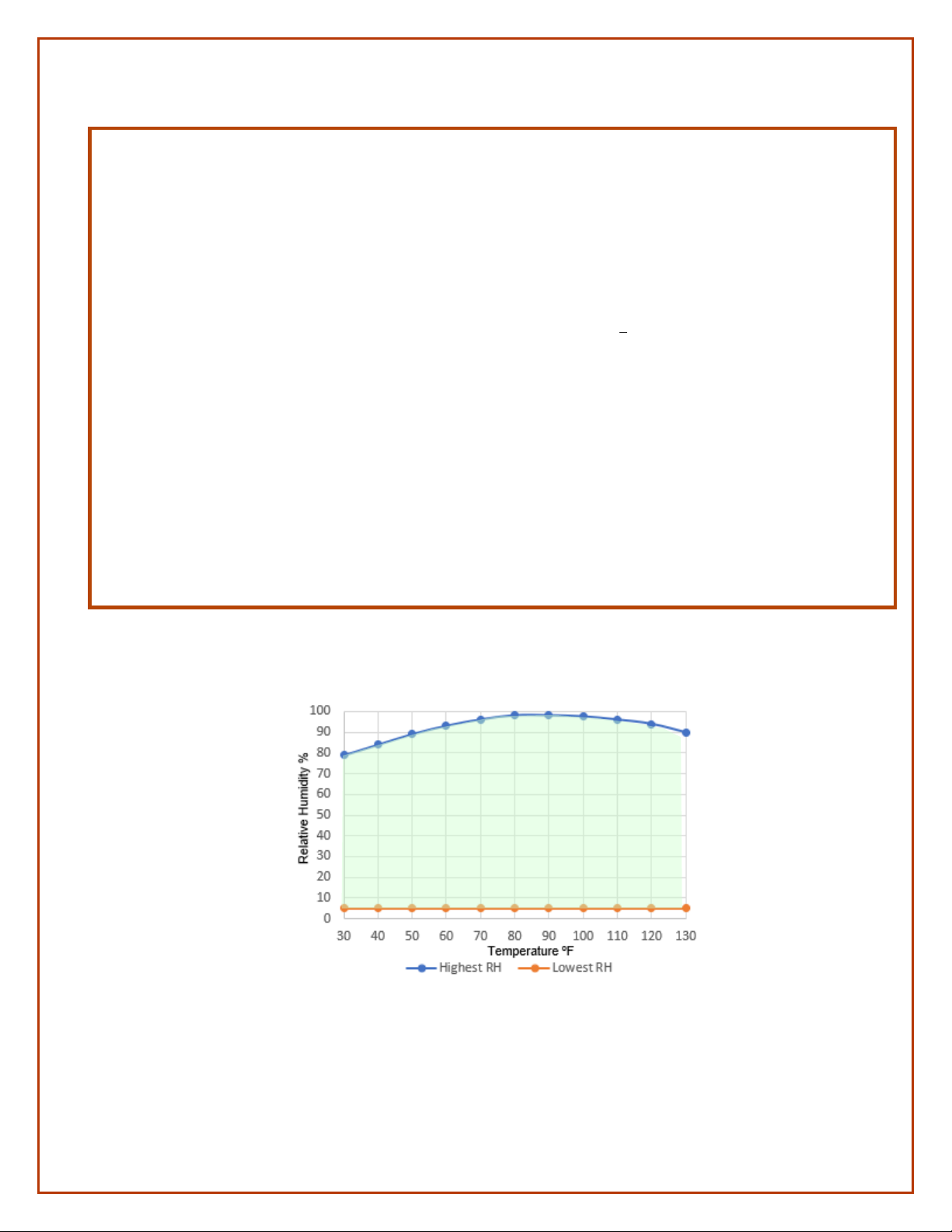

Figure 5-1: Model 5532 Dew point performance chart
Chamber:
Construction:
Enclosure: 3/8” (6mm) clear & white acrylic
PS30 polished welded seams
Doors: 1/2” (13mm) clear acrylic, ½-turn latches
Seal: ¼” (6mm) Poron, non-setting gasket
Access:
Ports:
2x ¼” (6mm) Quick disconnect (right side)
1x 1” (25.4mm) Hose barb (right side)
1x 1½” (31.4mm) cable pass through (left side)
Gloves: (optional) 2x 8” (20.3cm) ports.
Gloves 018” (0.5mm) thick, replaceable hands,
natural rubber, accordion sleeves
Circulating Fans: 2x 110 cfm (6230 l/min),
ON/VARIABLE/OFF control
Lighting: Enclosed LED lighting
Dimensions:
5532: External: 54”Wx25.5”Dx22”H (137x65x56cm)
Internal usable working space: 39”Wx20”Dx21”H
(99x51x54 cm)
5533: External: 54”Wx31.25”Dx22”H (137x80x56cm)
Internal usable working space: 39”Wx26”Dx21”H
(99x66x53 cm)
Weight: 5532: 120 lbs. (54 kg) 5533: 136 lbs.(62 kg)
Operating Range:
Humidity: <10 to >98%
Temp: (Std) 64-135⁰F (18-55⁰C)
Controllers:
Control unit: 2x CAL 9500, multiple ramp/soak cycle
(Optional): 1x CAL 9500, 3rd parameter, linear input
Display Resolution: 0.1%/0.1⁰
Recorder Out: 0-1vdc, 0-20ma, or 4-20ma
Computer Interface: MODBUS proto. via RS485-
PC with W98, NT, W Pro 7, or higher
Software: (optional) CALGrafix PC chart & data collect.
Sensor:
Probe, Temperature Compensated RH/Temp
RH: Capacitive film, 0 to 100%, non-condensing
Accuracy: +1.5 %RH @ 72⁰F (22 ⁰C)
Temperature: RTD, -40 to +140 ⁰F (-40 to 60 ⁰C)
Accuracy +0.5 ⁰F (+0.3⁰C)
Operating Systems: (If included)
Dehumidify: Desiccant/Pump system, including
2x 1 lb bag of Molecular Sieve desiccant if requested.
Humidify: Ultrasonic micro-mist generation
Capacity: Tap water or 5 gal (19 l) ext. tank
Flow rate –0.06 cfm (max)
Heat: Electric, 500W
Cool:
150W Thermoelectric (Standard), 300W (Optional)
Power:
Voltage: 115/230VAC, 50/60Hz
Current: 8-10 Amps
Dual North American GFI AC outlet inside chamber
Achievable RH %

D01042 Revision B - ETS 5532-5533 Startup - Page 10 of 15
Controller
Operating Systems: Heating
The Model 5532/5533 Chamber contains two (2), 250 Watt Electric Heaters (500 Watts total).
The Heater is an integral part of the Chamber, located inside the chamber workspace. Since
the Heater is already installed, there is no additional set-up required.
After turning “on” the “TEMP INCREASE” switch, the Microprocessor Temperature Controller
governs the operation of the Heating System.
1. The Microprocessor will determine the amount of heat needed to maintain the desired set
point. Power will be applied to the heater as a series of time proportioned pulses. .
2. The electric heating element and indicator light are located on white metal panel containing the
Fans located on the inside, rear wall (the heater is hidden from view).
3. The Heater Indicator Light will illuminate to indicate when power is being applied to the Heater.
(The Microprocessor LEDs will illuminate at the same time.)
A thermal safety switch (also on the panel) is connected in series with the heater. Power to the
heater will be cut off if the temperature within the chamber exceeds 135F (58C)
Button
Description
Functionality
1
POWER
This switch disconnects all power going to the Chamber
Systems. “I” is “ON”, “O” is “OFF”.
2
COOL (TEMP DECR)
Allows the user to manually disable the Temperature
Cooling System. Pushing this switch to the (‘0’) is “Off”
3, 4, 5
TEMPERATURE
CONTROLLER
The temperature controller includes a * button along with
down and up arrows to allow selecting and changing
settings.
4
5
3
2
1

D01042 Revision B - ETS 5532-5533 Startup - Page 11 of 15
Operating Systems: Cooling
The Model 5532/5533 Chamber includes the ETS Model 5473-150W, 510 BTU/hr
Thermoelectric Cooling System as standard. Other cooling options include:
ETS Model 5473-300 1020 BTU/hr Thermoelectric Cooling System
ETS Model 5463 Liquid Carbon Dioxide Cooling System
ETS Model 5466 Liquid Nitrogen Cooling System
The Model 5473 Series of thermoelectric cooling systems utilize the Peltier effect to reduce the
temperature of a large heat sink. One or more 110 cfm fans circulate the air within the
workspace through the heat sink to continuously reduce the temperature. Very precise
temperatures can be maintained with this system by the microprocessor temperature
controller. The standard Model 5473-150 is capable of removing up to 510 BTU/hr (150
Watts/hr) from the Chamber. The Model 5473-300 is capable of removing up to 1020 BTU/hr
(300 Watts/hr) from the Chamber.
Operating Systems: Humidification
The Model 5532/5533 accomplishes humidification using an ETS Model 5482 Ultrasonic
Humidification System. The Humidifier is located inside the Chamber Equipment Enclosure. To
access the Humidifier, remove the large white acrylic panel on the right hand side of the
Chamber. The panel is held in place with eight (8) Phillips screws.
The Ultrasonic Humidifier is an open loop system that produces a fine water mist through
ultrasonic action. A blower fan forces the fine mist from the humidifier into the chamber.
Operating Systems: Dehumidification
The Model 5532/5533 Chamber includes a Desiccant-Pump Dehumidification System as
standard. As an option, the ETS Model 5478 Self-Regenerating Dehumidification System is
available.
Desiccant/Pump Dehumidification System
The Dehumidification System is closed loop designed to reduce the relative humidity in the
Model 5532/5533 Chamber to less than 10%. When paired with the Microprocessor Humidity
Controller, the humidity inside the chamber can be controlled, without disturbance, to within +/-
0.2% RH of the set point at the sensor.
The Dehumidification System includes a small air pump (located inside the Chamber Control
Cavity), 1 liter of Molecular Sieve (“MS”) desiccant in a clear plastic column (sits outside the
chamber), and ¼” O.D. tubing to interface the drying column with the pump. The tubing
connects to the chamber through the quick-connect fittings on the right side of the Chamber.
The desiccant column may be placed on top of, or next to, the Chamber.

D01042 Revision B - ETS 5532-5533 Startup - Page 12 of 15
The air pump is already connected to the Model 5532/5533 Microprocessor Humidity
Controller. All the user needs to do is connect the Desiccant Column into the system using the
provided ¼” OD Tubing.
The desiccant removes any moisture that is in the air. This dried air is then forced back into the
chamber.
VI. Calibration / Maintenance / Troubleshooting
Calibration
The only components of the Model 5532/5533 Controlled Environment System that require
periodic calibration are the Microprocessor Controllers and Temperature/Humidity sensor. It is
recommended that this section be returned to ETS for calibration. However, system calibration
can be checked by the user.
Place the sensor of a known, calibrated temperature and humidity meter as close as possible
to the System sensor. After the temperature and humidity within the chamber has stabilized,
compare the readings. They should be within the combined tolerance of the two measuring
devices.
To return equipment to ETS for calibration or repair it is first necessary to obtain a RMA
number. Call 215-887-2196.
To remove the Control Panel and sensor, first turn off and unplug the chamber, then gain
access to the operating systems compartment by removing the 8 screws holding the right side
panel in place. Unplug all connections to the front Control Panel. Loosen the 4 captive screws
holding the Control Panel and remove. Remove the sensor by loosening the compression
fitting inside the controlled environment section. Return both the Control Panel and sensor to
ETS.
Maintenance
The Model 5532/5533 requires very little maintenance. If the procedures in the previous
sections are followed the operating systems should operate trouble free. If the
dehumidification desiccant blue indicator dots turn a darker blue, that indicates the molecular
sieve material needs to be changed. After 500 hours of 5482 humidifier operation, we
recommend the basin maintenance procedure shown in the 5482 manual.

D01042 Revision B - ETS 5532-5533 Startup - Page 13 of 15
Troubleshooting.
1. Chamber not operating –controllers not illuminated.
Is the main chamber fuse blown?
Check the AC Power source. Is it switched ON? Is a breaker tripped?
2. Insufficient Humidification –unable to reach target RH% level:
Has maintenance been done regularly on the humidifier unit?
Is the tank empty or is water source turned off?
Is the temperature high or low, creating a dew point limit?
Is there enough venting?
3. Unstable RH% level.
Review controller setup
4. Insufficient Dehumidification –unable to reach target dry level:
For Desiccant Systems:
Are all tubing connections properly connected?
Is desiccant used up?
Is there a moisture source being used in the chamber?
For dry gas dehumidification:
Are all tubing connections properly connected?
Is the tank empty or gas source turned off?
Is there proper pressure and flow?
For Self-regenerating dehumidification:
Are all tubing connections properly connected?
Is a compressor connected to the system?
Is there proper pressure and flow from the compressor?
Is the compressor spraying water due to lack of maintenance?
5. Insufficient Heating
Review controller setup and connections.
Is the lab ambient temperature lower than expected?
Does the light on the heater panel illuminate when the temperature microprocessor green
indicator light illuminates?
6. Insufficient Cooling
Review controller setup and connections.
Is the lab ambient temperature higher than expected?
Is there a heat load inside the chamber?

D01042 Revision B - ETS 5532-5533 Startup - Page 14 of 15
Is the fan on the back outside of the chamber running?
Is there 2’ of clearance behind the chamber with good air flow?
7. Excessive noise / vibration
Check for sources such as an item contacting fan blades.
If the problem persists, contact ETS for support.

D01042 Revision B - ETS 5532-5533 Startup - Page 15 of 15
VII. Warranty
Limited Warranties. Seller warrants that all goods manufactured and delivered hereunder
shall (a) conform to any samples, drawings, specifications or other written documents
provided to Seller by Buyer, or approved by Buyer to Seller and (b) be free from all defects
in workmanship and material. Buyer’s sole remedy against Seller for breach of either of the
specifically mentioned warranty shall be the repair or replacement, at Seller’s sole option,
of the defective workmanship or material. Seller expressly disclaims all other warranties,
express and/or implied, including but not limited to those of merchantability and fitness for a
particular purpose.
In no event shall Seller be liable, under either warranty or otherwise, to Buyer in excess of
the purchase price of the products paid to Seller by Buyer. In no event shall Seller be liable
for any loss or damage arising directly or indirectly from the use of the product or for
consequential or incidental damages. Seller’s specified warranties will expire and lapse (i)
for renewable items (such as gloves, iris ports and desiccants), sixty (60) days from date of
shipment and (ii) for all standard equipment and otherwise nonrenewable items, one year
from date of shipment.
