Etymotic Research EB15 LE User manual

User Manual

Failure to follow these recommendations may severely
reduce the amount of hearing protection provided by
the earplugs.
• Earplugs comply with EN-352 standard
of measurement.
• Eartips fit ear canal diameters of 6-13 mm.
See Eartip section for details.
• Earplugs must be fitted, adjusted and maintained
to the manufacturer’s instructions to achieve the
expected attenuation and hearing protection.
• Use earplugs at all times in noisy surroundings.
• Make certain that the earplugs provide adequate
protection for the noisy environment.
• Earplugs are reusable. Regularly inspect the earplugs
to assure their continued serviceability.
• Connecting cord should not be used where there
is a risk that the connecting cord can be caught up
during use.
Warnings
2

3
Warnings (con inued)
• This product may be adversely affected by certain
chemical substances. Further information should
be sought from the manufacturer.
• This earplug is provided with level-dependent
attenuation. The wearer should check correct
operation before use. If distortion or failure
is detected, the wearer should refer to the
manufacturer’s advice for maintenance and
replacement of the battery.
Warn ng: The output of the level-dependent
circuit of the hearing protector may exceed the
daily limit sound level.
• To determine if the device is working, insert a
battery, cup the device in your hand and listen for
acoustic feedback (squeal). If feedback is present,
the battery is working.

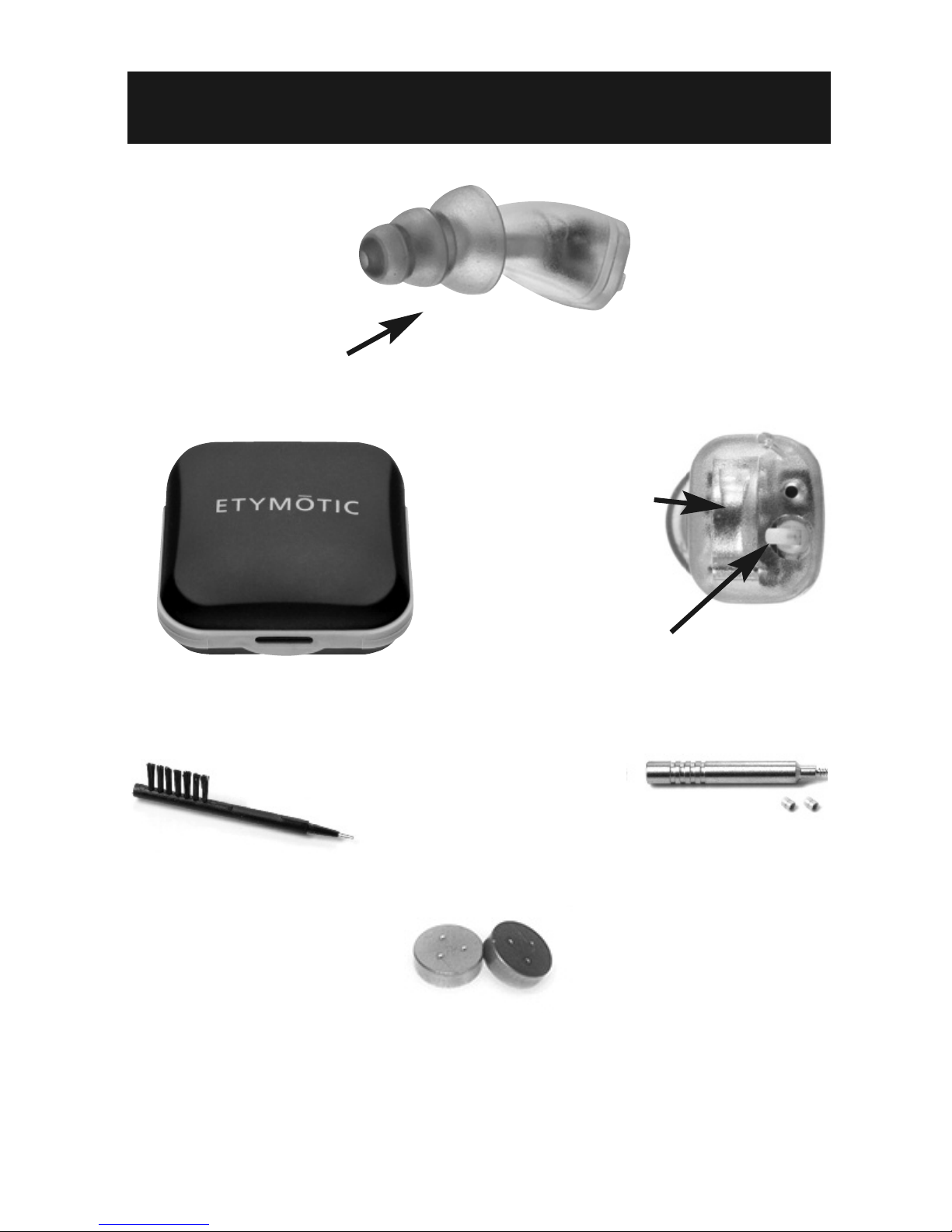

Iden ifica ion
Eartip
Battery Door
2-position
Switch
4
Protective Case
Cleaning
Tool
Filter tool
and extra filters
312 Batteries

5
Ba ery Inser ion
• Remove the tab on the battery before
inserting it in the device.
• Open the battery door and insert
the battery with the flat side facing up.
The battery must be installed correctly or the earplug will
not work. The battery door will not close if the battery is
upside down.
Glider
8-11 mm
SM Beige
Foam
6-9 mm
ACCU•F t™Eart ps
Ear ips
SM Frost
3-flange
7-11 mm
Correct orientation of battery
Select ng an eart p:
The eartip that is most comfortable is
the best choice, but it must seal well
for maximum protection.
When chang ng eart ps make sure the
eart p f ts securely on the stem of the
dev ce. The neck cord f ts under the eart p.
correct
incorrect
RG– ong Stem
White 3-flange
8-13 mm
Black
foam
8-13 mm
For arge Yellow foam (10-14 mm) go to: www.etymot c.com
SM– ong Stem
Frost 3-flange
7-11 mm
RG Gray
3-flange
8-13 mm

6
Inser ion & Removal
Insert on
• Make sure the eartip is clean.
• Pull the ear up and out while
inserting (Fig. 1).
• Twist and push gently until the
eartip seals in the ear canal.
(Fig. 2).
• When using 3-flange eartips,
moistening may ease insertion.
• When using foam eartip: Roll
down or compress foam eartip
before inserting. Hold the eartip
in place for about 5 seconds
while foam expands to create
a tight seal in the ear canal
(Fig. 3).
• When using glider eartips
no compression is needed;
simply push into ear.
Removal
• Remove with a slow
twisting
motion for all eartips.
Fig. 1
Fig. 2
Fig. 3

Opera ion
ON/OFF
Earplugs turn on and off by opening and closing
the battery door. Note: It is not necessary to remove
the battery as long as the door is open wide enough
to disable the circuit.
Sw tch
LO pos t on: Automatic 3-stage action
• Natural hearing for faint and loud sounds
• Automatic high-fidelity 15 dB sound reduction for
continuous loud noise
• Blast protection
HI pos t on: Automatic 3-stage action
• 15-dB boost for faint sounds
• Natural hearing for loud sounds
• Blast protection
2-pos t on Sw tch
Toward battery door = O position
Away from battery door = HI position
Battery Door
Open = OFF
Closed = ON
7

8
LOBAT™: A ticking sound becomes faster and louder,
like the sound of a motorboat when the battery is
about to die. After the warning sound first becomes
audible, it may be a few hours before the battery
dies. Performance and protection do not change
while OBAT™is sounding.
Low Ba ery Warning
Warn ng: Performance may deteriorate with battery
usage. The typical period of continuous use that can
be expected from the battery is 300 hours.
Battery life is estimated at 2-3 weeks for continuous
operation. Each device uses one #312 zinc-air battery.
It is not necessary to recycle this battery. Zinc-air
batteries are not harmful to the environment and
can be discarded in the trash. Keep batteries out of
the reach of children.
Recommendat on: Carry spare batteries in case
batteries reach end of life during use.
Ba ery Life

9

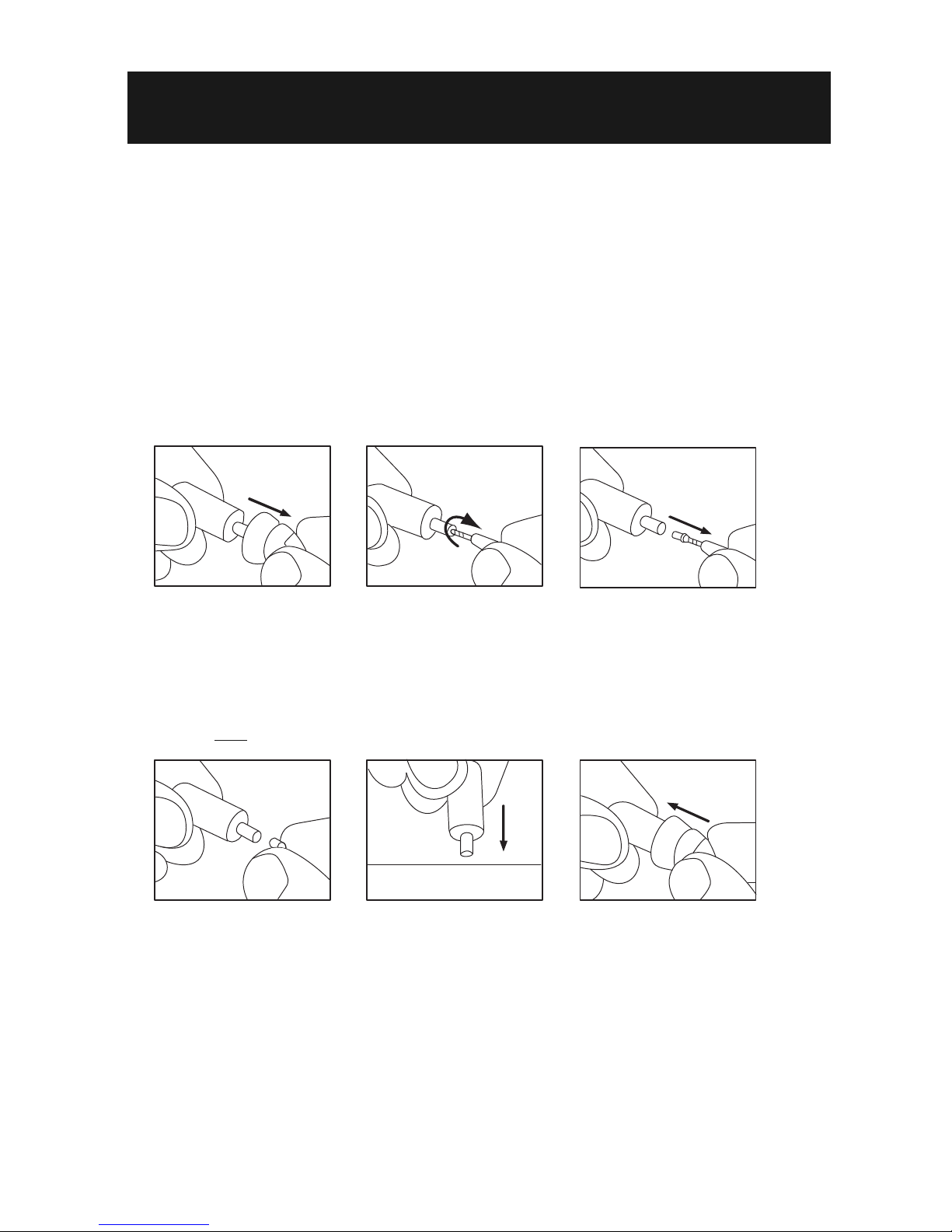

Changing Fil ers
Earplugs have special filters that enhance sound
quality and prevent ear wax from entering the
devices. A filter should be changed if the volume
decreases or sound quality declines.
ACCU•Filter™Removal
Note: Use the tool to remove the filter.
ACCU•Filter™Replacement
Note: Do not use the tool to replace the filter.
1. Remove eartip. 2. Insert tool into
the filter.
3. Remove the filter.
1.Insert a ne
filter.
3. Re-attach
the eartip.
2.Press gently
against a hard
surface to secure
the filter in place.

10
Troubleshoo ing
Problem: No sound.
What to do:
• Check to see if the battery door is closed
(device turned on).
• Check battery; replace if dead.
• Clean the eartip and the end of the device.
• Check the filter
- remove the filter
- listen for sound to return before replacing the filter
• If sound returns, replace the filter. Once the filter is
removed, discard it and do not reuse.
Etymotic will repair or replace defective product
at its option if returned within one year of purchase
to our designated service facility. This warranty is
in lieu of all other warranties, expressed or implied,
including, but not limited to, any implied warranty
of merchantability or fitness for a particular purpose.
Warran y

11
Simple cleaning with the tool provided will keep
the eartips clean and the devices working properly.
• Clean after each use. Wipe clean with a damp cloth.
• Do not immerse earplugs in water.
• Do not clean with harsh chemicals. Alcohol is not
recommended.
• Use the cleaning tool to pick out or brush off debris.
• 3-flange eartips can be removed and cleaned
in mild detergent. Dry eartips thoroughly.
• Replace 3-flange eartips every 60-90 days.
• Replace foam and glider eartips frequently, as needed.
• Remove the devices before using hair products.
• Do not expose to extreme heat or moisture.
• Avoid dropping or hitting on a hard surface.
• Use only accessories and spare parts from
Etymotic Research, Inc. to ensure continued
performance to specification.
Main enance
• Always store earplugs in a clean, protective case.
S orage

ETYMOTIC RESEARCH INC.
61 Martin Lane • Elk Grove Village, IL 60007
www.etymotic.com • 1-888-389-6684 • 847-228-0006
©2013. BlastPLG and EB15 are reg stered trademarks of Etymot c Research, Inc.
ACCU•Technology, ACCU•F t, ACCU• F lter and LOBAT are trademarks of Etymot c Research, Inc. ER098570
Noise
Reduction
Rating
25
(WHEN SED AS DIRECTED)
THE RANGE OF NOISE RED CTION RATINGS
FOR EXISTING HEARING PROTECTORS
IS APPROXIMATELY 0 TO 30
(HIGHER N MBERS DENOTE GREATER EFFECTIVENESS)
ETYMOTIC RESEARCH, INC.
ELK GROVE VILLAGE, IL 60007
Federal law prohibits
removal of this label
prior to purchase.
LABEL REQ IRED BY
.S. E.P.A. REG LATION
40 CFR Part 211, Subpart B.
EPA
DECIBELS
H: Average attenuation characteristics in the high frequency spectrum (> 2 kHz)
M: Average attenuation characteristics in the mid frequency spectrum (0.5-2 kHz)
L: Average attenuation characteristics in the low frequency spectrum (< 0.5 kHz)
SNR (Single Number Rating): Average attenuation characteristics in the standard frequency spectrum
The European nion testing was conducted by:
Central Institute for Labour Protection—National Research Institute (CIOP-PIB)
ul Czerniakowska 16, 00-701 Warsaw, Poland. Notified Body No. 1437.
This product is in compliance with EN 352-2:2002 and EN 352-7:2002.
Passive Attenuation
Frequen y (Hz) 125 250 500 1000 2000 4000 8000
Mean Attenuation (dB) 25.3 24.0 24.3 25.6 29.6 32.5 34.8
Standard Deviation (dB) 5.9 4.6 5.6 4.8 3.3 3.8 4.0
APV (dB) 19.4 19.5 18.8 20.9 26.3 28.7 30.8
H = 26 dB M = 21 dB L = 20 dB SNR = 25 dB
A tive Attenuation – Criterion Levels
Swit h position H-noise M-noise L-noise
LO 102 97 88
HI 88 89 86
EB15
