EUCHIPS EUP15D-1HMC-0 User manual

DALI Constant Current Dimming Driver
Application
Downlight Panel Light Flood Light
Spotlight Ceiling Light Floor LightDecorative Light
Summary
Product Features
· Single channel output, output current level selectable byDIP S.W.
· Meet DALI Protocol IEC 62386
· Support Touch-DIM function
· High efficiency up to 85%
· Built-in active PFC function
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load
· Suitable for indoor LED lighting application, such as down
light, spot light, and so on

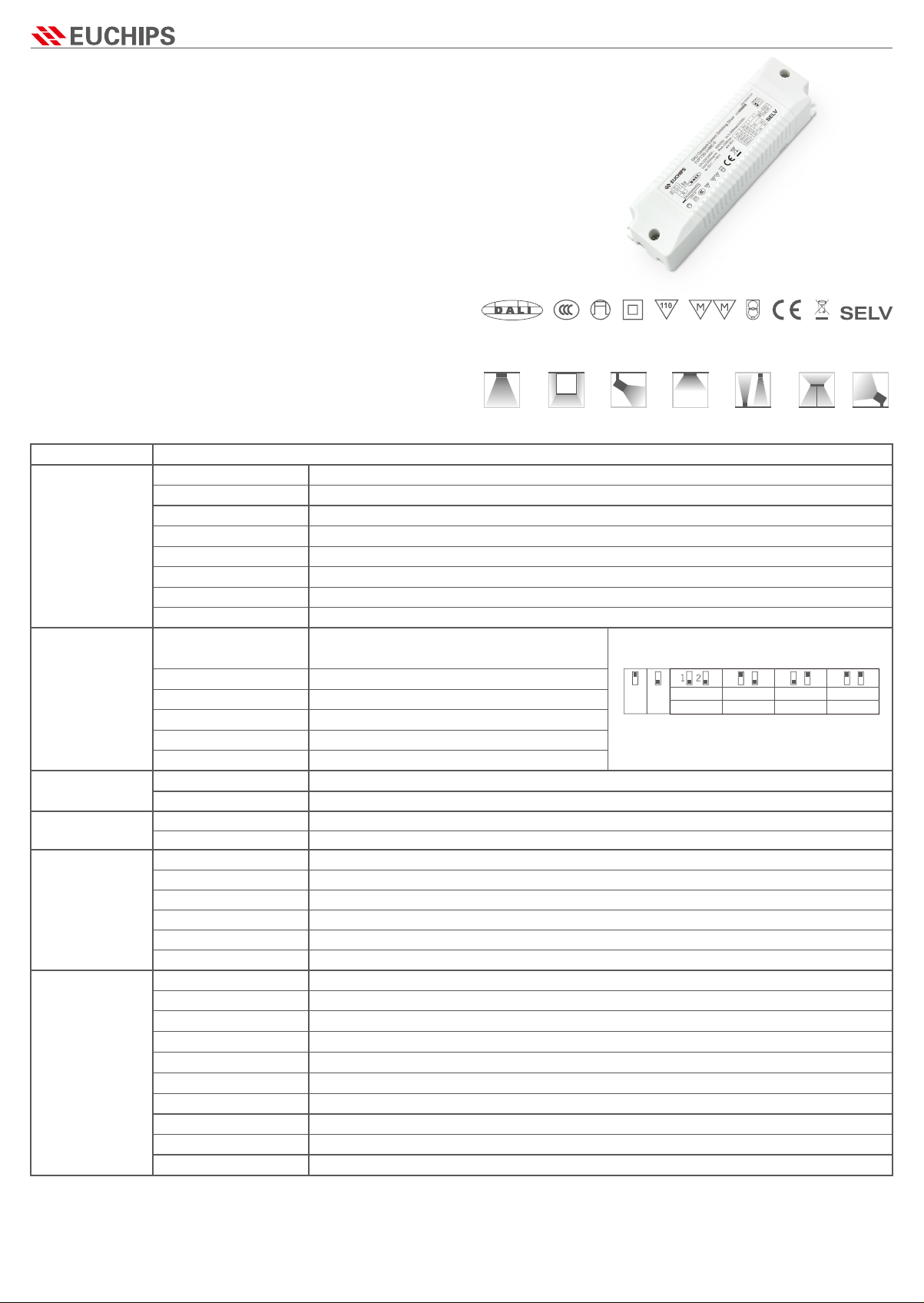

EUP15D-1HMC-0 is a 15W AC/DC constant current mode output LED driver featuring the multiple levels
selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP15D-1HMC-0 can
be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.
EUP15D-1HMC-0 (Product No.:102100281101)
1/2
User’s manual: 2019-9 www.euchips.com
Technical Paramaters
220VAC-240VAC
50/60Hz
>85%@230VAC,Full load
≥0.95@230VAC,Full load
Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC
0.08Amax@230VAC
IP20
-20℃~50℃
-40℃~85℃, 20-90%RH
90℃
EN55015, EN61000-3-2
EN61000-4-2,3,4,5,6,8,11; EN61547
EN61347, GB19510
L-N:1KV
I/P-O/P: 3000VAC/1min/5mA
PC
50,000h@tc:80℃
1%-100% Dimming to off
50V Max
±5%
<3%
DALI /Touch DIM
>100,000 tims
1
350mA/9-40VDC/14W 400mA/9-37VDC/14.8W
450mA/9-33VDC/14.85W 500mA/9-30VDC/15W
<10%@230VAC, Full load
EUP15D-1HMC-0
Surge
Withstand Voltage
IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0DALI Standard
Safety Standards
EMC Eission
EMC Immunity
tc
Lifetime
Material
Dimming Range
IP Rating
Working Temp.
Storage Temp., Humidity
Dimming Type
Switch Cycle
Warranty Condition 5 Years
No load output voltage
Turn on delay Time <1.5s, at230Vac
Efficiency
AC Current(max)
Standby power <0.5W
Inrush Current(max)
THD(full load)
Current(mA)/Voltage (VDC)
Power(W)
Ripple Current
Channel
Current Tolerance
Voltage
Frequency Range(Hz)
Power Factor
Short Circuit
Over Load
Close output, recovers automatically after fault removed
When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
Safety
&
EMC
Others
Function
Model
Output
Input
Protection
Current Selection Table
Remark: Function default setting is: 350mA (@switch are all
OFF state)
350mA 400mA 450mA
9-40V 9-40V
500mA
9-34V9-40V
ON OFF
Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H)
Packing(weight)
150*43*29mm（L*W*H）
Dimension

DALI Constant Current Dimming Driver
2/2
User’s manual: 2019-9 www.euchips.com
150.0
29
43
32.5 25.0
140.5
90.5
4.0
Dimension(mm)

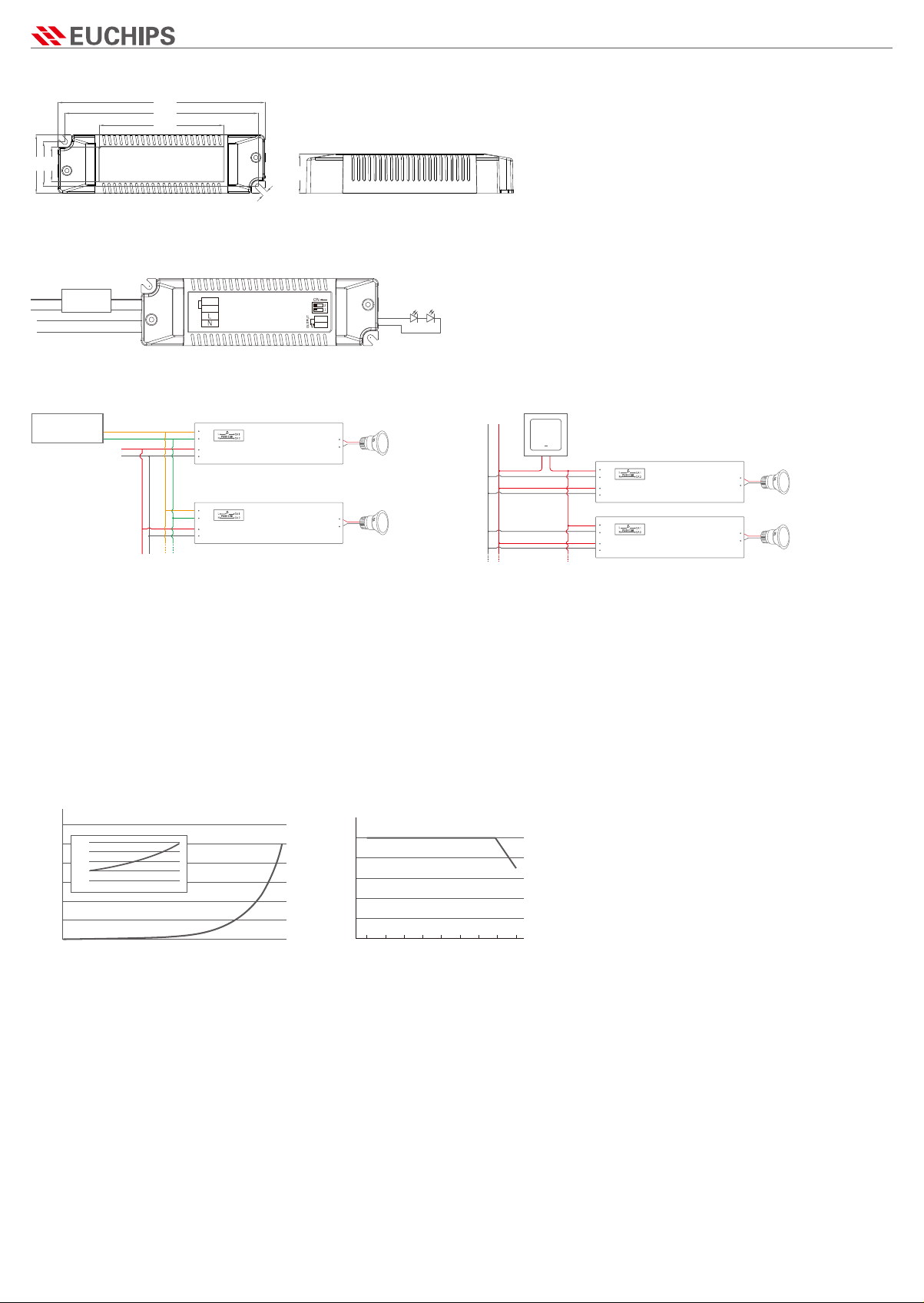

DALI Wiring
Push DIM(Touch DIM) Diagram
Push DIM Function
1. Press the Push DIM (Touch DIM) switch for 8s or more,the driver can be controlled via Push DIM switch.
2. Short press the Push DIM (Touch DIM) switch (<0.5s) to control the lamp on or off.
3. Long press the Push DIM (Touch DIM) switch (>0.5s) to dim the brightness of light. The dimming direction will change every time after pressing switch.
4. Double-click the Push DIM (Touch DIM) switch (<0.3s), then all lamps connected on the device will be set maximum brightness.
5. The brightness adjustment range is 1%-100%, and the light can be turned off through short pressing when doing the adjustment with long pressing Push DIM (Touch DIM) switch.
6. With the Power off memory function, the power-down state will be recovered when power on again.
DALI Diagram
Remark: Only use open push button without indicator light. Maximum cable length between each Unit: 20 meters.
DALI Driver 1
DA
DA LED+
LED-
L
N
DALI Driver 1
DA
DA LED+
LED-
L
N
L
N
DALI Controller
DALI Driver 1
DA
DA LED+
LED-
L
N
DALI Driver 1
DA
DA LED+
LED-
L
N
Push DIM Panel(Touch DIM)
LN
※The contents of this manual are updated without prior notice. If the function of the product you are using is inconsistent with the instructions, the function of the product shall prevail.Please contact us if you have any
questions .
Dimming Curve
0120 40 60 80 100 120 140 160 180 200 220 240 254
20
40
60
80
100
120
0
110 20 30 40 50
0.1
0.2
0.3
0.4
DALI Dimming Level
Output Current(%)
Derating Curve
Ambient Temperature(℃)
-20
0
20
40
60
80
100
120
Load(%)
-10 0 10 20 30 40 50 60
Cautions
1.This product should be installed by qualified personnel.
2.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in a water proof enclosure.
3.Good heat dissipation conditions extend product life. Please install the product in a well-ventilated environment.
4.Please make sure LED power supply output voltage, current is used to meet the product requirements.
5.Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6.Due to safety concerns, PVC or rubber cord of 0.75- 1.5mm²is recommended for input and output terminal(s)(excluding signal terminals). Flat power cord is not suitable.Ensure all wire
connections and polarities are correct before applying power to avoid any damages to the LED lights.
7.In case of malfunction, do not repair it yourself.
DALI Signal Input
DALI Master
L
N
EUP15D-1HMC-0
DA 1
DALI
DA 2
LED+
LED -
INPUT
Lamp
