Euphonix MC PRO User manual

Euphonix Media Application Controller
Multiple Workstation Installation Guide
Document Revision: C
Software Version: 1.4.1
Part Number: 840-10050-04
Release Date: April 2009
Euphonix, Inc.
220 Portage Ave.
Palo Alto, California 94306
Phone: [phone]
Fax: [phone]
Web: http://www.euphonix.com
e-mail: [email protected]

Media Application Controller Multiple Workstation Install Guide
iii
Table of Contents
Chapter 1: Hardware Connections and MC Client Setup .............................5
1.1 Connect the MC.........................................................................................5
1.2 Network Configuration..............................................................................6
1.2.1 MC Standalone............................................................................6
1.2.2 System 5-MC ..............................................................................6
1.3 EuCon Software Installation......................................................................6
1.4 Workstation Connection and Control......................................................10
1.5 Display Switching ...................................................................................12
1.6 Ready to Proceed.....................................................................................12
Chapter 2: Nuendo–PC and Mac ..............................................................................13
Chapter 3: Logic Pro .......................................................................................................15
Chapter 4: Pro Tools .......................................................................................................17
4.1 Workstation Configuration......................................................................17
4.2 Pro Tools Configuration..........................................................................18
Chapter 5: Pyramix ..........................................................................................................21
Chapter 6: MOTU Digital Performer 6.02....................................................... 25
Chapter 7: Support and Troubleshooting ...........................................................26
7.1 Support ....................................................................................................26
7.2 Troubleshooting.......................................................................................26
Appendix A:DAW Parts List and Schematics .................................................... 28

Media Application Controller Multiple DAW Install Guide
5
Chapter 1: Hardware Connections and MC Client Setup
Schematics and parts are listed for each DAW setup in Appendix A: DAW Parts List
and Schematics.
1.1 Connect the MC
1. Unpack the MC from its packaging and select a place to put it. The MC should
go on a hard flat surface in order to allow proper ventilation. (System 5-MC has
its own frame for the MC and CM408T modules).
NOTE: The MC and CM408T modules require sufficient ventilation space on the bot-
tom. The MC has detachable feet for standalone users without a System 5
frame, but the CM408T modules do not. If you do not use a System 5 frame,
you MUST have at least 1 inch of clearance under the CM408T modules and
MC or damage to the units may occur.
Use Figure 1-1 as a reference to connect the MC to its components.
Figure 1-1 MC Rear Panel
2. Plug the power supply into the DC In port on the right side as you look at the
rear panel.
Be careful plugging this in as the connector has easily-bent pins. When the pins
are seated, twist the ring on the connector’s side until it locks. Do not turn on
the MC yet; network configuration must be completed first.
WARNING: Attach power supply to the MC BEFORE plugging into AC power or the
unit may be damaged.
LANLAN DC INTALKBACK MIC
VGA KEYBOARD USB SWITCH HEADPHONES
FOOT
USB Talkback Mic Output LAN Headphone DC In VGA and
Keyboard
Foot Switch

Media Application Controller Multiple DAW Install Guide Hardware Connections and MC Client Setup
6
1.2 Network Configuration
1.2.1 MC Standalone
Using the RJ-45 Ethernet (included) cables, connect your workstations to the LAN
ports on the Netgear RP614 router. Then connect the MC to one of the other LAN ports
on the Netgear router. Because the Netgear has four LAN ports, you must use an addi-
tional Ethernet switch if you have more than three workstations.
NOTE: You have now created a small local area network comprised of just the MC
and your workstations.
The MC ships with DHCP enabled, allowing it to automatically obtain an IP address.
The Netgear RP614 has a DHCP server and hands out IP addresses to the devices con-
nected to its LAN ports (the MC and your workstations). This allows for easy plug and
play network configuration. For this reason, the Netgear router must be turned on be-
fore the MC and your workstation.
1.2.2 System 5-MC
1. Connect the MC and CM408T modules to LAN ports on the SonicWALL 1260
router.
2. Connect your workstations to LAN ports on the SonicWALL.
The MC ships with DHCP enabled, allowing it to automatically obtain an IP
address. The SonicWALL ships from Euphonix with its DHCP server enabled,
such that it hands out IP addresses to the MC, CM408T modules, and your
workstations. For this reason the SonicWALL must be turned on before the
MC, CM408T modules, and your workstations.
1.3 EuCon Software Installation
Follow these instructions to install the EuCon Software on each workstation:
1. Insert the Euphonix MC Software Installation CD in your workstation’s CD/
DVD drive.
2. In Mac OS X, double-click the CD icon on the desktop, and double-click the
EuConWS package.
The Install program launches. Proceed to Step 4.
3. In Windows, if AutoRun is enabled, the setup program starts from the CD au-
tomatically. If AutoRun is not enabled:

Media Application Controller Multiple DAW Install Guide Hardware Connections and MC Client Setup
7
a. Minimize all programs.
b. Double-click My Computer on the desktop to display the drives on your
computer.
c. Double-click the CD/DVD drive.
d. Double-click the EuConWS executable file.
The Setup Wizard begins running.
4. Click Next and choose a directory to install the software.
The default Windows directory is C:\Program Files\Euphonix\EuCon.
The default Macintosh OS X directory is the Applications folder.
5. For Windows installations, click Next to customize the software components
to install. EuCon Workstation Core is automatically selected (this is the basic
software used to communicate with the MC. Select further options according
to your DAW:
a. For Nuendo workstations, select only the EuCon adapter for Nuendo and
VST plugin layouts for Nuendo options.
b. For Pyramix, select only the EuCon adapter for Pyramix option.
c. For all other DAWs, select Studio Monitor Express or Studio Monitor
Pro 2 option.
WARNING:Running Studio Monitor Express and Studio Monitor Pro 2 on the same
machine may cause conflicts and is not recommended
6. Click Next to continue.
7. Select locations for application shortcuts in the Start menu.
The default is a EuCon folder in the Start menu with shortcuts to the MC’s
applications.
8. Click Next to continue.
The Wizard now displays a summary of all options selected during the setup
process. To change them, click Back until the desired setup option appears.
9. Click Install.
The Wizard installs the selected components to your workstation.
10. The windows installer may ask you about two Euphonix drivers: Euphonix Vir-
tual MIDI Driver and Euphonix Virtual Keyboard. Click Continue Anyway.

Media Application Controller Multiple DAW Install Guide Hardware Connections and MC Client Setup
8

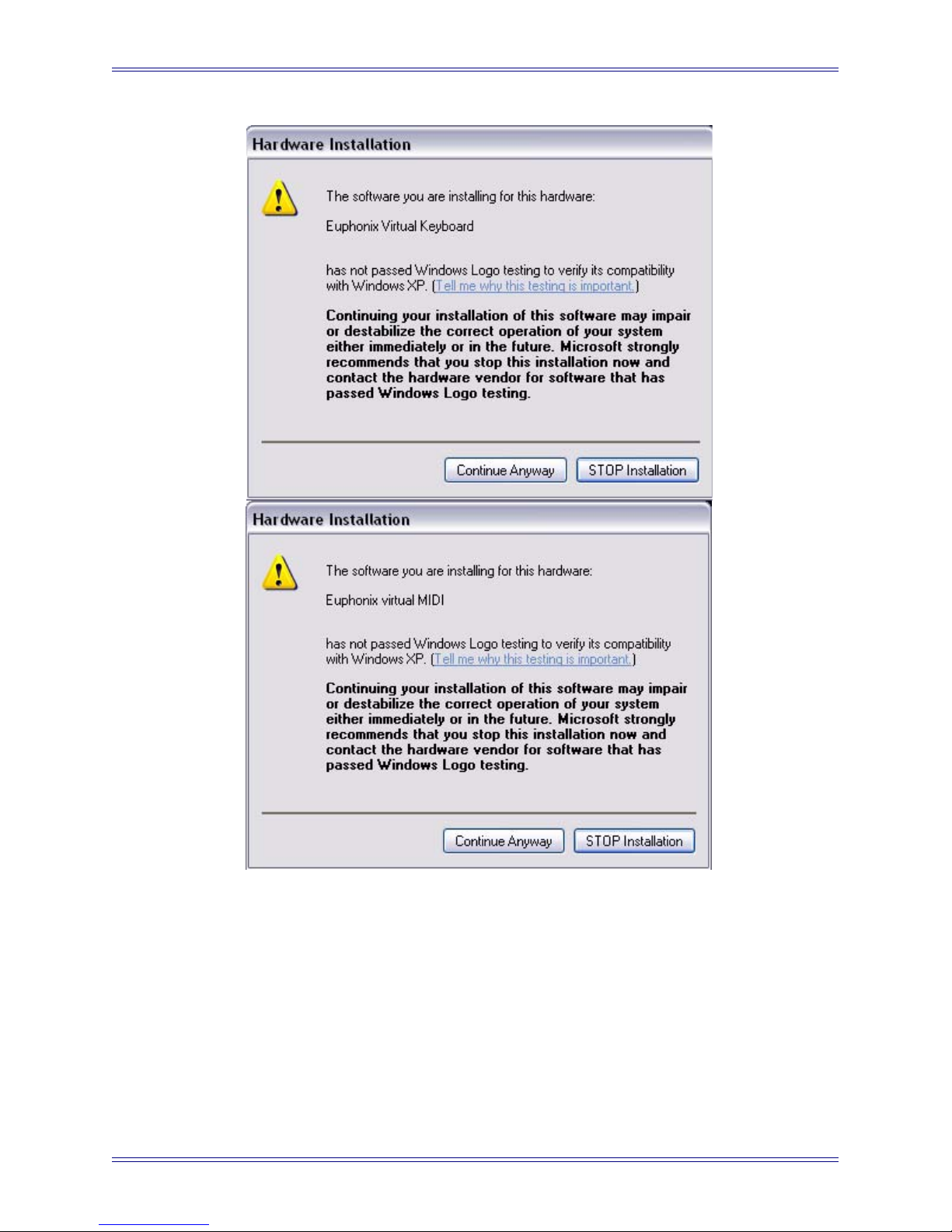

Figure 1-2 New Driver prompt
Windows will detect the new hardware. Do not press anything.

Media Application Controller Multiple DAW Install Guide Hardware Connections and MC Client Setup
9

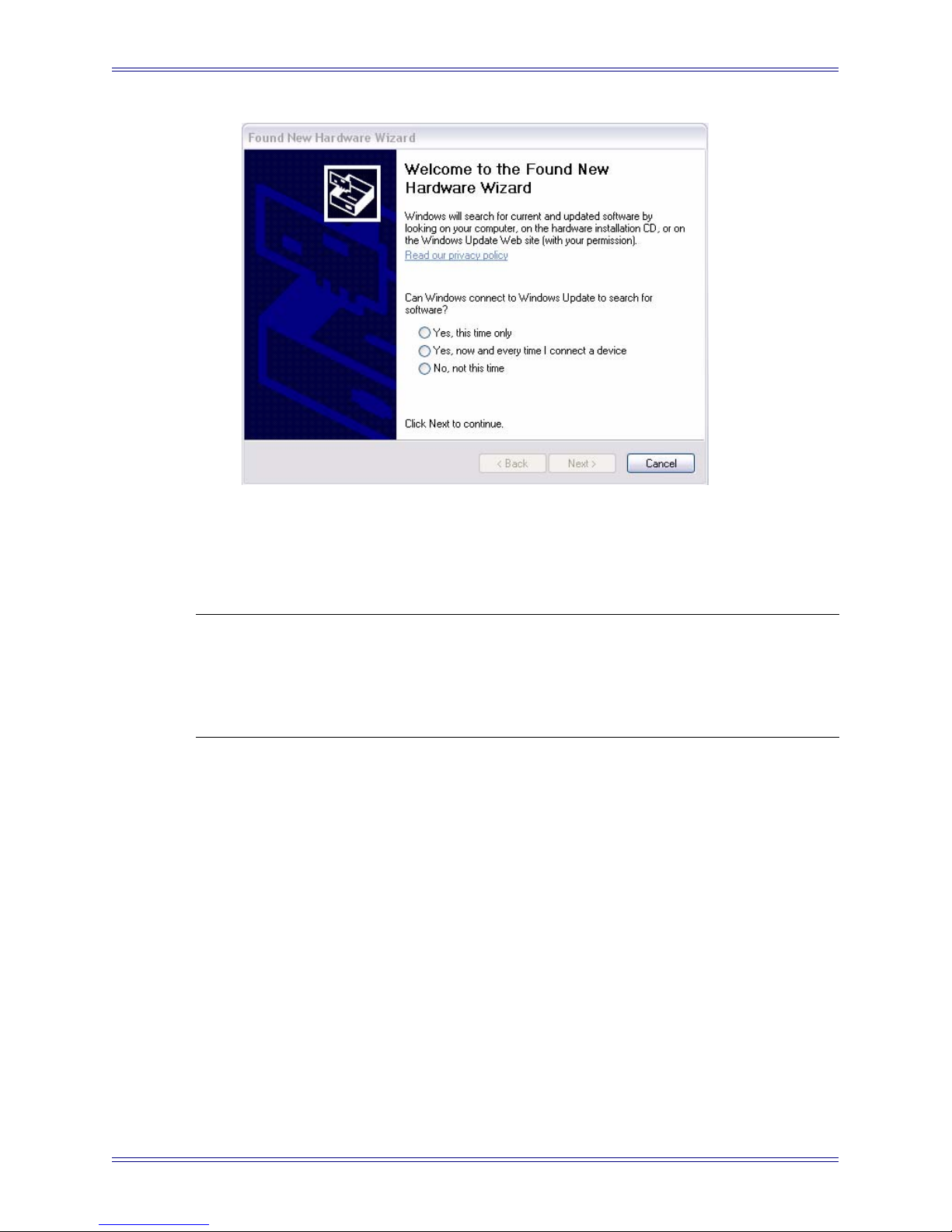

Figure 1-3 Found New Hardware dialog
11. Click Finish to exit the Wizard.
12. Repeat these steps for each workstation.
NOTE: When first running the MC Client, the Windows Firewall may ask whether to
block or unblock MC Client and EuCon Discovery from accessing the Internet
or local area network. Because all communication between the MC Client and
the MC occurs through the workstation’s network connection, you must select
Unblock or it will not communicate with the MC.

Media Application Controller Multiple DAW Install Guide Hardware Connections and MC Client Setup
10
1.4 Workstation Connection and Control
1. To connect the MC to your workstations, make sure the MC Client is running
on all workstations, and then press the Strip Control Setup key on the right side
of the MC.
Figure 1-4 Strip Control Setup key
The Touchscreen in Figure 1-5 displays all workstations available on the net-
work in the right pane. There are two choices: none/disconnect and your
workstation (showing computer name, user name, and operating system).
Figure 1-5 displays a multiple workstation setup.
Strip Control
Setup
Flip
Home MC
Nudge Nudge
Bank Bank
Setup
Strip Control
Flip
Home MC
Nudge Nudge
Bank Bank
Layouts
Strip Control
Setup key

Media Application Controller Multiple DAW Install Guide Hardware Connections and MC Client Setup
11

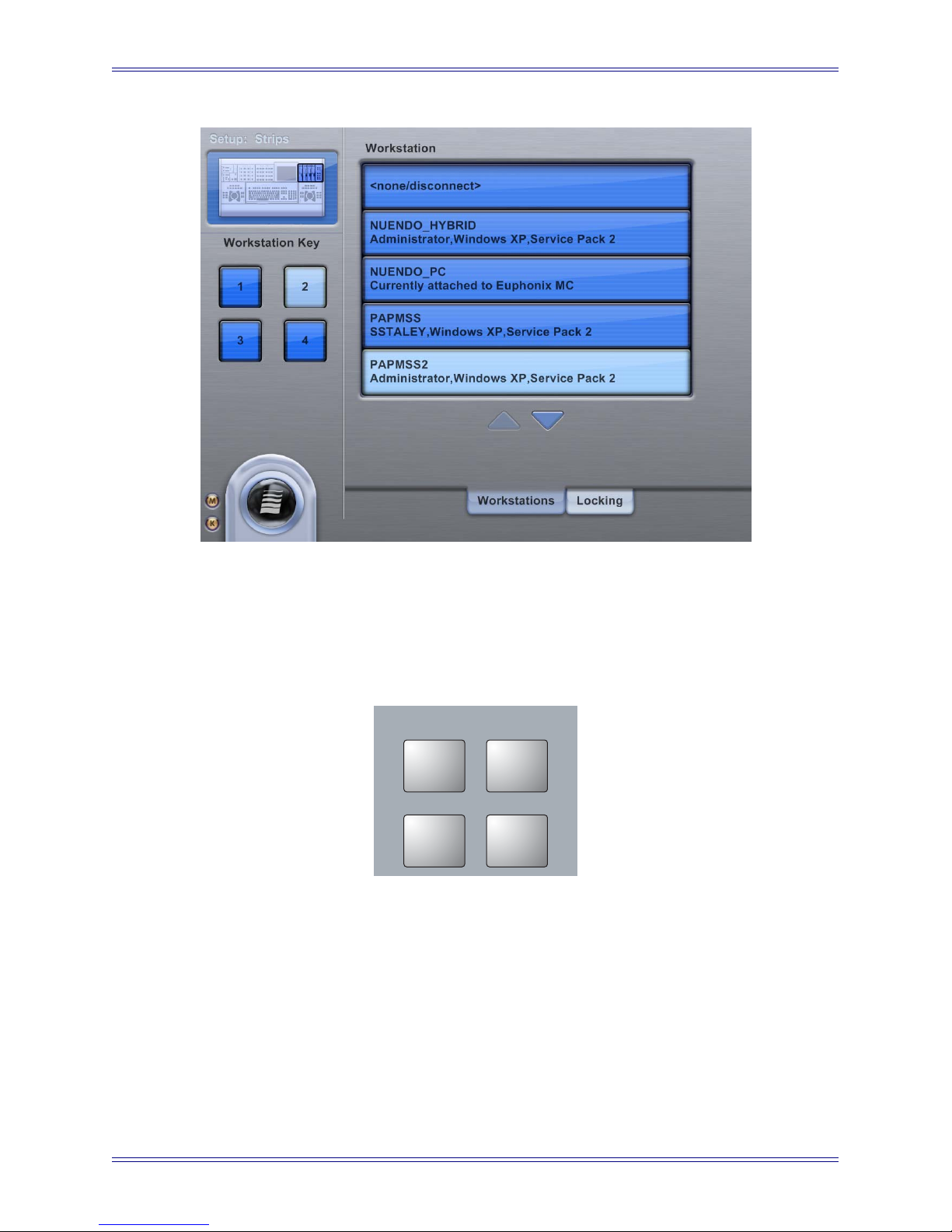

Figure 1-5 Workstation Touchscreen
2. Touch the desired Workstation key on the left of the Touchscreen.
These buttons map to the physical Workstation keys on the upper right of the
MC.
Figure 1-6 Workstation keys
3. Touch your workstation in the list to assign it to the selected number.
4. Repeat Steps 2 and 3 for each workstation to assign them to Workstation keys.
5. Press the Strip Control Setup key again to exit Workstation assignment mode.
6. To control a workstation, press the Workstation key to which you assigned
that workstation. The MC’s right-hand trackball (which acts as the mouse) and
keyboard should now function just as if they were connected directly to your
workstation.
Workstation
2
1
34

Media Application Controller Multiple DAW Install Guide Hardware Connections and MC Client Setup
12
1.5 Display Switching
The MC uses the Ontrack ADU-200 relay device to control a KVM (keyboard/video/
mouse) switch with an RJ-45 port, such as the Gefen eX-Tend-It series. To implement
this functionality:
1. Connect the video outputs of your workstations to the KVM inputs.
2. Connect the KVM video output to your main display.
3. Connect the Ontrack ADU-200’s USB plug to the MC’s USB port (left side of
MC’s rear panel).
4. Connect a shielded RJ-45 Ethernet cable from the Ontrack’s RJ-45 port to your
KVM’s RJ-45 port.
The cable MUST BE SHIELDED or the switching will not function properly.
Check that the RJ-45 connectors have metal ends.
Now when a Workstation key is pressed, the MC sends a switch command to the KVM
and changes your display to reflect that KVM input.
NOTE: Since the MC does not know the order your workstations were connected to
the KVM, we recommend assigning the workstation attached to KVM input 1
to Workstation key 1, the workstation attached to KVM input 2 to Workstation
key 2, etc. Otherwise the MC will not control the desired workstation when the
display is switched.
1.6 Ready to Proceed
You have successfully connected your MC to your workstation. Proceed to the chapter
of this installation guide for your DAW software to configure it to work with the MC.
Chapter 3: Logic Pro
Chapter 2: Nuendo–PC and Mac
Chapter 4: Pro Tools
Chapter 5: Pyramix
NOTE: If your MC did not connect properly, or a step failed, see Chapter 6: Support
and Troubleshooting.

Media Application Controller Multiple Workstation Install Guide
13
Chapter 2: Nuendo–PC and Mac
To enable Nuendo to work with the MC, you must obtain a Nuendo EuCon Adapter li-
cense from Euphonix and download it to your Nuendo USB protection device (dongle):
1. Close all open applications. Make sure your Syncrosoft USB dongle is plugged
into your Nuendo workstation.
2. Start the Syncrosoft License Control Center by choosing Start Menu->Stein-
berg Nuendo 4->License Control Center.
Windows: Click Start Menu->Syncrosoft->License Control Center.
OS X: Navigate to the Applications\Syncrosoft folder and run License
Control Center.
3. Choose License Download from the Wizards menu.
Choose License Transfer to transfer an existing Nuendo EuCon license to a
new USB dongle.
4. When prompted, enter the activation code for Nuendo EuCon provided by
Euphonix.
5. Make sure you are downloading the correct license, then click Next.
6. If you have more than one Syncrosoft USB dongle attached to your worksta-
tion, select the one onto which you wish to download the license. Click Next.
7. Press Download to transfer the license onto your USB dongle.
8. Close the wizard and open Nuendo.
The Nuendo EuCon Adapter must be installed must be installed during the EuConWS
software installation (see page 7). Note that this is the MC Client’s Nuendo adapter. For
Nuendo to communicate with the MC, Nuendo’s EuCon device must be added in the
Nuendo Device Setup dialog:
1. Choose Device Setup from Nuendo’s Devices menu.
The Device Setup dialog opens.
2. Click the + button (add) on the top-left.
A drop-down list of devices appears. EuCon should appear near the top of the
list. If not, check that you have successfully downloaded the license for the Eu-
Con Adapter to your USB dongle using the License Control Center.

Media Application Controller Multiple Workstation Install Guide Nuendo–PC and Mac
14
3. Select EuCon from the drop-down list.
The EuCon device is added and the MC surface immediately updates with the
Nuendo default Application Set to reflect the open Nuendo project. For the
System 5-MC, the MC auto-assigns the Nuendo channels to the CM408T
strips, beginning with channel 1 on the first CM408T’s leftmost strip.
Steinberg has created a default Nuendo Application Set with the most commonly used
functions and commands.

Media Application Controller Multiple Workstation Install Guide
15
Chapter 3: Logic Pro
Logic Pro 8.02 has EuCon support and connectivity built into the
application. With the MC Client running on your Macintosh, load Logic Pro, and the
MC automatically connects to the application and displays the Logic Pro application
set.
Versions of Logic prior to 8.02 do not have EuCon support. However, the updates for
Logic are part of Apple’s Software Update program, so simply check for new updates
(Apple Menu-> System Preferences -> Software Update -> Check Now), download,
and install the Logic 8.02 update. Then re-open Logic and the MC will connect. You
have now successfully set up the MC to operate with your Logic Pro workstation.
• See the MC Operation Manual to learn about the MC’s application sets, touch-
screens, and any other information.
• Check the Euphonix website (www.euphonix.com) for technical bulletins,
product support notices, and new software releases.
• Please register your MC by filling out the online registration form at www.eu-
phonix.com/registration. Registration is required to download software up-
dates.

Media Application Controller Multiple Workstation Install Guide Logic Pro
16

Media Application Controller Multiple Workstation Install Guide
17
Chapter 4: Pro Tools
4.1 Workstation Configuration
After installing the EuCon software and restarting your Mac, the MC Client launches
automatically upon startup of OS X and EuCon applications can now function.
To configure your HUI or Mackie Control applications to work with the MC:
1. Click Apple Menu-> System Preferences.
The System Preferences dialog opens.
2. Click on EuPrefsPane.
The Euphonix Preferences pane opens.
Figure 4-1 Euphonix Preferences pane
3. Open a Finder window and navigate to the folder containing the HUI or Mackie
Control application(s) you wish to use.
4. Drag the application(s) into the Euphonix Preferences pane.

Media Application Controller Multiple Workstation Install Guide Pro Tools
18
NOTE: You must drag the actual application icon into the preferences pane, not a
shortcut or alias!
5. For each application, select HUI or Mackie Control from the drop-down
menu under Protocol, and select the MIDI ports for the application to use.
NOTE: The EuCon software sets up a virtual MIDI driver with 32 ports, and each ap-
plication can use up to four (the limit with HUI applications). Keep track of
which application uses which ports in order to configure them properly.
6. Close the Euphonix Preferences pane. When prompted, restart your Macintosh.
7. Connect the MC to the Macintosh.
4.2 Pro Tools Configuration
To configure Pro Tools to recognize the MC:
1. Launch Pro Tools.
2. Choose Peripherals from the Operations menu.
The Peripherals dialog opens.
3. Click the MIDI Controllers tab.
Figure 4-2 Pro Tools Peripherals dialog

Media Application Controller Multiple Workstation Install Guide Pro Tools
19
Pro Tools has configuration boxes for the four possible controllers. MC stan-
dalone users need to configure only one controller. System 5-MC users need to
configure one controller for each CM408T module because the MC mirrors
one CM408T and does not require an extra HUI controller.
4. For each controller you use, select HUI from the Type drop-down menu.
5. Configure each controller to have the input and output MIDI ports set for Pro-
Tools in the Euphonix Preferences Pane. Click on the Receive From and Send
To drop-down menus, hover over Predefined, then select from the Euphonix
MIDI ports.
For example, if you set ProTools to use MIDI ports 9–12, your first HUI con-
troller’s receive and transmit ports should be set to EphMIDIEP9.
Figure 4-3 Excerpt from Pro Tools MIDI menu
6. Select 8 from the Ch # drop-down menu as the number of channels for each
controller.
7. Press OK.
The MC updates the channel and track information.
NOTE: System 5-MC owners with joystick panners can set the last controller to Sur-
round Panner to use the MC's joysticks to control panning in Pro Tools. See
the Media Application Controller Operation Manual for more information.

Media Application Controller Multiple Workstation Install Guide Pro Tools
20
