Beko CWB 6441 AN User manual

EN
CWB 6441 AN
CWB 9441 XN
01M-8892133200-1721-01
01M-8809843200-1721-01
Hood
User manual

Please read this user manual first!
Dear Valued Customer,
Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance
which has been manufactured with high quality and state-of-the-art technology. For this reason, please read
this entire user manual and all other accompanying documents carefully before using the appliance and
keep it as a reference for future use. If you handover the appliance to someone else, give the user manual
as well. Follow the instructions by paying attention to all the information and warnings in the user manual.
Remember that this user manual may also apply to other models. Differences between models are explicitly
described in the manual.
Meanings of the Symbols
Following symbols are used in various sections of this user manual:
CImportant information and useful hints about
usage.
AWARNING: Warnings against dangerous situati-
ons concerning the security of life and property.
Warning for danger of fire.
BWarning for electric shock.
Beko Customer Care Line: 0861 002 356 / BEKO
Complies with the WEEE regulation. It does not contain PCB.
This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.

Davlumbaz / Kullanma Kılavuzu
3 / TR
1Important Safety and
Environmental Instructions
4-7
1.1 General Safety . . . . . . . . . . . . . . . . . . . . 4
1.2 Compliance with the WEEE Directive
and Disposing of the Waste Product . . . . . . . . 7
1.3 Compliance with RoHS Directive . . . . . . . 7
1.4 Package Information . . . . . . . . . . . . . . . . 7
2 General Appearance 8
2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Technical Data . . . . . . . . . . . . . . . . . . . . 8
3 Using the Appliance 9
3.1 Use of the Rocker Switch. . . . . . . . . . . . . 9
3.2 Things to Do for Energy Saving . . . . . . . . 9
3.3 Operating the Hood. . . . . . . . . . . . . . . . . 9
3.4 Lamp Replacement . . . . . . . . . . . . . . . . . 9
4 Cleaning and Maintenance 10
5Setting Up the Device 10
6Troubleshooting 11
CONTENTS

4 / EN
Hood / User Manual
1.1 General Safety
Important Safety Instructions Read Care-
fully And Keep For Future Reference This
section contains safety instructions that
will help protect from risk of fire, electric
shock, exposure to leak microwave en-
ergy, personal injury or property damage.
Failure to follow these instructions shall
void any warranty.
•Beko products comply with the appli-
cable safety standards; therefore, in
case of any damage on the appliance
or power cable, it should be repaired or
replaced by the dealer, service center or
a specialist and authorized service alike
to avoid any danger. Faulty or unquali-
fied repair work may be dangerous and
cause risk to the user.
•This appliance is intended to be used
in household and similar applications
such as:
– Staff kitchen areas in shops, offices
and other working environments;
– Farm houses
– By clients in hotels, and other resi-
dential type environments;
– Bed and Breakfast type environments.
•Operate the appliance for its intended
purpose only as described in this man-
ual.
•The manufacturer cannot be held liable
for damages resulting from improper
installation or misuse of the product.
•This product is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge, unless they have been
given supervision or instruction con-
cerning the use of the product by a per-
son responsible for their safety.
•Children must be supervised to prevent
them from tampering with the product.
•The minimum distance between the
supporting surface for the cooking ves-
sels on the hob and the lowest part of
your product must be at least 65 cm.
•If the instructions for installation for the
gas hob specify a greater distance, this
has to be taken into account.
•Make sure that your mains power
supply complies with the information
supplied on the rating plate of the ap-
pliance.
•Never use the appliance if the power
cable or the appliance itself is dam-
aged.
•Prevent damage to the power cable by
not squeezing, bending, or rubbing it
on sharp edges. Keep the power cable
away from hot surfaces and naked
flame.
1 Important Safety and Environmental Instructions

Hood / User Manual
5 / EN
•Use the appliance with a grounded out-
let only.
WARNING: Do not connect the appli-
ance to the mains until the installation
is fully complete.
•Place the appliance in a way so that the
plug is always accessible.
•Do not touch the lamps if they have op-
erated for a long time. They can burn
your hands since they will be hot.
•Follow the regulations set out by com-
petent authorities on discharge of the
exhaust air (this warning is not applica-
ble for use without flue).
•Operate your appliance after putting
a pot, pan etc. on the hob. Otherwise,
high heat may cause deformation in
some parts of your product.
•Turn off the hob before taking the pot,
pan etc. from it.
•Do not leave hot oil on the hob. Pans
with hot oil may cause self combustion.
•Pay attention to your curtains and cov-
ers since oil may catch fire while cook-
ing food such as fries.
•Grease filter must be replaced at least
monthly. Carbon filter must be replaced
at least every 3 months.
•Product shall be cleaned accordance
with user manual. If cleaning was not
carried out in accordance with user
manual, there may be fire risk.
•Do not use non-fire-resistant filtering
materials instead of the current filter.
•Only use the original parts or parts rec-
ommended by the manufacturer.
•Do not operate the product without the
filter and do not remove the filters while
the product is running.
•In the event of be started any flame,
de-energize your product and cooking
appliances.
•In the event of be started any flame,
cover the flame and never use water to
extinguish.
•Unplug the appliance before each
cleaning and when the appliance is not
in use.
•The negative pressure in the environ-
ment should not exceed 4 Pa (4 x 10
bar) while the hood for electric hob and
appliances running on another type of
energy but electricity operate simulta-
neously.
•In the environment where the appliance
is being used, the exhaust of devices
running on fuel oil or gas, such as room
heater must be absolutely isolated or
device must be hermetical type.
•When connecting the flue, use pipes
with a diameter of 120 or 150 mm.
Pipe connection must be as short as
1 Important Safety and Environmental Instructions

6 / EN
Hood / User Manual
possible and have as few elbows as
possible.
Danger of choking! Keep all the pack-
aging materials away from children.
CAUTION: Accessible parts may be-
come hot when used with cooking ap-
pliances.
•The product outlet must not be con-
nected to air channels that include
other smoke.
•The ventilation in the room may be in-
sufficient when the hood for electric hob
is used simultaneously with the devices
operating on gas or other fuels (this
may not apply to appliances that only
discharge the air back into the room).
•Objects placed on the product may fall.
Do not place any objects on the prod-
uct.
•Do not flambe under the your product.
WARNING: Before installing the Hood,
remove the protective films.
•Never leave high naked flames under
the hood when it is in operation
•Deep fat fryers must be continuously
monitored during use: overheated oil
can burst into flames.
1.2 Compliance with the WEEE Di-
rective and Disposing of the Waste
Product: This product complies with EU
WEEE Directive (2012/19/EU). This prod-
uct bears a classification
symbol for waste electrical and electronic
equipment (WEEE).
This symbol indicates that this
product shall not be disposed
with other household wastes at
the end of its service life. Used
device must be returned to offical collec-
tion point for recycling of electrical and
electronic devices. To find these collec-
tion systems please contact to your local
authorities or retailer where the product
was puchased. Each household performs
important role
in recovering and recycling of old appli-
ance. Appropriate disposal of used ap-
pliance helps prevent potential negative
consequences for the environment and
human health.
1.3 Compliance with RoHS Directive
The product you have purchased com-
plies with EU RoHS Directive (2011/65/
EU). It does not contain
harmful and prohibited materials speci-
fied in the Directive.
1 Important Safety and Environmental Instructions

Hood / User Manual
7 / EN
1 Important Safety and Environmental Instructions
1.4 Package Information
Packaging materials of the prod-
uct are manufactured from recy-
clable materials in accordance
with our National
Environment Regulations. Do not dis-
pose of the packaging materials together
with the domestic or other wastes. Take
them to the packaging material collection
points designated by the local authorities
.

8 / EN
Hood / User Manual
Model CWB 6441 AN CWB 9441 XN
Supply Voltage and
Frequency
220-240V ~ 50 Hz
Lamp Power (W) 2x4
Motor Power (W) 125
Air Flow (m³/h) – 3. Level 400
Motor Insulation Class F Sınıfı
Insulation Class Class I
2.1 Overview
2.2 Technical Data
CWB 6441 AN CWB 9441 XN
1
2
3
4
1. Chimney
2. Body
3. Control Buttons
4. Aluminium Grease Filters
2General Apperance

Hood / User Manual
9 / EN

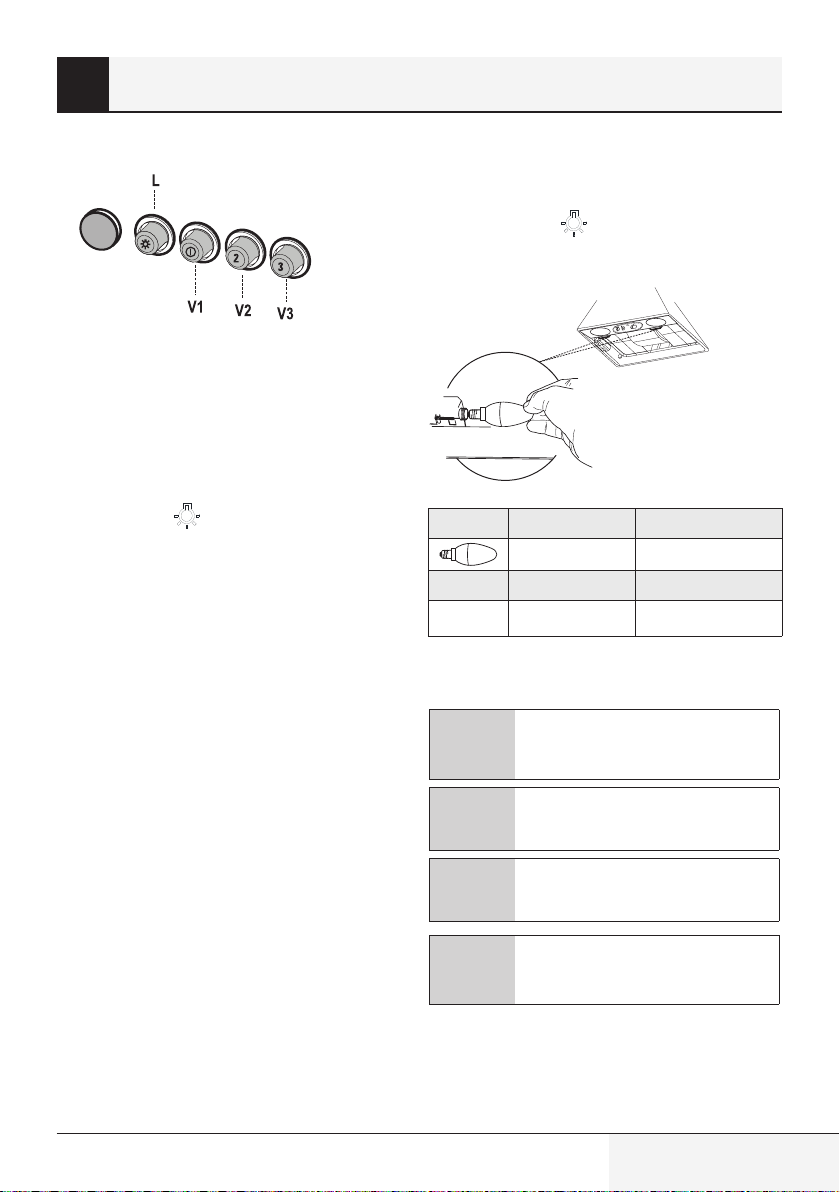

3Using the Appliance
•You can start the hood by pressing the desired
speed level key.(V1,V2,V3 )
•You can illuminate the cooking area by pressing
the light key L ( )
3.4 Lamp Replacement
Disconnect the hood from the mains supply. This
appliance is equipped with 4 W spot LED lamps.
ABefore replacing the light bulbs,
disconnect the power supply of the
hood.
ADo not touch the light bulbs when
they are hot.
ABe careful not to touch the replaced
light bulb directly with hands.
CYou may procure lamps from
Authorised Service Agents.
3.1 Use of the Rocker Switch
The hood is equipped with a mechanical control.
•Pressing the “V1” - to turn the hood with a mi-
nimum speed.
•Pressing the “V2” - turns the hood with an ave-
rage speed.
•Pressing the “V3” - turns the hood at maximum
speed. Higher speed means more air flow.
•Press the ‘‘L’’ - to turn on the lights. Repeat
pressing the button to turn off the lighting.
3.2 Things to Do for Energy Saving
•Ensure sufficient air intake to make the hood
operate efficiently and with low operation noise
during cooking.
•Set the fan level according to the density of
steam in kitchen. Use the high level only when
needed. A lower fan level means less energy
consumption.
•If dense smoke is expected in the kitchen, select
a higher level of fan in advance. It is required
to operate the hood much longer to remove the
smoke already spread all over kitchen.
•Turn off the hood when not in use.
•Clean or replace the filter at intervals stated,
thus, the efficiency of the ventilation is increased
and the risk of fire is eliminated.
3.3 Operating the Hood
•Hood is equipped with a motor having various
speed settings.
•For a better performance, we advise you to use
low speeds in normal conditions, and high spe-
eds when smell and vapors are intensified.
Max: 4 W
Lamp Power (W) Socket
4 E14
Voltage (V) Dimension (mm) ILCOS Code
220 – 240 107 x 37 DRBB/F-4-220-
240-E14-35/100

10 / EN
Hood / User Manual
•The charcoal filter is not washable and cannot be
regenerated, and must be replaced approximately
every 3 months of operation, or more frequently for
particularly heavy usage (W).
-The Aluminium Grease Filters must be cleaned
every months of operation.
-The Aluminium Grease Filters can be washed
in the dish washer (Z).
Z
-Clean the hood using a damp cloth and a
neutral liquid detergent.
4 Cleaning and Maintenance
5 Setting Up the Device
AWARNING
Please read saffety instructions
before setting up.
A
WARNING
Failure to install the screws or
fixing device in accordance with
these instructions may result in
electrical hazards.

Hood / User Manual
11 / EN
6Troubleshooting
Troubleshooting Reason Help
The product does
not work. Check your fuse. Your fuse might be closed, make it work.
The product does
not work. Check the electrical connection. The mains voltage should be between 220-240 V.
The product does
not work. Check the electrical connection. Check if the other products in your kitchen are working
or not.
The lighting lamp
does not work. Check the electrical connection. The mains voltage should be between 220-240 V.
The lighting lamp
does not work. Check the lamp switch. The lamp switch should be in the “on” position.
The lighting lamp
does not work. Check the lamps. The lamps of the product should not be faulty.
The air intake of the
product is poor. Check the aluminum filter. The aluminum oil filter should be cleaned at least
once a month under normal
conditions.
The air intake of the
product is poor. Check the air vent flue. The air vent flue should be in the ''on'' position.
The air intake of the
product is poor.
Check the carbon filter. For products with carbon
filters, the filter should
normally be changed every 3
months.

12
B
C
N = 4x
L = 8x
I = 8x
H1 = 2x
(O)

13
2x
ø 120 mm
ø 150 mm
65
cm min.
50 cm min.
2x

14












1

15
I = 8x L
OK!
5
mm
2x
56
34
1 2
12
34
177
125125
6060
6060
220220
32
7878
56
34
1 2
78
X8
X8
PP
X2
68 mm
68 mm
34
2

8
6
[


10
7
2x
9
O
H1
2x
H1
2x
Ø150
Ø120
O
H1
2x
H1
2x
Ø150
Ø120
5
6
7
9
8
17
16
L = 4x

12
15
B
14
16
N = 4x
B
N = 4x
13
11

10 11
12 13
14 15
17
L = 4x
(4,2x44,4)

17
19
20
Z
16
18
17
18
B
C

19
19
20
Z
21
19
20

Arçelik A.Ş. Karaağaç Caddesi No:2-6,
34445, Sütlüce / İSTANBUL
www.beko.com
