Euro Towers SPO829 User manual
1. Ensure that the scaffold tower is kept clean, especially the spigots and sockets. These should fit together with ease and be secured by an interlock clip.
2. Check frames and braces, adjustable legs and boards for paint, grit, burrs etc. Remove any foreign substance with a light wire brush. Check no slip hazards
exist on the platform.
3. Where brace, ladder and platform hooks attach the frames, ensure that the frame rungs are kept clean.
4. Ensure that all locking hooks function correctly. If necessary, lubricate with light oil.
5. The inside diameter of all hooks should be kept clean to ensure they fit to other components without being forced.
6. If in any doubt about the proper use and maintenance of the scaffold tower equipment, consult the manufacturer.
7. Do not misuse or abuse the scaffold tower with heavy objects, hammers etc. Do not throw components in and out of vehicles or to the ground when the
tower is being dismantled. Such abuse may reduce the structural integrity of the scaffold tower.
8. Under no circumstances use a scaffold tower which damaged, has not been properly erected, is it not rigid and which has any missing parts.
REMEMBER YOUR SAFETY DEPENDS ON THE SAFE ERECTION AND USE OF THIS EQUIPMENT.
MAX SAFE WORKING LOAD FOR STRUCTURE: 500Kg
MAX SAFE WORKING LOAD FOR PLATFORM: 250Kg
SPO829
232 - 2.34 x 0.5 x 1.5m Narrow Tower
Assembly Instructions
1. Check instructions before use. Mobile access working towers may only be erected and
dismantled by persons familiar with these instructions for erection use.
2. Do not use any scaffold tower which is damaged, which has not been properly erected,
which is not firm and stable, and which has any missing or damaged parts.
3. Do not erect a scaffold tower on unstable ground or objects such as loose bricks, boxes
or blocks. Only a sound rigid footing must be used.
4. Ensure that the scaffold tower is always level and the adjustable legs are engaged. Check
that you have taken all necessary precautions to prevent the tower being moved or
rolling away. Always apply all castor brakes or use base plates.
5. Ensure that all frames, braces and platforms are firmly in place and that all locking hooks
are functioning correctly. Ensure that all frame locking clips are engaged. If any missing,
replace them.
6. Outdoor scaffold towers should, wherever possible, be secured to a building or other
structure. It is good practice to tie in all scaffold towers of any height, especially when
they are left unattended, or in exposed or windy conditions.
7. A scaffold tower must not be used in winds stronger than 7.7 meters per second.
Beaufort scale 4. Be cautious if erecting or using the tower in open places, such as
hangers or unclad buildings. In such circumstances the wind forces can be increased, as
a result of the funnelling effect.
8. Do not use sheeted towers.
9. Do not erect or use a scaffold tower near un-insulated, live or energised electrical
machinery or circuits, or near machinery in operation.
11.If an overhead hazard exists, head protection should be worn.
12.Do not lean ladders against the tower or climb the outside of the tower.
Whatever your intended access system, it should only be used inside the
tower.
13.Never climb on horizontal or diagonal braces. Do not gain access or descend
from the working platform other than by the intended access system.
14.Do not work from ladders or stairways, they are a means of access only.
15.Guardrails and toe-boards must be fitted to the working platforms.
16.Never jump on to or off platforms.
17.DO not exceed the safe working load of the platform or structure by
accumulating debris, material or tools on platforms as these can be a
significant additional load.
18.If you must move a tower, remove all materials and personnel. When moving
a scaffold tower, force must always be moved from the base. The tower
should only be moved manually on firm, level ground which is free from
obstacles. Normal walking speed should not be exceeded during relocation.
The ground over which a tower is moved should be capable of supporting the
weight of the structure.
19.Should you require additional platform height, add further frames. NEVER
extend your adjustable legs to achieve extra height, these are for levelling
only. NEVER use a ladder or other objects on the platform to achieve
additional height.
20.It is not permissible to attach and use hoisting facilities on towers, unless
specifically provided for by the manufacturer.
21.It is not permissible to attach bridging sections between a scaffold tower and
a building. Refer to the tower manufacturer.
General Safety Rules
Maintenance
232 - 2.34 x 0.5 x 2.0m Narrow Tower
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 2of 10
Parts List
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 3of 10
Please read before using this equipment
2 people are required to build this equipment safely.
Ensure all parts are present & not damaged before assembling.
Risk assessments shall be done before commencing any work.
In accordance to the Working At Height Regulations, particular attention should be paid to Guardrails.
1. Do not use on unstable ground such as loose bricks, boxes or blocks.
2. Remove all personnel & materials before moving or dismantling the unit.
3. If the unit has been moved, ensure the unit is levelled and all fittings are tight before re-using it.
4. Do not gain extra height by using boxes, ladders etc on the platform.
5. Do not overload the unit.
6. Do not overreach out of the unit
7. This equipment should be inspected by a competent person before & after any alteration (moving, partial disassembly etc.)
8. Euro Towers recommend the use of protective gloves when assembling and disassembling
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 4of 10

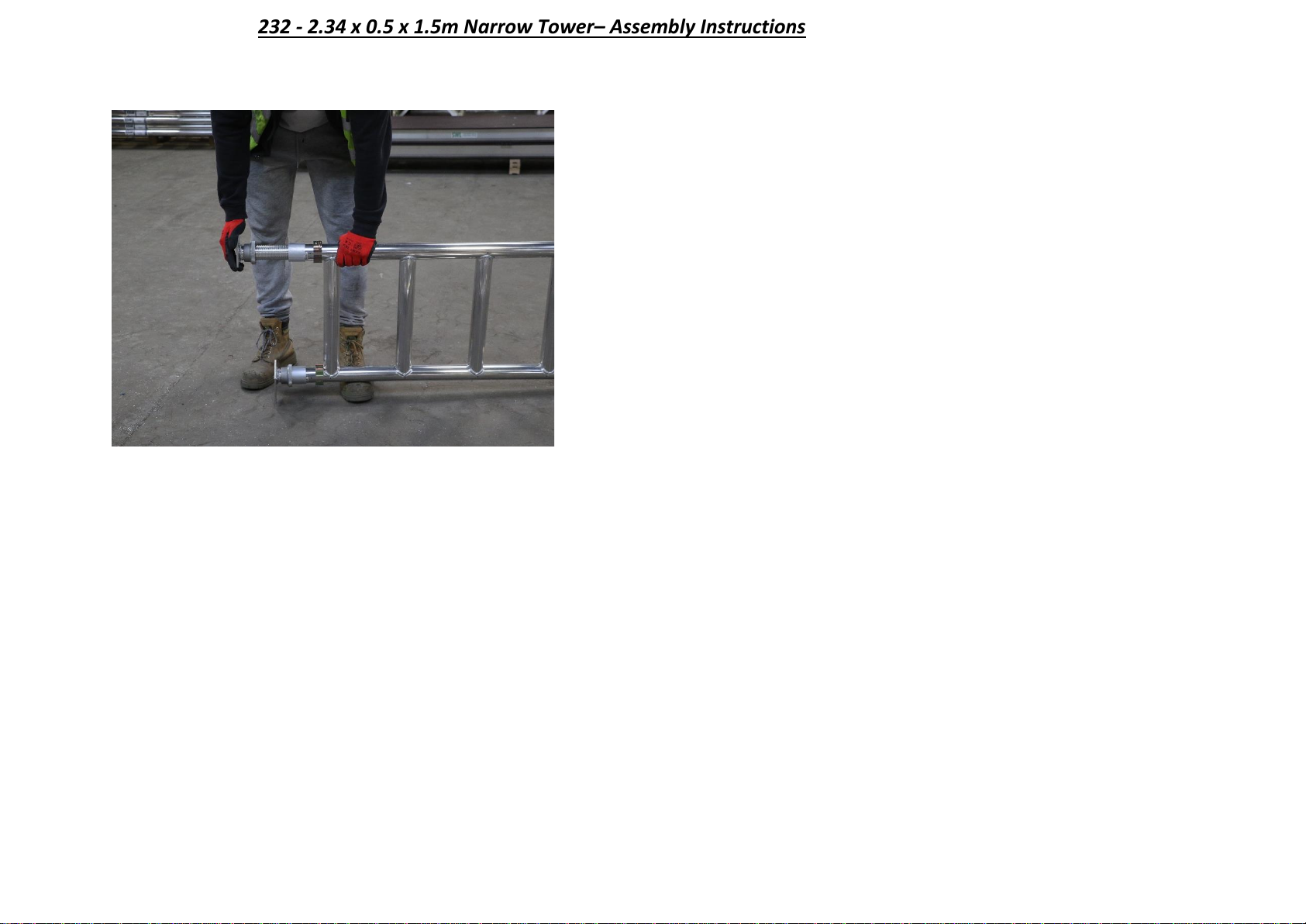

1. Insert 2 x legs into each FKS4-8 (8 rung) frame (plain and gated).
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 5of 10
2. Hold one of the 8-rung frames in an upright position, and have another person attach the 1.5m base frame above the 3rd rung as shown. ENSURE THE BRACE
HOOKS ARE FACING OUTWARDS.
3. Stand the 8-rung frame opposite the other, and have another person attach the 1.5m base frame above the 3rd rung as before. ENSURE THE BRACE HOOKS
ARE FACING OUTWARDS.
.
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 6of 10

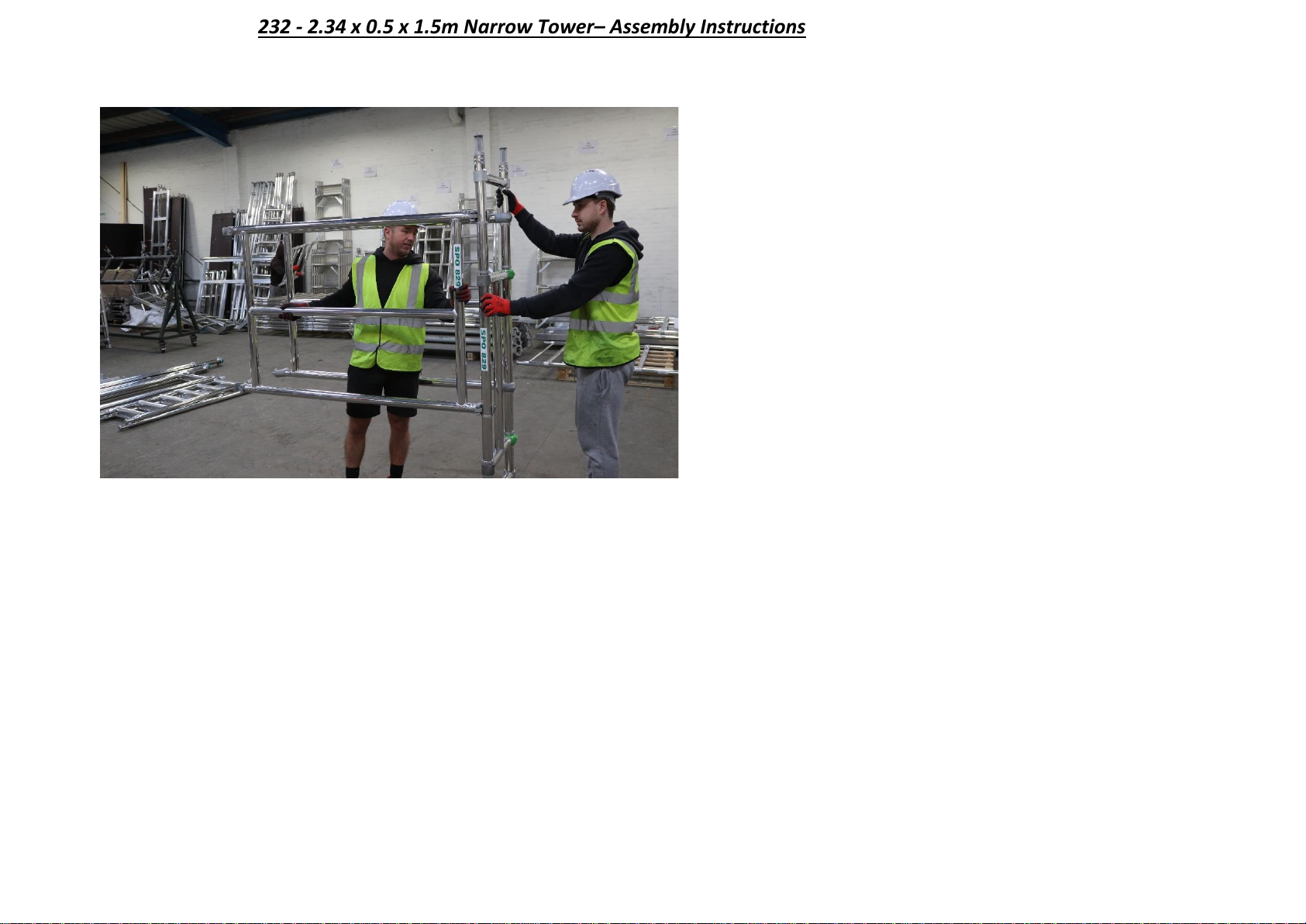

4. Attach the plain temporary platform onto the first rung of the 8 rung frames (you may need to open the portal gate to assist with this).
5. Adjust the level of the platform in both directions (length and width); by adjusting the leg nuts (up or down) –Use a spirit level on the platform as shown.
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 7of 10
6. Attach the 4x stabilisers to each corner of the tower. Ensure the lower arm is as parallel to the ground as possible and the couplers are tight.
7. Attach the 2x FKD3-6 (6 rung) frames above the 8 rung frames. Ensure the interlock clip is engaged with the spigot.
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 8of 10

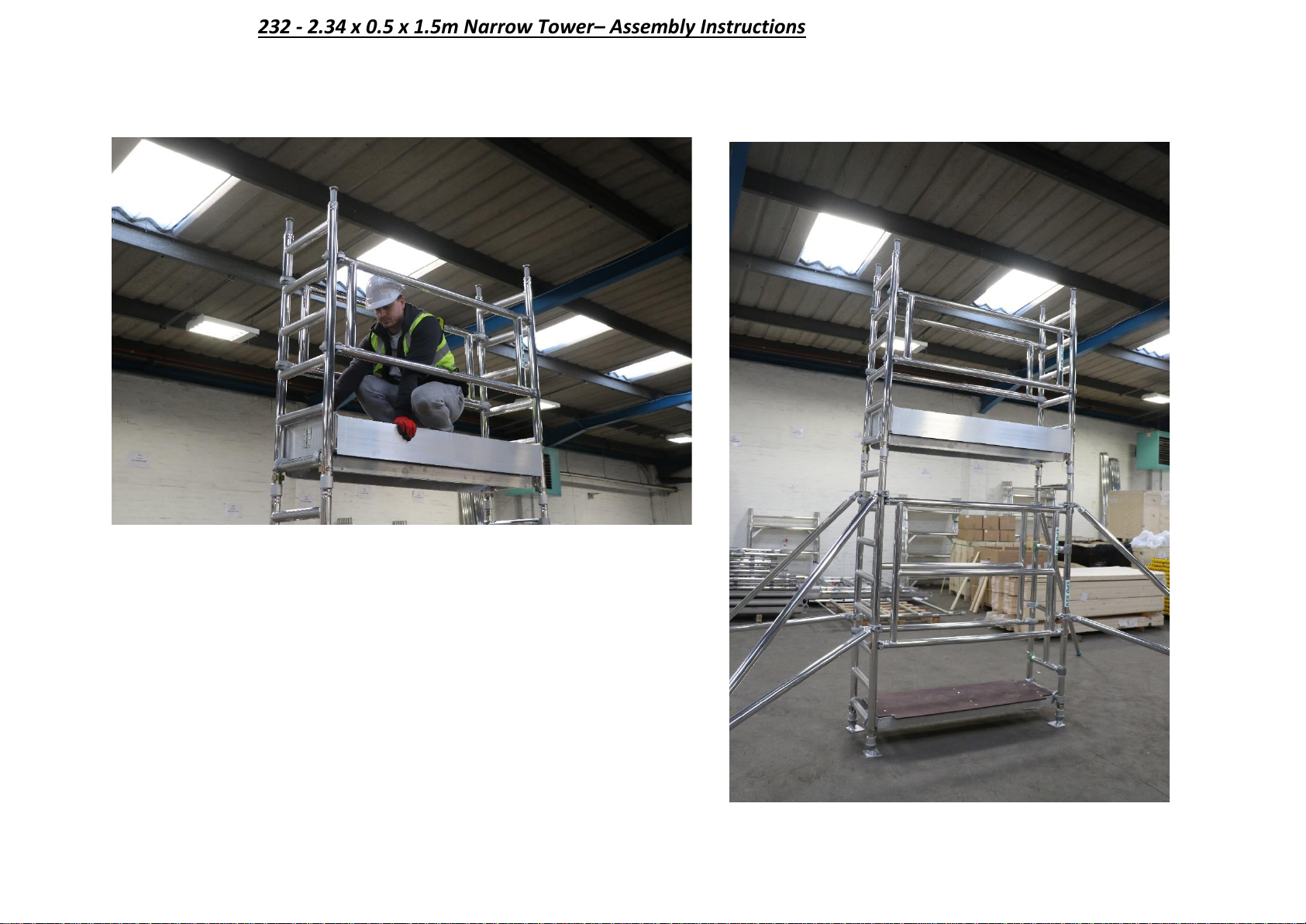

8. Have someone pass up the trapdoor platform and attach this to the 9th rung up (first rung of top frame). Ensure both the wind lock clips are engaged.
9. Ascend through the trapdoor, and from a seated position attach both the side frames. The lower hooks need to be above the second rung above the
platform. ENSURE THE HOOKS ARE FACNG OUTWARDS.
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 9of 10
10. Unfold the toe-board set and place on to the top platform.
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
232 - 2.34 x 0.5 x 1.5m Narrow Tower–Assembly Instructions INS–SPO829 Dec 2022
Page 10 of 10
DISMANTLING NOTES:
•Dismantling is the reverse of assembly; 2 people will be required to do this safely.
•Always work from the ground where possible.
•To release the hooks on braces and guardrails, push the “klicker” on the brace hook, and lift each end of the brace or guardrail.
•Disengage the interlock clips before removing any of the frames.
•Never stand on or work from an unguarded platform.
Manufactured to a TUV Certified ISO 9001:2015 Quality Control
System
Euro Towers Ltd
Unit 5 Edgemead close
Round Spinney Industrial Estate
Northampton, NN3 8RG
Tel: 01604 644 774 | Web: www.eurotowers.co.uk
232 - 2.34 x 0.5 x 2.0m Narrow Tower - Assembly Instructions
