Euroheat Pico User manual

Operating Instructions
Pico
Wood Pellet Burning Stoves
IN1230 Edition 1 June 2011
PART NUMBER
SERIAL NUMBER
This Manual Must Always be Available to the Stove Operator

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
2
Contents
The Model Range Explained............................................................................................4
Model Identification........................................................................................................4
Technical Data.................................................................................................................5
The Clean Air Act 1993....................................................................................................5
Spare Parts Overview......................................................................................................6
General Warning and Safety Information .......................................................................8
Wood Pellet Specification According to ENplus – A1........................................................9
Operating Comfort – Operational Reliability .................................................................10
Highest Efficiency – Lowest Emissions...........................................................................10
Automatic Safety Function ............................................................................................10
Electrical Connection.....................................................................................................11
Combustion Air .............................................................................................................11
Disassembly of Panels ..................................................................................................12
Operation......................................................................................................................14
Control and Internal Control Unit - Function..................................................................14
Over View of Heating Modes.........................................................................................15
Simple Heating Operation – Easy Mode – The First Steps...............................................15
Easy Off – Inactive State................................................................................................16
Easy 40 – Operation.......................................................................................................16
Easy 40 – switch Off ......................................................................................................16
Extended Heating Operation – Heat Mode – Comfort Functions ....................................17
Menu Structure and Main Menu Level...........................................................................18
Main Menu Time – Time Adjustment.............................................................................19
Main Menu Setup – Additional Functions ......................................................................20
Main Menu Info – Additional Functions.........................................................................22
Main Menu Info – Additional Functions.........................................................................23
Rika Wireless Room Sensor and Telephone Option-GSM ...............................................24
Electric Ignition.............................................................................................................25
Emergency Operation – Heating Up without Electrical Ignition.....................................25
Cleaning and Maintenance ...........................................................................................26
Malfunctions – Causes – Solutions .................................................................................30
Menu Navigation – Overall View ...................................................................................32
Dimensions ...................................................................................................................34
Rika Warranty ...............................................................................................................35

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
3
IMPORTANT
The installation of this appliance must comply with all local regulations, including those referring to
National and European Standards before it can be operated. The stove is not suitable for a shared flue.
Improper adjustment, alteration, maintenance or the fitting of replacement parts not recommended
by the manufacturer can cause injury or property damage. Do not operate the stove with faulty seals
or damaged glass.
Ensure all manuals are kept safely and are available for the user at all times.
Do not store or use petrol or other flammable vapours and liquids in the vicinity of this or any other
heating appliance. Do not use aerosol sprays near the stove when the stove is alight. Do not burn
anything but approved wood pellets on this appliance.
 Due to the high operating temperatures of this appliance it should be located away from pedestrian
traffic and away from furniture and draperies. Do not store paper or wood near the appliance. Any mats
or rugs put in front of the stove should be fire proof and secured to prevent the possibility of tripping.
Advise all persons as to the stove’s high surface temperatures, including visitors. If it is possible for
children or infirm adults to come into contact with the stove, fit a suitable fire guard. Never let
children “help” with the stove in any way, even when the stove is cold.
It is imperative that all air passageways into, out of, and within the appliance are kept clean. All
permanent ventilation into the room provided for the stove must remain clear and unobstructed at all
times. Consideration must be given to the need for extra ventilation if another heating source needing
air is to be operated simultaneously. If an extraction fan is proposed to be fitted to a connecting
area of the house, after the stove has been installed, professional advice should be sought from a
qualified engineer.
If a flue blockage or adverse weather conditions cause the appliance to emit smoke, do not treat it as
merely a nuisance, this smoke will indicate that carbon monoxide is being emitted into the room.
Properly installed, operated and maintained this applinace will not emit fumes into the dwelling.
WARNING: If fume emissions persist the following immediate action should be taken:
Turn the stove off, on the control panel, open windows to ventilate the room and leave the premises
and allow the appliance to go out before closing the windows. Do not re-light the stove without
consulting a qualified engineer.
Your installing engineer should have fitted a CO alarm in the same room as the stove. If the alarm
sounds unexpectedly, follow the instructions in the above paragraph.
In the event of a chimney fire the stove should be turned to off and the fire brigade informed.
Do not re-light the stove until the complete installation has been inspected by a qualified
engineer.
The appliance should be inspected and cleaned regularly and the chimney cleaned at least annually.
More frequent cleaning may be required and the advice of a qualified chimney sweep should be
sought. Always check for any flue blockage before lighting the appliance after a prolonged shut down.
This appliance has been carefully designed and constructed to give clean burning with optimum efficiency
and safety, but as with all heating appliances these standards will not be achieved unless it is installed and
maintained regularly by qualified engineers. It must also be operated strictly with the procedures given in this
manual.
If you are unsure about anything concerning your stove please seek professional advice.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
4
Stoves supplied through Euroheat authorized retailers.
For England, Wales, Scotland and Northern Ireland
Euroheat Distributors (H.B.S). Ltd.
Unit 2,
Court Farm Business Park,
Bishops Frome,
Worcestershire. WR6 5AY.
www.euroheat.co.uk
[e-mail]
The Model Range Explained
Thank you for purchasing your stove and helping to protect our environment. RIKA and Euroheat insist on
progressive development to produce products which are market leading. Our aims are to produce stoves with
the latest innovations, user friendly operation and high efficiency for lower cost operation.
This operating manual offers user information for the Pico pellet stoves.
Model Identification
You will see on the front page of this document a label which confirms which model you have. This label also
advises you of the stoves unique serial number. This information is also attached to your stove for reference.
Important
Please ensure the warranty registration form is returned to Euroheat. In this way the model and its history will
be recorded for reference in the future.
Whilst we are always happy to assist you, please make sure you have read this manual before requesting
support. First contact your supplying retailer. If you find this not successful contact the Euroheat Technical
Support Team.
Technical support telephone number 01885 491117. E-mail [e-mail]. Before telephoning ensure
you have your stove’s serial number to hand. This can be found on the front of either the operating, installation,
warranty registration, or on the stove identification label.
Euroheat unfortunately are unable to offer support for appliances which were not supplied by Euroheat.
RIKA Innovative Ofentechnik GmbH
Müllerviertel 20
AT - 4563 Micheldorf
Tel.: [phone] / 686 - 41
Fax: [phone] / 686 - 43
Email: offic[email protected]
Website: www.rika.at

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
5
TECHNICAL SPECIFICATION
Dimensions (mm) and weights (kg)
Height 1008
Width 495
Depth of the body 508
Weight with steel casing panel 105
Weight with stone casing panel 109
Weight with ceramic casing panel 111
Flue tube outlet diameter 100
Heating capacity range 2.4-9 kW
Room heating capacity (m3)
depended on the house insulation 50-240
Fuel consumption Up to 2.2 kg/h
Pellet container capacity 26 kg
Mains supply 230V/50Hz
Average electric power
consuption < 100 W
Fuse 2.5 delay
action
Efficiency (net)/(gross) % 92.1/84.6
CO2 content 11.1 %
CO emission (at 13% O) 34 mg/Nm3
Dust emissions 22 mg/Nm3
Exhaust gas mass flow 6.45 g/s
Exhaust gas temperature 144 °C
Flue draught requirement 0 PA
THE CLEAN AIR ACT 1993 AND
SMOKE CONTROL AREAS
Under the Clean Air Act 1993 local authorities may declare the whole or part of the district of the authority to
be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from
any fixed boiler if located in a designated smoke control area. It is also an offence to acquire an “unauthorised
fuel” for use within a smoke control area unless it is used in an “exempt” appliance (“exempted” from the
controls which generally apply in the smoke control area).
The Secretary of State for Environment, Food and Rural Affairs has powers under the Act to authorise smokeless
fuels or exempt appliances for use in smoke control areas in England. In Scotland and Wales this power rests
with Ministers in the devolved administrations for those countries. Separate legislation, the Clean Air (Northern
Ireland) Order 1981, applies in Northern Ireland. Therefore it is a requirement that fuels burnt or obtained
for use in smoke control areas have been “authorised” in Regulations and that appliances used to burn solid
fuel in those areas (other than “authorised” fuels) have been exempted by an Order made and signed by the
Secretary of State or Minister in the devolved administrations.
Further information on the requirements of the
Clean Air Act can be found here: http://smokecontrol.defra.gov.uk/
Your local authority is responsible for implementing the Clean Air Act 1993 including designation and
supervision of smoke control areas and you can contact them for details of Clean Air Act requirements.
The Pico pellet fuelled appliance has been assessed and is suitable for use in smoke control areas when burning
6mm wood pellets and when operated in accordance with these operating instructions.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
6

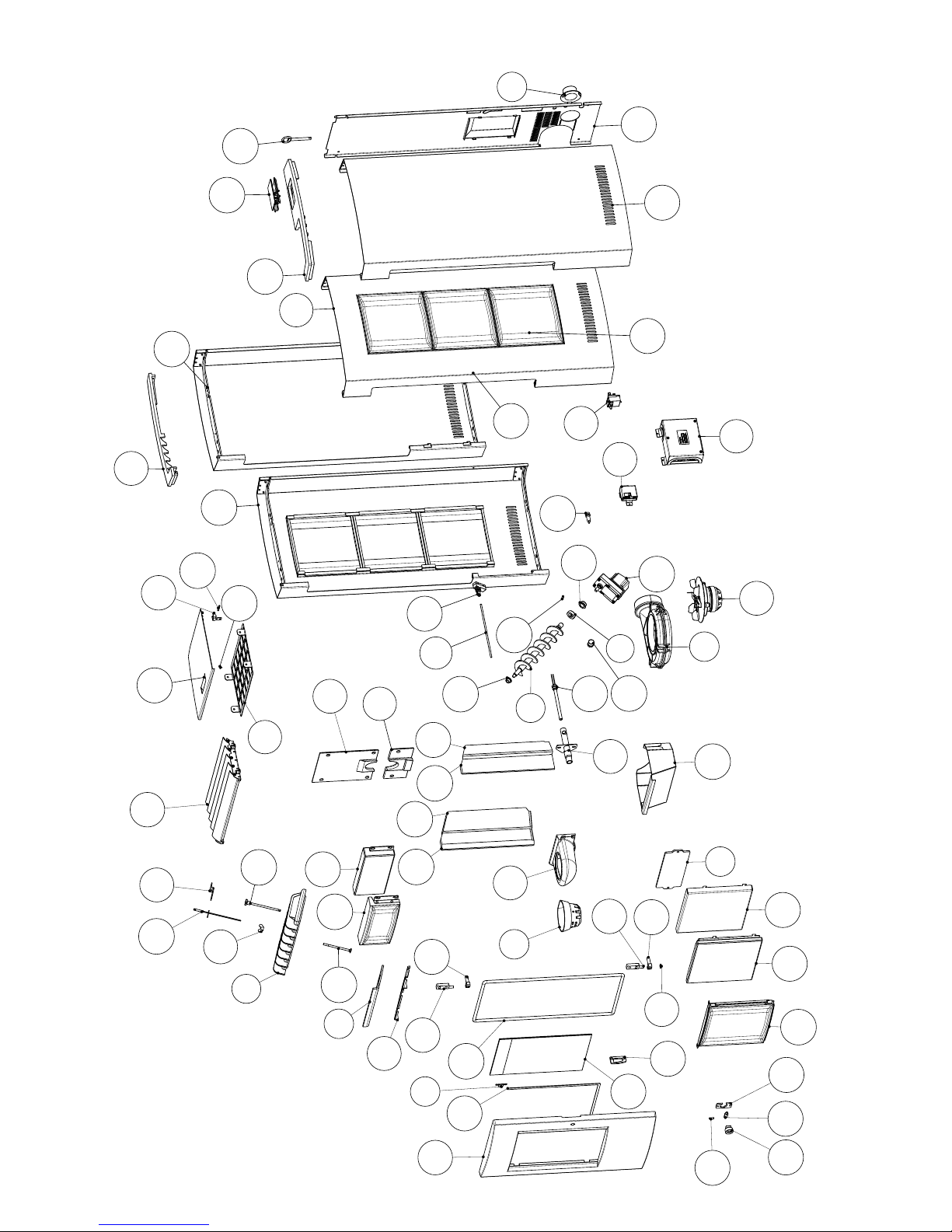

Spare Parts Overview
1
2
53
51
44
72
17
10
16
70
9
27
6
71
75
25
59
43
57
18
3
26
36
819
38
35
40
39
65
66
67
73
37
24
46
11
68
31
29
30
28
13
37
58 12
45/60
64
7
20
36
62
4
61
34
521 32
63
23 22 56 55 54
14
49
50
42
48
52
41
47
69

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
7
No. Description Part No.
1 Clamping ring RK Z11915
2 Air intake RK Z18278
3 Screw RK B12301
4 Glass retainer RK L00475
5Combustion chamber cover, Grey RK B16321
Combustion chamber cover, Black RK B16052
6Cleaning opening, Grey RK Z32422
Cleaning opening, Black RK Z33880
7 Flue plate RK L01881
8 Recess RK Z32345
9 Induced draft fan housing RK B16155
10 Induced draft fan motor RK 111581
Induced draft fan cpl. RK B15913
11 Actuating rod RK Z32910
12 Cast rear panel, top, Grey RK Z33841
Cast rear panel, top, Black RK Z33908
13 Cast rear panel, bottom, Grey RK Z33842
Cast rear panel, bottom, Black RK Z33907
14 Rubber stop for container RK 111647
15 HP bracket RK B15781
16 Motherboard C2 air assembly RK B15856
17 Auxiliary board RK B16030
18 Door support RK L01413
19 Cavity holder cpl. Grey RK B16473
Cavity holder cpl. Black RK B16474
20 Support plate for combustion
chamber lining RK Z33803
21 Sensor tube RK B16053
22 Pressure bracket RK L01441
23 Temperature sensor RK B16114
24 Grommet RK 111730
25 Ignition cartridge RK Z34113
26 Locking shackle RK L01882
27 Ash tray RK L01891
28 Inner lining, front left RK Z34333
29 Inner lining, front right RK Z34334
30 Inner lining, rear left RK Z34335
31 Inner lining, rear right RK Z34336
32 Safety guard RK L01884
34 Combustion chamber door cpl.Grey RK B16480
Combustion chamber door cpl.Black RK B16479
Combustion chamber door, Grey RK Z34301
Combustion chamber door, Black RK Z34298
35 Combustion chamber door glass RK Z33701
36 Hinge plate RK L01894
37 Hinge RK Z34345
38 Locking plate RK L01893
No. Description Part No.
39 Locking bolt RK Z34353
40 Locking tongue RK L01892
41 Cast cover, right, metallic grey RK Z34354
Cast cover, right, black RK Z34355
42 Cast cover, left, metallic grey RK Z34356
Cast cover, left, black RK Z34357
43 Ceramic front, bottom, cpl.
44 Ceramic side left/right
45 Ceramic front, top, cpl.
46 Door contact switch RK 111825
47 Control panel RK B16484
48 Casing, left cpl., metallic grey RK LB00487
Casing, left cpl., black RK LB00486
49 Hinge pin RK Z34346
50 Casing, left cpl., ceramic
51 Casing, right cpl., grey RK LB00489
Casing, right cpl., black RK LB00488
52 Casing, right cpl., ceramic
53 Rear panel cpl., metallic grey RK LB00485
Rear panel cpl., black RK LB00484
54 Hinge for container cover RK L01888
55 Container cover, metallic grey RK B16477
Container cover, black RK B16476
56 Convection fins RK B16483
57 Steel casing, bottom RK Z34358
58 Steel casing, top RK Z34416
59 Soapstone casing, bottom, cpl. grey RK B16520
Soapstone casing, bottom,cpl. black RK B16493
60 Soapstone casing, top, cpl. grey RK B16519
Soapstone casing, top, cpl. black RK B16492
61 Flat sealing strip 8x2, selfadhesive RK 103693
62 Round sealing strip D10 RK 100476
63 Wing nut RK 108306
64 Torband screw RK 111511
65 Setscrew M05 RK 111803
66 Setscrew M06 RK 111058
67 Sintered bearing Di16 RK 102688
68 Sintered bearing Di10 RK 108310
69 Door handle key RK 111576
70 Screw motor, stepless RK 111728
71 C-Sensor RK B16417
72 Safety temperature limiter RK 111586
73 Fuse holder RK 107887
Harness RK B16058
Adapter cable induced
draught blower RK B15981
Spare parts overview; continued

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
8
General Warning and Safety Information
Observance of the introductory general warning information is imperative.
Read the entire manual thoroughly prior to putting the stove into operation.
Only approved transport equipment with sufficient load carrying capacity may be used with your heating
appliance.
The burning of fuel releases heat energy that leads to extensive heating of the stove surfaces, doors, door
and operating handles, glass, flue pipes and possibly the front wall. Refrain from touching these parts without
appropriate protective clothing or equipment e.g. heat-resistant gloves or means of operation (operating
handle).
Make your children aware of this particular danger and keep them away from the stove during heating, fit a
suitable fire guard where required.
Placing non-heat resistant objects on the stove or near it is prohibited.
Do not place clothing on the stove to dry.
Stands for drying clothes etc. must be placed at a sufficient distance to the stove – FIRE HAZARD.
When your stove is burning, the use of highly inflammable and explosive materials in the same or adjacent
rooms is prohibited.
ATTENTION
In cause of safety reason please do not open the combustion chamber door during operation.
CAUTION when filling the supply container.
The pellet container opening is sufficient to ensure easy filling. Take great care that no pellets drop onto the
convection fins and the hot stove body.
This may lead to severe smoke development.
We recommend to fill the pellet container only when the stove is cold.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
9
What are Pellets ?
Wood pellets are a standardised fuel. Every manufacturer must adhere to
certain conditions in order to enable flawless, energy-efficient heating. Pellets
are made from wooden waste, from sawmills and planning workshops, as well
as from residue from forestry operations. These “starting products” are crushed,
dried, and pressed into Pellet “Fuel” without any bonding agent.
ENplus – Pellets
This new standard for pellets sets a new benchmarks in the European pellet
market. The traceability of pellets is ensured thanks to the use of identification
numbers. The pellet manufacturers’ production facilities and manufacturing
processes are reviewed every year. A quality assurance system ensures the
pellets comply with the requirements of the new standard and that the conditions for trouble-free heating are
guaranteed.
Wood Pellet Specification according to ENplus – A1
Parameter Unit ENplus-A1
Diameter mm 6 (±1) (2)
Length mm 3.15 to 40 (3)
Bulk density kg/m³ ≥600
Calorific value MJ/kg ≥16.5
Water content Ma.-% ≤10
Fine fraction (< 3.15 mm) Ma.-% ≤1
Mechanical rigidity Ma.-% ≥97.5 (4)
Ash content Ma.-% (1) ≤0.7
Ash softening temperature (DT) °C ≥1200
Chlorine content Ma.-% (1) ≤0.02
Sulphur content Ma.-% (1) ≤0.03
Nitrogen content Ma.-% (1) ≤0.3
Copper content mg/kg (1) ≤10
Chrome content mg/kg (1) ≤10
Arsenic content mg/kg (1) ≤1
Cadmium content mg/kg (1) ≤0.5
Mercury content mg/kg (1) ≤0.1
Lead content mg/kg (1) ≤10
Nickel content mg/kg (1) ≤10
Zinc content mg/kg (1) ≤100
(1) in an anhydrous state
(2) Diameter must be specified
(3) a maximum of 1% of the pellets may be longer than 40 mm; max. length is 45 mm
(4) The limit value of ≥97.7 Ma.-% applies when conducting measurements with a Lignotester (internal control)
Pellet Storage
In order to guarantee problem free burning of the wood pellets, it is imperative to store the fuel as dry as
possible and free from impurities. Pellets should not be kept in sacks outdoors or stored in a manner where
they are exposed to the environment. This can lead to blockages in the screw conveyor - “screw stoppers” are
excluded from the warranty.
Note: Waste and liquids may not be burnt in the stove.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
10
Technology
Your new pellet stove is technologically advanced as a result of years of tests in the laboratory and in practice.
The practical advantages of your pellet stove are convincing:
Operating Comfort – Operational Reliability
The electronic monitoring device together with a combustion temperature monitoring device controls and
regulates the interplay of the flue gas fan, conveyor auger and temperature. This monitoring system guarantees
an optimum combustion and operating mode. Your operating outlay is reduced to the most necessary - this
prevents operating faults whilst working in an optimum fashion at the same time.
The flame and drive motor noises permissible for the living space are therefore audible during operation.
Highest Efficiency – Lowest Emissions
A very large heat exchanger surface together with optimum combustion air control leads to very good fuel
usage.
Finely metered pellet feed in an optimised burner pot made from high quality grey cast iron effects almost
perfect combustion with very good exhaust gas values - and this is guaranteed in every operating phase.
Automatic Safety Function
Power Failure (during heating operation)
After a power failure the operating functions that were set before the power failure are continued.
After a brief power failure, the operating functions set prior to the failure are continued. If the power failure
lasts longer, the stove goes to start phase (display START) as long as sufficient temperature or embers are
present. If the power failure lasts too long, the stove goes to STOP phase (display STOP – lasts approx. 10
minutes). Re-start is then performed automatically (display IGNIT).
Power Failure (during the start phase)
The start procedure is continued after a brief power failure. If the power failure lasts longer and there are
no embers available, then the stove goes to STOP phase. In the STOP phase (display STOP – lasts approx. 10
minutes) only the blower runs to burn off any pellet residues. Re-start is then performed automatically (display
IGNIT).
Overheating
A temperature safety switch (STB) switches the stove off automatically if it overheats. After the stove has
cooled down the STB must be reset manually. The pellet stove can now be operated manually (or by means of
a timer program) and it then goes into the regulating program again.
CAUTION: If overheating has occurred then maintenance or cleaning work must be carried out.
Low Temperature Switch Off
If the stove cools down below a minimum temperature, then the stove will switch off. This switch off can also
occur if pre-heating is too late.
Electric Excess-Current Shut Off
The device is protected against excess current by a main fuse (on the rear of the device), (data as per “Technical
Specification”).

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
11
Electrical Connection
The stove is supplied with an approx. 2.5 m long connecting cable with a plug. This cable is to be connected
to a 230 Volt, 50 Hz electrical connection. The average electric power consumption is approx 100 watts during
heating.
During the automatic ignition process (duration 10 minutes) approx. 350 watts. The connection cable must be
laid so that any contact with hot or sharp edged external surfaces on the stove is avoided.
Combustion Air
Each combustion procedure requires oxygen or air. As a rule this combustion air is removed from the living
area for individual stoves. The air taken from the living area must be reintroduced. In modern houses, very
tight fitting windows and doors mean that too little air flows back. This situation becomes problematic due
to additional ventilation in the house (e.g. in the kitchen or WC). Your qualified installing engineer will fit
a suitable air brick/vent to ensure that the stove is supplied with enough free air as required by Building
Regulations. A fresh air kit can be fitted directly to the stove, which will reduce the chance of draughts but still
supply the free air for combustion.
Feed of External Combustion Air (Fresh Air Kit)
Steel, high temperature or aluminium pipes can be used.
Minimum diameter 10 cm/4 inches.
The pipe should not be longer than approx. 4 m to guarantee adequate air feed and not have too many
bends.
Should the line lead into the open air, it must end with a windguard (supplied with the fresh air kit).
Make sure the supply air opening does not “ice over” during extremely cold periods (inspection).
Further it is possible to extract the combustion air directly from outside or from another room that is well
ventilated (e.g. the cellar).
Should one or more of these conditions not be applicable then usually poor combustion will occur in the stove,
as well as a vacuum in the room.
Fresh air vent kit through wall showing minimum access for cleaning “x”
x

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
12
Disassembly of Panels
CAUTION:
Only work on the stove when the mains plug has been removed from the socket.
During assembly do not drop any items (screws) etc. into the fuel container - they can block the conveyor
auger and damage the stove.
Your stove must be switched off and have cooled down before carrying out any work on it.
Disassembly of Steel, Stone and Ceramic Casing Panels
(for part numbers refer to the spare parts overview on pages 6-7)
1. Open the combustion chamber door (part 34).
2. Raise the top casing panel slightly (depending on version, part
45/58/60).
3. Now carefully shift the top casing panel to the rear until the 4
mounting screws are no longer located in the panel. Turn the casing
panel carefully under the convection fins (part 56).
Fig. 1 – Opening the combustion
chamber door
Fig. 2 - Raising the top casing panel
Fig. 3 - Turning the top casing panel

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
13
4. Turn the casing panel to the front and pull the panel out from
underneath the convection fins.
Place the casing panel on a soft surface.
5. Raise the bottom casing panel slightly (depending on version,
part 43/57/59) and shift the panel out to the front.
Place the bottom casing panel on a soft surface.
6. Use an appropriate Allen key to undo the front and rear flat head screws which are used to secure the left-
hand (part 42) and right-hand casing covers (part 41).
7. When removing the right-hand casing cover pay attention to the control panel wiring. Disconnect the control
panel (part 47) before completely removing the right-hand casing cover.
Place both of the casing covers on a soft surface.
Fig. 4 - Turning and removing the top
casing panel
Fig. 5 - Removing the bottom casing
panel
Fig. 6,7 - Loosening the mounting screws
Fig. 7 - Control panel wiring

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
14
8. Use an appropriate socket wrench to undo the 4 hexagon bolts which are used to secure the convection fins
in place (part 56) and lay the convection fins on a soft surface.
9. Use an appropriate socket wrench to undo the remaining 2
hexagon bolts (one in the front, one in the rear) which are used
to secure the left and right-hand side casing panels (depending
on version, part 48/51 or 50/52), and place the panels on a soft
surface.
Re-assemble the casing elements in reverse order.
Exercise extreme caution during disassembly and/or assembly to
ensure you do not scratch or damage the casing panels.
Operation
Basic Information
The stove must only be started when fully fitted.
Your pellet stove is exclusively for burning pellets made from wood of a controlled quality. Non-pelletised
solid fuels (straw, maize, chopped matter etc.) are not permitted. Failure to adhere to these guidelines will
make all guarantee and warranty claims null and void and could have a negative effect on the safety of
your stove.
When operated correctly your pellet stove cannot overheat. Improper operation can however shorten the
life expectancy of the electric stove components (fan, motors and electric control) and is not permitted.
Control and Internal Control Unit - Function
(Part 47 – pages 6/7)
Your pellet stove is fitted with a modern programmable microprocessor control. The user can preset the individual
stove functions via the internal control unit (keypad with operating display) fitted at the top of the right hand
stove panel. The control (main board) and the control board may only be altered by trained specialist dealers
or the service department. Improper handling of these parts leads to the guarantee and warranty becoming
null and void.
Internal Control Unit
All settings and functions can be regulated via this unit.
The display is illuminated when touched. After some seconds the display
lighting turns off again.
Fig. 8 – Removing the convection fins
+-
Menu

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
15
Over View of Heating Modes
Easy Mode
In the easy mode, the stove is simply switched on and off using the (power) key. The output of the stove can
be altered in 5% increments from 30-100%.
Comfort Modes (require connection of Rika room sensor or Rika wireless room sensor).
Heat Mode
This mode corresponds to the Easy Mode from basic operation, in which the heat output of the stove can be
increased or decreased in 5% increments.
Room
In “Room” mode the heat output of the stove cannot be changed and is regulated by the electonic control. You
do not need to worry about whether the stove heats up or not, the Rika room thermostat takes care of this
depending on the prevailing temperature in the room.
Auto Mode
In “Auto” mode you have the additional possibility of calling up the set comfort temperature for two pre-
set heating times each day or weeks automatically. In the time periods between the heating times a low
temperature that you set is maintained.
The heat output of the stove is regulated by the Rika room sensor.
Simple Heating Operation – Easy Mode – The First Steps
Software Version 1.32
Your stove is in simple heating mode EASY OFF when delivered in order to ease your start in the world of RIKA
pellet stoves. The heat output of the stove can be increased or reduced in 5 % increments in this mode. As soon
as the stove is connected to the socket, the standard display EASY OFF appears. The message “CHECK” appears
in the display as soon as your pellet stove is connected to the power supply (even after a power failure). The
display buttons are disabled for approx. 10 seconds as the stove conducts an initialisation of all components.
When “CHECK” disappears from the display the stove can be started up. This procedure only occurs in the
“EASY” and “HEAT” mode.
C H E C K
E A S Y
O F F
H E A T
O F F
“CHECK” appears in the display
whenever the stove is re-supplied
with power.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
16
Easy Off – Inactive State
Key Display Description
EASY
OFF
Standard display for stove
switched off in simple
heating mode.
The output can also be
regulated between 30%
and 100% with the stove
switched off (EASY 30 –
EASY 100).
EASY
45
Pressing increases
output by 5%
EASY
35
Pressing decreases
output by 5%
+
+
Start – Ignition Process
The ignition process may take approx. 5 – 8 minutes
until the first flame is visible (depending on how clean
the fire crucible is).
If the 1st ignition attempt is unsuccessful, a 2nd
attempt is started automatically. This may occur if
the screw conveyor is not completely full during the
ignition process (e.g. first start after refilling empty
container).
Please observe:
In the event of false start, completely empty fire
trough and dispose of unburned pellets and ash.
Never replace unburned pellets from the fire pot in
the supply container.
FIRE HAZARD DUE TO RESIDUAL EMBERS.
Key Display Description
IGNITE
START
EASY 35
Pressing starts the
unit.
This is shown by IGNITE in
the display; this is replaced
by START after a brief time.
EASY xx appears in the
display after the start
phase
(xx stands for a value
between 30% and 100%,
depending on output)
If switching off occurs again 50 sec. within switching
on ( key) (at least 2 sec. key), the pellet
stove returns to inactive status.
If switching off occurs during the ignition process
(IGNIT or START) (at least 2 sec. key), IGNIT OFF
or START OFF appears in the display and the burn-out
phase is initiated (duration approx. 10 min).
Easy 40 – Operation
Key Display Description
EASY
40
Standard display for stove
switched on in simple
heating mode. (40 is the
output in %)
EASY
45
Pressing increases
output by 5%
EASY
40
Pressing decreases
output by 5%
+
+
Easy 40 – Switch Off
Key Display Description
STOP
EASY
OFF
Pressing initiates the
burn-out phase.
The unit switches off after
completion of the burn out
phase.
+
I G N I T
E A S Y
5 0
S T A R T
E A S Y
O F F
Change heat output by
pressing the + or – key
(change in 5 % increments)

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
17
Extended Heating Operation – Heat Mode – Comfort Functions
In addition to the basic functions of simple heating operation, the RIKA pellet stove provides extra comfort
functions. However, before you can use the comfort functions such as frost protection, installation of an external
room thermostat, regulation of the stove mobile telephone, child safety device, you have to change from
simple heating to comfort mode.
Key Display Description
EASY
OFF Standard display for stove switched off in simple heating mode.
Pressing for at least 5 seconds changes to HEAT mode. The change is also shown
in the display as confirmation.
HEAT
OFF
Standard display for stove switched off in extended heating mode. (comfort functions can
now be selected)
Pressing once changes to display MODE
MODE You can select one of three possible stove comfort functions. (the menu item Mode is only
active in connection with the RIKA room sensor or the RIKA wireless room sensor).
Pressing once takes you to the comfort function selection and you can change
between the individual comfort functions using keys and .
HEAT
AUTO
ROOM
Pressing again confirms the comfort function currently visible HEAT, AUTO or
ROOM.
+
Menu
Menu
Menu
Menu
Display panel
Display of respective
operating status
Switch between EASY and HEAT modes
Press Menu key for at least 5 seconds.
I G N I T
E A S Y
5 0
S T A R T
E A S Y
O F F
Change heat output by
pressing the + or – key
(change in 5 % increments)
+
I G N I T
H E A T
5 0
S T A R T
H E A T
O F F
Change heat output by
pressing the + or – key
(change in 5 % increments)
+
Menu
Menu
H E A T
R O O M
A U T O
M O D E
Selection of comfort function
required HEAT/AUTO/ROOM
by pressing the I/O key.
Comfort functions
Menu item Mode only active in
connection with the RIKA room
sensor or the RIKA wireless
room sensor.
+
+

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
18

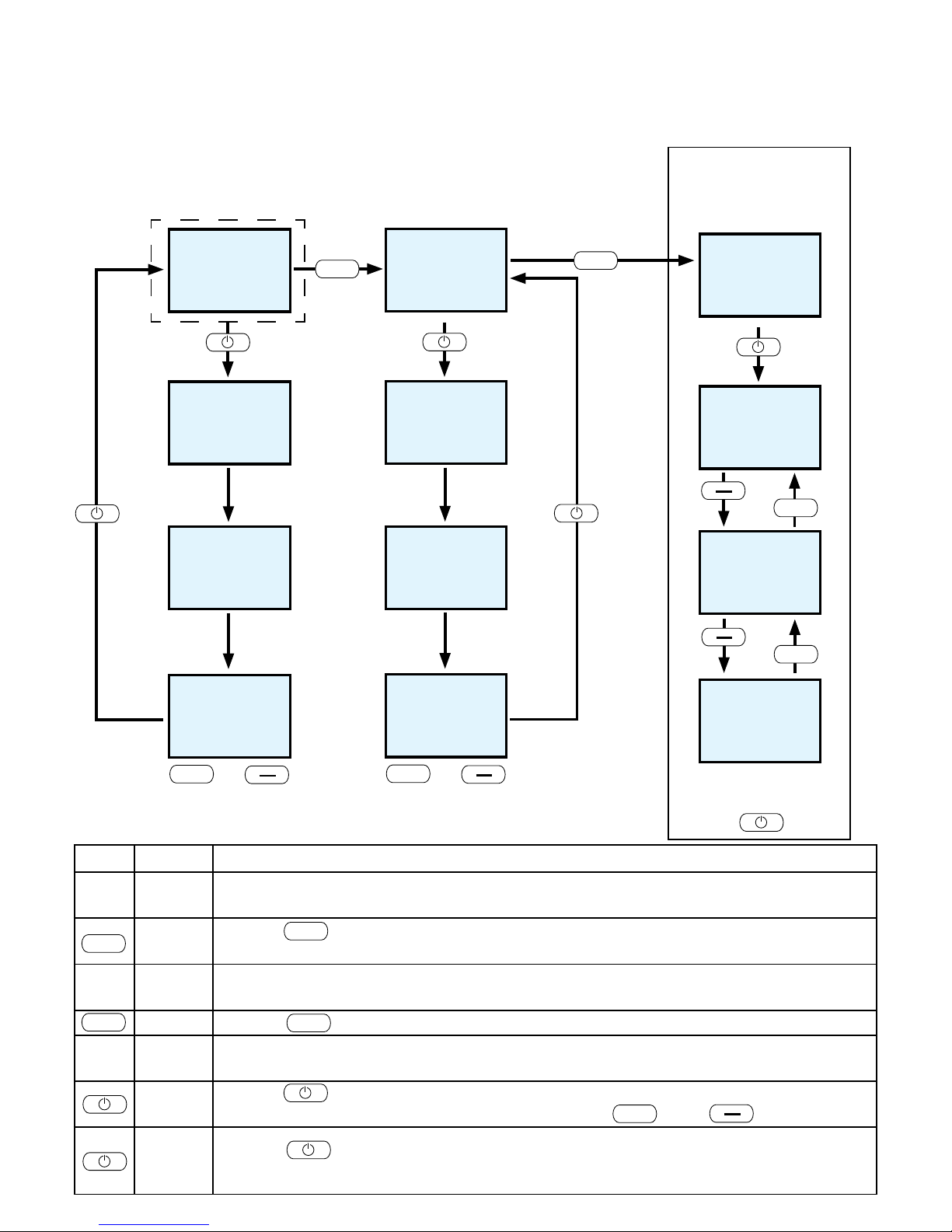

Menu Structure and Main Menu Level Software Version 1.32
Menu item Mode only active in
connection with the RIKA room sensor
or the RIKA wireless sensor
Switch between EASY
and HEAT modes
Press Menu key for
at least 5 seconds
M O D E
E A S Y
O F F
T I M E
H E A T
O F F
Menu
Menu
Menu
S E T U P
Menu
I N F O
Menu
Menu
Key Display Description
EASY
OFF Standard display for stove switched off in simple heating mode.
Pressing for at least 5 seconds changes to HEAT mode. The change is also shown in
the display as confirmation.
HEAT
OFF Standard display for stove switched off in extended heating mode.
Pressing once changes to display MODE
MODE
You can select one of three possible stove comfort functions. (The menu item Mode is only
active in connection with the GSM option, the RIKA room sensor and/or the RIKA wireless
room sensor active, also see “Extended heating operation – comfort functions”).
Pressing once changes to display TIME
TIME Settings regarding the time are made here. (Heating time is only available with RIKA room
sensor or RIKA wireless room sensor).
Pressing once changes to display SETUP
SET UP All the additional functions can be regulated here.
Pressing once changes to display INFO
INFO Access to information menu, various system parameters, temperatures and operating
information can be called up here.
Pressing once changes to display HEAT OFF
HEAT
OFF Standard display for stove switched off in extended heating mode.
Pressing for at least 5 seconds changes to EASY mode. The change is also shown in
the display as confirmation.
EASY
OFF Standard display for stove switched off in simple heating mode.
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Pressing once on the respective main menu items MODE, TIME, SETUP and INFO selects the submenu
items.
The individual main menu items TIME, SETUP and INFO are explained in more detail on the next pages.
The menu navigation described above remains the same during operation. The respective heat output set is
shown in the display instead of EASY OFF or HEAT OFF. For example EASY 30 or HEAT 30.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
19

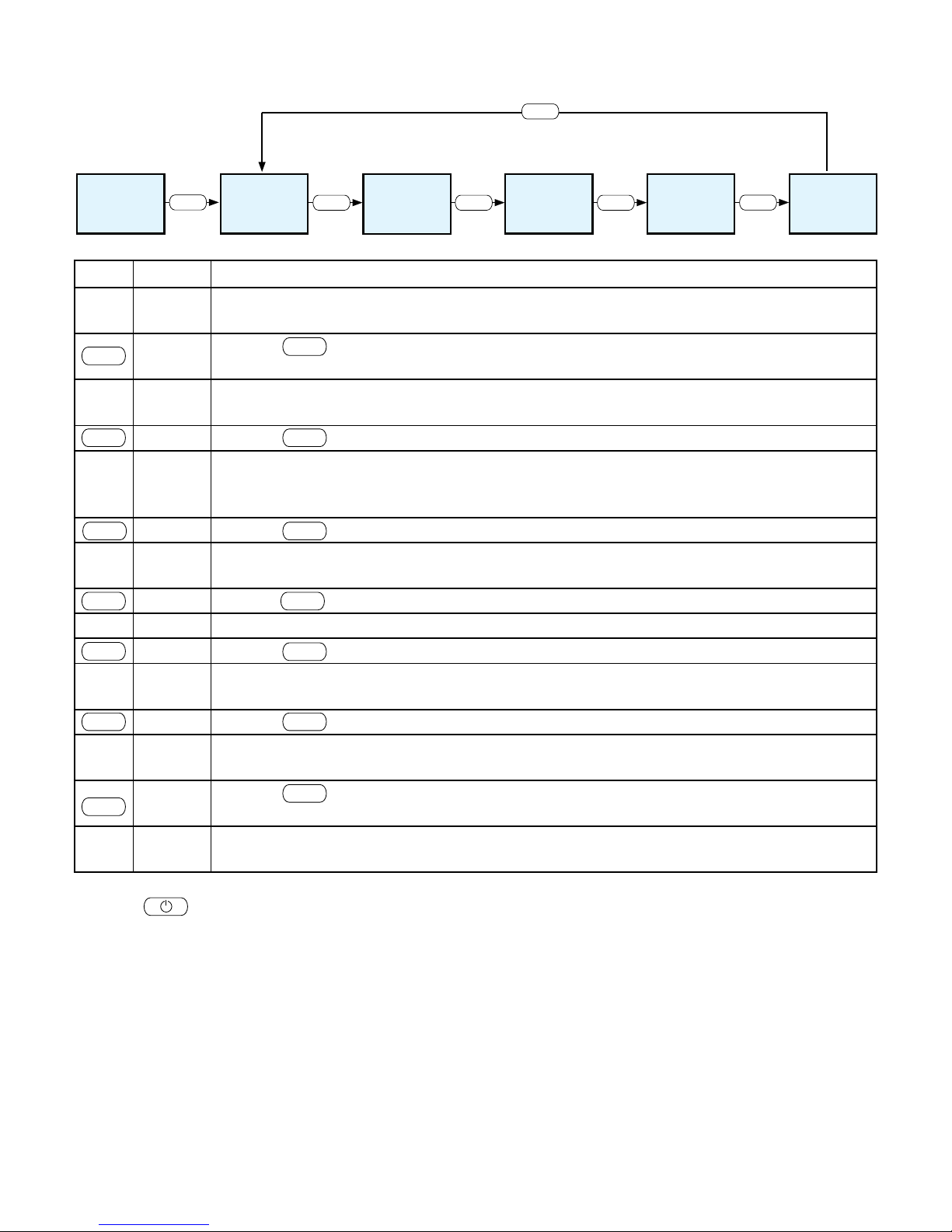

Main Menu Time – Time Adjustment Software Version 1.32
The TIME AUTO display box is only
visible in connection with the RIKA room
or and/or the RIKA wireless room
sensor. Pressing the I/O key takes you
to the submenu of the
time programming
T I M E
A U T O
T I M E
S E T
+
D A Y
0 1
13:15
Set the year using
the + or – key
Menu
T I M E
Menu
Menu
Heating time
M O N T H
0 1
Menu
Y E A R
2 0 0 9
Menu
T H
1 : 0
Menu
+
Set the month using
the + or – key
+
Set the day using
the + or – key
+
Set hours and minutes using
the + or – key
Menu
Key Display Description
TIME Display to enter the control level for time adjustment.
TIME
SET All the settings concerning time, date and heating time (optional) are made here.
00:00 Setting the time.
Hour display is changed using , minute display using .
DAY
01 Setting the day. Display is changed using and .
MONTH
01 Setting the month. Display is changed using and .
YEAR
2009 Setting the year. Display is changed using and .
TH
1:0 The actual day is shown in the display as confirmation.
TIME
SET Back to TIME SET.
( ) (TIME)
(AUTO)
(Setting the heating times. The menu item TIME AUTO only appears in connection with
the RIKA room sensor and the RIKA wireless room sensor).
(Please see the operating instruction enclosed for the option for setting the heating
times).
TIME Back to TIME.
Repeated pressing of returns you to the main menu level.
Menu
Menu
Menu
Menu
Menu
Menu
Menu
Menu
+
+
+
+
Menu
ATTENTION:
Summer and winter time is
not changed automatically.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2011 Instructions Part Number IN1230 Ed 1
20
Main Menu Setup – Additional Functions Software Version 1.32
+
F R O S T
O F F
G S M
S E T
E X T
O F F
S E T U P
The frost protection is activated or deactivated by
using the + or – key. The frost protection function
is only active in connection with a room thermostat.
C - F A N
O F F
R E S E T
- 1 0 -
L O C K
O F F
R O O M
S E T
Menu
Menu
Menu
Menu
Menu
Menu
+
The external request is activated or deactivated by
using the + or – key. The external request function
is only active in connection with a room thermostat.
G S M
S E T
O K
2 2 ° C
Menu
+
The deviation in the actual temperature of the
room sensor is changed using the + or – key.
(adjustment range is +/- 4 °C).
+
The C-Fan function is switched on or off
by using the + or – key.
+
The lock function is switched on or off
by using the + or – key.
All the parameters set are reset to factory
values by using the I/O key.
