Euromaid ECD700W User manual

User Manual
Description 7KG Condenser Dryer
MODEL NO. ECD700W

ECD700W 7KG Condenser Dryer Page 2
Contents Page
1. Important instructions for safety and environment PG 4
1.1 General Safety Pg 4
1.1.1 Electricity Safety Pg 5
1.1.2 Product Safety Pg 6
1.2 Mounting over a washing machine Pg 9
1.3 Intended use Pg 10
1.4 Child safety Pg 10
1.5 Compliance with the WEEE regulation & disposing of the waste product Pg 11
1.6 Compliance with RoHS Directive: Pg 11
1.7 Package information Pg 11
1.8 Technical specifications Pg 12
2. Your Dryer PG 13
2.1 Overview Pg 13
3. Installation PG 14
3.1 Appropriate installation location Pg 14
3.2 Removing the transportation safety assembly Pg 14
3.3 Connecting the water drain hose for models with the water tank at the bottom Pg 14
3.4 Adjusting the feet Pg 15
3.5 Transportation of the dryer Pg 15
3.6 Changing the illumination lamp Pg 15
4. Preperation PG 16
4.1 Laundry suitable for drying in the dryer Pg 16
4.2 Laundry not suitable for dying in the dryer Pg 16
4.3 Preparing laundry for drying Pg 16
4.4 Things to be done for energy saving Pg 16
4.5 Correct load capacity Pg 16
5. Operating the product PG 18
5.1 Control panel Pg 18
5.2 Symbols Pg 18
5.3 Preparation of Dryer Pg 18
5.4 Programme selection and consumption table Pg 19
5.5 Auxiliary functions Pg 21
5.6 Warning indicators Pg 21
5.7 Starting the program Pg 21
5.8 Child lock Pg 21
5.9 Changing the program after it is started Pg 22
5.10 Cancelling the program Pg 22
5.11 End of program Pg 23
6. Maintenance and cleaning PG 24
6.1 Unit filter / loading door inner surface Pg 24
6.2 Cleaning the sensors Pg 24
6.3 Draining the water tank Pg 25
6.4 For the condenser Pg 25
7. Troubleshooting PG 27
8. Manufacturer Guarantee PG 29

Page 3ECD700W 7KG Condenser Dryer
Please read this user manual first!
Dear Customer,
Thank you for prefering a Euromaid product. We hope that your product which has been
manufactured with high quality and technology will give you the best results. We advise you
to read through this manual and the other accompanying documentation carefully before
using your product and keep it for future reference. If you transfer the product to someone
else, give its manual as well. Pay attention to all details and warnings specified in the user
manual and follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Read the instructions.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Warning against scalding hazard.
Packaging materials of the product are manufactured from recyclable materials in
accordance with our National Environment Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard
them to the dedicated collection points designated by the local authorities.
This product was manufactured using the latest technology in environmentally friendly conditions.

ECD700W 7KG Condenser Dryer Page 4
3 / EN
Dryer / User Manual
1Important instructions for safety and
environment
This section contains safety instructions that will help
protect from risk of personal injury or property damage.
Failure to follow these instructions shall void any warranty.
1.1 General safety
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be kept away unless continously
supervised.
• Adjustable feet should not be removed. The gap between
the dryer and the floor should not be reduced with
materials such as carpet, wood and tape. This will cause
problems with the dryer.
• Always have the installation and repairing procedures
carried out by the Authorized Service. Manufacturer
shall not be held liable for damages that may arise from
procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto
it!There is the risk of electric shock!
For the products with a steam function:
• Use only distilled water or water condensed in the water
tank of the machine in steam programs. Do not use mains
water or additives. When using condensed water in the
water tank, it should be filtered and cleared of fibres.
• Do not open the door when steam programs are running.
Hot water may be expelled.

Page 5ECD700W 7KG Condenser Dryer
4 / EN Dryer / User Manual
Important instructions for safety and
environment
• Before putting laundry in a steam program, stains on it
should be removed.
• You may only put laundry that is not dirty or stained
but permeated with unpleasant odour in steam (odour
removal) program.
• Do not use any dry cleaning sets or additional materials in
a steam program or in any program.
1.1.1 Electrical safety
AElectrical safety instructions should be followed
while electrical connection is made during the
installation.
AThe appliance must not be supplied through an
external switching device, such as a timer,or
connected to a circuit that is regularly switched on
and off by utility.
• Connect the dryer to a grounded outlet protected by a
fuse at the value specified on the type label. Have the
grounding installation performed by a qualified electrician.
Our company shall not be liable for any damages that
will arise when the dryer is used without grounding in
accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the
type label plate.
• The voltage specified on the type label must be equal to
your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation,
maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by
pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to
connect the dryer to power supply in order to decrease the
risk of fire and electric shock.

ECD700W 7KG Condenser Dryer Page 6
5 / EN
Dryer / User Manual
Important instructions for safety and
environment
• Power cable plug must be easily accessible after
installation.
B
BIf the dryer is faulty, it must not be operated unless
it is repaired by an authorized service agent! There is
the risk of electric shock!
1.1.2 Product safety
Superheating of the clothes inside of the dryer can
occur if you cancel the programme or in the event
of a power failure whilst the dryer is running, this
concentration of heat can cause self-combustion and
fire so always activate the ventilation programme
to cool down or quickly remove all laundry from the
dryer in order to hang them up and dissipate the
heat.
Points to be taken into consideration for fire
hazard:
Below specified laundry or items must not be dried in
the dryer considering fire hazard.
• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil,
kerosene, stain removers, turpentine, paraffin or
paraffin removers must be washed in hot water
with plenty of detergent before being dried in the
dryer.
For this reason especially the items containing the
above specified stains must be washed very well, to
do this use adequate detergent and choose a high
washing temperature.
If the supply cord is damaged, it must be replaced by the
manufacturer or an authorised service agent or similarly
qualified persons in order to avoid a hazard.

Page 7ECD700W 7KG Condenser Dryer
6 / EN Dryer / User Manual
Important instructions for safety and
environment
Below specified laundry or items must not be
dried in the dryer due to the fire hazard:
• Garments or pillows bolstered with rubber foam
(latex foam), shower bonnets, water resistant
textiles, materials with rubber reinforcement and
rubber foam pads.
• Clothing cleaned with industrial chemicals.
Items such as lighter, match, coins, metal parts,
needle etc. may damage the drum set or may lead to
functional problems. Therefore check all the laundry
that you will load into your dryer.
Never stop your dryer before the programme
completes. If you must do this, remove all laundry
quickly and lay them out to dissipate the heat.
Clothes that are washed inadequately may ignite on
their own and even may ignite after drying ends.
Oil-affected items can ignite spontaneously,
especially when exposed to heat sources such as in
a tumble dryer. The items become warm, causing an
oxidation reaction in the oil. Oxidation creates heat.
If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-
affected items can prevent heat from escaping and
so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first
be washed in hot water with extra detergent - this
will reduce, but not eliminate, the hazard.
• You must provide enough ventilation in order to prevent
gases exiting from devices operating with other types of
fuels including the naked flame from accumulating in the
room due to the back fire effect.

ECD700W 7KG Condenser Dryer Page 8
7 / EN
Dryer / User Manual
Important instructions for safety and
environment
AUnderwear that contains metal reinforcements
should not be dried in the dryer. Dryer may be
damaged if metal reinforcements come loose and
break off during drying.
CUse softeners and similar products in accordance
with the instructions of their manufacturers.
CAlways clean the lint filter before or after each
loading. Never operate the dryer without the lint
filter installed.
• Never attempt to repair the dryer by yourself. Do not
perform any repair or replacement procedures on the
product even if you know or have the ability to perform
the required procedure unless it is clearly suggested in the
operating instructions or the published service manual.
Otherwise, you will be putting your life and others’ lives in
danger.
• There must not be a lockable, sliding or hinged door that
may block the opening of the loading door in the place
where your dryer is to be installed.
• Install your dryer at places suitable for home use.
(Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the
inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is
open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the
tumble dryer
• The tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
• Fabric softeners, or similar products.should be used as
specified by the fabric softener instructions.

Page 9ECD700W 7KG Condenser Dryer
8 / EN Dryer / User Manual
Important instructions for safety and
environment
• Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas or
other fuels.
• The final step of the drying cycle (cool-down cycle) occurs
without applying heat to ensure that the items are left at a
temperature that will not damage them.
1.2 Mounting over a washing machine
• A fixing device should be used between the two machines
when installing the dryer above a washing machine. The
fitting device must be installed by the authorized service
agent.
• Total weight of the washing machine and the dryer -with
full load- when they are placed on top of each other
reaches to approx. 180 kilograms. Place the products on a
solid floor that has sufficient load carrying capacity!
AWashing machine cannot be placed on the dryer.
Pay attention to the above warnings during the
installation on your washing machine.
Installation Table for Washing Machine and Dryer
Dryer
Depth
Washing Machine Depth
62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm Can be installed Can be
installed Cannot be
installed
60 cm Can be installed Cannot be
installed

ECD700W 7KG Condenser Dryer Page 10
9 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.3 Intended use
• Dryer has been designed for domestic use. It is not suitable
for commercial use and it must not be used out of its
intended use.
• Use the dryer only for drying laundry that are marked
accordingly.
• The manufacturer waives any responsibility arisen from
incorrect usage or transportation.
1.4 Child safety
• Packaging materials are dangerous for the children. Keep
packaging materials away from children.
• Electrical products are dangerous for the children. Keep
children away from the product when it is operating. Do
not let them tamper with the dryer. Use the child-proof
lock in order to prevent the children to tamper with the
dryer.
CChild-proof lock is on the control panel.
(See Child lock)
• Keep loading door closed even when the dryer is not in
use.

Page 11 ECD700W 7KG Condenser Dryer
10 / EN Dryer / User Manual
Important instructions for safety and
environment
1.5 Compliance with the WEEE regulation
and disposing of the waste product
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic equipment
(WEEE).
This product has been manufactured with high
quality parts and materials which can be reused and are
suitable for recycling. Do not dispose of the waste product
with normal domestic and other wastes at the end of its
service life. Take it to the collection center for the recycling
of electrical and electronic equipment. Please consult your
local authorities to learn about these collection centers.
1.6 Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS
Directive (2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
1.7 Package information
Packaging materials of the product are manufactured
from recyclable materials in accordance with our National
Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes. Take
them to the packaging material collection points designated
by the local authorities.

ECD700W 7KG Condenser Dryer Page 12
11 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.8 Technical Specifications
EN
Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 54 cm
Capacity (max.) 7 kg**
Net weight (± 4 kg) 34 kg
Width
See type label***Voltage
Rated power input
* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened
maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading door.
CTechnical specifications of the dryer are subject to
specification without notice to improve the quality of
the product.
CFigures in this manual are schematic and may not
match the product exactly.
C
Values stated on markers on the dryer or in the other
published documentation accompanying with the
dryer are obtained in laboratory in accordance with
the relevant standards. Depending on operational and
environmental conditions of the dryer, these values
may vary.

Page 13ECD700W 7KG Condenser Dryer
12 / EN Dryer / User Manual
2 Your Dryer
2.1 Overview
11
10
1
2
3
4
5
6
7
8
9

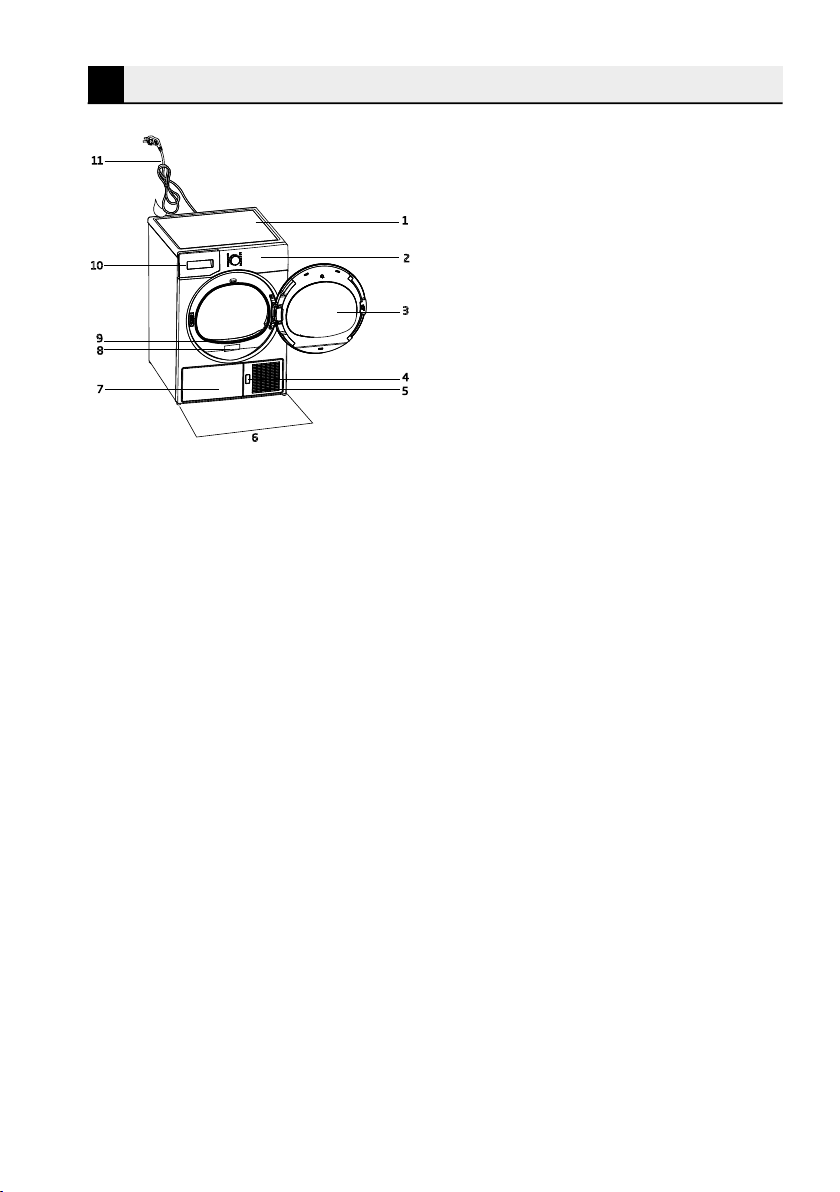

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. Kick plate
8. Type label
9. Lint filter
10. Water tank drawer
11. Power cord

ECD700W 7KG Condenser Dryer Page 14
13 / EN
Dryer / User Manual

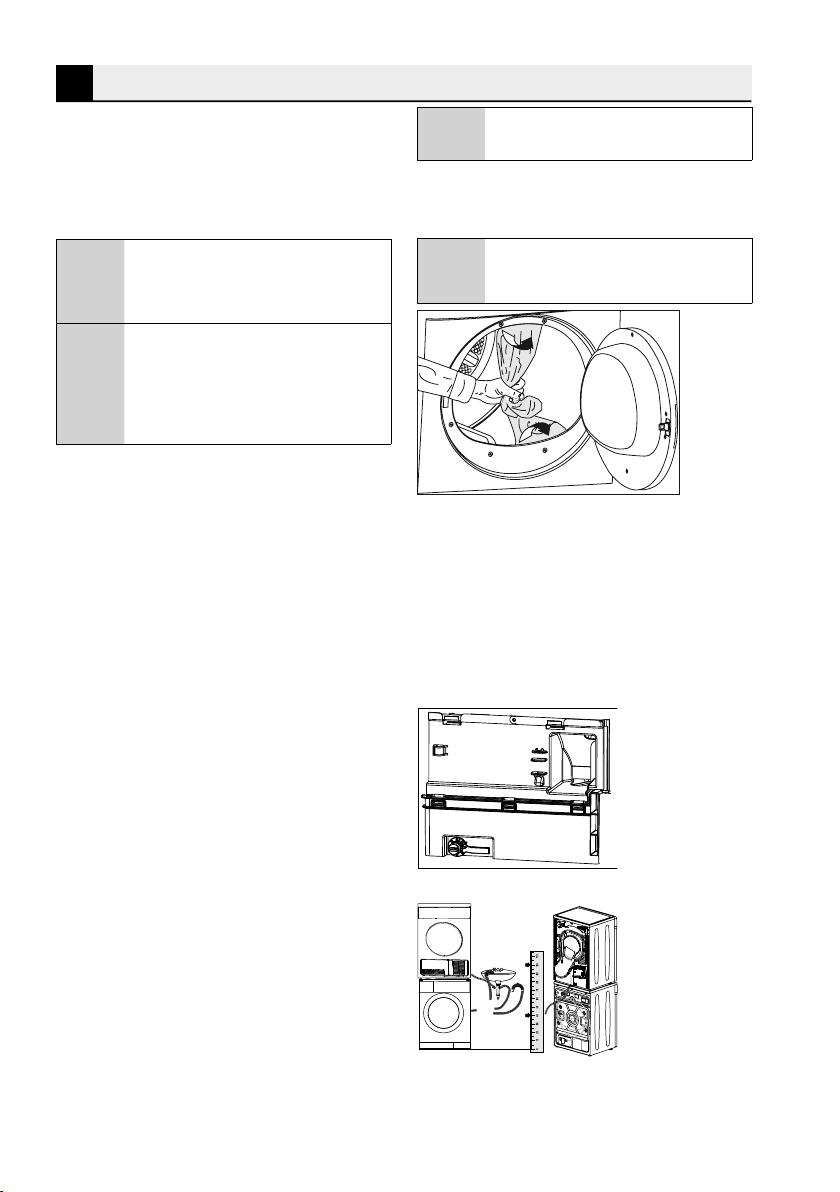

3Installation
Before the calling the nearest Authorized
Service for the installation of the dryer,
ensure that electrical installation and water
drain is appropriate referring to the user’s
manual. If they are not suitable, contact a
qualified electrician and technician to make
necessary arrangements.
CPreparation of the dryer's location
as well as the electrical and
waste water installations is under
customer's responsibility.
APrior to installation, visually check
if the dryer has any defects on
it. If the drier is damaged, do
not have it installed. Damaged
products cause risks for your
safety.
3.1 Appropriate installation
location
Install the dryer on a stable and level surface.
Dryer is heavy. Do not move it by yourself.
• Operate your dryer in a well ventilated,
dust-free environment.
• The gap between the dryer and the
surface should not be reduced by the
materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the
dryer.
• There must not be a lockable, sliding or
hinged door that may block the opening
of the loading door in the place where
your dryer is to be installed.
• Once the dryer is installed, it should stay
at the same place where its connections
have been made. When installing the
dryer, make sure that its rear wall does
not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from
the edges of other furniture.
• Your dryer can be operated at
temperatures between +5°C and +35°C.
If the operating conditions fall outside
of this range, operation of the dryer
will be adversely affected and it can get
damaged.
• The rear surface of the tumble dryer
shall be placed against a wall.
BDo not place the dryer on the
power cable.
3.2 Removing the
transportation safety
assembly
ARemove the transportation safety
assembly before using the dryer
for the first time.
3.3 Connecting the water
drain hose for models with the
water tank at the bottom;
Connection pipe to water drain is at the
bottom rear of your machine.
• 1. Remove the bracket and the rubber
cap.
• 2. Attach the drain hose and replace the
bracket to its position.

Page 15ECD700W 7KG Condenser Dryer
14 / EN Dryer / User Manual
Installation
Important:
CDuring full capacity usage, it is
advised to use the machine with
direct drain connection, since the
machine may pause with flashing
water tank warning symbol.
CMake sure that the discharge
hose is tight after it is connected
to the drain in order to obtain
a better water flow since the
machine is not equipped with a
pump. You can cut and shorten
the hose to adjust its length if
necessary.
CThe end of the hose should
never be higher than the level of
the water outlet on the machine.
Otherwise, the “tank full” light of
your machine will illuminate and
stop the programme.
CIf the dryer is mounted on the
washing machine by means
of a bracket, use of the water
drain hose is recommended. The
drain hose should be directed
downwards as shown in the
figure.

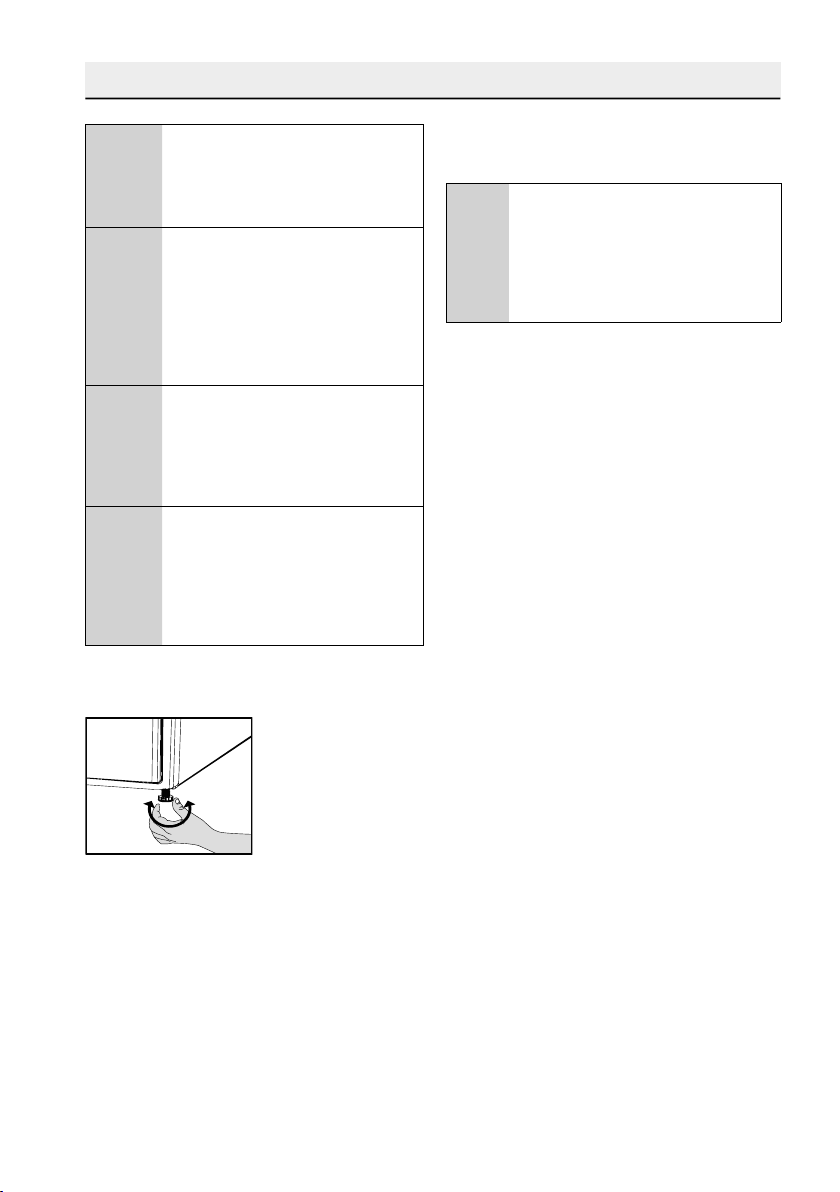

3.4 Adjusting the feet
• Turn the feet to left or right until the
dryer stands level and firmly.
3.5 Transportation of the dryer
Drain all water that has remained in the dryer.
If direct water drain connection is made, then
remove the hose connections.
A
We recommend carrying the
dryer in upright position. If it is
not possible to carry the machine
in the upright position, we
recommend carrying it by tilting
towards the right side when
looked from the front.
3.6 Changing the illumination
lamp
In case an illumination lamp is used in your
laundry dryer.To change the Bulb/LED used
for illumination of your tumble dryer, call your
Authorized Service.The lamp(s) used in this
appliance is not suitable for household room
illumination. The intended purpose of this
lamp is to assist the user to place laundry
in the tumble dryer in a comfortable way.
The lamps used in this appliance have to
withstand extreme physical conditions such
as vibrations and temperatures above 50 °C

ECD700W 7KG Condenser Dryer Page 16
15 / EN
Dryer / User Manual

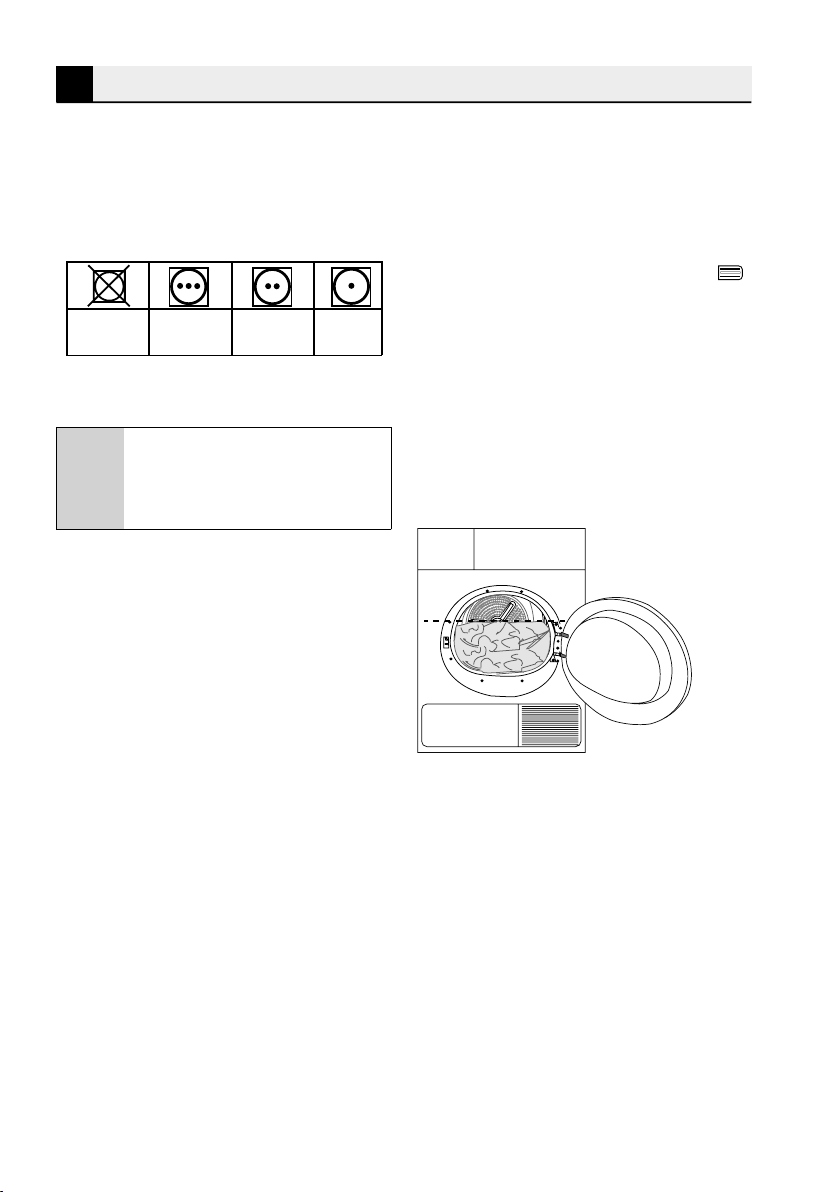

4Preparation
4.1 Laundry suitable for drying
in the dryer
Always obey the instructions given on the
garment tags. Dry only the laundry having a
label stating that they are suitable for drying
in a dryer and make sure that you select the
appropriate programme.
Do not dry with
dryer
At high
temperature
At medium
temperature
At low
temperature
4.2 Laundry not suitable for
drying in the dryer
CDelicate embroidered fabrics,
woollen, silk garments, delicate
and valuable fabrics, airtight
items and tulle curtains are not
suitable for machine drying.
4.3 Preparing laundry for
drying
• Laundry may be tangled with each other
after washing. Separate the laundry
items before placing them into the dryer.
• Dry garments having metal accessories
such as zippers, inside out.
• Fasten the zippers, hooks and buckles
and button sheets.
4.4 Things to be done for
energy saving
• Spin your laundry at the highest speed
possible when washing them. Thus, the
drying time is shortened and energy
consumption is reduced.
• Sort out the laundry depending on their
type and thickness. Dry the same type
of laundry together. For example thin
kitchen towels and tableclothes dries
earlier than thick bathroom towels.
• Follow the instructions in the user
manual for programme selection.
• Do not open the loading door of the
machine during drying unless necessary.
If you must open the loading door, do not
keep it open for a long time.
• Do not add wet laundry while the dryer is
in operation
• For models with a condenser unit: clean
the condenser once in a month or after
every 30 operations regularly. .
• For models with heat pump unit: clean
the filter drawer periodically when there
is a visible accumulation of fluff or when
the filter drawer cleaning indicator «
» lights up.
• For models with flue unit: comply with
the flue connection instructions and
clean the flue.
• During the drying process, air the
room well where your tumble dryer is
operating.
4.5 Correct load capacity
Follow the instructions in the “Programme
selection and consumption table”. Do not
load more than the capacity values stated in
the table.

Page 17ECD700W 7KG Condenser Dryer
16 / EN Dryer / User Manual
Preparation
Following weights are given as examples.
Laundry Approximate
weights (g)*
Cotton quilt covers
(double) 1500
Cotton quilt covers
(single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10
pieces) 100
T-Shirts 125
*Dry laundry weight before washing.

ECD700W 7KG Condenser Dryer Page 18
17 / EN
Dryer / User Manual

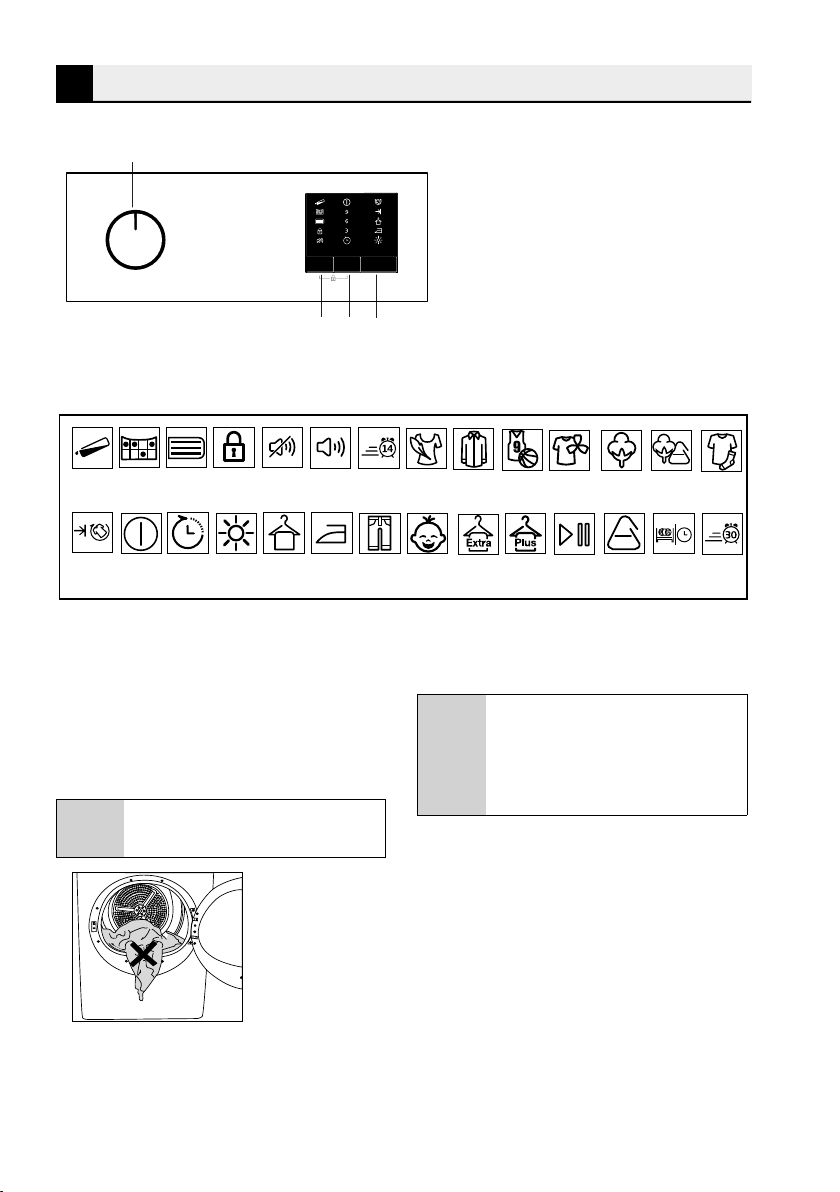

5 Operating the product
5.1 Control Panel
1. On/Off/Program selection
button
2. Start/Pause button
3. Delay Start button
4. Alarm button
5.2 Symbols
Volume up
Filter
cleaning
Tank
full
Child-proof
lock
Mute
Cleaning the
lter drawer /
Condenser
End/anti-
creasing
On/O Timer
Delay
Dryness
Level
Cupboard
Dry
Iron Dry
Express
14’
Delicates Shirts
Jeans BabyProtect Extra dry Cupboard
dry plus
Sport Freshen Up
Start
pause
cancel
Cottons
Synthetics
Mix
Express
30’
Drying Rack/
TimeDry
Daily
5.3 Preparation of Dryer
• Plug the dryer in.
• Open the loading door.
• Place the laundry in the dryer without
jamming them.
• Push and close the loading door.
AEnsure that no laundry is jammed
to the loading door.
Select the desired program using the On/
Off/Program selection knob, the machine will
turn on.
CSelecting a program using the
On/Off/Program selection
button does not mean that the
program started. Press the
Start / Pause button to start
the program.
1
2
34

Page 19ECD700W 7KG Condenser Dryer
18 / EN Dryer / User Manual
Operating the product
EN
Programmes Programme Description
Capacity (kg)
Spin speed
in washing
machine (rpm)
Drying Time
(minutes)
Cotton Iron Dry
You may dry your cotton laundry to be ironed in
this programme to have them slightly damp for
ease ofironing. (Shirt, T-shirt, tablecloth, etc.)
7 1000 105
Cotton Cupboard Dry
You may dry all your cotton laundry in this
programme.(T-shirt, pants, pyjamas, baby
clothes, underwear,linen, etc.) You can put your
laundry in the
wardrobe without ironing.
7 1000 125
Cotton Cupboard
Dry +
You may use this programme for extra dryness
in thick laundry such as pants, tracksuit.
You can put your laundry in the wardrobe
without ironing.
7 1000 135
Cotton Extra Dry
You may dry your thick cotton laundry in this
programme such as towels, bathrobe, etc. You
can put
your laundry in the wardrobe without ironing.
7 1000 145
Synthetic Iron Dry
You may dry your synthetic laundry to be ironed
in this programme to have them slightly damp
for ease of ironing. (Shirt, T-shirt, tablecloth,
etc.)
3,5 800 40
Synthetic Cupboard
Dry
You may dry all your synthetic laundry in
this programme. (Shirt, T-shirt, underwear,
tablecloth, etc.) You can put your laundry in the
wardrobe without ironing.
3,5 800 53
Sport
You may dry your sports clothes that
are appropriate for tumble drying in this
programme.
4 1000 92
Refresh
It just provides airing for 10 minutes without any
hot air. You can air the cotton and linen laundry
that have been stored for a long time , and
eliminate the odour in them.
- - 10
Time Programmes
You may select from time programmes between
10 and 30 and 60 minutes to achieve the
desired drying level at low temperature. In this
programme, tumble drier’s operation lasts for
the settime independently from the dryness of
laundry.
- - -
Hygienic Care Program used for baby clothing with can be
dried approval on the label. 3 1000 80
Jeans You may dry denim pants, skirts, shirts or jackets
in this programme. 4 1200 90
5.4 Programme selection and consumption table

ECD700W 7KG Condenser Dryer Page 20
19 / EN
Dryer / User Manual
Operating the product
* : Energy Label standard program (EN 61121:2012)
All the values on the chart are identified according to EN 61121:2012 standard. Consumption
values may vary from the values in the chart depending on laundry type, wringing speed,
ambient conditions and voltage levels.
Delicates Dries delicate items in a more sensitive
manner, and causes less creasing and easier
ironing.
2 600 45
Xpress 14 Dries shirts more delicately and thus causes less
wrinkles for easy ironing. 0,5 1200 14
Energy consumption values
Programmes Capacity (kg) Energy consumption value
kWh per year
Energy rating
star
Cotton Cupboard
Dry +7 310 2
* : Energy Label standard program (AS/NZS 2442) “All the filters must be cleaned prior to test
series.”
All values given in the table have been fixed according to standard laboratory conditions.
These values may deviate from the table according to the laundry type, laundry spin speed,
environmental conditions and voltage fluctuations.
During the performance test, the direct drain hose must be connected.Please see section 3.3
