EvaKool Adventure Kings User manual

Please read and understand these instructions and the
safety information section before using your refrigerator.
Adventure Kings WiFi Refrigerator
USER MANUAL

Adventure Kings WiFi Fridge Manual
CONTENTS
Safety Information 1
Notes on using the product 1
Instructions for use 2
Cleaning and maintaining your refrigerator 3
Using the Evakool application to view and change the fridge’s
temperature with your smart device. 4
Troubleshooting the Evakool application 12
General Troubleshooting 13
Error Codes 14

Adventure Kings WiFi Fridge Manual
page 1
SAFETY INFORMATION
• Do not touch any exposed cables or wires.
• Do not operate the fridge in wet or damp environments.
• Do not submerge the fridge in water.
• When using the fridge in a vehicle, make sure that the circuit being
used is fused.
• Any installation of DC power systems should be handled by a
qualified professional.
• Make sure the source voltage is correct. The technical data label
has the voltage data for the fridge.
• Ensure that the fridge is kept steady and secure as it can become
heavy when filled.
• A filled fridge may be heavy so be cautious when attempting to lift
it.
NOTES ON USING THE PRODUCT
• Good ventilation is necessary for the fridge. Allow a gap of at least
20cm around the vents to allow for airflow.
• If its power supply is cut off, the fridge will switch off automatically
and turn back on when it starts to receive power.
• Do not place any electrical devices inside the refrigerator as
moisture could harm them.
• Frost build-up can affect the cooling ability of the fridge. Humidity in
the unit can cause this frost.
• Placing your refrigerator near a heat source can reduce its efficiency
and heat up its contents. Make sure that you keep the fridge several
metres away from heat sources.
• Place the refrigerator on a flat surface and away from any edges.
When using the fridge in a vehicle, please use a fastening device to
secure it.

Adventure Kings WiFi Fridge Manual
page 2
INSTRUCTIONS FOR USE
TURNING ON THE REFRIGERATOR
1. Plug the fridge into a power point. An orange LED labelled “RUN”
will be illuminated to indicate that the unit is receiving power.
2. Hold the power button for five seconds to turn on the refrigerator.
The power LED will be illuminated with a green light when the fridge
is running and the screen will show the temperature.
ADJUSTING THE REFRIGERATOR’S TEMPERATURE
1. Press the settings button ONCE to initiate the temperature selection menu.
For the dual zone models, select the left compartment by pressing the
settings once and the right compartment by presing it twice.
2. Use the and buttons to raise or lower the temperature
respectively.
3. Press the settings button twice— or do not press any button for five
seconds — to confirm the selection.
4. At first the LED display will show the current temperature but will
start to decrease to the target temperature after approximately 5
minutes. The LED light will glow green while the temperature is
changing and will glow orange when set.
Settings Controls Power
Display
panel
Display for
left compartment
Display for
right compartment

Adventure Kings WiFi Fridge Manual
page 3
SWAPPING BETWEEN UNITS OF TEMPERATURE
1. Press the settings button TWICE to initiate the unit selection menu.
2. Use the and buttons to select your desired unit.
3. Press the settings button twice— or do not press any button for five
seconds — to confirm the selection.
CHANGING THE BATTERY VOLTAGE SETTING
1. Hold down the battery button for THREE seconds to initiate the
voltage control menu.
2. Use the and buttons to select your desired voltage. We
suggest your keep the voltage set to LOW but the exact voltage
details are as follows:
3. Press the settings button twice— or do not press any button for five
seconds — to confirm the selection.
CLEANING AND MAINTAINING YOUR REFRIGERATOR
• Keep the fridge clean by wiping it down with a damp cloth, inside
and out, each week.
• If the fridge is dirty DO NOT use soaps, abrasive products or
detergents, as these may damage the refrigerator. Instead, use a
small amount of sodium bicarbonate fully dissolved in lukewarm
water. Rinse thoroughly with clean water and dry carefully.
• Never clean the appliance under running water or using a hose.
• Do not leave food in the refrigerator when it is unpowered as the
food could spoil.
12V 24V
LOW – 11.0 volts LOW – 23.0 volts
MED – 12.0 volts MED – 24.0 volts
HIGH – 12.5 volts HIGH – 24.5 volts

Adventure Kings WiFi Fridge Manual
page 4
USING THE EVAKOOL APP TO VIEW AND CHANGE
THE FRIDGE’S TEMPERATURE WITH YOUR SMART DEVICE.
The Evakool app for iOS and Android can be used to view or change
the temperature and voltage of your WiFi-equipped Adventure Kings
refrigerators.
HOW TO VIEW THE FRIDGE’S TEMPERATURE AND VOLTAGE FROM YOUR DEVICE:
1. Download the Evakool app from the iTunes or Google Play store.
2. Change your phone’s wireless network settings to connect to the
fridge’s network. Please note that you cannot connect your phone to
other wireless networks while doing this.

Adventure Kings WiFi Fridge Manual
page 5

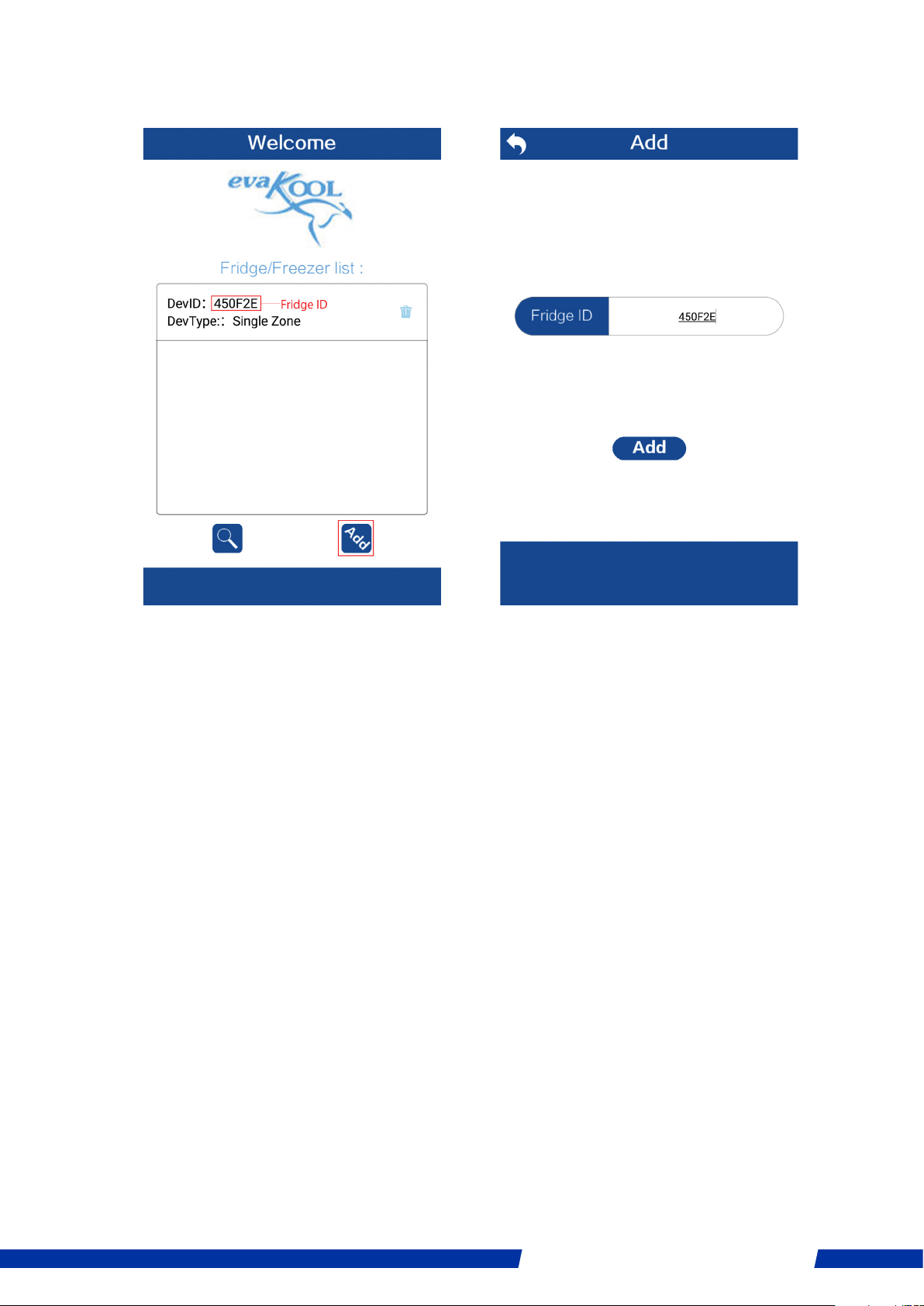

3. Open the Evakool app. Select your fridge from the menu or press
add and select it there.
If you cannot find your fridge here, make sure that you are properly
connected to the fridge’s network and that your device’s wireless
setting has been enabled.

Adventure Kings WiFi Fridge Manual
page 6

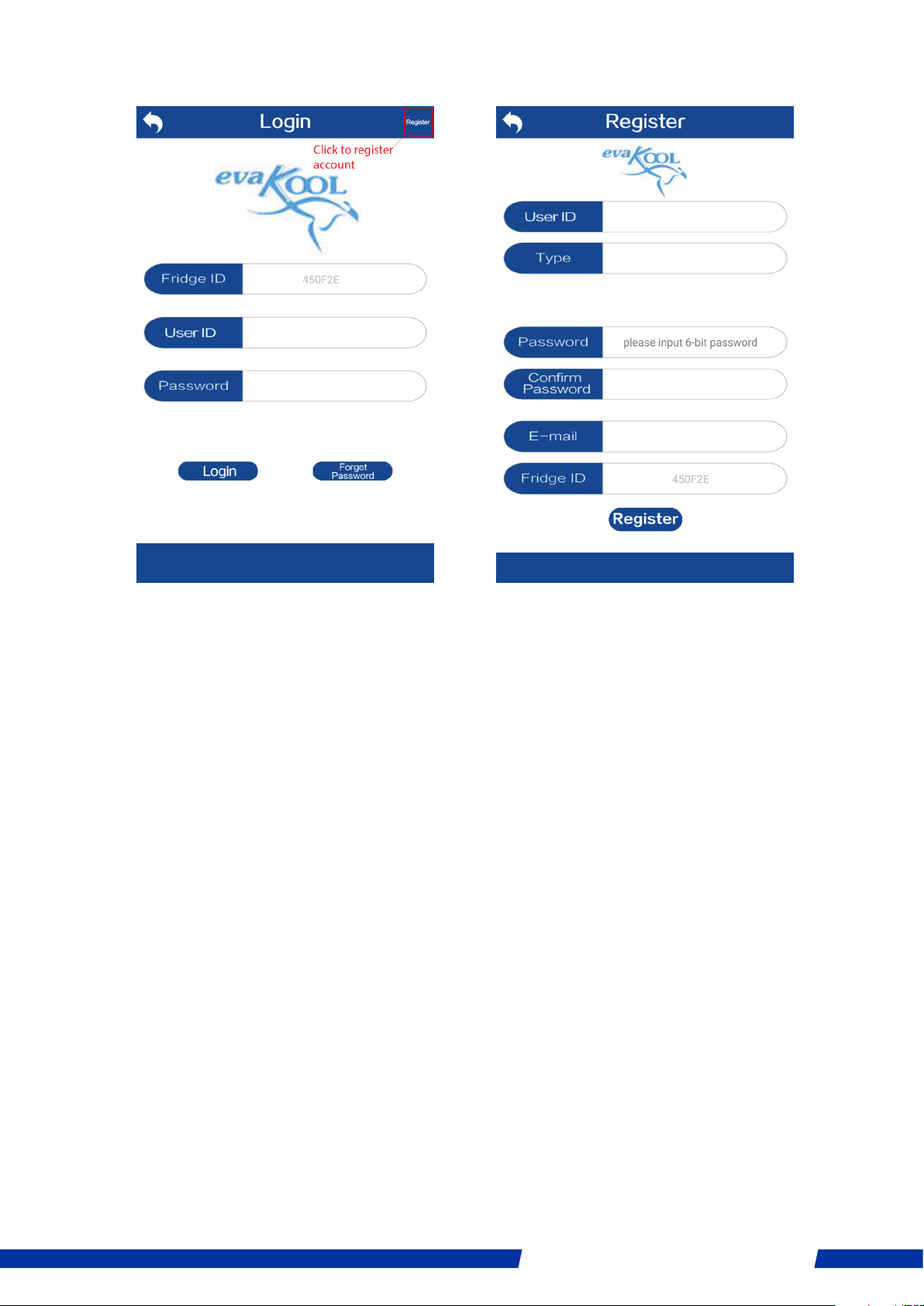

4. Register an account, making sure that you select average user for
the account type.
The user ID needs to be 11 numbers long; you cannot use letters or
other characters. The password should be 6 numbers long.
5. Log into the application using your details.

Adventure Kings WiFi Fridge Manual
page 7
6. You can now use the application to monitor your fridge’s voltage
or temperature.
7. You can also turn your refrigerator on or off. To do so, press the
settings button or swipe in from the right side of the screen.
8. Now select on/off to be taken to a menu to turn your fridge on or off
from your phone.

Adventure Kings WiFi Fridge Manual
page 8
HOW TO ACCESS THE TEMPERATURE AND VOLTAGE CONTROL FEATURES OF
THE EVAKOOL APP
1. Open the Evakool app, select your fridge and login using
the steps starting on page 5.
2. Press settings and then select account upgrade from
the settings menu.
You will be taken to a page where you can enter some details to
upgrade your account. To get these details you must first register
your warranty on the Evakool website
(https://www.evakool.com/productregistration/productregistration/
registerProduct/). Following this you must email [email protected]
with your warranty information and request an upgrade code.

Adventure Kings WiFi Fridge Manual
page 9

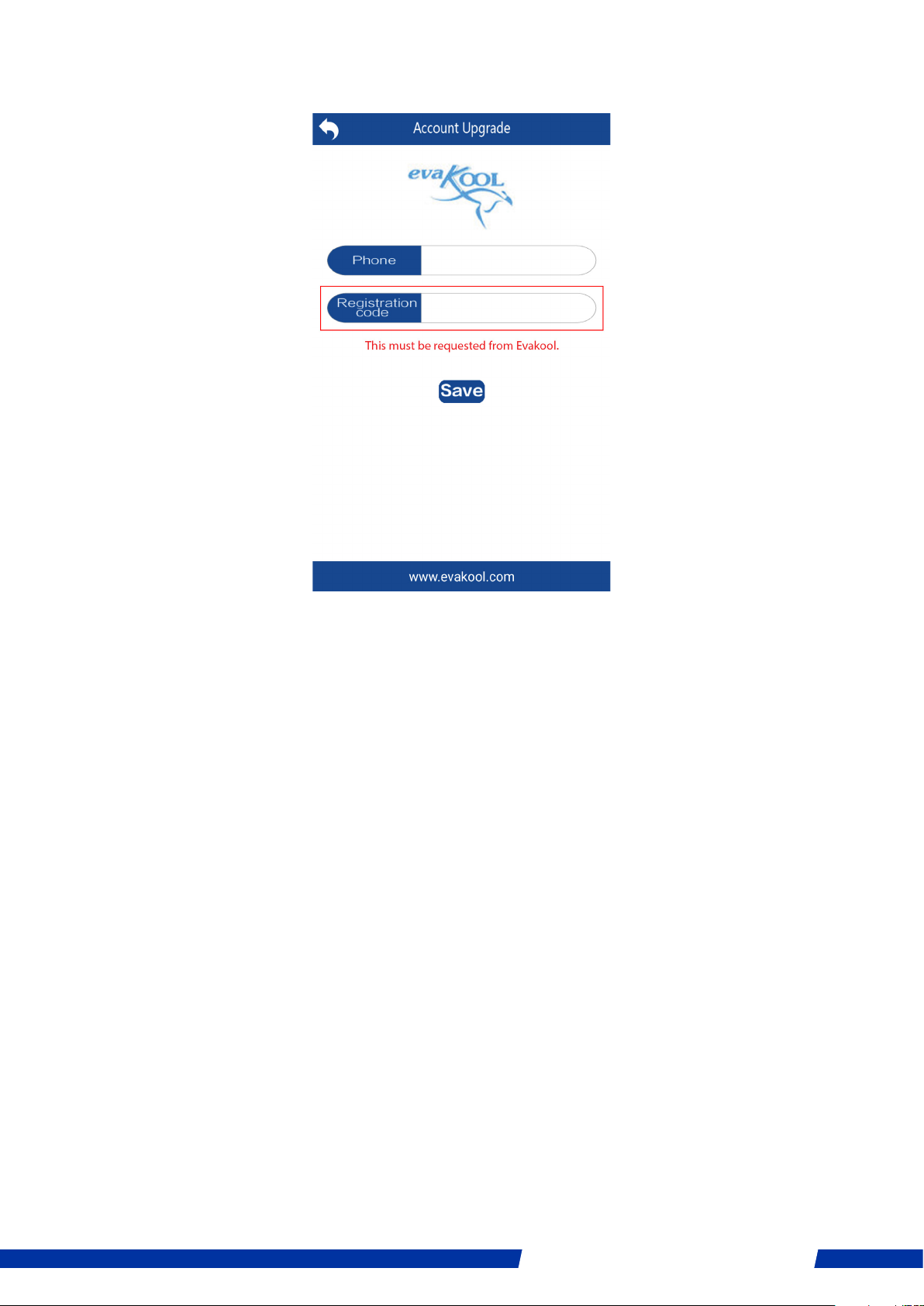

3. On this page, enter the details that Evakool sent to you after
registering your warrant with them.
You will now have access to the temperature and voltage control
functionalities of the application. Continue onto the next page to see
how to alter the temperature and voltage of your fridge, and how to
utilise the graphing functions of the application.

Adventure Kings WiFi Fridge Manual
page 10
4. To control the temperature, press the settings button and then
select settings from this menu. Here you are able to control the
temperature, voltage and the temperature unit used.
5. To access graphing, from the main screen of the application press
settings then then graphing.

Adventure Kings WiFi Fridge Manual
page 11

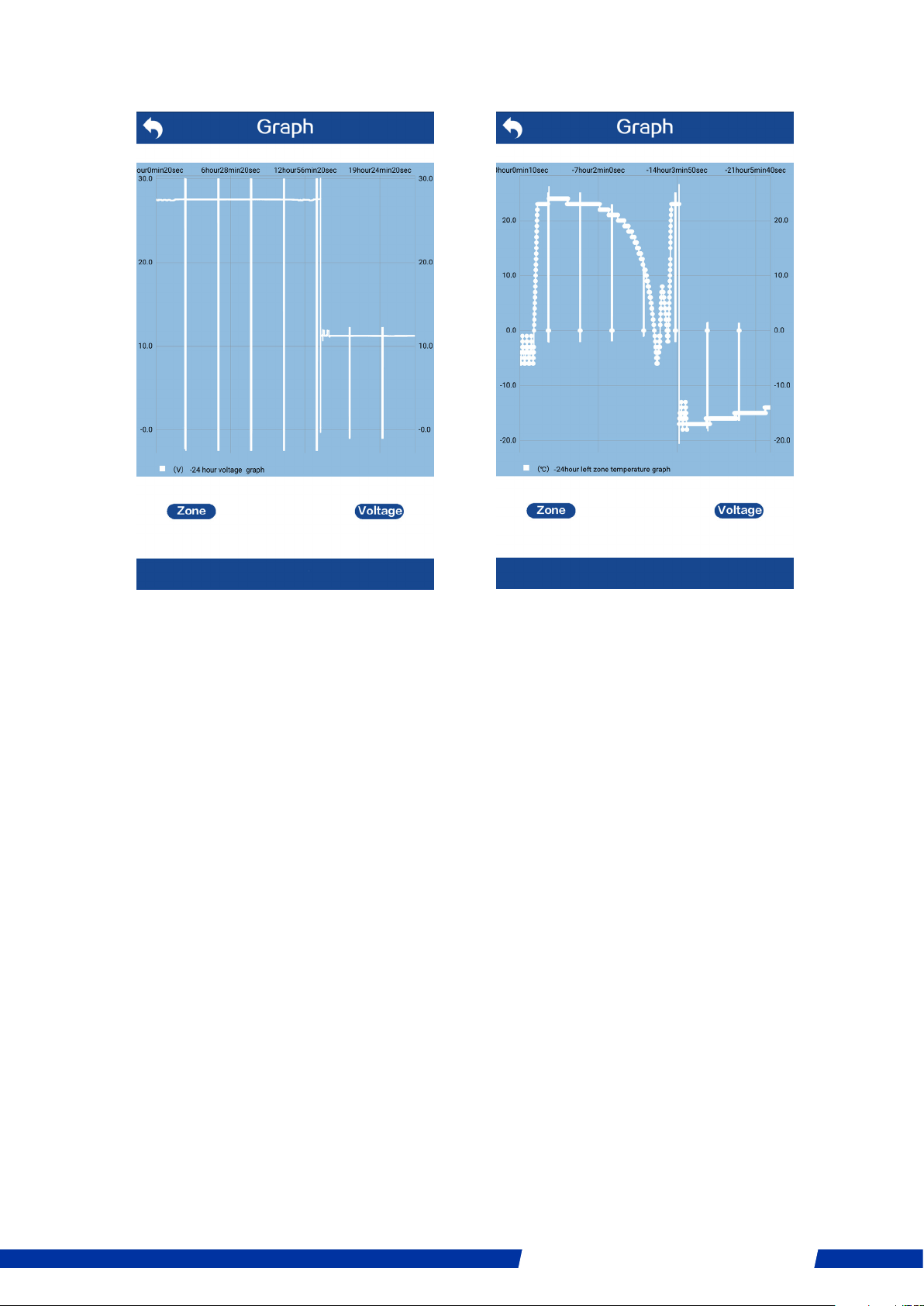

You must select zone or voltage to change the the temperature
or voltage graphs respectively. Use these graphs to troubleshoot
problems that you might have or to check the performance of your
fridge. Data are stored for up to 24 hours and are recorded after the
fridge has been running for 10 minutes.

Adventure Kings WiFi Fridge Manual
page 12
TROUBLESHOOTING THE EVAKOOL APP
PROBLEM SOLUTION
I cannot see or
connect to the
wireless network
•Check that your device has its Wi-Fi capabilities turned on.
•Make sure you are in range of the fridge (normally around
10-20 meters).
•Make sure you are using the correct passcode
“55555555” (8 x 5’s) for the Wi-Fi Network.
•You may already be connected to a different
wireless network.
•Turn the fridge and your phone off and on again.
I cannot pair the
fridge with the
application
•Ensure that you are connected to the
fridge’s wireless network.
•Check that the Fridge ID is the same as the wireless
network the fridge is projecting.
•Make sure you are using the correct user ID and
Password.
If the above has failed, follow the below steps:
•Uninstall the Evakool app.
Close all applications in the background.
•Turn off the fridge and phone.
•Turn both the fridge and the phone back on after a
couple of minutes.
•Re-install the Evakool app.
If you are still having problems, please do not hesitate to contact Evakool [phone].

Adventure Kings WiFi Fridge Manual
page 13
GENERAL TROUBLESHOOTING
PROBLEM SOLUTION
The appliance is not
turning on.
•Check the power supply.
•Ensure the power plug is placed firmly
in its socket.
•Check whether the fuse needs replacing.
•Make sure that the fridge has been
turned on and is not in standby mode.
See page 2 for instructions.
The food inside is
frozen or very icy.
•The fridge’s temperature is too low. See the
instructions on page 2 for how to increase the
temperature.
Bad performance in
refrigeration
•The set temperature might be inappropriate.
Try changing it as per page 2.
•The lid could be unlocked, open or is not able
to fully close. Remove the blockage and close
the fridge completely.
•The refrigerator’s seal may be broken or
failing. Check to see if you see any faults and
contact Evakool if you need a replacement.
•The fridge may have poor ventilation. Try
removing any objects that are blocking the
ventilation vents.
•The fridge may be overfull. Try removing
some items.
•The contents of the fridge may have been
overly warm when placed inside. Let food
cool down before refrigerating them.
•There is a heat source near the unit.
Move the fridge away from sources of heat.
The sound of moving
liquid can be heard
within the refrigerator
•This is normal behaviour and is due to
the flow of the refrigerant. No fix should
be necessary.
Unusual noise can
be heard when the
refrigerator is working
•The refrigerator is not placed on a level
surface. Carefully move the fridge to a level
surface. Be careful not to move
heavy objects.
•Something may have come loose in the
refrigerator. Contact Evakool for advice
about this.

Adventure Kings WiFi Fridge Manual
page 14
ERROR CODES
The Adventure Kings WiFi Fridge has an error system where a code is
displayed as a series of flashes over a four second period. Each sequence
of flashes indicates a specific error as shown in the table below.
Note: this fridge is fitted with an automatic 60 second restart delay.
This will be activated if your fridge enters an error mode.
It is designed to protect the fridge if an error occurs.
CODE WARNING SOLUTION
1 flash
every four
seconds
Low voltage
•Please check the source voltage to ensure it
is above the cut out range. Try lowering the
voltage cut out setting to LOW (page 2).
•The vehicle cabling may be inadequate
or unsuitable. Please refer to the cable
specifications table on the next page for
correct cable thickness.
•Try on another power source.
2 flashes
every four
seconds
Fan issue •Fan is drawing too many amps (over 1 amp)
– replace fan. Contact Evakool about this.
3 flashes
every four
seconds
Compressor
start issue
•Unplug the refrigerator for 10 minutes and
then restart it.
•Possible electronic box or compressor fault.
Contact Evakool about this.
•Try on another power source.
4 flashes
every four
seconds
Compressor
speed is too low
•Unplug the refrigerator for 10 minutes
and then restart it.
•Reduce number of items inside of fridge.
•Lower the ambient temperature near the
fridge by moving it away from heat sources
or into a cooler location.
•Clean vents and ensure clear air flow
over compressor
5 flashes
every four
seconds
Ambient
temperature is
too high
•Clean vents and ensure clear air flow
•Fan fault – Contact Evakool to
replace the fan.

Adventure Kings WiFi Fridge Manual
page 15
NOTES ON OPERATION
• Power: The electronic control module controls the compressor
motor and has the function of a three-stage battery protection.
When the input voltage drops below the minimum, the compressor
will cut out; when the voltage comes back up to the cut-in value, the
compressor will restart automatically.
• Battery Protection: The Danfoss compressor requires approximately
11 volts (for a 12V system) or 23.0 volts (for a 24V system) to
operate. If the voltage drops below this, the fridge will stop running.
Cable Specification Table
The DC cables must have a suitable cross-section for their length,
according to this table:
Cable area 12V Max Cable
Length*
24V Max Cable
Length*
[mm2] AWG [m] [ft.] [m] [ft.]
2.5 13 2.5 8 5 16
4 11 4 13 8 26
6 9 6 20 12 39
10 7 10 33 20 66
* - Note, the length is from the battery to the refrigerator.

Adventure Kings WiFi Fridge Manual
WARRANTY STATEMENT
TERMS AND CONDITIONS
• The warranty period commences from the
date of purchase by the original purchaser
from an authorised EvaKool dealer.
• EvaKool will honour this warranty on
presentation of proof of purchase of the
unit to EvaKool or its approved service
agent. The service agent may be requested
to provide EvaKool with a photocopy of
the proof of purchase to obtain approval to
proceed prior to warranty being honored.
• Evakool will not be held responsible for any
costs incurred in making a warranty claim.
• Please telephone [phone] for the
name of an authorized service agent or
refer to list provided. It is the purchaser’s
responsibility to freight the unit to and from
the service agent.
• EvaKool will not be held responsible
for any damage or loss suffered or cost
incurred whilst fridge is in transit.
• Warranty repairs may only be carried out
by an authorised service agent. EvaKool
will not reimburse repair claims carried
out by unauthorized service agents. Any
unauthorized tampering with any part of
the unit will automatically void the warranty.
• Service agents may charge a fee for
viewing or testing the unit. This is not
covered by EvaKool or this warranty and
is payable at the service point unless
authorized by EvaKool.
• Any Evakool authorized service centre
in Australia will be able to carry out the
service of your unit. If a repair needs to be
undertaken and is covered in terms of this
warranty a warranty authorization number
must be obtained prior to commencement
of any work.
EVAKOOL WILL NOT ACCEPT A WARRANTY CLAIM IF:
1. Modifications have been carried out to the
unit without EvaKool’s written authority.
2. Damage to or failure of the unit has
been caused in EvaKool’s opinion by
incorrect, extreme or unreasonable use.
3. Damage to or failure of the unit has
been caused in EvaKool’s opinion by
misuse, neglect, accident, impact or
similar cause. Refer the preventative
maintenance guidelines.
• EvaKool has total discretion on the variation of the
warranty terms.
• Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
• also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major
failure.
• The above warranty conditions are in addition
to any other rights and/or remedies as per the
applicable law.
• Failure to follow the guidelines/recommendations
in this manual may void the warranty.
• This warranty cannot be varied by others.
Nexberg Pty. Ltd. trading as EvaKool undertakes to the original purchaser that this
product is sold free of defect in materials and/or workmanship under normal use for
a period of 24 months. Subject to the following:
COMPLETE THE ENCLOSED WARRANTY
CARD AND RETURN WITHIN THIRTY
(30) DAYS OF PURCHASE
POST or Register your product warranty
ONLINE at www.evakool.com

Adventure Kings WiFi Fridge Manual
