Atag KA2512BD User manual

Instructions for use
Refrigerator-freezer
KA2512BD

EN 2
We thank you for the confidence you have shown by purchasing our appliance which is designed
to simplify your life. To make the use of the product easier, we have supplied detailed instructions
for use, and installation instructions supplied on a separate sheet. The instructions should allow
you to learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of frozen food (up to one
year, depending on the type of food).
The entire freezer compartment can be turned into a ZeroZone compartment with a temperature
around 0 °C.
Please visit our website where you can enter your appliance model number, indicated on the
rating plate or the warranty sheet, to find detailed description of your appliance, tips on use,
troubleshooting, service information, instructions for use etc.

EN 3
TABLE OF CONTENTS
Introduction
Safety instructions 4
Advice for saving energy with refrigeration appliances 10
Installation and connection 11
Changing the door opening direction 16
Appliance description
Appliance description 18
Operating the appliance 19
Appliance interior equipment 30
Recommended distribution of food in the appliance 34
Storing and freezing food
Storing food in the refrigerator 35
Freezing fresh food and storing frozen food 36
Defrosting and cleaning the appliance
Defrosting the appliance 38
Cleaning the appliance 39
Other
Troubleshooting 40
Information about appliance noise 42

EN 4
Before using the appliance for the first
time
Before connecting the appliance to the
power mains, please read carefully the
instructions for use which describe the
appliance and its correct and safe use.
The instructions apply to several appliance
types/models; thus, settings or equipment
may be described herein which is not
available in your appliance. We recommend
saving this instruction manual for future
reference and attach it to the appliance if it
is sold in the future.
Check for any damage or irregularities on
your appliance. If you find your appliance is
damaged, notify the retailer from which you
have purchased the appliance.
Before connecting the appliance to the
power mains, let the appliance rest in a
vertical position for a minimum of 2 hours.
This will reduce the possibility of operation
faults due to the effect of transport on the
cooling system.
INTRODUCTION
Safety instructions

EN 5
Safety instructions
The appliance must be connected to the
power mains and grounded in compliance
with the effective standards and regulations.
Before cleaning the appliance, unplug it
from the power mains (unplug the power
cord from the wall outlet).
If the power cord is damaged, it must be
replaced by a service technician or other
adequately trained person.
If LED lighting does not work, call a service
technician. Do not attempt a repair of the
LED lighting yourself, as there is danger of
contact with high voltage!
WARNING! Do not use any electric
devices inside the appliance, except for
those allowed by the manufacturer of this
refrigeration appliance.
WARNING! Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.
WARNING! To avoid any hazard resulting
from poor stability of the appliance, make
sure it is installed as instructed.
INTRODUCTION

EN 6
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
metal capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children. It presents danger of injury or suffocation.
Store all the parts that remain out of children’s reach after
finishing the assembly of the appliance or after fitting it into
a cabinet, as they can cause choking.
Do not let the children play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
When removing a used appliance, disconnect the
power cord, remove the door, and leave the shelves in
the appliance. This will prevent children from locking
themselves in the appliance.
INTRODUCTION

EN 7
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.
INTRODUCTION

EN 8

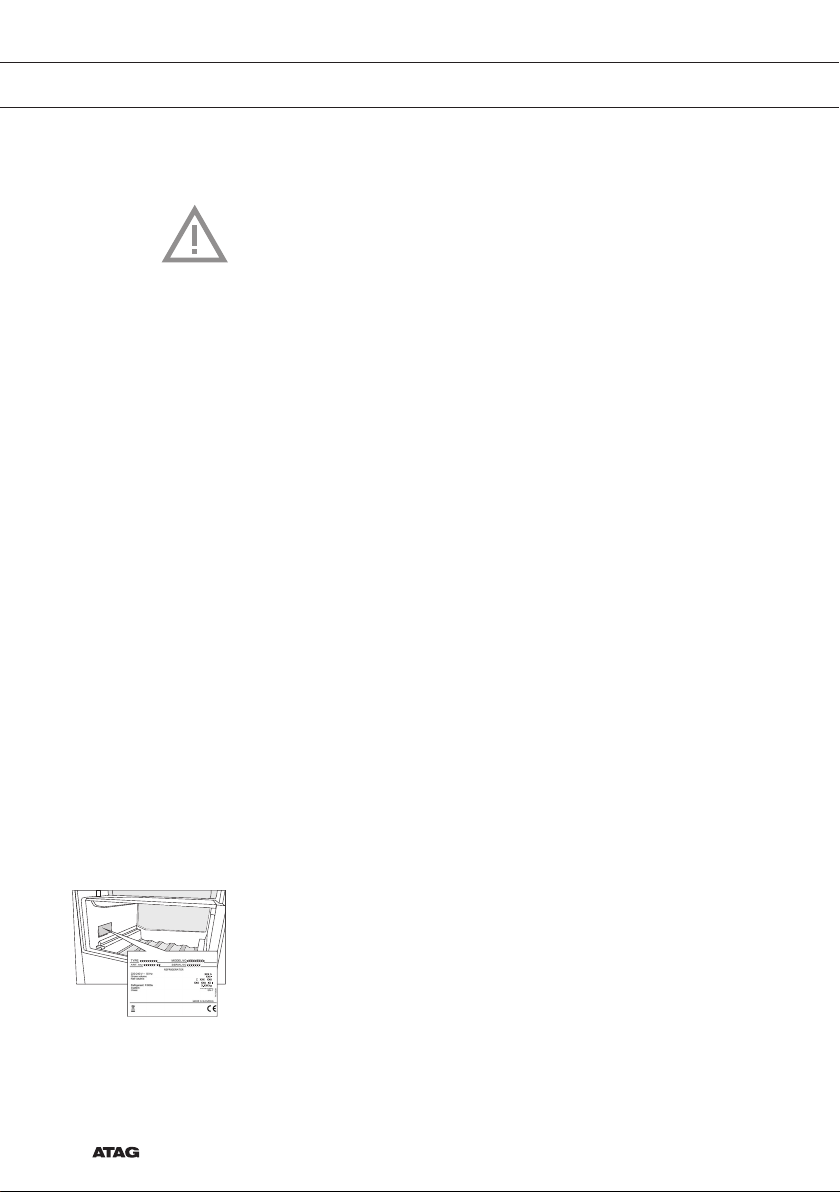

The rating plate can be found in the
appliance interior (see figure). It indicates
data on voltage, gross and net volume, type
and amount of refrigerant, and the climate
classes.
/
//
//
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period
of time, switch it off using the relevant button, and unplug
it from the power mains. Empty the appliance, defrost it,
clean it, and leave the door ajar.
In case of an error or power supply failure, do not open the
freezer compartment unless the freezer has not operated
for over 16 hours. After this period, use the frozen food or
provide sufficient cooling (e.g. a replacement appliance).
Technical information on the appliance
INTRODUCTION
Important information on the use of appliance
WARNING! Keep ventilation openings, in
the appliance enclosure or in the built-in
structure, clear of obstruction.

EN 9
Environment protection
The packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
The symbol on the product or its packaging indicates that the product should not be
treated as normal household waste. The product should be taken to an authorized
collection centre for waste electric and electronic equipment processing. Correct
disposal of the product will help prevent any negative effects on the environment and health
of people which could occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal body in charge
of waste management, your waste disposal service, or the store where you bought the
product.
INTRODUCTION
Removing an obsolete appliance
To protect the environment, take the
obsolete appliance to an authorized home
appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power
mains;
• do not allow children to play with the
appliance.
WARNING! Do not damage the refrigerant
circuit. This will also prevent pollution.

EN 10
Advice for saving energy with refrigeration appliances
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter ‘Cleaning the Appliance’).
• If the gasket is damaged or does not provide a perfect seal for any reason, have it replaced
as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove some of the drawers
as described in the instruction manual.
• Make sure the layout of shelves in the compartment is uniform and that the food is placed
so that the air can freely circulate in the appliance interior (observe the recommended
placement of food as described in the instructions).
• In appliances with a fan, do not block the fan slots or vents.
• The lower the temperature is set the higher the energy consumption will be.
INTRODUCTION

EN 11
Do not place an appliance in a room where
temperature can drop to below 5 °C as this may
cause abnormal appliance operation or failure!
Installation and connection
Selecting the room
• Install the appliance in a dry and well ventilated room. The appliance will operate correctly if
the environment temperature is in the interval specified in the table. The appliance class is
indicated on the rating plate / label with the basic information of the appliance.
Class Temperature Relative Humidity
SN (subnormal) from +10 °C to +32 °C
≤75%
N (normal) from +16 °C to +32 °C
ST (subtropical) from +16 °C to +38 °C
T (tropical) from +16 °C to +43 °C
INTRODUCTION
Note: Place the appliance in a sufficiently large room. There should be at least
1 m3of space per 8 grams of refrigerant. Amount of refrigerant is indicated on the rating plate in
the appliance interior.
• At the base of the kitchen unit intended for building in the integrated appliance, there should
be at least 200 cm2free space, for adequate air circulation.
On the upper part of the appliance the air is coming out, so try not to cover the opening for
the outflow air. Ignoring this caution may result in damage to the appliance.

EN 12
• Spacers are fitted on the corners of the
doors. Remove them.
• The appliance must stand level or tilted
slightly to the back, stable on a solid base.
At the front, the appliance is fitted with two
adjustable legs that can be used to level
the appliance. At the rear side, casters
allow for easier installation of the appliance
(only with some models).
• There should be a clearance of at least
5 cm between the appliance and any
cupboard installed above it, in order to
allow adequate cooling of the condenser
unit.
• The appliance is supplied with two spacers
which should be installed on the lower part
of the housing to prevent from pushing the
appliance too close to the wall. Appliance
may also be installed without the spacers;
however, this may increase power
consumption.
• Do not expose the appliance to direct
sunlight and do not place it near any
source of heat. If this cannot be avoided,
install an insulation panel.
max
30 mm
> 90°
INTRODUCTION
Installing the appliance
Appliance installation should be carried out by at least two persons to avoid any physical injury
or damage to the appliance.

EN 13

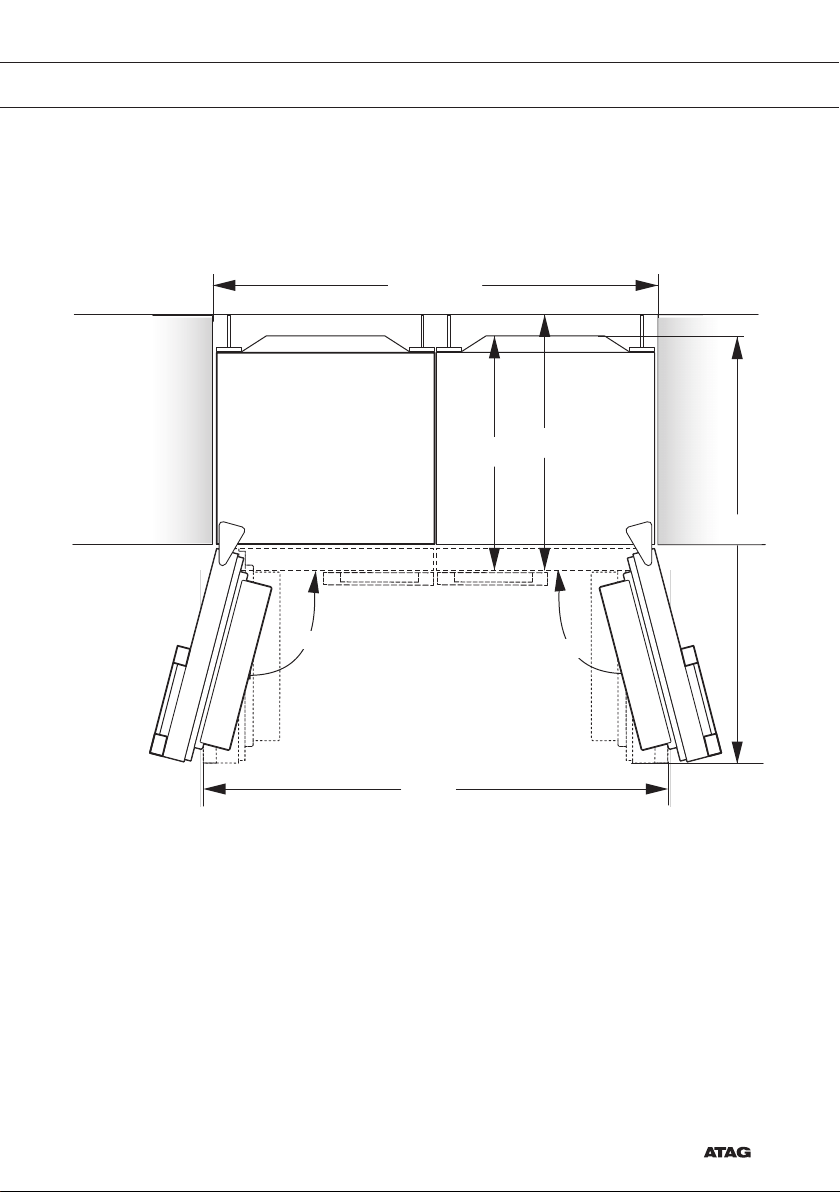

• The appliance may stand alone or it may be placed next to a cupboard or a wall. Consider
the clearance required to fully open the door in order to allow pulling out the drawers and
shelves (see installation diagram).
INTRODUCTION
630 675
min 1220
max 115° max 115°
1194
1284

EN 14
Side-by-side installation: We recommend leaving the side-by-side installation of two appliances
to a service technician. If you decide to do this yourself, observe the instructions supplied with
the side-by-side installation kit.
INTRODUCTION
min. 40 mm min. 50 mm
1900
1850
50
1078
731
1200
14
5965966,5
630
8
25

EN 15
INTRODUCTION
Connecting the appliance
• Connect the appliance to the power mains using the power cord.
The wall outlet should be fitted with a ground contact (safety
socket). Nominal voltage and frequency are indicated on the rating
plate/label with basic information of the appliance.
• The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations. The appliance will withstand short-term deviations from
the nominal voltage, but not more than +/- 6%.

EN 16
INTRODUCTION

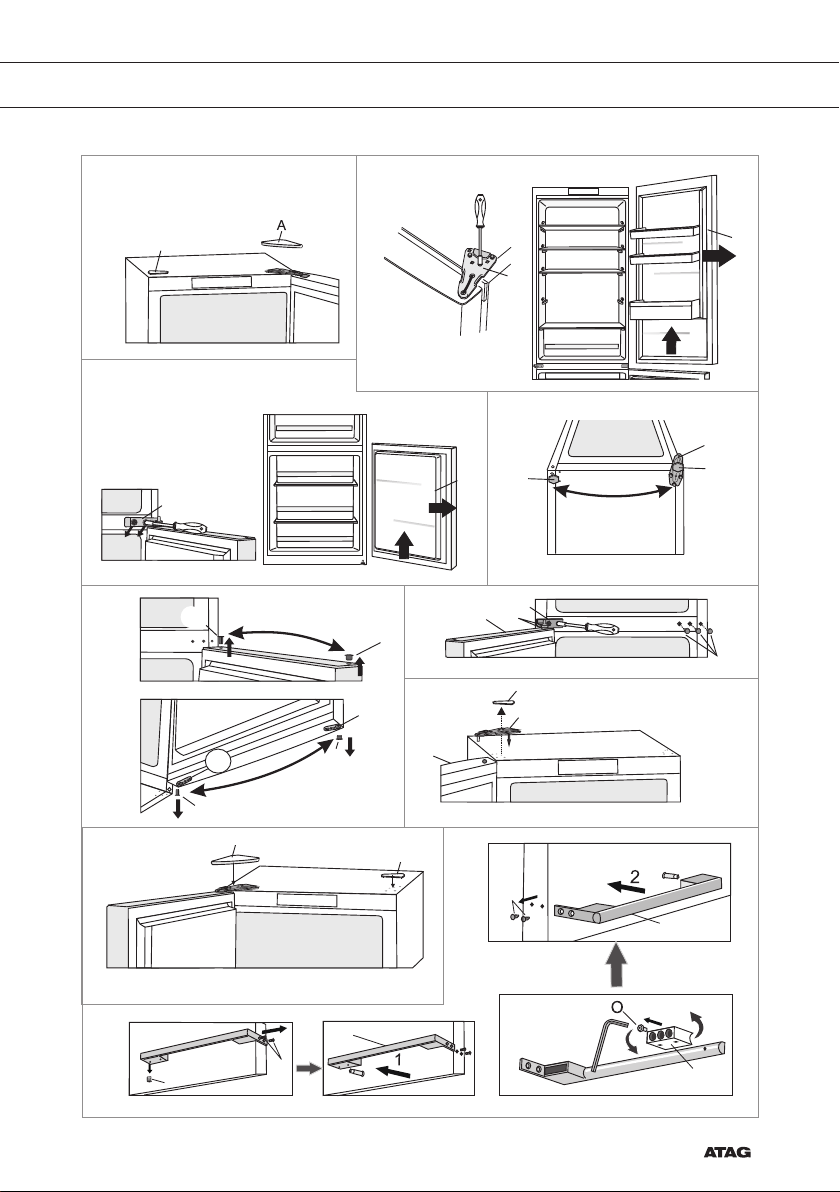

Changing the door opening direction
Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, hex key No. 4, flat
screwdriver.
The procedure to change the door opening direction should be carried out by at least
two persons.
1. Remove the upper hinge cover (A).
2. Unscrew the upper hinge (B) and remove the upper door (C).
3. Then remove the covering plugs (D), unscrew the mid hinge (E) and remove the lower door
(F) from the lower hinge (G).
4. Tilt the appliance backwards (make sure you do not press against the condenser unit on
the rear wall of the appliance as this may damage the cooling system), unscrew the lower
hinge (G) and the foot (H) and move them to the opposite side. Make sure the washer is
installed like it was before disassembly.
5. Move the door hinges (I) to the opposite side. Remove the door stopper S1 and attach the
door stopper S2 supplied in a bag with the instruction manual.
6. Place the middle hinge (E) on the lower door (F) and place the lower door on the lower
hinge (G). Fasten the mid hinge (the door should be open while you do this). Do not forget
to place the washers (J) and covering plugs (M) as they were placed before the
disassembly.
7. Place the upper door (C) over the middle hinge (E), remove the covering cap (K) and fasten
the upper hinge (B).
8. Install the upper hinge cover (A) and the covering cap (K).
9. Place the handle (L): undo the side screws (M) and the (N) screw in the handle holder.
Take care not to damage the door. Pull the handle in the direction of the arrow. Disassemble
the handle (L): undo the screw (O), turn the handle holder (P) by 180° and reattach it using
the screw. On the opposite side of the door, remove the cover plugs (R) and place the
handle (L) in the direction of the arrow 2. Reattach the handle using the screws (M) and (N).
Place the covering plugs/caps (R) on the opposite side of the door.

EN 17
12
E
F
3
G
H
H
4
5
E
FJ
M
6
8
7
C
K
B
A
K
B
C
D
I
I
D
S1
S2
L
L
M
N
R
P
9
K
INTRODUCTION

EN 18
APPLIANCE DESCRIPTION

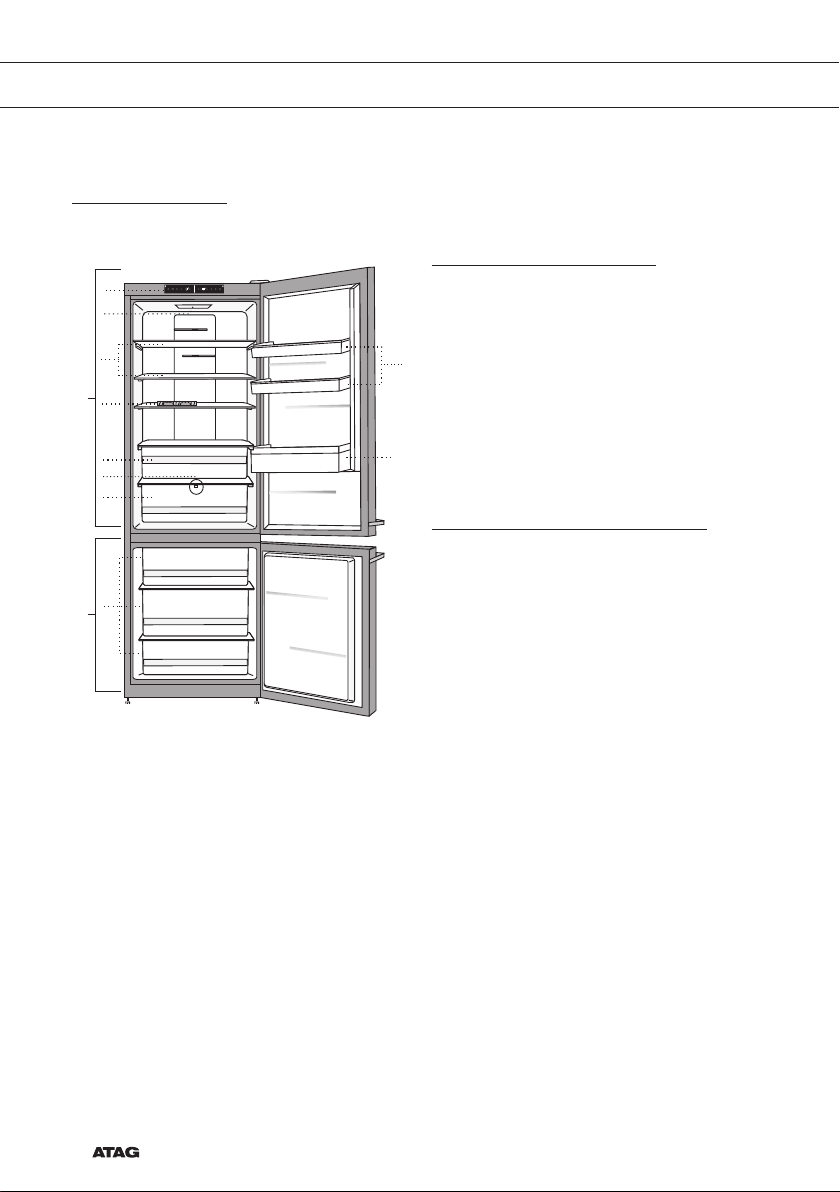

Appliance description
A Refrigerator compartment
1. Control unit
2. LED lighting
3. Glass shelves
4. Bottle rack
5. Upper drawer
6. VitaLED light
7. Fruit and vegetable drawer
8. Door balconies
9. Bottle balcony
B Freezer/ZeroZone compartment*
10. Freezer drawers/ZeroZone compartment
A
B
2
3
7
8
9
10
5
6
4
1
• The drawers are protected against pulling out. To remove a drawer from the appliance, open it,
then lift the front part and pull it out.
* Freezer/ZeroZone is an adjustable area that can be used either as a freezing compartment or a
ZeroZone.
When the appliance is switched on for the first time, this compartment will function as a freezer.

EN 19
APPLIANCE DESCRIPTION

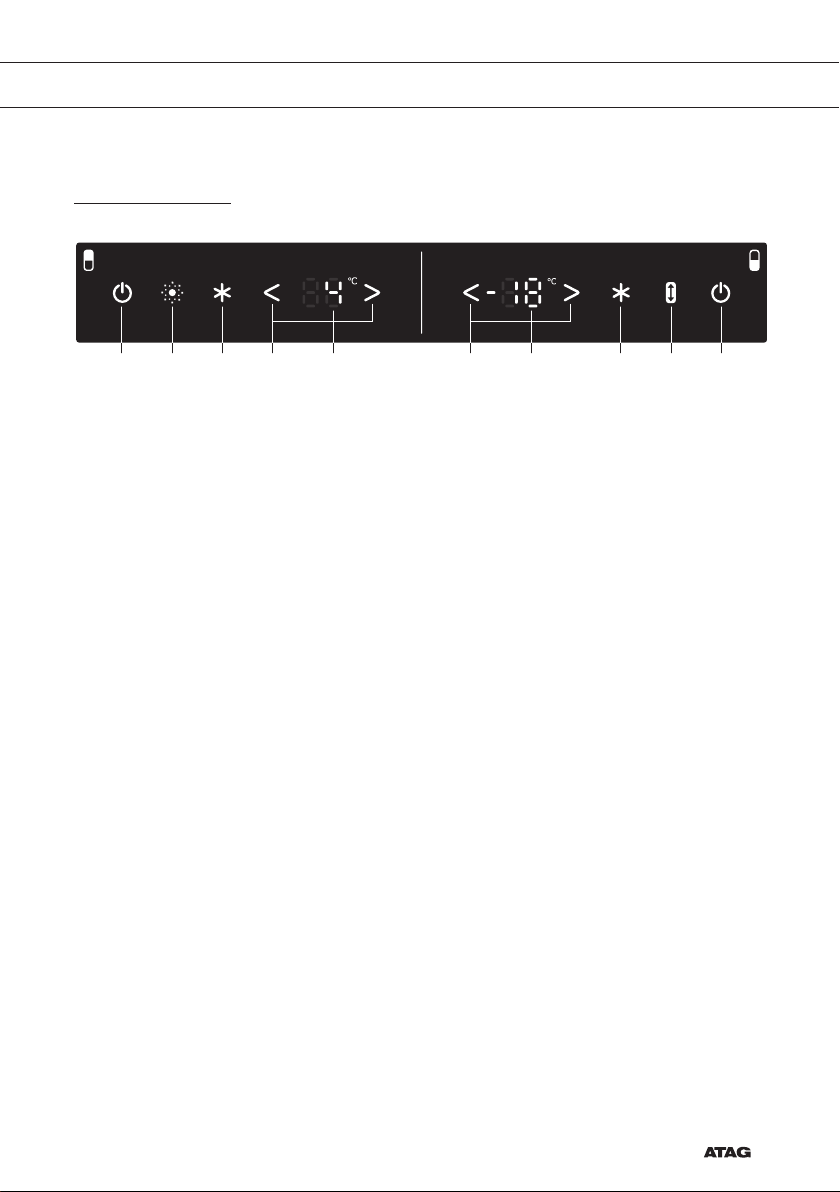

Operating the appliance

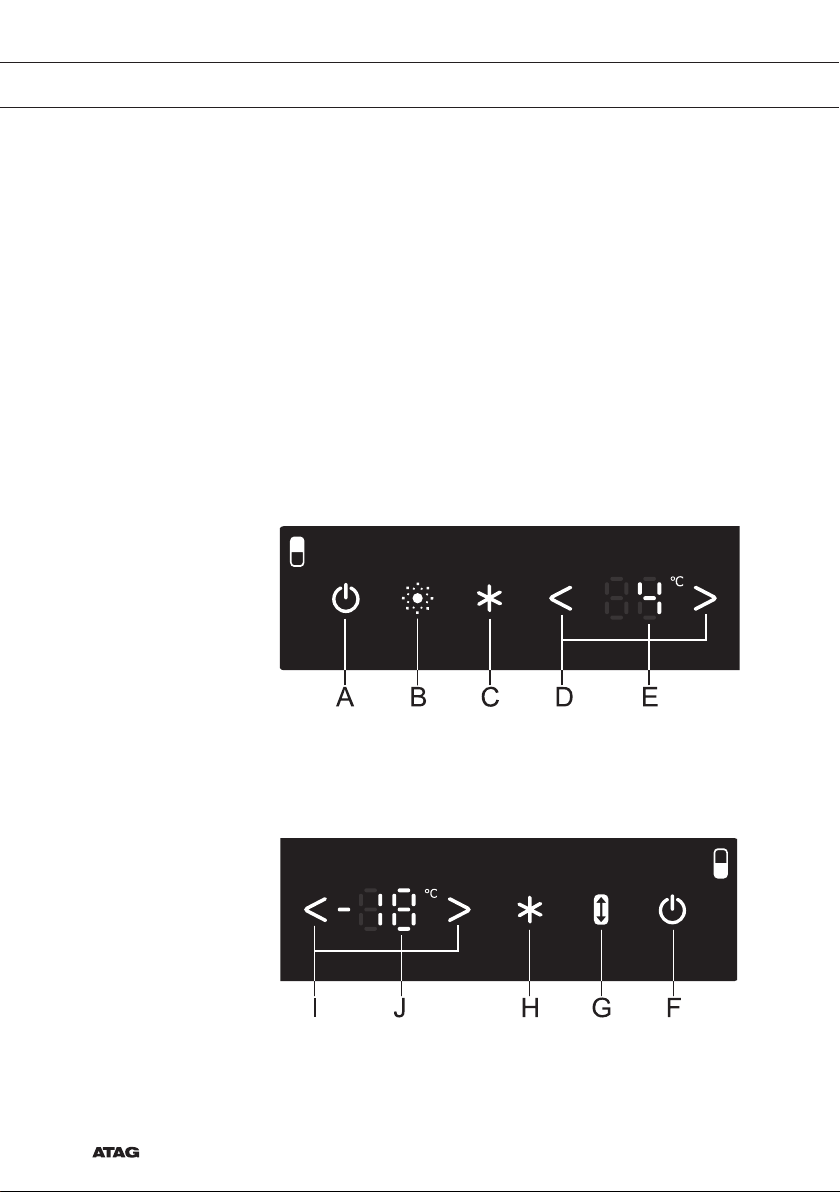

A Appliance on key and refrigerator compartment off key
B VitaLED light on/off key and key for child safety lock on/off
C Intensive cooling (boost) function on/off key
D Refrigerator compartment temperature setting keys
E Refrigerator compartment set temperature display
F Freezer compartment on key and appliance off key
G Freezer/ZeroZone switch key
H Intensive freezing (boost) function on/off key (when the freezer compartment
operates in the ZeroZone mode, the Hkey has no function)
I Freezer/ZeroZone compartment temperature setting keys
J Freezer/ZeroZone compartment set temperature display
ABCD E HGFI J

EN 20
APPLIANCE DESCRIPTION
Switching the appliance on/off
Switching the appliance on: Press the Akey.
The refrigerator compartment can be switched off so that only the
freezer compartment is on:
• Briefly press the Fkey to switch on the freezer compartment only;
or
• First briefly press the Akey to switch on the entire appliance.
Then, press and hold (for 3 seconds) the Akey to switch off the
refrigerator compartment.
When the A key is pressed again, the refrigerator compartment will be
switched back on.
Switching off the appliance: Press and hold the Fkey for 3 seconds.
The appliance will be off, but there is still voltage in it as it is still
connected to the power mains.
Table of contents
Other Atag Refrigerator manuals

Atag
Atag KU1090AUU User manual

Atag
Atag KD85178BFC User manual

Atag
Atag KS33178D User manual

Atag
Atag KU1190B User manual

Atag
Atag KS25178A User manual

Atag
Atag KD63140B/A01 User manual

Atag
Atag KD80178DN User manual

Atag
Atag KD62122A/A01 User manual

Atag
Atag KD80102ADN User manual

Atag
Atag KS2178A User manual
