Even Embers HTR3046AS User manual

OWNER’S MANUAL
PELLET CHIMINEA
WARNING
PLEASE READ THIS ENTIRE MANUAL BEFORE
INSTALLATION AND USE OF THIS PELLET FUEL-
BURNING APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY
DAMAGE, BODILY INJURY OR EVEN DEATH. CONTACT
LOCAL BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA. SAVE THESE
INSTRUCTIONS.
NOTICE TO
INSTALLER:
LEAVE THESE
INSTRUCTIONS
WITH THE
CHIMINEA OWNER
FOR FUTURE
REFERENCE.
Model HTR3046AS
ASSEMBLY AND OPERATING INSTRUCTIONS SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNING: FOR OUTDOOR USE ONLY

IMPORTANT SAFETY WARNINGS
WE WANT YOU TO ASSEMBLE AND USE YOUR CHIMINEA AS SAFELY AS POSSIBLE.
THE PURPOSE OF THIS SAFETY ALERT SYMBOL
IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR CHIMINEA.
WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING AND OPERATING YOUR CHIMINEA.
1. Improper installation, adjustment, service or maintenance can cause injury or property damage.
2. Read all instructions and guidelines carefully and thoroughly before installation, use or service.
3. Failure to follow these instructions could result in re.
WARNING
NOT for use in or on boats or recreation vehicles.
DANGER
1. Do not store or use gasoline, liquid propane or any other ammable vapors or
liquids in the vicinity of this appliance.
DANGER
1
Maintain a safe distance away from the chiminea as it is extremely hot during operation. Children and pets
should be supervised at all times when the chiminea is lit.
WARNING

2
General Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Operating the Chiminea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Proper Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Transporting and Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Be alert to the possibility of serious bodily injury if the instructions are not followed. Be sure to read and
carefully follow all of the messages.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
TABLE OF CONTENTS:
For covers, accessories and other products, please visit us at:
www.evenembers.com
CALIFORNIA PROPOSITION 65 WARNING
WARNING: This product can expose you to chemicals, including carbon monoxide, which are
known to the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
WARNING: CONTAINS LEAD. MAY BE HARMFUL IF EATEN OR CHEWED. COMPLIES WITH
FEDERAL STANDARDS. KEEP OUT OF REACH OF CHILDREN.

WARNING
When using, basic safety precautions should always be followed including the following:
• Always place chiminea on a level non-combustible surface.
• Operate only per manufacturers instructions.
• Keep all combustible materials at least 36 inches (91 cm) away from the chiminea at all times. Do not use this
chiminea under any overhang or near any combustible structures.
• Minimum clearance from side and back of unit to combustible materials, 36 inches (91 cm) from side and 36
inches (91 cm) from back.
• DO NOT use on wood decks. Set up this chiminea on a hard, non-combustible smooth level surface.
• Keep a re extinguisher on hand. Refer to your local authority to determine proper size and type.
• Creosote – Formation and need for removal. When wood pellets are burned slowly, they produce tar and other
organic vapors that combine with expelled moisture to form creosote. The creosote vapors condense in a relatively
cool oven u and exhaust hood of a slow burning re. As a result, creosote residue accumulates on the ue lining
and exhaust hood. When ignited, this creosote makes an extremely hot re.
• Do not attempt to touch chiminea during use. Use handles or knobs.
• Alert both children and elders to the hazard of high surface temperatures.
• Never leave appliance unattended. Hot while in operation. Keep children, clothing and furniture away. Contact may
cause burns.
• Do not use accessories or attachments not recommended by the manufacturer, as they may not be compatible
with this appliance, and may cause damage or injury.
• Do not use this appliance for anything other than its intended use.
• NEVER add cooking pellets to a hot re pot by hand. You could be seriously burned. If the hopper runs out of
pellets or your re goes out, let the chiminea completely cool before relighting.
• Use only wood pellets. (cooking grade or heating grade wood pellets)
• Always store wood pellets away from heat.
• NEVER use gasoline, gasoline-type lantern fuel, or similar liquids to start or “freshen up” a re in this appliance.
Keep all such liquids well away from the appliance when in use.
• This chiminea is not for use indoors. Do not use inside a building, garage or any other enclosed area.
• This product is not designed for commercial use.
• Beware of high winds. This can knock over chiminea.
• This product is not designed for tabletop use. Do not set this product on a tabletop.
• Keep appliance clean. See Proper Care and Maintenance section for cleaning.
• Do not operate this chiminea while under the inuence of drugs, alcohol, or while fatigued.
• Do not use in the presence of explosive or ammable gases, vapor or other substances.
• Do not use this chiminea unless it is completely assembled and all parts are securely fastened and
tightened.
• Use only identical replacement parts.
• Do not attempt to move this appliance while it is in use.
• Do not use this product for indoor heating, as toxic fumes will accumulate.
• Keep chiminea covered when not in use - out of the reach of children. Do not clean this product with a water
spray or the like.
GENERAL WARNINGS:
3

4
Follow these guidelines to prevent this colorless,odorless gas from poisoning you, your family
or others.
• Know the symptoms of carbon monoxide poisoning; headache, dizziness, weakness, nausea,
vomiting, sleepiness and confusion. Carbon monoxide reduces the blood’s ability to carry
oxygen. Low blood oxygen levels can result in loss of consciousness and death.
• See a doctor if you or others develop cold or u-like symptoms while cooking or in the vicinity
of this appliance. Carbon monoxide poisoning, which can easily be mistaken for a cold or u, is
often detected too late.
• Alcohol consumption and drug use increase the effects of carbon monoxide poisoning.
• Carbon monoxide is especially toxic to mother and child during pregnancy, infants, the elderly,
smokers and people with blood or circulatory system problems, such as anemia or heart
disease.
Read and follow all warnings and instructions contained in the preceding sections of this manual.
WARNING
OPERATING THE CHIMINEA:
BREAKING IN YOUR CHIMINEA:
• In manufacturing and preserving the components of your chiminea, oil residue may be present on the
surfaces.
• Please follow the “Initial Lighting Instructions” to cure the paint on your chiminea.
• DO NOT leave your chiminea unattended while in use.
• DO NOT move chiminea when in use.
WARNING
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR PELLET CHIMINEA.
FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS MANUAL
COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE. SAVE THIS
MANUAL FOR FUTURE REFERENCE.

LIGHTING THE CHIMINEA:
Initial Lighting Instructions (To be used on initial ring)
Push shut-off lever (inside the hopper) down, turn heat adjustment lever to low before lling hopper
with pellets. Fill the hopper around ½ full. This one-time initial ring needs to be done to cure the
paint on the unit. Put the heat adjustment lever on the LOW setting to limit the number of pellets in
the repot for the entire initial burn period. Having the heat adjustment lever on the HIGH setting on
initial ring will result in very high temperatures and potentially damage your chiminea and voiding
your warranty. Pull the shut off lever (inside the hopper) up and lock in place. Light the pellets and
let it burn through all the pellets and allow the chiminea to cool down. You are now free to use the
chiminea according to the remainder of these instructions. These initial lighting instructions allow the
high temperature paint to cure properly. When curing, the paint will give off some smoke and this will
happen for the rst 15 minutes.
5
OPERATING THE CHIMINEA:
1. Make sure your chiminea has been assembled properly.
2. Push the shut-off lever down (inside pellet hopper).
3. Fill hopper with pellets. The pellets will not fall into the repot at this point since the shut-off
lever is closed.
4. Open the door and make sure the heat baffle is centered around the repot
5. Pull the shut-off lever up and lock in place (inside pellet hopper). This will allow pellets to fall into
repot.
6. Squirt a small amount lighter uid or gel onto the pellets and ignite with a butane lighter or match
and close the door.
7. Once the pellets have caught re after 5 minutes or so you can put the heat adjustment lever in
the High or Low setting.
8. Keep the door closed when using the chiminea. If the door is open, the chiminea will lose its draft
and the pellets will not burn properly.
9. Occasionally operate the ash clean-out handle to allow ash to drop into ash tray.
10. After several hours of use you may have excess pellets piled up at the bottom of the chute. If this
happens, you will need to pull and push the ash clean-out lever, which is located in the back of
the pellet chiminea, several times and/or use the ash clean-out tool to rake the pellets towards the
front of the repot. This only needs to be done after several hours of use to ensure maximum heat
output.

6
PROPER CARE & MAINTENANCE:
• Remove wood pellets from hopper if chiminea will not be used for a long period of time. Wood
pellets can become soggy due to moisture/humidity and clog up the repot and pellet chute.
• Disposal of ashes – Ashes should be placed in a metal container with a tight-tting lid. The
closed container of ashes should be placed on a non-combustible oor or on the ground, well
away from all combustible materials, pending nal disposal. When the ashes are disposed by
burial in soil or otherwise locally dispersed, they should be retained in the closed container
until all cinders have thoroughly cooled.
• To protect your chiminea from excessive rust, the unit must be kept clean and covered at all times
when not in use.
• Clean inside and outside of chiminea by wiping off with a damp cloth. Rust spots on the interior
surface can be buffed, cleaned, and sprayed with a high temperature paint. Soot buildup on the
glass can easily be wiped off.
• Depending on use, periodically remove the repot and baffle to clean the ash from in and around
the re pot. A shop-vac is handy for this chore. Make sure the chiminea is cold before starting this
procedure.
CLEANING AND MAINTENANCE:
• Keep the appliance free and clear of combustible materials, gasoline and other ammable vapors
and liquids.
• For peak performance of your chiminea, perform these checks at least twice per year or after
extended periods of storage.
• Be sure to tighten up all hardware (nuts, bolts, screws, etc.) at least twice per year.
CAUTION: Some parts may contain sharp edges. Wear protective gloves if necessary.
BEFORE STORING YOUR CHIMINEA:
• Clean all surfaces.
• If storing the chiminea outdoors, cover the chiminea for protection from the weather.
• If the chiminea is stored outside during the rainy season, care should be taken to ensure that water
does not get into the pellet hopper. Wood pellets, when wet, expand greatly and will jam inside the
hopper and chute.
• Never move a chiminea when it is hot.
• Never store ammable liquids or spray canisters under or near the chiminea.
WARNING
TRANSPORTING AND STORAGE:

7
ASSEMBLY INSTRUCTIONS:
Make sure you have all items listed under PARTS LIST and PARTS CARD CONTENTS before
you begin the installation process.

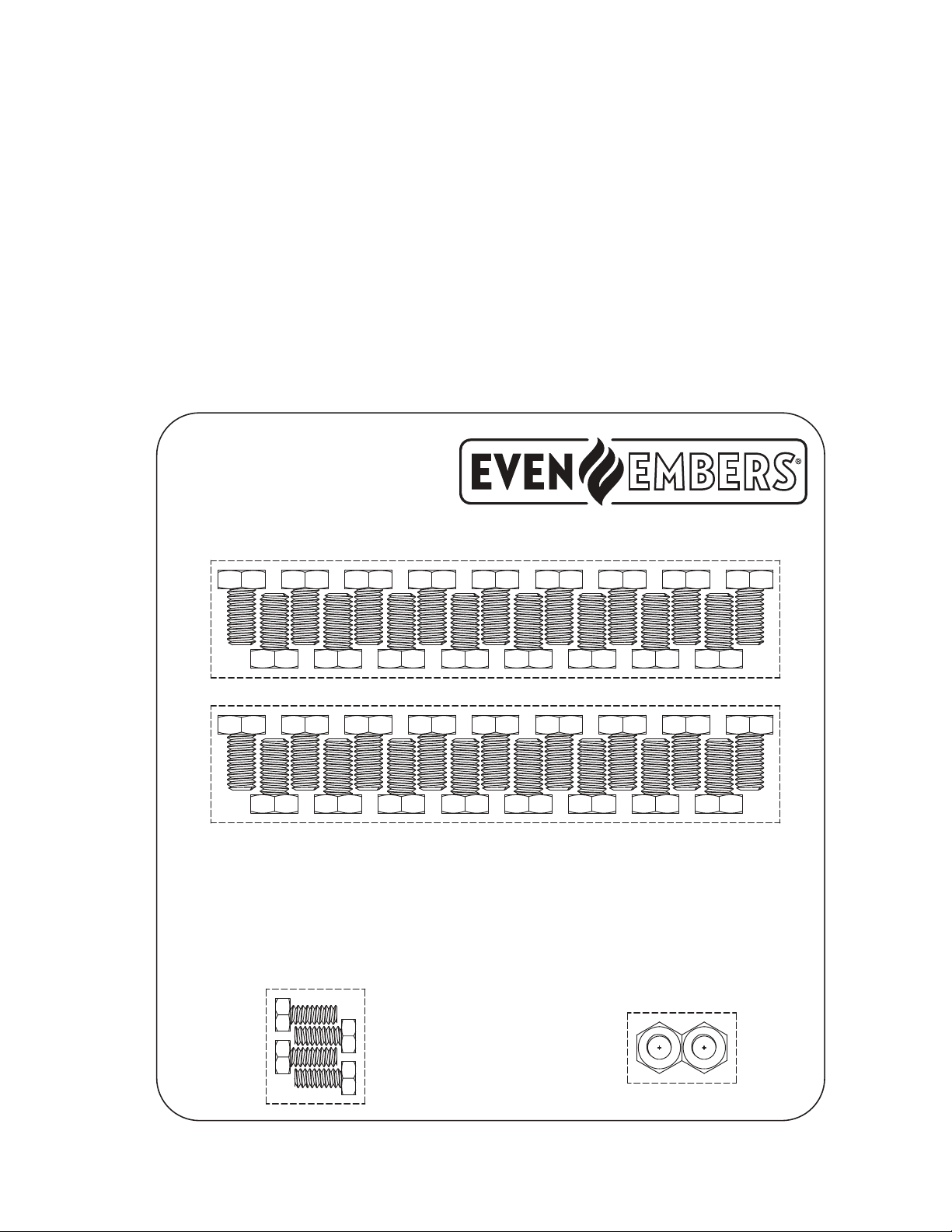

PARTS CARD CONTAINS:
(34) M6 x 12 mm Bolts
(4) M4 x 10 mm Bolts
(2) M6 Nuts
HTR3046AS
Component Card
M6 x 12 mm Bolts - 34 pcs
M4 x 10 mm Bolts - 4 pcs
M6 Nuts - 2 pcs

8
READ ALL SAFETY WARNINGS & INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING AND OPERATING YOUR EVEN EMBERS®PELLET CHIMINEA.
FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 855-735-9922.
(Proof of purchase will be required.)
The following tools are required to assemble your Even Embers ® Pellet Chiminea:
• Phillips Screwdriver
• 10 mm Wrench
1 Ash Clean-out Lever
1 Heat Adjustment Coil Spring Handle
1 Rear Panel
1 Front Panel
2 Side Panels
4 Legs
2 Ash Tray Rails
1 Rake
PARTS LIST:
1 Chimney Cap
1 Chimney
1 Chiminea Body Assembly
1 Hopper Lid Handle
1 Ash Tray
1 Heat Baffle
1 Firepot
1
2
3
4
5
6
7
8
9
10
12
13
14
11
FOR COVERS, ACCESSORIES AND OTHER PRODUCTS, PLEASE VISIT US ONLINE AT:
www.evenembers.com
Inspect contents of the box to ensure all parts are included and undamaged. Extra screws are
included in a small bag with the owners manual.
15

12
3
4
5
6789
10 11
12
13
14
15
9

10
1
2
Lay down cardboard
to protect the nish of
the chiminea.
With chiminea body
assembly upside
down, attach legs to
body using eight M6 x
12 mm bolts.
Attach rear, front and
side panels to legs
using sixteen M6 x 12
mm bolts.
Rear Panel
Front Panel
Side Panels
Legs

11
3
4
Attach ash tray rails to
front and rear panels
using four M4 x 10
mm bolts.
Install chimney onto
chimney collar and
secure with four M6 x
12 mm bolts.
Chimney
Ash Tray Rails

12
5
6
Install chimney cap
using four M6 x 12
mm bolts.
Attach hopper lid
handle to hopper lid
using two M6 x 12
mm bolts and M6
nuts.
Chimney Cap
Lid Handle

13
8
7
Install repot into
base of chiminea
body.
Install heat baffle over
repot, make sure
tabs on heat baffle
align with holes in
chiminea base.
Attach heat
adjustment coil spring
handle.
Install ash clean-out
lever.
Install ash tray.
Heat Adjuster Coil
Spring Handle
Ash Clean-out
Lever
Ash Tray
Heat Baffle
Firepot

14
Even Embers Pellet Chiminea - Assembled

OM3046AS
0523, 0623
Owner’s Manual for Models
HTR3046AS
The Boltz Group warrants to the original purchaser that the Even Embers®Pellet Fuel Chiminea is free from defects due to workmanship or
materials for One-year.
The Boltz Group obligations under this warranty are limited to the following guidelines:
• This warranty does not cover chimineas that have been altered/modified or damaged due to: normal wear, rust, abuse, improper maintenance
and/or improper use.
• This warranty does not cover surface scratches, rust or heat damage to the finish, which is considered normal wear.
• Even Embers®may elect to repair or replace damaged units covered by the terms of this warranty.
• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.
The Boltz Group requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales receipt or invoice. To obtain
replacement parts for your Even Embers®Pellet Fuel Chiminea under the terms of this warranty, please call Customer Service Department at
1-855-735-9922. A receipt will be required. Even Embers®will not be responsible for any chimineas forwarded to us without prior authorization.
EXCEPT AS ABOVE STATED, THE BOLTZ GROUP MAKES NO OTHER EXPRESS WARRANTY. THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THOSE LISTED ABOVE FROM THE DATE
OF PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU. ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE
OF THE EVEN EMBERS®PELLET FUEL CHIMINEA TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED.
CUSTOMER ACKNOWLEDGES THAT THE PURCHASE PRICE CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY
SET OUT ABOVE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
WARRANTY
©2023 The Boltz Group LLC
Carrollton, Texas 75006 U.S.A.
www.evenembers.com
