Lopi Heritage Bay DV User manual

Owner's
Manual
- March, 1997 -
¥ Freestanding Direct-Vent Stove
¥ Natural Gas or Propane
¥ Residential or Mobile Home
ANSIZ21.44,Z21.11.4
CAN/CGA 1-2.19-M81,IR41,IR55,2.17-M91
WARNING: If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
¥ Do not try to light any appliance.
¥ Do not touch any electrical switch; do not use any phone in your building.
¥ Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
¥ If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier
.
Heritage Bay DV Gas Stove
10850 117th Place N.E. Kirkland, WA 98033
OMNI
Listed

PAGE 2SAFETY PRECAUTIONS
¥ IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open windows and vacate building
* Call gas supplier from neighbor's house, if not reached, call fire
department
¥ This unit must be installed by a qualified installer to prevent the possibility of
an explosion. Your dealer will know the requirements in your area and can
inform you of those people considered qualified. The room heater should be
inspected before use and at least annually by a qualified service person. More
frequent cleaning may be required due to excessive lint from carpeting,
bedding material, etc.
¥ The instructions in this manual must be strictly adhered to. Do not use
makeshift methods or compromise in the installation. Improper installation
will void the warranty and safety listing.
THIS CONTROL
HAS BEEN
CONVERTED TO
LP
THIS CONTROL
HAS BEEN
CONVERTED FOR
NATURAL GAS
¥ This heater is either approved for natural gas
(NG) or propane (LP). Burning the incorrect
fuel will void the warranty and safety listing and
may cause an extreme safety hazard. Check the
label above the gas control valve to make sure it
matches the fuel being used. Direct questions
about the type of fuel used to your dealer.
Ok
¥ Contact your local
building officials to
obtain a permit and
information on any
installation restrictions or
inspection requirements
in your area. Notify your
insurance company of this
heater as well.
¥ If the flame becomes
sooty, dark orange in
color, or extremely tall,
do not operate the heater.
Call your dealer and
arrange for proper
servicing.
¥ It is imperative that
control compartments,
screens, or circulating air
passageways of the heater
be kept clean and free of
obstructions. These areas
provide the air necessary
for safe operation. ?
¥ Do not operate the heater
if it is not operating
properly in any fashion or
if you are uncertain. Call
your dealer for a full
explanation of your heater
and what to expect.
Gas
¥ Do not store or use
gasoline or other
flammable liquids in the
vicinity of this heater.
¥ Keep all furniture or other
combustible items at least
36" away from the front
of the heater.
AAAAA
AAAAA
AAAAA
AAAAA
AA
AA
¥ Do not operate if any
portion of the heater was
submerged in water or if
any corrosion occurs.

SAFETY PRECAUTIONS (CONTINUED)PAGE 3
¥ Do not place clothing or
other flammable items on
or near the heater.
Because this heater can be
controlled by a thermostat
there is a possibility of the
heater turning on and
igniting any items placed
on or near it.
AA
AA
AA
AA
A
¥ Light the heater using the
built-in piezo igniter. Do
not use matches or any
other external device to
light your heater.
¥ Never remove, replace,
modify or substitute any
part of the heater unless
¥ The viewing glass should
be opened for service
only (see the maintenance
section of this manual).
¥ Any safety screen or
guard removed for
servicing must be
replaced prior to
operating the heater.
instructions are given in
this manual. All other
work must be done by a
trained technician. Don't
modify or replace
orifices.
¥ Allow the heater to cool
before carrying out any
maintenance or cleaning.
¥ Operate the heater
according to the
instructions included in
this manual.
¥ If the main burners do not
start correctly turn the gas
off at the gas control
valve and call your dealer
for service.
¥ The pilot flame must
contact the thermopile
and thermocouple (see the
illustration to the left). If
it does not, turn the gas
control valve to "OFF"
and call your dealer.
AA
AA
AA
AA
¥ This unit is not for use
with solid fuel
¥ Do not place anything
inside the firebox (except
the included fiber logs).
¥ If the fiber logs become
damaged, replace with
Travis Industries log set.
This
Manual
¥ Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a
later time. Always follow
the instructions in this
manual.
¥ Do not touch the hot
surfaces of the heater.
Educate all children of the
danger of a high-
temperature heater.
Young children should be
supervised when they are
in the same room as the
heater.
¥ Plug the heater into a
120V grounded electrical
outlet. Do not remove the
grounding plug.
¥ Don't route the electrical
cord in front of, over, or
under the heater
¥ Instruct everyone in the
house how to shut gas off
to the appliance and at the
gas main shutoff valve.
The gas main shutoff
valve is usually next to
the gas meter or propane
tank and requires a
wrench to shut off.
¥Travis Industries, Inc.
grants no warranty,
implied or stated, for the
installation or
maintenance of your
heater, and assumes no
responsibility of any
consequential
damage(s).

PAGE 4TABLE OF CONTENTS
Introduction & Important Info. ................1
Safety Precautions .....................................2
Features & Specifications ........................5
Installation Options ...................................5
Heating Specifications ...............................5
Dimensions .............................................5
Fuel, Emissions, Electrical..........................5
Stove Installation
Installation Preparation ..............................6
Items Required for Installation.....................6
Items Packed with the Heritage Bay .............6
Order of Installation ..................................6
Stove Clearances .....................................6
Stove Placement Requirements ..................7
Floor Protection Requirements ....................7
Gas Line Installation .................................7
Vent Requirements ...................................8
Approved Vent Configurations.....................9
Restrictor Position ..............................9
Elbows .............................................9
Measuring Vent Lengths ......................9
Approved Vent Config's with No Elbows
or Two 45°Offsets (Vertical Term.) ........10
Approved Vent Config's with a
Horizontal Termination.........................11
Approved Vent Config's with a Vertical
Termination and Two 90°Elbows...........12
Horizontal Vent Termination Requirements ....13
Vertical Vent Termination Requirements .......13
Electrical Connection ................................13
Finalizing the Installation

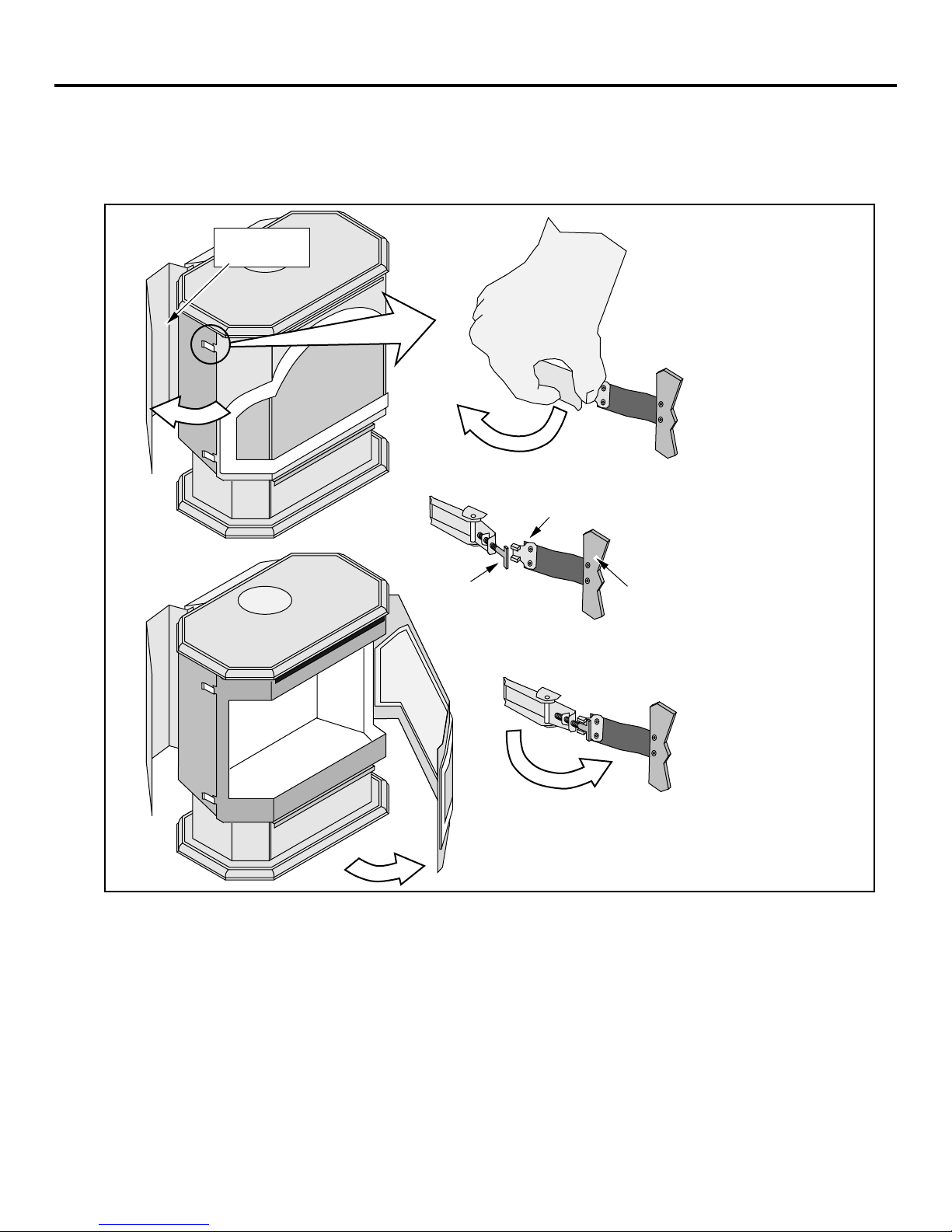

Door Opening ..........................................14
Log, Twig, and Ember Installation ................15
Leak Test the Gas Line..............................16
Pilot Flame Inspection ...............................16
Air Shutter Adjustment...............................16
Flame Inspection......................................16
Explain Heater Operation to Owner ..............16
Operating Your Heater
Before You Begin .....................................17
Location of Controls ..................................17
Starting The Pilot Flame ............................18
Starting the Heater for the First Time ............19
Turning the Heater On and Off ....................19
Adjusting the Flame Height.........................19
Adjusting the Blower Speed........................20
Normal Operating Sounds ..........................20
Maintaining Your Heater
Cleaning Your Heater................................21
Yearly Service Procedure...........................21
Adjusting the Door ....................................22
Troubleshooting
Troubleshooting Table...............................23
How this Heater Works ..............................24
Wiring Diagram ........................................25
Warranty .......................................................26
Listing Information ....................................27
Optional Equipment
LP Conversion .........................................28
Thermostat Installation ..............................32
Remote Control Thermostat........................33
Addendum
Altitude Considerations..............................35
Class A Chimney Conversion Kit .................35
Index 36
Symbols Used in this Manual
The illustration below details what the symbols used along the left margin indicate.
Requirement
¥1!?+
Hint
NoteWarningStep

FEATURES AND SPECIFICATIONS PAGE 5
Installation Options:
¥ Freestanding
¥ Residential or Mobile Home
¥ Horizontal or Vertical Vent
¥ Class A Chimney Retrofit
Features:
¥ Works During Power Outages (millivolt system)
¥ High Efficiency; Up to 79% for Natural Gas,
80% for LP (Steady State)
¥ Optional Thermostat or Remote Control
¥ Realistic "Wood Fire" Look
¥ Convenient Operating Controls
¥ Variable-Rate Heat Output
¥ Quiet Blower for Effective Heat Distribution
¥ Low Maintenance
Heating Specifications: Natural Gas LP (Propane)
Approximate Heating Capacity (in square feet)* 1,200 - 2,000 1,200 - 2,000
High Burn Input Rate (In BTU's) 40,000 40,000
Low Burn Input Rate (In BTU's) 23,700 23,000
Efficiency** 79% 80%
AFUE (Annual Fuel Utilization Efficiency) 71% 72%
* Heating capacity will vary with the home's floor plan and insulation, natural gas or Propane BTU rating, and outside temperature.
** Efficiency rating is a product of thermal efficiency rating determined under continuous operation independent of installed system.
To measure the net BTU's, multiply the BTU input by the efficiency percentage (79% for natural gas, 80% for LP).
mensions:
u
el:
The heater is designed
either for natural gas or for
propane. Check the sticker
on the top of the gas
control valve.
m
issions:
This unit has passed the
ANSI emission standards
for vented room heaters as
tested by OMNI
Environmental Services,
Inc.
ectrical Specifications:
120 Volts, 1.3 Amps, 60
Hz (150 watts on high)
27-3/8" (695 mm)
8-1/4"
(210 MM)
Weight: 275
Lbs
(125 kg).
32-3/8Ó
(822 mm)
20-3/8"
(518 mm)
Measure
Clearances
from the
Stove Top
The starter section is 3/4" (19
mm) below the top.

PAGE 6STOVE INSTALLATION - For Qualified Installers Only!
Installation Preparation
! Failure to follow all of the requirements may result in property damage, bodily injury, or even
death.
! This appliance must be installed in accordance with all local codes, if any; if not, follow ANSI
Z223.1 and NFPA 54(88).
! In Manufactured or Mobile Homes must confirm with: In USA, Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280; In Canada, CSA Z240.4 and Gas-Equipped
Recreational Vehicles and Mobile Housing. This appliance may be installed in Manufactured
Housing only after the home is site located.
! This appliance is designed for natural gas or propane (LP). Check the sticker on top of the gas
control valve.
! All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure.
! Notify your insurance company before hooking up this appliance.
! The requirements below are divided into sections - all requirements must be met simultaneously.
e
ms Required for Installation
¥Simpson Duravent (see page 8 for part #'s) & Silicone ¥Gas Hookup Equipment
e
ms Packed with the Heritage Bay
¥Heritage Bay
¥Propane Conversion Kit
¥Log Set (2 Logs, 2 Twigs, Embers)
r
der of Installation
1If using propane, follow the converstion instructions on
page 28
2Position the heater, use floor protection if needed
3Connect the gas line. Connect the gas vent.
4Follow the instructions under "Finalizing the
Installation" on pages 14 through 16
Stove Clearances
8" Min.
(200 mm)
3" Min.
(75 mm)
With this clearance the vent
is 6" (152 mm) from the back
wall, 18-3/4" (476 mm) from
the side wall.
Straight Installations Corner Installations
With this clearance, the vent is
10-3/4" (273 mm) from the wall.
45¡
3" Min.
(75 mm)

STOVE INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 7
Heater Placement Requirements
¥Heater must be installed on a level surface capable of supporting the heater and vent
¥Due to the high temperature of the heater, it should be located out of traffic and away from furniture
and draperies. Heater must be placed so no combustibles are within, or can swing within 36" (910
mm) of the front of the heater (e.g. drapes, doors)
?When placed in a location where the floor to ceiling height is under 7 feet (2130 mm), the
installation is considered an alcove and must meet the following requirements:
¥The alcove floor to ceiling height must be at least 60" (1520 mm) tall
¥The alcove must not be more than 48" (1220 mm) deep before the ceiling returns to 7' (2130 mm)
¥The alcove must be at least 43-3/8" (1100 mm) wide
¥The heater must not be placed so the vents below or above the door, along the sides of heater, or
along the back of the heater can become blocked.
Floor Protection
¥When the stove is installed directly on carpeting, vinyl or other combustible material other than
wood flooring, the stove must be installed on a metal or wood protection panel extending the full
width and depth of the heater (Minimum 27-3/8" (695 mm) wide by 20-3/8" (518 mm) deep ).
Gas Line Installation
!The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI Z223.1
and the requirements listed below.
!The heater and gas control valve must be
disconnected from the gas supply piping during
any pressure testing of that system at test
pressures in excess of 1/2 psig (3.45 kPA). For
pressures under 1/2 psig (3.45 kPA), isolate the
gas supply piping by closing the manual
shutoff valve.
¥This heater is designed for natural gas but can
be converted to propane. Check the sticker on
the top of the gas control valve to make sure
the correct fuel is used.
¥Leak test all gas line joints and the gas control
valve prior to and after starting the heater.
¥The gas inlet accepts a 3/8" F.P.T. Fitting
¥The location of the gas inlet is shown below
¥A manual shutoff valve is required for
installation (it must be located within 3' (910
mm) of the heater)
G
as Inlet Pressure
A
17-1/2"
(445 mm)
6-1/4Ó
(156 mm)
Center
of
Heater
From
Front of
Heater
3Ó (76
mm)
¥With the heater off, the inlet pressure must meet the requirements listed in the table below
?If the pressure is not sufficient, make sure the piping used is large enough and the total gas load for
the residence does not exceed the amount supplied.
?The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank)
should supply gas at the suggested input pressure listed below. Contact the local gas supplier if the
regulator is at an improper pressure.
Standard Input Pressure
Natural Gas 7" W.C. (1.74 Kpa)
Propane 11" W.C. (2.73 Kpa)

PAGE 8STOVE INSTALLATION (CONT.) - For Qualified Installers Only!
Vent Requirements
!Always maintain the required 1" (25 mm) clearance (air space) to combustible materials to prevent a
fire hazard. Do not fill air spaces with insulation.
!The gas appliance and vent system must be vented directly to the outside of the building, and never
be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas
appliance must use it's own separate vent system.
!If the heater is installed at an
altitude over 3,000 (1,000 M)
feet the flame quality will
need to be carefully
evaluated. See Addendum
#1, "Altitude
Considerations", on page 35.
¥When the vent passes through
a wall, a wall thimble is
required. When the vent
passes through a ceiling, a
support box or firestop is
required. When the vent
passes through the roof, a
roof flashing and storm collar
are required. Follow the
instructions provided with the
vent (from Duravent¨) for
installing these items.
Use a firestop spacer whenever
passing through a ceiling
(Duravent Part #963)
Vertical Termination
(Duravent Part # 991)
Use a roof flashing and storm collar
whenever passing through the roof
(Duravent Part #953 & #943 or #943S)
8-5/8"
(220 mm)
Use a support box
on exposed vent
Vertical Vent
Requirements
Use a wall thimble
whenever passing
through a wall
(Duravent Part #942)
Horizontal Termination
(Duravent Part #984)
Maintain a minimum 1" (25 mm)
clearance from vent to any combustible
(vent is 6 5/8" (170 mm) diameter)
Minimum
Framing for
wall thimble
Horizontal Vent
Requirements
Minimum framing
for fire stop
8-5/8"
(220 mm)
Maintain a minimum 1"
(25 mm) clearance from
vent to any combustible
(vent is 6 5/8" (170 mm)
diameter)
¥Use Model GS Direct Vent manufactured by Simpson Dura-Vent only (or the Chimney Conversion
Kit - see Addendum #2). Follow the installation instructions included with the vent. For the nearest
Simpson Dura-Vent supplier, call [phone]. Part numbers and descriptions are listed below.
Straight Lengths
908B 6" Pipe Length, Black (interior)
907B 9" Pipe Length, Black (interior)
906 12" Pipe Length, Galvanized
906B 12" Pipe Length, Black (interior)
904 24" Pipe Length, Galvanized
904B 24" Pipe Length, Black (interior)
903 36" Pipe Length, Galvanized
903B 36" Pipe Length, Black (interior)
902 48" Pipe Length, Galvanized
902B 48" Pipe Length, Black (interior)
911B 11" to 14 5/8" Pipe, Adjustable, Black (interior)
Vent Terminations
981 Snorkel Termination (36" rise)
(for basement installations)
982 Snorkel Termination (14" rise)
(for basement installations)
984 Horizontal Square Termination
950 Vinyl Siding Standoff
991 Vertical Termination
Elbows
990 90¥ Elbow
990B 90¥ Elbow, Black (interior)
945 45°Elbow
945B 45°Elbow, Black (interior)
Penetration, Support Parts
942 Wall Thimble
940 Optional Wall Thimble Cover
941 Cathedral Ceiling Support Box
943 Flashing, 0/12 to 6/12 Roof Pitch
943S Flashing, 7/12 to 12/12 Roof Pitch
953 Storm Collar
963 Ceiling Firestop
988 Wall Strap
¥Apply high-temperature silicone to the male section of inner pipe
(on the upper section of vent) so the silicone seals the inner pipe
from the outer pipe when the sections are assembled. Slide the
sections together and turn 1/4 turn until the sections lock in place.
Install three metal screws through each joint to lock the outer
section in place (see the instructions included with the vent for
further details).
NOTE: You may screw the first section of vent to the appliance.
Apply a 1/8" (3 mm)
bead of high-
temperature silicone
to the inner pipe.
The silicone must
seal the inner pipe
from the outer pipe.
Silicone
¥Horizontal sections require a 1/4" (6 mm) rise every 12" (300 mm) of travel
+Exterior Vent Diameter = 6-5/8" (170 mm), Inner Vent Diameter = 4" (100 mm)
¥Horizontal sections require non-combustible support every 36" (910 mm) (e.g.: use plumbing tape)

STOVE INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 9
Approved Vent Configurations
Restrictor Position
¥A vent restrictor is
built into the appliance
to control the flow rate
of exhaust gases. This
ensures proper flames
for the wide variety of
vent configurations.
The restrictor consists
of a butterfly valve in
the air inlet and an
adjustment plate with
index holes used to
hold the valve in a
fixed position.
Depending upon the
vent configuration, you
may be required to
adjust the restrictor
position. The charts
for approved vent
configurations describe
which position the vent
restrictor must be in.
To Adjust the Restrictor:
1
2
3
4
The three holes on the
restrictor plate
correspond to the three
restrictor positions.
Determine the correct restrictor position (see the
charts under "Approved Vent Configurations" - the stock
position is #1). Swing the left access panel open.
Remove the screw with a 1/4" nutdriver (or screwdriver).
Rotate the adjustment plate clockwise until the correct
index hole is above the pivot point.
Insert the screw into the correct index hole and tighten.
NOTE:
Position #1 is the fully open position
1/4" Nutdriver
Adjustment
Plate
Index Holes
Pivot
Point
Screw
1
2
3
This restrictor is
in Position #3.
E
lbows
¥2 Elbow
maximum
(two 45°or
two 90°, not
one 45°and
one 90°)
M
easuring Vent
L
engths
Vent Horizontal Run
(measure from the closest
edge of the starter section to
the end of the termination)
Vent Height is
calculated to the
top of the vent on
horizontal
terminations and
to the top of the
termination on
vertical
terminations.
Vent
Height
Elbows add 3" (75 mm) to the
length of the vent system.
Side
View
9-5/8"
(245 mm)
Vent Length
(3', 4', etc.)
(910, 1210 mm)
Vent sections overlap each
other by 1-1/2" (37 mm)
8-3/4" (220 mm) wide
with 1-1/2" (37 mm)
to 3-3/8" (85 mm) of
overlap
The starter
section is
3/4" (19 mm)
below the top
12-3/8" (310 mm) tall
with 1-1/2" (37 mm)
of overlap
3" (75 mm)
1-1/2" (37 mm)
1-1/2"
(37 mm)

PAGE 10 STOVE INSTALLATION (CONT.) - For Qualified Installers Only!
A
pproved Venting Configurations for
V
ertical Terminations with (or without)
T
wo 45°Elbows
¥10' (3 M) Minimum System Height
(with or without offsets)
¥35' (10.7 M) Maximum System Height
¥6' (1.8 M) Maximum Offset
¥The termination must fall within the shaded
area shown in the chart. Use the indicated
restrictor position.
¥If using offsets, use the table below to
calculate the vertical rise and horizontal
offset
Offset
Length
Horizontal
Offset
Vertical
Rise
Offset Length Hor. Offset Vert. Rise
None 5" (125 mm) 1' (300 mm)
1' Section 1' (300 mm) 1' 7" (480 m
m
2' Section 1' 9" (530 mm) 2' 4" (710 m
m
3' Section 2' 5" (740 mm) 3' (915 mm)
4' Section 3' 2" (965 mm) 3' 8" (1.12 M
)
4' + 1' Section 3' 9" (1.14 M) 4' 4" (1.32 M
)
4' + 2' Section 4' 6" (1.37 M) 5' (1.52 M)
4' + 3' Section 5' 2" (1.57 M) 5' 9" (1.75 M
)
4' + 4' Section 6' (1.83 M) 6' 9" (2.06 M
)
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
5 feet
(1.5 M)
10 feet
(3 M)
(min.)
15 feet
(4.6 M)
20 feet
(6 M)
25 feet
(7.5 M)
30 feet
(9.1 M)
0 feet
35' (max)
(10.7 M)
0 feet
3 feet
(0.9 M)
6' (max)
(1.8 M)
5 feet
(1.5 M)
0 feet
0 feet
Restrictor
Position # 1
The maximum
offset lengths is
two 4' sections.
NOTE:
Restrictor positions
are based upon lab
tests. The ideal
restrictor position
may vary slightly,
especially when the
termination is near
a demarkation line.
Restrictor
Position # 3
Do not place an
elbow directly off the
top of the heater.
3 feet
(0.9 M)
6' (max)
(1.8 M)
10 feet
(3 M)
(min.)
15 feet
(4.6 M)
20 feet
(6 M)
25 feet
(7.5 M)
30 feet
(9.1 M)
35' (max)
(10.7 M)

STOVE INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 11
Approved Venting Configurations with a Horizontal Termination
¥ Minimum 3' (.9 M) vertical section directly off the stove for propane, 2' (.5 M) for natural gas.
¥If using a Snorkel Termination (14" or 36") add the snorkel height to the vertical height (snorkel
terminations are used primarily for basement installations).
¥The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
5 feet
(1.5 M)
0 feet
10' (max)
(3 M)
0 feet
5 feet
(1.5 M)
0 feet
0 feet
NOTE:
Horizontal sections
require a 1/4" (6 mm)
rise every 12" (300 mm)
of travel.
8'(max)
(2.4 M)
NOTE:
A minimum 2' (.6 M)
rise is required directly
off of the stove.
Restrictor
Position # 1
8' (max)
(2.4 M)
Natural Gas
Installations
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
0 feet
0 feet
0 feet
0 feet
NOTE:
A minimum 3' (.9 M)
rise is required directly
off of the stove.
Restrictor
Position # 1
Propane (LP)
Installations
5 feet
(1.5 M)
10' (max)
(3 M)
5 feet
(1.5 M)
NOTE:
Horizontal sections
require a 1/4" (6 mm)
rise every 12" (300 mm)
of travel.
5 feet
(1.5 M)
10' (max)
(3 M)
5 feet
(1.5 M)
8'(max)
(2.4 M)
8' (max)
(2.4 M)
5 feet
(1.5 M)
10' (max)
(3 M)
5 feet
(1.5 M)

PAGE 12 STOVE INSTALLATION (CONT.) - For Qualified Installers Only!
Approved Venting Configurations for Vertical Terminations with Two 90°Elbows
¥The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position.
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
0 feet
5 feet
(1.5 M)
10 feet
(3 M)
0 feet
0 feet
0 feet
NOTE:
Horizontal sections require a 1/4" (6 mm)
rise every 12" (300 mm) of travel.
Restrictor
Position # 3
16'(max)
(4.9 M)
8 feet (min.)
(2.4 M)
Restrictor
Position # 2
Restrictor
Position # 1
NOTE:
Restrictor positions are based
upon lab tests. The ideal restrictor
position may vary slightly,
especially when the termination is
near a demarkation line.
5 feet
(1.5 M)
10 feet
(3 M)
15 feet
(4.6 M)
20 feet
(6 M)
25 feet
(7.5 M)
30 feet
(9.1 M)
35' (max)
(10.7 M)
5 feet
(1.5 M)
10 feet
(3 M)
15 feet
(4.6 M)
20 feet
(6 M)
25 feet
(7.5 M)
30 feet
(9.1 M)
35' (max)
(10.7 M)
8 feet (min.)
(2.4 M)
5 feet
(1.5 M)
10 feet
(3 M)
16'(max)
(4.9 M)
Do not place an elbow directly off
the top of the heater.

STOVE INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 13
Horizontal Vent Termination Requirements (see the illustration below)
A Minimum 9" (225 mm) clearance from any door or window
B Minimum 12" (300 mm) above any grade, veranda, porch, deck or balcony
C Minimum 12" (300 mm) from outside corner walls
D Minimum 12" (300 mm) from inside corner walls
E Minimum 11" (275 mm) clearance below unventilated soffits or roof surfaces
Minimum 18" (450 mm) clearance below ventilated soffits
Minimum 6" (150 mm) clearance from roof eaves
NOTE: Vinyl surfaces require 24" (600 mm)
11Ó Min.
6Ó Min.
Roof
Surface
Roof
Eaves
F Minimum 18" (450 mm) clearance below a veranda, porch, deck or balcony (must have two open sides)
G Minimum 48" (1220 mm) clearance from any adjacent building
H Minimum 84" (2130 mm) clearance above any grade when adjacent to public walkways or driveways
NOTE: may not be used over a walkway or driveway shared by an adjacent building
I Minimum 48" (1220 mm) clearance from any mechanical air supply inlet, 72" (1820 mm) for Canada
J Minimum 36" (910 mm) clearance above and 48" (1220 mm) below and to the sides of non-mechanical air supply inlet
K Minimum 36" (910 mm) from the area above the meter/regulator (vent outlet)
L Minimum 36" (910 mm) from the meter/regulator (vent outlet)
C
B
H
E
GA
D
F
L
KJ
I
NOTE: Measure clearances to the nearest edge of the exhaust hood.
A
E
¥Use the vinyl siding standoff (#950) when installing on an exterior with vinyl siding.
¥Vent termination must not be located where it will become plugged by snow or other material
¥These clearances meet UMC-1994 and the CNA/CGA-B149 code standards
Vertical Vent Termination Requirements (see the illustration below)
Roof Pitch
Flat to 6/12
6/12 to 8/12
8/12 to 9/12
9/12 to 10/12
10/12 to 11/12
11/12 to 12/12
12/12 to 14/12
14/12 to 16/12
16/12 to 18/12
18/12 to 20/12
20/12 or greater
Minimum Height*
1' (.3 M)*
1.5' (.45 M)*
2' (.6 M)
2.5' (.75 M)
3.25' (1 M)
4' (1.2 M)
5' (1.5 M
6' (1.8 M)
7' (2.15 M)
7.5' (2.25 M)
8' (2.45 M)
* In Canada the
vent termination
must be a
minimum 2' (.6 M)
tall and 2' (.6 M)
above any portion
of the roof within
10' (3 M) of the
vent.
Use the
chart to the
right to
determine
the required
vent
termination
height.
Height
Roof
Pitch
Use the vertical
termination (Part #991)
Electrical Connection
¥Plug the power cord into a grounded 120 Volt outlet (do not remove the grounding plug).

PAGE 14 FINALIZING THE INSTALLATION - For Qualified Installers Only!
! Turn the gas control valve to "OFF" prior to conducting any service.
1Open the door following the instructions below.
Open both the top
and bottom latch.
With the pawl free of the
strike, the door may be
swung open.
Swing the left
panel back.
When securing the
door, make sure the
pawl fits over the strike
before tightening.
Strike
Pawl Door
Frame
NOTE: Do not overtighten the pawl by screwing
it in. This will permanently damage the latch.

FINALIZING THE INSTALLATION (CONT.) - For Qualified Installers Only! PAGE 15
2Install the log set and coals.
The front log rests on the tabs at
the front of the burner pan.
The back of the front log rests against
the angled portion of the burner pan
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
A
A
AA
AA
A
Coals must not
cover the burner
holes in front.
Rear Log (it is
shorter than
the front log)
Front Log (it is
longer than the
back log).
Burner
Pan
Place the coals on this ledge and
on the coal trays to the side of
the firebox.
Right Side Twig (NOTE: it is
shorter than the left side twig)
Left Side Twig (NOTE: it is
longer than the right side twig)
NOTE: The logs and coals
become fragile once burned.
NOTE: The logs are wrapped in
bubble wrap and placed inside
the firebox to protect them
during shipping.
The pegs on the logs insert
into the holes on the twigs
Rear
Log
Holder
Coals (bagged
and shipped with
the logs)
Face of the
Fireplace
1
2
3
4
#
Install the logs
and coals in the
order listed.
5
!We recommend you purge the gas line at this time (with the door open). This allows gas to be
detected once it enters the firebox, ensuring gas does not build up.

PAGE 16 FINALIZING THE INSTALLATION (CONT.) - For Qualified Installers Only!
3Close and secure the door (see step 1).
4Turn on gas to the
heater. Leak test all
gas joints prior to
starting the
appliance. Start the
pilot. Start the main
burner. Leak test all
gas joints again.
5Check the pilot flame
to make sure it looks
like the illustration to
the right. Adjust the
pilot flame if
necessary.
6Let the heater burn
for fifteen minutes.
Adjust the air shutter,
if necessary, to
achieve the correct
looking flame (see
the illustration to the
right).
¥The air shutter
adjusts the amount of
air that mixes with
the gas before it exits
the burner holes. It
is used to fine-tune
the flame for
differences in
altitude and vent
configuration.
!
If the air shutter is in
its fully open
position, yet the
flames remain sooty,
shut off gas to the
heater and contact
your dealer for a
remedy.
The pilot flame should impinge the top 3/8Ó (10
mm) of the thermopile. If it does not, you may
need to turn the pilot up.
To adjust the pilot flame, remove the cover screw (and
gasket) and turn the needle valve. Clockwise lowers
the flame while counter-clockwise raises it.
PILOT ADJ
T
O
L
P
I
ON
OFF
Standard
Screwdriver
Micro (1/16Ó)
Standard
Screwdriver
A
The cover screw and
gasket must be
replaced to prevent gas
from leaking
Cover Screw
Cover Screw Gasket
Needle Valve
3/8Ó (10 mm)
Thermopile
Pilot Hood
Thermocouple
Gas Control Valve
PILOT ADJ
VENT
HI
LO
Correct
Flames should be blue at the
base, yellow-orange on the top.
If the flames are too tall or sooty on
the ends, push up on the lever.
If the flames are all blue and
short, pull down the lever.
Not Enough Air Too Much Air
Locate the air shutter adjustment
lever behind the gas control valve.
Move it up or down until the flame
looks correct. Pushing up gives the
flame more air (making it bluer).
Pulling it down cuts air down,
making it more orange.
NOTE: If the air control is all the
way up, yet the flames remain
sooty, shut off gas to the fireplace
and contact a qualified gas service
technician. NOTE: The logs must be installed correctly to
monitor the flame while adjusting the air shutter.
T
O
L
P
I
ON
OFF
The flames should burn right off
the top of the burner ports (if they
are too blue, adjust the air control).
If the flames are lifting, yet the
vent configuration is correct,
contact your dealer.
Burner Pan
Burner Ports
(consists of slots
and holes)
If the flames are ghosting, yet the
vent configuration is correct,
contact your dealer.
!If the vent configuration is installed incorrectly the vent may cause the flames inside the heater to lift
or "ghost" Ð a dangerous situation. Inspect the flames after installation to insure proper performance.
If the vent configuration is correct, yet the flames are lifting or ghosting, shut off gas to the heater
and contact the dealer for information on remedying the problem.
7Turn the flame adjust knob to its highest position - the flames should be approximately 12"tall.
Check the flame on low position. The flames should burn off of each burner hole. If the heater does
not work correctly, contact your dealer for a remedy.
8 Give this manual to the home owner and fully explain the operation of this heater.

OPERATING YOUR HEATER PAGE 17
Before You Begin
! Read this entire manual before you use your new heater (especially the section "Safety
Precautions" on pages 2 & 3). Failure to follow the instructions may result in property
damage, bodily injury, or even death.
Location of Controls - See explanation below
Swing the control cover
down to access the gas
control valve, igniter, and
blower control.
Gas Control Valve
PILOT ADJ
VENT
T
O
L
P
I
ON
OFF
HI
LO
Gas Control
Knob
Flame Adjust
Knob
Blower Knob
BLOWER
LO
OFF HI
PILOT
IGNITER
Pilot Igniter
ON/OFF
Switch
The on/off switch is
located on the
back of the heater.
The Pilot Flame
can be found below
the back log.
O
F
O
N
F
On/Off Switch This control is used to turn the main burner on and off.
Gas Control Knob This knob is used to control gas to the heater and for starting the pilot. There
are three positions, ON, OFF, & PILOT. The pointer directly below the knob
indicates the position this knob is in.
Flame Adjust Knob This knob controls the flame height from low ("LO") to high ("HI"). The
pointer to the upper left of the knob points to the position this knob is in.
Pilot Igniter The pilot igniter is used only to start the pilot. When pressed, it sends an
electrical charge to the pilot assembly. This creates a blue spark directly next
to the pilot, igniting the pilot flame.
Blower Knob This knob controls the speed of the internal convection blower that pushes the
heated air into the room.
?If using a remote control or thermostat, the On/Off Switch must be left "ON". Turning the On/Off
Switch "OFF" will keep the heater off always.

PAGE 18 OPERATING YOUR HEATER (CONTINUED)
Starting The Pilot Flame
The pilot flame is required to ignite the main burners (it also plays a safety role). It should be
left on once lit. It will stay lit unless the gas control valve is turned to "OFF". However, the
pilot will go out if the gas is shut off or if the stove malfunctions. If the pilot turns off
frequently, call your dealer for information. To start the pilot follow the directions below:
NOTE: IF YOU'RE TRYING TO RE-LIGHT THE PILOT BECAUSE SERVICE WAS
PERFORMED ON THE UNIT (I.E. GAS LINE REMOVED THEN RE-INSTALLED OR
BECAUSE TANK RAN OUT OF GAS), FOLLOW THE INSTRUCTIONS FOR OPENING THE
DOOR AND REMOVING THE LOGS ON PAGES 14 AND 15 THEN BLEED THE GAS LINE.
APush the gas control knob in
slightly and turn it to the
"OFF" position. The knob
will not turn from "ON" to
"OFF" unless the knob is
depressed slightly.
BWait five minutes to let any
gas that may have
accumulated inside the
firebox escape. If you smell
gas, follow the directions on
the cover "IF YOU SMELL
GAS".
CTurn the gas control knob to
the "PILOT" position and
press the knob in, this will
allow gas to flow to the pilot
light. Press the red button
on the pilot igniter
repeatedly until you see the
pilot light. KEEP THE GAS
CONTROL KNOB
DEPRESSED FOR 30
SECONDS ONCE IT IS
LIT. NOTE: IF THE
PILOT DOES NOT
LIGHT AFTER 15
SECONDS, RELEASE
THE KNOB AND CALL
YOUR DEALER FOR
SERVICE.
DRelease the gas control
knob. If the pilot goes out,
repeat step C. If the pilot
refuses to stay lit, call your
dealer for service.
ETurn the gas control knob
counter-clockwise to "ON".
The pilot is now lit and the
stove can be turned on and
off.
PILOT ADJ
PILOT ADJ
PILOT
IGNITER
T
O
L
P
I
ON
OFF
PILOT ADJ
T
O
L
P
I
ON
OFF
AAA
AAA
A
A
A
A
A
30 seconds
AA
AA
AA
A
A
A
A
5 minutes
T
O
L
P
I
ON
OFF
PILOT ADJ
T
O
L
P
I
ON
OFF
?
AB
C
D
PILOT ADJ
E
T
O
L
P
I
ON
OFF
Do not press knob in for more than
15 seconds if pilot does not light.
Call Your Dealer For Service

OPERATING YOUR HEATER (CONTINUED)PAGE 19
Starting the Heater for the First Time
+ Fumes and smoke from the paint curing and oil burning off the steel may occur the first time you
start your heater. This is normal. We recommend you open windows to vent the room.
+ Condensation may appear on the glass each time you start the heater - this is normal.
+ Blue Flames will occur on the heater when it first comes on. After fifteen minutes the flames will
turn a more realistic yellow and orange color.
?Certain installations use a remote "wall switch" to turn the heater on and off. If this is the case, leave
the ON/OFF switch "ON".
Turning the Heater On and Off
O
FF
O
N
Use this switch to
turn the main burner
on and off manually.
After the pilot has been started...
See the instructions included
with the remote for details on
operation.
For systems with thermostats,
use this switch to control the
temperature (right is hotter, left
cooler). Some systems
require the on/off switch to be
on.
See the instructions
included with the
remote for changing
the battery.
!Do not place any combustible items on top of or directly in front of the heater, even temporarily.
The optional thermostat may start the heater causing a combustible item to ignite.
?If the heater turns on and off frequently while using the thermostat, you may want to adjust the flame
height down until it produces just enough heat needed.
Adjusting the Flame Height
+Your heater has an adjustable flame to tailor the look and heat output to your specific needs. It is
adjusted by turning the middle dial on the gas control valve.
Flame Height
Ad
j
ustment Knob
Index Mark
Turn clockwise to ad
j
ust the flame hi
g
her, counter-clockwise to lower.
PILOT ADJ
VENT
T
O
L
P
I
ON
OFF
HI
LO
VENT
HI
LO

PAGE 20 OPERATING YOUR HEATER (CONTINUED)
Adjusting the Blower Speed
+The blower helps transfer the heat from the heater into the room. It will not turn on until the heater
is up to temperature (approximately 10 minutes after starting). See the illustration below for
instructions on adjusting the blower speed.
BLOWER
LO
OFF HI
PILOT
IGNITER
Blower Knob
Turn the knob all the way counter-clockwise to turn
the blower off. One click clockwise turns the
blower to high speed. Turning the knob clockwise
from the high position decreases the speed of the
blower.
Normal Operating Sounds
Gas Control Valve
As the gas control valve is turned
on and off you will hear a dull
clicking sound. This is the valve
opening up and shutting down.
Blower Snap Disk
This part can
produce a clicking
sound as it turns the
blower on and off.
The appliance may
creak with change of
temperature.
Pilot Flame
The pilot flame,
which remains on,
makes a very slight
"whisper" sound.
Blower
This heater uses a
blower to push heated air
into the room. You will
hear the sound of air
movement that increases
as the speed is
increased.
