EverFocus ECD900 eZ.HD Series User manual

ECD900 eZ.HD Series
720p Analog High Definition
True Day/Night Indoor Dome Camera
User’s Manual
Copyright © EverFocus Electronics Corp,
Release Date: Nov., 2014,

2
Precautions
1. Do not install the camera near electric or magnetic fields. Install the camera away from
TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the
electromagnetic fields generated from these devices may distort the video image or
otherwise interfere with camera operation.
2. Never disassemble the camera beyond the recommendations in this manual nor introduce
materials other than those recommended herein. Improper disassembly or introduction of
corrosive materials may result in equipment failure or other damage.
3. Try to avoid facing the camera toward the sun. In some circumstances, direct sunlight may
cause permanent damage to the sensor and/or internal circuits, as well as creating
unbalanced illumination beyond the capability of the camera to compensate.
4. Keep the power cable away from water and other liquids and never touch the power cord
with wet hands. Touching a wet power cord with your hands or touching the power cord
with wet hands may result in electric shock.
5. Never install the camera in areas exposed to oil, gas or solvents. Oil, gas or solvents may
result in equipment failure, electric shock or, in extreme cases, fire.
6. Cleaning. For cameras with interchangeable lenses, do not touch the surface of the sensor
directly with the hands. Use lens tissue or a cotton tipped applicator and ethanol to clean
the sensor and the camera lens. Use a damp soft cloth to remove any dirt from the camera
body. Please do not use complex solvents, corrosive or abrasive agents for cleaning of any
part of the camera.
7. Do not operate the camera beyond the specified temperature, humidity or power source
ratings. This camera is suitable for indoor operation only. Use the camera at temperatures
within -10°C~50°C (14°F~122°F) and humidity between 20%~ 80%; this device is not rated as
submersible. The input power source is 12VDC ONLY. Be sure to connect the proper + / -
polarity and voltage, as incorrect polarity or too high a voltage will likely cause the camera
to fail, and such damage is not covered by the warranty.
8. Mounting. Use care in selecting a solid mounting surface which will support the weight of
the camera plus any wind, snow, ice or other loading, and securely attach the camera to the
mounting surface using screws and anchors which will properly support the camera. If
necessary (e.g. when mounting to drop ceilings) use a safety wire to provide additional
support for the camera.

3
Safety Notice
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

4
Contents
1. Introduction...................................................................................................................... 5
1.1 Packing List .....................................................................................................................5
1.2 Features ..........................................................................................................................5
2. Cable Description.............................................................................................................. 6
3. Installation ....................................................................................................................... 7
3.1 Installation and Adjustment ...........................................................................................7
4. Configuration in the OSD Menu......................................................................................... 9
5. Specifications...................................................................................................................13

ECD900 eZ.HD Mini Dome Camera
5
1. Introduction
Get incredible performance in bright light or low light, and the resolution listed in the specs from
the actual camera you install. To take full advantage of the amazing resolution available from this
advanced imaging technology, the EverFocus eZ.HD Series ECD900 uses a 3.6mm lens together with
1/2.8" SONY 1.37M pixels CMOS to deliver 720p high resolution. Combined with a useable native
low light sensitivity of 0.08lux without using digital slow shutter, this camera truly provides HD
images without compromising its 720p video quality, Digital Wide Dynamic Range for clear color
images in the most challenging of bright or unbalanced scene lighting conditions, plus true
day/night in low light with guaranteed ZERO ghosting. The ECD900 with its 3 Axis rotation design
allows wall or ceiling mounting. This is the camera that you have been waiting for to create analog
CCTV systems that produce astounding image clarity in a wide range of indoor applications at the
widest range of light levels. The ECD900 supports both NTSC and PAL scanning systems, which can
be switched via OSD.
1.1 Packing List
1.2 Features
720p with high flexibility and performance for astounding image
1/2.8" SONY 1.37M pixels CMOS, delivers amazing high sensitivit
D-WDR to improve the visibility under high contrast scene
Provides 3D- Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio
images even under low light environments
Support 720p & 960H analog signal output, which can be easily switched by OSD
Easy lock installation by screwing the base plate to the surface and then locking the
camera to the base plate without mounting screws
Dome Camera x 1
Screw x 3
User Manual x 1
Template Plate x 1
Plastic Anchor x 3
DC Power Pigtail Cable x 1

ECD900 eZ.HD Mini Dome Camera
6

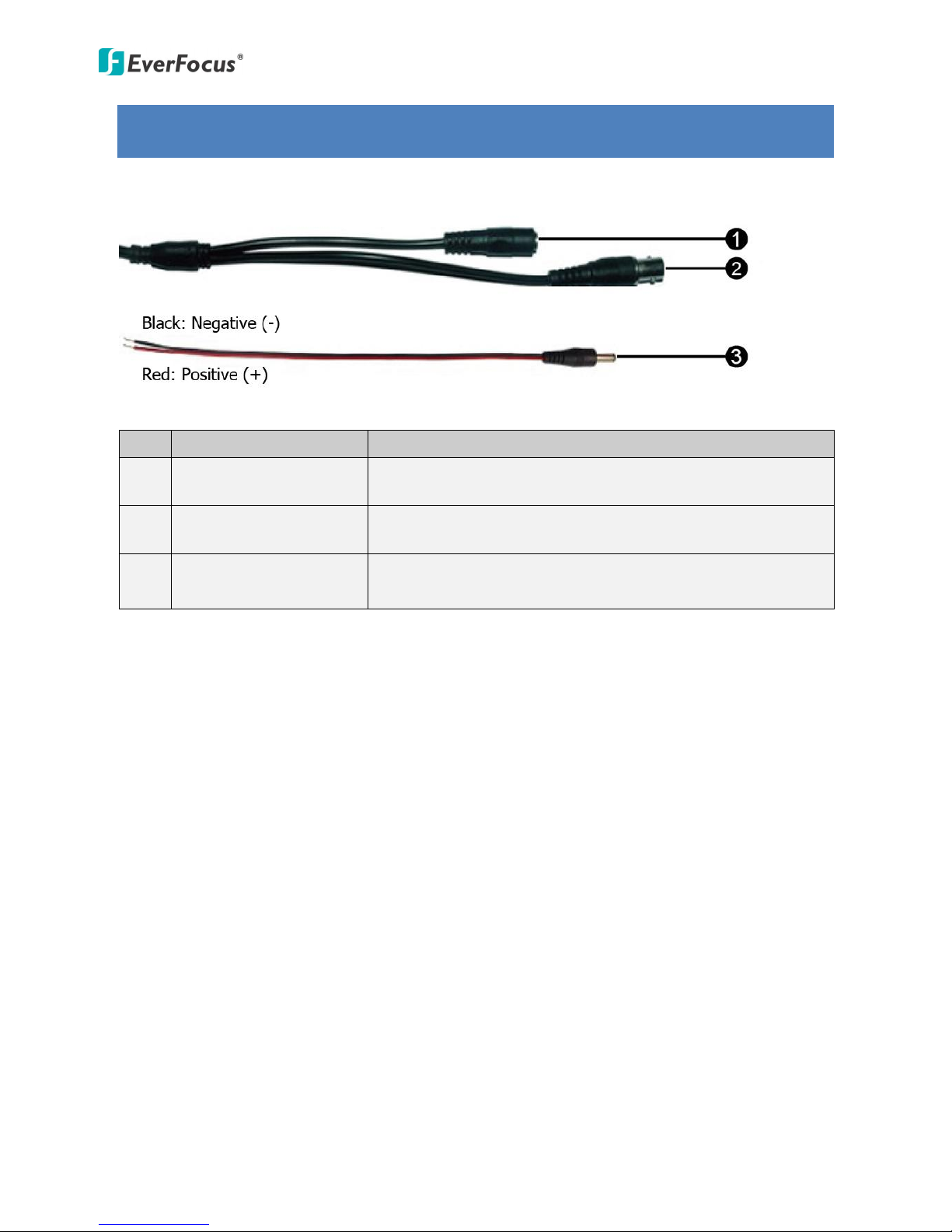

2. Cable Description
No.
Name
Descriptions
1
Power Cable
Connect to a 12VDC.
2
Dual Video Output
720p and 960H output, using a 75 Ohm BNC-type coaxial cable.
3
DC Power Pigtail Cable
Optional power pigtail cable. The red wire is positive (+);
while the black wire is negative (-).

ECD900 eZ.HD Mini Dome Camera
7
3. Installation
3.1 Installation and Adjustment

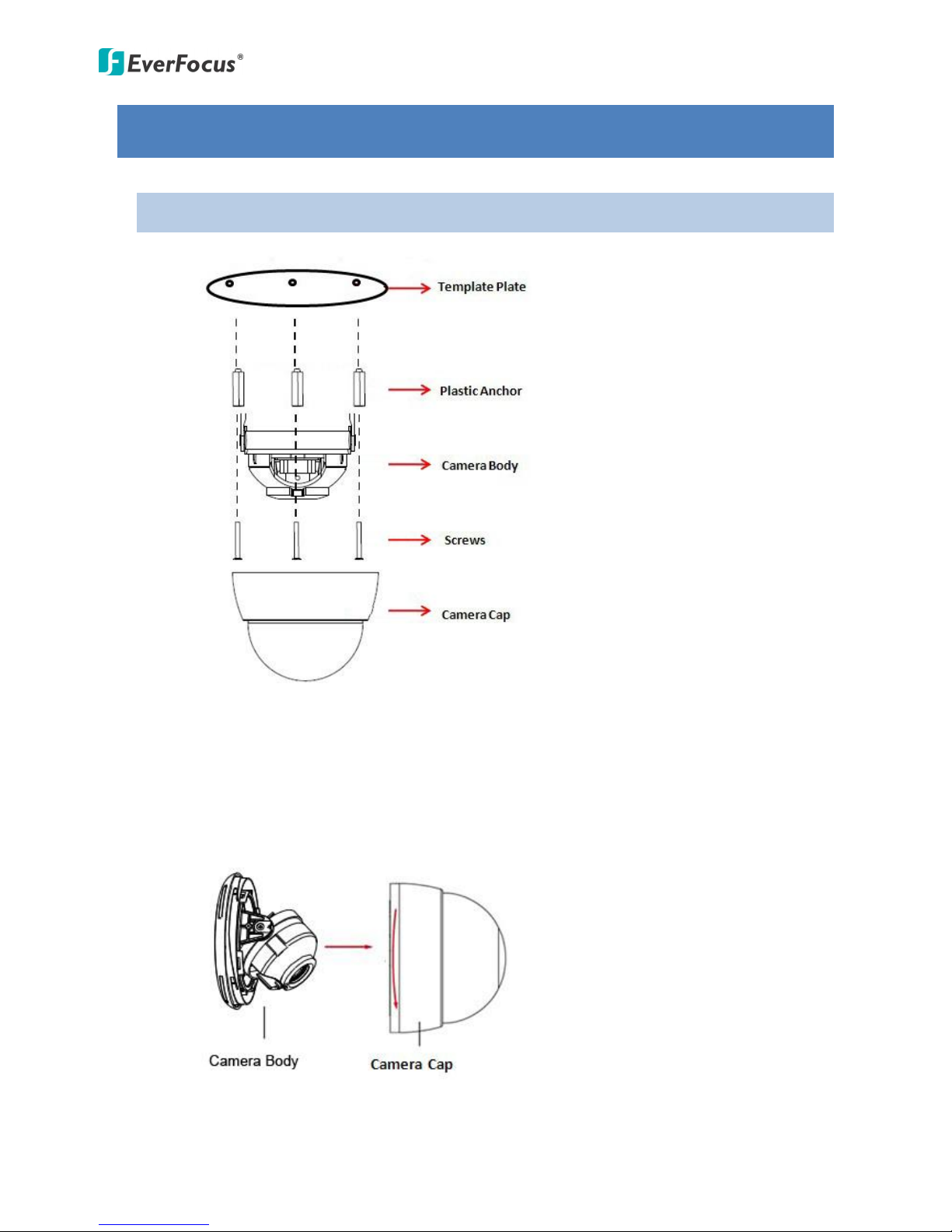

1. Stick the Template Plate on the position where you want to attach the camera.
2. Drill the three holes on the template for screwing the camera with the supplied screws
and anchors, and the circle in the middle only if you want to wire the cables through the
wall / ceiling.
3. Insert the supplied anchors into the holes.
4. Remove the Camera Cap from the Camera Body.
5. Attach the camera body to the correct position and then screw the camera body to the
wall / ceiling using the supplied three screws.

ECD900 eZ.HD Mini Dome Camera
8

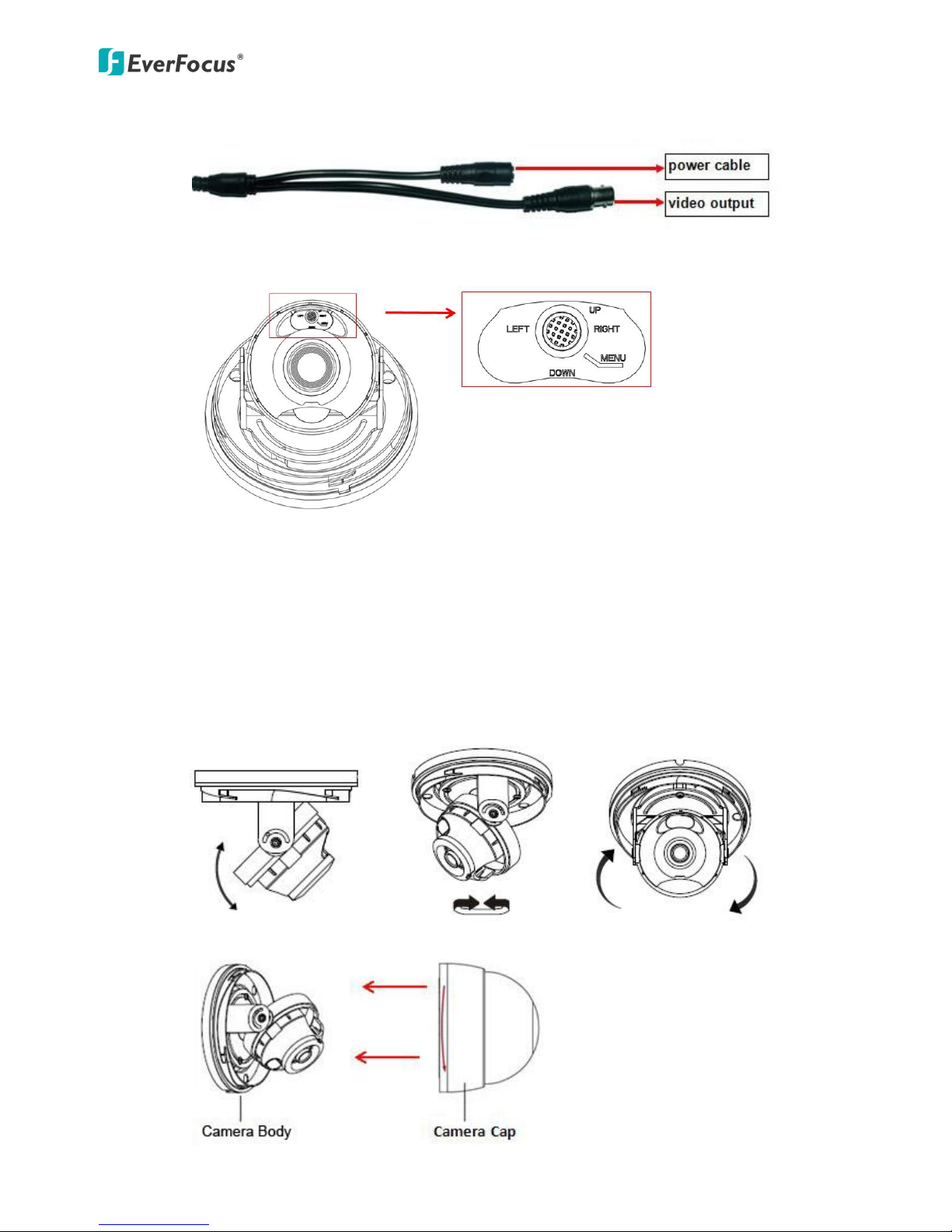

6. Connect the camera to the 12VDC power source and an AHD DVR or monitor.
7. Configure the OSD Menu, using the function button.
Note: The function button is not only for direction control, but also for switching Video
format and Video output. Please follow the detailed instruction as below:
Press the "down" button key over 5s to switch video format from PAL to NTSC.
Press the "left" button key over 5s to switch video output from 720p to 960H
(720p is the default).
Press the "right" button key over 5s to switch video output from 960H to 720p.
8. Adjust the camera angles, simply tilt, pan or rotate the camera.
9. Secure the Camera Cap back to the Camera Body.

ECD900 eZ.HD Mini Dome Camera
9
4. Configuration in the OSD Menu
You can use the function buttons on the rear panel of the camera body to configure camera settings
in the OSD menu:
No.
Main
Sub Menu
Sub Menu / Function
1
Lens
Manual*
2
Exposure
Shutter
NTSC: 1/30, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/10000,
1/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto*
PAL: 1/25, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/10000,
1/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto*
AGC
0 –15(15*)
Sens-up
Off*
Auto
Sens-up
X2, X4*, X6, X8, X10, X15, X20, X25,
X30
Brightness
1-100(40*)
D-WDR
Off*
On
Level
0-8(8*)
Auto
Defog
Off*
Auto
Pos/Size
Position, Size,↑,↓,→,←
Gradation
0-2(0*)
Default
3
Backlight
Off*
BLC
Level
Middle*, High, Low
Area
Position, Size,↑,↓,→,←
Default
HSBLC
Select
Area1*, Area2, Area3, Area4
Display
Off
On*
Position, Size,↑,↓,→,←
Black Mask
On*/Off
Level
0-100(20*)
Model
All Day*
Night
AGC Level
0-255(48*)
Default
4
White
Balance
ATW*
AWC→SET
Indoor

ECD900 eZ.HD Mini Dome Camera
10
Outdoor
Manual
Blue
1-500(50*)
Red
0-100(50*)
AWB
5
Day &
Night
Ext
D→N(Delay)
0-60(1*)
N→D(Delay)
0-60(1*)
Auto*
D→N(AGC)
1-255(240*)
D→N(Delay)
0-60(1*)
N→D(AGC)
1-255(50*)
N→D(Delay)
0-60(5*)
Color
B/W
Burst
Off*/On
IR Smart
Off*
On
Level
0-15(4*)
Area
Position, Size,↑,↓,
→,←
IR PWM
Off
0-100(100*)
6
NR
2DNR
Middle*/Low/Off/High
3DNR
Middle*/Low/Off/High
7
Special
Cam Title
Off*
On
0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ▶→
←↑↓()ˉ-_▊/=&:~,.
D-effect
Freeze
Off*/On
Mirror
Off*, Mirror, V-flip, Rotate
Neg. Image
Off*/On
Motion
Off*
On
Select
Area1*,Area2,Area3,Area4
Display
On*
Position, Size,↑,↓,
→,←
Off
Sensitivity
0-100(64*)
Color
Green*, Blue, White, Red
Trans
1.00*,0.75,0.50,
0.25
Alarm
View Type
Off, Block, Outline,
All*
OSD View
On*/Off

ECD900 eZ.HD Mini Dome Camera
11
Alarm Out
On*/Off
Alarm Sig
High*, Low
Time
1-15(3*)
Default
Privacy
Off
On
Select
Area1*,Area2,Area3,Area4
Display
Off
Color*
Position, Size,↑,↓,
→,←
Mosaic
Position, Size,↑,↓,
→,←
Inv
Position, Size,↑,↓,
→,←
Color
White*, Black, Red, Blue, CYAN,
Yellow, Green
Trans
1.00*,0.75,0.50,
0.25
Default
Language
ENG*/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR
Defect
Live DPC
Off
On*
AGC level
0-255(65*)
Level
0-100(100*)
White DPC
Off
On*
Pos/Size
Position, Size,↑,↓,
→,←
Start
Close the iris then
press
DPC View
Off*/On
Level
0-60(5*)
AGC
0-14(14*)
Sens-up
x2*, x4, x6, x8,x10,
x15, x20, x25, x30
Black DPC
Off*
On
Pos/Siz
Position, Size,↑,↓,
→,←
Start
Press Enter
DPC View
Off*/On
Level
0-255(255*)

ECD900 eZ.HD Mini Dome Camera
12
RS485
CAM ID
0-255(1*)
ID Display
Off*/On
Baud Rate
2400,4800,9600,19200 ,38400
8
Adjust
Sharpness
Off
Auto*
Level
0-10(6*)
Start AGC
0-255(50*)
End AGC
0-255(200*)
CRT/LCD
CRT
Black Level
0-60(0*)
Blue Gain
0-100(50*)
Red Gain
0-255(50*)
LCD*
Gamma
User*,0.45,0.50,0.55,0.60,0.65,0.70,
0.75,0.80,0.85,0.90,
0.95,1.00
Blue Gain
0-100(50*)
Red Gain
0-100(50*)
LSC
Off*/On
Video. Out
PAL/NTSC
9
Exit
Save& END /Reset/Not Saved

ECD900 eZ.HD Mini Dome Camera
13
5. Specifications
Specifications and designs are subject to change for improving the functionality of this product
without notice.
P/N
ECD900
Pickup Device
1/2.8" SONY 1.37M pixels CMOS
Video Format
NTSC and PAL( can be switched via OSD)
Effective Pixels
1280 (H)*720 (V)
Scanning System
Progressive Scan
Sensitivity
0.08 lux.
S/N Ratio
Over 48 dB (AGC OFF)
Electronic Shutter
AUTO, Manual (X30~1/ 50000), FLK
Video Output
BNC 1.0Vp-p 75Ω
Gamma Correction
0.45
Lens Type
3.6mm fixed lens with ICR
BLC
OFF/BLC/HS BLC Selectable
AGC
0~15 Levels
White Balance
ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
Sync Mode
Internal
Day/Night
Ext, Auto, Color, B/W
OSD Languages
12-Language
DNR
2DNR/3DNR, Off
DEFOG
Off/Auto(under B/W mode)
D-WDR
On/Off
Sens-up
Off/On(x30~x2)
Mirror
Off, Mirror, V-flip, Rotate
Motion Detection
On/Off for 4 selectable zones
Privacy Mask
On/Off for 4 selectable zones
Environmental
IP66 Weather Resistant
Power Source
12VDC
Power Source
1.2w max.
Operating
Temperature
-10°C~50°C / 14°F~122°F
Humidity
20%~80%
Dimensions
108 x 90mm / 4.25" x 3.54"
Weight
200g/0.44lbs
Certifications
CE/FCC/ RoHs

ECD900 eZ.HD Mini Dome Camera
EverFocus Electronics Corp.
EverFocus Taiwan:
12F-1, No.79, Sec. 1, Shin-Tai Wu Road,
Hsi-Chih, New Taipei City, Taiwan
TEL: [phone]
FAX: [phone]
www.everfocus.com.tw
mark[email protected].tw
EverFocus Europe - Germany:
Albert-Einstein-Strasse 1, D-46446
Emmerich, Germany
TEL: [phone]
FAX: [phone]
www.everfocus.de
[e-mail]
EverFocus China - Beijing:
Room 609, Technology Trade Building,
Shangdi Information Industry Base,
Haidian District, Beijing 100085, China
TEL: [phone]~39
FAX: [phone]
www.everfocus.com.cn
mark[email protected]
EverFocus China - Shenzhen:
4F, No. 2, D4 Building, Wan Yelong
Industrial Park, Tangtou Road, Shiyan,
Baoan, Shenzhen, Guangdong 518101, China
TEL: [phone]
FAX: [phone]
www.everfocus.com.cn
mark[email protected]
EverFocus USA - California:
1801 Highland Avenue, Unit A, Duarte, CA 91010,
USA
TEL: [phone]
FAX: [phone]
www.everfocus.com
[e-mail]
EverFocus USA - New York:
415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA
TEL: [phone]
FAX: [phone]
www.everfocus.com
[e-mail]
EverFocus Japan:
3F Kuramochi, Buildingll 2-2-3 Koto-Bashi,
Sumida-Ku Tokyo, 130-0022, Japan
TEL: [phone]
FAX: [phone]
www.everfocus.co.jp
[e-mail]
EverFocus China - Shanghai:
Room 403, Ruijin Business Center, No.96, Zhaojiabang
Road, Luwan district, Shanghai 200020, China
TEL: [phone]
FAX: [phone]
www.everfocus.com.cn
mark[email protected]
EverFocus India:
UBS, 629/1243, 1st Floor, G Block, Behind
Teacher’s Colony, Bandra Kurla Complex,
Bandra (E), Mumbai 400 051, India
TEL: [phone]
FAX: [phone]
www.everfocus.in
[e-mail]
Your EverFocus product is designed and
manufactured with high quality materials
and components which can be recycled
and reused.
This symbol means that electrical and
electronic equipment, at their end-of-life,
should be disposed of separately from
your household waste.
Please, dispose of this equipment at your
local community waste
collection/recycling centre.
In the European Union there are
separate collection systems for used
electrical and electronic product.
Please, help us to conserve the
environment we live in!
Ihr EverFocus Produkt wurde
entwickelt und hergestellt mit
qualitativ hochwertigen Materialien
und Komponenten, die recycelt und
wieder verwendet werden können.
Dieses Symbol bedeutet, dass
elektrische und elektronische Geräte
am Ende ihrer Nutzungsdauer vom
Hausmüll getrennt entsorgt werden
sollen.
Bitte entsorgen Sie dieses Gerät bei
Ihrer örtlichen kommunalen
Sammelstelle oder im Recycling
Centre.
Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben!
