EverFocus POLESTAR EHN7260 User manual

Star Light Outdoor Dome IR Network Camera
EHN7221/7260/7360
Ultra Low Light Network Camera
Quick Installation Guide
Copyright © EverFocus Electronics Corp.
Release Date: March, 2016

EHN7221/7260/7360
1
1. Physical Description
8
2
Camera Module
1
7
4
3
6
5
No Item Name
1 Cable Gland Equipped with three plugs inserted in the cable conduits for
waterproofing.
2 Terminal Block A 16-pin terminal block. See 2. Terminal Block in the Quick
Installation Guide.
3 LAN / PoE Connect to a 10/100 Ethernet or PoE.
4 Micro SD / SDHC Slot Insert a micro SD / SDHC card (see Appendix A in the User’s
Manual for tested card brands).
5 Reset Button Press and hold the Reset Button for 10 seconds to reset all
configurations to the factory default settings.
6 IR LEDs 33 IR LEDs for infrared illumination in night vision applications.
7 Lens Vari-focal lens, Auto Focus, 3.3-10mm, F1.3, P-IRIS.
8 Light Sensor Detects lights.
Dimensions

EHN7221/7260/7360
2
System Requirement
Before installing, please check that your computer meets the following system requirements.
Operating System Windows 7 (32 and 64-bit) or above
CPU Intel Core i5 CPU @ 2.0GHz (or equivalent AMD) or higher
(Intel Core i7 CPU @ 3.4GHz recommended)
Graphic Card 512MB RAM graphic cards (or equivalent on-board graphic cards)
RAM
•
2GB or more (8GB recommended)
•Additional HD space depends on required local storage of video files,
100 Mbps network card.
Software
•DirectX 9.0c
•Internet Explorer 9 and later, Firefox 4.0-9.0, Chrome (Windows
version 44 and earlier)
Packing List
•EHN Series Camera x 1 •Desiccant Bag x 2
•MAC Address Sticker x 2 •Power Pigtail Cable x 1
•Plastic Bag x 1 (which contains the below items) •Torx Screwdriver x 1
- Hexagon Screw x 4 •RJ-45 Connector x 1
- Phillips Screw x 4 •Base Plate x 1
- Screw Anchor x 4 •Inner Paper x 1
- Rubber Ring x 1 (replace the old rubber ring around •Software CD x 1
the lens only when it is damaged) •Quick Installation Guide x 1
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult your local
EverFocus office or agents for more information. Please also keep the shipping carton for
possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.
Optional Accessories
You can use the optional accessories to expand the capabilities and versatility of the camera. Please
contact your dealer for more information.
•One Adapter Plate with 4
Screws
The Adapter Plate is designed for wiring the cables through
the bottom of the camera case. For details on how to wire
the cables through the bottom of the camera, please refer
to the User’s Manual in the CD.

EHN7221/7260/7360
3
•EPTZ-PLM
Pole Mount Bracket
Dimensions:
Ф155mm / 6.1” (max)
Ф90mm / 3.54” (min)
Stainless Steel
•L-Shaped Mounting Bracket
To prevent the camera from being damaged by direct
sunlight, it is strongly recommended to use the L-Shaped
Mounting Bracket to mount the camera to the wall. For
details on mounting the camera to the wall using the
L-Shaped Mounting Bracket, please refer to the User’s
Manual in the CD.
•IP Sidekick - ESK1000
Using it for installation, you do not need to pre-configure
the IP address or to use an additional monitor to check and
adjust all the IP cameras. The product can assign an IP
address to the camera through its Wi-Fi network, then you
can connect and check the camera live view using our
mobile app. For details about IP Sidekick, please refer to the
IP Sidekick – ESK1000 User’s Manual.
•EverFocus 5 / 8 / 16 / 24 Ports
PoE Switch
5 Ports: ES0501-40
8 Ports: ES0812-31 / ES0802-41
16 Ports: ES1625-31 / ES1645-51
24 Ports: ES2426-31 / ES2446-51 / ES2448-62

EHN7221/7260/7360
4
2. Terminal Block
The I/O terminal block, located on the camera module, can be used to develop applications for
alarm input and output, two-way audio, TV-output or a variety of other functions.
Note:
1. You can unplug the terminal block from the camera module for easier wiring.
2. Speakers / microphones with a (built-in) amplifier and external power supply are required.
3 2 16 5 49 8 712 11 1016 15 14 13
Camera Module
No. Functions No. Functions
1 12 VDC Input 9 Audio Output (Line-out)
2 Digital GND 10 Audio GND
3 Alarm Out Alarm Output (+) 11 CVBS Output
4 Alarm COM (-) 12 Digital GND
5 Alarm In Alarm Input (+) 13 AC24V+
6 Digital GND (-) 14 AC24V-
7 Audio Input (Line-in) 15 RS485_A
8 Audio GND 16 RS485_B
To activate the Audio function, the Enable Audio must be checked. See 7.5 Audio in the User’s
Manual.

EHN7221/7260/7360
5
3. Installation
Important Notice for the Installation
If you want to mount the camera on the wall where direct sunlight may occur, it is strongly
recommended to mount the camera using the L-Shaped Mounting Bracket to prevent the camera
from being damaged by direct sunlight. Please refer to the Quick Installation Guide of L-Shaped
Mounting Bracket for more details.
Basic Installation
This installation guide provides the basic instructions on installing an EHN IP camera to the wall. For
details, please refer to the User’s Manual in the software CD.
To mount the camera to the wall and connect the cables to the camera:
1. Unscrew the four screws and remove the cover from the camera.

EHN7221/7260/7360
6
2. Screw the Base Plate to the Wiring Box using the supplied four Phillips Screw.
Base Plate
Wiring Box
If you want to wire the cables through the bottom of the Camera Case, follow the steps below:
a. Remove the Circle Plate on the bottom of the Camera Case. You can simply loosen the Circle
Plate using a coin.
Circle Plate
Camera Case
b. Loosen and remove the Cable Gland from the Camera Case. Screw the Cable Gland to the
hole on the bottom of the Camera Case.
Cable Gland
Camera Case

EHN7221/7260/7360
7
c. Screw the Circle Plate to the side hole on the Camera Case.
d. Screw the Adapter Plate between the Base Plate and Wiring Box.
Base Plate
Wiring Box
Adapter Plate
3. Screw the Camera Case back to the Base Plate using the supplied four Hexagon Screws.
Base Plate
Camera Case

EHN7221/7260/7360
8
4. Insert the network / PoE cable or the additional cables through the Cable Gland. Up to three
cables can be inserted. Note that except the network / PoE cable, additional wires have to be
bundled into a cable with diameter ranging from 5.3mm to 6.4mm (see Step d below).
Screw BodyScrew Cap
Stopper Claw
Plug
Stopper
Adjustment Ring(s)
Cable Gland Cable Gland
Screw Cap
a. Keep the supplied 6 Adjustment Rings for waterproofing.
•Transparent x 5 (1 mm thickness)
•Black x 1 (0.5 mm thickness)
b. Remove the Plug(s) from the Stopper (depends on the number of cables inserted). One
Cable Conduit can only be inserted with one cable.
Plug Stopper
Cable Conduit
c. Insert the network / PoE cable through the Cable Conduit, if your network / PoE cable
already has a RJ-45 connector, then you can use the Slitted Cable Conduit.
Slitted Cable Conduit

EHN7221/7260/7360
9
d. Optionally insert the additional wires, such as power (if you want to power the camera
through a 12 VDC power source), alarm and audio cables, through the other Cable Conduit.
Note that one Cable Conduit can only be inserted with one cable. The Cable Conduit has
been tested to support cable diameter between 5.3mm and 6.4mm. Please refer to the
image below to bundle the lose wires before inserting to the Cable Conduit.
e. Tighten the Screw Cap all the way to the Adjustment Ring(s).
f. Due to the variable cable diameters, for better waterproofing, it is strongly recommended
that you apply silicon sealants to the inner Screw Cap.
5. Connect the network / PoE cable to the LAN / PoE port on the camera module.
If you have difficulty connecting the network cable to the LAN / PoE port on the camera module,
you can unscrew these two screws and take out the camera module.
6. If you have inserted additional wires, connect the wires to the terminal block. Please refer to
2. Terminal Block for pin assignment.

EHN7221/7260/7360
10
7. Optionally insert a micro SD / SDHC card to the card slot.
8. Stick the supplied 2 Desiccant Bags inside the camera case.
Note: It is recommended to replace the desiccant bags every time when you open the camera.
9. Access the camera live view for adjusting camera angles. To access the camera live view, see 4.
Accessing the Camera.
To adjust the camera to a desired angle:
Pan Adjustment: Simply turn left / right for the top camera module.
360°

EHN7221/7260/7360
11

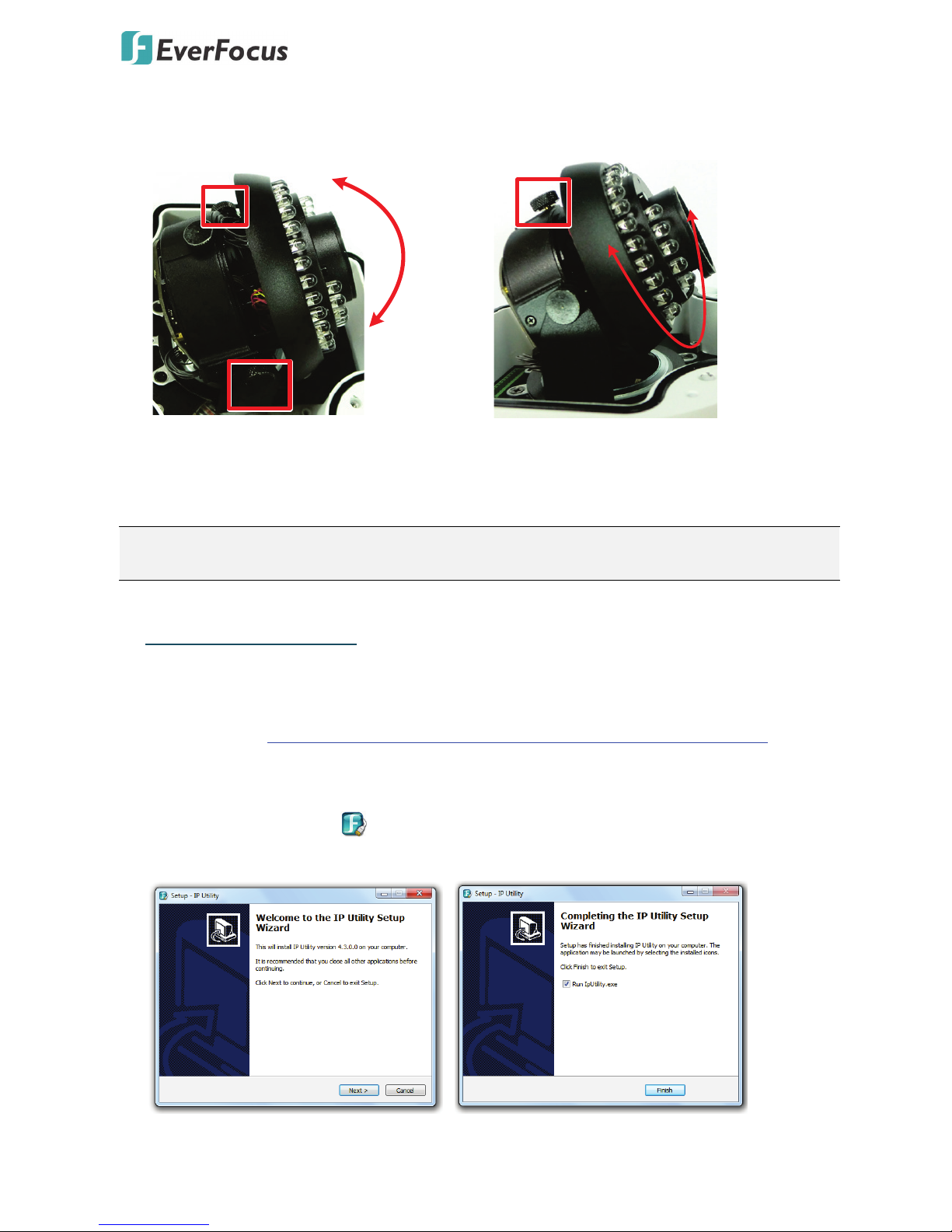

Tilt Adjustment: Using the two tilt
screws.
64°
Rotational Adjustment: Using the rotate
screw.
180°
10. Screw the cover back to the camera case.
11. To adjust zoom and focus, please use Lens Control buttons on the Live View window. Please
refer to 5.4 Live View Window in the User’s Manual.
Note: Before start operating the IP camera, please make sure the camera date and time are
correct. To configure the camera date/time, go to System > Date/Time setting page on Web UI.
4. Accessing the Camera
You can look up the IP address and access the Web interface of the IP camera using the IP Utility
(IPU) program, which is included in the software CD. The IP Utility can also be downloaded from
EverFocus’ Website: http://www.everfocus.com.tw/HQ/Support/DownloadCenter_p1.aspx
(Support > Download Center > Keyword Search: IP Utility). Please connect the IP camera on the
same LAN of your computer.
1. Save IP Utility Setup .exe in your computer. Double click the .exe file and follow the
on-screen instructions to install the IP Utility.

EHN7221/7260/7360
12
2. Click the Finish button, the IP Utility will be automatically launched to search the IP devices
connected on the same LAN.

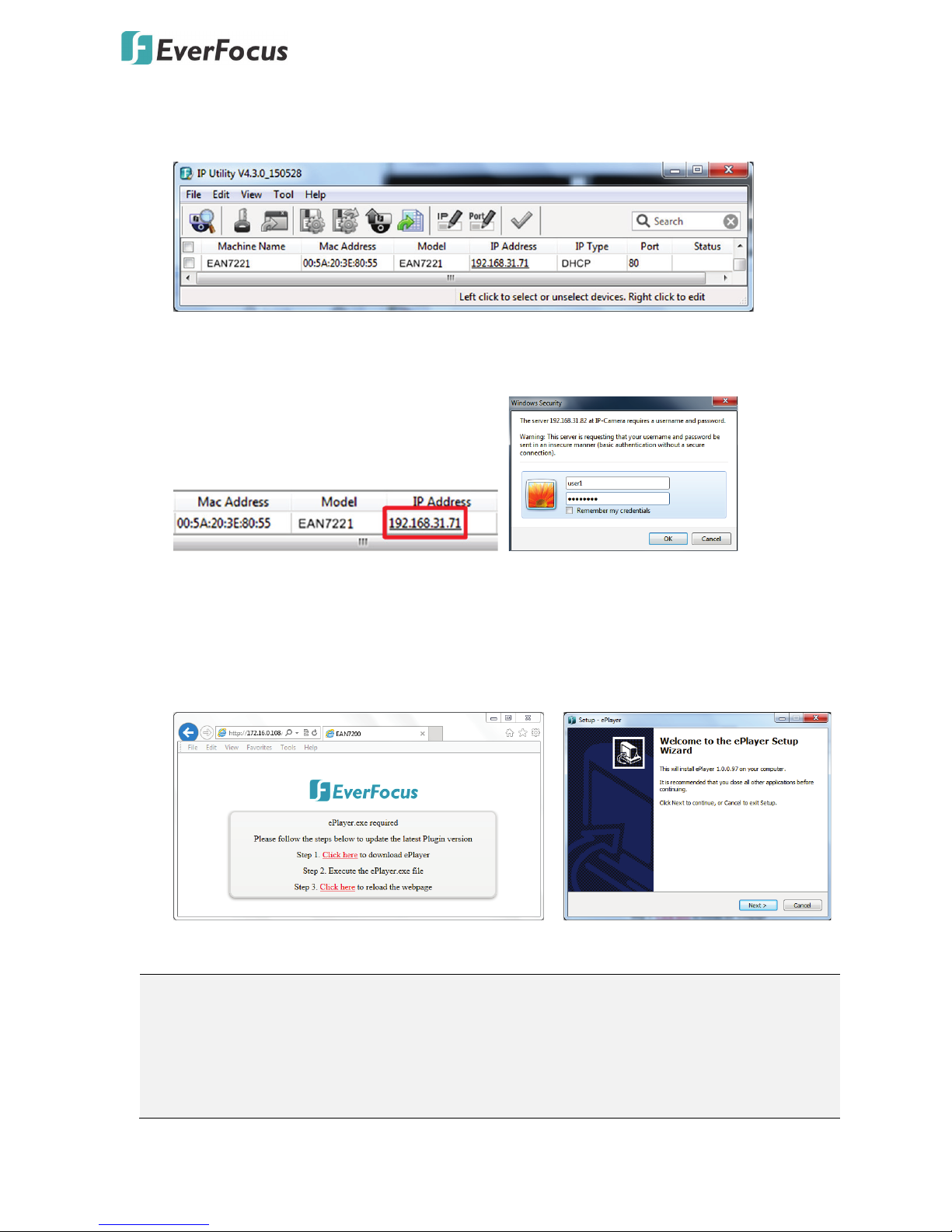

3. To access the Live View window, double click the IP address of the desired device, the login
window pops up. Type the user ID and password to log in. By default, the user ID is user1
and the password is 11111111.
4. If you log in for the first time, follow the on-screen instructions to update the latest Plugin
version (ePlayer). After reloading the webpage, the login window pops up again. Type the
user ID and password to log in again. By default, the user ID is user1 and the password is
11111111.
5. Now you will be able to see the remote live page.
Note:
1. The “Download ePlayer Instruction” page will only be prompted for the first time login in
order to update the system to the latest Plugin version.
2. If the Error window appears, please be sure to close ALL the Web browser windows first
and then click Retry. When the Completing the ePlayer Setup Wizard window shows up,

EHN7221/7260/7360
13
click Finish. Then, you can open a new browser again to access the camera’s remote Web
interface.

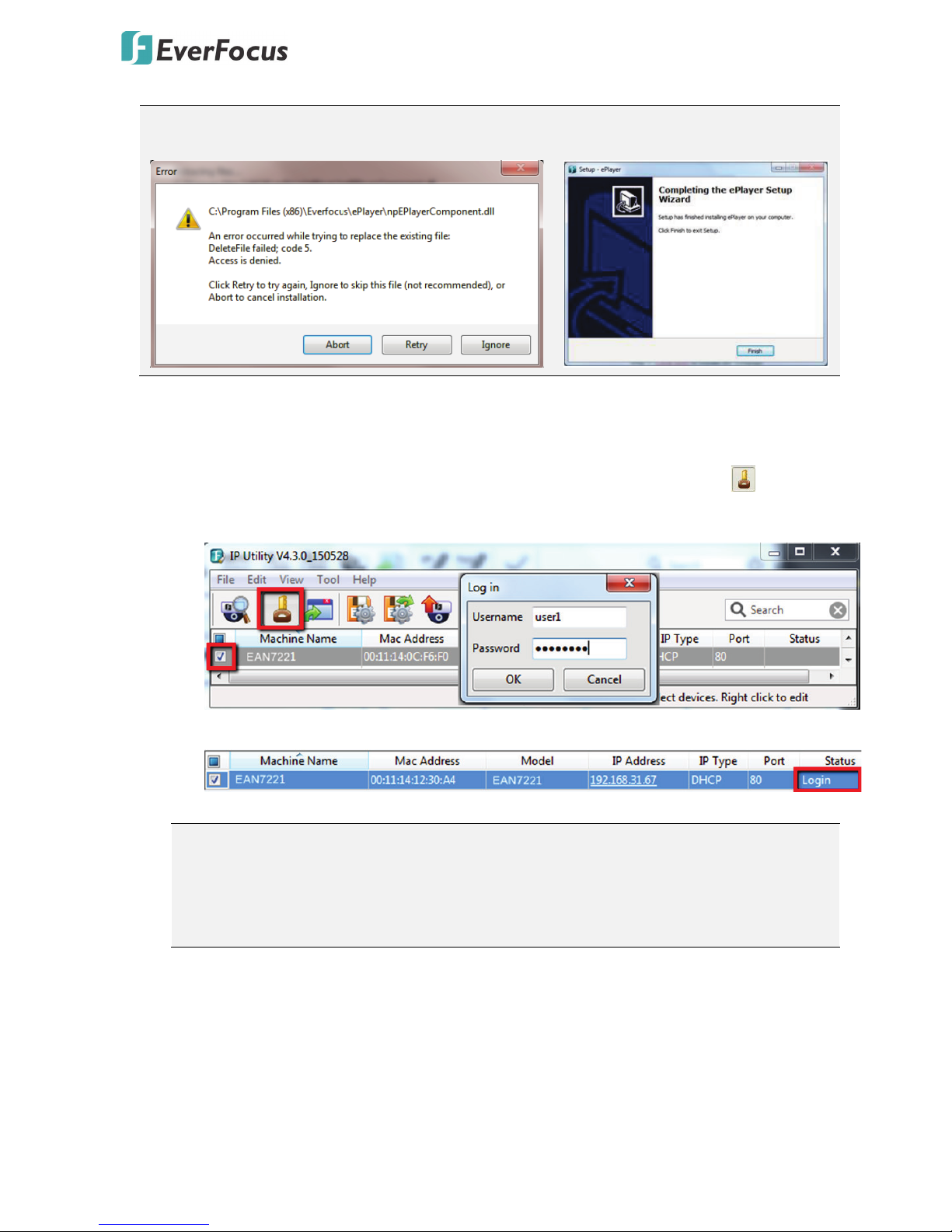

6. To optionally configure the Machine Name, IP Address, IP Type or Port Number using the
IPU:
a. Log in the device by checking the desired model and then click the Log in icon. The
Log in dialog box appears.
b. Type the Username and Password and click OK. The Status column will display Login.
Note:
1. The default user ID is user1 and the default password is 11111111.
2. If you select more than one camera that has the same user ID / password, you will be
able to log in several cameras at once.

EHN7221/7260/7360
14
c. Right click the column to configure the setting. Click Apply Changes button to
apply and save the settings.
Note:
1. Most networks uses DHCP to assign IP address, if you are unsure of your network
settings, please consult your network administrators for configuration details.
2. If you want to set up PPPoE, please refer to 7.1.1 Network in the User’s Manual in the
software CD.
To set up a static IP:
By default, EverFocus’ IP cameras are set up with DHCP. To change the IP setting to static IP, select
Static IP from IP Type drop-down list and set up the desired IP Address, for example,
192.168.31.67.
Please also set up the Subnet Mask and Gateway. Click the Apply Changes button to apply and
save the settings.
1
2
3

EHN7221/7260/7360
15
To show the Subnet Mask and Gateway items on the title bar, right click the title bar to display the
Customize Columns window, select Subnet Mask and Gateway and then click OK.
1
2
3

EHN7221/7260/7360
16
5. Connecting to the Network
You can use one of the methods below to connect the camera to the network.
Direct High-Speed Connection
In a Direct High-Speed Connection, the camera connects directly to a modem without the need for a
router. You need to set the static or dynamic WAN IP address assigned by your ISP (Internet Service
Provider) in the camera’s configuration web pages. To access the camera, just type
“http://xxx.xxx.xxx.xxx”, where xxx.xxx.xxx.xxx is the IP address given by your ISP. If you have a
dynamic IP address, this connection may require that you use DDNS for a reliable connection.
Please refer to DDNS Settingsin 7.1.1 Network in the User’s Manual.
Cat 5
Straight Through Cable
High-speed modem
Internet
One-to-One Connection (Directly from PC to IP camera)
You can connect directly without using a switch, router or modem. However, only the PC connected
to the camera will be able to view the IP camera. You will also have to manually assign a compatible
IP address to both the computer and the IP camera. Unless the PC has another network connection,
the IP camera will be the only network device visible to the PC. See the diagram below:
Cat 5
Right: Pinout of a crossed-over cable.

EHN7221/7260/7360
17
Router or LAN Connection
This is the most common connection in which the IP camera is connected to a router and allows
multiple users on and off site to see the IP camera on a LAN/WAN (Internet). The camera must be
assigned an IP address that is compatible with its LAN. By setting up port forwarding on the router,
you can remotely access the cameras from outside of the LAN via the Internet. To remotely access
the Web interface of the IP camera, please refer to DDNS Settingsin 7.1.1 Network in the User’s
Manual. To set up port forwarding, please consult the manual of the router.
High-speed modem
Internet
Straight-through LAN patch cable
Router
Cat 5 Straight Through Cable
Left: Pinout of a straight-through cable.
5. Upgrading Firmware
You can upgrade camera’s firmware using the IP Utility software included in the software CD. The
IP Utility can also be downloaded from EverFocus’ Website:
http://www.everfocus.com.tw/HQ/Support/DownloadCenter_p1.aspx (Support > Download Center
> Keyword Search: IP Utility). Please connect the IP camera on the same LAN of your computer.
1. Install and then start the IPU program , the following IPU window appears. The IPU will
automatically search the IP devices connected in the LAN.

EHN7221/7260/7360
18
2. Log in the camera by checking the desired model and then click the Log in icon. The Log
in dialog box appears.
3. Type the Username and Password. Click the OK button, the Login status displays.
Note:
1. The default user ID is user1 and the default password is 11111111.
2. If you select more than one camera that has the same user ID / password, you will be
able to log in several cameras at once.
3. Up to 10 cameras can be simultaneously upgraded to the latest firmware. If you connect
the cameras to a PoE switch, please make sure the Power Consumption of the PoE
switch is sufficient.
4. Click the Upgrade Firmware button , a browsing window appears.
5. Select the firmware file (.evb) and then click Open. The IPU will automatically upgrade the
firmware. The camera will reboot once the upgrade process is complete.

EverFocus Electronics Corp.
EverFocus Taiwan:
12F-1, No.79, Sec. 1, Shin-Tai Wu Road,
Hsi-Chih, New Taipei City, Taiwan
TEL: [phone]
FAX: [phone]
www.everfocus.com.tw
[e-mail]
EverFocus Europe - Germany:
Albert-Einstein-Strasse 1, D-46446
Emmerich, Germany
TEL: [phone]
FAX: [phone]
www.everfocus.de
[email protected]
EverFocus China - Beijing:
Room 609, Technology Trade Building,
Shangdi Information Industry Base,
Haidian District, Beijing 100085, China
TEL: [phone]~39
FAX: [phone]
www.everfocus.com.cn
[e-mail]
EverFocus China - Shenzhen:
4F, No. 2, D4 Building, Wan Yelong
Industrial Park, Tangtou Road, Shiyan,
Baoan, Shenzhen, Guangdong 518101, China
TEL: [phone]
FAX: [phone]
www.everfocus.com.cn
[e-mail]
EverFocus USA - California:
1801 Highland Avenue, Unit A, Duarte,
CA 91010, USA
TEL: [phone]
FAX: [phone]
www.everfocus.com
[email protected]om
EverFocus Japan:
3F, Kuramochi, Building II
2-2-3 Koto-Bashi, Sumida-Ku,
Tokyo, 130-0022, Japan
TEL: [phone]
FAX: [phone]
www.everfocus.co.jp
[e-mail]
Your EverFocus product is designed
and manufactured with high quality
materials and components which can
be recycled and reused.
This symbol means that electrical and
electronic equipment, at their
end-of-life, should be disposed of
separately from your household waste.
Please, dispose of this equipment at
your local community waste
collection/recycling centre.
In the European Union there are
separate collection systems for used
electrical and electronic product.
Please, help us to conserve the
environment we live in!
Ihr EverFocus Produkt wurde entwickelt
und hergestellt mit qualitativ
hochwertigen Materialien und
Komponenten, die recycelt und wieder
verwendet werden können.
Dieses Symbol bedeutet, dass
elektrische und elektronische Geräte am
Ende ihrer Nutzungsdauer vom
Hausmüll getrennt entsorgt werden
sollen.
Bitte entsorgen Sie dieses Gerät bei
Ihrer örtlichen kommunalen
Sammelstelle oder im Recycling Centre.
Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben!
P/N: 4605H722102001A
