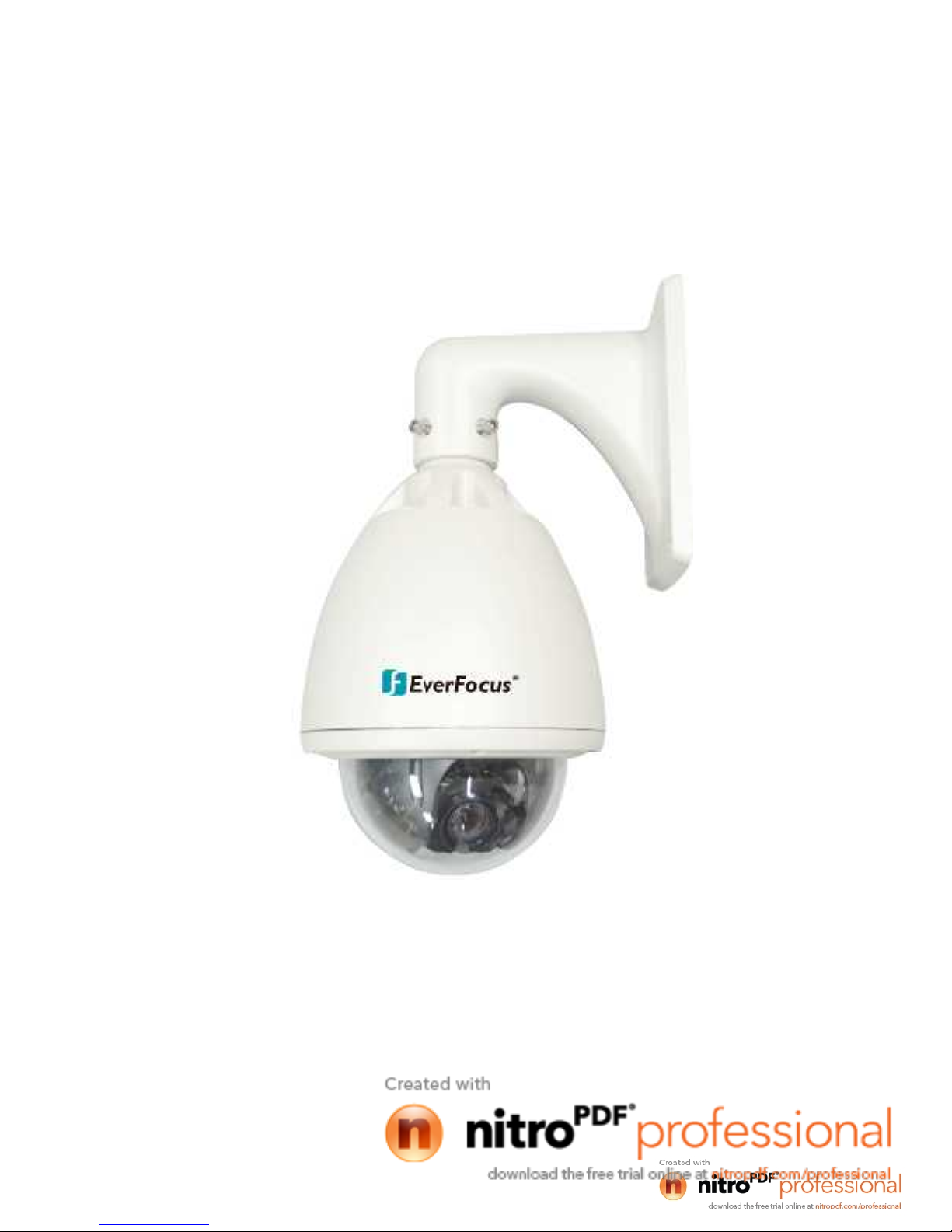

EverFocus EPTZ850 User manual

User Manual
Intelligent High Speed Dome
Camera
Note:
Read this manual carefully before installation and operation. Keep it handy
for later reference.

2/ 24
CONTENTS
1. Product Introduction
1.1 Features…………………………………………………….…………….3
1.2 Function………………………………………………………………….4
2. Installation Instruction
2.1 Wiring Diagram………………………………………………………….7
3. Basic Operation……………………………………………………………….8
4. Menu Settings
4.1 Main Menu……………………………………………………………….11
4.2 System Information…………………...…………………………………12
4.3 Address setting……………………………………………………...……12
4.4 Pan Tilt Setup……………………………………………………...…......13
4.5 Trajectory Scan…………………………………………………………..16
4.6 Setting Camera menu……………………………………………………17
4.7 Cruise setting…………………………………………………………….18
4.8 Display Setup…………………………………………………………….19
5. Trouble Shooting
5.1 List of malfunction removal……………………………………………20
5.2 Attention…………………………………………………………………21
Specifications………………………………………………….23

3/ 24
1. Product Introduction
1.1 Features
Strong Intelligence Function:
Compatible with PELCO-D, PELCO-P and EverFocus Protocol.
Recognize 2400, 4800, 9600 Baud Rate.
Automatic recognition for RS 485 control protocol.
With 4CH trajectory scan and 4CH preset cruise
Strong Horizontal and Vertical Rotation Function:
Max. 180 degree/Sec. High speed pan tilt rotation.
Based vector drive technology, guarantee the P/T function can be executed at
minimum route and make the target distance closer. Therefore, it is more true
and natural for us to view the video.
Adopt the advance motor ultrafine classification technology,
Minimum rotation speed of pan tilt can reach the 0.05 degree/sec., make the
video image more accurate and stable under high magnification.
Presets, Trajectory Scan, Zones Scan, Continuous Scan
Maximum 220 presets and every preset include magnification of lens and angle
position.
It may record and display 4 trajectory scan route

4/ 24
Set up the left and right border of specified zones, pan tilt zoom dome can rotate
at specified speed.
Call the specified special preset can be 360°durative scan.
OSD English Menu
Built-in OSD English screen menu, it can modify the info and the parameter
PTZ Dome via menu.
Horizontal/Vertical angle magnification of lens and presets can be displayed on
screen.
PTZ Control
Adopt RS485 protocol
360 degrees horizontal durative rotation, vertical 90 °rotation. Turn over 180°,
continuous monitor,
Horizontal speed 0.05-360 degrees, vertical speed 0.05 -90 degrees, it can adjust
automatically as per lens zoom times.
1.2 Function
1.) Setup of address code
Any operation commands have the target address code, baud rate, control protocol
for related high speed PTZ dome, single camera only can be committed to
commands in conformity with relevant address code, baud rate and control
protocol. Our high speed PTZ Dome camera can recognize camera address, baud
rate and control protocol automatically.

5/ 24
2.) Focal length/rotation speed auto. Configure technology.
When you adjust manually, if the focal length is too long and when you touch the
PTZ keyboard joystick lightly under the high speed pan tilt rotation, it may let the
video image move promptly and can lead to data loss. Based on this, our High
Speed PTZ Dome can adjust the horizontal and vertical speed according to the
focal length, it makes the manual tracking target be more convenient.
3.) Reserve and call preset
Preset function is that store parameter such as pan tilt horizontal angle; slope
angle and camera lens focal length into memory. If necessary, you can call this
parameter and adjust pan tilt and camera lens to this position. User can store and
call presets via using PTZ control keyboard and IR controller. This PTZ Dome
has 220 presets.
4.) Lens control
（1）Focal length control
User can adjust the range of focal length via using PTZ control keyboard or
matrix host machine, and then will get the complete video.
（2）Focus control
System starts to focus and zoom by default; the camera lens will focus at the
center around the target view and will keep the image clear. It also can focus
manually and reach the expected image effects. When you are in control of
manual focus, and if you want to reset to autofocus, you just operate from the
joystick of PTZ keyboard. In addition, you may set a control command or call a

6/ 24
preset to reset auto focus.
5.) Auto. Cruise
It can add some presets into auto. cruise section in turn via preset cruise preset
sites. You just set command of 99 preset or use the idle motion to make the PTZ
dome move continuously within certain space of time as per the turn of reserved
presets.
6.) Trajectory scanning
Trajectory scanning is that store operation trajectory via menu, it can call the
reserved scan route via No. 84,No. 85,No.86, No.87 command or idle motion.
7.) Continuous scanning
You just set command for NO. 98 preset or call it by idle motion, and then you
can scan circularly in horizontal position at certain speed.
8.) Intermittent scanning
You just set command for NO. 96 preset or call it by idle motion, and then you
can scan circularly at space of time in horizontal position at certain speed.

7/ 24
2. Installation Instruction
2.1 Wiring Diagram
Power supply: DC 12V 3A interface
Control cable: RS485 control
Video cable: BNC interface
Power supply connection
Attention：Please check the voltage rating and electric current, it is as below,
Voltage Rating
Range of Voltage Rating
Electric Current
DC 12V
±5%
3A
Connection of control cable
PTZ control: connect RS-485 cable to PTZ control keyboard or DVR. If you control
more than one camera, RS-485 cable needs to be settled parallel position.
Note：①The RS-485 cable can be connected optionally
②Protocol and baud rate of PTZ control keyboard or DVR can be settled
optionally
③Some cameras in CCTV system should set different PTZ dome address
Video
Use BNC plug to connect video signal cable.

8/ 24
3.Basic Operation
As the concrete operation methods are not exactly the same for different platform
systems, you are suggested to operate according to the user manual. Under some
circumstances, when it may needs particular operation; please contact the supplier for
necessary instructions. Here the introduction is only about the operation methods on
PTZ dome when you use the PTZ keyboard.
1.) Self-check
After you Turn ON the power for PTZ dome, the camera will rotate horizontally and
vertically, and then zoom in and zoom out, and finally stop when it reaches the zoom
limits. Through self-checking, you can be made sure of the normal operation for the
PTZ camera.
How to control the camera when it rotates in different directions?
When you locate a camera, you can control it via the joystick on the keyboard. When
you move the joystick to the right, the camera will move to the right. In the same way,
it will move to the left when you move the joystick to the left. When you move the
joystick in vertical direction, the camera will move accordingly in vertical direction.
Similarly, the camera will move simultaneously in horizontal and vertical direction
when you shake the joystick in diagonal direction.
2.) Presets setup
Please set the presets as below,
(1) Operate joystick of keyboard, zoom button, focus button and iris button to adjust
video image of camera
(2)Press the Arabic number key (please input the number of specified preset)
+PRESET, to save parameter of preset view.

9/ 24
3.) Call presets
Please call presets as below steps,
(1) Press Arabic number key (please input the number of specified preset) +CALL，
the camera will move to preset immediately. Meanwhile, the related zoom,
focus and iris will be automatically changed to preset parameters.
Functions Table of special presets
Special Preset
Function
95 + call
Enter main menu
Under the main menu, 96 +
Preset
Enter menu of chipset selecting(Selecting
PAL and NTSC signal system of
chipset)
83 + CALL
Delete all presets
84 + CALL
Call trajectory scanning 1
85 + CALL
Call trajectory scanning 2
86 + CALL
Call trajectory scanning 3
87 + CALL
Call trajectory scanning 4
88 + CALL
Start cruise of preset 1 to preset 10
89 + CALL
Start cruise of preset 11 to preset 20
90 + CALL
Start cruise of preset 21 to preset 30
91 + CALL
Start cruise of preset 31 to preset 40
99 + CALL
Start cruise of preset 1 to preset 20
82 + CALL
Start interval scanning between two
points
96 + CALL
360 degree gap scanning
98 + CALL
360 degree continuous scanning

10/ 24
4. Menu Setting
The following is about detailed operation of OSD menu. When you turn on the power
of the PTZ dome, after the self-checking, the following information will be displayed
on the monitor:
It indicates the current parameter of PTZ dome during self-checking. It is as followed
in sequence: control protocol, serial ports information, address of PTZ dome, finished
horizontally, finished vertically, self-checking finished.
Because operation method for PTZ dome is different under different
CCTV system, please contact supplier for specific operation methods.
The next introduction is about how to use PTZ controller keyboard to
Control OSD English menu.
A Call preset 95, enter OSD main menu of PTZ dome. OPEN (Iris on) is
confirmation button, CLOSE (Iris off) is menu quit button.
B Enter other menu: Shake joystick up and down, point the cursor to the certain menu,
press button OPEN, then enter the menu.
C Selection of Functions: Shake joystick up and down, point the cursor to the certain
function, press button OPEN, and choose the current function.
D Choosing parameter: Shake joystick up and down, choose parameter, and press
button OPEN to choose current parameter.
E Reserve the settings: Press button OPEN, reserve current setting. This operation is
valid only under relevant commands.
F Don’t reverse the setting, return to the previous menu: press button CLOSE, choose
Control Protocol: Auto
Baud Rate: Auto
Address of PTZ dome: 1
Finished in horizontal direction
Finished in vertical direction
Camera finished

11/ 24
the option “back” to return to the pervious menu. This operation is valid only under
relevant commands.
G Exit menu: Shake joystick up and down, point the cursor to the option “Exit”, then
press button OPEN to exit OSD menu.
H Return to the previous menu: Shake the joystick up and down, point the cursor to the
option “Back”, ,then press button OPEN to return to the previous menu.
4.1 Main Menu
After the PTZ dome is powered on, call preset No.95, and enter the main menu.
There following information will be displayed on the screen, as in Figure 4.1.
Figure 4.1 Main Menu
Detailed explanation of main menu options
<SYSTEM INFORMATION>: Shows system information.
<ADDRESS SETTING>: Select and setup Soft/Hard address
<PTZ SETTING>: Setting up PTZ functions
< PATTERNS > : Trajectory scanning menu
< CAMERA> : Lens setting menu
< CRUISE SETTING>: Set presets scanning
< DISPLAY SETTING> : Set screen display options
< RESTORE FACTORY DEFAULT > : Restore factory setting
< REBOOT SYSTEM > : Reboot system
< EXIT> : Exit OSD menu
MAIN MENU
SYSTEM INFORMATION
ADDRESS SETTING
PTZ SETTING
TRAJECTORY SCANNING
CAMERA
CRUISE SETTING
DISPLAY SETUP
RESTORE FACTORY DEFAULT
REBOOT SYSTEM
EXIT

12/ 24
4.2 System information
System information menu：
Figure 4.2 System information menu
System information menu: check current information of PTZ Dome. The detailed
explanation is as below:
● < COM>: Show baud rate, parity bit, date bit and stop bit.
● <ADDRESS>: Shows current Camera ID for PTZ control, 0~255.
● < SOFTWARE VERSION >: Shows current software version
● < BACK>: Back to main menu
● < EXIT>: Exit setting of Menu
Note: All items of system information should not be modified under this menu.
4.3 Address setting
Address setting menu：
SYSTEM INFORMATION
COM: Auto
ADDRESS: 1
SOFTWARE VERSION V5.2.2
BACK
EXIT
ADDR SETTING
ADDR TYPE HARD
ADDR SOFT 255
ADDR HARD 1
BACK
EXIT

13/ 24
Figure 4.3 ADDR SETTING
●ADDR TYPR: Choose “Add Type”, then choose address from “Add
Soft”(0-255), press button “Exit” and camera reboot, address was changed
to address of “ADDR SOFT”
Note: The set soft address will become invalid once the DIP switch is turned.
4.4 Pan Tilt Setting
Pan tilt setting menu
Figure 4.4 Pan tilt setting menu
<SET ZONE SCAN>: setup LEFT/RIGHT limit position between two
presets.
Choose < SET ZONE SCAN> to enter:
Figure 4.4.1 SET ZONE SCAN
<SET ZONE SCAN SCOPE>: Setup LEFT/RIGHT limit positions and
ZONE SCAN
SET SCANNING SCOPE
CLEAR ZONE SCAN
ZONE SCAN SPEED 16
BACK
EXIT
MOTION
<SET ZONE SCAN>
POWER UP NONE
PARK TIME 15s
PARK ACTION NONE
BACK
EXIT

14/ 24
choose “SET ZONE SCAN SCOPE” to enter:
Figure 4.4.1.1 Setup LEFT limit position of zone scan
Shake joystick of keyboard and choose the left limit position, press OPEN,
confirm it and enter the below figure
Figure 4.4.1.2 Setup right limit position of zone scan
Shake joystick of keyboard and choose the right limit position, press OPEN,
confirm it. Then reserve LEFT/RIGHT limit positions and return to figure
4.4.1.
< CLEAR ZONE SCAN>: Delete ZONE SCAN SCOPE and enter,
Figure 4.4.1.2 Clear ZONE SCAN POSITION
Clear LEFT/RIGHT limit positions and return to figure 4.4.1.
< ZONE SCAN SPEED >: Set scan motion speed of PTZ dome. The speed is
from 1 to 32, and default speed is 16. Bigger number, quicker speed.
<Back>: Return to last menu
<Exit>: Exit menu
CLEAR ZONE SCAN
OPEN IRIS TO CONTINUE
SET ZONE SCAN
LEFT LIMIT POSITION
OPEN IRIS TO CONTINUE
SET ZONE SCAN
RIGHT LIMIT POSITION
OPEN IRIS TO CONTINUE

15/ 24
<POWER UP>: This menu is to set automatic motions if not receiving any
commands when PTZ dome is powered on.
The parameters are as below :
NONE: No motion
Continuous scanning: Execute non-stop scanning
Intermittent scanning: Execute intermittent scanning
Zone scanning: Execute zone scanning (Only valid after zone scanning
scope is set)
Preset 1: arrive at No.1 preset
Preset 8: arrive at No.8 preset
Trajectory 1: Execute trajectory scanning route 1
Trajectory 2: Execute trajectory scanning route 2
Trajectory 3: Execute trajectory scanning route 3
Trajectory 4: Execute trajectory scanning route 4
Preset cruise: Execute presets cruise (Only valid when presets are set)
<SET PARKING TIME>: setting waiting time for executing parking action
under the circumstances of no commands.
Parameter range: 15s, 16s, 17s, 18s…189s, 190s…249s, 250s
<SET PARKING ACTION>: within parking time, the automatically executed
actions under the circumstances of no commands. It is also called keep-watch.
Parameters explanation for parking action:
NONE: No motion
Last motion: Execute the motion of latest command
Continuous scanning: Execute non-stop scanning
Intermittent scanning: Execute intermittent scanning
Zone scanning: Execute zone scanning (Only valid after zone scanning scope
is set)
Preset 1: arrive at No.1 preset

16/ 24
Preset 8: arrive at No.8 preset
Trajectory 1: Execute trajectory scanning route 1
Trajectory 2: Execute trajectory scanning route 2
Trajectory 3: Execute trajectory scanning route 3
Trajectory 4: Execute trajectory scanning route 4
Preset cruise : Execute presets cruise(Only valid after presets are set)
Back: Return to main menu
Exit: Exit menu setting
4.5 .Trajectory scanning
Trajectory scanning menu
Figure 4.5 Trajectory scanning menu
Trajectory scanning is to set and clear trajectory scan route.
Trajectory scanning number: Choose trajectory scanning no. The range of
number is 1~4
Trajectory scanning route setting：Set trajectory scanning route and enter：
Trajectory scanning setting
Trajectory scanning no 1
Trajectory scanning route setting
Clear this trajectory scanning route
Clear all trajectory scanning routes
Back
EXIT
TRAJECTORY SCANNING ROUTE SETTING
SETTING STARTING POSITON
OPEN IRIS TO CONTINUE

17/ 24
Figure 4.5.1 Edit Trajectory Scanning
Define the starting position of trajectory scanning; choose “IRIS+” to the
following figure:
Figure 4.5.1.1Trajectory scanning editing
Shake joystick of keyboard and edit scanning route and motion,
Start to record from motion 1 to motion 100 at most, press button OPEN to reserve this
setting, and then return to figure 4.5,
Clear this trajectory scanning route：Clear the current scanning route.
Clear all trajectory scanning routes：Clear all trajectory scanning routes。
Back：Return to the main menu.
Exit：Exit the menu.
4.6 Setting camera menu
Setting camera menu：Different cameras have different parameters.
TRAJECTORY SCANNING
DATA STORED 1％

18/ 24
4.7 Cruise Setting
CRUISE SETTING
TIME INTERVAL <SEC> 8
PRESET 1 ON
PRESET 2 ON
PRESET 3 ON
PRESET 4 ON
PRESET 5 ON
PRESET 6 ON
PRESET 7 ON
PRESET 8 ON
PRESET 9 ON
PRESET 10 ON
CRUISE SETTING
PRESET 11 ON
PRESET 12 ON
PRESET 13 ON
PRESET 14 ON
PRESET 15 ON
PRESET 16 ON
PRESET 17 ON
PRESET 18 ON
PRESET 19 ON
PRESET 20 ON
BACK

19/ 24
Figure 4.7 Presets Setting Menu
Preset cruise is set for lens to automatically execute preset scanning. The details are
as following:
Time interval [sec]：waiting time between different presets cruise
Presets 1~ 20 (Presets cruise parameters list): Choose the presets cruise page
where there are a total of 20 presets that can participate in cruise, edit presets
individually. “ON” means turning on preset, “OFF” turning off preset. The
presets are all turned on by default. If some presets are not needed among the
20 presets, they can be set to”Off” accordingly.
Back：Return to main menu.
4.8.Display Setup
Display setup menu：
Figure 4.9 Display setup menu
Display setup：It is to set display items of monitors.
Preset label: It is to set the displaying of presets serial numbers on monitor when
presets are called. “ON” means displaying preset, “OFF” means not displaying
preset.
Zoom: It is magnification factor display “ON” means displaying, while “OFF”
DISPLAY INFORMATION SETUP
PRESET LABEL
ON
ZOOM
ON
P/T DEG
ON
BACK
EXIT

20/ 24
means not displaying.
< P/T DEG>: It is vertical and horizontal angles display when PTZ moves “ON”
means displaying, while “OFF” means not displaying.
Back：Return to main menu。
Exit：Exit menu.
5.Trouble Shooting
5.1 Simple list of malfunctions removal
Malfunctions
Possible Reasons
Solution
No action and
image when
powered on
Power cable is connected incorrectly
Correct the connection
Power supply is damaged.
Change
Bad connection for power cable
Eliminate the bad
connection
With image
after
self-checking,
but out of
control
Incorrect baud rate and ID code
Reset the DIP Switch
RS485 cable disconnected, short- circuited or
connected incorrectly.
Check RS-485 connection
cable
Bad connection of RS485 cable wiring.
Check RS-485 connection
cable
One RS-485 cable is broken.
Check RS-485 connection
cable
Video unstable
Video cable is bad connected.
Eliminate the bad
connection
Power supply is not enough.
Change
