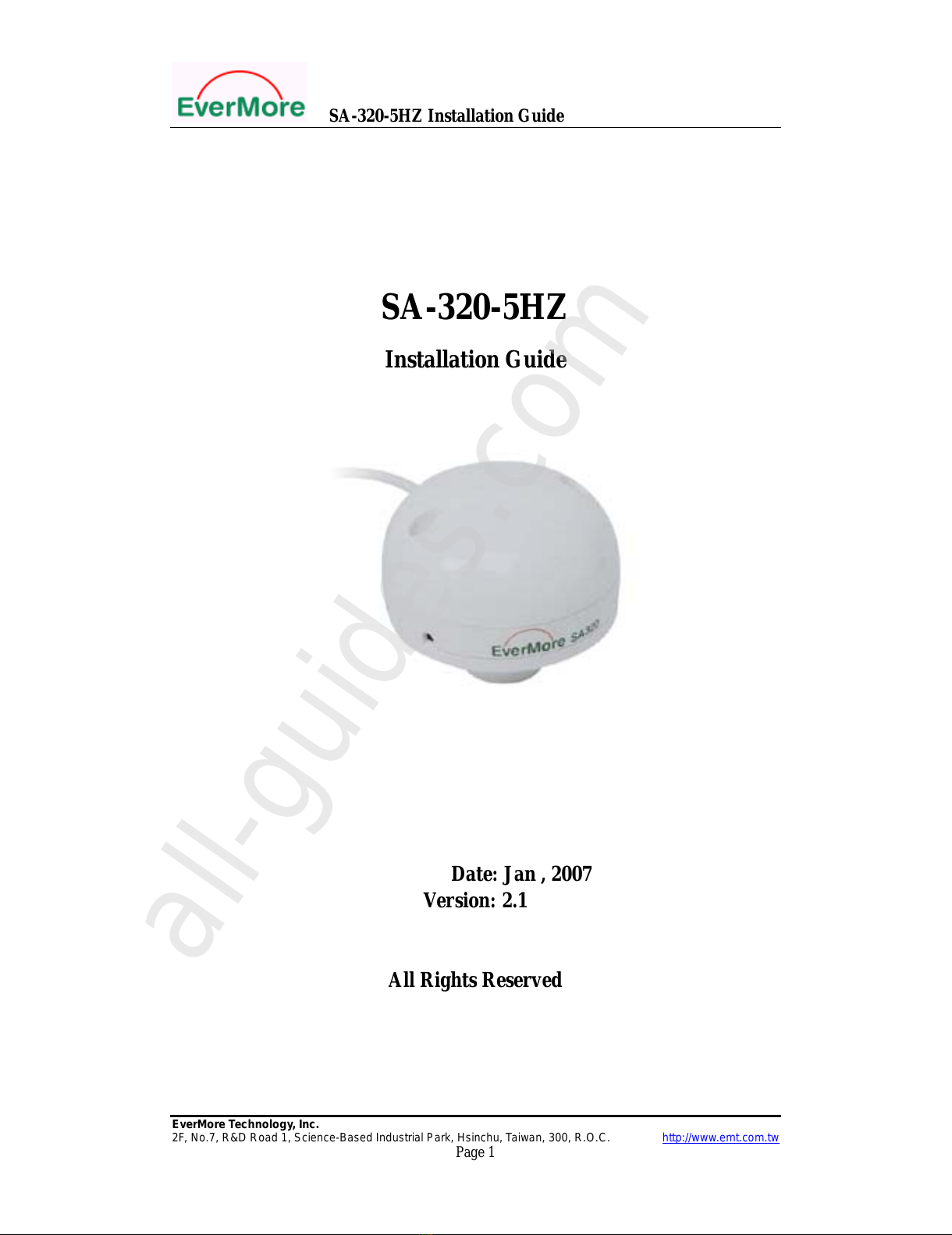

EverMore SA-320-5HZ User manual

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 1
SA-320-5HZ
Installation Guide
Date: Jan , 2007
Version: 2.1
All Rights Reserved
All manuals and user guides at all-guides.com
all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 2

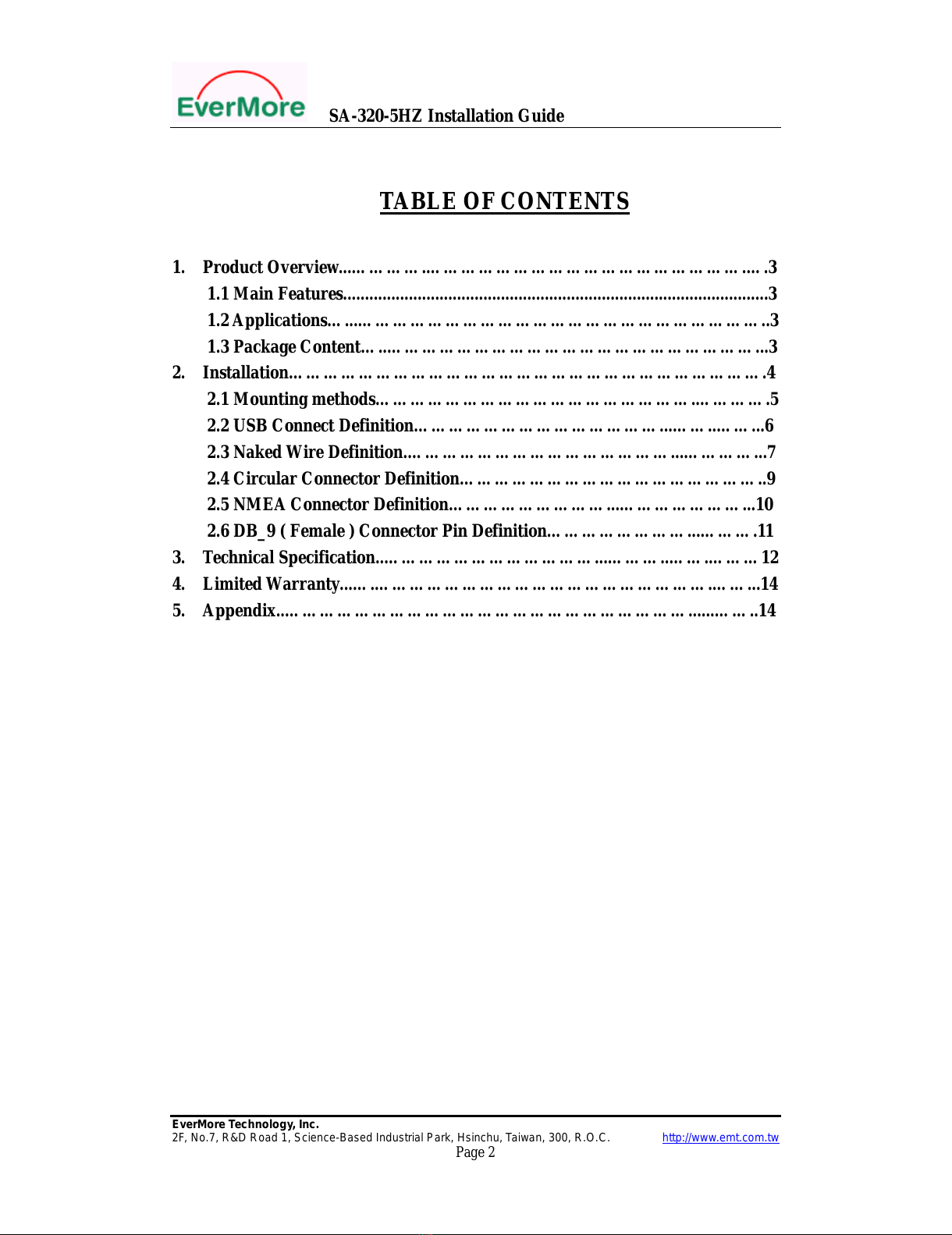

TABLE OF CONTENTS
1. Product Overview...………….……………………………………………….….3
1.1 Main Features.................................................................................................3
1.2 Applications…...……………………………………………………………..3
1.3 Package Content…..………………………………………………………...3
2. Installation……………………………………………………………………….4
2.1 Mounting methods……………………………………………….………….5
2.2 USB Connect Definition……………………………………...……..……...6
2.3 Naked Wire Definition.………………………………………...…………...7
2.4 Circular Connector Definition……………………………………………..9
2.5 NMEA Connector Definition………………………...…………………...10
2.6 DB_9 ( Female ) Connector Pin Definition……………………...……….11
3. Technical Specification..………………………………...………..…….………12
4. Limited Warranty...….………………………………………………….……...14
5. Appendix..……………………………………………………………......……..14
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 3

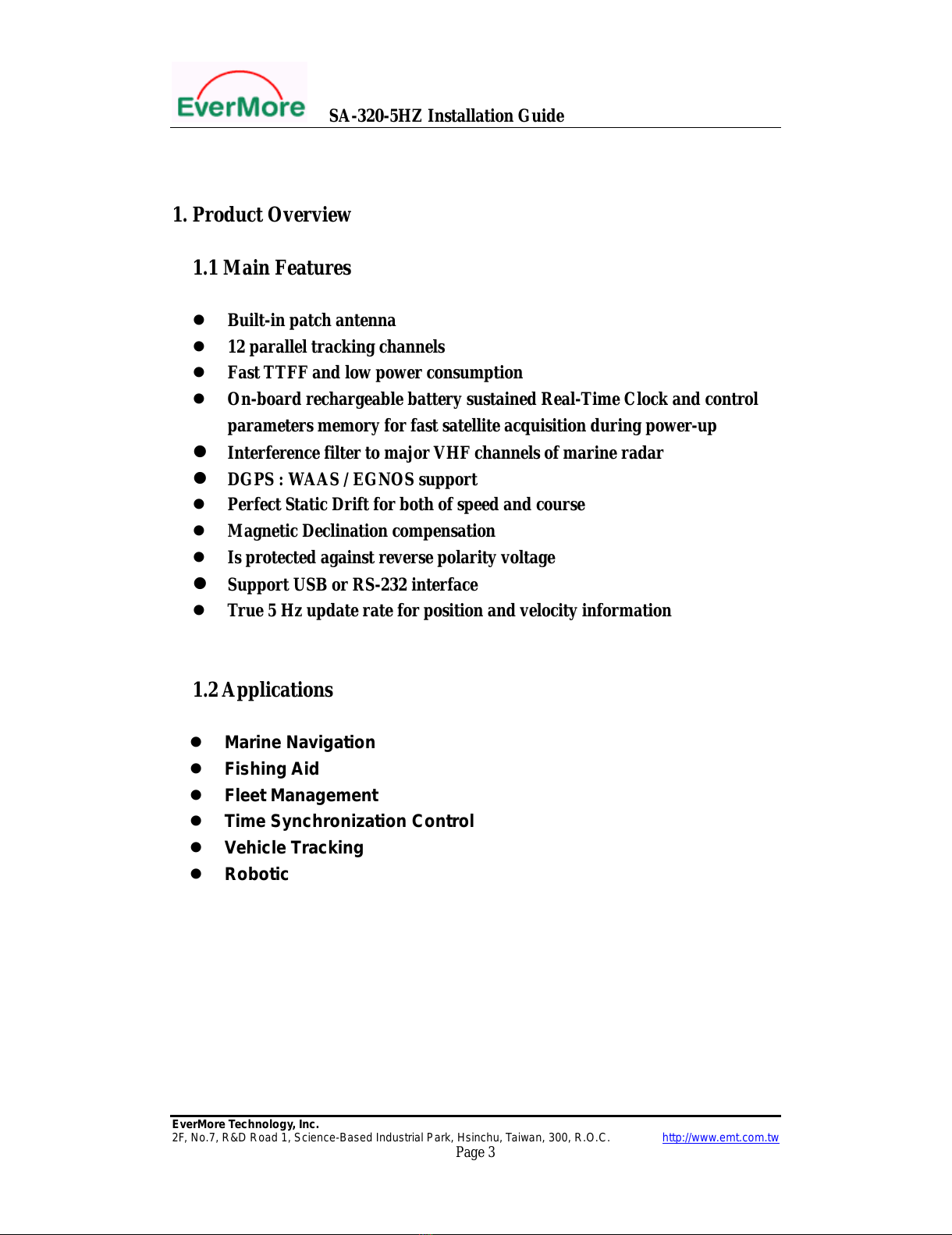

1. Product Overview
1.1 Main Features
zBuilt-in patch antenna
z12 parallel tracking channels
zFast TTFF and low power consumption
zOn-board rechargeable battery sustained Real-Time Clock and control
parameters memory for fast satellite acquisition during power-up
zInterference filter to majorVHF channels of marine radar
zDGPS : WAAS / EGNOS support
zPerfect Static Drift for both of speed and course
zMagnetic Declination compensation
zIs protected against reverse polarity voltage
zSupport USB or RS-232 interface
zTrue 5 Hz update rate for position and velocity information
1.2 Applications
zMarine Navigation
zFishing Aid
zFleet Management
zTime Synchronization Control
zVehicle Tracking
zRobotic
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 4
1.3 Package Content
When open the package, please check it includes the following items. Contact
your dealer immediately if any item is missing or damaged.
zInstallation Guide
zSA-320-5HZ GPS Receiver with Cable
zThread Adaptor
zScrew Pairs
zMounting-Hole-DrillAlignment Mask
zCD Manual
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 5

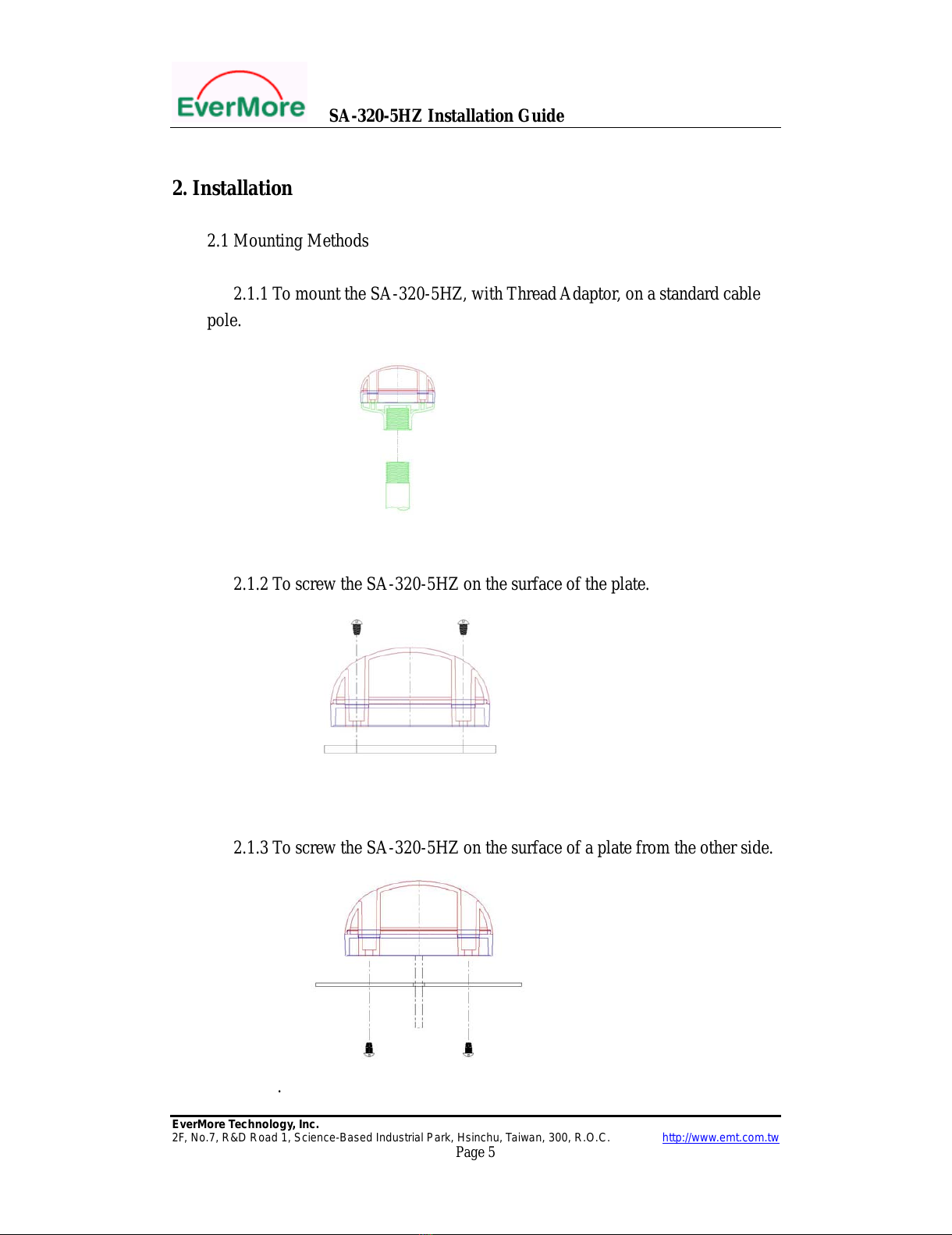

2. Installation
2.1 Mounting Methods
2.1.1 To mount the SA-320-5HZ, with ThreadAdaptor, on a standard cable
pole.
2.1.2 To screw the SA-320-5HZ on the surface of the plate.
2.1.3 To screw the SA-320-5HZ on the surface of a plate from the other side.
.
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 6

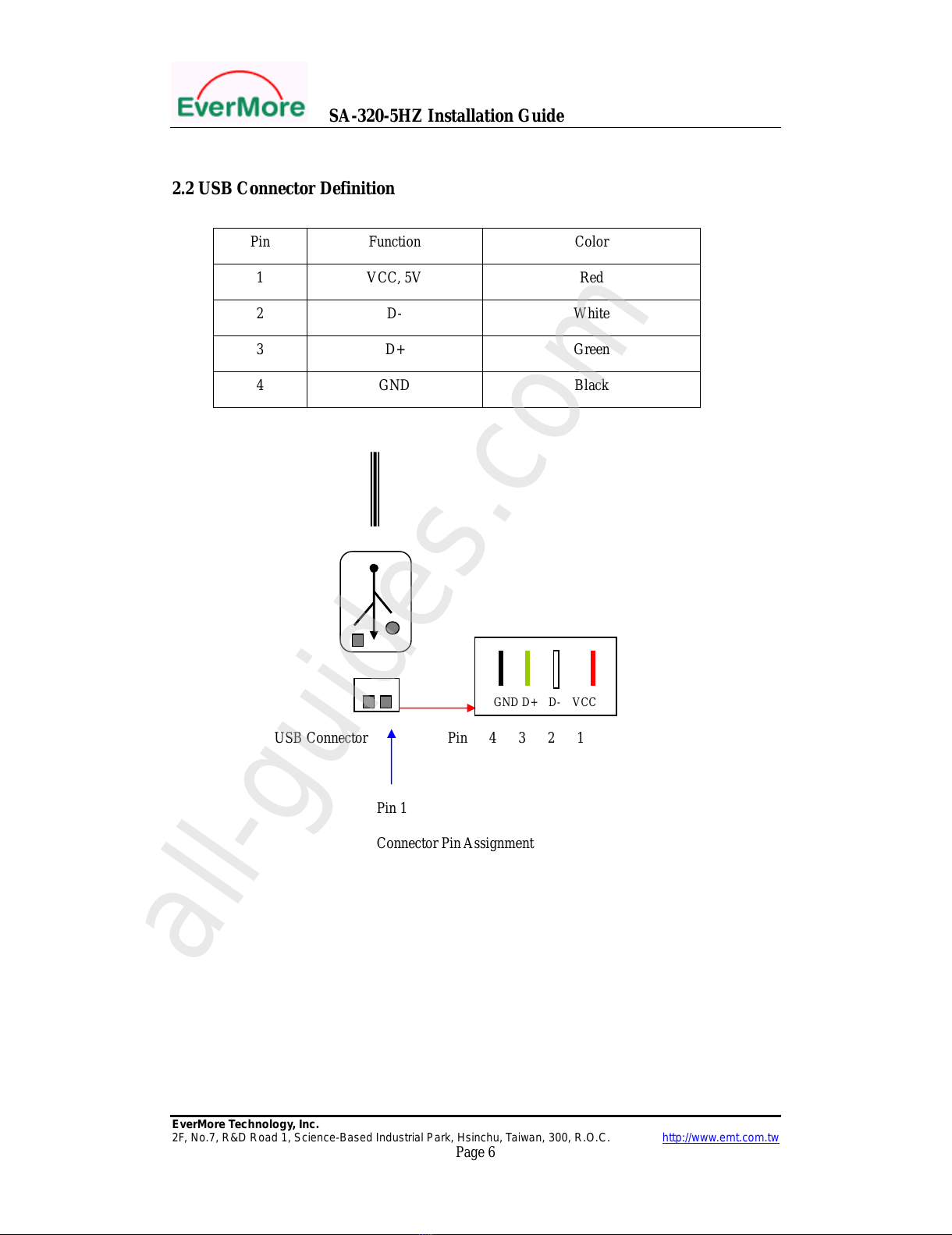

2.2 USB Connector Definition
Pin Function Color
1 VCC, 5V Red
2 D- White
3 D+ Green
4 GND Black
GND D+ D- VCC
USBConnector Pin 4 3 2 1
Pin1
ConnectorPinAssignment
All manuals and user guides at all-guides.com
all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 7

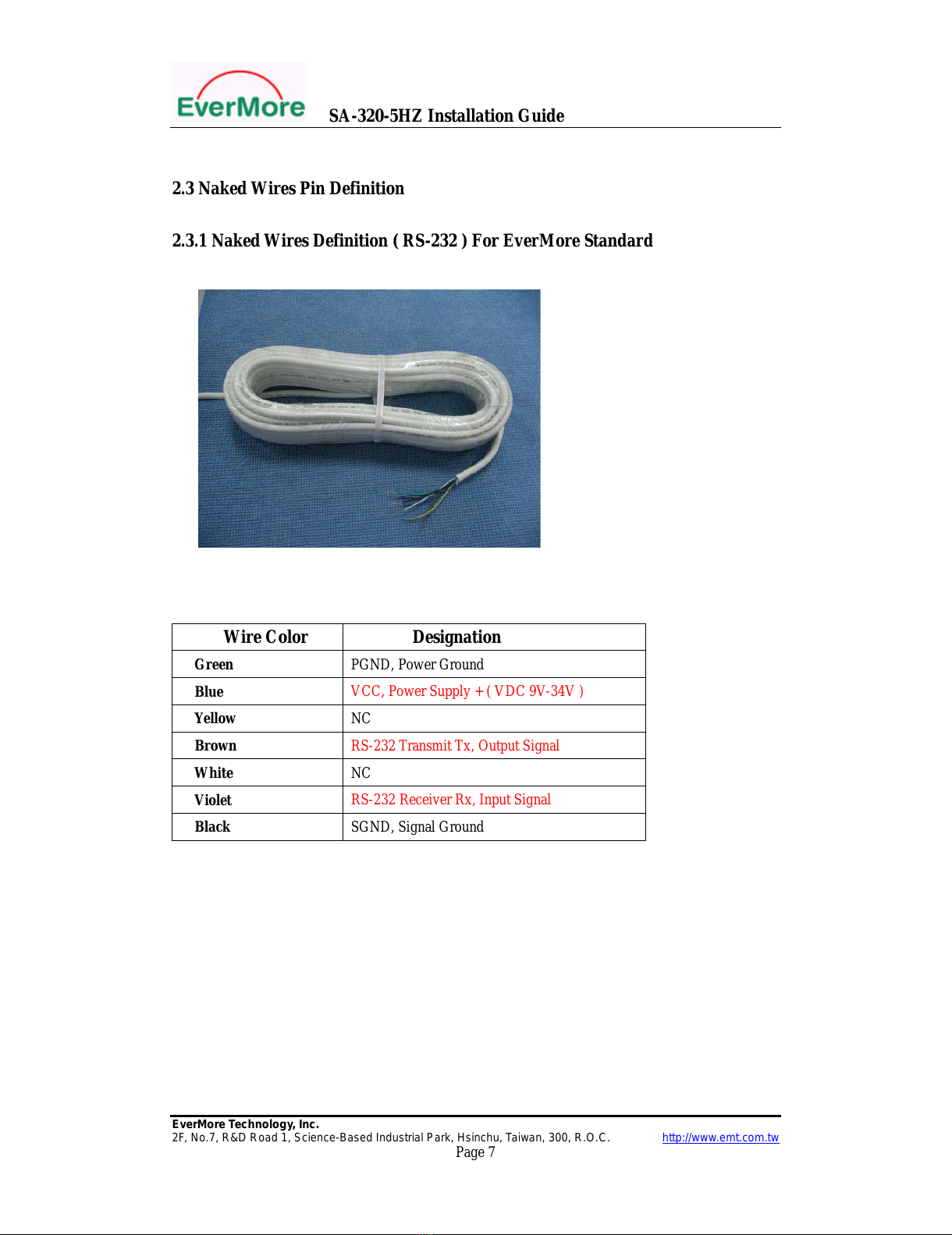

2.3 Naked Wires Pin Definition
2.3.1 Naked Wires Definition ( RS-232 ) For EverMore Standard
WireColor Designation
Green PGND, Power Ground
Blue VCC, Power Supply + ( VDC 9V-34V )
Yellow NC
Brown RS-232 Transmit Tx, Output Signal
White NC
Violet RS-232 Receiver Rx, Input Signal
Black SGND, Signal Ground
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 8

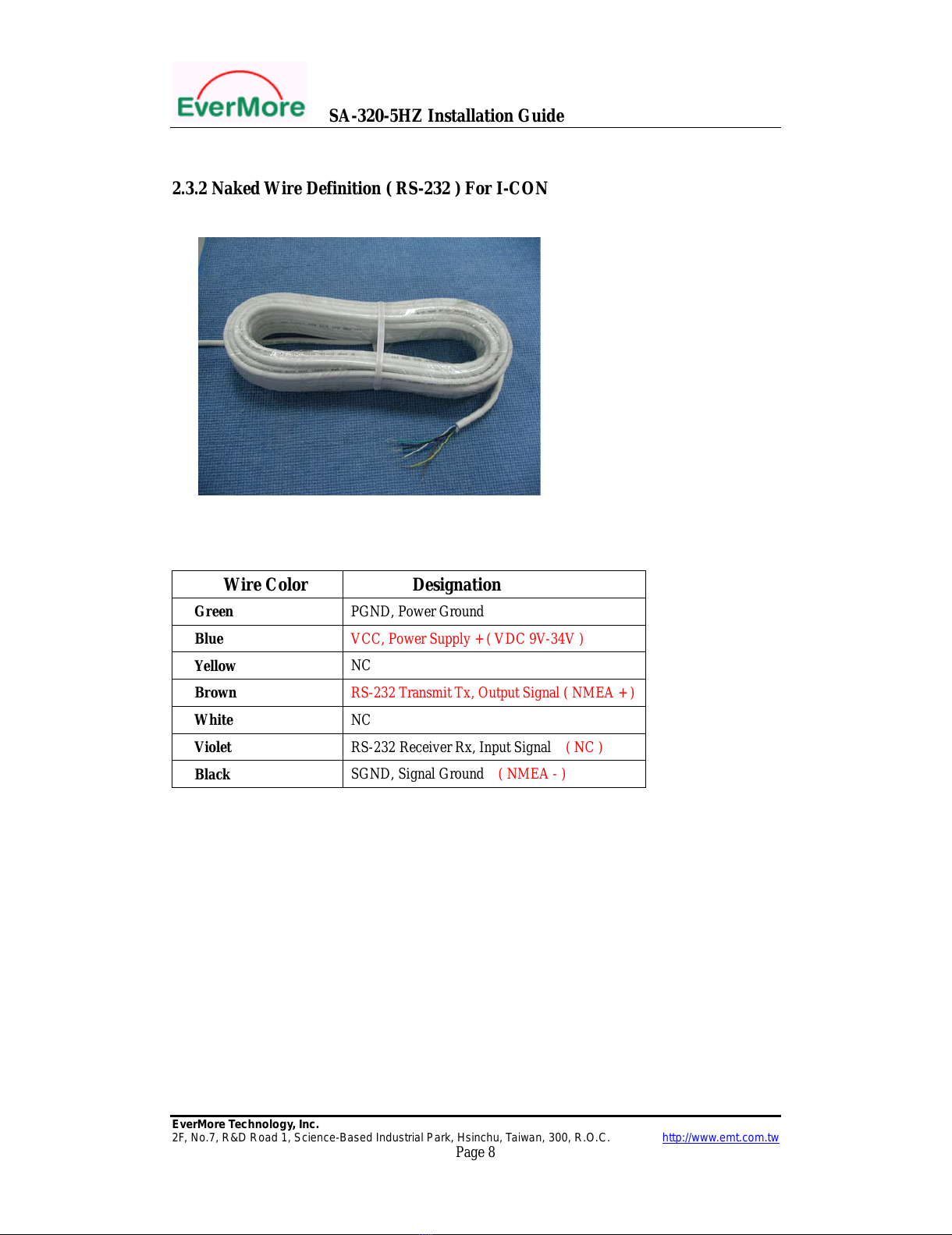

2.3.2 Naked Wire Definition ( RS-232 ) For I-CON
WireColor Designation
Green PGND, Power Ground
Blue VCC, Power Supply + ( VDC 9V-34V )
Yellow NC
Brown RS-232 Transmit Tx, Output Signal ( NMEA + )
White NC
Violet RS-232 Receiver Rx, Input Signal ( NC )
Black SGND, Signal Ground ( NMEA - )
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 9
2.4 Circular Connector ( Male ) For GEONAV
Pin Function Input/Output Level
1 NC No Connect
2 TX Output RS-232
3 GND Ground 0V
4 NC No Connect
5 RX Input RS-232
6 GND Ground 0V
7 VCC Power Supply VDC 9-34V
1 7
4
Connectors Pin Assignment
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 10

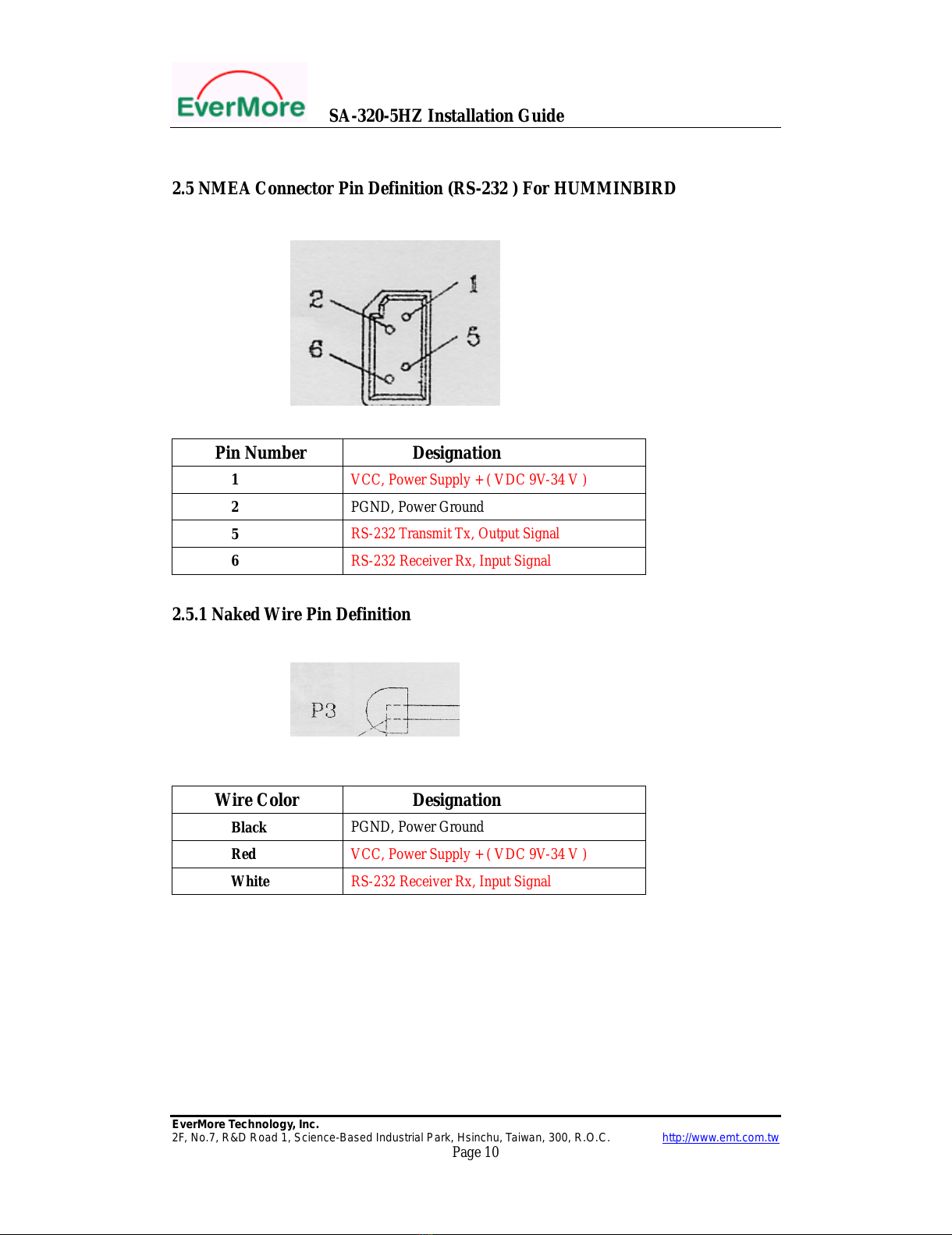

2.5 NMEA Connector Pin Definition (RS-232 ) For HUMMINBIRD
2.5.1 Naked Wire Pin Definition
PinNumber Designation
1 VCC, Power Supply + ( VDC 9V-34 V )
2 PGND, Power Ground
5 RS-232 Transmit Tx, Output Signal
6 RS-232 Receiver Rx, Input Signal
WireColor Designation
Black PGND, Power Ground
Red VCC, Power Supply + ( VDC 9V-34 V )
White RS-232 Receiver Rx, Input Signal
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 11
2.6 DB_9 ( Female ) Connector Pin Definition ( RS-232 ) with Power Supply
PinNumber Designation
1 N.C
2 RS-232 Transmit Tx, Output Signal
3 RS-232 Receiver Rx, Input Signal
4 N.C
5 PGND, Power Ground
6 VCC, Power Supply + ( VDC 9V-34 V )
7 N.C
8 N.C
9 NC
All manuals and user guides at all-guides.com
all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 12

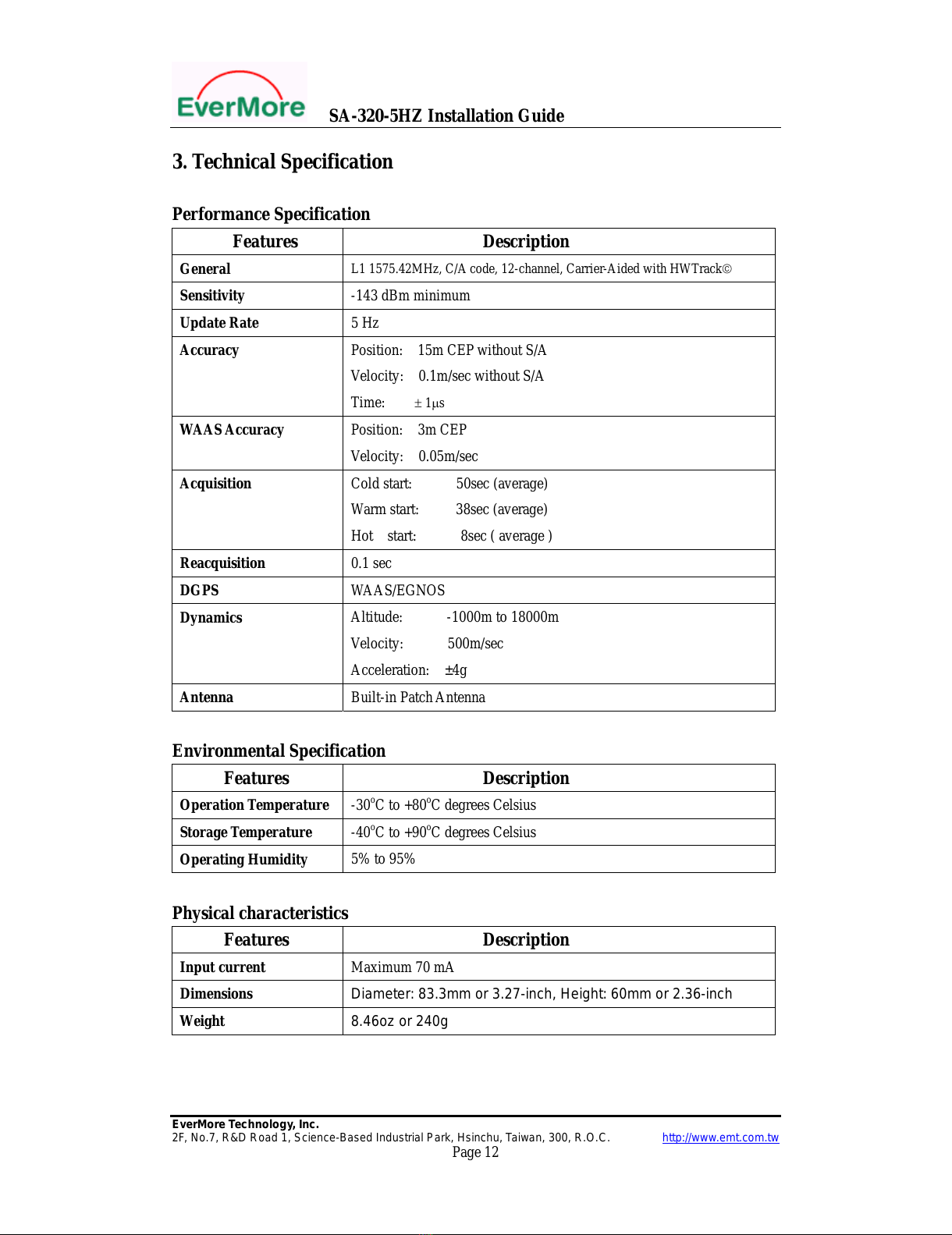

3. Technical Specification
Performance Specification
Features Description
General L1 1575.42MHz, C/A code, 12-channel, Carrier-Aided with HWTrack©
Sensitivity -143 dBm minimum
Update Rate 5 Hz
Accuracy Position: 15m CEP without S/A
Velocity: 0.1m/sec without S/A
Time: ±1μs
WAAS Accuracy Position: 3m CEP
Velocity: 0.05m/sec
Acquisition Cold start: 50sec (average)
Warm start: 38sec (average)
Hot start: 8sec ( average )
Reacquisition 0.1 sec
DGPS WAAS/EGNOS
Dynamics Altitude: -1000m to 18000m
Velocity: 500m/sec
Acceleration: ±4g
Antenna Built-in Patch Antenna
Environmental Specification
Features
Description
Operation Temperature -30oC to +80oC degrees Celsius
Storage Temperature -40oC to +90oC degrees Celsius
Operating Humidity 5% to 95%
Physical characteristics
Features Description
Input current Maximum 70 mA
Dimensions Diameter: 83.3mm or 3.27-inch, Height: 60mm or 2.36-inch
Weight 8.46oz or 240g
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 13

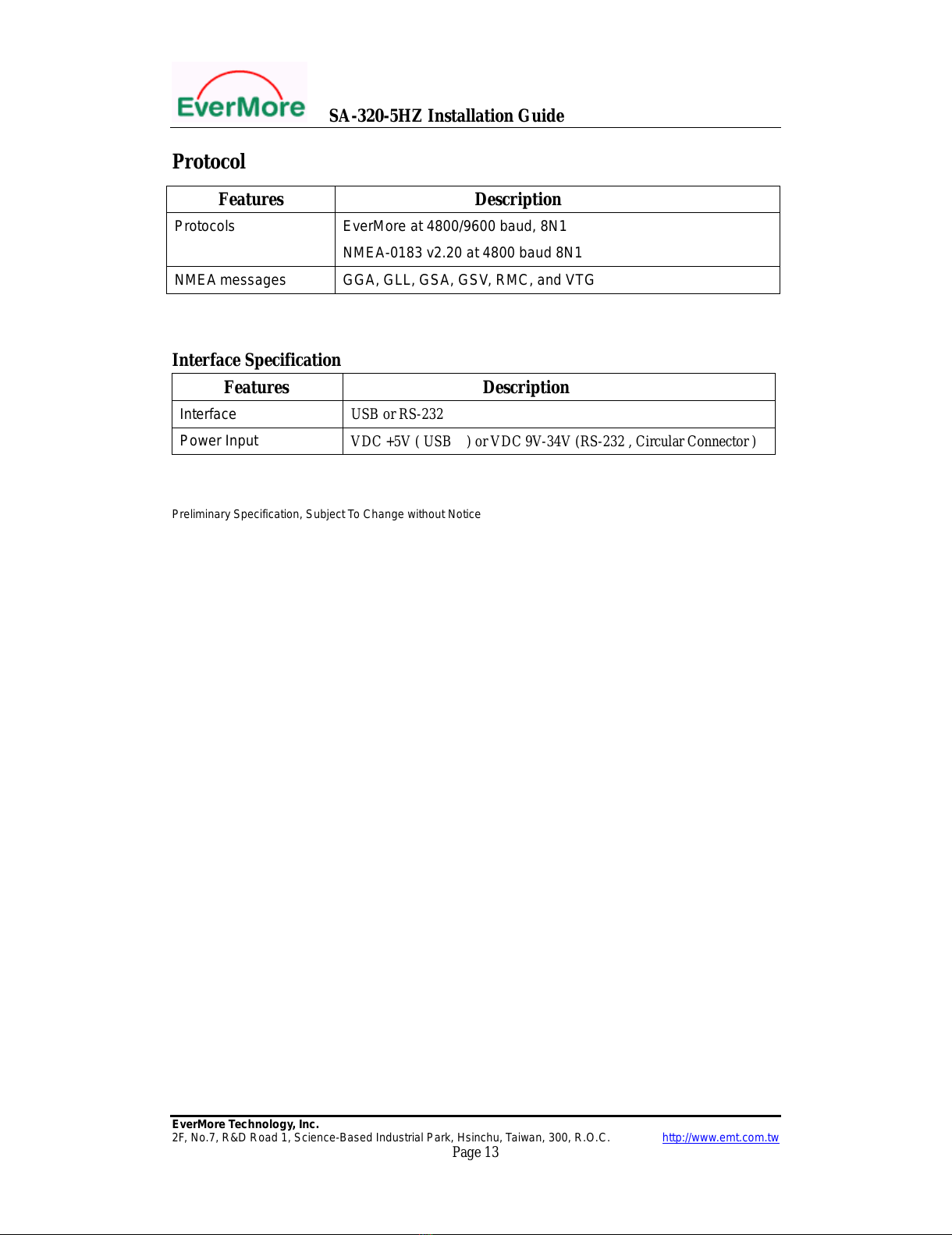

Protocol
Interface Specification
Features Description
Interface USB or RS-232
Power Input VDC +5V ( USB ) or VDC 9V-34V (RS-232 , Circular Connector )
Preliminary Specification, Subject To Change without Notice
Features Description
Protocols EverMore at 4800/9600 baud, 8N1
NMEA-0183 v2.20 at 4800 baud 8N1
NMEA messages GGA, GLL, GSA, GSV, RMC, and VTG
All manuals and user guides at all-guides.com

SA-320-5HZ Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 14
4. Limited Warranty
The SA-320-5HZ GPS receiver is warranted to be defect free in material
designed to use and production for one year from the date of purchase. Under
normal operation conditions, any failure of this product caused by
material/production within the warranted period, it would be replaced with no
charge.
5. Appendix
EverMore Website
Welcome to EverMore website at http://www.emt.com.tw or
http://www.globalsources.com/gpsevermore.co for updated product information
and drivers download.
© EverMore Technology, Inc. All rights reserved.
Not to be reproduced in whole or part for any purpose without written
permission of EverMore Technology Inc. Information provided by EverMore
Technology Inc. is believed to be accurate and reliable. However, no responsibility is
assumed by EverMore Technology Inc. for its use. EverMore Technology Inc.
reserves the right to change specification at any time without notice.
