EverMore SA-320 User manual

SA-320 Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 1

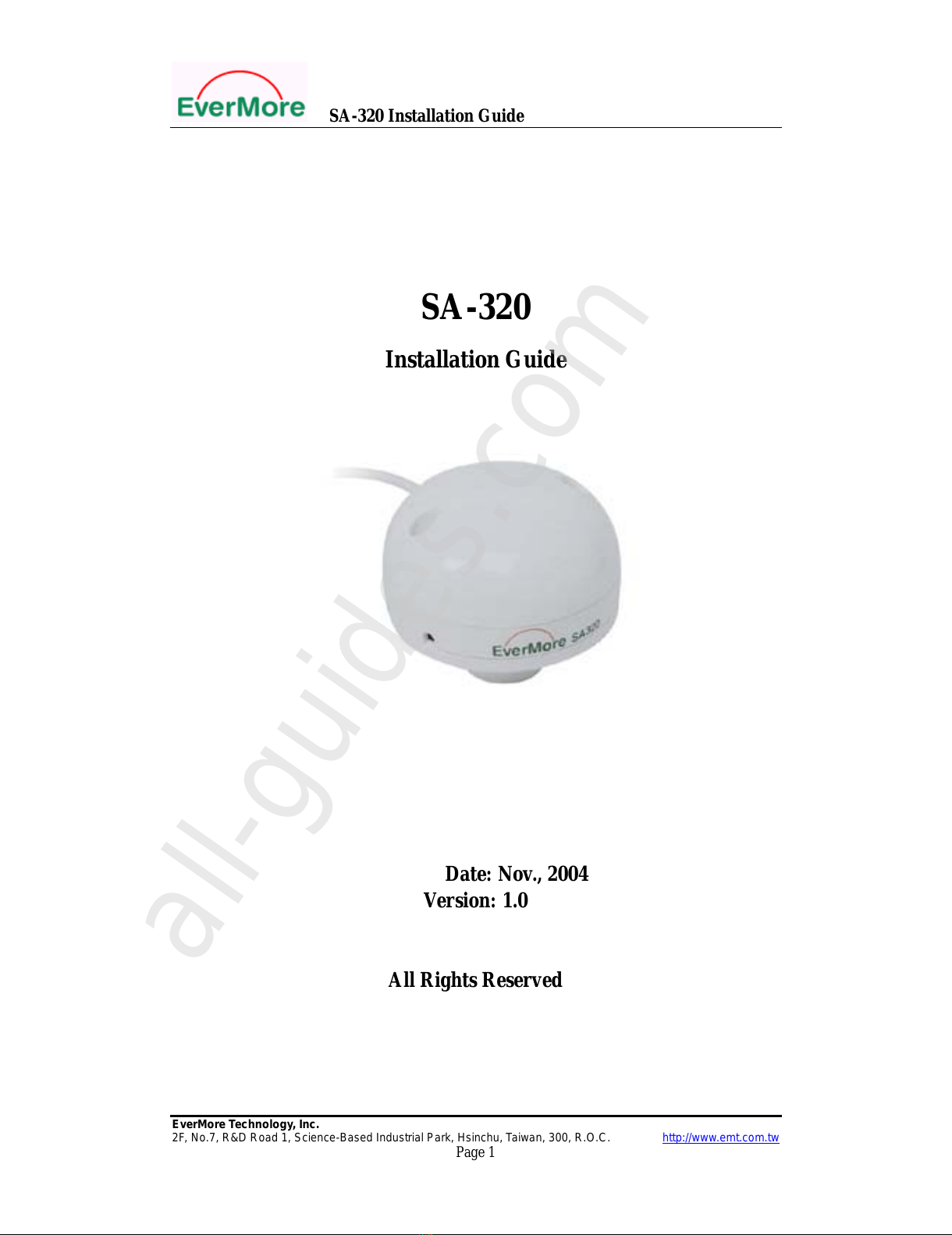

SA-320
Installation Guide
Date: Nov., 2004
Version: 1.0
All Rights Reserved
All manuals and user guides at all-guides.com
all-guides.com

SA-320 Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 2

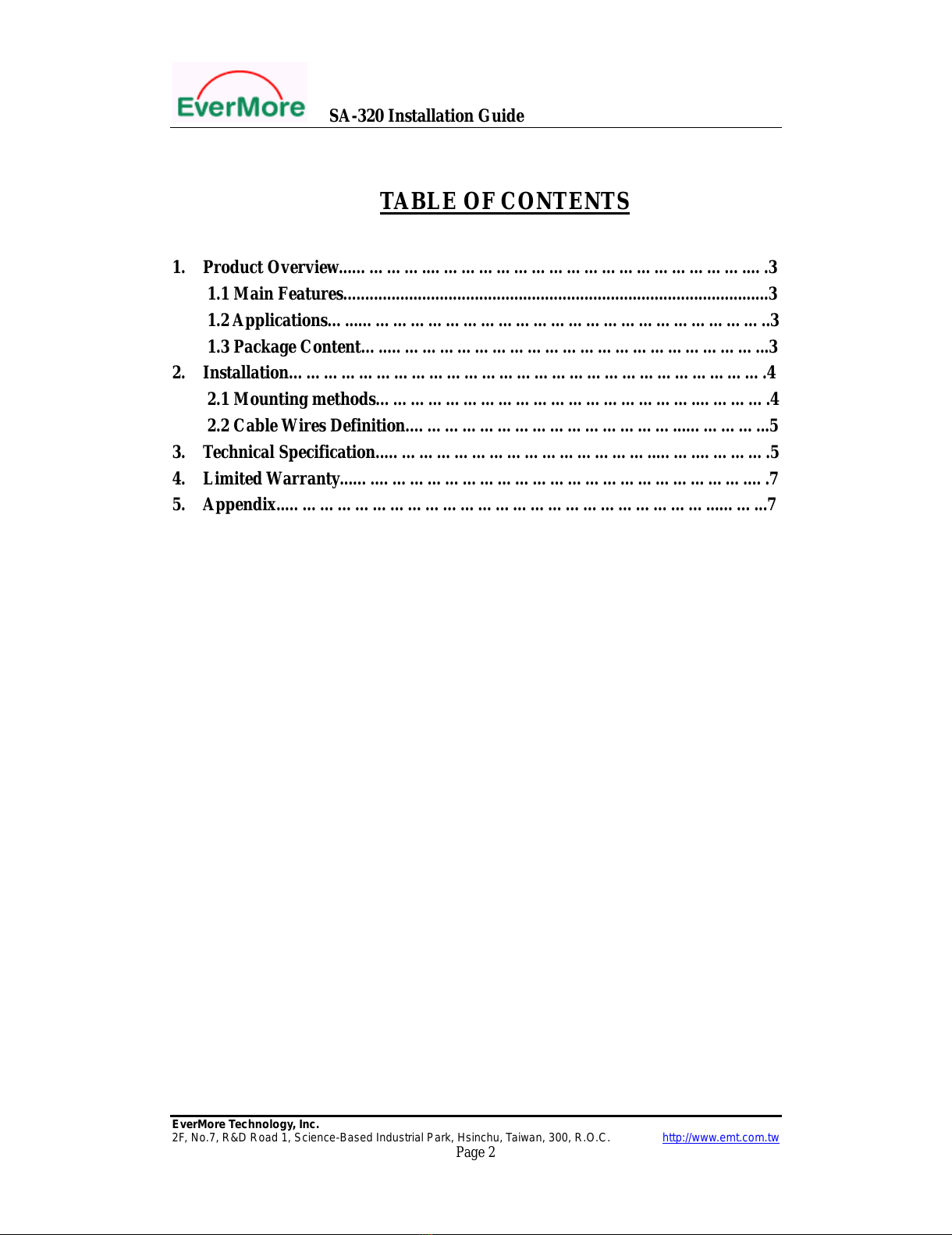

TABLE OF CONTENTS
1. Product Overview...………….……………………………………………….….3
1.1 Main Features.................................................................................................3
1.2 Applications…...……………………………………………………………..3
1.3 Package Content…..………………………………………………………...3
2. Installation……………………………………………………………………….4
2.1 Mounting methods……………………………………………….………….4
2.2 Cable Wires Definition.………………………………………...…………...5
3. Technical Specification..………………………………………..…….………….5
4. Limited Warranty...….……………………………………………………….….7
5. Appendix..………………………………………………………………...……...7
All manuals and user guides at all-guides.com

SA-320 Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 3
1. Product Overview
1.1 Main Features
zBuilt-in patch antenna
z12 parallel tracking channels
zFast TTFF and low power consumption
zOn-board rechargeable battery sustained Real-Time Clock and control
parameters memory for fast satellite acquisition during power-up
zAutomatic cold start without user reset
zInterference filter to majorVHF channels of marine radar
zWAAS compliant with EGNOS support
1.2 Applications
zMarine Navigation
zFishing Aid
zFleet Management
zTime Synchronization Control
zVehicle Tracking
zRobotic
1.3 Package Content
When open the package, please check it includes the following items. Contact
your dealer immediately if any item is missing or damaged.
zInstallation Guide and Warranty Card
zSA-320 GPS Receiver with Cable
zThread Adaptor
zScrew Pairs
All manuals and user guides at all-guides.com

SA-320 Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 4
zMounting-Hole-DrillAlignment Mask
zUser CD
2. Installation
2.1 Mounting Methods
2.1.1 To mount the SA-320, with ThreadAdaptor, on a standard cable pole.
2.1.2 To screw the SA-320 on the surface of the plate.
2.1.3 To screw the SA-320 on the surface of a plate from the other side.
All manuals and user guides at all-guides.com

SA-320 Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 5
.
2.2 Cable Wires Definition
WireColor Designation
Green PGND, Power Ground
Blue VCC, Power Supply +
Yellow NC
Brown RS-232 Transmit Tx, Output Signal
White NC
Violet RS-232 Receiver Rx, Input Signal
Black SGND, Signal Ground
3. Technical Specification
Performance Specification
Features Description
General L1 1575.42MHz, C/A code, 12-channel, Carrier-Aided with HWTrack©
Sensitivity -165dBW minimum
Update Rate 1Hz
Accuracy Position: 15m CEP without S/A
Velocity: 0.1m/sec without S/A
Time: ±1µs
WAAS Accuracy Position: 5m CEP
Velocity: 0.05m/sec
All manuals and user guides at all-guides.com

SA-320 Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 6
Acquisition Cold start: < 120sec (typical)
Warm start: < 45sec (typical)
Hot start: < 15sec
Reacquisition <100msec
Dynamics Altitude: -1000m to 18000m
Velocity: 500m/sec
Acceleration: ±4g
Antenna Built-in Patch Antenna
Environmental Specification
Features Description
Operation Temperature -30oC to +80oC degrees Celsius
Storage Temperature -40oC to +90oC degrees Celsius
Operating Humidity 5% to 95%
Physical characteristics
Features Description
Input current Maximum 150mA
Dimensions Diameter: 83.3mm or 3.27-inch, Height: 60mm or 2.36-inch
Weight 8.46oz or 240g
Protocol
Interface Specification
Features Description
Interface RS-232C
Features Description
Protocols EverMore at 4800/9600 baud, 8N1 NMEA-0183 v2.20 at 4800
baud
NMEA messages GGA, GLL, GSA, GSV, RMC, and VTG
All manuals and user guides at all-guides.com
all-guides.com

SA-320 Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 7

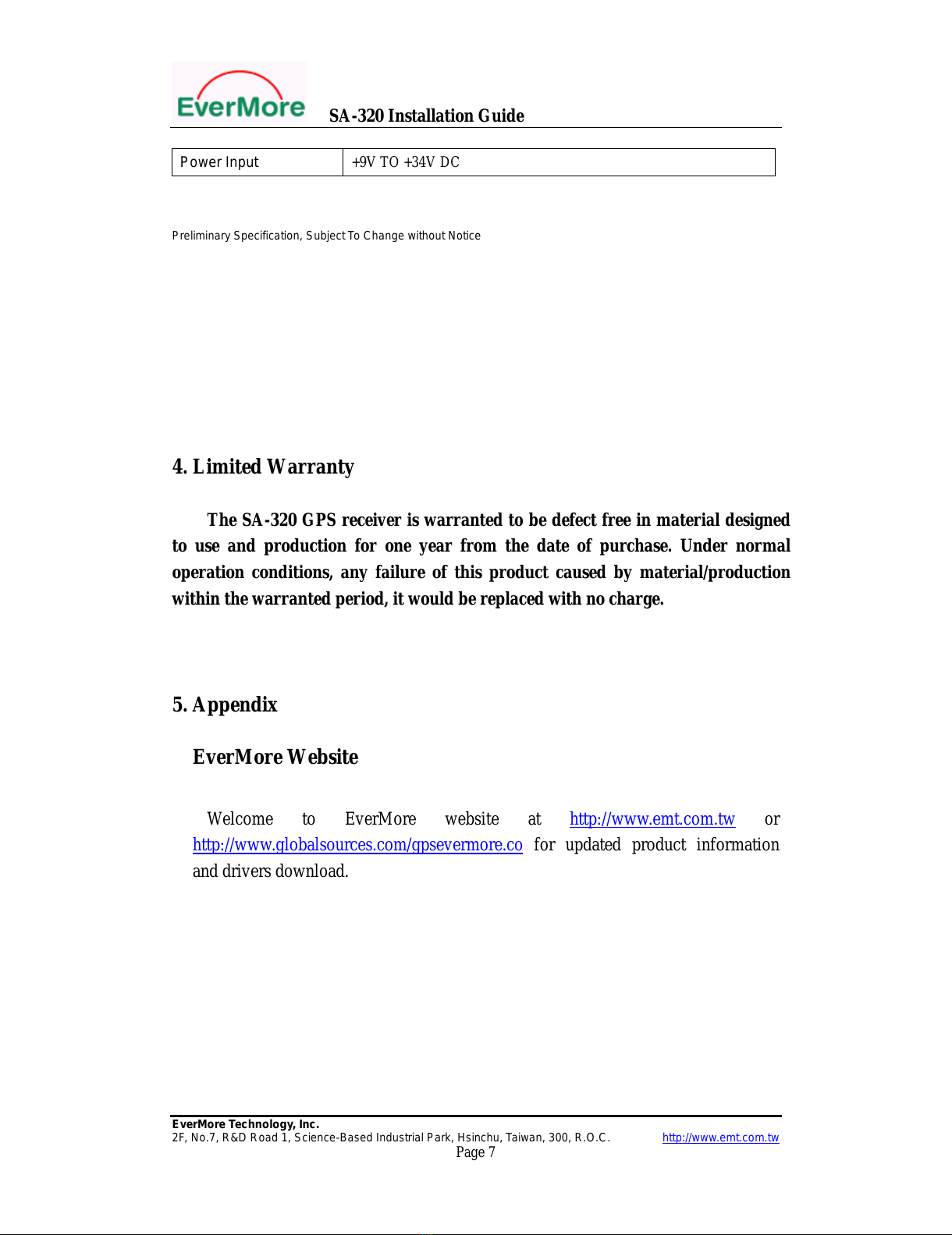

Power Input +9V TO +34V DC
Preliminary Specification, Subject To Change without Notice
4. Limited Warranty
The SA-320 GPS receiver is warranted to be defect free in material designed
to use and production for one year from the date of purchase. Under normal
operation conditions, any failure of this product caused by material/production
within the warranted period, it would be replaced with no charge.
5. Appendix
EverMore Website
Welcome to EverMore website at http://www.emt.com.tw or
http://www.globalsources.com/gpsevermore.co for updated product information
and drivers download.
All manuals and user guides at all-guides.com

SA-320 Installation Guide
EverMore Technology, Inc.
2F, No.7, R&D Road 1, Science-Based Industrial Park, Hsinchu, Taiwan, 300, R.O.C. http://www.emt.com.tw
Page 8

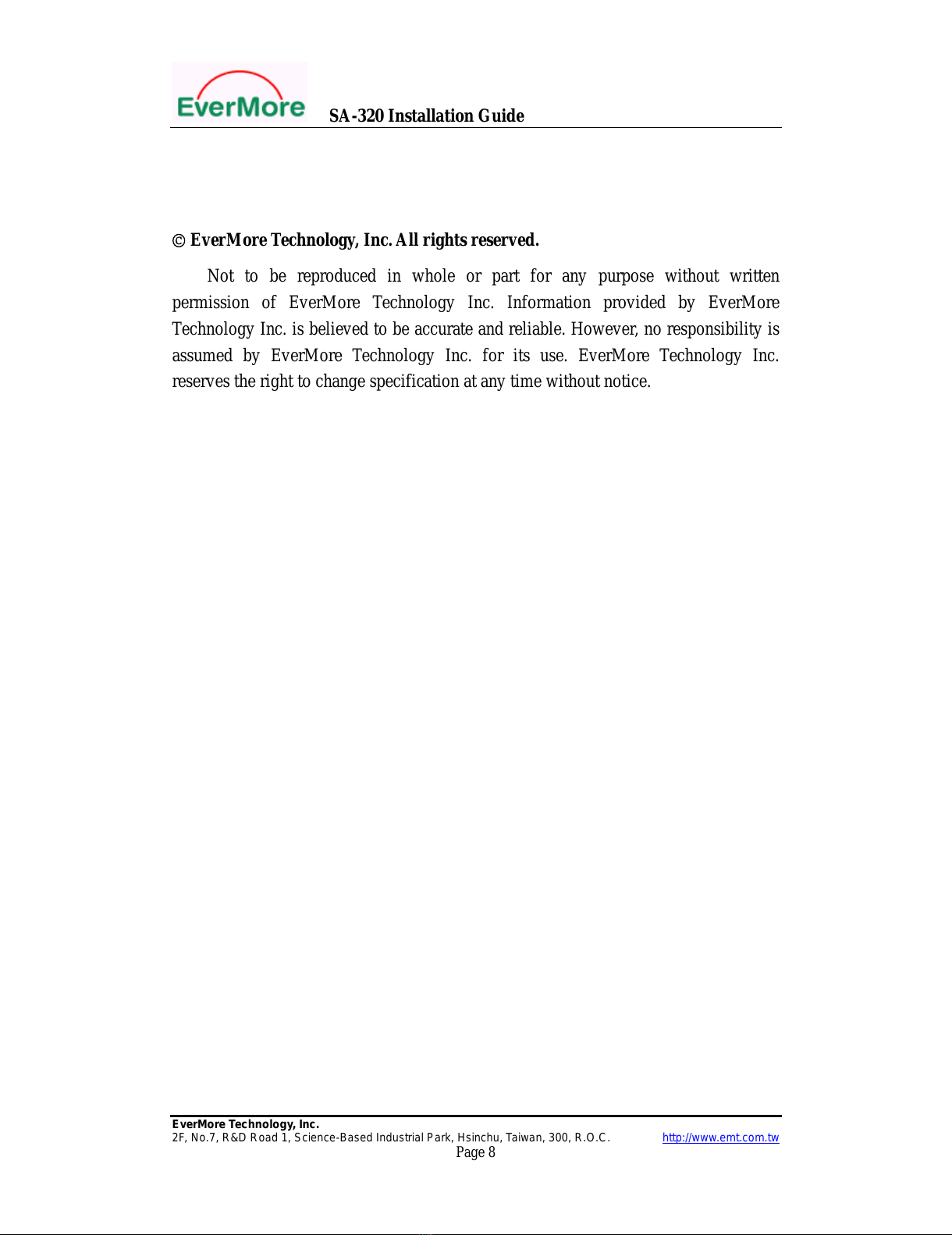

© EverMore Technology, Inc. All rights reserved.
Not to be reproduced in whole or part for any purpose without written
permission of EverMore Technology Inc. Information provided by EverMore
Technology Inc. is believed to be accurate and reliable. However, no responsibility is
assumed by EverMore Technology Inc. for its use. EverMore Technology Inc.
reserves the right to change specification at any time without notice.
