EVIE S1 Installation and maintenance manual

Rider’s
Manual
EVIE S1 / EVIE T1

Welcome, rider.
You are now the owner of a brand new EVIE bike.
Over the next few years, you’ll be exploring the beautiful streets of your city on a
machine that moves in harmony with you. We hope that you’ll enjoy your ride as
much as we enjoyed designing it. See you on the streets.

01
The Basics
Content
EVIE S1
EVIE T1
The Basics
Bike Setup
Know Your Bike
Caring For Your Bike
EVIE S1 2
EVIE T1 3
Prepare Tools 5
Prepare Wheels 5
Install Wheels 6
Install Pedals 7
Install Saddle 8
Adjust Seating 8
Pair Bike 9
Pair EV-Key 10
Feature Highlights 12
Ride Dashboard 14
Securing Your Bike 15
The EVIE App 16
Accessories 17
Best Practices 19
Bike Care 20
Battery Care 21
Warranty 22
A digital copy of this user manual can be found at:
eviebikes.com/pages/downloads
Images in this manual may differ from the actual product.

2 |The Basics The Basics |3
EVIE T1EVIE S1

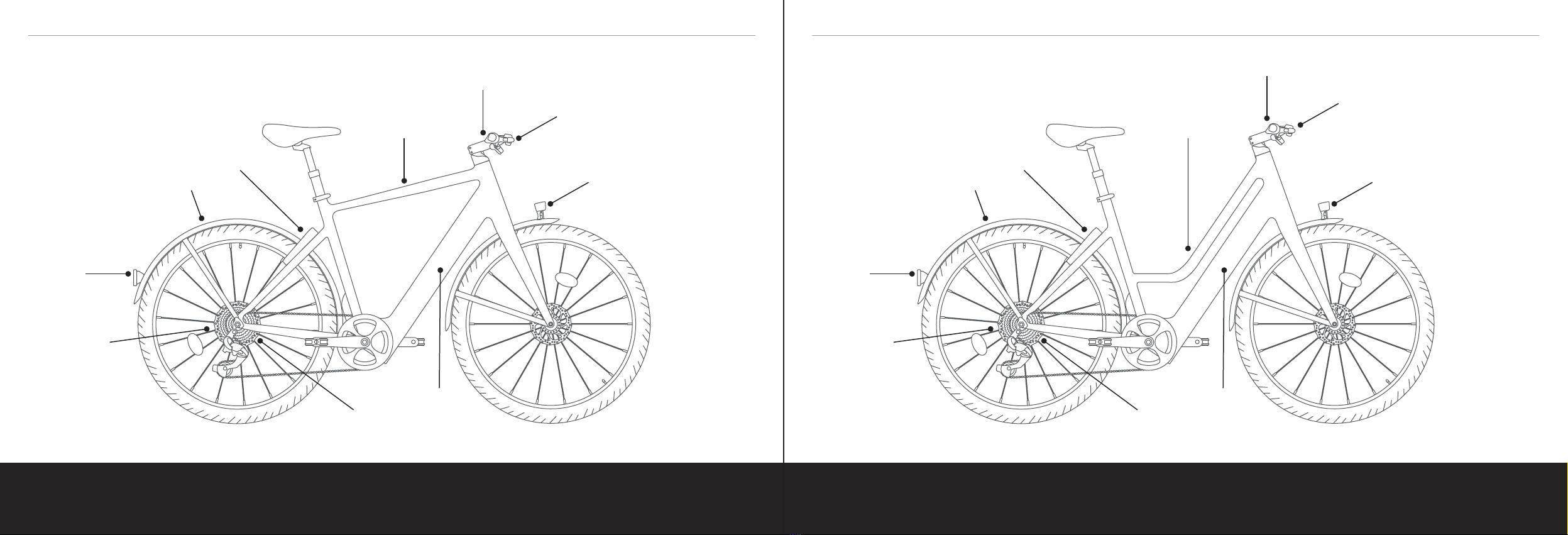

01.
Digital ride dashboard
02.
Gear shifter
03.
Headlamps
04.
Battery
05.
Drivetrain
06.
Hub motor
07.
Rear lights
08.
Mudguards
09.
Integrated lock
10A.
Classic frame
10B.
Step-through frame
01
01
02 02
03 03
04 04
05 05
06 06
07 07
08 08
09 09
10A 10B

Bike Setup |5
02
Bike Setup
Prepare Tools
Prepare Wheels
Install Wheels
Install Pedals
Install Saddle
Adjust Seating
Pair Bike
Pair EV-Key
Prepare Tools01.
02.
Cut cable ties and take the wheel off
the frame.
Remove the quick release from the
wheel by cutting the cable ties.
Slot in the quick release into the wheel.
Be sure to install the smaller end of the
spring facing the wheel.
Prepare Wheels
What’s in the box
Allen Key Spanner Pedals EV-Key x 2 Scissors
To prepare
Get ready to build your best ride so far. The assembly process should take around 15 mins.

6 |Bike Setup Bike Setup |7
L R
Install PedalsInstall Wheels
Turn the handlebar straight.
The left pedal is marked by 3
grooves on the spindle and also a
“L” sticker.
Lift the bike.
Install the right pedal by screwing it
in clockwise carefully by hand. Align
it well. Tighten the spindle pedal
with the provided wrench.
Install front wheel into the fork.
Repeat installation for the left pedal
by screwing it in counter-clockwise.
Tighten the spindle pedal.
Tighten the quick release
appropraitely.
Make sure that the handlebar and
wheels are 90 degrees straight.
Tighten the two screws on the side
of the stem.
03. 04.

8 |Bike Setup Bike Setup |9
Adjust Seating
Your bike is now ready to go! We recommend connecting your bike to the EVIE app for a fully next-gen experience.
Install the EVIE app from the App
Store or Play Store.
Follow on-screen instructions to sign
up for an account.
Follow on-screen instructions to pair
your bike.
Install Saddle
Open the quick release handle. Insert the saddle carefully and adjust
to your optimum seating position.
The saddle is at the correct height if your knee is straight when
you place your heel on the pedal and the pedal is in the six
o’clock position.
Close the quick release handle
tightly.
Pair Bike07.
06.
05.

10 |Bike Setup
Connect to your bike through the
EVIE app.
Tap on “Register EV-Key” card or go
to Bike Settings > EV-Key.
Follow on-screen instructions to pair
your EV-Key.
03
Know Your Bike
Feature Highlights
Ride Dashboard
Secure Your Bike
The EVIE App
Accessories
Your EV-Key is used to unlock your bike with 1 tap. It’s your passport to next-gen commuting. Your bike can also be
unlocked from the EVIE app.
Bluetooth connection needed.
Pair EV-Key08.

Feature
Highlights
12 |Know Your Bike Know Your Bike |13
01.
Integrated lock with 1-tap unlock.
02.
9-speed hybrid drivetrain.
03.
Integrated rear light for night time visibility.
04.
Rear hub motor provides natural feeling
assistance up to 25 km/h.
05.
Built-in sensors and control unit keep your bike
safe at all times.
06.
Integrated battery with up to 70 km range.
07.
Hydraulic disc brakes provide the ultimate
stopping power.
08.
Bright headlamps to light the way home.
09.
Digital ride dashboard.
01
02
05
06
07
08
09
03
04

14 |Know Your Bike Know Your Bike |15
01.
Lock your bike
02.
Unlock your bike
Slide down to lock.
Locking the bike arms Orbital Anti-
Theft™ with theft detection, alerts, and
GPS tracking.
Tap EV-Key here to unlock. You can also unlock with the EVIE
App.
or
01.
Up
Press to increase Pedal Assist.
Hold to toggle lights.
02.
Down
Press to decrease Pedal Assist.
Hold for walk mode.
The motor runs up to 6 km/h to help you
push the bike.
01
02
03
04 06 05
07
03.
Power
Press to power on.
Press to change display information.
Hold to power off.
04.
Bell
Pull and release to ring.
05.
Digital dashboard
Includes Speedometer, Trip details,
Battery % and Bike Status.
06.
Gear shifter (down)
Tap to downshift.
07.
Gear shifter (up)
Tap to upshift.
Ride Dashboard Securing Your Bike

16 |Know Your Bike Know Your Bike |17
Control

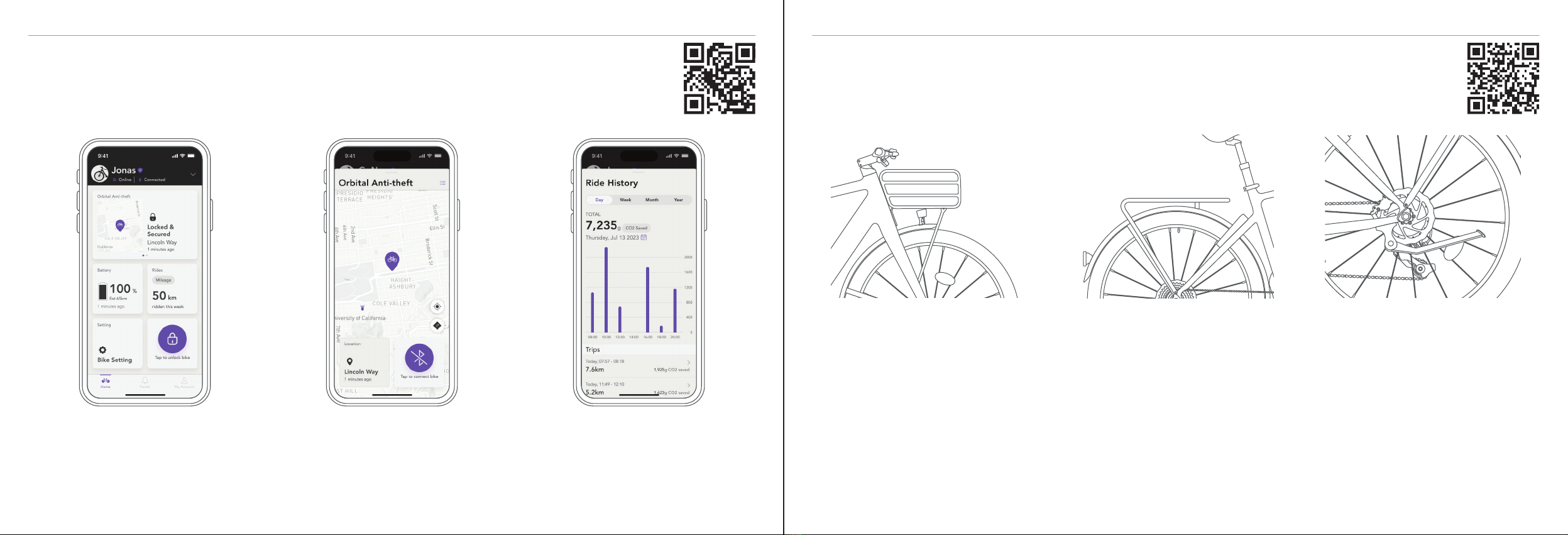

Get an overview of your ride from
the convenience of your phone.
Front basket
Carry goods easily with the handy
front basket.
Always make sure to secure items
in the basket properly and avoid
overloading it to maintain balance
and safe riding conditions.
Do not exceed 9 kg load.
Elevate your ride
Find out more at eviebikes.com/app
For installations instructions:
visit eviebikes.com/pages/downloads
Secure
Built-in theft detection, GPS tracking
and notications.
Rear rack
Carry extra items with the versatile
rear rack. Can beused to mount
panniers and bags for more storage.
Always make sure that the load is
properly balanced and items secured.
Do not exceed 25 kg load.
Do not use as a passenger seat or
child carrier without a child seat.
Track
Records your trips automatically and
gives you insight into your riding
habits.
Kickstand
Park your bike conveniently and keep
it steady while loading or unloading
items.
The kickstand is designed to support
the weight of the bike only.
Do not use the kickstand to support
your full weight or a fully-loaded
bike as it may result in the kickstand
bending or breaking in extreme cases.
AccessoriesThe EVIE App

Caring For Your Bike |19
04
Caring For Your Bike
Best Practices
Bike Care
Battery Care
Warranty
Best Practices
Before your rst ride
1. Charge up your battery
• Ensure that your battery is fully charged before your
rst ride. Long-term storage of the bike while shipping
may have depleted the charge level.
2. Ride safe
• Always follow local regulations, including reector
placement and laws on where to ride your bike.
• Laws may vary from country to country. As these laws
may change over time, always keep yourself up to date
on the latest regulations.
• Take it slow while you get used to your new bike. The
riding feel may differ from bikes that you’ve ridden in
the past.
3. Understand the brakes
• Brakes may take some time to bed in. The general rule
of thumb is to come to a complete stop at least 40
times. Avoid fast riding before this.
• The brakes may get hot after prolonged use. Allow
some time for them to cool down if riding on
challenging roads.
• Braking power may be reduced in wet conditions.
• Braking power may differ from bikes that you’ve ridden
in the past due to the extra weight and different
weight distribution.
Before every ride
1. Squeeze brakes to make sure that they are working
perfectly.
2. Check tyre pressure and treads to ensure they are in good
working condition.
3. Check chain and ensure that it is clean and has enough
lubrication.
4. Wear protective gear (eg. helmets and reective clothing if
riding at night).
5. Do not hang heavy objects on the handlebars as this may
affect your ability to safely navigate the bike.
6. Check weather conditions and ride safely accordingly.
This includes understanding that braking power may be
reduced in wet conditions.

20 |Caring For Your Bike Caring For Your Bike |21
Bike Care
Cleaning
Use a damp cloth to wipe down the bike
to keep it clean. For a thorough clean,
we recommend using only cleaning
products approved for bikes.
Do not use a high pressure water hose or
steamer to clean the bike. There may be
a risk of damage to the bike.
Servicing
You should service your bike once a year
or every 1,000 km - whichever comes rst.
Look out for any cracks or discolouration,
which may indicate that the component
has reached its end-of-life and needs to
be replaced.
Do not try to replace any electrical
components by yourself. There may be a
risk of injury of damage to the bike.
Brake pads
The brake pads should be checked
every 1,000 km or if you feel any notable
decrease in braking power.
Every brake pad has a visual indicator -
replace them when a small blue circle is
visible. This indicates that the surface has
worn away through use.
Compatible brake pads with the EVIE S1
and T1 are:
• Shimano B01S, B05S
• Tektro A11TS, A10YS, P20.11,
P21.11, E10.11, E11.11
Brake uid should be topped up with
mineral oil only.
Chain
The chain should be lubricated from
time-to-time with a chain lubricant.
Excess lubricant should be wiped off
with a clean cloth.
Link chains should be cleaned
occasionally with a rm brush.
Tyres
You should change the tyres if you notice
the tyre tread wear is not even or if there
are sections of the tyre much more worn
than others.
The tyres can be replaced with any off-
the-shelf 27.5”x 1.95” tyres.
Motor
The motor is electronically limited to
250W and provides assistance at speeds
up to 25 km/h to comply with EU
regulations.
The recommended operating
temperature is between -10°C to +60°C.
Functionality may be limited outside this
range for safety purposes.
Do not attempt to replace the motor by
yourself.
Battery Care
Maximising battery life
Always avoid leaving your battery fully
discharged (empty) for a prolonged
time. Charge your battery occasionally
even if you do not plan to use your bike
for a long time.
Store your bike in a dry environment at
room temperature if not in use for a long
time.
Failure to follow these steps will cause
the battery to go into deep discharge
(a mandatory safety precaution). The
battery will need to be replaced if this
happens, which is not covered under
warranty.
For best results, ensure that the battery
is charged to full from empty at least
once every 8 weeks.
Charging
Always use an EVIE branded charger
to charge your battery. We cannot
guarantee the safety of 3rd party
chargers.
Always charge in dry conditions and
away from direct sunlight.
Do not expose your charger to moisture
or water.
Always keep the charger out of reach of
children.
Warnings
Do not attempt to remove the battery
by yourself without the assistance of a
trained professional.
Do not disassemble or subject the
battery to strong forces.
Do not use a defective charger or
battery.
Best practises
Your bike is estimated to have a range of
up to 70 km. However, please note that
achieved range may vary signicantly
depending on riding conditions, rider
load, and temperature.
A range exceeding 70 km is achievable
on at terrain with a new battery, load of
80 kg, and an ambient temperature of
20°C.
Colder ambient temperature will result in
lower range. This is true of all lithium-ion
batteries.
Riding up steep hills will result in lower
range as more power is required to drive
the motor.
Use a lower pedal assist level for an
extended range.
Keep your tires fully-inated to achieve
optimal range.

22 |Caring For Your Bike
Warranty
Terms and conditions
Your bike comes with a 2 year warranty.
This warranty applies to the bike and is
transferable to another owner. In this
case, the warranty still expires 2 years
after the bike was rst purchased from us.
Warranty claims must be made directly
to EVIE Bikes by contacting our customer
service, or an EVIE Bikes authorised
representative.
If a warranty claim is accepted, we
reserve the right to provide a
replacement (not necessarily identical)
or make reasonable efforts to repair
any defective part(s) or component(s)
according to our discretion.
All replacement parts or repairs done
will be covered under the bike’s original
warranty, and will expire at the same
time as the original bike’s warranty.
The warranty does not extend to wear-
and-tear parts - including, but not
limited to disc brakes, brake pads, tires,
tubes, cables, chains, sprockets, spokes,
bearings, pedals, grips, and saddle. It
is the owner’s responsibility to inspect,
maintain, and replace these parts as
necessary at regular intervals.
This warranty does not cover defects
or damages due to accidents, incorrect
installation by the user, negligent
usage of the bike, unauthorised
repairs or modications, and improper
maintenance.
The warranty applies to EVIE bikes
intended for use within the following
countries: Austria, Belgium, Bulgaria,
Croatia Cyprus, Czech Republic,
Denmark, Estonia, Finland France,
Germany, Greece, Hungary, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden,
and the United Kingdom. We have no
warranty obligations if the bike is used
outside of these countries.
We reserve the right to update and
modify these terms and conditions at any
time without prior notice. In the event
of any conict between these terms
and conditions and any printed version
thereof, the most current version of
these terms and conditions as published
on our website shall take precedence.
EVIE bikes are in full compliance with the
European Standard for EPAC bicycles
EN15194:2017.
SEE
YOU
ON
THE
STREETS

#EVIECityBikes
eviebikes.com
facebook.com/EVIEbikes
instagram/evie_bikes
