2024 SUPERCALIBER SL AND SLR
SERVICE MANUAL

2024 Supercaliber
1
Contents
Safety Rear axle with UDH Rear axle with SRAM
Transmission
Derailleur
Main pivot Swingarm
SLR routing with
AXS shifting
SLR routing with
mechanical shifting
SL routing with
AXS shifting
SL routing with
mechanical shifting
Frame guards
2024Supercaliber
19
Specifications
Chainline (1x only)
55mm
Chainring (1x only)
Minimum Maximum
30TRound 38TRound
Rear brake mount
160mmDirect Post Mount
OLD
RearHub: 148mm
Maximum tire size
29" x 2.4"
Notice:Measurements of actual tires may vary. Always
verify there is sufcient clearance between the tire and
the frame. Improper tire size could damage the bicycle
frame. Trekrecommends 6mm clearance above and on
the sides of the tire.
Bottom bracket
Press t BB92
Seat post
WARNING
Alwaysfollow the seatpost manufacturer’s minimum
insertion recommendation. Failure to follow the recom-
mendationcould cause damage to the seatpost and
result in injury to the rider.
Minimuminser tion: Referto seatpost manufacturer
Maximuminser tion:
S:21 5
M:225
ML:250
L:27 0
XL:330
Seattube inside diameter: 31.6mm
Seattube post clamp outer diameter: 36.2mm
Fork
WARNING
Exceedingthe recommended maximum fork length could
damage the bicycle and result in injury to the rider.
Travel
Sag
Axle to Crown
Frame/Size Axleto Crown (mm) Travel(mm)
S,M, ML, L, XL Recommended 515 110
Maximum 533 120
Recommendedsag: Refer to the suspension setup card
includedwith your bike or the suspension calculator at
Trekbikes.com/suspension-calculator.
IsoStrut IsoStrut maintenance Bushings, carriage
wiper seals, and foam
blocks
Replace bushings and
carriage wiper seals
Specications
Copyright 2023 Trek Bicycle Corporation All Rights Reserved

2024 Supercaliber
2
Safety
WARNING
Properly tighten hardware
Always tighten hardware to the specied torque.
Over-tightening hardware could deform or break the
hardware or components. Under-tightening hardware
could cause hardware or components to become loose.
Either situation could damage the bicycle and result in
injury to the rider.
WARNING
Reapply threadlocker
All reused-fasteners with pre-applied threadlocker must
be cleaned with isopropyl alcohol and have new thread-
locker applied before re-assembly. If threadlocker is not
applied, the fasteners may loosen which could damage
the bicycle and result in injury to the rider.
Scope
This manual contains parts diagrams, specications (such
as grease and torque values), instructions, and helpful
tips. It does not contain instructions for all components
(such as brake calipers). Refer to the original manufactur-
er for more information.
Legend
Apply grease
Do not apply grease
Apply threadlocker
Nm Torque
Zip tie
Additional resources
• Trek’s YouTube channel: youtube.com/trekbikes
• Trek Owner’s Manual: trekbikes.com/manuals
• RockShox SIDLUXE IsoSrut Service Manual found on
SRAM’s dealer portal.

2024 Supercaliber
3

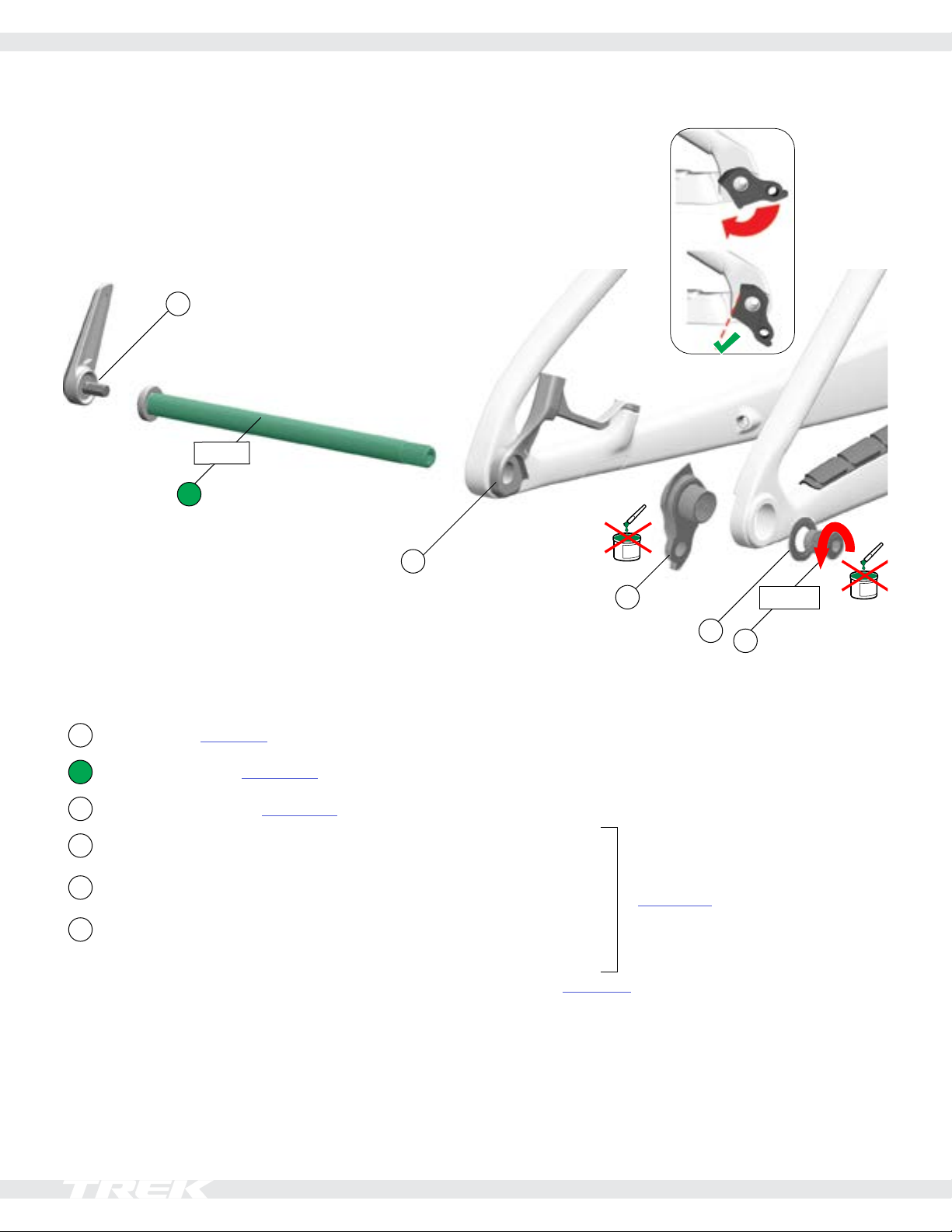

Rear axle with UDH
1
2
3
25Nm
10Nm
4
56
1Switch lever — W573860
2Thru axle, 12x180 — W5290786
3Dropout brake mount — W5307257
4Derailleur hanger, UDH
Notice: Do not apply grease.
— W5271424
5Washer, 25mm
Notice: The washer is frame-specic. Install only the washer size specied.
6Bolt
Notice: Do not apply grease. Left-hand thread. Do not over-tighten.
Over-tightening could cause the hangar to break
For additional information about the UDH, refer to the SRAM user manual at sram.com.

2024 Supercaliber
4

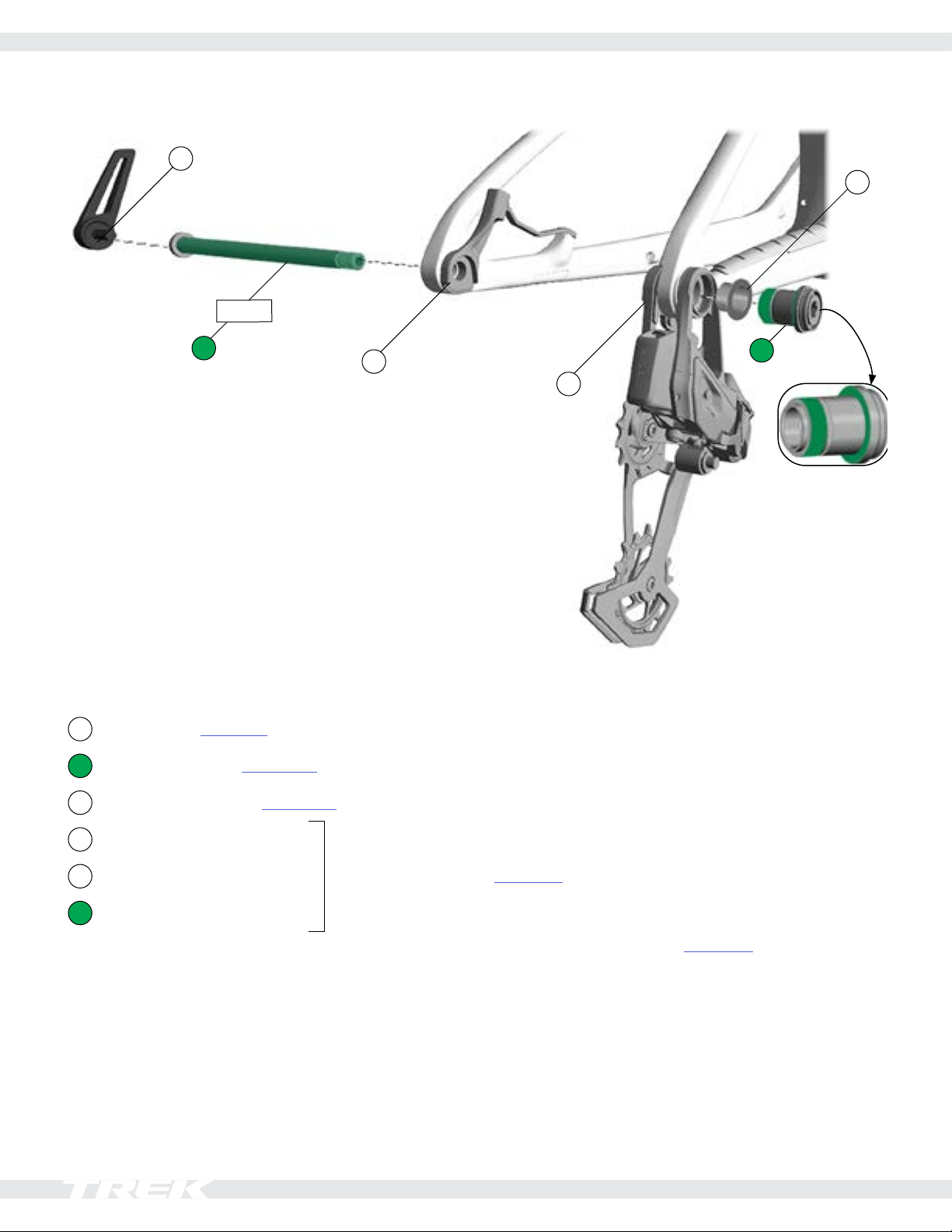

Rear axle with SRAM Transmission Derailleur
1
23
10Nm
4
6
5
1Switch lever — W573860
2Thru axle, 12x180 — W5290786
3Dropout brake mount — W5307257
4SRAM Transmission Derailleur
— Refer to information on sram.com.
5Bushing
6Mounting bolt
For additional information about the Transmission derailleur, refer to the SRAM user manual at sram.com.

2024 Supercaliber
5
Main pivot
1
1
2
Install driveside bearing rst.
1Bearings, 28x15x7 — W5290782
2Main pivot sleeve — W5290783

2024 Supercaliber
6
Swingarm
3
2
4
1
8
7
6
5
10Nm
10Nm
5Nm
7Nm
20Nm
Important: Torque 5
prior to installing
6, 7, and 8.
See page 13.
M5x18
4
3
M6x12
9Install between the main frame
and driveside of the swingarm.
Important: Do not
apply grease to the
threads.
8
M5x25
1Swingarm SM — 45582
M-XL — 45583
2IsoStrut axle bolt, M6x10mm — W5290780
— IsoStrut mounting fasteners
3Endcap fastener, M6x1mm — W582252
4Fasteners, M5x18mm, with washers, — W584485
5Main pivot bolt, M15x71mm — W5306810
6Wedge spacer — W5306811
7Washer, 5.3mm x 1mm — W5309244
8Fastener, M5x25mm — W5306809
9Spacer, 15x26x4 — W5307573

2024 Supercaliber
7
SLR routing with AXS shiing
Note: The fork must be removed to route the brake hose and IsoStrut lockout cable housing.
Important:
Route the cables as shown below.
4
8
7
5
6
1
2
Install the grommet prior
to routing the brake hose.
Cable tunnel
molded into
the frame
3
4
9
1Rear brake hose
2IsoStrut lockout cable housing
3Dropper seatpost cable housing
4Cable housing plugs — W600649
5Cable exit plug — W5256254
6Chainstay plug — W5259425
7Cable exit grommet — W5255861
8Chainstay plug — W600209
9Foam housing sleeves — W528082

2024 Supercaliber
8
SLR routing with mechanical shiing
Note: The fork must be removed to route the brake hose and IsoStrut lockout cable housing through the head tube.
1
2
3
4
5
Install the grommets prior to
routing the brake hose and
derailleur cable housing.
Important: Route the cables as shown below.
6
Cable tunnel
molded into
the frame
1Rear brake hose
2Rear derailleur cable housing
3IsoStrut lockout cable housing
4Dropper seatpost cable housing
5Cable exit grommets — W5255861
6Foam housing sleeves — W528082

2024 Supercaliber
9
SL routing with AXS shiing
Important:
Route the cables as
shown below.
6
1
2
3
5
4
Cable tunnels
molded into
the frame
4
1Rear brake hose
2IsoStrut lockout cable housing
3Dropper seatpost cable housing
4Cable housing plugs — W600649
5Chainstay plug — W5259425
6Chainstay plug — W600209

2024 Supercaliber
10
SL routing with mechanical shiing
Important: Route the cables as shown below.
1
2
3
4
Cable tunnels
molded into the
frame
1Rear brake hose
2Rear derailleur cable housing
3IsoStrut lockout cable housing
4Dropper seatpost cable housing

2024 Supercaliber
11

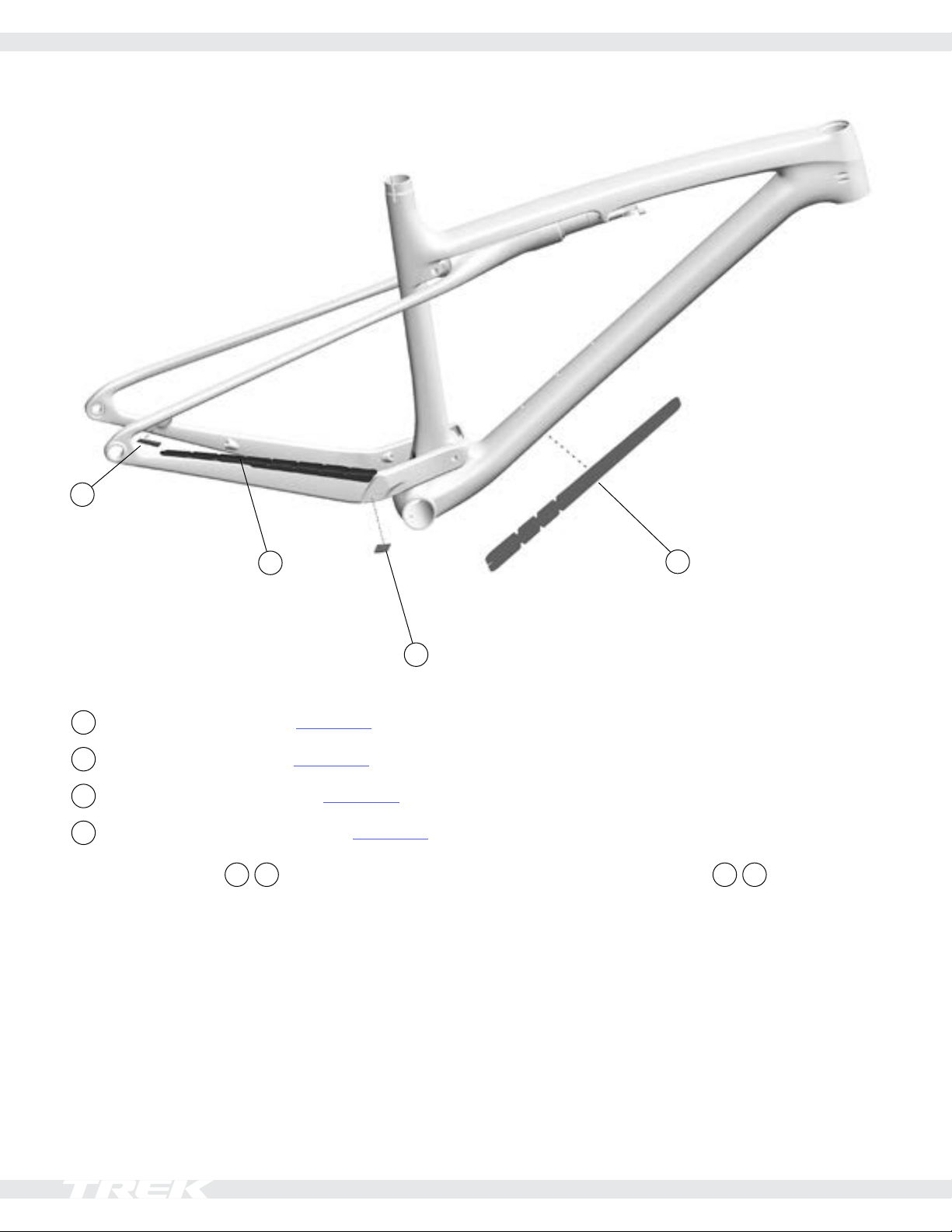

Frame guards
1
2
3
4
1Rotor strike guard, bonded — W5307943
2Chainstay guard, adhesive — W5307370
3Chainring strike guard, bonded — W5307942
4Downtube protector, clear adhesive — W5312789
Adhesive guards 24
Use isopropyl alcohol to clean the frame surface where the
guards attach. Wait for the alcohol to dry before applying
the guards.
NOTICE: Do not clean the entire frame with isopropyl
alcohol. Isopropyl alcohol could damage the paint.
Bonded strike guards 13
1. To improve adhesion, use sandpaper to roughen the
backside of the guards and/or remove remnants of
the old guard from the areas of the frame where epoxy
will be applied.
2. Attach the guards with a two-part epoxy.
3. Allow the guards and epoxy to cure for 24 hours.

2024 Supercaliber
12

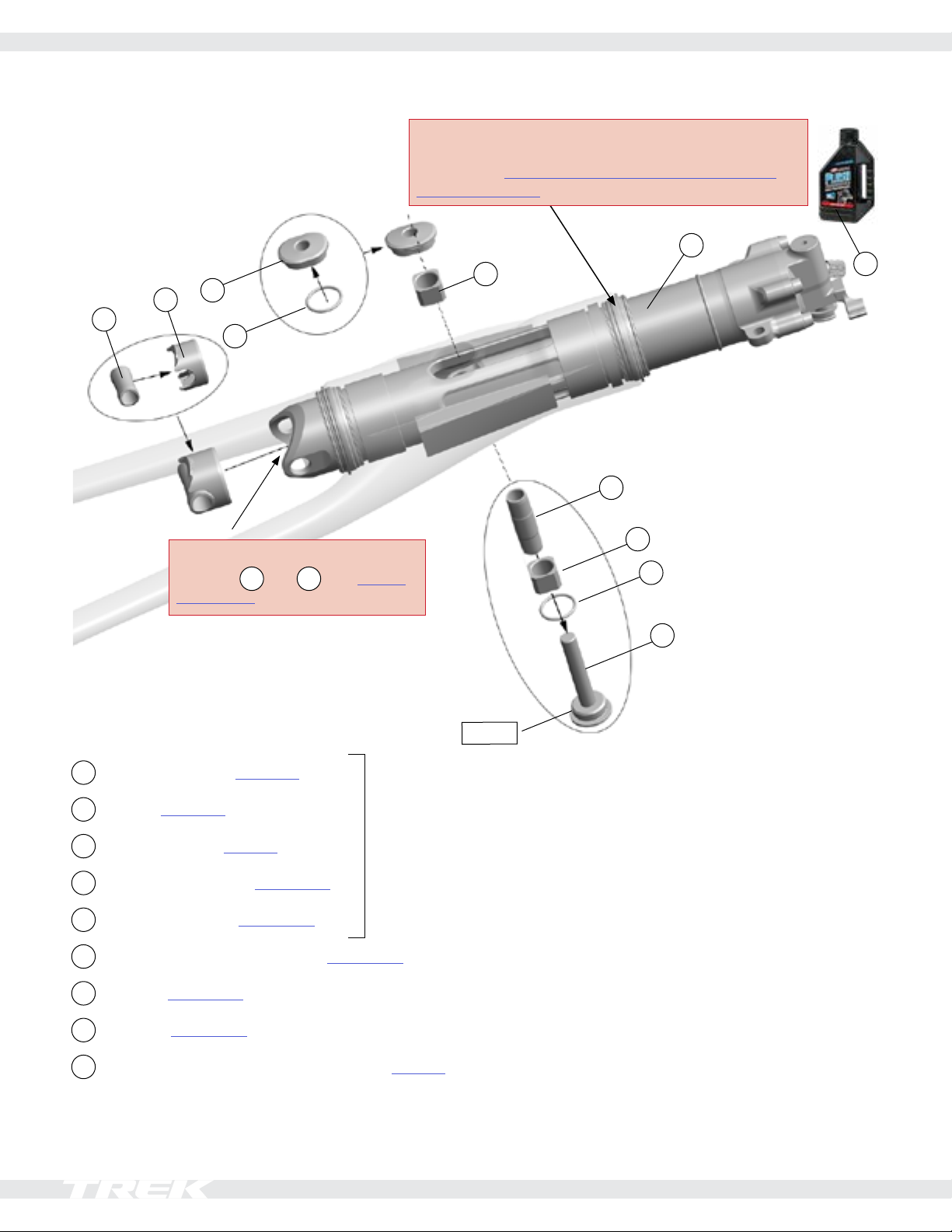

IsoStrut
Click
1
2
3
4
3
2
5
6
7
8
Apply a light coat of Maxima Suspension Plush Fluid 10WT
oil to inner edge of the wiper seals before installing the
IsoStrut. See Bushings, carriage wiper seals, and foam
blocks on page 14.
Important: Add oil to IsoStrut before
installing 7and 8. See Add oil
on page 13.
7Nm
9
1Damper body nut — W601176
— Damper body components
2O-ring — W601177
3Guide bushings — 591628
4Damper body sleeve — W5290778
5Damper body bolt — W5306808
6SIDLuxe IsoStrut by ROCKSHOX — W5308335
7Spacer — W5291120
8Oil plug — W5292128
9Maxima Suspension Plush Fluid 10WT oil — 600297

2024 Supercaliber
13
IsoStrut maintenance
For detailed service instructions, refer to the RockShox SIDLuxe IsoStrut service manual found on SRAM’s dealer portal.
Remove the IsoStrut
1. Remove the IsoStrut mounting fasteners. See on
page 6.
1. Remove the damper components. See IsoStrut on
page 12.
2. Slide the IsoStrut from the carriage.
Add oil
1. Remove the spacer and oil plug. See IsoStrut on page
12.
2. Use a syringe to ll the IsoStrut with 15cc of Maxima
Suspension Plush Fluid 10WT — 600297.
3. Press the oil plug with spacer back into the IsoStrut.
4. Install the IsoStrut mounting fasteners. See on page
6.
Air volume spacers (bottomless tokens)
— 5316700
Two bottomless tokens are included with your Supercali-
ber. See the RockShox SIDLuxe IsoStrut service manual
found on the SRAM.com dealer portal for installation
instructions.
Install the IsoStrut
1. Use Maxima Suspension Plush Fluid 10WT — 600297
to lightly oil the inside of the carriage seals.
2. With the sag o-ring in place on the IsoStrut, insert the
IsoStrut into the carriage.
3. Install the damper components. See IsoStrut on page
12.
4. Install the IsoStrut mounting fasteners. See on page
6.

2024 Supercaliber
14

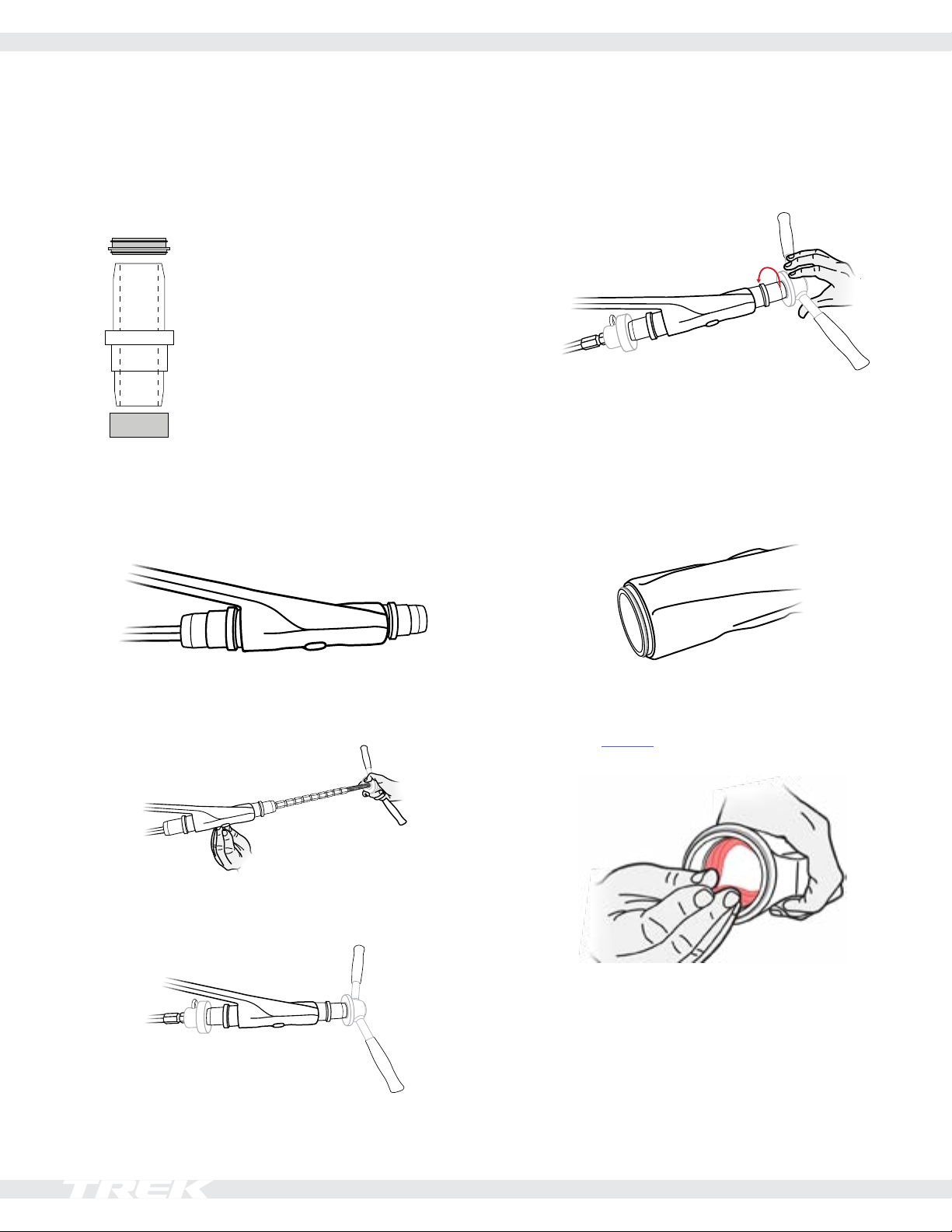

Bushings, carriage wiper seals, and foam blocks
Apply a light coat of Maxima Suspension Plush Fluid 10WT oil to
inner edge of wiper seals before installing the IsoStrut.
1
4
2
4
3
1
Do not soak in oil
prior to installing.
Soak in Maxima Suspension
Plush Fluid 10wt prior to
installation.
5
1Carriage wiper seals
— 5316705
2Foam blocks
3Foam ring
4Bushings — 5316699
5Maxima Suspension Plush Fluid 10WT oil — 600297

2024 Supercaliber
15
Replace bushings and carriage wiper seals
Tools for replacing the seals
• IsoStrut seal and bushing press tool set — 5317338
• Delrin rod, 1 inch (25.4mm)
• Headset press
• Maxima Suspension Plush Fluid 10wt oil — 600297
Tools for replacing the bushings
• Slide hammer
• 38 Expanding collet
• IsoStrut seal and bushing press tool set — 5317338
• Bushing sizer head — 5318880
• Bushing sizer handle — 5318944
• Clean, dry cloth
NOTICE: Inspect all tools prior to use to make sure they
are clean. Dirty tools could deposit grit into the shock
which could mar surfaces and create friction that could
damage the shock.
Remove the carriage wiper seals
1. Use the Delrin rod to pull out the front seal.
Tip: You may need to move the rod around the car-
riage to remove the seal.
2. Pull out the foam ring.
3. Use the Delrin rod to pull out the rear seal.
If you are replacing only the seals, see Replace the wiper
seals on page 18
If you are replacing both the seals and the bushings, con-
tinue with the Replace the bushings on page 16.

2024 Supercaliber
16
Replace the bushings
Notice: Do not apply grease to the bushings.
1. Put the slide hammer with the collet attached inside
the front end of the carriage.
Notice: Take care to engage only the bushing, and
NOT the interior of the carriage. Engaging the car-
riage could damage the carriage.
2. Thread the collet to engage the bushing lip.
Tip: Be careful not to engage the lip inside the car-
riage. Engage the bushing only.
3. Use the slide hammer to remove the bushing.
4. Repeat steps 1–3 to remove the rear bushing.
5. Wipe the bushing bores with a clean, dry cloth to
remove any debris.
6. Load a new bushing onto each bushing installation
tool.
Bushing
Use this side of the tool for pressing in
bushings.
Seal
Use this side of the tool for pressing in
seals.
Notice: Do not use grease when installing the bush-
ings. Using grease could cause the bushings to slip
out of place.
7. Put one tool with one bushing into the front of the
carriage, and the other tool with the other bushing into
the rear of the carriage.
8. Insert the upper half of the headset press into the
front of the carriage.
9. Insert the lower half of the headset press into the rear
end of the carriage and lock it into place.

2024 Supercaliber
17
10. Spin the headset press until it is snug against the
bushing tool. Check for correct alignment of the press,
tools, and bushings. Rotate the press to push the
bushings into place. It’s normal to have different gaps
at the front and rear of the carriage.
11. Tighten the press until you feel resistance. Once you
feel resistance, remove the press and tools.
12. Inspect the bushings to verify they are pressed deep
enough into the carriage. From the top of the bushing
to the step above the bushing, the measurements
should be:
Front = 16.5mm Rear = 10mm
13. Apply a light coat of Maxima Suspension Plush Fluid
10wt oil — 600297
14. From the front of the carriage, use the bushing sizer to
size the bushings to 38.01 - 38.07mm. The sizer can
be rotated to the left or to the right.
15. Repeat step 14 one to four times, alternating between
the front and rear bushings.

2024 Supercaliber
18
Replace the wiper seals
Notice: Take care to not scuff or scratch the bushings.
Scuffed or scratched bushing will need to be replaced.
1. Wipe the seal surface inside the carriage to remove
debris.
2. Load a new seal onto each seal installation tool.
Seal
Use this side of the tool for pressing in
seals.
Bushing
Use this side of the tool for pressing in
bushings.
3. Put one tool with one seal into the front of the car-
riage, and the other tool with the other seal into the
rear of the carriage.
4. Insert the upper half of the headset press into the
front of the carriage.
5. Insert the lower half of the headset press into the rear
end of the carriage and lock it into place.
6. Spin the headset press until it is snug against the seal
tool. Check for correct alignment of the press, tools,
and seals. Rotate the press to push the seals into
place.
7. Tighten the press until you feel resistance. Press the
wiper seals for approximately 30 seconds. Remove the
press and both tools.
8. Inspect the seals to verify there is no gap between the
seal and the carriage.
9. Soak the foam ring in Maxima Suspension Plush Fluid
10wt oil — 600297.
10. Install the foam ring into the front of the carriage.

2024 Supercaliber
19
Specifications
Chainline (1x only)
55mm
Chainring (1x only)
Minimum Maximum
30T Round 38T Round
Rear brake mount
160mm Direct Post Mount
OLD
Rear Hub: 148mm
Maximum tire size
29" x 2.4"
Notice: Measurements of actual tires may vary. Always
verify there is sufcient clearance between the tire and
the frame. Improper tire size could damage the bicycle
frame. Trek recommends 6mm clearance above and on
the sides of the tire.
Bottom bracket
Press t BB92
Seat post
WARNING
Always follow the seatpost manufacturer’s minimum
insertion recommendation. Failure to follow the recom-
mendation could cause damage to the seatpost and
result in injury to the rider.
Minimum insertion: Refer to seatpost manufacturer
Maximum insertion:
S: 215mm
M: 225mm
ML: 250mm
L: 270mm
XL: 330mm
Seat tube inside diameter: 31.6mm
Seat tube post clamp outer diameter: 36.2mm
Fork
WARNING
Exceeding the recommended maximum fork length could
damage the bicycle and result in injury to the rider.
Travel
Sag
Axle to Crown
Frame/Size Axle to Crown (mm) Travel (mm)
S, M, ML, L, XL Recommended 515 110
Minimum 505 100
Maximum 533 120
Recommended sag: Refer to the suspension calculator at
Trekbikes.com/suspension-calculator.
