Evocare LM5203T User manual

OVERBED TABLES
LM5203T(
LM5202W(
Overbed Table
LM5202B Over bed table – Beech finish, Cream frame

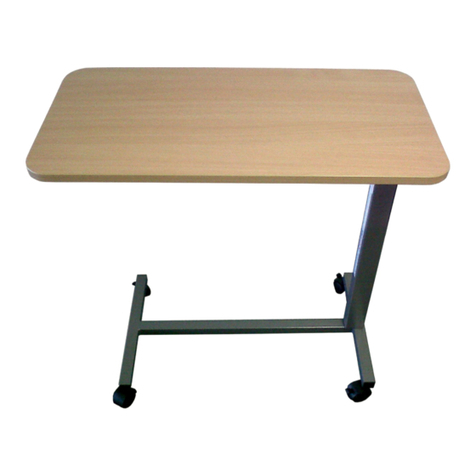

LM5203T Over bed table – Teak finish, Grey frame
LM5202W Over bed table – White finish, Cream frame
LM5203W Over bed table – White finish, Grey frame
Thank you for purchasing this Evocare Overbed Table. It is strongly
recommended that you read through this user manual prior to using your
Overbed Table for the first time. Your Overbed Table should provide years
of trouble-free use, provided that you adhere to these recommendations.

2"

3"
Spending time in bed can be frustrating particularly if you wish to use a laptop,
read or do an activity. This is where the Evocare Overbed Table can help; it
allows a patient to place food and their necessities within easy reach - right
over to them. You can keep active while recovering at home or hospital.
The Evocare Overbed Table is a sturdy portable table, accessible from the
bed, with castors for smooth movement and simple height adjustment.
Changes in height and position can be easily managed by the patient or carer.
The height can be adjusted for use over a bed, couch or chair, and the castors
can be locked so the table holds its position giving a stable work top.
An Evocare Overbed Table allows a previously active patient who is now
confined to bed to undertake activities, to be productive and reduce their
boredom. This can be of significant psychological benefit allowing activities to
contribute to their confidence and rehabilitation.
An Evocare Overbed Table can supplement a bedside cabinet, giving more
space for medicines and personal item such as photographs.

4"
Overbed Tables
LM5202 (Cream Base), LM5203 (Grey Base) Over bed tables
Features:
• 50mm twin wheel castors, 2 x swivel, 2 locking
• Table Top Dimensions: 765mm x 385mm
• High /Low Adjustment: 715mm to 1145mm
• Floor to top of base: 90mm
• Safe Working Load (SWL): 10 kg
• Overbed Table Weight: 3 kg
• Spring loaded height adjustment with lever action.
• Painted base, chrome column and laminated table top with rounded corners
and with protective plastic edging.
ARTG No:208845

ASSEMBLY
*** DO NOT use if damaged. ***
You are now ready to use your Evocare Overbed Table
Overbed Table Assembly
.Position column upside down and insert release lever.
(The release rod inside the column should be visible in
the lower portion of the column. If not shake the
column).
.The curved side of the of the release lever should be
closest to the top of the table and between the release
rod and the column.
.Put table top upside down on a flat surface.
.Hold release lever in column and locate into top bracket—
align holes—install bolts, first through top bracket, column
and release lever, then second through top bracket and
column. Tighten locknuts.
.Install a bolt through the bolt plate and column—
hand tighten—repeat for other side.
.Put overbed table on its side to ease pressure on
the bolts—align column and base and tighten both
bolts.
.Remove the shipping screw (top screw, DO NOT REMOVE
THE OTHER SCREW) from the column and replace with Phillips
screw provided.
.The Overbed Table can now be adjusted to the desired height.
.To RAISE the table top, place your hand underneath the
table top and move it upward to the desired height.
Remove hand pressure to set height.
.To LOWER the table top, lift the release lever and push
the table top downward to the desired height. Let go of
the release lever to set height.
(The column locks in place when the release lever is released.)

6"
SAFETY:
WARNING: Be sure to read all information and directions before use!!
If you are unable to understand the warnings or instructions contact a therapist or dealer before
using the Overbed Table, otherwise injury or damage may result.
▲If the Overbed Table is not properly assembled and installed, injury and damage to the
Overbed Table could result.
▲If components are damaged or missing, contact your dealer immediately. DO NOT use
substitute parts.
▲WARNING Adjustable overbed tables have a powerful internal spring. Do not
disassemble the table or loosen any screws. Exercise extreme caution when working
near the spring.
▲Do regularly check frame screws to ensure they are tight.
▲Regularly check castors roll freely and locks work.
▲Regular cleaning and inspection is recommended with a damp cloth and mild soapy water
or non-abrasive cleaner.
The Evocare Overbed Table’s construction allows for easy cleaning.

7"
1. Evocare provides consumers with the following warranty in relation to this Product, in addition to complying with the
requirements of any relevant legislation, including the Competition and Consumer Act2010 (Cth) in Australia and the
Consumer Guarantees Act 1993 in New Zealand (the Acts), except where a New Zealand consumer acquires the Product
for the purposes of a business.
2. In this warranty, we have used the following definitions:
(a) Form means a warranty claim form issued by Evocare in respect of Products;
(b) Evocare or our means Evocare Australia Pty Limited, ABN 98 078 566 604 of Level 19, 144 Edward Street,
Brisbane 4000;
(c) Products means the goods manufactured for Evocare (including products manufactured by its contract
manufacturers);
(d) Material means a material or component used by Evocare in the manufacture of the Products;
(e) Retailer means the authorised dealer of Products from whom the Product was purchased;
(f) Warranty Period means the warranty period commencing from the date of purchase of the relevant Product. If the
Product or part (as the case may be) is repaired or replaced, there will be no extension to the original warranty period;
and
(g) Workmanship means the handling, assembly and manufacturing processes performed by or on behalf of Evocare in
order to manufacture the Products.
3. Evocare warrants that for the duration of the Warranty Period, all Products will be free of faults arising from defects in
Workmanship or Materials, on the terms and conditions set out in this warranty.
4. Evocare undertakes that if during the Warranty Period any Product, or any part of a Product, has failed to operate
correctly due to faulty Workmanship or defective Material, it will repair or replace the Product or part (as the case may
be) free of charge provided that the following procedures are met :
(a) The consumer must contact the Retailer or Evocare upon becoming aware of any defect to a Product upon which the
consumer will be required to complete a Form and provide satisfactory proof of purchase.
(b) Evocare will review the Form to determine whether there is a defect, and if so Evocare agrees to (at its option) repair,
replace or supply equivalent goods, or pay the cost of any of those remedies to the consumer.
(c) If Evocare requests the return of the applicable Product or part, the consumer will be responsible for the collection
and freight costs of returning that Product or part to Evocare.
(d) The consumer acknowledges that it is also responsible for the freight costs to deliver any new Product or replacement
part to it.
5. This warranty is in addition to any non-excludable legal rights or remedies conferred on the consumer under any
applicable Act and any similar laws. To the extent permitted by law, Evocare's liability for any non-excludable condition
or warranty is limited to rectifying any defect at its option, as set out in paragraph 4(b).
6. Subject to the requirements of any applicable Act or legislation and to the extent permitted by law, no liability
(whether expressed or implied) of any nature whatsoever, is accepted by Evocare for any consequential loss, damage or
injury arising as a result of any fault in the Products.
7. This warranty does not extend to damage to Products which occurs during transit or transportation, or which is caused
by any abuse, accident or improper installation, connection, use, adjustment or repair or use of goods otherwise than in
accordance with instructions issued by Evocare.
8. The warranty on Products is waived if any addition or attachment to the Products do not have Evocare's approval or
are not sold as Evocare products. The Products are designed to perform specific tasks under established test loads and
unauthorised attachments may produce stresses for which the design is not appropriate.
9. The following applies to consumers who purchased a relevant Product in Australia:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.

8"
WARRANTY
Evocare warrants this Overbed Table for a period of twelve months.
NOTE: This does not include staining or accidental damage from misuse or neglect.
Evocare must inspect the product within the warranty period for any claims lodged.
Evocare warranty does not cover product that has been modified from its original form.
For more information about your Evocare Overbed Table warranty or to order parts call
07 3355 8007.
Manufactured for:
Evocare Australia Pty Limited, 260 South Pine Road, Enoggera. QLD. 4051.
Phone: [phone] FAX: [phone]
CLEANING & MAINTENANCE
Regular cleaning and inspection is recommended.
The Overbed Table is maintenance free provided all instructions are followed.
All parts can be cleaned with a damp cloth, warm soapy water or a neutral non-adrasive
cleanser.
E- mail: [email protected]
Website www.evocare.com.au
