Evocare LM1614 User manual

MOBILE SHOWER COMMODE CHAIR
with Padded Seat
LM1614
Thank you for purchasing this Evocare Mobile Shower Commode Chair
with padded seat. It is strongly recommended that you read through this
user manual prior to using your Mobile Shower Commode Chair with
padded seat for the first time. Your Mobile Shower Commode Chair with
padded seat should provide years of trouble-free use, provided that you
adhere to these recommendations.

LM1614 MOBILE SHOWER COMMODE CHAIR with Padded Seat
External overall 530mm,
Between arms 470mm,
Seat width 400mm,
Backrest top from ground 800mm,
Backrest top from seat 360mm
Note: Maximum user weight for this product is 100kg.
Evocare is a quality endorsed company and supplies equipment listed with
the Therapeutic Goods Administration.
The ARTG number is 175496.
Page 3.

Safety / Handling of Mobile Shower Commode Chair with padded seat
Safety and handling of the mobile shower commode chair with padded seat
requires the close attention of the mobile shower commode chair user as well as
the assistant. This manual points out the most common procedures and
techniques involved in the safe operation and maintenance of the mobile shower
commode chair . It is important to practice and master these safe techniques
until you are comfortable in manoeuvring around the frequently encountered
architectural barriers.
Use this information only as a basic guide. The techniques that are discussed on
the following pages have been used successfully by many users.
Individual mobile shower commode chair users often develop skills to deal with
daily living activities that may differ from those described in this manual. All
warnings and cautions given in this manual MUST be followed.
Techniques in this manual are a starting point for the new mobile shower
commode chair user and assistant with safety as the most important
consideration for all.
Stability and Balance
To assure stability and proper operation of your mobile shower chair, you must at
all times maintain proper balance. Your mobile shower commode chair has been
designed to remain upright and stable during normal daily activities as long as
you do not move beyond the centre of gravity.
Virtually all activities which involve movement in the mobile shower commode
chair have an effect on the centre of gravity.
DO NOT lean forward out of the mobile shower commode chair any further than
the length of the armrests. Make sure the castors are pointing in the forward
position whenever you lean forward. This can be achieved by advancing the
mobile shower commode chair and then reversing a little in a straight line.
Page 4.

Page 5.
Operating Instructions
To determine and establish your particular safety limits, practice bending,
reaching and transferring activities in several combinations in the presence of a
qualified health professional before attempting active use of the mobile shower
chair.
ALWAYS check hand grips for looseness before using the mobile shower chair. If
loose and/or worn, replace immediately.
If the mobile shower commode chair is exposed to extreme temperature (above
38°C or below 0°C), high humidity and/or becomes wet, prior to use, ensure hand
grips DO NOT twist on the mobile shower commode chair handle—otherwise
damage or injury may occur.
DO NOT attempt to reach objects if you have to move forward in the seat as this
may tip the mobile shower chair.
DO NOT attempt to reach objects if you have to pick them up from the floor by
reaching down between your knees as this may tip the mobile shower chair.
DO NOT lean over the top of the back upholstery to reach objects behind you, as
this may tip the mobile shower chair.
DO NOT shift your weight or sitting position toward the direction you are
reaching, as this may tip the mobile shower chair.
DO NOT tilt the mobile shower commode chair without assistance.
NEVER leave an unoccupied mobile shower commode chair on an incline.
Before attempting to transfer in or out of the mobile shower chair, every
precaution should be taken to reduce the gap distance. Turn both castors parallel
to the object you are transferring onto. When transferring to and from the mobile
shower chair, ALWAYS lock castors before transferring to and from the mobile
shower chair.
DO NOT operate on roads, streets or highways.
DO NOT climb, go up or down ramps or traverse slopes greater than 9°.
DO NOT attempt to move up or down an incline which has a film of water, ice or
oil on it.
DO NOT attempt to ride over obstacles. Doing so may cause your mobile
shower commode chair to tip, causing bodily harm or damage to the mobile
shower chair.
DO NOT over tighten hardware attaching to the frame. This could cause damage
to the frame tubing.
Not suitable for use over standard toilet (low seat height).

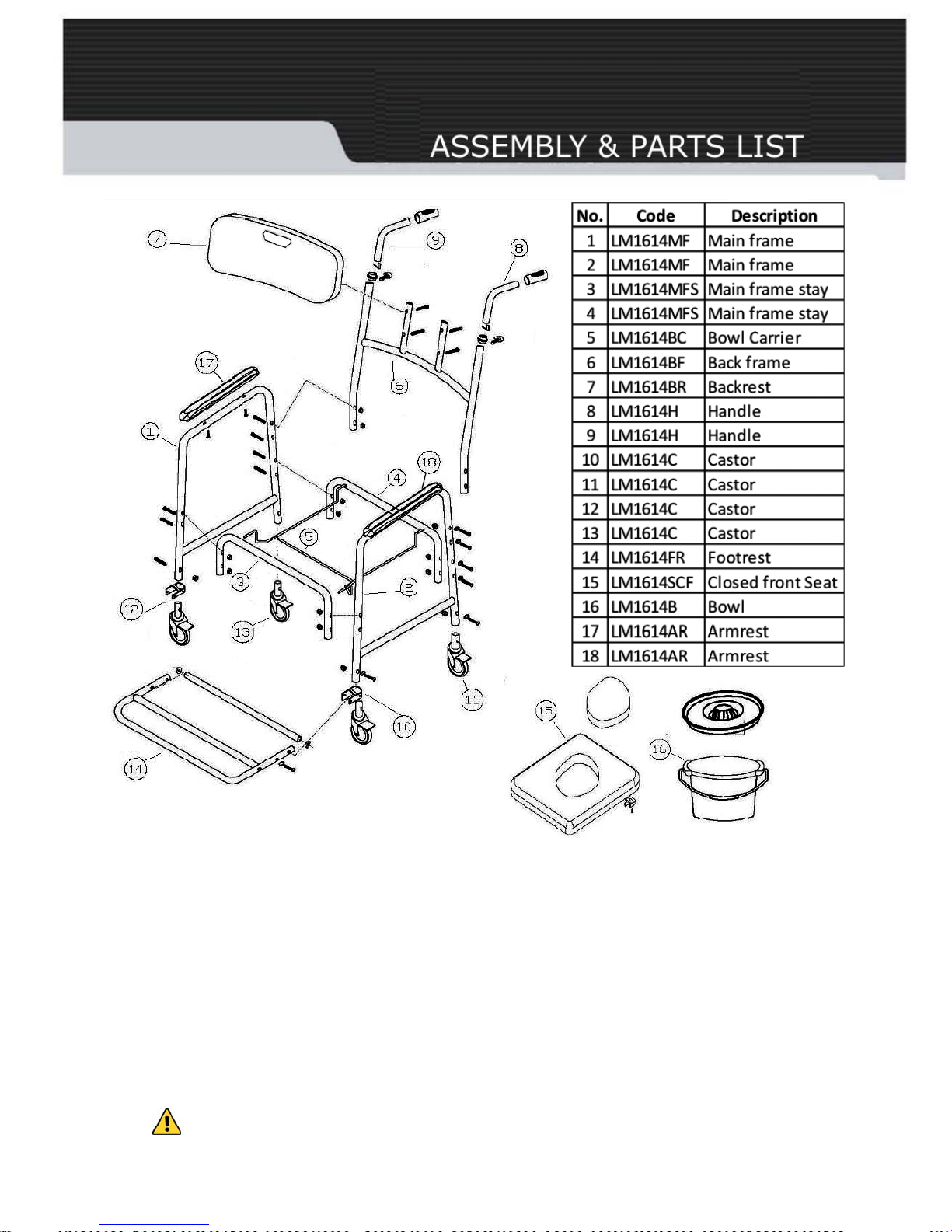

1. Install (1)(2)(4)(6) aluminium frame long bolts, tighten the screw to stabilise
the frame.
2. Insert (5) frame into (4) side hole, insert the other side to (3) side hole, con-
nect (3) to (1)(2) frame long bolts, tighten the screw to stabilise.
3. Insert (10)(11)(12)(13) castor into the side rail tube short bolts, tighten the
screw.
4. Install the (4) footrest front pin.
5. Install (7) PE to back frame, assemble the (8)(9) handle bar to backrest
frame.
6. Place the (16) bowl below (5) seat frame.
7. Put the (15) seat pad onto (3)(4) seat frame, place the seat cover.
Caution: Make sure all the chair screws are tight and
that the castors are fixed and moving freely.
Page 6.

Page 7.
1. Evocare provides consumers with the following warranty in relation to this Product, in addition to complying
with the requirements of any relevant legislation, including the Competition and Consumer Act2010 (Cth) in
Australia and the Consumer Guarantees Act 1993 in New Zealand (the Acts), except where a New Zealand
consumer acquires the Product for the purposes of a business.
2. In this warranty, we have used the following definitions:
(a) Form means a warranty claim form issued by Evocare in respect of Products;
(b) Evocare or our means Evocare Australia Pty Limited, ABN 98 078 566 604 of Level 19, 144 Edward Street,
Brisbane 4000;
(c) Products means the goods manufactured for Evocare (including products manufactured by its contract
manufacturers);
(d) Material means a material or component used by Evocare in the manufacture of the Products;
(e) Retailer means the authorised dealer of Products from whom the Product was purchased;
(f) Warranty Period means the warranty period commencing from the date of purchase of the relevant Product.
If the Product or part (as the case may be) is repaired or replaced, there will be no extension to the original
warranty period; and
(g) Workmanship means the handling, assembly and manufacturing processes performed by or on behalf of
Evocare in order to manufacture the Products.
3. Evocare warrants that for the duration of the Warranty Period, all Products will be free of faults arising from
defects in Workmanship or Materials, on the terms and conditions set out in this warranty.
4. Evocare undertakes that if during the Warranty Period any Product, or any part of a Product, has failed to
operate correctly due to faulty Workmanship or defective Material, it will repair or replace the Product or part
(as the case may be) free of charge provided that the following procedures are met :
(a) The consumer must contact the Retailer or Evocare upon becoming aware of any defect to a Product upon
which the consumer will be required to complete a Form and provide satisfactory proof of purchase.
(b) Evocare will review the Form to determine whether there is a defect, and if so Evocare agrees to (at its option)
repair, replace or supply equivalent goods, or pay the cost of any of those remedies to the consumer.
(c) If Evocare requests the return of the applicable Product or part, the consumer will be responsible for the
collection and freight costs of returning that Product or part to Evocare.
(d) The consumer acknowledges that it is also responsible for the freight costs to deliver any new Product or
replacement part to it.
5. This warranty is in addition to any non-excludable legal rights or remedies conferred on the consumer under
any applicable Act and any similar laws. To the extent permitted by law, Evocare's liability for any non-
excludable condition or warranty is limited to rectifying any defect at its option, as set out in paragraph 4(b).
6. Subject to the requirements of any applicable Act or legislation and to the extent permitted by law, no liability
(whether expressed or implied) of any nature whatsoever, is accepted by Evocare for any consequential loss,
damage or injury arising as a result of any fault in the Products.
7. This warranty does not extend to damage to Products which occurs during transit or transportation, or which is
caused by any abuse, accident or improper installation, connection, use, adjustment or repair or use of goods
otherwise than in accordance with instructions issued by Evocare.
8. The warranty on Products is waived if any addition or attachment to the Products do not have Evocare's
approval or are not sold as Evocare products. The Products are designed to perform specific tasks under
established test loads and unauthorised attachments may produce stresses for which the design is not
appropriate.
9. The following applies to consumers who purchased a relevant Product in Australia:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.

Page 8.
Evocare warrants this Mobile shower commode chair for a period of twelve months.
NOTE: This does not include staining or accidental damage from misuse or neglect.
Evocare must inspect the product within the warranty period for any claims
lodged.
Evocare warranty does not cover product that has been modified from its
original form.

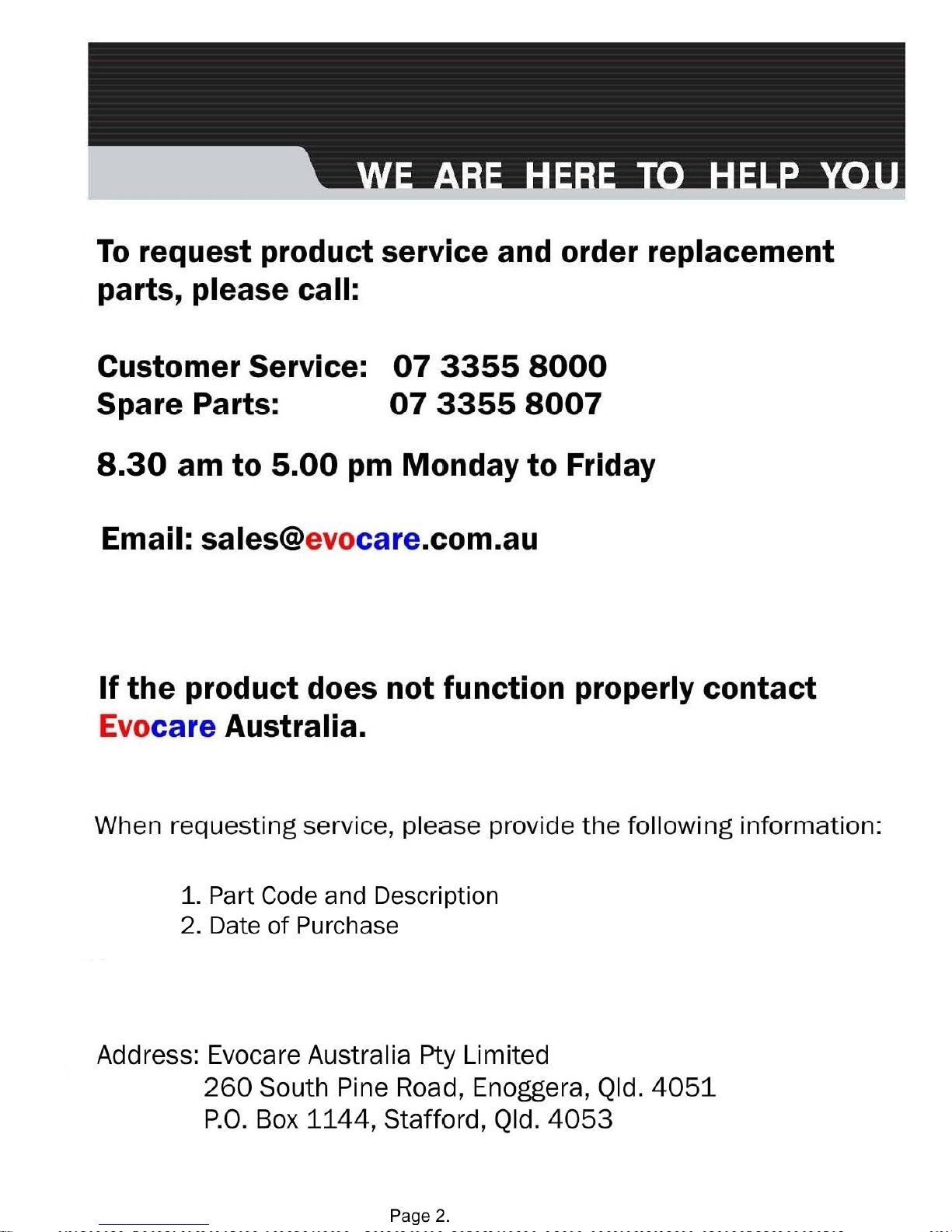

For more information about your LM1614 Mobile Shower Chair, warranty or to order
parts call 07 3355 8007.
Manufactured for:
Evocare Australia Pty Limited, 260 South Pine Road, Enoggera. QLD. 4051.
Phone: [phone] FAX: [phone]
E- mail: [email protected]
Website www.evocare.com.au
