Evocare LM3206 User manual

Aluminium Walkers—LM3206 & LM3208
Product Codes:
LM3206 Aluminium Walker, 150mm (6") Castor, curved fold up backrest, 54cm
seat height, security bag, ball end brake handle, in-line brakes.
LM3208 Aluminium Walker, 200mm (8") Castor, curved fold up backrest, 55cm
seat height, security bag, ball end brake handle, in-line brakes.
LM3206BM 6” Blue Metallic
LM3206BU 6” Burgundy Metallic
LM3206CM 6” Copper Metallic
LM3206PU 6” Purple Metallic
LM3206SM 6” Silver Metallic
LM3208BM 8” Blue Metallic
LM3208BU 8” Burgundy Metallic
LM3208CM 8” Copper Metallic
LM3208PU 8” Purple Metallic
LM3208SM 8” Silver Metallic

Note: Maximum user weight for this product is 120kg
Evocare is a quality endorsed company and supplies equipment listed
with the Therapeutic Goods Administration.
The ARTG number for the Walkers is 179500
Page 3.

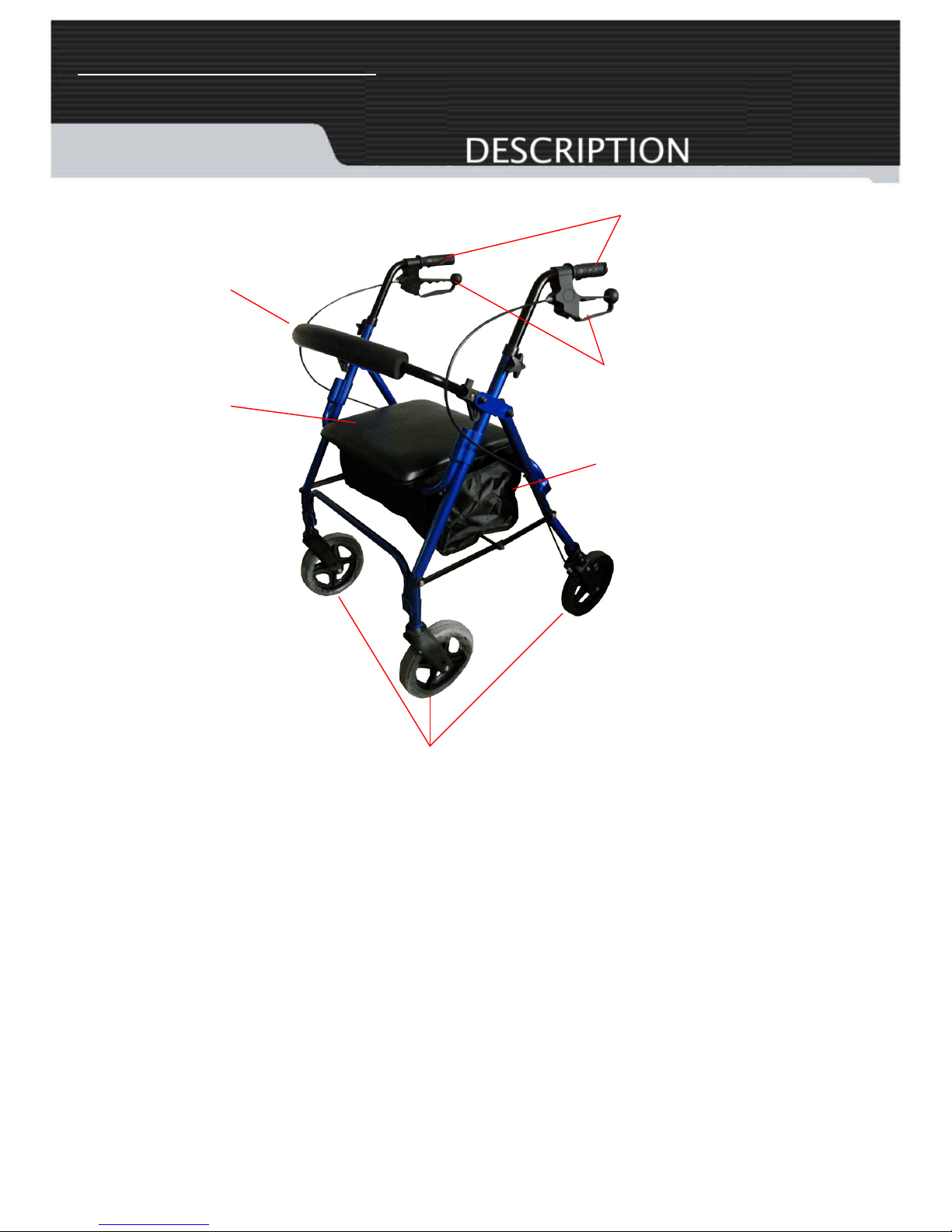

Carry Bag/ Security Bag
Curved
Padded
Backrest
150MM (6”) Castors—LM3206
200MM (8”) Castors—LM3208
Padded
Seat
Anatomical
Hand Grips
Brake Hand
Grips
Link to Walkers on Evocare website

Page 4.

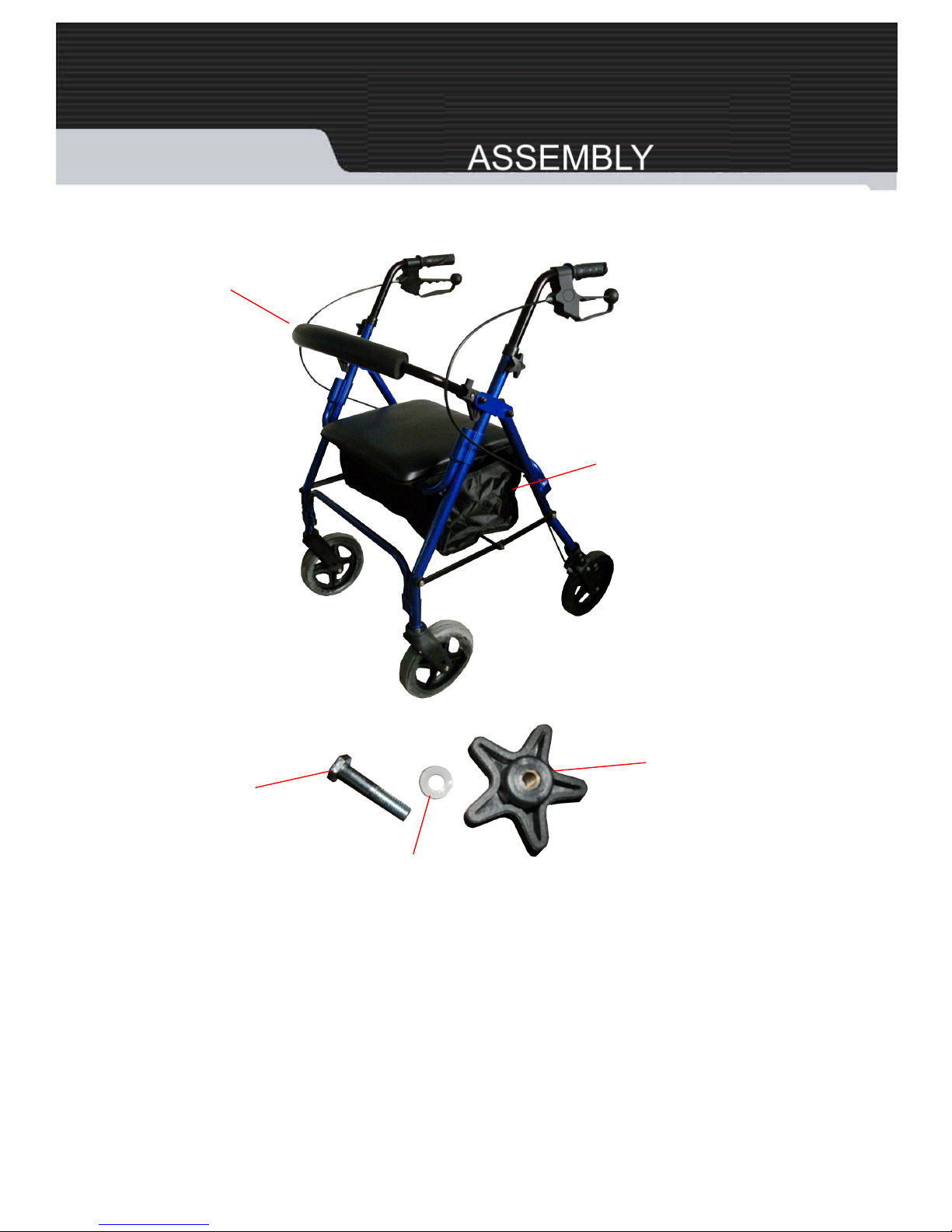

Carry Bag/ Security Bag
Backrest
Bolt
Washer
Star Wheel Nut

Step 1 : Remove all Plastic—Open Walker
by spreading the wheels apart and lowering
the seat. Remove Star Wheel nut and
washers.

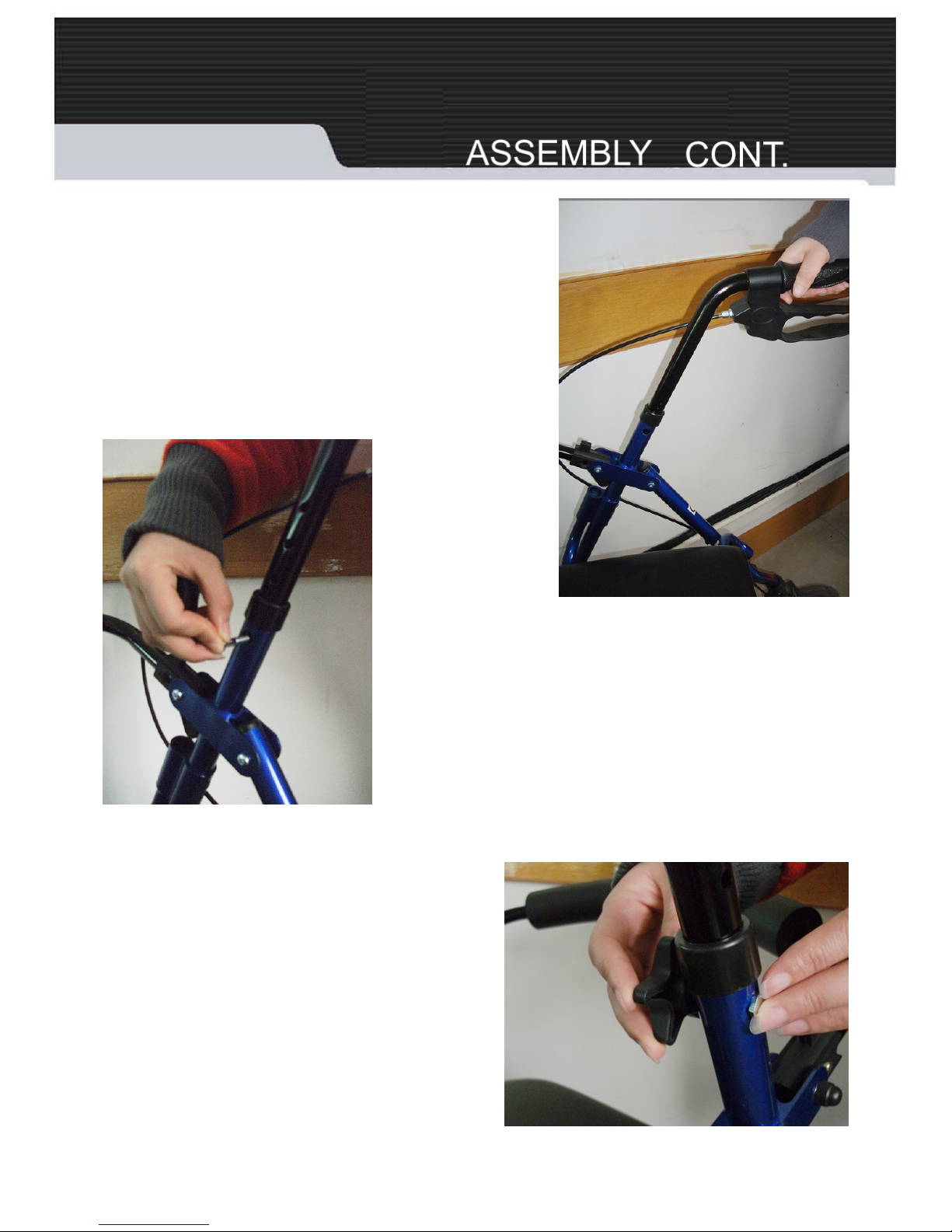

Step 2.
Step 2 :Insert handles into the tubes on the
sides of the walker.
Step 3.
Step 3 : Align holes of the handle and the tube.
Place Bolt through the hole at the desired
handle height.
Please ensure the Bolt head fits securely within
the frame hole provided.
Step 4.
Step 4 : Place Washer on bolt end then
tighten the Star Wheel nut on. To get
required height: Stand in front of
walker with arms by your side, the
handgrips should be level with your
wrist.
Page 5.

Step 5: Place the padded backrest into the brackets on the frame at the rear of
the seat. Press buttons and click into place.
Step 5.
Handgrip Brake
To operate brakes on walker: lock brakes on by placing hands in levers under
handgrips and then pushing down. This is recommended for your safety
when sitting on your walker. Once you have stood up, you then release
brakes by pulling in an upward motion.
DO NOT release brakes until you are in a standing position.
Page 6.

Step 5.
Page 7.

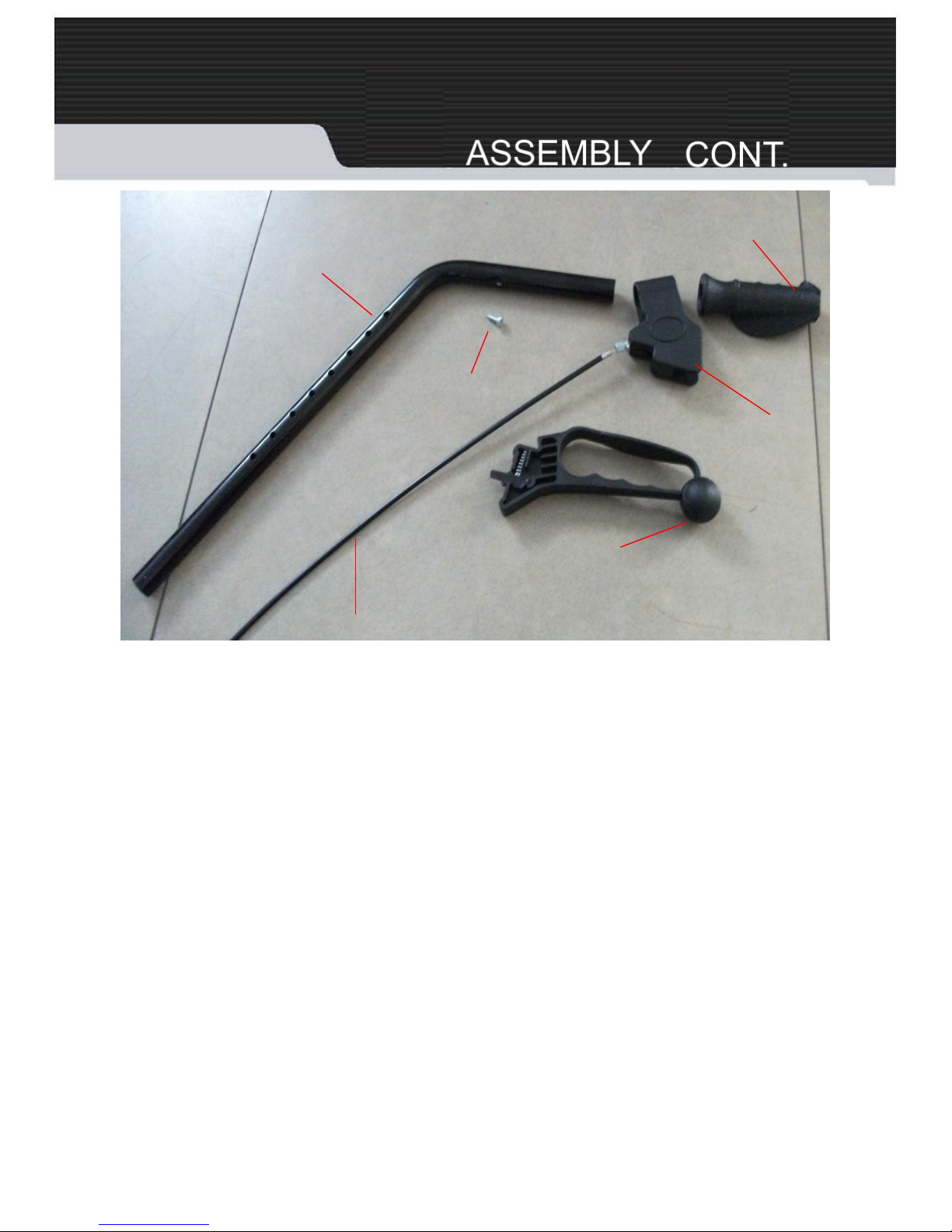

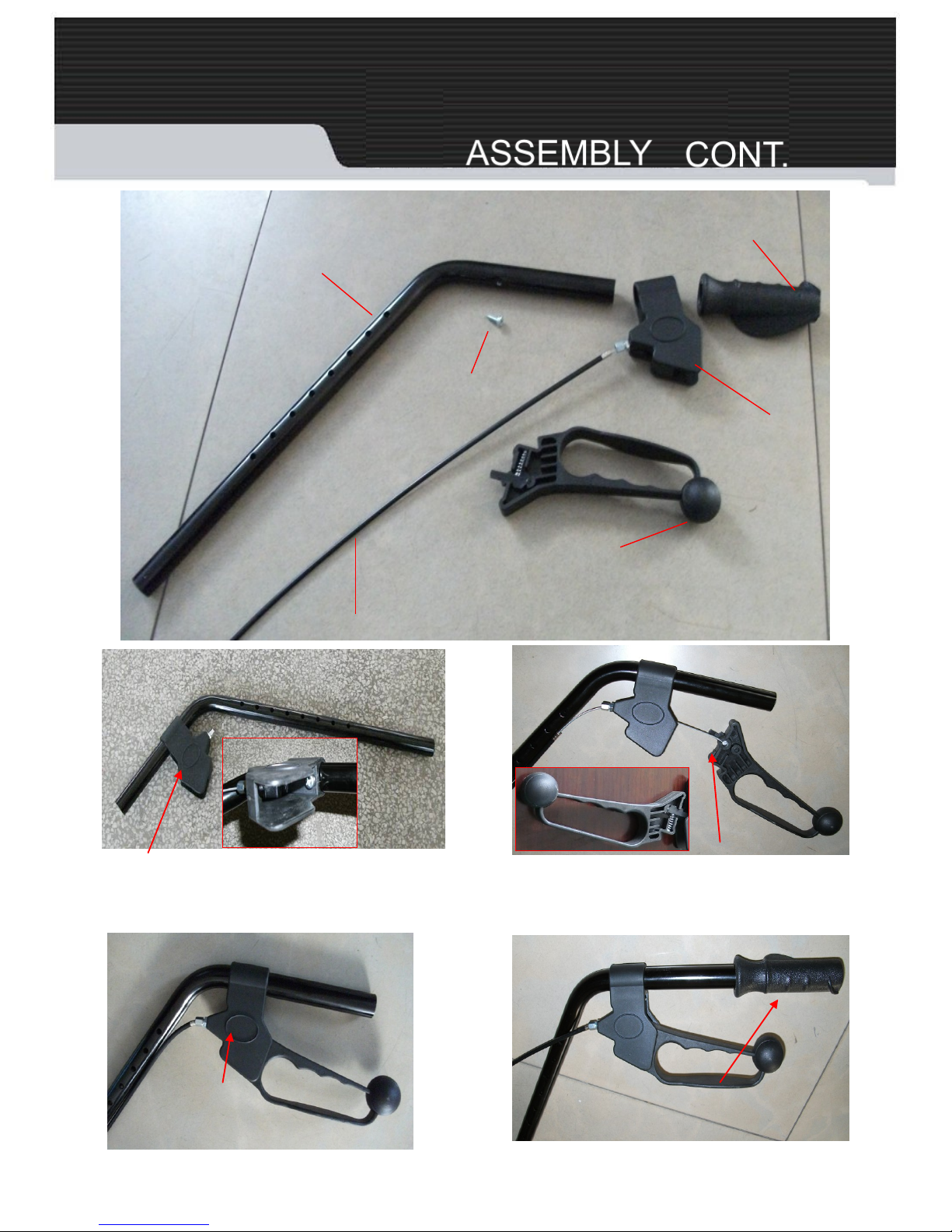

Handlebar
Screw
Brake Cable
Ball End Brake
Brake Holder
Handgrip
1. Place brake holder into handle-
bar and tighten the screw
2. Place brake cable onto the ball
end brake via brake holder
3. Place ball end brake
onto brake holder
4. Install handgrip onto
handlebar

Step 5.
Page 8.
Handlebar
Screw
Brake Cable
Ball End Brake
Brake Holder
Handgrip
To un-Install:
Reverse the procedures.
1. Take out the hand grip
2. Separate the ball end brake and brake holder
3. Un-install the brake cable
4. Screw out the bolt.

Page 9.
SAFETY
Safety and handling of the seat walker requires the close attention of the user. This manual points out the
most common procedures and techniques involved in the safe operation and maintenance of the seat walker.
It is important to practice and master these safe techniques until you are comfortable in manoeuvring around
frequently encountered architectural barriers.
Use this information only as a basic guide. The techniques that are discussed below have been used
successfully by many. Individual seat walker users often develop skills to deal with daily living activities
that may differ from those described here. All warnings and cautions given in this manual MUST be
followed.
Techniques in this manual are a starting point for the new seat walker user with safety as the most important
consideration for all.
To determine and establish your particular safety limits, practice bending, reaching and sitting in several
combinations in the presence of a qualified health professional before attempting active use of the seat
walker.
When unfolding your seat walker for use make sure it is fixed safely by pushing down on the folding
brackets between the front and rear frame.
Also ensure that the backrest has been pushed back to its locked position.
When assembling you seat walker, make sure that bolts and tightening wheel are secure BEFORE use.
Always check hand grips for looseness before using seat walker. If loose and/or worn, replace immediately.
If seat walker is exposed to extreme temperature (above 38° C or below 0° C), high humidity and/or becomes
wet, prior to use, ensure hand grips DO NOT twist on the seat walker handle—otherwise damage or injury
may occur.
When seated DO NOT attempt to reach for objects if you have to move forward on the seat or if you have to
pick them up from the floor by reaching between your knees. DO NOT reach over the backrest to reach
objects behind you as this may cause the seat walker to tip over.
DO NOT use on roads, streets or highways.
DO NOT climb, go up or down an incline or traverse slopes greater than 9 degrees.
DO NOT attempt to go up or down an incline which has a film of water, ice or oil.
Use caution when traversing curbs or obstacles as this may cause the seat walker to tip over and cause bodily
harm or damage to the seat walker.
ALWAYS apply brakes before sitting on the seat. DO NOT release brakes until you are in a standing
position.
The seat walker is not a wheelchair. People must not be pushed while seated on the walker—otherwise
damage or injury may occur and it will also void the warranty.
The tyres and wheels need to be checked periodically for cracks and wear. If problems are indicated, the
problem parts should be identified and replaced immediately. Should brakes need adjusting, consult your
local supplier or Evocare Australia.

Page 10.

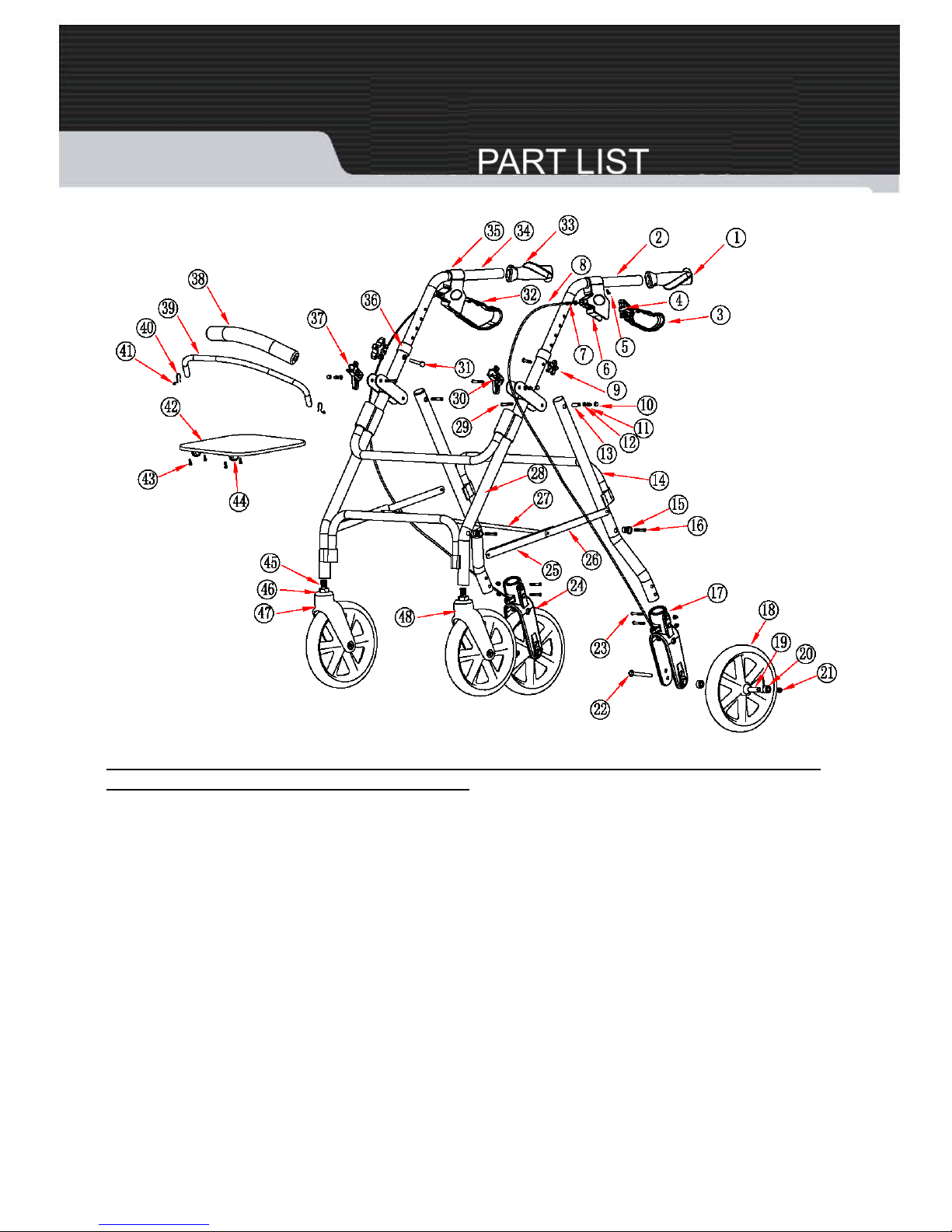

LM3206 Folding Four Wheel Walker, Adjustable height anatomical hand grips, brakes, folding
backrest, 6” wheels and Security bag under seat.
10 Z02A01 Nylon nut cover
17 B02LA803 Rear fork
18 AZ01LA803 Castors 8" walker
18 AZ01LA601 Castors 6" walker
19 X03LA8038 Bushing 8 inch
19 X03LA8036 Bushing 6 inch
20 D0003C01 Bearing
30 AU01LA808L Backrest holder left
32 K01LA802R Hand brake assembly right
37 AU01LA808R Backrest holder right
39 C01LA808 Backrest
41 L01LA809 Cupper screw
42 G01LA601 Seat
48 M01LA802L Front fork 8" walker left
47 M01LA802R Front fork 8" walker right
48 M01LA601L Front fork 6" walker left
47 M01LA601R Front fork 6" walker right
BZ01LA803 Front fork bearing cover

Page 11.

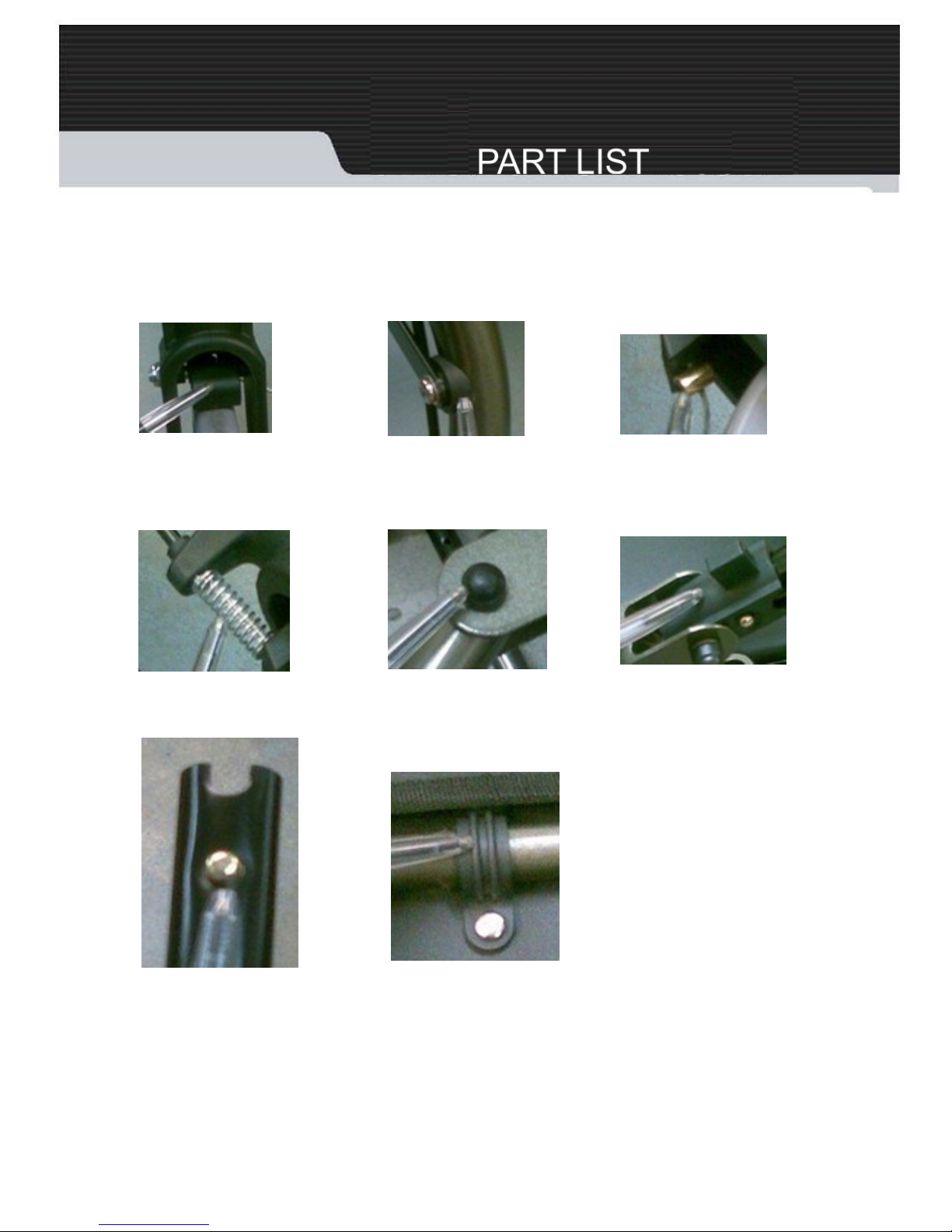

PARTS LIST FOR WALKERS
Brake Gear Plate
A01LA803
Backrest Holder
AU01LA808L—left
AU01LA808R—right
Nylon Nut
Z02A01
Brake Spring
Y01LA803
Nut for Cable
H01LA802C
Arc Washer
H01LA802
Seat Retainer
E01LA802
Cupper Screw
L01LA809

Page 12.

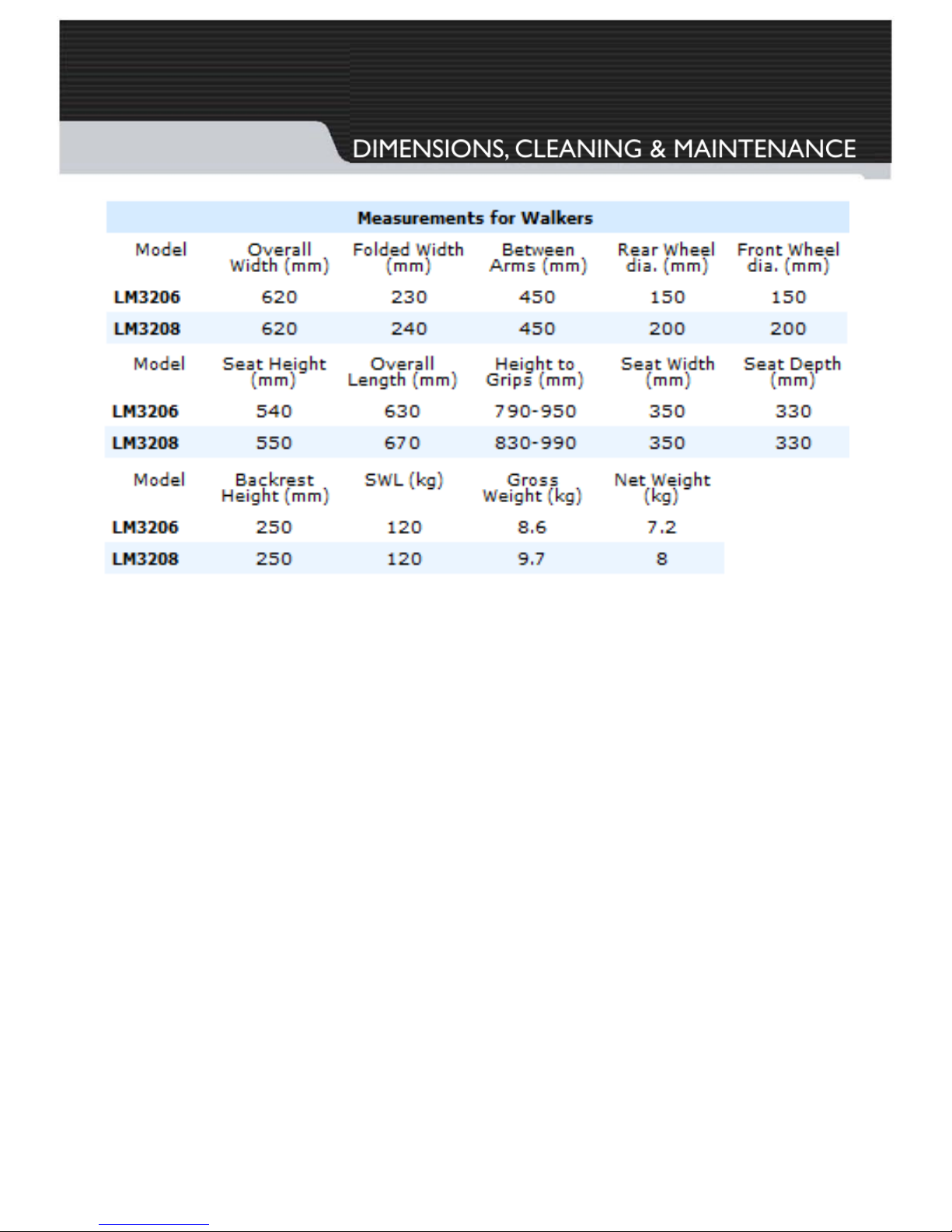

CLEANING & MAINTENANCE
Regular cleaning and inspection is recommended.
Ensure the walking frame is kept clean.
Wipe down the walking frame with a damp cloth on a regular basis.

Page 13.
1. Evocare provides consumers with the following warranty in relation to this Product, in addition to complying
with the requirements of any relevant legislation, including the Competition and Consumer Act2010 (Cth) in
Australia and the Consumer Guarantees Act 1993 in New Zealand (the Acts), except where a New Zealand
consumer acquires the Product for the purposes of a business.
2. In this warranty, we have used the following definitions:
(a) Form means a warranty claim form issued by Evocare in respect of Products;
(b) Evocare or our means Evocare Australia Pty Limited, ABN 98 078 566 604 of Level 19, 144 Edward Street,
Brisbane 4000;
(c) Products means the goods manufactured for Evocare (including products manufactured by its contract
manufacturers);
(d) Material means a material or component used by Evocare in the manufacture of the Products;
(e) Retailer means the authorised dealer of Products from whom the Product was purchased;
(f) Warranty Period means the warranty period commencing from the date of purchase of the relevant Product.
If the Product or part (as the case may be) is repaired or replaced, there will be no extension to the original
warranty period; and
(g) Workmanship means the handling, assembly and manufacturing processes performed by or on behalf of
Evocare in order to manufacture the Products.
3. Evocare warrants that for the duration of the Warranty Period, all Products will be free of faults arising from
defects in Workmanship or Materials, on the terms and conditions set out in this warranty.
4. Evocare undertakes that if during the Warranty Period any Product, or any part of a Product, has failed to
operate correctly due to faulty Workmanship or defective Material, it will repair or replace the Product or part
(as the case may be) free of charge provided that the following procedures are met :
(a) The consumer must contact the Retailer or Evocare upon becoming aware of any defect to a Product upon
which the consumer will be required to complete a Form and provide satisfactory proof of purchase.
(b) Evocare will review the Form to determine whether there is a defect, and if so Evocare agrees to (at its option)
repair, replace or supply equivalent goods, or pay the cost of any of those remedies to the consumer.
(c) If Evocare requests the return of the applicable Product or part, the consumer will be responsible for the
collection and freight costs of returning that Product or part to Evocare.
(d) The consumer acknowledges that it is also responsible for the freight costs to deliver any new Product or
replacement part to it.
5. This warranty is in addition to any non-excludable legal rights or remedies conferred on the consumer under
any applicable Act and any similar laws. To the extent permitted by law, Evocare's liability for any non-
excludable condition or warranty is limited to rectifying any defect at its option, as set out in paragraph 4(b).
6. Subject to the requirements of any applicable Act or legislation and to the extent permitted by law, no liability
(whether expressed or implied) of any nature whatsoever, is accepted by Evocare for any consequential loss,
damage or injury arising as a result of any fault in the Products.
7. This warranty does not extend to damage to Products which occurs during transit or transportation, or which is
caused by any abuse, accident or improper installation, connection, use, adjustment or repair or use of goods
otherwise than in accordance with instructions issued by Evocare.
8. The warranty on Products is waived if any addition or attachment to the Products do not have Evocare's
approval or are not sold as Evocare products. The Products are designed to perform specific tasks under
established test loads and unauthorised attachments may produce stresses for which the design is not
appropriate.
9. The following applies to consumers who purchased a relevant Product in Australia:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.

Page 14.
Your Evocare Walker is warranted to be free of defects in material and workmanship for
12 months, for the original consumer.
NOTE: This warranty does not cover device failure due to owner misuse, negligence, or
normal wear and tear.
The warranty does not extend to non-durable components such as rubber
accessories, brakes and grips, which are subject to normal wear and tear. Non-
durable components are warranted for 3 months.
For more information about your LM3206 & LM3208 seat walkers, warranty or to order
parts call 07 3355 8007.
Manufactured for:
Evocare Australia Pty Limited, 260 South Pine Road, Enoggera. QLD. 4051.
Phone: [phone] FAX: [phone]
E- mail: [email protected].au
Website www.evocare.com.au
