Evolabel T43 User manual

USER MANUAL
EN
Models: D43 / T43 / T63

To make the work environment as safe as possible, follow the instructions, possible laws and regulations
and respect the protection, signs and decals that are mounted on or near the machine. Use and service the
system with care.
Each user or operator is responsible to ensure that the safety instruction is followed when using the system.
CAREFULLY READ THE FOLLOWING SAFETY INSTRUCTION
• Each operator shall read and understand this manual before using the system.
• Keep this manual near the system.
• Only use the system when correctly mounted and secured.
• Leave all service work not described in this User Manual to trained personnel.
• Do not remove any covers and do not open any other parts of the system.
• Do not place ngers, hands or other body parts within the working area of the system
and keep away from all moving parts during operation.
• The print head can become very hot, do not touch it until it has cooled off.
• Do not spray water on the system.
• Use protective gloves and safety goggles when using cleaning solvent
• Disconnect the power from the system and call in qualied staff under the following
conditions:
1. The main power cable or plug is damaged or worn.
2. Water or other liquid has been spilled on the system.
3. The system has been dropped or any parts of it has been damaged.
WARNING SIGNS
Depending on type of applicator and conguration, the system can be equipped with warning and instruction
signs. Follow the prompts on these signs and encourage other people around the system to do so as well.
Example: Crush Hazard
RISKS
The recommended solvent to use for cleaning the print head and print roller is isopropyl alcohol, also known
as isopropanol. It is hazardous in case of eye contact, of ingestion, of inhalation and slightly hazardous in case
of skin contact. Isopropyl alcohol is also ammable.
Read, understand and follow the instructions in the Material Safety Data Sheet (MSDS) of the cleaning solvent
prior to use.
SAFETY

OVERVIEW
D43
2
3
4
5
6
7
1 - Print head handle
2 - Print head
3 - Inner paper guide
4 - Status beacon
5 - Outer paper guide
6 - Rewinder paper
pinch
7 - Rewinder pinch
release
8 - Rewind unit
T43/ T63
8
1
910
11
D43/ T43/ T63
9 - Ribbon rewind
shaft
10 - Ribbon unwind
shaft
11 - Power switch

1 - Start / Stop button
2 - Active message
button
3 - Menu bar
4 - Layout preview
5 - Test print button
TOUCH PANEL
5
3
4
6
5
21
7
6 - Active messages
popup window
7 - Reset button
OVERVIEW
CONTROL PANEL
5
1
23
4
1 - Test print button
2 - Reset button
3 - Stop button
4 - Start button
5 - Status LEDs

OPERATION
CHANGING LABELS
1
23
4

5 6
7 8
OPERATION

CHANGING LABELS
10
11
40cm
9

12
13 14
15
OPERATION

CHANGING LABELS
16
17
OR

3
CHANGING RIBBON (T43/T63)
CHANGING LABELS Step 1-5
1
2
4
5 6
OPERATION

CHANGING RIBBON
7
9
8
10 11

CHANGING RIBBON
12
13 3x
CHANGING LABELS Step 6-17
14

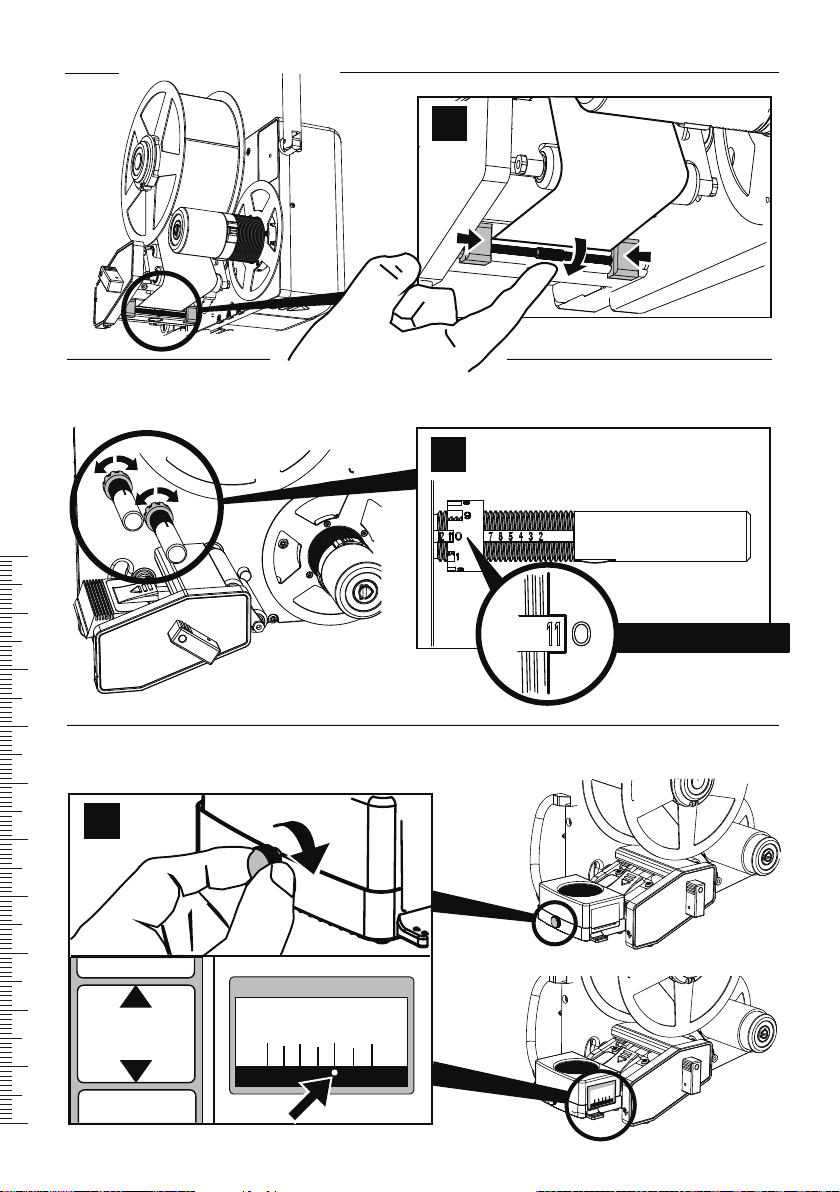

LABEL WIDTH SETTING
1
1 2 3 4 5 6 7 8 9 10 1 2 3
Always use a bobbin between the ribbon
and the ribbon rewind shaft
1234567891011 12 13 14 15 16 17 18
OPERATION

LABEL WIDTH SETTING
11cm+0mm=110mm
2
3

4
1
LABEL LENGTH SETTING (BLOW APPLICATOR)
blow
label lenght (mm)
100 90 80 70 60 50 40
60mm
1
RIBBON WIDTH SETTING (T43 / T63)
11cm+0mm=110mm
12345678910
OPERATION

CLEANING
1
2
CLEANING PRINT HEAD AND PRINT ROLLER
Isopropanol
Paper tissue or cloth
(clean and soft)
3
Isopropanol
Paper tissue or cloth
(clean and soft)
Isopropyl alcohol
Isopropyl alcohol
*
*
* PLEASE READ THE SAFETY INSTRUCTIONS BEFORE USE!

BASIC TROUBLESHOOTING
TEXT ON LABEL BAD QUALITY / STRIPES
TEXT WRONG POSITIONED ON LABEL (WIDTH)
TEXT WRONG POSITIONED ON LABEL (LENGTH)
LABEL NOT APPLIED OR MISPOSITIONED ON PRODUCT/BOX
PAPER OUT ALARM AFTER PAPER CHANGE
1 2 3 4 5 6
1 2 3 4 5 6
- Verify that correct label quality and correct ribbon quality
is used.
- Clean the print head (see CLEANING)
If not OK, contact your service engineer to replace the print
head
- Check that correct label size is used for the print job
selected
- Verify the paper position (see LABEL WIDTH SETTING)
If not OK, contact your service engineer to correct the
layout
- Check that correct label size is used for the print job
selected
- Clean the print roll, print head and print head profile
(see CLEANING)
If not OK, contact your service engineer to replace the
print roll
1 2 3 4 5 6
- Clean the print roll, print head and print head profile (see
CLEANING)
- If using round or non rectangular labels, verify the paper
guide position (see LABEL WIDTH SETTING)
If not OK, contact your service engineer
?
- Clean print roll, print head and print
head profile (see CLEANING)
If not OK, contact your service
engineer to replace the print roll
IN CASE OF OTHER FAULTS
1. Do not turn off the machine
2. Note the time and symptom
3. Contact your service engineer
Artikel Nr. P101174-000
