Evolution R11 vac li User manual

Original written in UK English Date Published: 16/08/2021

Original Instructions

Instrucciones Originales

Instructions Originales

VAC

R11

www.evolutionpowertools.com

This Instruction Manual was originally

written in English.

IMPORTANT

Please read these operating and safety

instructions carefully and completely.

For your own safety, if you are uncertain

about any aspect of using this equipment

please access the relevant Technical Helpline,

the number of which can be found on the

Evolution Power Tools website. We operate

several Helplines throughout our worldwide

organisation, but Technical help is also

available from your supplier.

WEB: www.evolutionpowertools.com

GUARANTEE

Congratulations on your purchase of an

Evolution Power Tools Machine. Please

complete your product registration

‘online’ as explained in the A4 online

guarantee registration leaflet included

with this machine. You can also scan the

QR code found on the A4 leaflet with

a Smart Phone. This will enable you to

validate your machine’s guarantee period

via Evolutions website by entering your

details and thus ensure prompt service if

ever needed. We sincerely thank you for

selecting a product from Evolution Power

Tools.

Evolution Power Tools reserves the right

to make improvements and modifications

to the product design without prior

notice.

Please refer to the guarantee registration

leaflet and/or the packaging for details

of the terms and conditions of the

guarantee.

Evolution Power Tools will, within the

guarantee period, and from the original

date of purchase, repair or replace any

goods found to be defective in materials

or workmanship. This guarantee is void

if the machine being returned has been

used beyond the recommendations in the

Instruction Manual or if the machine has been

damaged by accident, neglect, or improper

service. This guarantee does not apply

to machines and / or components which

have been altered, changed, or modified

in any way, or subjected to use beyond

recommended capacities and specifications.

Electrical components are subject to

respective manufacturers’ warranties. All

goods returned defective shall be returned

prepaid freight to Evolution Power Tools.

Evolution Power Tools reserves the right to

optionally repair or replace it with the same

or equivalent item. There is no warranty –

written or verbal – for consumable accessories

such as (following list not exhaustive) blades,

cutters, drills, chisels or paddles etc. In no

event shall Evolution Power Tools be liable

for loss or damage resulting directly or

indirectly from the use of our merchandise or

from any other cause. Evolution Power Tools

is not liable for any costs incurred on such

goods or consequential damages. No officer,

employee or agent of Evolution Power Tools

is authorised to make oral representations of

fitness or to waive any of the foregoing terms

of sale and none shall be binding on Evolution

Power Tools.

Questions relating to this limited

guarantee should be directed to the

company’s head office, or call the

appropriate Helpline number.

WARNING: This appliance can be used by

children aged from 8 years and above and

persons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning use of

the appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

www.evolutionpowertools.com

MACHINE SPECIFICATIONS UK/EU USA

Product Code 099-0001 099-0004

Charging voltage 220-240V 120V

Battery voltage 18V d.c. 20V d.c.

Tank capacity 11litre 3Gal

Hose - flexible length 1.8m 6ft

Net weight 3.35kg 7.4lbs

Bare product dimensions (H x L x W) 410mm x 296mm x 311mm 16-2/16” x 11-5/8” x 12-3/16”

Airflow 45 CFM

MACHINE SPECIFICATIONS

www.evolutionpowertools.com

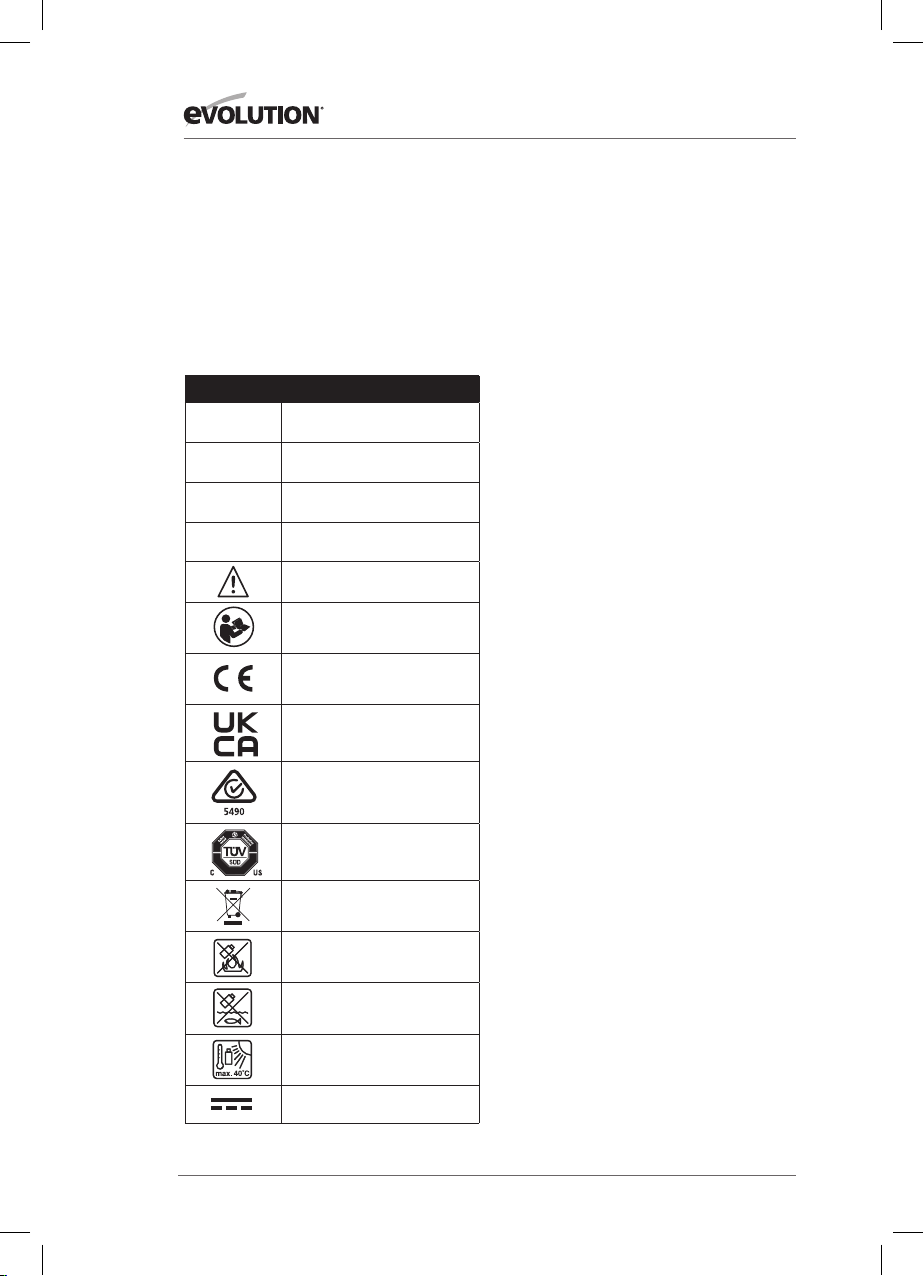

LABELS & SYMBOLS

WARNING: Do not operate this machine if

warning and/or instruction labels are missing

or damaged. Contact Evolution Power Tools for

replacement labels.

Note: All or some of the following symbols may

appear in the manual or on the product.

SYMBOL DESCRIPTION

V Volts

Min-1 Speed

~ Alternating Current

n Rated Speed

Warning!

Read Instructions

CE Certification

UKCA Certification

(RCM) Regulatory Compliance

Mark for electrical and electronic

equipment. Australian/New Zealand

Standard

TUV SUD Certification

Waste Electrical &

Electronic Equipment

Keep away from heat and open

ames - Do not dispose in re

Keep away from water - do not

immerse in liquids

Max temperature

DC voltage

OUTDOOR USE

WARNING

: For your protection if this tool is to

be used outdoors it should not be exposed to

rain, or used in damp locations. Do not place

the tool on damp surfaces. Use a clean, dry

workbench if available. For added protection

use a residual current device (R.C.D.) that will

interrupt the supply if the leakage current to

earth exceeds 30mA for 30ms. Always check the

operation of the residual current device (R.C.D.)

before using the machine. If an extension cable

is required it must be a suitable type for use

outdoors and so labelled. The manufacturers

instructions should be followed when using an

extension cable.

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS &

GROUNDING INSTRUCTIONS

When using an electrical appliance, basic

precautions should be always followed,

including the following: READ ALL

INSTRUCTIONS BEFORE USING THIS

APPLIANCE.

NOTE: Read all safety rules carefully before

attempting to operate. Retain for future

reference.

WARNING: Never operate this unit when

flammable materials or vapors are present

because electrical devices produce arcs or

sparks that can cause a fire or explosion.

NEVER LEAVE OPERATING VACUUM

UNATTENDED!

NOTE: This appliance is intended for household

use.

www.evolutionpowertools.com

WARNING: To reduce the risk of fire, electric

shock, or injury:

• Remove the battery when not in use and

before servicing.

• Do not expose to rain. Store indoors.

• Always remove the battery from the

machine before removing the tank

cover.

• Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

• Do not put any object into openings. Do

not use with any openings blocked; keep

the openings free of dust, lint, hair and

anything that may reduce airflow.

• Keep hair, loose clothing, fingers and all

parts of body away from openings and

moving parts.

• Do not pick up anything that is burning

or smoking, such as cigarettes, matches

or hot ashes.

• Do not use without dust bag and/or

filters in place.

• Turn off all controls before removing

the battery.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or

combustible liquids such as gasoline or

use in areas where they may be present.

• Do not use your cleaner as a sprayer

of flammable liquids such as oil-based

paint, lacquers, etc.

• Do not vacuum toxic, carcinogenic,

combustible or other hazardous

materials such as asbestos, arsenic,

barium, beryllium, lead, pesticides or

other health endangering materials.

• Do not pick up soot, cement, plaster or

drywall dust without filter and dust bag

in place. These are very fine particles that

may affect the performance of the motor

or be exhausted back into the air.

Additional dust bags are available.

• Use special care when emptying heavily

loaded tanks.

• To avoid spontaneous combustion,

empty tank after each use.

• The operation of a utility vacuum can

result in foreign objects being blown

into eyes, which can result in eye

damage. Always wear safety goggles

when operating vacuum.

• Remove the battery before connecting

the hose, nozzles, filters, or other

accessories.

• Exhausted batteries are to be removed

from the appliance and safely disposed

of.

• If the appliance is to be stored and

unused for a long period, the batteries

should be removed

• The supply terminals are not to be

short-circuited.

NOTE: Use only as described in this manual. Use

only manufacturer’s recommended attachments.

• Prevent unintentional starting. Ensure

the power switch is in the off-position

before connecting to battery pack,

picking up or carrying the appliance.

Carrying the appliance with your ﬁnger

on the power switch or energising the

appliance that has the power switch on

invites accidents.

• Make sure the power switch is off and

the battery pack is removed before

clearing jammed material, making

adjustments, changing accessories,

storing or servicing the appliance.

Unexpected actuation of the appliance

while clearing jammed material or

servicing may result in serious personal

injury.

• Recharge only with the charger

speciﬁed by the manufacturer. A charger

that is suitable for one type of battery pack

may create a risk of ﬁre when used with

another battery pack.

• Use appliances only with speciﬁcally

designated battery packs. Use of any

other battery packs may create a risk of

injury and ﬁre.

• When the battery pack is not in use,

keep it away from other metal objects,

like paper clips, coins, keys, nails,

screws or other small metal objects,

that can make a connection from one

terminal to another. Shorting the battery

terminals together may cause burns or a

ﬁre.

• Under abusive conditions, liquid may

be ejected from the battery; avoid

contact. If contact accidentally occurs,

ﬂush with water. If liquid contacts

eyes, additionally seek medical help.

Liquid ejected from the battery may cause

irritation or burns.

• Do not use a battery pack or appliance

that is damaged or modiﬁed. Damaged

or modiﬁed batteries may exhibit

unpredictable behavior resulting in ﬁre,

explosion or risk of injury.

• Do not expose a battery pack

or appliance to ﬁre or excessive

temperature. Exposure to ﬁre or

temperature above 130°C may cause

explosion. The temperature of 130°C can

be replaced by the temperature of 265°F.

• Follow all charging instructions and do

www.evolutionpowertools.com

not charge the battery pack or appliance

outside of the temperature range

speciﬁed in the instructions. Charging

improperly or at temperatures outside of

the speciﬁed range may damage the battery

and increase the risk of ﬁre.

• Have servicing performed by a qualiﬁed

repair person using only identical

replacement parts. This will ensure that

the safety of the product is maintained.

• Do not modify or attempt to repair the

appliance or the battery pack except as

indicated in the instructions for use and

care.

GETTING STARTED - UNPACKING

Caution: This packaging contains sharp objects.

Take care when unpacking. Remove the machine,

together with the accessories supplied, from the

packaging. Check carefully to ensure that the

machine is in good condition and account for all

the accessories listed in this manual. Also make

sure that all the accessories are complete. If any

parts are found to be missing, the machine and its

accessories should be returned together in their

original packaging to the retailer. Do not throw

the packaging away; keep it safe throughout the

guarantee period. Dispose of the packaging in

an environmentally responsible manner. Recycle

if possible. Do not let children play with empty

plastic bags due to the risk of suffocation.

ITEMS SUPPLIED

DESCRIPTION

0990001,

0990004,

0990001A,

0990001B,

0990001C

0990004A

Instruction Manual

Flexible hose

Crevice nozzle

Gulper nozzle

Round brush

Cartridge filter

Foam filter

2Ah Battery

4Ah Battery

5Ah Battery

8Ah Battery

Single dock

charger

Double dock

charger

ADDITIONAL ACCESSORIES

In addition to the standard items supplied with

this machine the following accessories are also

available from the Evolution online shop at www.

evolutionpowertools.com or from your local

retailer.

DESCRIPTION PART NO

Foam filter 086-0103

Replacement

Cartridge Filter 086-0101

RECOMMENDED BATTERIES/CHARGERS

Description Part No

2Ah Battery R18BAT-Li2,

R20BAT-Li2 EBAT18-Li-2

4Ah Battery R18BAT-Li4,

R20BAT-Li4 EBAT18-Li-4,

EHPB18-Li-4

5Ah Battery R18BAT-Li5,

R20BAT-Li5 EBAT18-Li-5

8Ah Battery R18BAT-Li8,

R20BAT-Li8 EHPB18-Li-8

R18RCH-Li1- Single

dock charger R18RCH-Li1,

R20RCH-Li1 EFC18-Li

R18RCH-Li2 -

Double dock

charger

R18RCH-Li2,

R20RCH-Li2 EMC18-Li

If you intend to store a battery for a period without

use then store battery at room temperature (0°C

to 20°C) When storing for very long periods boost

charge the battery once per year to prevent over

discharge. The Ambient temperature range for

tool and battery use: 0°C to 40°C. The charging

temperature: 5°C to 40°C.

www.evolutionpowertools.com

PACKAGE CONTENTS

PART DESCRIPTION Part No.

IFlexible hose 25-1227

J 13-1502A

25-1200A

13-1508

13-1588A

08-2551

13-1570

Foam filter (Wet)

Gulper nozzle

Extension wand

Cartridge filter

QTY

PART DESCRIPTION QTY

A Handle 1

BOn/Off switch 1

Lid latch

D Vacuum port 1

EDust tank 1

Blowing port

G Accessory storage box 2

J K L

M N

Crevice nozzle

Floor nozzle

MACHINE OVERVIEW R11VAC-Li

1. HANDLE

2. ON/OFF SWITCH

3. LID LATCH

4. VACUUM PORT

5. DUST TANK

6. BLOWING PORT

7. FLEXIBLE HOSE

8. ROUND BRUSH

9. GULPER NOZZLE

10. CARTRIDGE FILTER

11. CREVICE NOZZLE

12. FOAM FILTER WET

910

PACKAGE CONTENTS

PART DESCRIPTION Part No.

IFlexible hose 25-1227

J 13-1502A

25-1200A

13-1508

13-1588A

08-2551

13-1570

Foam filter (Wet)

Gulper nozzle

Extension wand

Cartridge filter

QTY

PART DESCRIPTION QTY

A Handle 1

BOn/Off switch 1

Lid latch

D Vacuum port 1

EDust tank 1

Blowing port

G Accessory storage box 2

J K L

M N

Crevice nozzle

Floor nozzle

www.evolutionpowertools.com

FIG. 2

ASSEMBLY

To install/remove the battery

To install the battery insert firmly into the tool until you hear an

audible click, ensuring the battery is fully seated and latched

into position.

To remove the battery depress the battery release button and

pull the battery out of the tool.

Attaching the vacuum hose (fig1)

Before using the vacuum the flexible hose will need to be

attached.

• Ensure the vacuum is placed on a flat, firm surface.

• Unlatch tank latches and remove power head from the tank.

• Remove the hose from the tank.

• Align the latching end of the hose with the intake or blower

port on the appliance, ensuring the alignment lock is

correctly orientated to fit into the port.

• Insert the hose end into the port until you hear an audible

click. Gently pull the hose end to ensure it is correctly

secured.

• Replace power head onto the tank and secure latches.

Note: The power head will only fit onto the tank when the

intake port on the front of the power head and the storage

area for the wide nozzle tool on the tank are aligned.

Note: To reduce the risk of injury always hold securely with one

hand on the main handle. (1)

OPERATING INSTRUCTIONS

WARNING: To reduce the risk of fire or explosion, do not operate

this vac in areas with flammable gases, vapors or explosive

dust in the air. Flammable gases or vapors include but are not

limited to: lighter fluid, solvent-type cleaners, oil-based paints,

gasoline, alcohol or aerosol sprays. Explosive dusts include

but are not limited to: coal, magnesium, aluminium, and grain

or gun powder. Do not vacuum explosive dust, flammable or

combustible liquids or hot ashes. Do not use this vac as a sprayer

for any flammable or combustible liquid. To reduce the risk

of health hazards from vapors or dusts, do not vacuum toxic

materials.

CAUTION: To reduce risk of hearing damage, wear ear protectors

when using the vac for extended hours or when using it in a

noisy area. This 11L wet/dry vac is assembled at the factory and

ready for use when you remove it from the packaging. The unit is

ready for dry vacuuming or blowing.

ON/OFF

After you insert the battery into the machine, turn the unit “ON”

by pushing the switch from position “O” to position “I”. The “O” is

the “OFF” position and the “I” is the “ON” position.

DRY PICK UP

NOTE: If foam filter is in position over filter cage, it must be

removed before installing cartridge filter. The cartridge filter can

be used for wet or dry pick up; installation is the same for both.

When picking up large quantities of liquid please refer to the wet

pick up operation section in this manual. Use the cartridge filter

in position over the filter cage for most general dry material pick

up. (Fig. 2)

FIG. 1

www.evolutionpowertools.com

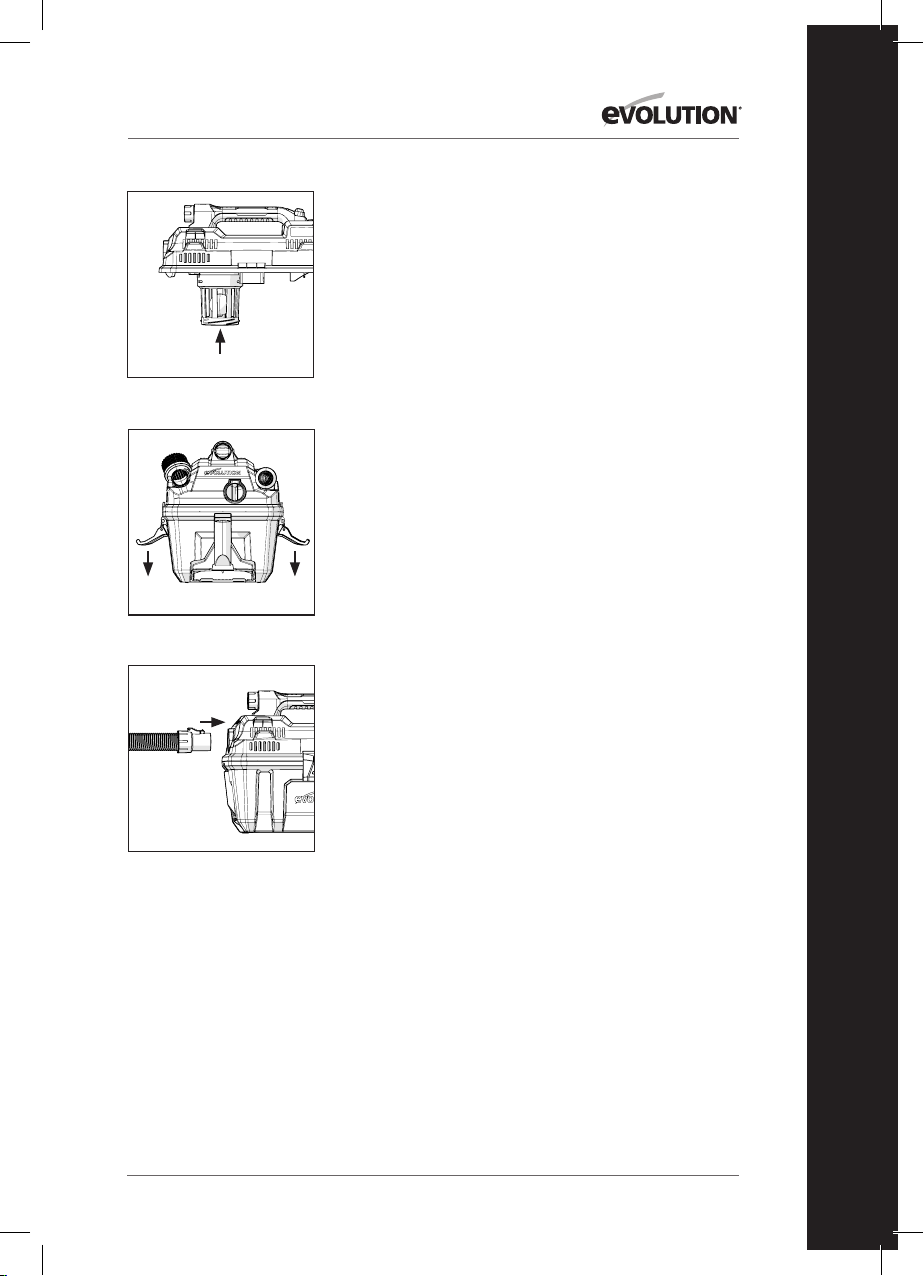

FIG. 4

FIG. 3

FLOAT IN RAISED POSITION

FIG. 5

• With the power head in an upside down position, slide the

cartridge filter down over the filter cage, push the filter seals

against the power head.

• Place filter retainer into the top of the cartridge filter, hold

the power head with one hand, turn the handle on the filter

retainer clockwise to tighten, locking the filter into place.

• To remove the cartridge filter for cleaning, again hold the

power head and turn the filter retainer counter-clockwise

to loosen and remove, slide the cartridge filter off the filter

cage.

• To clean the cartridge filter shake or brush off excess dirt or

rinse (from the inside of the filter) with water, dry completely

(approximately 24 hours) and re-install.

WET PICK UP

• Remove cartridge filter and replace it with foam filter when

you do wet pickups.

• This wet/dry vac is equipped with a float mechanism which

will rise automatically to cut off the airflow when the liquid in

the tank reaches a predetermined level. When this happens,

turn off the vac, remove the battery, and empty the dust

tank. You will know that the float has shut the airflow off

because the suction ceases and the motor noise becomes

higher in pitch due to increased motor speed. The liquid

capacity may vary with the rate of pickup. (Fig. 3)

EMPTYING THE TANK

WARNING: To reduce the risk of injury from accidental starting,

remove the battery before emptying the dust tank.

• Remove the power head assembly of the wet/dry vac by

pulling outward on the lid clips located on each side of the

vac. Lift off the power head assembly. (Fig. 4)

• Dump the tank contents into the proper waste disposal

container.

BLOWING OPERATION

WARNING: To reduce the risk of injury from accidental starting,

remove the battery before changing. To avoid injury to bystanders,

keep them clear of blowing debris.

CAUTION: Wear a dust mask if blowing creates dust which

might be inhaled. To reduce the risk of hearing damage, wear ear

protectors when using the vac/blower for extended hours or when

using it in a noisy area.

Your vac contains a blowing feature. It has the capability to blow

sawdust and other debris. It can be used to blow dust and debris

out of garages or off patios and driveways. Follow the steps below

to use your vac as a blower.

• Locate blowing port on your vac.

• Insert one end of the hose into the blowing port. (Fig. 5)

• Turn vac “ON”.

www.evolutionpowertools.com

FILTER REPLACEMENT

WARNING: To reduce the risk of injury from

accidental starting, remove the battery from the

machine before changing or cleaning filter. Your

filter should be cleaned often to maintain peak

vacuum performance.

NOTE: To avoid damage to the fan and motor,

always reinstall the reusable dry filter before

using the vacuum for dry pickups and always

reinstall the foam filter before using the vacuum

for wet pickups.

NOTE: After cleaning, check the filter for

tears or small holes. Do not use a filter with

holes or tears in it. Even a small hole can cause

dust to come out of your vacuum. Replace it

immediately.

NOTE: Before installing the filter on the

vacuum, clean the area of the lid so that the

clamp ring will seal the bag against the lid and

stop small particles from bypassing the filter

bag. If the filter is clean and not damaged,

replace it on the filter cage. If it cannot be

reused, place a new filter over the filter cage.

NOTE: Clean the filter in an open area.

WARNING: Do not remove filter cage and float.

The float prevents water from entering the

impeller and damaging the motor. The cage

prevents fingers from touching the moving

impeller.

MAINTENANCE

WARNING: Any maintenance must be carried

out with the machine switched off and the

battery removed.

CLEANING

To keep your wet/dry vacuum looking its best,

clean the outside with a cloth dampened with

warm water and mild soap. To clean the tank:

• Empty the tank.

• Wash tank thoroughly with warm water

and mild soap.

• Wipe out with dry cloth.

STORAGE

Before storing your vacuum, the dust tank

should be emptied and cleaned. The accessories

should be kept in the accessory holder so they

can be readily available. The vacuum should be

stored indoors.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be

disposed of with household waste. Please

recycle where facilities exist. Check with your

Local Authority or retailer for recycling advice.

Environmental damage through incorrect

disposal of the batteries / rechargeable

batteries.

Batteries /rechargeable batteries may not be

disposed of with the usual domestic waste.

They may contain toxic heavy metals and are

subject to hazardous waste treatment rules

and regulations. Please dispose of batteries

according to the relevant local requirements.

Remove the battery from the product before

disposal.

www.evolutionpowertools.com

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Vacuum can

not run

1. Battery not installed properly.

2. Battery not charged.

3. Internal components too hot.

1. Check battery installation.

2. Check battery charging requirements.

3. Allow tool to cool down.

Loss of suction,

wet pick-up

1. Full tank

2. Clogged hose

3. Clogged filter

1. Drain and clean tank

2. Remove hose and clean debris

3. Clean or replace filter

Loss of suction,

dry pick-up

1. Full tank

2. Clogged hose

3. Clogged filter

1. Empty and clean tank

2. Remove hose and clean debris

3. Clean or replace filter

WARNING: To reduce the risk of injury from

moving parts and/or electrical shock, remove

battery from the machine before performing

troubleshooting checks. Minor problems often

can be fixed without calling customer service.

TROUBLESHOOTING

www.evolutionpowertools.com

DECLARATION OF CONFORMITY

The manufacturer of the product covered by this Declaration is:

UK: Evolution Power Tools Ltd. Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.

FR: Evolution Power Tools SAS. 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France.

The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant

provisions of the Machinery Directive and other appropriate directives as detailed below.

The manufacture further declares that the machine as detailed in this declaration, where applicable,

fulfils the relevant provisions of the Essential Health and Safety requirements.

The Directives covered by this Declaration are as detailed below:

And is in conformity with the applicable requirements of the following documents

Product Details

Description: Evolution R11VAC-Li 11L Cordless Wet and Dry Vacuum Cleaner

Product Number:

099-0001

Brand Name: Evolution Build

Voltage: DC 18V

The technical documentation required to demonstrate that the product meets the requirements of

directive has been compiled and is available for inspection by the relevant enforcement authorities,

and verifies that our technical file contains the documents listed above and that they are the correct

standards for the product as detailed above.

Name and address of technical documentation holder.

Signed: Print: Barry Bloomer

CEO

Date: 16/08/21

UK: Evolution Power Tools Ltd. Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR.

FR: Evolution Power Tools SAS. 61 Avenue Lafontaine, 33560, Carbon-Blanc, Bordeaux, France.

2006/42/EC. Machinery Directive.

2014/30/EU. Electromagnetic Compatibility Directive.

The Restriction of the Use of certain Hazardous Substances in Electrical Equipment (RoHS) Directive.

2002/96/EC. as amended by 2003/108/EC The Waste Electrical and Electronic Equipment (WEEE) Directive.

IEC 60335-2-2: 2019(Seventh Edition) • IEC 60335-1:2010(Fifth Edition) (incl. Corrigendum 1:2010

and Corrigendum 2:2011)+ AMD1:2013, COR1:2014, AMD2:2016, COR1:2016 •

EN 60335- 2-2:2010+A11:2012+A1:2013 • EN 60335-1:2012+A11:2014+AC:2014+A13:2017+A1:2019+

A14:2019+A2:2019 • EN 55014-1:2017/A11:2020 • EN 55014-2:2015

2011/65/EU. &

2015/863/EU.
