Evolution Mint Plus 5200 User manual

Model Number 5200
www.mintcleaner.com
Mint Plus Owner’s Manual

TABLE OF CONTENTS
Safety Instructions / PAGE 4
Mint Plus Overview / PAGE 6
Buttons and Lights / PAGE 8
Battery and Charging / PAGE 10
Sweeps and Mops / PAGE 12

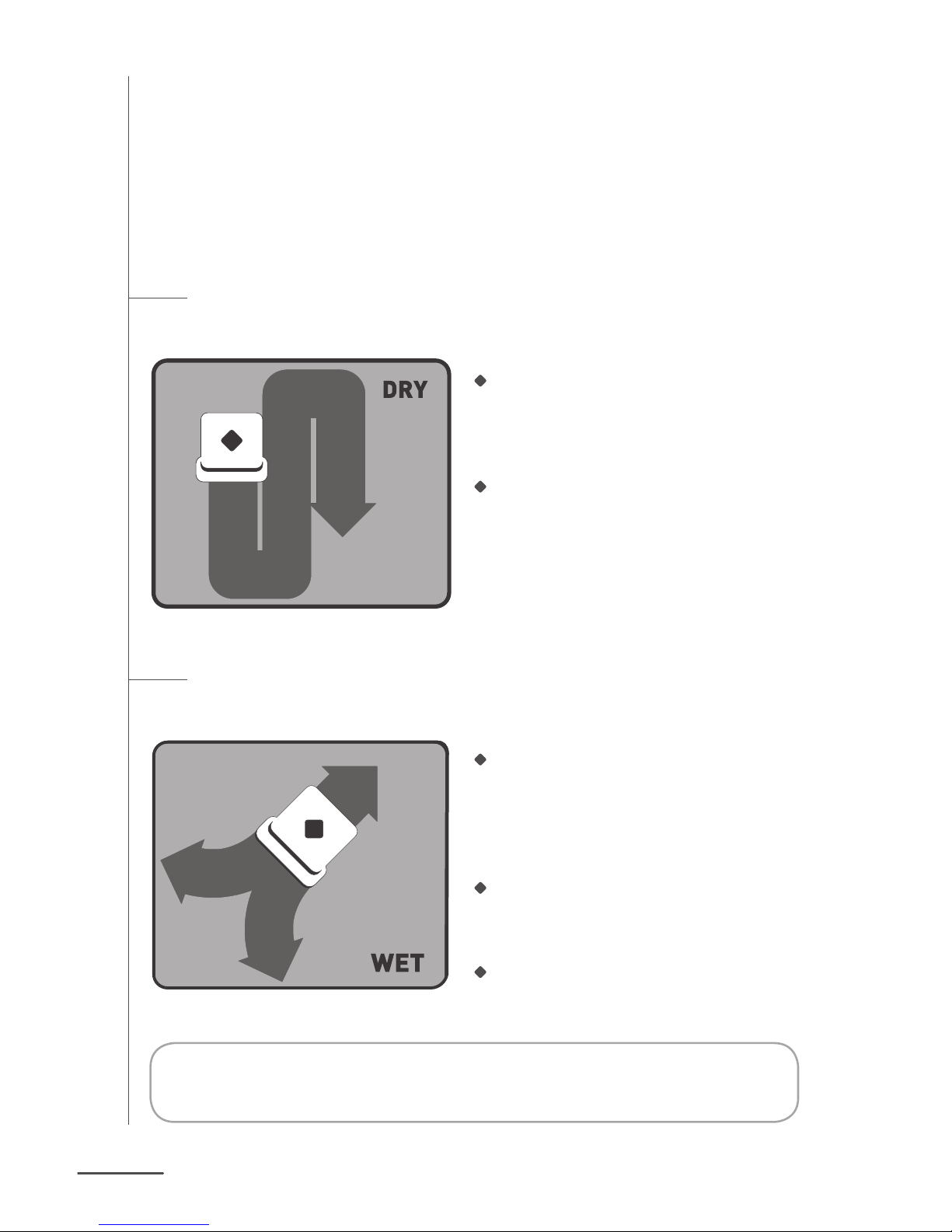

How Mint Cleans / PAGE 14
NorthStar Navigation / PAGE 16
Operating Mint / PAGE 18
Maintenance / PAGE 22
Customer Support / PAGE 23
Trouble Shooting / PAGE 24
Limited Warranty / PAGE 38

PAGE 4
IMPORTANT SAFETY INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
WARNING: READ AND SAVE THESE
INSTRUCTIONS.
To avoid the risk of injury or damage, these basic precautions should always be followed:
Read all safety and operating instructions before using Mint Plus.
Read and heed all warnings in this manual and on Mint Plus, the Cube and the
adapter.
Only use Mint Plus in accordance with the specications outlined in this manual.
Do not attempt to repair or adjust any electrical or mechanical functions on this
device. Tampering with these functions may create a hazardous condition, and it
will void your warranty.
Be aware that oors may be slippery after wet cleaning with Mint Plus.
Mint Plus operates very quietly. Take care when walking in the area Mint Plus is
cleaning to avoid stepping on Mint Plus and tripping.
USE RESTRICTIONS
Mint Plus is not a toy. Supervise children and pets when Mint Plus is cleaning.
Mint Plus has electrical parts. Do not spray, rinse or submerge it in water. Clean
with a dry cloth only.
Mint Plus is for household use only.
Mint Plus is for indoor use on hard surface oors only.
Do not use Mint Plus to pick up large debris, liquid spills, bleach, paint,
or other chemicals.
Do not use Mint Plus near any objects that are burning or smoking.
CAUTION: DO NOT EXPOSE THE ELECTRONICS OF MINT PLUS,
ITS BATTERY OR THE ADAPTER. THERE ARE NO USER-SER-
VICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

PAGE 5
Before using Mint Plus, remove fragile objects from the cleaning area, including ob-
jects on furniture that can fall if the furniture is pushed or bumped.
Move any power cords as well as cords for blinds and curtains out of the way
to reduce the risk of objects being pulled down.
Do not operate Mint Plus in areas with exposed electrical outlets in the oor.
Block off access to open balconies near the cleaning area with physical barriers.
Do not place anything on top of Mint Plus.
Follow instructions on Page 18 for attaching the cleaning cloth to ensure proper
function of all sensors.
When mopping, do not use Mint Plus in areas where wetness can damage unnished
or unsealed oors or delicate carpeting or rugs.
Operate at room temperature. Do not expose Mint Plus or its batteries to freezing
or extreme heat.
BATTERY AND CHARGING
Charge using a standard U.S. (120V AC) outlet only.
Only use the included adapter to charge Mint Plus.
Only use rechargeable battery packs approved by the manufacturer.
Do not use an adapter with a damaged cord or plug.
Do not handle or charge Mint Plus when hands are wet.
Always disconnect Mint Plus from the adapter before cleaning.
Proposition 65 Warning: This product contains chemicals
known to the state of California to cause cancer and birth defects
or other reproductive harm.
Notice: Mint Plus contains a software interface for the purpose
of enabling the manufacturer to provide updates to the internal
rmware if any such updates are made available to users.
Any attempt to access, retrieve, copy, modify, distribute or
otherwise use any of the Mint Plus software is strictly prohibited.

PAGE 6
Control Buttons
NorthStar® Navigation Sensor
Navigation System Indicator
Furniture Guard Bumper
Handle
Cube on/off button (on back corner)
Removable Cleaning Pad
Battery Charging Port
Floor Transition Sensors
Wheel Guards
Charging Adapter
Mint Plus Overview
Mint Plus
NorthStar® Navigation Cube

PAGE 7
Cloth Gripping Strips
Middle Channel for Floor Transition Sensors
Fill cap
Reservoir
Wick
Multi-Purpose Cleaning Pad
Pro-Clean Reservoir Pad
For dry sweeping or wet mopping, disposable or reusable microber cloths.
For wet mopping with the blue Pro-Clean microber cleaning cloth.

PAGE 8
Buttons and Lights
Press once to turn Mint Plus on.
Hold for 2 seconds to turn Mint Plus off.
Blue solid light: Power on
Red blinking light: Battery starting to get low
Red solid light: Low battery (needs to be recharged)
Power Button
Press once to start cleaning.*
Press while cleaning to pause.
Blue solid light: Mop mode activated
Blue blinking light: Mop mode paused
* Holding the cleaning mode button will activate Quick Clean Mode. See page 15
Mop Button
Sweep Button
Press once to start cleaning.*
Press while cleaning to pause.
Blue solid light: Sweep mode activated
Blue blinking light: Sweep mode paused
For use with dry cloths.
For use with wet cloths.

PAGE 9
4
Blue blinking light: Power on, broadcasting signal
Blue solid light: Power on, connected to Mint Plus
Red solid light: Batteries low
5
5
Blue blinking light (1): Establishing connection
Blue solid light (1 to 3): Locked onto NorthStar Cube
NorthStar Connection
Navigation System Indicators
Blue lights ashing in sequence: Thinking
Blue lights ashing with pause: Sleep mode
Red light in middle: Error*
Other States
NorthStar®Navigation Cube Lights
4
The number of lights indicates the strength of Mint Plus’s connection to the naviga-
tion system, with 3 being strongest. If there are no lights, Mint Plus does not detect
a NorthStar signal.
*See trouble shooting section for more information.

PAGE 10
Battery and Charging
Mint Plus comes with a rechargeable battery. On a full charge, it will
clean up to 4 hours dry sweeping or up to 2.5 hours wet mopping.
Charging
Stand Mint Plus on its end to access
the charging port.
Plug the adapter into a standard electri-
cal outlet and into Mint Plus’s charging
port.
Charge Mint Plus for approximately 4
hours or until a solid blue light appears
on the power button*.
It may take Mint Plus a few charging
cycles to reach its full capacity.
Charging Port
Caution:
Do not charge Mint Plus while the Pro-Clean reservoir pad or any
wet cloth is attached.
Charge using a standard U.S. (120V AC) outlet only.
Only use the included adapter to charge Mint Plus.
Always disconnect Mint Plus from the adapter before cleaning.
* The blue light indicates on average that the battery has charged to 80% of its
capacity. Mint Plus will continue to charge while plugged in. If you experience
short run times, charge for 8 hours or more to improve performance.
Charging time and run time can be affected by operating temperature, oor type
and other conditions.
Tip: Mint Plus can also be charged with the Mint Plus Turbo Charge Cradle.
See Cradle instructions for details.
