EVSE 3722 Series User manual

User Manual and Installation Guide
Model 3722-001 (Rev. J) Overhead EVSE / 30A
Copyright EVSE LLC 2012-2015. All rights reserved. Patents pending.
i
Control Module Inc., EVSE LLC
State of the Art EVSE with Cable Management
Overhead Electric Vehicle Supply Equipment
Model 3722 Family
User Manual and Installation Guide
Model 3722
Electric Vehicle Supply Equipment (EVSE)
Patents Pending
3722-IG-002 Rev 1.1
December 2018

3722-IG-002 Installation and User Manual February 6, 2019
ii
Table of Contents
Important Notes .............................................................................................................................................................iv
Safety and Compliance ..............................................................................................................................................................iv
Limitation of Liability .................................................................................................................................................................iv
FCC Compliance Statement .......................................................................................................................................................iv
Important...................................................................................................................................................................................iv
Exposure to Radio Frequency Energy........................................................................................................................................iv
No Accuracy Guarantee.............................................................................................................................................................iv
U.S. Patents ...............................................................................................................................................................................iv
Copyright and Trademarks .........................................................................................................................................................v
Instructions Pertaining To Risk of Fire or Electrical Shock..................................................................................................vi
IMPORTANT SAFETY INSTRUCTIONS .........................................................................................................................................vi
Instructions De Sécurité Importantes..............................................................................................................................vii
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES ...........................................................................................................................vii
Introduction to Model 3722-A30XX EVSE Unit ...................................................................................................................1
Safety Features...........................................................................................................................................................................2
Payment Options........................................................................................................................................................................2
Communication Options.............................................................................................................................................................2
Remote Connection....................................................................................................................................................................3
Additional Options......................................................................................................................................................................3
Specifications..............................................................................................................................................................................4
Site Preparation...............................................................................................................................................................5
Dimensions .................................................................................................................................................................................5
Site Selection ..............................................................................................................................................................................6

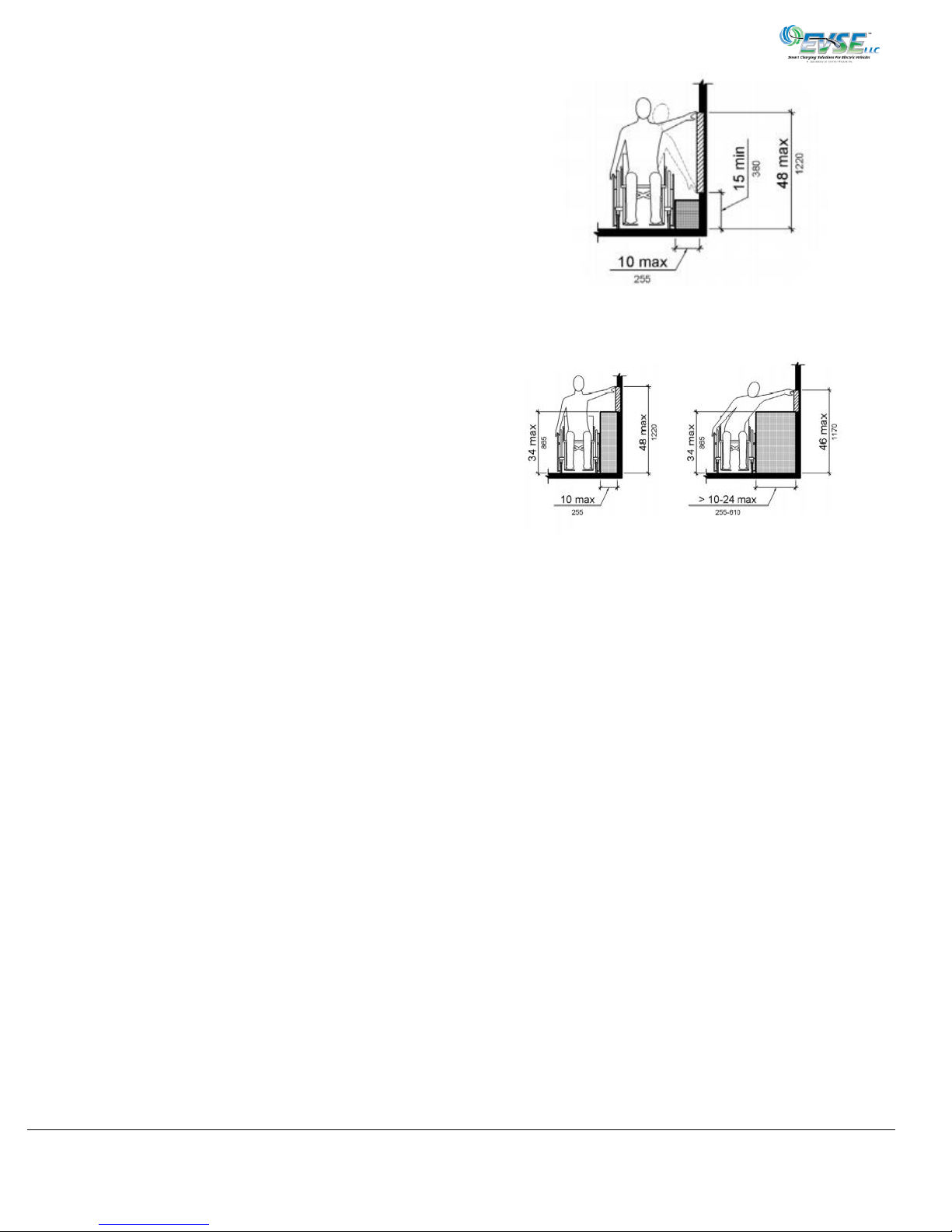

2010 ADA Standards for Accessible Design................................................................................................................................8

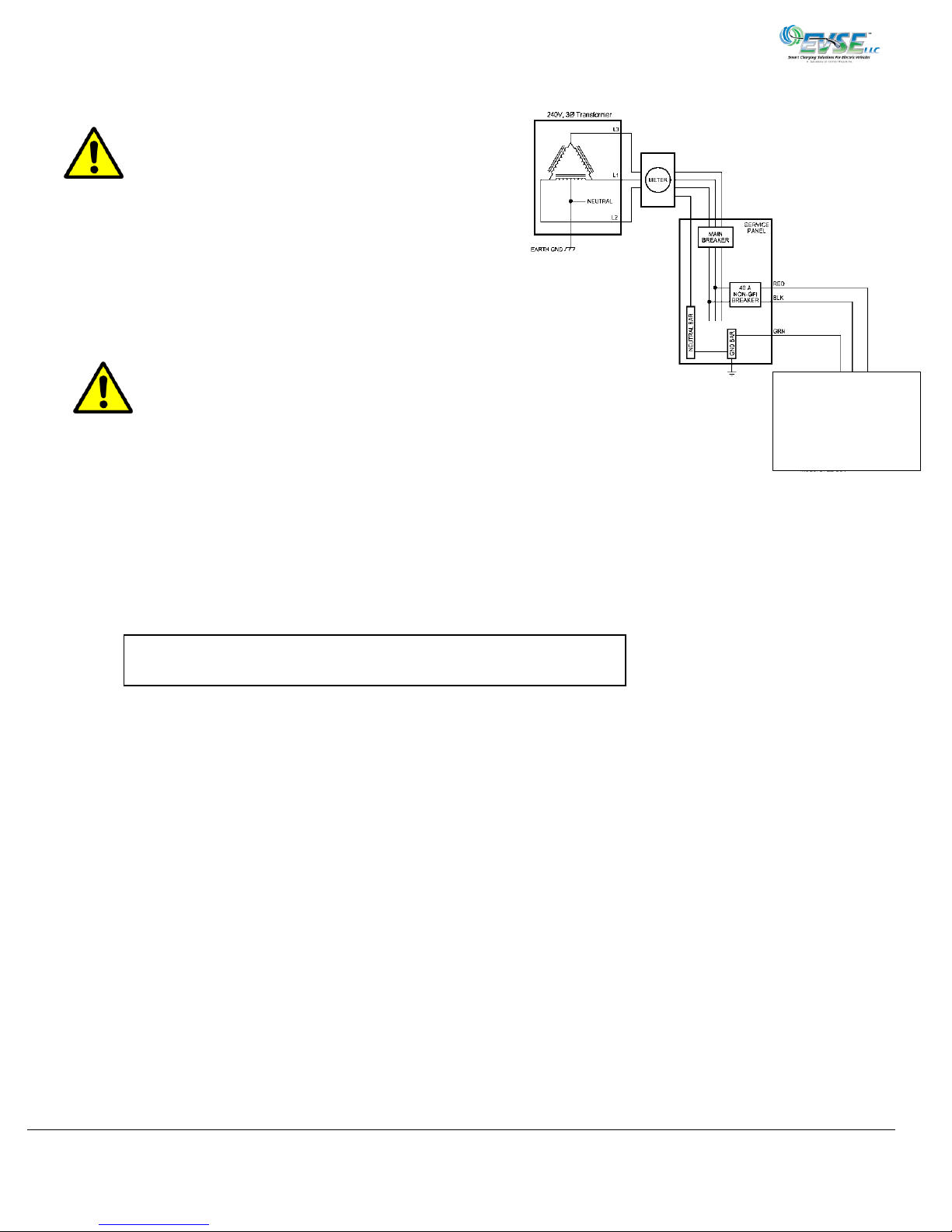

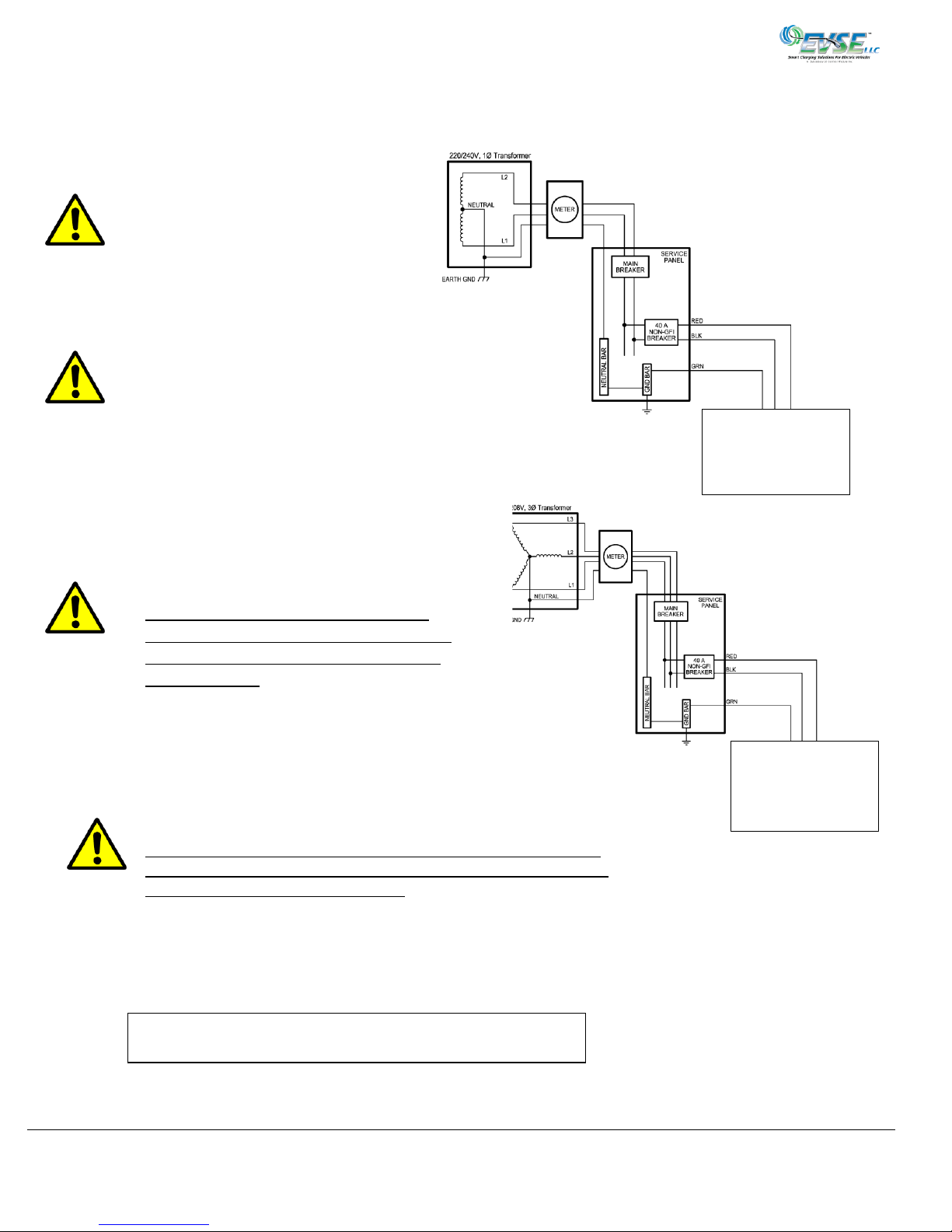

Electrical Service Connections................................................................................................................................................. 10
Installation ....................................................................................................................................................................12
Recommended Mounting Method.......................................................................................................................................... 12
Removing the 3722 from the Shipping Box............................................................................................................................. 12

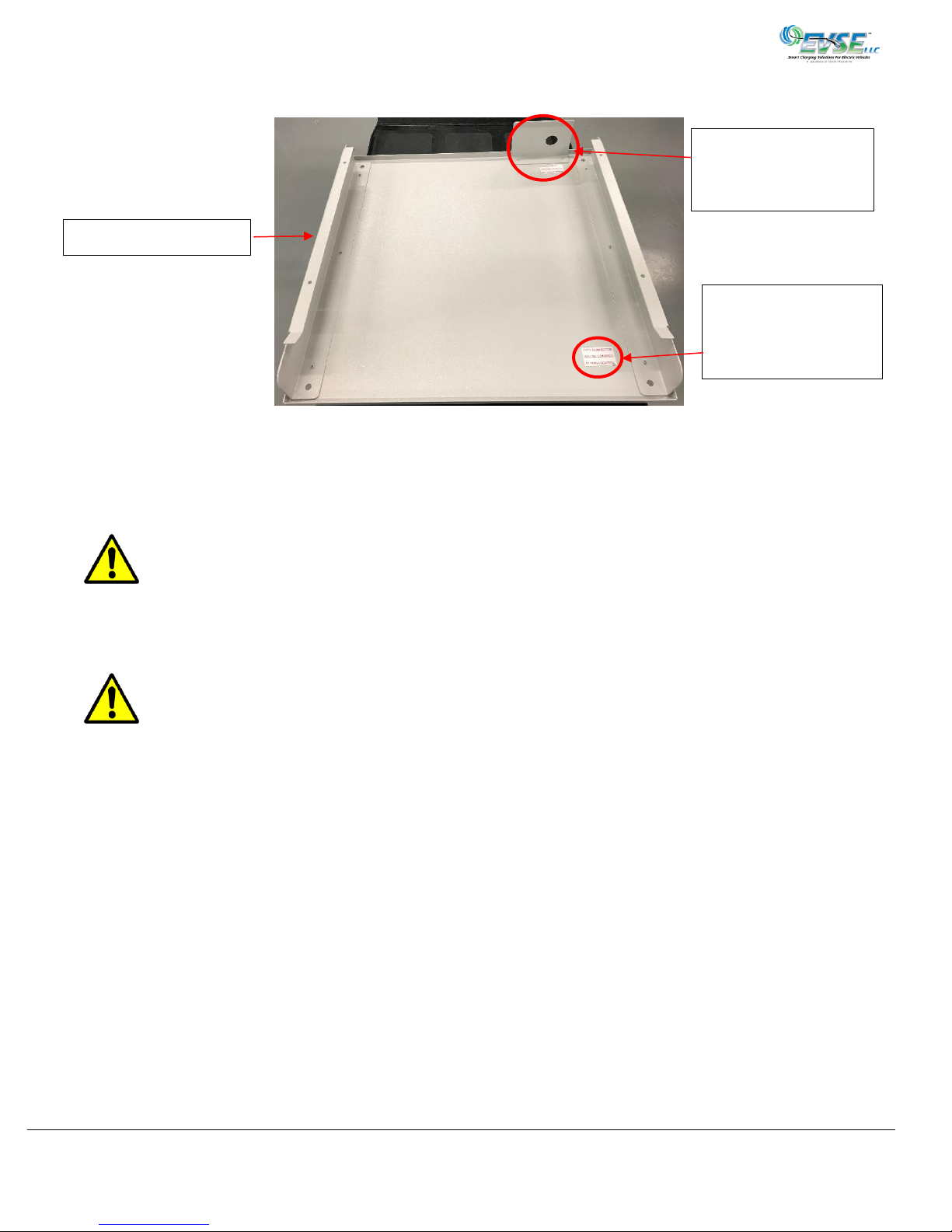

Mounting the Unistruts to the Ceiling..................................................................................................................................... 13
Mechanical Installation of EVSE Unit....................................................................................................................................... 14
Wiring for Power ..................................................................................................................................................................... 15
Wiring the EVSE for Serial Communication ............................................................................................................................. 16

3722-IG-002 Installation and User Manual February 6, 2019
iii
Replacing the Cover .......................................................................................................................................................17
Configuring J1772 Cable Operation .................................................................................................................................18
Testing Cable Operation .......................................................................................................................................................... 18
Setting the Cable Lowering Height for ADA............................................................................................................................. 18
Installation Notes...........................................................................................................................................................19
Dip Switch Settings ........................................................................................................................................................20
Operation ......................................................................................................................................................................21
Testing and Fault Modes ................................................................................................................................................22
Status Indicator Chart.............................................................................................................................................................. 23
User Maintenance..........................................................................................................................................................24
Moving, Transporting and Storage.......................................................................................................................................... 24
Customer Support..........................................................................................................................................................25
Warranty .......................................................................................................................................................................26

3722-IG-002 Installation and User Manual February 6, 2019
iv
Important Notes
Safety and Compliance
This document provides instructions for installing the Charging Station Model 3722 Series. Before installation of the Charging
Station by licensed professionals, you should review this manual carefully and consult with a licensed contractor, licensed
electrician and trained installation expert to ensure compliance with local building practices, climate conditions, safety
standards, and state and local codes.
The Charging Station should be inspected by a qualified installer prior to initial use. Under no circumstances will compliance
with the information in this manual relieve the user of responsibility to comply with all applicable codes or safety standards.
This document describes the most commonly-used installation and mounting scenarios. If situations arise in which it is not
possible to perform an installation following the procedures provided in this document, contact Control Module Inc., EVSE
LLC. Control Module Inc., EVSE LLC, is not responsible for any damages that may occur resulting from custom installations
that are not described in this document.
Limitation of Liability
IN NO EVENT SHALL CONTROL MODULE INC., EVSE LLC, OR ITS AUTHORIZED DISTRIBUTORS BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST
DATA, LOSS OF USE, COST OF COVER, OR LOSS OR DAMAGE TO THE WATT POINT CHARGING STATION, ARISING OUT OF OR
RELATING TO THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CONTROL MODULE INC., EVSE LLC, OR ITS AUTHORIZED
DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at their own expense.
Important
Changes or modifications to this product not authorized by Control Module Inc., EVSE LLC, could affect the EMC compliance
and revoke your authority to operate this product.
Exposure to Radio Frequency Energy
The radiated power output of the ZigBee® radio (optional) in this device is below the FCC radio frequency exposure limits for
uncontrolled equipment. This device should be operated with a minimum distance of at least 7.8 inches (20 cm) between the
ZigBee antenna and a person’s body, and must not be co-located with any other antenna or transmitter by the manufacturer,
subject to the conditions of the FCC Grant.
No Accuracy Guarantee
Reasonable effort was made to ensure that the specifications and other information contained in this manual are accurate
and complete at the time of publication. The specifications and other information in this manual, however, are subject to
change at any time and without prior notice.
U.S. Patents
Patents Pending

3722-IG-002 Installation and User Manual February 6, 2019
v
Copyright and Trademarks
Copyright 2018 Control Module Inc., EVSE LLC. All rights reserved. This material is protected by the copyright laws of the
United States and other countries. It may not be modified, reproduced or distributed without the prior, express written
consent of Control Module Inc., EVSE LLC.
The EVSE LLC logo is the trademark of Control Module Industries, Inc.
ZigBee is a registered trademark of the ZigBee Alliance.

3722-IG-002 Installation and User Manual February 6, 2019
vi
Instructions Pertaining To Risk of Fire or Electrical Shock
The following is a summary of safety concerns relevant to the installation and use of the Model 3722 EVSE unit. Failure to
follow these safety instructions may lead to serious injury, death and/or damage to the equipment.
WARNING: is used to provide a warning of hazardous voltage and possibility of electric shock.
CAUTION: is used to provide awareness of important safety information in these instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Only qualified personnel should perform the installation. This installation must be performed in
accordance with all local electrical/building codes and ordinances. Follow lockout/tagout
procedures.
Improper connection of the equipment grounding conductor may result in a risk of electric shock.
Reference National Electrical Code, ANSI/NFPA 70 for proper sizing of the ground conductor.
Do not use this product if the flexible power cord or EV cable are frayed, have broken insulation, or
show any signs of damage.
CAUTION: This device is intended to be used to charge vehicles that do not require ventilation during charging.
To reduce the risk of fire, connect only to a dedicated circuit with 40A maximum branch circuit
over–current protection in accordance with the National Electrical Code, ANSI/NFPA 70.
(For ZigBee equipped units)
To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of
7.8 inches (20 cm) or more should be maintained between the antenna of this device and persons
during device operation. To ensure compliance, operations at closer than this distance is not
recommended. The antenna used for this transmitter must not be co-located in conjunction with
any other antenna or transmitter.
Additional considerations which will contribute to safe operation of this unit include the following:
DO:
Read all instructions before using this product.
The device should be supervised when used around children.
In case of a problem, contact your installer or CMI Customer Support.
DON’T:
Put fingers into the electric vehicle connector.
Use this product if the enclosure or the EV connectors are broken, cracked, open or show any other indication
of damage.Attempt to repair or service the unit yourself.
SAVE THESE INSTRUCTIONS

3722-IG-002 Installation and User Manual February 6, 2019
vii
Instructions De Sécurité Importantes
AVERTISSEMENT: sert à fournir une alerte de tensions dangereuses et possibilité de choc électrique.
ATTENTION : est utilisé pour fournir la sensibilisation des renseignements importants dans ces instructions.
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT: Seul le personnel qualifié doit effectuer l'installation. Cette installation doit être effectuée
conformément à tous les codes électrique/bâtiment locaux et ordonnances. Suivre les
procédures de verrouillage/verrouillage.
Connexion inadéquate de l'équipement échouement du chef d'orchestre peut entraîner un
risque de choc électrique. Code National de l'électricité, ANSI/NFPA 70 pour le
dimensionnement bon chef d'orchestre au sol de référence.
Ne pas utiliser ce produit si le code de la puissance souple ou l'EV sont effiloché de câble, ont
brisé isolant ou présentent pas de signes de dommages.
ATTENTION: Ce dispositif est destiné à être utilisé pour charger les véhicules qui ne nécessitent pas de ventilation
pendant la recharge.
Afin de réduire le risque d'incendie, se connecter uniquement à un circuit dédié avec 40 a maximum
des branches circuit over–current protection conformément aux dispositions du Code électrique
National, ANSI/NFPA 70.
(Pour les unités de ZigBee équipé)
Pour satisfaire les exigences de l'exposition du FCC RF pour des périphériques mobiles de
transmission, une distance de séparation de 20 cm ou plus devrait être maintenue entre l'antenne
de ce dispositif et de personnes au cours de l'opération de l'appareil. Afin d'assurer la conformité
des opérations au plus près que cette distance n'est pas recommandée. L'antenne utilisée pour cet
émetteur ne doit pas être colocalisé conjointement avec une autre antenne ou éme.
Voici d'autres considérations qui contribueront à la sécurité de fonctionnement de cette unité:
DO:
Lire toutes les instructions avant d'utiliser ce produit.
Le dispositif devrait être supervisé lorsqu'il est utilisé autour des enfants.
En cas de problème, contactez votre installateur ou soutien à la clientèle CMI.
NE PAS:
Mettre les doigts dans le connecteur de véhicule électrique.
Utiliser ce produit si l'enceinte ou les connecteurs EV sont cassées, fissuré, ouvrir ou afficher toute autre indication
de dommages.
Tenter de réparer ou d'un service de l'unité de vous-même.
ENREGISTREZ CES INSTRUCTIONS

User Manual and Installation Guide
Model 3722-001 (Rev. J) Overhead EVSE / 30A
Copyright EVSE LLC 2012-2015. All rights reserved. Patents pending.
1
Introduction to Model 3722-A30XX EVSE Unit
The Model 3722 Electric Vehicle Supply Equipment (EVSE) is a 7.2 KW ceiling-mounted EVSE with cable management
retraction, capable of providing up to 30A at 208-240VAC, single phase, 50 or 60Hz. This unit complies with the SAE J1772
specifications for supplying electrical power to a J1772 compatible Electric Vehicle (EV). The Model 3722 stores the power
cable safely out of reach and off the ground, eliminating a tripping hazard and tampering. When the Model 3722 is activated
by using either the separately mounted ON switch or via a separately mounted Payment/Gateway Module transaction, the
cable and connector lower to an ADA height where it can be easily reached and extended a maximum of 20 feet to the
Electric Vehicle power inlet by pressing and holding the switch on the J1772 connector (Figure 1).
The Model 3722 is comprised of the Electric Vehicle Supply Equipment (EVSE) with a motorized cable controller and the Data
Router, which is used to activate the EVSE (turning it on or off). There are a number of operating options that are compatible
with the Model 3722, ranging from simple ON switches, to a Data Router that displays kW’s used, the price per kW, and the
total sale cost. The operating option you select is included with the shipment of the EVSE unit.
J1772 Connector
Extension Switch
Zigbee Antenna
(Optional)
Data Router
RF Wireless
Simple ON
Switch (Optional)
Remote RF
Antenna (Optional)
Figure 1
Wired Simple
ON Switch
(Optional)

3722-IG-002 Installation and User Manual February 6, 2019
2
Safety Features
Tamper Resistent - The J1772 power cord and connector are locked mechanically in the storage position.
Extension - The cable initially lowers to an ADA height, and by pressing the switch on the J1772 connector, the
cable to driven out to the desired length.
Jam Resistent - If you pull the charging cable while it is retracting or if the cable gets caught on anything, cable
retraction will stop. The cable will make one additional attempt to retract. Thereafter, pressing and
releasing the switch on the J1772 connector (Figure 19) will restart the cable retraction process.
Spark Resistent - Electrical power is not applied to the power connector until the J1772 connector is fully inserted into
the power inlet on the Electric Vehicle and communication between the vehicle and charger has been
established. When the switch is pressed on the J1772 connector, voltage is removed.
Shock Resistent - The Model 3722 EVSE is equipped with a Ground Fault Circuit Interrupter (GFCI) which will disconnect
the electrical voltage from the power cord and connector, should current leakage to ground exceed
20 mA. The GFCI circuit is automatically tested at the start of each charge sequence. The GFCI will
attempt three re-closures to see the ground fault cleared before reporting a problem.
Over Current - The Model 3722 EVSE, when in use, continuously monitors the current being delivered to the EV.
Should the current exceed 32A for 15 seconds, the Model 3722 EVSE will disconnect the power to the
EV before the breaker trips. After disconnecting, the 3722 will auto-reset.
Low-Line - The source voltage to the Model 3722 EVSE is continuously monitored while in use. Should the voltage
drop below 180 VAC, the EVSE will disconnect the voltage from the EV to prevent damage to the EV’s
electronic circuits. When the voltage returns to above 200 VAC, the power will be restored to the EV.
Cold Load Start –If power fails while the Model 3722 EVSE is connected and charging an EV, charging will automatically
resume when power is restored. No user intervention is required. The charging will however, be
randomly delayed from 2 to 5 minutes to prevent the power grid from incurring a large power surge.
Plug-Out Detection - The model 3722 EVSE is equipped with a Plug Out Detection circuit that identifies when the connector
is attached to the electric vehicle. This allows the EVSE to immediately remove electric power from the
electric vehicle before the connector is totally removed from the vehicle inlet.
Disconnect Switch - The 3722 is equipped with an internal disconnect switch for locally shutting off power in the event the
unit needs to be serviced or inspected.
Payment Options
A Payment Module is used with the 3722 EVSE in fee-based electric vehicle charging environments to facilitate commercial
transactions. The 3725-104 Payment Module can be located on a pole, nearby on a wall, or mounted remotely from EVSE.
Refer to the 3725 User Manual and Installation Guide for more information about the Payment Module.
Note: A Gateway Module (Model 3727-200) can be used in place of the Payment Module when two-way communication is
required without payment functions. . Refer to the 3727 User Manual and Installation Guide for more information
about the Gateway Module.
Communication Options
There are two communication options available for facilitating communication between the EVSE and payment or gateway
systems:
Serial Connection
A serial connection can be established between one or more 3722 EVSEs and a Payment Module or Gateway. A single serial
Payment Module or Gateway can support from one to eight EVSEs, depending upon its configuration.

3722-IG-002 Installation and User Manual February 6, 2019
3
ZigBee Connection
The 3722 EVSE will also communicate to a Gateway or Payment Module using the ZigBee Mesh protocol, allowing wireless
connections. ZigBee networks are secured by 128-bit symmetric encryption keys, so security is assured. A single ZigBee
Payment Module or Gateway can support up to 32 remote EVSEs.
Remote Connection
Remote connections between 3722 EVSEs and a Payment Module can be made, typically using a ZigBee Mesh network. This
allows the EVSEs and Payment Module to be located a greater distance from each other, and also a greater number of EVSEs
to work with a single Payment Module. (See chart below).
EVSE to Payment Module Connection
EVSE to Payment Module Distance
EVSEs per Payment
Module
Serial
Cable length should be no more than 180 feet from
any EVSE to the Payment Module.
8
ZigBee Mesh Network
Cable Length
Indoors: 30 –65 feet (Depending on walls to
penetrate.)
Outdoors: Up to 4800 feet (Line-of-sight,
depending on signal strength and
environmental conditions.)
32
NOTE: Administrative data can be transmitted to a remote laptop computer (via the Gateway with a ZigBee Mesh network -
option only) without accessing an external network.
Additional Options
Data Router: The Data Router (Figure 18) in the charger is supplied with a basic ON/OFF keyboard for either free use, or use
in conjunction with an optional Payment or Gateway Module. The charger can also be equipped with a Data
Router with an optional Handbook 44-compliant display module to display Kilowatts (kW) (Figure 18A) used
and the associated cost.
EUMD: The Handbook 44-compliant Data Router displays the data collected by an EUMD Module (End-User
Measurement Device), which is an internal revenue-grade meter that measures power dispersed to the vehicle
during a session with 1% or better accuracy. The EUMD can also be installed and used by itself to send power
measurements back to the host.
Remote Fob:An external module can be purchased that receives RF signals from a remote fob to lower the EVSE J1772
power cable, operating the same as the wall-mounted ON switch.
Power: With the addition of an internal jumper plug, the 3722 can be set up for use with a 20A breaker, reducing
maximum charge current to 16A.

3722-IG-002 Installation and User Manual February 6, 2019
4
Specifications
Product Code
Product Code
3722-A30XX
Electrical*
Voltage
Current (Rated)
Current (Simulated Level 1)
208-240 VAC
30A
7A@208-240 VAC (On Command)
Connections
Line 1 and 2, Ground, (Neutral Not Required)
Required Service (Breaker Panel)
2-pole 40A breaker Non GFCI on a dedicated circuit/20A Switchable by
Dip Settings
Stand By Power (Per EVSE)
Power Output
Less than 10W typical (without communication/Payment Module/Gateway
operating)
7.2kW
Safety Features
Over Current Disconnect
32A
Surge Protection
6KV @ 3000A
Ground Fault
Internal 20 mA CCID with auto re-closure (three attempts)
Compliance
Safety
IEC/UL/CSA C22.2 NO. 61010-1, UL2594, UL2231-1&2, NEC Article 625,
SAE J1772
EMC
FCC Part 15 Class A, Canadian ICES-003
Communications
Zigbee
FCC ID: MCQ-PS2CTH, IC: 1846A-PS2CTH
Environmental
Operating Temperature
-22° to 122° F (-30° C to 50° C) ambient
Operating Humidity
Up to 95% non-condensing
NEMA Rating
NEMA 3R
General
Dimensions
Weight
Mounting
22 ¾” x 22 ¾” x 11 ¼”
42 lbs
Ceiling (Typically to Unistrut)
*Observe all required Lockout/Tagout procedures while making any electrical connections, or servicing the unit.

3722-IG-002 Installation and User Manual February 6, 2019
5
Site Preparation
The Model 3722 (Figure 2) is a single EVSE unit designed to be mounted to a garage ceiling in a horizontal position. Power
must be located at the charging location and supplied by an individual, dedicated 40A non-GFCI circuit breaker at the breaker
panel. A qualified electrician or installer should provide local power at the charging site, install conduit back to the main
breaker panel and make final wiring connections for power at the breaker panel.
Dimensions
Figure 2

3722-IG-002 Installation and User Manual February 6, 2019
6
Site Selection
The Model 3722 was designed to be mounted to the ceiling and should be positioned, if possible, so that when the J1772
power connector is lowered, it will be close to the power inlet on the electric vehicle. This location is recommended because
the cable, when extended, has a 20 ft. reach (Figure 3), easily reaching the front, rear or side of the Electric Vehicle being
serviced. It is also recommended that the cable lowers between vehicles to make it easier to access the power inlet and
prevent the power connector from hitting the vehicle(s).
Figure 3

3722-IG-002 Installation and User Manual February 6, 2019
7
The ON Switch option should be located on a wall within 30-wire feet from the EVSE, 250 feet for the wireless version
(Figure 4), and 4 feet above the floor.
Figure 4

3722-IG-002 Installation and User Manual February 6, 2019
8
2010 ADA Standards for Accessible Design
According to the 2010 Americans With Disabilities Standards for Accessible Design, “Each facility or part of a facility
constructed by, on behalf of, or for the use of a public entity shall be designed and constructed in such manner that the
facility or part of the facility is readily accessible to and usable by individuals with disabilities, if the construction was
commenced after January 26, 1992.”
While installers should be knowledgeable about all aspects of the requirement, several critical paragraphs and illustrative
figures (Fig. 5A-5E) are referenced below to assist with locating the EVSE to meet reach and obstruction requirements of the
Act. When properly located relative to the curb, the Model 3722 is compliant with all aspects of the following ADA
paragraphs.
303.2 Changes in Level –Vertical
Changes in level of ¼ inch (6.4 mm) high maximum shall be
permitted to the vertical.
Figure 5A
308.2.1 Forward Reach –Unobstructed
Where a forward reach is unobstructed, the high forward
reach shall be 48 inches (1220 mm) maximum and low
forward reach shall be 15 inches (380 mm) minimum above
the finish floor or ground.
Figure 5B
308.2.2 Forward Reach –Obstructed High Reach
Where a high forward reach is over an obstruction, the
clear floor space shall extend beneath the element for a
distance not less than the required reach depth over the
obstruction. The high forward reach shall be 48 inches
(1220 mm) maximum where the reach depth is 20 inches
(510 mm). Where the reach depth exceeds 20 inches (510
mm), the high forward reach shall be 44 inches (1120 mm)
maximum and the reach depth shall be 25 inches (635 mm)
maximum.
Figure 5C

3722-IG-002 Installation and User Manual February 6, 2019
9
308.3.1 Side Reach –Unobstructed
Where a clear floor or ground space allows a parallel
approach to an element and the side reach is
unobstructed, the high side reach shall be 48 inches (1220
mm) maximum and the low side reach shall be 15 inches
(380 mm) minimum above the finish floor or ground.
Figure 5D
308.3.2 Side Reach –Obstructed High Reach
Where a clear floor or ground space allows a parallel
approach to an element and the high side reach is over an
obstruction, the height of the obstruction shall be 34
inches (865 mm) maximum and the depth of the
obstruction shall be 24 inches (610 mm) maximum. The
high side reach shall be 48 inches (1220 mm) maximum for
a reach depth of 10 inches (255 mm) maximum. Where
the reach depth exceeds 10 inches (255 mm), the high side
reach shall be 46 inches (1170 mm) maximum for a reach
depth of 24 inches (610 mm) maximum.
Figure 5E
309 Operable Parts
309.1 General –Operable parts shall comply with 309.
309.2 Clear Floor Space –A clear floor space or ground
space complying with 305 shall be provided.
309.3 Height –Operable parts shall be placed within one or
more of the reach ranges specified in 308.
309.4 Operation –Operable parts shall be operable with
one hand and shall not require tight grasping, pinching, or
twisting of the wrist. The force required to activate
operable parts shall be 5 pounds maximum.
NOTE: In order to remain ADA-compliant, from the user’s perspective, the 3722’s wireless or wired ON button MUST be no
more than 48 inches from the ground.

3722-IG-002 Installation and User Manual February 6, 2019
10
Electrical Service Connections
Note: Observe all required Lockout/Tagout procedures while making any electrical connections, or servicing the Model 3722.
Caution:
The two phases used must each
measure 120V to Neutral.
Earth Ground must be
connected to Neutral at only
one point, usually at the Service
Entry Breaker Panel.
Caution:
This EVSE is a single-phase device. Do not
connect all 3 phases of a 3-phase feed!!! You
may use any two phases of a 3-phase, Wye-
connected feed ! The center-point of the 3
phases (usually used as Neutral) must be
grounded somewhere in the system. A current-
carrying Neutral is not needed by the Model
3722. The two phases used must each measure
120V to Neutral.
1) 220/240 VAC, Single Phase Transformer:
2) 208 VAC 3-Phase Wye Transformer:
Note: A 40 Amp. Non-GFCI breaker is required for the EVSE.
Model 3722-001
Figure 6A
(See Fig.10)
Attention:
Les deux phases utilisés doivent
chaque 120V mesure au Neutre.
Motif de la terre doit être
connecté au Neutre à un seul
point, habituellement à l'entrée de
Service Breaker Panel.
Attention:
Cette EVSE est un appareil monophasé. Ne pas connecter tous les 3
phases d'un flux de phase 3!!! Vous pouvez utiliser tout deux phases
d'une phase 3, Wye connecté nourrir ! Le point central des 3 phases
(généralement utilisé comme Neutre) doit reposer quelque part dans le
système. Il n'est pas nécessaire de Neutre porteurs de courant par le
Modèle 3722. Les deux phases utilisés doivent chaque 120V mesure au
Neutre.
Figure 6B
Power Disconnect
Switch
Power Disconnect
Switch

3722-IG-002 Installation and User Manual February 6, 2019
11
3) 240V Delta Transformer:
Caution:
When using a delta-style power source for the
EVSE Model 3722, there must be a center tap.
Only the two phases on either side of the
center tap (L1 and L2) can be used and each
must measure 120V to Neutral. If this is not
done, the ground-fault protection will not
function properly. Also, the center tap must be
connected to ground.
Note: A 40 Amp. Non-GFCI breaker is required for the EVSE.
Figure 6C
Attention:
Lorsque vous utilisez une source d'alimentation de
Delta-style pour le modèle de EVSE 3722, il doit y avoir
un robinet center. Seuls les deux phases de chaque
côté de l'eau du robinet center (L1 et L2) peuvent être
utilisés et chacun doit mesurer 120 v au Neutre. Si cela
n'est pas fait, la protection du sol-faute ne
fonctionnera pas correctement.
Power Disconnect
Switch

3722-IG-002 Installation and User Manual February 6, 2019
12
Figure 7A
Installation
Recommended Mounting Method
Refer to the following table for a list of parts needed for installation that are not supplied as part of the EVSE unit. These
parts may be purchased at any reputable building supply store. Ensure that all parts meet or exceed local building codes for
quality.
Item
Qty.
Unistrut
2 sections (each 23 inches long min)
Simpson strong tie p/n DIA 375 or equivalent
4 min. or as required for use in concrete
¼” x 1” stainless bolts
4
¼” spring nuts
4
¾” electrical conduit
As required
Brackets and hardware to secure the conduit
As required
Wire (minimum wire size is #10, insulated copper. Wire size determined per
electrical code.)
As required
Removing the 3722 from the Shipping Box
Figure 7
1. Place the box on a safe, flat surface and remove the top of the box.
2. Lift the middle insert out (Figure 7).
3. Lift one side of the unit up, remove the side foam framing and gently lower the unit back down. Repeat for the other
foam frame (Figure 7).
4. Remove the charger from the box.
5. Remove the two side screws from each side of the unit and lift the cover off. Place the cover and 4 screws in a safe
place (Figure 7). Remove the FOB, which is taped to the main plate underneath the Data Router (Figure 7A)
6. Remove the four thread-forming screws and place them aside for future use (Figure 7A). Also, locate the bag
containing screws and washers for future use.
Figure 7A
FOB

3722-IG-002 Installation and User Manual February 6, 2019
13
7. From the front of the unit where the J1772 charger connector protrudes, gently lift up the unit and slide it out from
the ceiling mounting plate.
Figure 7B
Mounting the Unistruts to the Ceiling
The Unistruts used in this installation are not supplied in the kit. They can be purchased at any reputable building supply
source. Two pieces are required with a minimum length of 23 inches.
CAUTION:
The mounting of the two Unistrut sections must be secured to a solid structure (such as the ceiling
joists) using appropriate fasteners and must be level. Do not use hollow wall anchors. The EVSE
unit weighs 42 lbs. (plus the Unistruts and attaching hardware). Serious injury or death can result if
the EVSE unit falls onto personnel during installation or operation.
ATTENTION:
Le montage des 2 Unistrut sections doit être sécurisé une structure solide (comme les solives de
plafond) à l'aide de fixations appropriées. N'utilisez pas les ancres de mur creux. L'unité EVSE pèse
42 lbs (ainsi que le Unistruts et y attacher le matériel). Des blessures graves ou décès peut se
produire si l'unité EVSE tombe sur le personnel pendant l'installation ou de la conduite.
1. Use the 3722’s ceiling mount plate (Figure 7B), which has identification labels on it, to identify where AC power
needs to be brought in and where the J1772 connector will be lowered from. Then determine the location to install
the Unistruts.
2. Layout an appropriate hole pattern on the ceiling according to the dimensions in Figure 2. Drill pilot holes if
necessary.
3. Secure the two Unistrut sections to the ceiling using appropriate hardware (not included). The recommended
concrete fastener is a Simpson strong tie p/n DIA 375 or equivalent. Note the minimum holding force required is 500
lb. per fastener and four fasteners are required (two per unistrut minimum).
Rear Access Holes for
AC and Wired ON/OFF
Communication
Front of 3722. This
label represents where
the J1772 Cable is
lowered.
Ceiling Mounting Plate
