Evsedo Ac011k-ae-25 User manual

EVSEDO-AC011K-AE-25

User Guide

01.01.001.2021/09-en

EVSEDO-AC011K-AE-25

This document contains general descriptions and/or general technical specifications of

the products mentioned. It cannot be used to determine the suitability or reliability of

these products for specific user applications. It is the responsibility of each user or

integrator to conduct the appropriate risk analysis in full, assessing and testing products

as regards the application in which they will be used and the execution of this application.

Neither IPC2U, EVSEDO nor any of its affiliated companies or subsidiaries can be held

responsible for incorrect use of the information contained in this document. If you have

any suggestions for improvements or correction, or have found errors in this publication,

please notify us.

No part of this document may be reproduced in any form or by any means, electronic

or mechanical, including photocopying, without express written permission from IPC2U

GmbH.

All relevant state, regional, and local safety regulations must be observed when

installing and using this product. For reasons of safety and to ensure compliance with

documented system data, only the manufacturer should perform repairs to components.

When equipment is used for applications with technical safety requirements, follow

the relevant instructions.

Failure to follow this instruction can result in injury or equipment damage.

EVSEDO-AC011K-AE-25
Page | 3 2021© IPC2U GmbH. All rights reserved 01.01.001.2021/09-en
Table of Contents
Safety Information ..............................................................4
1. Important Information ..................................................4
HAZARD CATEGORIES AND SPECIAL SYMBOLS......................4
IMPORTANT NOTE.................................................................5
SAFETY INFORMATION..........................................................5
About This Manual ..............................................................6
1. Aim of This Document...................................................6
2. Area of Application........................................................6
3. Related Documents.......................................................6
Overview .............................................................................7
1. Introduction ..................................................................7
2. Description of the Charging Station ..............................8
3. Storing the charging cable.............................................9
Using .................................................................................10
1. Starting Charging.........................................................11
2. Charging Station States ...............................................12
3. End of Charging...........................................................13
4. Stopping/restarting charging.......................................14
5. Stopping charging automatically .................................14
Characteristics...................................................................15
1. Conformity ..................................................................16
Care...................................................................................17
1. Cleaning the Charging Station.....................................17
Malfunctions .....................................................................18
1. Intervention.................................................................18
Protecting the Environment..............................................19
1. Recycling Packaging.....................................................19
2. End-of-Life Recycling...................................................19
Troubleshooting................................................................20
1. Fault Resolution ..........................................................20


EVSEDO-AC011K-AE-25

1. Safety Information

1.1. Important Information

HAZARD CATEGORIES AND SPECIAL SYMBOLS

Read these instructions carefully, and look at the equipment to become familiar with

the device before trying to install, operate, or maintain it. The following special messages

may appear throughout this documentation or on the equipment to warn of potential

hazards or to call attention to information that clarifies or simplifies a procedure.

The addition of one of these symbols to a Danger safety label on a

device indicates that an electrical hazard exists, which could result in death

or personal injury if the instructions are not followed.

This is the safety alert symbol. It warns you of a risk of physical injury.

You must comply strictly with the safety instructions associated with this

symbol to avoid injuring yourself or putting your life in danger.

DANGER indicates an imminently hazardous situation, which, if

not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which

could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which could

result in minor or moderate injury.

NOTICE indicates practices that do not involve the risk of bodily

injury.

EVSEDO-AC011K-AE-25

IMPORTANT NOTE

Electrical equipment should be installed, serviced, and maintained only by qualified

personnel. No responsibility is assumed by IPC2U for any consequences arising out of the

use of this documentation.

A qualified person is one who has skills and knowledge related to the construction and

operation of electrical equipment and installations, and has undertaken safety training in

order to recognize and avoid the hazards involved.

SAFETY INFORMATION

This charging station should not be used by anyone (including children) with reduced

physical, sensory or mental capacity, or anyone lacking in experience or knowledge, unless

they are provided with supervision or prior instruction in how to use the equipment by

the person responsible for their safety.

The EVSEDO range of charging stations is designed exclusively for charging electric

vehicles.

This equipment cannot be used to switch on/off the site ventilation at the vehicle's

request.

EVSEDO-AC011K-AE-25

2. About This Manual

2.1. Aim of This Document

The purpose of this user guide is to provide you with the necessary information to

charge your electric vehicle using an EVSEDO charging station.

Before using this equipment, read this user guide carefully and retain it so you can

consult it at a later date.

2.2. Area of Application

This user guide applies to the following charging stations:

Catalog Number

Supply

Type

Power Supply

Voltage

Maximum

Charging Power

Maximum

Charging

Current

Connector

Type

EVSEDO-AC011K-AE-25

3 Phase

400V AC

11 kW

16 A

2.3. Related Documents

You can download this user manual and other technical documents from our website:

www.evsedo.de

www.evsedo.com

EVSEDO-AC011K-AE-25

3. Overview

3.1. Introduction

EVSEDO-AC011K-AE-25 is an AC charging station that you can use to supply electricity

to an EV. The EVSEDO charging station offers tailor-made, intelligent and network

charging solutions for your company or home. The EVSEDO charging station can connect

to the internet via WiFi. Charging starts and stops by RFID carte or via app, when your

vehicle is connected to EVSEDO-AC011K-AE-25 charging station. The EVSEDO charging

station is intended for the AC charging of electro vehicles. The charging station is intended

for indoor or outdoor use. The charging station AC input is intended for a hardwired

installation that complies with the applicable national regulations.

EVSEDO-AC011K-AE-25

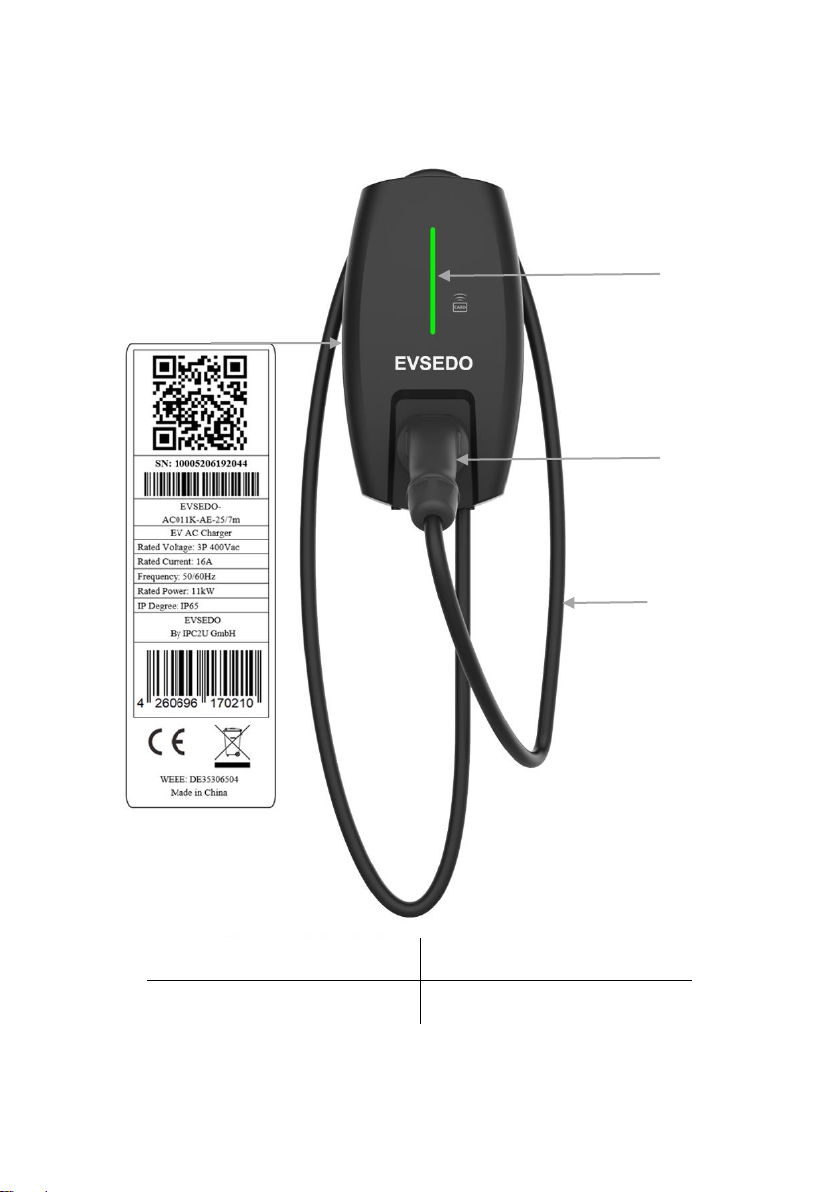

3.2. Description of the Charging Station

A- Product identification label

C- T2 connector

B- Status indicator light

D–Charging cable

EVSEDO-AC011K-AE-25

3.3. Storing the charging cable.

When not being used for charging, the cable must be

stored as shown in the figure below.

The cable connector should be placed in the connecter

holder.

EVSEDO-AC011K-AE-25

4. Using

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

•Do not use EVSEDO-AC011K-AE-25 if it appears to be

damaged or if the charging cable appears to be damaged.

•Do not attempt to touch the cable connector contacts, nor

introduce any objects.

•Never plug the charging cable into a multiple socket or an

extension cable.

•Do not modify the charging station installation.

•Do not wash the electric vehicle while it is charging.

Failure to follow these instructions will result in death or serious

injury.

FIRE HAZARDS

•Do not charge the vehicle if there is any water, evidence of

corrosion or foreign bodies in the charging cable

connector.

•Do not dismantle or modify the charging cable.

Failure to follow these instructions may result in death, serious

injury or equipment damage.

RISK OF DAMAGE TO THE CABLE

Unroll the charging cable to prevent it from overheating.

Failure to follow these instructions can result in equipment damage.

EVSEDO-AC011K-AE-25

4.1. Starting Charging.

•Prepare your vehicle for charging as per the manufacturer's instructions.

•Check that the charging station status indicator light is flashing green.

•Connect the vehicle to the charging station using the charging cable.

•Check that the charging station status indicator light is flashing yellow.

•Scan the RFID card near status indicator light on the front panel, for starting

charging process.

Charging process can be also start and controlled via mobile application

Chargeln.

•The start of charging can be postponed at the vehicle's request.

•Charging can be interrupted and restarted at any time by scanning the RFID card.

•The indicator light blinks green as soon as charging starts (which can be

postponed by the vehicle).

•When the EV is fully charged, the charging will stop

EVSEDO-AC011K-AE-25

4.2. Charging Station States

The indicator light on the front panel indicates the charging station status:

State

Description

LED Status

In the standby

Normal

Flashing green, 1S on, 4S off

Charging status

Normal

Breathing green, 1S on, 1S off

Plugged gun state

Normal

Breathing yellow, 1S on, 1S off

Software upgrade

Normal

Green light flash

Ground warning

Normal

Flashing yellow, 2S on, 2S off

Relay adhesion

Fault

Red light normally on

Input polarity reverse

Fault
