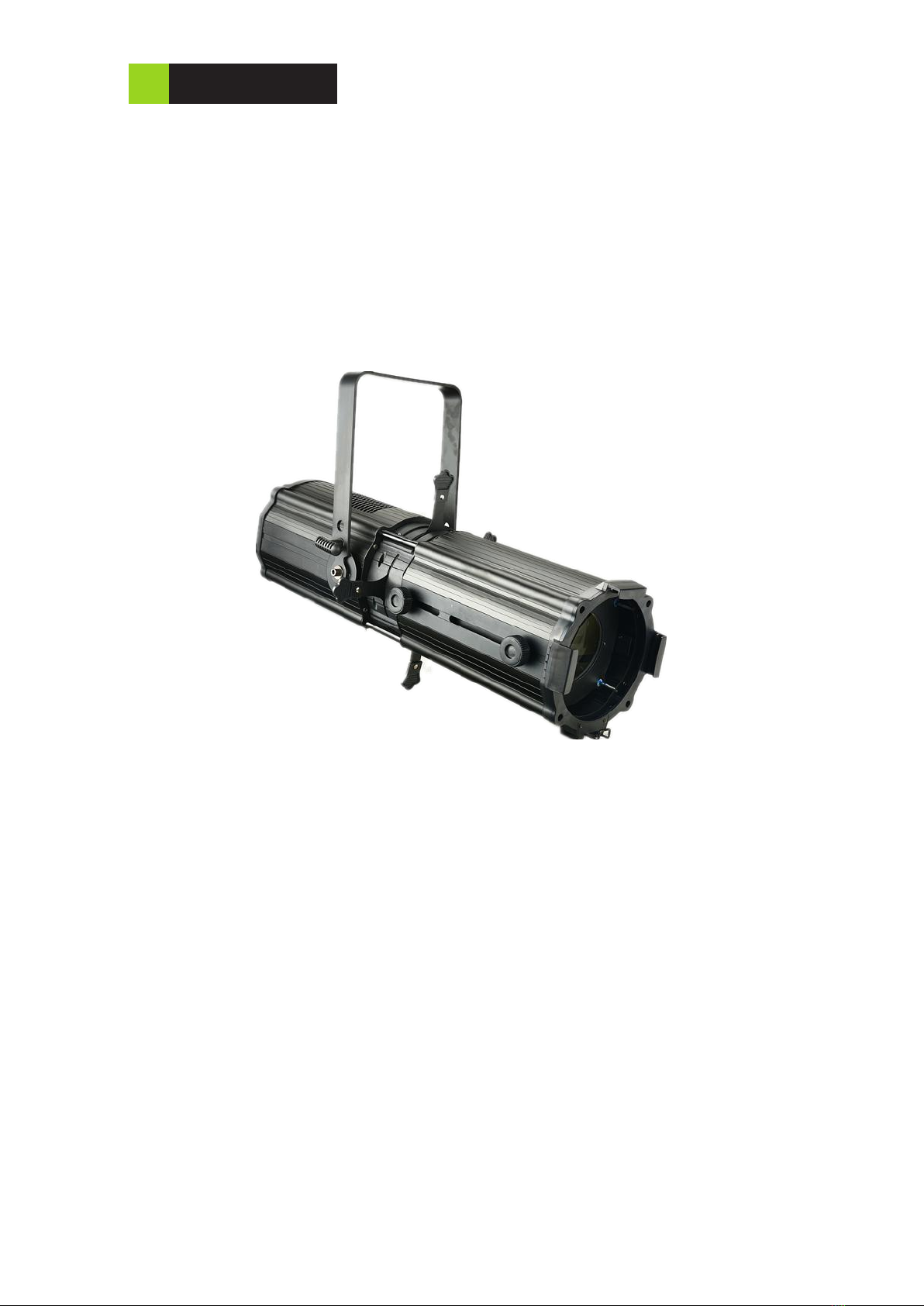

EXALite EXL-XL Profile Zoom User manual

EXL-XL Profile Zoom RGBW 200W
USER MANUAL
CE RoHS
EXALITE

1
Technical Parameter:
•LED POWER: 200W
•LED Color: RGBW 4in1 COB LED
•IC Chip :Epistar
•LED Life Time: over 10,000 hours
•Color Rendering Index(CRI): Ra≥90
•Voltage: AC90-260V 50-60Hz
•Max.power consumption: 260W
•Beam angle: Zoom from 20°to 45°
•Dimmer: 0~100% linearly adjustable
•Strobe: 1-25 times/sec
•Refresh Rate: >400 Video Flicker Free
•Focus: Can be adjusted by hand
•Technology: High-quality optical system , Glass reflector
•Control protocol: DMX 512
•Control System: DMX, Auto run and Master/Slave
•DMX Channels: 4/8CH
•Working Temperature: -30~40℃
•Cooling System: Low noise fan (one fan)
•Thermal Sensor Monitoring: Over-temperature Protection
•IP Grade: IP20
•Net Weight: 11kgs Gross Weight: 14kgs
•Packing Size: 80x30.5x31cm

2
1. Description
1.1. Character
4 control mode
External control mode
DMX512 controller controller mode （2 kind of DMX Channel）
Master/slave
Auto mode
Built-in Program
Different kind of Gradual change& Random change
Different kind of strobe：speed (slow to fast)、fix color( Strobe
+color、Strobe +Gradual change)……
Setting Program
It can setting the program without the controller , it can setting
Gradual change、jump change、strobe ...(different effect)
And the program data can be down load from master light to
slave light
Static model
It can fix the color without the controller ,also can be choose the
color with strobe
Sound model
Included 2 kinds of commonly used sound model
“Software cutting ”
In the STAR mode , working built-in program /setting program ,the light
would be turn off when the dimmer channel as "0"（procedure would
keep working)
The difference with “BLACKOUT” key(controller keys) &"Software
cutting" ：only work this light , and do not clear up the controller data .
White color
Setting different color temperature of white color
Screen Protection
Without operate key in 30 seconds , it enter black screen. Press any
keys then it can quit screen protection.
Temperature Protection
It can set to protect the temperature .
Speed of the Fan
The fan will be worked when the working temperature reach 40 degree,
and the speed will get the faster as the temperature get high.
Can be showed reverse display

3
1.2.Multi-light working in the same time
When using controller to control several lights , and using strobe , auto
mode, the controller just send the channel data . Those effect( strobe ,auto
running ,fix color)would be showed by itself. And should be attention for the
follow situation:
1. There will be many situation make the light become not synchronization
in the beginning. (For example: the different time of opening the light will make
them connect the controller in different time) . And you can change the
controller table puller data( from 20 to 0, and back to 20), then it can be
synchronization.
2. Due to different lights crystal frequency are not exactly equal, so it will
become not synchronization after long time.
3. If need to be synchronization for long time, there is 2 approaches:
A. Using the controller to make program make the strobe, auto run
effect to be synchronization.
B. Using the Maser/Slave model

4
2.Operation
2.1 Key operation
Menu：
The first list is the main menu (press MENU to
exchange), the second list is submenu (press
ENTER to get in or exchange)
If the menu include the decimal point, that’s the
data, and it can be set by the Key of Up/Down.
Key operation：
Key of “MENU” (Press it and can save the data)
If it’s the main menu, it will exchange to next
main menu.
If it’s the submenu , it will back to main menu.
Key of “ENTER” (Press it and can save the data)
If it’s the main menu and it have submenu, it will
enter the submenu.
If it’s the submenu, it will exchange to the next
submenu
Key of “UP/DOWN”
It’s no function if the menu not include the
decimal point.
If the menu include the decimal point, it can set
the data after the decimal point. And it need to
press “ENTER” to save the data.

5
2.2 Menu Data
Menu
State
Operation
Remark
Main Menu
Vice Menu
No vice menu
A: advance
UP/DOWN
adjust ID
adress
disconnect the
controller and
connect the
master light, then it
will follow the
master light.
It will flicker if no
signal.
External control
mode
(standard channel
model)
ENTER
save the ID
address
No vice menu
d: dmx
UP/DOWN
adjust ID
adress
External control
mode
(Basic channel
model)
ENTER
Save the ID
address
One vice menu
At: auto
UP/DOWN
Choose
program
Auto run
ENTER
Enter vice
menu
SP: speed
UP/DOWN
Adjust the
speed
select the speed of
auto run
ENTER
Save data
None
Sod: sound
UP/DOWN
change to
Sound control
Sound mode
ENTER
Save data
With multi-vice
menus
StAt: static
ENTER
Enter vice
menu
Static model
……
r、G、b、W……
UP/DOWN
Change the
value of led
Led set
ENTER
Save data
and change to
vice menu
St: strobe
UP/DOWN
Change the
value of
strobe
Strobe and the
speed
ENTER
Save data
and change
2 vice menu
tEMp: temperature
ENTER
enter the vice
menu

6
temperature control
current temperature
ENTER
change to
vice menu
t: top
UP/DOWN
change the
data of
temperature
protect
set the protect
temperature
ENTER
save and
change
With menus
Wt: white
UP/DOWN
Color temperature
setting
ENTER
Enter the vice
menu
……
r、G、b、W……
UP/DOWN
Change the
value of led
Change the value of
color temperature
ENTER
Sace data
and change to
vice menu
No vice menu
diSP: display
ENTER
reverse the
display
set to show reverse
display
No vice menu
rESt: reset
ENTER
enter the
interface of
key
the password is
“UP DONW UP
DOWN”
return Initial State

7
2.3 Channel data
2.3.1 Channel
Channel
Data
Function
1
0~255
Dimmer
2
0~255
Red
3
0~255
Green
4
0~255
Blue
5
0~255
White
6
0~30
No effect
31~200
Color change
201~205
Color temperature 1 (3200K)
Can be set via menu of
“WT.xx”
......
Color temperature 2~10 (each 5 data
is a color temperature)
250~255
Color temperature 11 (10000K)
7
0~10
No strobe
This channel can control the
speed when run the inner
program
11~255
The speed of strobe (255 is fasterest)
8
0~20
Speed of dimmer 4 (slowest and
softest)
21~40
Speed of dimmer 3
41~60
Speed of dimmer 2
61~80
Speed of dimmer 1
81~99
Speed pf dimmer off (no delay)
100~109
Inner program 1
......
......(each 10 data is a program)
190~199
Inner program 10
200~240
Change light led by sound model
241~255
Strobe by sound model
Channel
Data
Function
1
0~255
Red
2
0~255
Green
3
0~255
Blue
4
0~255
White

8
SAFETY WARNING
1. Warning
﹡Every person involved with the installation , operation and maintenance of this device has to be
qualified .
﹡User must follow the instructions of this manual
﹡Unqualified person can not open the housing cover and operate the device , or the dealer will not
accept liability for any resulting defects or problems.
﹡The device against rain and moisture
2. Waring notes :
﹡Power supply : AC 100V-240V , 50/60Hz
﹡Make sure the power switch is off , the power plug , outlet and the earth connection is in well condition
before connecting the device with the mains.
﹡Please use qualified power plug and the outlet. Never connect the power cord of this device with other
electrical equipment.
﹡During move and installation , make sure the device not crashed with metal parts and other tough
materials.
﹡Always disconnect from the mains, when the device is on the installation and dismantled
﹡The minimum distance between light-output and the illuminated surface must be more than 50cm
﹡The device must only be installed on a non-flammable surface . In order to safeguard sufficient
ventilation , leave 50cm of free space around the device . Please note that heat-sensitive objects may be
deformed or damaged by the emitted heat .
﹡During the operation the housing becomes very hot ! Do not operate the device for 15 minutes after
switching off .
﹡The maximum ambient temperature Ta = 45℃must never be exceeded , The maximum housing
temperature Tb = 80℃must never be exceeded .
﹡For indoor use
﹡Replace any visible cracked protective shield , filters and lens .
﹡The protective shiel, filters and lens will require weekly cleaning as smoke “Cfluid tends to building
up residues , reducing the light “Coutput very quickly.

9
APPENDIX

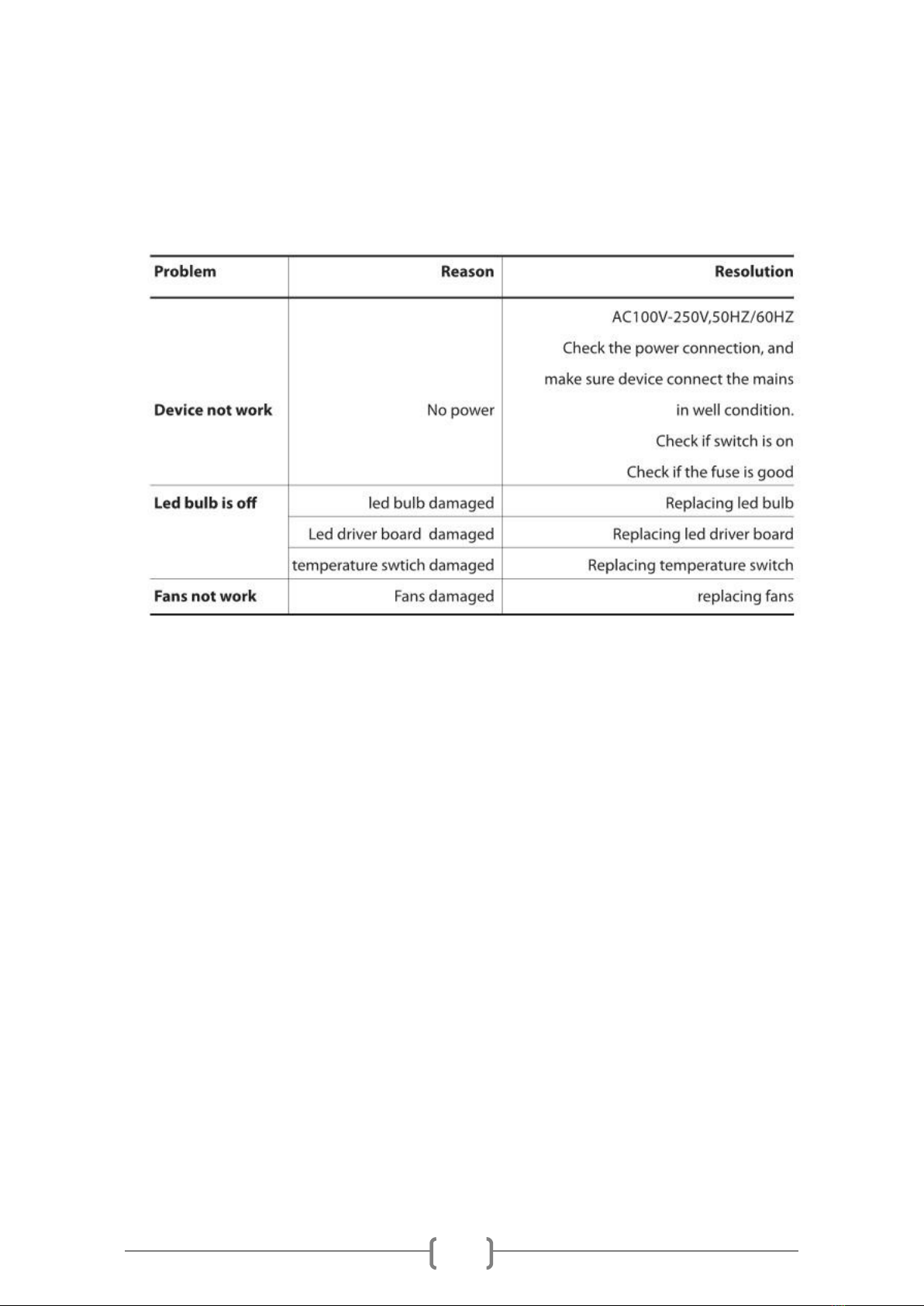

Problem and solution
Caution :
﹡Unqualified person involved with installation , operation and maintenance of this device is prohibited .
﹡If any above mentioned problem happened , or unknown problem happened , please contact
manufactory or distributor or distributor for assistance

10
DISCLAIMER
1. The device is with one year warranty . The warranty period appear non-artificial quality problem, this
company is responsible for free maintenance
2. User violate operation caused the machine failure, this is user responsibility.
3. If due to the wrong operation or intense impact caused product destroy even safety accidents, the
manufacturer does not undertake any responsibility
4. Prohibit replaced product components by any person, therefore caused any consequences will be
whose responsible
Please contact us freely when you need our related products or informations...
