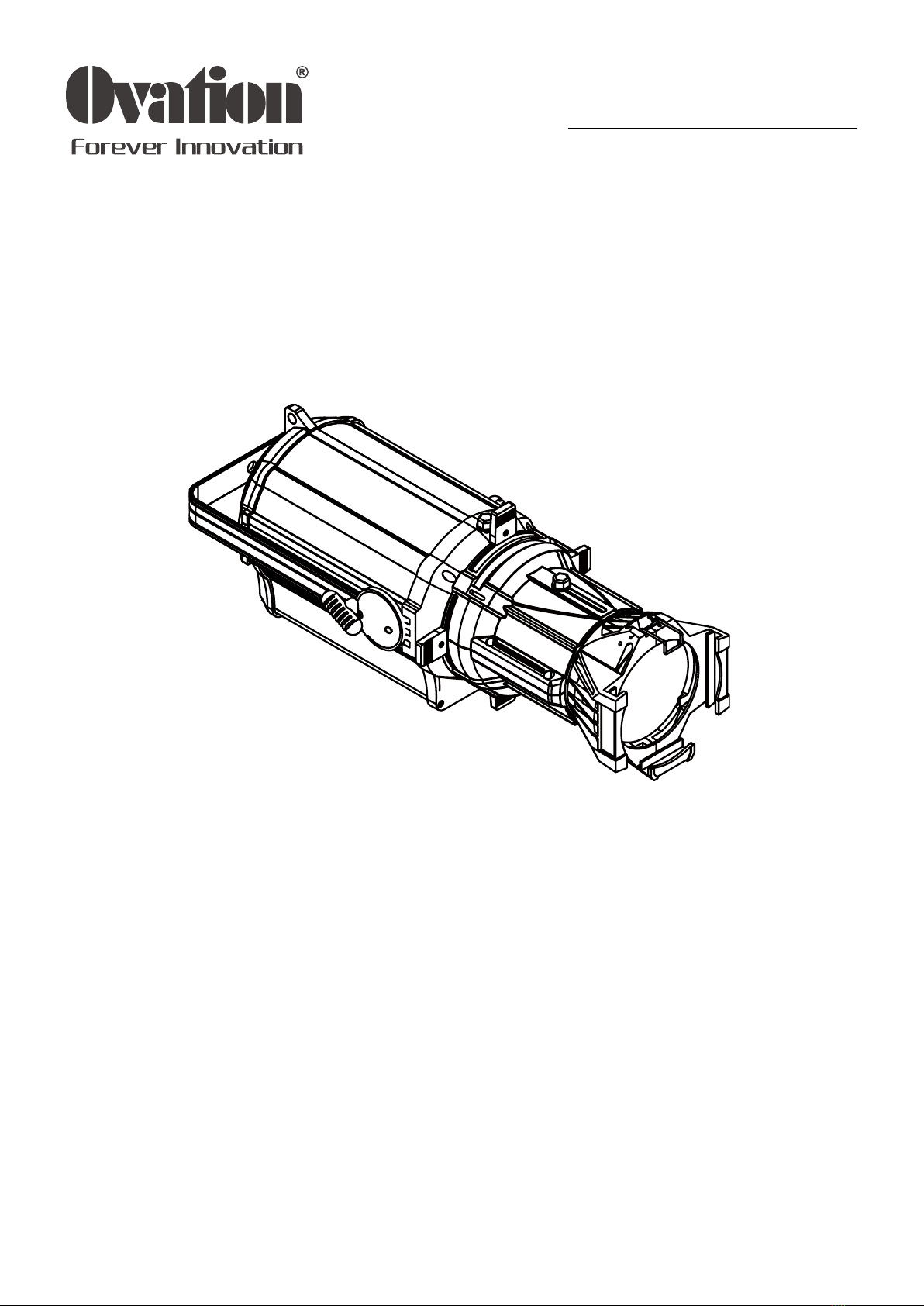

Ovation PROFILE S300 User manual

USER MANUAL
PROFILE S300PROFILE S300
300W LED profile spot light

Table of contents
Caution!������������������������������������������������������������������������������������������������������������������������������������������������ 3
Introduction������������������������������������������������������������������������������������������������������������������������������������������ 3
Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3
Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4
Read ‘Safety information’ before installing the xture. ................................................................................4
Fastening the xture to a at surface ...........................................................................................................4
Mounting the xture on a truss .....................................................................................................................4
Securing with a safety cable .........................................................................................................................4
DMX-512 connection/connection between xtures ....................................................................................5
Power connection ..........................................................................................................................................5
Operation ��������������������������������������������������������������������������������������������������������������������������������������������� 6
Control Menu Map .........................................................................................................................................6
Addressing ......................................................................................................................................................6
Universal DMX Control ...................................................................................................................................7
RDM control ....................................................................................................................................................7
DMX Protocol ��������������������������������������������������������������������������������������������������������������������������������������� 8
Fixture Cleaning ����������������������������������������������������������������������������������������������������������������������������������� 8
Fuse Replacement�������������������������������������������������������������������������������������������������������������������������������� 8
Troubleshooting ����������������������������������������������������������������������������������������������������������������������������������� 8
The xture does not work, no light ................................................................................................................8
Technical specications ����������������������������������������������������������������������������������������������������������������������� 9

3V1.0hotion.com
Caution!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires!
Avoid looking directly into the light source!
Wear protective glasses and other PPE (personal protective equipment) when working on or near
the xture.
For your own safety, please read this user manual carefully before you initial start-up.
Follow operating safety precautions and pay attention to warning signs methods and equipment
on the user manual.
Indoor use only! To prevent risk of re or shock, do not expose this product to rain or moisture. IP
20 rating.
The ambient temperature must always be between -5° C and +45° C.
Always make sure you are connecting this product to the proper voltage in accordance with the
specifications in this manual or on the product’s specification label.Make sure it is grounded
when using it!
Unplug mains lead before opening the housing!
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture
and the powercord from time to time.
Make sure to replace the fuse with another of the same type and rating.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot
during operation. After use, wait for a cool-down period of at least 10 minutes before handling or
transporting the device.
Every person involved with the installation, operation and maintenance of this device has to
- be qualied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet
Introduction
Thank you for having chosen Prole S300. You will see you acquired a powerful and versatile device.
Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans-
portation. Should there be any, consult your dealer and do not use the device.
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual. Always disconnect from the mains, when the device is not in
use or before cleaning it. Keep away children and amateurs from the device! There are no serviceable
parts inside the device. Maintenance and service operations are only to be carried out by authorized deal-
ers.

4V1.0hotion.com
Installation
Read ‘Safety information’ before installing the xture.
The xture is designed for indoor use only and must be used in a dry location with adequate ventilation.
Ensure that none of the xture’s ventilation slots are blocked.
Fasten the xture to a secure structure or surface. Do not stand it on a surface or leave it where it can be
moved or fall over. If you install the xture in a location where it may cause injury or damage if it falls, se-
cure it as directed in this user manual using a securely anchored safety cable that will hold the xture if
the primary fastening method fails.
Fastening the xture to a at surface
The xture can be fastened to a hard, xed, at surface that is oriented at any angle. Ensure that the sur-
face and all fasteners used can support at least 10 times the weight of all xtures and equipment to be
installed on it.
Fasten the xture securely. Do not stand it on a surface or leave it where it can be moved or fall over. If
you install the xture in a location where it may cause injury or damage if it falls, secure it as directed be-
low with a securely anchored safety cable that will hold the xture if the primary fastening method fails.
Mounting the xture on a truss
The xture can be clamped to a truss or similar rigging structure in any orientation. When installing the
xture hanging vertically down, you can use an open-type clamp such as a G-clamp. When installing in
any other orientation, you must use a half-coupler clamp that completely encircles the truss chord.
To clamp the xture to a truss:
1. Check that the rigging structure can support at least 10 times the weight of all xtures and equip-
ment to be installed on it.
2. Block access under the work area.
3. Fold the legs of the mounting bracket together and bolt a rigging clamp securely to the mounting
bracket. The bolt used must be M10, grade 8.8 steel minimum. It must pass through both mounting
bracket legs and be fastened with a self-locking nut.
4. Working from a stable platform, hang the xture with its clamp on the truss and fasten the clamp se-
curely.
5. Secure the xture with a safety cable as directed below.
Securing with a safety cable
Secure the xture with a safety cable (or other sec-
ondary attachment) that is approved for the weight
of the xture so that the safety cable will hold the
xture if a primary attachment fails.
Loop the safety cable through the eyebolt in the
back of the xture and around a secure anchoring
point. Do not loop the safety cable around the x-
ture’s mounting bracket only, as this will leave the
xture unsecured if it separates from the bracket.

5V1.0hotion.com
DMX-512 connection/connection between xtures
Occupation of the XLR-connection:
1. Group
2. Signal (-)
3. Signal (+)
DMX OUT
1. Group
2. Signal (-)
3. Signal (+)
DMX IN
If you are using controllers with this occupation, you can connect the DMX-output of the controller direct-
ly with the DMX-input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with
other XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture.
Always connect one output with the input of the next xture until all xtures are connected.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy environ-
ment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with
a 120 resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the
last xture in the chain.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω re-
sistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last
xture.
Power connection
Power Requirements
The Prole S300 zoom luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire
contains an auto-ranging power supply.
Power linking between xtures:
The xture with powercon in and out socket. Connect the power out to the power in socket in the next x-
ture till all are connected.
Caution: maximum power linking - 6 units.
Connection with the mains:
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection cables as below:
Cable color Connection International
Brown Live L
Blue Neutral N
Yellow/green Earth(Ground)

6V1.0hotion.com
Operation
The Prole S300 zoom can operate in three different modes. In each mode you can run the xture as a
stand alone xture or in a master/slave conugration. This next section will detail the differences in the
operating modes.
Control Menu Map
Default setting in bold.
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION INSTRUCTION
DMX 001-512 DMX address setting
Mode
DMX 1/2/3CH DMX channel mode
Auto Program 001-008 Preset programs
Speed 001-009 Programs speed
Maunal Brightness 000-255 Dimmer 0-100%
Strobe 000-255 Strobe with speed increasing
Dimmer
Curve 0.3-3.0 Dimmer curves adjustment
Mode
Standard Dimmer mode, Standard
Stage Dimmer mode, Stage
TV Dimmer mode, TV
Architecture Dimmer mode, Architecture
Theatre Dimmer mode, Theatre
Studio Studio power mode, silent
Custom
Fade in
(150 ms~2230 ms) Custom dimmer curve
Fade out
(150 ms~2230 ms)
Advance
Authorization On/Off
Advanced settings/calibration(Only
qualified technicians should
perform this function. Inqure your
local dealer for password.)
Signal Priority DMX DMX signal priority setting
Signal Hold On/Off Run if signal cut
RDM On/Off RDM function on/off
Screen Timeout 30S Display shut off time
Never
Screen Brightness 25-100% Display brightness
Dimming Freq 1.20 - 24.0 KHz Dimmr frequency setting
Reset Yes/No System reset
Reverse Yes/No Display reverse 180 degree
Addressing
All xtures should be given a DMX starting address when using a DMX signal, so that the correct xture
responds to the correct control signals. This digital starting address is the channel number from which
the xture starts to listen to the digital control information sent out from the DMX controller. The alloca-

7V1.0hotion.com
tion of this starting address is achieved by setting the correct number on the display located on the base
of the device.
You can set the same starting address for all xtures or a group of xtures, or make different address for
each xture individually.
If you set the same address, all the units will start to listen to the same control signal from the same
channel number. In other words, changing the settings of one channel will affect all the xtures simulta-
neously.
f you set a different address, each unit will start to listen to the channel number you have set, based on
the quantity of control channels of the unit. That means changing the settings of one channel will affect
only the selected xture.
In the case of the Prole S300 zoom, which is 1/2/3 channels xture. If you set, for example, the address
in the 1 channel mode to channel 2, the device will use the channel 2 for control.
Note: After switching on, the device will automatically detect whether DMX 512 data is received or
not. If there is data received at the DMX input, you will see the DMX indicator light in green.
Universal DMX Control
This function allows you to use a universal DMX-512 controller to control the dimmer and strobe. A DMX
controller allows you to create unique programs tailored to your individual needs.
RDM control
The Prole S300 can communicate using RDM (Remote Device Management) in accordance with ESTA’s
American National Standard E1.20-2006: Entertainment Technology RDM Remote Device Management
Over DMX512 Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open stan-
dard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting ex-
isting non-RDM equipment. It allows a console or dedicated RDM controller to send commands to and
receive messages from specic xtures.
With RDM function, you can set the DMX address of your xtures remotely. This is especially useful when
the device is installed in a remote area.
Each Prole S300 has a factory set RDM UID (unique identication number).
Note: Before operation, enable RDM function in Advanced settings.

8V1.0hotion.com
DMX Protocol
1 Channel Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
2 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Strobe 000-255: Strobe with speed increasing
3 Channels Mode Function Function Control
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Dimmer fine 000-255: 16 bit dimmer
CH3 Strobe 000-255: Strobe with speed increasing
Fixture Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should
be carried out periodically to optimize light output. Cleaning frequency depends on the environment in
which the xture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend cleaning
on a monthly basis. Periodic cleaning will ensure longevity, and crisp output.
To clean the xture:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of the xture with low-pres-
sure compressed air.
3. Clean the surfaces by wiping gently with a soft, clean lint-free cloth moistened with a weak detergent
solution. Do not rub glass surfaces hard: lift particles off with a soft repeated press. Dry with a soft,
clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscented tis-
sue or cotton swab moistened with glass cleaner or distilled water.
4. Check that the xture is dry before reapplying power.
Fuse Replacement
This fuse is located in a fuseholder next to the MAINS OUT socket on the connections panel.
To replace a fuse:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and
rating only.
3. Reinstall the fuseholder cap before reapplying power.
Troubleshooting
Listed below are a few common problems that you may encounter, with solutions.
The xture does not work, no light
• Check the connection of power and main fuse. Be sure the external fuse has not blown.
• Measure the mains voltage on the main connector.

9V1.0hotion.com
Technical specications
Model Prole S300
Power supply: AC100 - 240V, 50/60Hz
Light source: 300W COB LED
Color temperature: 3200K or 5600K optional
Color Rendition: CRI ≥ 97
Lens: 19°, 26°, 36°, 50° optional
Power connection: PowerCON in & out
Fuse: F5A, 250V
Maximum power linking: 6 units
Signal connection: 3-pin XLR in & out
DMX channels: 1/2/3
Control protocol: DMX512
Housing: Colour black, aluminum
Size: 700 x 270 x 263mm
N.W.: 9.2 kg
G.W.: 11 kg
Enviroment: IP20
Please note: All information is subject to change without prior notice� 13�05�2022
