Ittermann iSL 3014 User manual

Instruction Manual
for
Ittermann SpotLight LED-Flood light
iSL 3014
electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
Instruction Manual iSL 3014
Dated 09th of June 2011

Instruction Manual iSL 3014
Dated 09th of June 2011
Page 2/31
electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
Table of contents Page
5
5
5
5
7
7
8
9
9
11
11
12
12
13
14
41 General information
1.1 Product description
1.2 Vendor data
1.3 Compliance
1.4 Instruction Manual
1.5 Shipment
2 Terms and Definitions
3 Product Description
3.1 Designated Use
3.2 Design and over all functions
3.3 Type of user
3.4 Technical Data
3.5 Safety notes
4 Supplies
5 Preparation of the product for use
5.1 Preparation before installation
5.2 Installation and electrical connection
5.3 Transition
Technical information and specific terms
4
4
6 Operation
6.1 Preface
6.2 Mode without external control
(Stand-Alone mode)
6.3 Mode with external control
6.3.1 DMX-Mode
6.3.1.1 Technical information and specific terms
6.3.1.2 DMX-Networks with iSL3014
6.3.1.3 Adjustment of addresses
at the DIP-Switches
6.3.1.4 DMX-address from the internal storage
6.3.2 RDM-DMX-Mode
6.3.2.1
6.3.2.2 RDM-DMX-networks with iSL3014
15
15
15
16
16
16
21
22
24
25
25
28

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
Table of contents Page
29
29
29
30
30
31
31
A1
A1
A3
A5
A12
A17
B1
7 Cleaning, warranty and troubleshooting by user
7.1 Cleaning and warranty
7.2 Troubleshooting
8 Guarantee
9 List of spare parts
10 Abandonment
11 Subject index
A Appendix
Graphic chart of special programs and
DIP-switch adjustments in Stand-Alone mode
(Description on the example of the iSL3014-RGBW)
A.1 Special programs / Type A (SP / Type A)
A.2 Special programs / Type B (SP / Type B)
A.3 Special programs / Type C (SP / Type C)
A.4 Special programs / Type D (SP / Type D)
A.5 Special programs / Type E (SP / Type E)
B Appendix
Graphic chart of special programs
with DMX- and RDM-DMX mode
(Description example iSL3014-RGBW)
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 3/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
1 General information
1.1 Product description
1.2 Vendor data
Description Place of description
Name of producer: Ittermann Back wall
: iSL 3014 Front
Type: RGBW-12 / -50, Front
RGB-12 / -50,
RGBA-12 / -50,
A-12 / -50,
B-12 / -50,
C-12 / -50,
G-12 / -50,
O-12 / -50,
R-12 / -50,
U-12 / -50,
W27-12 / -50,
W30-12 / -50,
W40-12 / -50,
W50-12 / -50,
W65-12 / -50,
RW-12 / -50,
BW-12 / -50,
RBW-12 / -50
Serial number: Ceiling- or wall
fixing bracket
Compliance: Back wall
Ittermann electronic GmbH
Köhlergasse 16-18
99842 Ruhla
Phone [phone]
Fax [phone]
E-mail [email protected]
Hompage www.ittermann.de
Series
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 4/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
1.3 Compliance
1.4 Instruction Manual
1.5 Shipment
Certificated standards: - EN 55015:2006 + A1:2007 + A2:2009
- EN 61547:2009
The declaration of compliance of the European Union and the
EMV-audit report for the product Ittermann SpotLight iSL3014
can be requested from the producer.
The instruction manual is part of the product and must be stored with
the product.
The edition number is written on every page of the manual.
The details of the manual are checked continuously. Amendments will
be done with the following manual edition.
Changes can be made without notice.
Illuminant
14 high performance LEDs and applied on a metal core
printed board
Luminous element
of the LED flood light, which works simultaneously as
cooling element
- LED – Flood light Ittermann SpotLight iSL3014 with ceiling- or
wall fixing bracket
- 2
- RJ-45 connection lable, lenght = 0,25 m
- Instruction manual
knurled nuts
optics
Housing
2 Terms and Definitions
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 5/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
Program
The logical sequence of commands or assignments which are
achieved by the internal control system of the LED flood light.
Every function, that means everything what the flood light is able to do,
is based on a program or a part of a program. Which program or which
part of a program is active, depends on exactly defined terms and
conditions. Such terms and conditions might be e.g. operating modes
(see chapter 6.3.2.1 Technical information and specified definitions).
Special program
An autonomous running light-example. Special programs are stored in
the internal memory disk of the LED flood light. Some of the special
programs can be activated by special DIP- switch settings in stand-
alone mode. During DMX- and RDM-DMX-mode all special programs
can be performed.

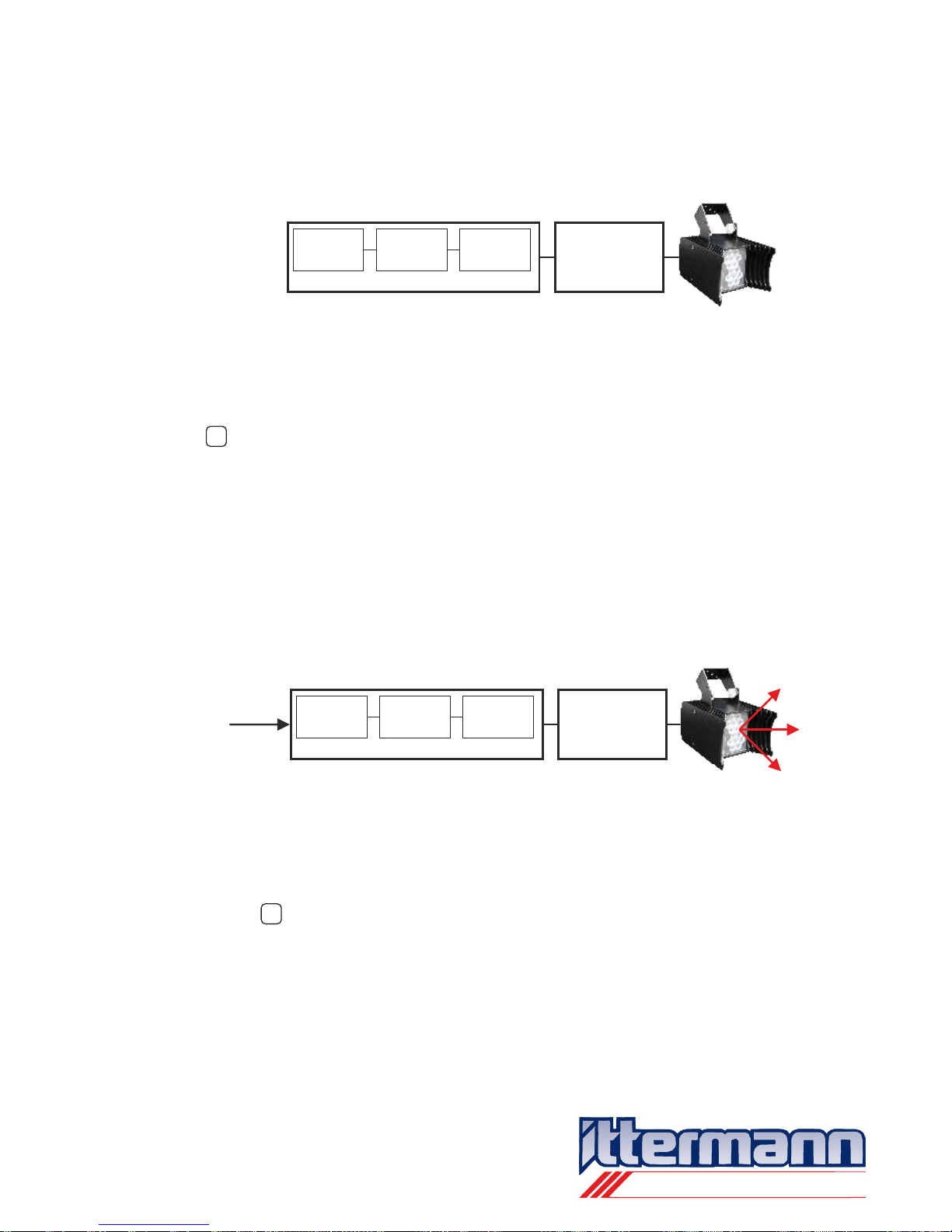

Type of control
Describes the possibilities of controlling the LED-flood lights
1. Mode without external control
2. Mode with external control
Stand-Alone mode
Type of control mode, which doesn´t need an external control.
With this type of control you can activate different special programs
by using the DIP-switch.
DMX- and RDM-DMX-mode
These are types of control, where the LED-flood lights are controlled
by a Bus-system. When using these mode types you need an external
control system, e.g. a mixing desk. The transfer of information
between external control system and LED-flood light is done by
DMX- or RDM-DMX-protocols.
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 6/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
DMX – protocol (DMX = Digital Multiplex)
Is a standardized digital controlling protocol used in stage- and event
technology which controls dimmer, “intelligent” flood lights and effect
DMX has been standardized by the USITT (“USITT DMX512”,
“USITT DMX512/1990”) followed by DIN 56930-2 in 2000 and
ANSI E1.11 (known as DMX512A) in November 2004.
The data stream of DMX protocols always flow in one direction: from
the external control system to the end unit in use.
RDM- protocol (RDM = Remote Device Management)
Is an extension of the DMX – protocol. It allows a bi-directional
communication between external control system and end unit, which
means the data stream flows in two directions.
With RDM the operating comfort increases considerably. E.g. re-
programming of addresses, diagnose of mistakes and transferring
other important information.
The protocol is defined in the “American National Standard
E1.20 – 2006, Entertainment Technology, RDM Remote Device
Management over DMX512 Networks”, published by the
Entertainment Services and TechnologyAssociation (ESTA).
The LED flood light Ittermann SpotLight of the serie iSL3014 has been
designed for in-room use but not for use in humid rooms, e.g. saunas
or bath-rooms.
LED flood lights with small angle of radiation are suitable for
punctual accentuation of objects. LED flood lights with a wide angle of
radiation optics are suitable for the illumination of rooms.
The flood lights can be fixed at walls and ceilings.
Notes for installation: see chapter 5 Preparation of the product
for use”
equipment.
optics
3 Product Description
3.1 Designated Use
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 7/31
i

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]

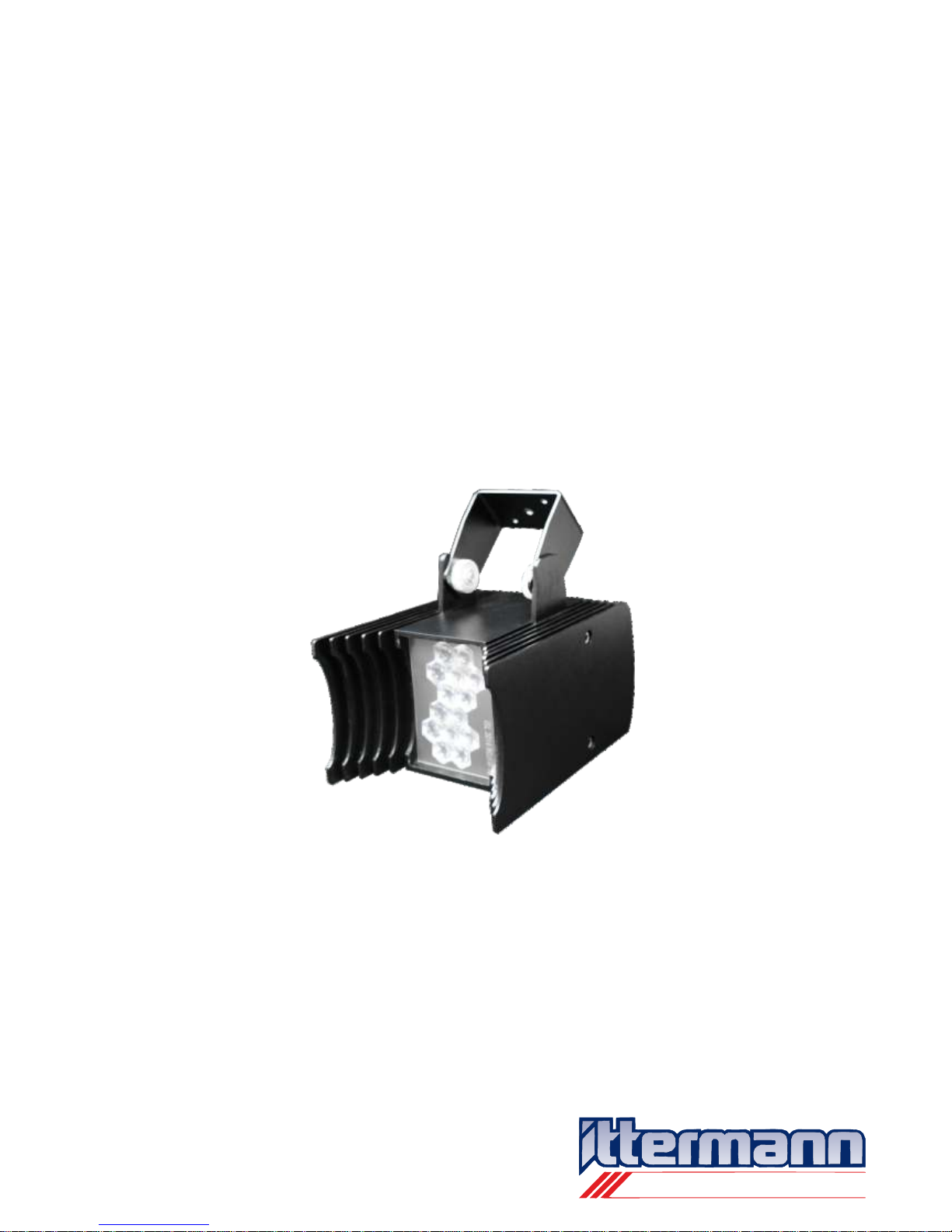

3.2 Design and over all functions
The LED flood light Ittermann SpotLight of the serie iSL3014 consists
of 14 high performance LEDs, which work with co-current flow. The
angle of radiation depends on the attached optics.
Illuminants and lenses of the LED flood light varies from
type to type, see chapter 3.4 Technical data
The active thermic management caters for a high effectiveness of light
and a long life of the LEDs.
By using the DIP-switches at the back of the light you can choose the
types of control.
see chapter 6 Operation for detailed description
for RJ-45 plug connection, please look at chapter
3.4 Technical data
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 8/31

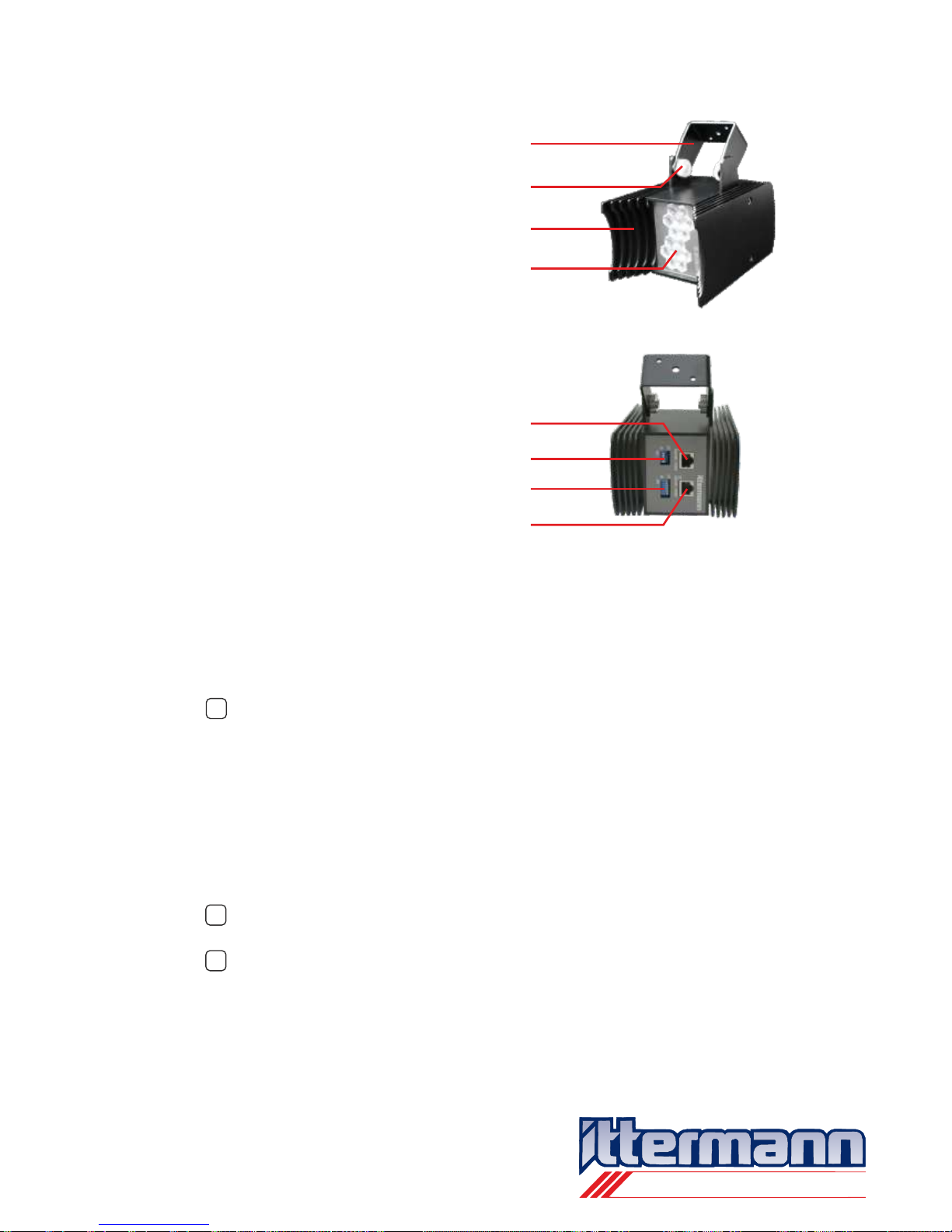

Back view
i
i
i
Front with light exit
IN:
OUT:
DIP-switch 1 (SW1)
DIP-switch 2 (SW2)
RDM-DMX und Power
RDM-DMX und Power
Luminous element
Knurled nuts
Ceiling- or wall
fixing bracket

iSL 3014 RGBW-12ds
RGBW
50
12
ws
sw
si
ds
RGB
RGBA
R
G
B
U
C
A
O
W27
W30
W40
W50
W65
RW
BW
RBW
Serial identification
14
= red, green, blue, white
= 2x25° optic
= 2x6° optic
= housing colour: white
= housing colour: black
= housing colour: silver
= housing colour: dark silver
= red, green, blue
= red, green, blue, amber
= red
= green
= blue
= royal blue
= cyan
= amber
= red-orange
= white, 2700 K (warm white)
= white, 3000 K (warm white)
= white, 4000 K (neutral white)
= white, 5000 K (cold white)
= white, 6500 K (cold white)
= red, white (4000 K)
= blue, white (4000 K)
= red, blue, white (4000 K)
= 14 high performance LEDs
electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
3.3 Type of user
3.4 Technical Data
Mode without external control (Stand-Alone mode)
The usage does not require any special knowledge.
Mode with an external control
Special knowledge necessary.
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 9/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
Voltage: DC 24 V bis 48 V
Power input: app. 50 W
Depends on the used LEDs
Luminous intensity: Depends on the used LEDs and optics
Average life: Ø min. 60.000 hours
Ambient temperature: -20 … +40 °C
Degree of protection: IP20
RJ-45 plug configuration: 1, 3, 7 = Power +
2, 6, 8 = Power –
4 = Data – (B)
5 = Data + (A)
Type of control: - without external control
(Stand-Alone mode)
- with external control
(DMX- and RDM-DMX mode)
Dimming: 256 steps (8 Bit)
Colour mixing: 256 steps per colour (8 Bit per colour)
Programs: 31 internal special programs
17 of them are performable in
Stand-Alone mode
Dimensions: 110 x 113 x 150 mm (wide x hight x
depth, without fixing brackets)
Weight: 1,4 kg
Housing: aluminium with powder coating
Housing colous: - light silver (metallic)
- dark silver (metallic)
- white (RAL9003, soft, fine structure)
- black (RAL9005, soft, fine structure)
Changes of design and technical amendments can be made without
notice by the producer any time.
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 10/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
3.5 Safety notes
4. Supplies
The instruction manual is part of the product and must be stored with
the product.
In case of disregard the instruction manual damages of the product,
fire or other dangers might occur.
Before installation and using the product, please read the instruction
manual completely.
The product is not a toy. Please take care that children have no
access to it.
Please don´t insert anything into the housing.
Don´t look into the lights directly when they are switched on. LEDs are
very bright and might cause retina damages.
The related supplies have been especially developed and tested for
this product. The producer therefore recommends to make use of
these supplies only according to safety and warranty reasons (see
chapter 4 Supplies).
The ceiling- or wall fixing bracket shall only be assembled at a
horizontal or vertical seat with adequate consistency and tensile-
loaded capacity. Please assemble the ceiling- or wall fixing bracket the
way that it is impossible for the LED flood light, to fall down. (see
chapter 5 Preparation of the product for use).
Avoid contact which aggressive other materials.
Supplies are:
- Mains adapter 60 W including connection adapter and power
cable for one LED flood light Ittermann SpotLight iSL3014
- Mains adapter 120 W including connection adapter and
power cable for a maximum of two LED flood lights
Ittermann SpotLight iSL3014
- DMX-junction box (RDM-capable)
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 11/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
- RJ-45 connecting cable
(SFTP 300 CAT.5E 26AWGX4P (Cu) PATCH ISO/IEC 11801 &
EN 50173, configuration by TIA/EIA568B)
Longueurs: 0,25m Colours: grey, black, white,
1,00m Colour: black
2,00m Colour: black
5,00m Colour: black
10,00m Colour: black
20,00m Colour: black
keep the maximum cable length, see chapter
6.3.1.2 DMX-networking with iSL3014
- For laying cables in-wall:
Rotatable in-wall mechanism and UP-distribution conductor
board (instead of ceiling- or wall fixing bracket)
The LED flood light Ittermann SpotLight iSL3014 decrees different
types of control. The supplies depend on the used type of control and
on the number of flood lights in one line.
In case of using the mode without an external control (Stand-Alone
mode) you only need an external mains adapter with connection
adapter and power cable as well as one or more RJ-45 connecting
cables for power supply.
In case of using the mode with an external control you need
additionally a DMX-junction box to connect the external control.
5 Preparation of the product for use
5.1 Preparation before installation
- Unpack the product
- Please check the delivery on completeness and intactness.
Don´t install the product in case there is something missing or
damaged.
- Store the original packaging if possible.
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 12/31
i

11 22 335 446
SW1 SW2
ON ON
OFF OFF
electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
5.2 Installation and electrical connection
- Choose the place of installation of the LED flood light where
adequate air exchange is assured in the neighborhood.
If that is not always possible the active thermic management of
the Ittermann SpotLight LED-flood light prevents a strong
temperature rise of the luminous element and therefore a
reduction of the duration of life.
- Please bring the DIP-switches into the following positions:
This switch setting starts the special program No. 17 in Stand-
Alone mode. All LED-groups will be activated one after
another.
- Mount the ceiling- or wall fixing brackets at an applicable place
and tighten the screws strong. The ceiling- or wall fixing bracket
shall only be assembled at a horizontal or vertical seat with
adequate consistency and tensile-loaded capacity.
The montage of the ceiling- or wall fixing bracket should be the
way that it is impossible for the LED flood light, to fall down
Please take care that the knurled nuts a tightened very strong
after hang on and adjust the LED flood light!
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 13/31
i

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
- Attach the RJ-45 connecting cable (supply) to the LED-flood light
(please use jack “IN”)
- Put the other side of the RJ-45 connecting cable (supply) in the
RJ-45 jack of the connection adapter of the mains adapter 60 W
or 120 W (supply).
Please check before supply voltage if the network power cable is
in order. In case of a damaged network power cable the light
must not get in use.
- Establish the network connection.
Therefore put one side of the network power cable in the mains
adapter 60 W or 120 W (supply) and the other side in a power
jack (230 V).
Please don´t look into the lights directly. Put a sheet of
paper - or something like that - before the light exit.
- For switching off the flood light, pull the power cable.
5.3 Transition
- The chosen special program will start.
In this process each LED group will dim up and down.
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 14/31
power
supply
60W or 120 W
power
supply
60W or 120 W
connection
adapter
connection
adapter
power
cable
power
cable
supply
supply
supply
supply
RJ-45
connecting cable
RJ-45
connecting cable
system design (schematic picture)
AC 230 V Light
transition (schematic picture)
i
i

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
6 Operation
6.1 Preface
6.2 Mode without external control (Stand-Alone mode)
The Itterman SpotLight LED flood light requires – depending on the
type of use – no special knowledge or expert knowledge.
To prevent chilling you with overloaded briefing instructions, we
structured this chapter according to the type of control mode you will
use.
- Chapter 6.2 Mode without external control (Stand-Alone mode):
The usage does not require any special knowledge
- Chapter 6.3 Mode with external control (DMX- and RDM-DMX
mode): Special knowledge necessary
Systemaufbau
As you can see on the demonstrations, you can use only one iSL3014
when using a 60 W . When using a 120 W
you can install a maximum of two iSL3014 in a row. For
connecting the second iSL3014 in the row please use the RJ-45 jack
“OUT”.
The maximum length of the cable in one row: 20 m
power supply power supply
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 15/31

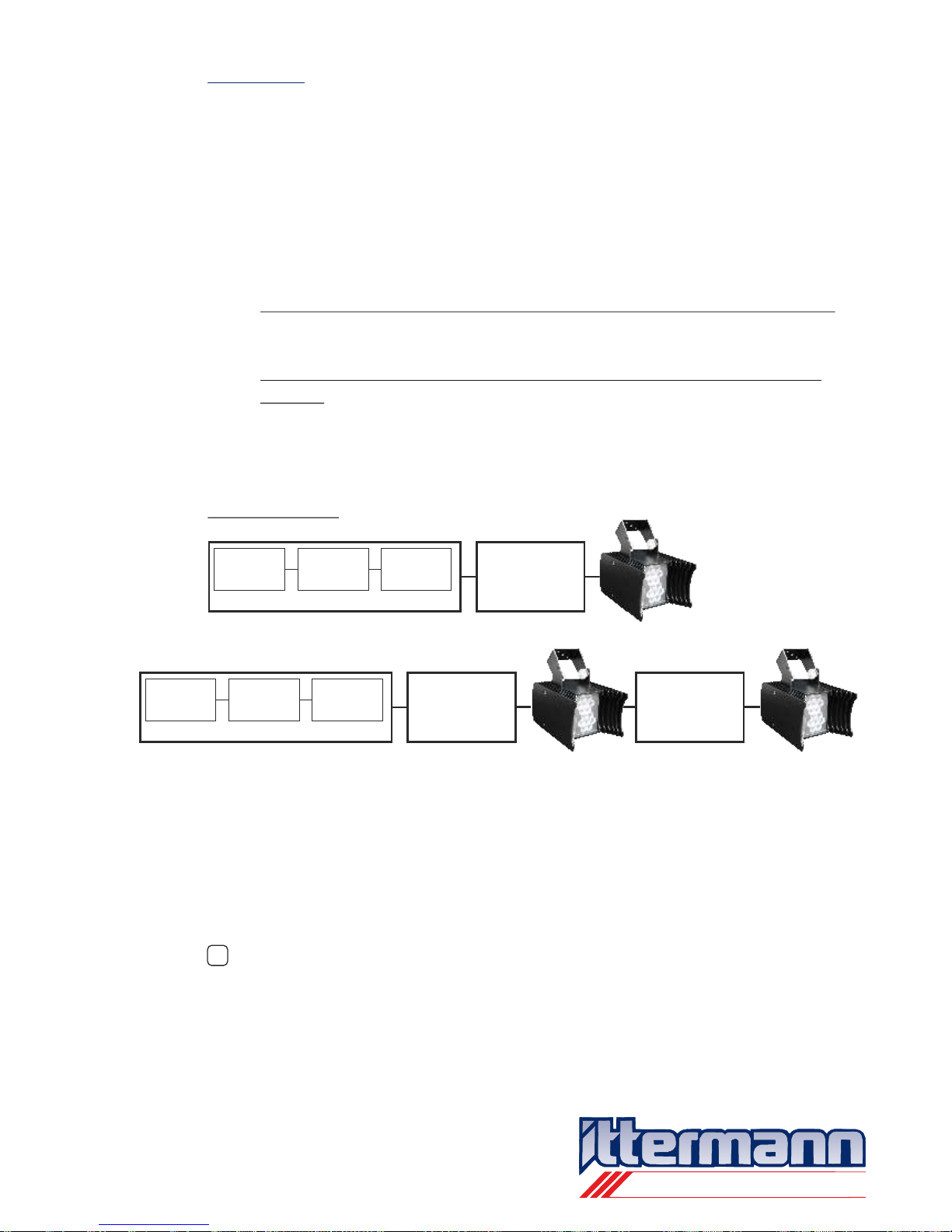

system design with 60 W mains adapter (schematic picture)
system design with 120 W mains adapter (schematic picture)
i
power
supply
60W
connection
adapter
power
cable
supply supply
RJ-45
connecting cable
supply
RJ-45
connecting cable
power
supply
120 W
connection
adapter
power
cable
supply supply
RJ-45
connecting cable

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
Special programs in Stand-Alone mode
(Description on the example of the iSL3014-RGBW)
Five special programs are available.
Type A Each colour can be switched separately and for each
colour there are four levels of lightness
(0 % = off, 25 %, 75 % and 100 %).
Type B All colours are active, the lightnes is defined by the DIP-
switch SW2; 64 levels of lightness are available.
With RGBW this setting will cause white light with 64
possible lightness levels.
Type C 8 special programs with white and
8 speed levels can be justified.
Type D 8 special programs with stroboscopic effects and
8 speed levels can be justified.
Type E 8 special programs without white and
8 speed levels can be justified.
DIP-switch-adjustments
See appendix A Graphic chart of special programs and DIP-switch
adjustments in Stand-Alone mode (Description on the example of the
iSL3014-RGBW)
6.3 Mode with external control
6.3.1 DMX-Mode
6.3.1.1 Technical information and specific terms
Technical information
Is a standardized digital controlling protocol used in stage- and event
technology.
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 16/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
The DMX controlling protocol is based on a RS-485-interface. The
data transfer occurs symmetric and serial. Because of the symmetric
data transfer DMX has a high interference resistance, because
external errors affect both data links constantly. The receiver analyzes
not
For the construction of connections 5-pole XLR-jacks are specified.
Because it is cheaper 3-pole jacks are used often, too. But that
doesn´t fit the norm.
For the connection lines please use high quality cables, which are able
to transfer the data with high speed (no microphone cables). Capable
are Twisted-Pair-cables with an impedance level of app. 120 ohm.
For connecting the Itermann SpotLight LED-flood lights Cat5-Patch
cable are provided.
see Chapter 4 Supplies
To connect supply voltage and busses of the Ittermann SpotLight
LED-flood light, RJ-45 plug connectors are used. These plug
connectors are usual for ISDN (IAE), structured wiring and computer
networks.
The decision to use for the iSL-LED flood lights RJ-45 plug connectors
has been taken for design reasons. The small and handy design of the
flood light would have not been possible when using XLR-plugs and
moreover an additional plug connector has to be placed for the supply
voltage in that case.
The special RJ-45 configuration of the plug connector on the
Ittermann SpotLight LED-flood light with it´s supplies allows sharing a
maximum of 216 watt in one row (with a supply voltage of 48 V),
without to excess the capacity of the loading system.
For the RJ-45 plug configuration see Chapter 3.4 Technical
Data
the index level but the index difference.
At the transmitter is a socket connector and at
the receiver is a plug connector provided.
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 17/31
i
i

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
DMX-Networks
DMX-Networks are systems with one transmitter and several receivers
which are connected by bus lines. Transmitter can be e.g. PCs or light
mixing boards and receivers can be e.g. Dimmer, intelligent flood lights
and effect equipment.
The bus stations (transmitter and receiver) are switched back to back
(bus-topology).
One transmitter can be connected to a maximum of 32 receivers. For
more than 32 receivers you have to install a repeater. In case of
branching you should apply splitter (Repeater and splitter amplify and
regenerate the bus signal).
Most bus-technologies start with a transmitter at the beginning of a
chain. To prevent signal-reflections within this constellation – even in
very long chains – it is necessary to install a 120 Ohm-terminator at
the bus-end, after the last receiver. If the transmitter is not located at
the end of a chain, both ends have to be terminated.
The control system roots control information to the receiver by
DMX-protocol. This information is completed by the receivers. You can
power 512 channels with information by using the DMX-protocol.
Channel means, within this context, the controllable function of a
receiver.
The transmitter gets to know how to complete a function by 8 data bits,
which built a DMX-slot together with one start bit and two stop bits.
With 8 data bits a space of 256 DMX-accounts (0 to 255) are possible.
Which function is saved on which channel and is controlled with which
DMX-account is defined by the producer in a DMX-channel-
configuration-chart.
The data transmission works as follows:
One after another a maximum of 512 slots are send by bus lines from
the transmitter to the receivers. Which channel shall use the data of
one slot is regulated by addresses. Each channel gets an address
continuously from 1 to 512. After a start mark each receiver has to
count the transferred slots and filter the special slot which he is able to
react on because of it´s address.
As most receivers in a bus are multifunctional devices, which means
more than one channel has to be controlled, such a device gets a
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 18/31

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
DMX-start address. This receiver evaluates from the start address the
used number of consecutive slots. The start address of the next
receiver is forwarded of this number of addresses, which the receiver
before has evaluated.
For example: Does the first receiver evaluate in the bus the
addresses 1 – 8, the start address of the next
receiver is 9.
In Chapter 6.3.1.3 “Adjustment of addresses at the DIP-
Switches” of the iSL3014, you find the description for the
addressing of the Ittermann SpotLight LED-flood light.
A DMX-Slot consists of:
- one start bit
- one start byte (at the beginning of the DMX package)
respectively 8 data bits (control-information for the single
channels)
- two stop bits.
A DMX-package consists of:
- one “break” (or “reset”) with the logical index 0:
the minimum length has to be 88 µs
- one “mark after break” with the logical index 1:
the minimum length has to be 8 µs
- a first slot, consisting of:
one start bit, one start byte and 2 stop bits
- a “mark” between the slots with the logical index 1
- a second slot, consisting of:
one start bit, 8 data bits (controlling information for the first
channel) and 2 stop bits
- one “mark” between the slots, logical index 1
- The 512nd slot, consisting of one start bit, 8 data bits (controlling
information for the 512nd channel) and 2 stop bit
- one “mark” between the packages, logical index 1.
Configuration and timing of the DMX-protocol
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 19/31
i

electronicGmbH
IttermannelectronicGmbH
Köhlergasse16-18
D - 99842Ruhla
Phone:
[phone]
Fax:
[phone] - 75-35
Internet:
www.ittermann.de
E-mail:
[email protected]
All 512 control-information might be, but need not to be transferred. If
the transfer is interrupted any time it can be activated again by
sending a new DMX package. The “break”-sequency is always the
start of a new package.
The start byte has account 0 at DMX. All receivers, which only
understand DMX and no other protocol language (e.g. RDM), must
ignore packages which have a start byte unlike 0.
The speed of data transfer is 250 kbits/s. Therefore the speed of data
transfer for one bit is about 4 µs, for a slot 44 µs (11 x 4 µs) and for a
data package (512 slots) about 22.528 µs (512 x 44 µs).
The length of a DMX package results from the sum of parameter:
+ 88 µs (break)
+ 8 µs (mark after break)
+ 44 µs (first slot with start byte)
+ 22.528 µs (512 slots; data for channels 1 – 512)
= 22.668 µs.
This corresponds to a frequency of 44,11 Hz. The maximum break
between two DMX packages is fixed with 1s.
Instruction Manual iSL 3014
Dated 09th of June 2011
Page 20/31
