Excalibur RS-350-EDP User manual

RS-350-EDP
Deluxe Keyless Entry & Remote Start
Operation Guide
July 11, 2012
Temporary cover. Color cover is in a separate le.

2
Table Of Contents
Introduction............................................................................................3
The Transmitter .....................................................................................4
Transmitter Functions............................................................................4
Other Remote Start Features ................................................................7
Low Battery Automatic Starting .........................................................7
Turbo Timer Feature..........................................................................7
Pit-Stop Feature ................................................................................7
Manual Transmission Starting ...........................................................7
Using The Valet Switch..........................................................................8
The Status Light (Optional)....................................................................8
Programming Transmitters ..................................................................10
Programming Features........................................................................10
User Programmable Features ............................................................. 11
Installer Programmable Features ........................................................12
Programmable Features Matrix...........................................................15

3
Introduction
Congratulations on your purchase of this convenience system
by Omega Research & Development, Inc., a world leader in ve-
hicle security and convenience products since 1975. This system
is designed to offer ease of use and it’s modular design allows for
many features to be customizable to suit your needs.
 Pleasenotethatthismanualiswrittentoreectthefullcapabil-
ity of this system though some features may not be available to
you because of vehicle limitations and/or chosen options at the
timeofinstallation.Itisalsowrittentoreecttheoperationsin
theirdefaultcongurations.
This system has three principal user components that you
should familiarize yourself with:
The optional Status Light indicates the current system status
and helps in troubleshooting failed remote start attempts as well
asincustomizingtheprogrammablefeatures.Thespecicopera-
tions of the lights are described on page 8.
The Valet Switch is used to access transmitter and feature
programming. It is also used to place the system in valet mode
which temporarily bypasses the remote start feature. See “Using
the Valet Switch” on page 8.
The remote Transmitters are used to operate the system on a
daily basis. This system is capable of being operated by up to 4
different transmitters. Each one has 4 different buttons which are
labeled to indicate their primary function.
This system is also compatible with our ECHO 2-way upgrade
kits.Thispopularupgradegivesyouconrmationtothesystems
operations which are displayed on a LCD screen for easy refer-
ence. ECHO upgrade kits are available in a variety of styles from
standard black & white LCD to a touch screen, color LCD version!
Contact your dealer or visit www.caralarm.com for more info.

4

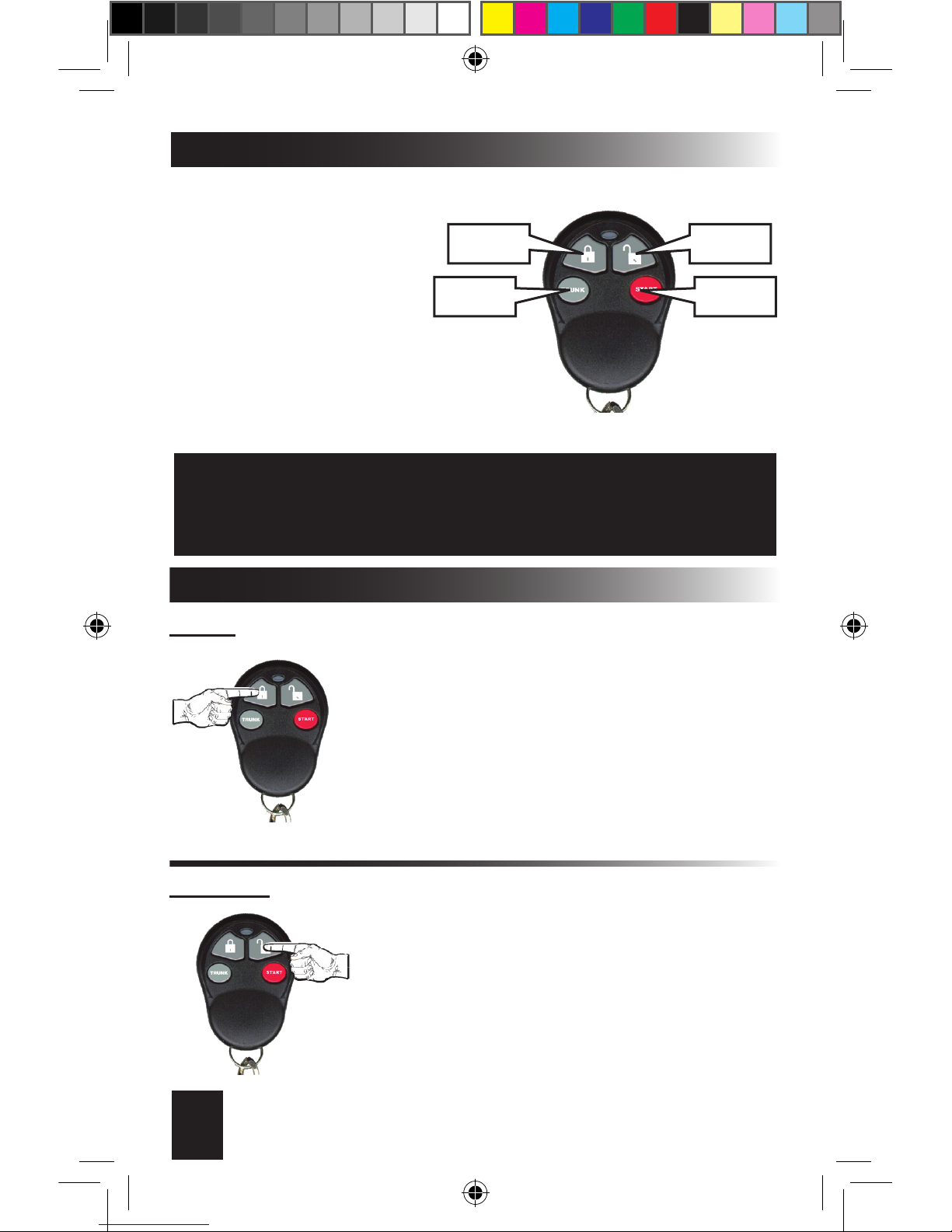

The Transmitter
“lock”
button
“trunk”
button
“unlock”
button
“start”
button
Transmitter part number:
146-03S
Call your dealer or visit
www.caralarm.com to order
replacement transmitters.
Transmitter battery replacement:
Remove the small screw from the
lower back case, and separate the
transmitter halves. Replace the
CR2032 battery (or with 2 CR2016
batteries) and reassemble the trans-
mitter case.
LOCK: Press and release the “LOCK” button.
THE DOORS WILL LOCK, THE PARKING•
LIGHTS WILL FLASH, AND THE HORN WILL
HONK ONCE.
UNLOCK: Press and release the “UNLOCK” button.
THE DOORS WILL UNLOCK, THE PARKING•
LIGHTS WILL FLASH TWICE THEN ILLUMI-
NATE FOR 30 SECONDS, AND THE HORN
WILL HONK TWICE.
Transmitter Functions
This system is ECHO compatible which means you can upgrade it
at anytime to have 2-way capability and greater range. It’s a simple
upgrade that only takes minutes so talk to your dealer about up-
grading with ECHO TECHNOLOGY today!!

5
Transmitter Functions (cont’d)

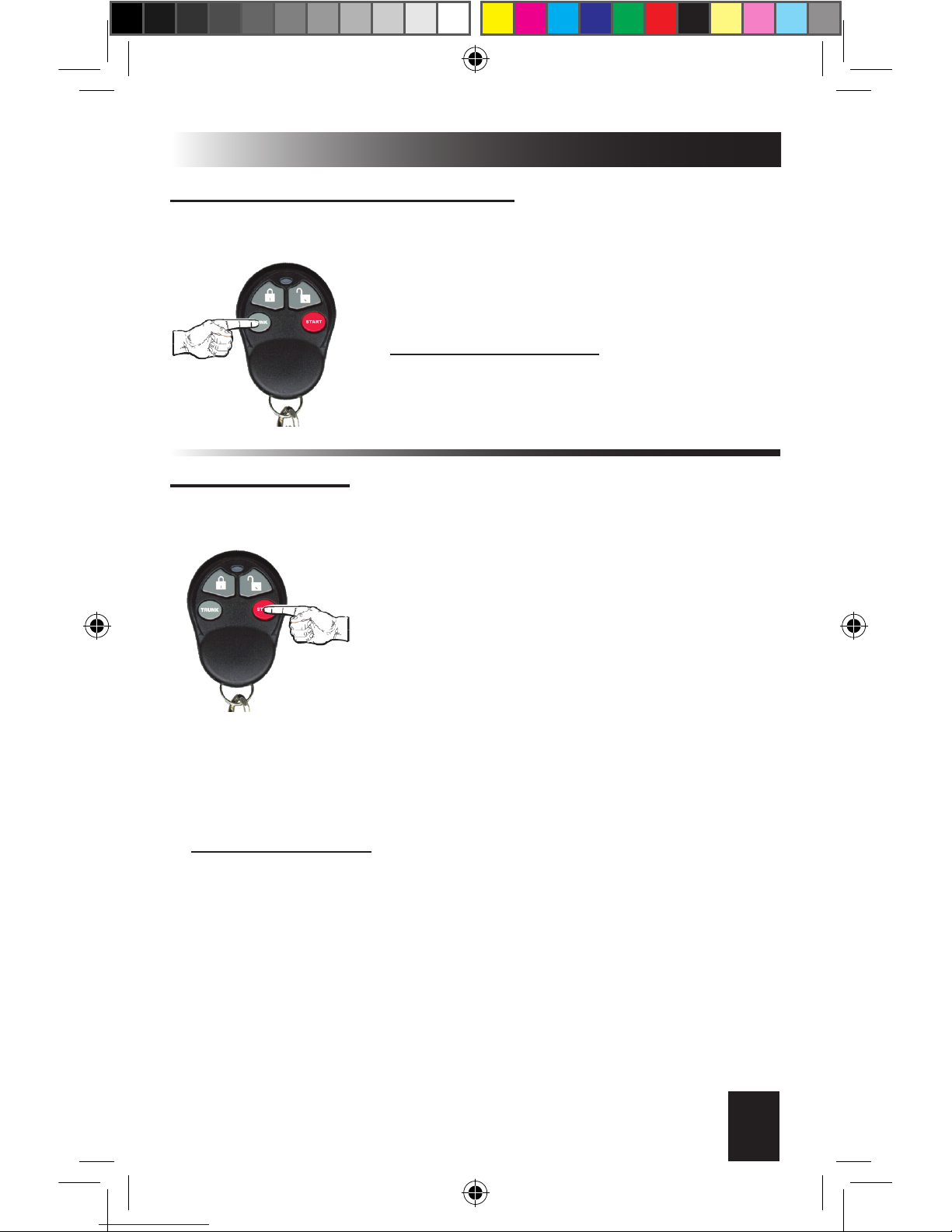

TRUNK RELEASE/ CHANNEL 2: Press and hold the
“TRUNK” button for 3 seconds.
THE TRUNK WILL OPEN, THE DOORS WILL•
UNLOCK, THE PARKING LIGHTS WILL FLASH
TWICE THEN ILLUMINATE FOR 30 SECONDS,
AND THE HORN WILL HONK TWICE.
SILENT LOCK/UNLOCK• : PRESS THIS BUT-
TON TWICE WITHIN 5 SECONDS TO LOCK
OR UNLOCK THE DOORS WITHOUT HORN
HONKS.
REMOTE START: Press and release the “START” button
twice. (see installer feature #1 for other options)
THE PARKING LIGHTS WILL FLASH.•
THE IGNITION WILL TURN ON AND THE•
SYSTEM WILL START THE ENGINE.
WHEN THE ENGINE IS RUNNING, THE•
STATUS LIGHTS WILL FLASH SLOW AND THE
PARKING LIGHTS WILL STAY ON AS LONG AS
REMOTE START MODE IS ACTIVE.
If the engine stalls, the system will make up to 3 more attempts.•
Each time you park your vehicle, set the climate controls to give•
you the desired interior temperature when you use the remote start.
The engine will run for the preset run time (see user feature #1).•
Run Time Extender• : Press the “START” button one time while in
remote start mode to restart the engine run timer.
NOTE: This can only be used once per remote start cycle. If the system has
an ECHO 2-way upgrade, you will get “run time expiration” warning chirps 1
minute before the timer ends.
If you decide not to drive your vehicle, you can turn off the remote•
startusingthesamemethodtoturniton(keepinmindthattherst
press is considered the Run Time Extender).
Upon entering the vehicle during remote start mode, turn the igni-•
tion key to the “ON/RUN” position (NOT START!!). When you press
the brake pedal, the remote start will turn off.

6
Transmitter Functions (cont’d)
PANIC MODE: Press & Hold the LOCK or UNLOCK button for
3 seconds.
THE HORN WILL SOUND, THE PARK-•
ING LIGHTS WILL FLASH AND THE
DOORS WILL LOCK OR UNLOCK,
DEPENDING ON THE TRANSMITTER
BUTTON USED.
TO DEACTIVATE PANIC, SIMPLY PRESS•
EITHER THE LOCK OR UNLOCK BUTTON
AGAIN.
OR
OR
LOW VOLTAGE AUTO START: Press and release the
“START” button within 5 seconds of locking the system.
THE SYSTEM WILL GIVE ONE•
CHIRP TO INDICATE THE LOW VOLT/
LOW TEMP(15 DEGREE ONLY) AUTO-
START IS ACTIVATED. SEE THE NEXT
PAGE FOR MORE INFO.
2
1

7
Other Remote Start Features
It is typically recommended that vehicles equipped with turbocharged engines
allow the engine to idle for after driving to cool the turbocharger. When this Installer
Programmable Feature #10 is enabled, the system will automatically keep the
engine running as follows:
• Withtheenginerunning,holdthebrakepedalandengagetheparking brake.
When the brake pedal is released, the system will keep the engine running for the
programmed time (1, 2, or 3 minutes), and then automatically turn it off.
• Thesystemmaybelockedwhiletheengineisrunning.TurboTimercanbe
prevented from engaging, or “bypassed” if desired, by turning the engine off before
engaging the parking brake, or if it’s already engaged, step on the brake pedal to
turn the engine off.
LOW BATTERY AUTOMATIC STARTING
TURBO TIMER FEATURE
PIT-STOP FEATURE
This feature allows you to leave your engine running for making quick errands. To
use this feature, have the engine running normally from the ignition switch and your
footoffthebrakepedal.PresstheValetSwitchtwice;theparkinglightswillash
and the horn chirps 5 times. Turn the key off and the engine will remain running for
the programmed run time.
MANUAL TRANSMISSION STARTING
Remote starting with a manual transmission requires a different installation
method and installer feature #11 must be turned on. Also, a setup procedure that
ensures the transmission was left in neutral must be performed each time you leave
your vehicle and intend to use remote start later. Perform these steps:
1) With the engine running, hold the brake pedal, apply the parking brake, then
release the brake pedal.
2) Use the transmitter as if you were activating remote start (default: press START
twice).Thestatuslightwillstarttoashslow.
3) Turn off the ignition key and exit the vehicle. (cont’d on next page)
This feature will automatically start the engine if the vehicle battery drops
below 11 volts or the interior temperature drop to 15 (or 32) degrees fahrenheit. You
must activate these features each time you park your car to use them. They can be
activated one of two ways:
Method 1 - Valet Switch
• Turntheignitionswitch“on”,then“off”(enginenotrunning),andwithin7
seconds press the valet switch twice. If there is a 2 second delay without additional
valet button presses, the horn will honk 3 times activating low voltage start mode.
Method 2 - With The Controller
• Within5secondsofpressingLOCK,presstheSTARTbutton.Youwill
get one chirp to indicate successful activation of this feature.
NOTE: This feature will operate once every two hours until the ignition key is turned
“ON”.

8
Valet Mode
Valet mode prevents the remote start feature from being activated. It also dis-
ables horn honks when locking or unlocking the doors. Valet Mode should be used
when you do not wish for remote starting to be operated, such as when you have
your vehicle serviced. To engage Valet Mode:
• Withthesystem“unlocked”,pressandholdtheValetSwitchfor3seconds;the
optional Status Light will turn on and stay on to indicate Valet Mode. The horn will
honkonceandthelightswillashtwice.OnceinValetMode,anattempttoremote
start will result in no response. Keep this in mind if remote start stops functioning.
While the system is in Valet Mode, the horn will honk once every time the ignition
key is turned OFF.
• ToturnoffValetMode,simplypress&releasetheValetSwitchonce.TheStatus
Light will turn off.
Emergency Override
If the system is locked, you cannot perform functions like transmitter or feature
programming. If you do not have a transmitter to unlock the system, you can perform
an emergency override to access the programming functions.
• Withthesysteminalockedstate,simplyturntheignitionkeytotheRUN/ON
position and press and release the valet switch once.
Using The Valet Switch
Other Remote Start Features (cont’d)
The Status Light (Optional)
 TheoptionalStatusLighthelpstovisuallyconrmsthestatusofthesystemand
provides a high level of visual deterrence. The Status Light is typically installed
somewhere on the dash. Consult with your installer if there are any questions.
Normal System Status
1) Off = The remote starter system is off, in standby mode.
2) On Constant = The system is in the Valet Mode, with the remote starter system
disabled.
Starting System Status
The Status Light also indicates the remote start status:
3) Flashing Very Slow (once every 2 seconds): The system is in manual transmis-
sion remote start mode and awaiting a remote start command.
4) Flashing Slow (once per second): Remote start is on.
4) Press LOCK on the transmitter. The engine will shut down (unless turbo timer is
on)andthestatuslightwillashevery2secondstoindicateitisreadytoberemote
started.
NOTE: Manual transmission starting is canceled if you enter the vehicle after per-
forming the setup procedure. After remote starting, you have 20 seconds to turn on
the ignition key AFTER opening a door.

9
The Status Light (cont’d)
5) Flashing Fast (after activating remote start): The system is in the process of start-
ing the engine.
Remote Starting Diagnostics
Whenever the system is placed into Valet Mode, the Status Light illuminates
solid.However,whenthisrstoccurs,theStatusLightwillash1to6ashesbe-
fore resuming solid illumination. This indicates why the engine stopped running from
the last previous remote starting attempt.
6) 1 Flash = Programmed run time expired.
7) 2 Flashes = Brake was pressed or hood opened.
8) 3 Flashes = Engine stalled or bad tach signal.
9) 4 Flashes = Received transmitter command to stop.
10) 5 Flashes = Gear selector removed from “park”.
11) 6 Flashes = Low voltage.
Code JumpingTM Technology
With the proper equipment, it’s quite easy for a criminal to “grab” your transmitter
code from the air and use it at a later time to gain access to your vehicle contents
and potentially your home! Code jumping technology uses a complex algorithm to
change the transmitter’s codes every time a button is pressed. Only the system in
your car has the key to decipher this code and it can not be replicated.
Automatic Transmitter VericationTM
There is also the potential threat of someone, who has temporary access to your
vehicle, programming their own transmitter to your system. For example, a mechan-
ic, car wash attendant, or valet could do so and gather your personal info from any
paper work in your vehicle. Then, they could visit your home and help themselves
to the contents of your vehicle without any signs of intrusion. Many crimes go un-
noticed and people assume they have misplaced their belongings. ATVTM shows you
how many transmitters are programmed to your system every time you turn on the
ignition key for a 10 second period. Then, you can easily identify if transmitters have
been added to your system.
Transmitter Protection & Technology

10
Step 1 Have all transmitters which are to operate the system at hand. Then,
turn the ignition “on”.
Step 3 Press the “lock” button on each remaining transmitter one at a time. The
systemwillchirpthehornoncetoconrmthateachwaslearned.Thetransmitter’s
other three button’s functions will automatically be assigned when the “lock” button
is learned. If a code is not received within a 10 second period, the learning process
will automatically terminate, as indicated by another horn honk.
Step 4 Turn the ignition key “off”.
Step 2 Within 5 seconds of turning on the ignition, press the Valet Switch 5
times.Thehornwillbrieysound,conrmingthatforthenext10secondsthesys-
tem is ready to learn a transmitter/controller code. To enter a code, simply press and
release the “lock”button.Whentherstcodeislearnedallexistingstoredcodes
will be erased.
Standard Programming: Using this method to program additional or replacement
transmitters does not turn on or otherwise affect the Unauthorized Transmitter Alert
(UTA) feature.
Programming Transmitters
Programming Features
Step 1 Turn the ignition key “ON”, then “OFF”
Step 2 Within 5 seconds of step 1, press the valet switch 5 times to access user
features (10 times to access installer features).
~ The horn will honk and the status light will turn on.
Step 3 Within 10 seconds of step 2, press the valet switch the number of times cor-
responding with the desired feature’s number.
~ The horn will honk, the status lights, and the parking lights
 willashequaltotheselectedfeature.
Step 4 Change the feature by pressing the transmitter button that corresponds with
the desired setting.
~ The horn will honk, the status lights, and the parking lights
 willashequaltotheselectedsetting.
Step 5 If you wish to change more features, repeat steps 3 & 4 at this time.
Step 6 To exit programming, turn the ignition key “ON” then “OFF”. Or, you can wait
10 seconds for programming mode to expire.

11
Feature #1 Remote Start Run Time
10 Minutes (press “lock” button to program) - DEFAULT
5 Minutes (press “unlock” button to program)
15 Minutes (press “trunk” button to program)
20 Minutes (press “start” button to program)
This feature sets the period of time that the engine will run after being remotely
started. If the engine is not stopped by controller/transmitter command or a safety
circuit violation, the engine will automatically stop upon the expiration of the selected
time period. Caution: The remote engine starting feature should NEVER be
used when the vehicle is parked in an enclosed structure or garage.
ThisgroupofUserProgrammableFeaturesareallaccessedasagroupintherst
level of features’ programming. These features have a direct affect upon the sys-
tem’s operations, so the programming and operation of each are described.
Feature #2 Steady/Flashing Lights During Remote Start
Steady (press “lock” button to program) - DEFAULT
Flashing (press “unlock” button to program)
ThisFeaturecongurestheoperationofthevehicle’sparkinglightsduringthe
remote start operation. The default setting turns on the parking lights during remote
start;theothersettingashestheparkinglightsonandoffduringremotestart.
User Programmable Features
Feature #3 Conrmation Chirp Function & Volume
Low (press “lock” button to program) - DEFAULT
High (press “unlock” button to program)
On Demand / High (press “trunk” button to program)
OFF (no chirps) (press “start” button to program)
Thisfeatureallowsthechoiceoftwodifferentvolumelevelsofthesystem’sconr-
mation chirps, the you can hear and choose the setting with the best chirp volume
as you select each option. The “On Demand” setting allows you to lock and unlock
the doors without chirps. Similar to OEM keyless entry, pressing either function a
2ndtime,willproduceconrmationchirps.
Feature #4 Steady Siren or Pulsed Horn
Pulsed Horn Low (press “lock” button to program) - DEFAULT
Pulsed Horn Medium (press “unlock” button to program)
Pulsed Horn High (press “trunk” button to program)
Steady Siren (press “start” button to program)
This feature changes only the audible output, in three different pulse timings, which
allow a degree of customizing of the horn’s sound during panic mode. The Steady
Siren setting is exactly that- a steady output for an optional electronic siren.
Feature #5 Doors Lock With Ignition On
Off (press “unlock” button to program) - DEFAULT
On (press “lock” button to program)
Thisfeatureconguresthesystemtoautomaticallylockthevehicle’sdoorsevery
time that the ignition switch is turned on. The following feature #6 controls the
automatic unlocking operations.

12
User Programmable Features (cont’d)
Feature #6 Doors Unlock With Ignition Off
Off (press “unlock” button to program) - DEFAULT
On (press “lock” button to program)
Similar to the previous locking feature, except this feature controls the unlock opera-
tion when the ignition is turned off.
This group of Installer Programmable Features are all accessed as a group in the
second level of features’ programming. These features have a direct affect upon the
system’s operations related to the installation and vehicle type AND SHOULD ONLY
BE CHANGED BY THE INSTALLER!!!
Feature #1 Remote Start Activation
1 button presses (press “lock” button to program)
2 button presses (press “unlock” button to program) - DEFAULT
3 button presses (press “trunk” button to program)
4 button presses (press “start” button to program)
This feature allows you to choose the number of button presses AND pulses
required on the White/Blue activation wire to activate the remote start feature. All of
the settings must occur within a 5 second window of the previous pulse.
Installer Programmable Features
Feature #2 PINK/WHITE (IGN #2) wire operation
Ignition (press “lock” button to program) - DEFAULT
Accessory (press “unlock” button to program)
Start (press “trunk” button to program)
Ignition - operates with the same timing as the PINK ignition #1 output.
Accessory - operates with the same timing as the ORANGE accessory output.
Start - operates with the same timing as the VIOLET start output
Feature #7 Doors Unlock With Trunk Release
Off (press “unlock” button to program)
On (press “lock” button to program) - DEFAULT
When trunk release (CH2) is activated, this feature determines whether the doors
will unlock or not.
Feature #3 Engine Detection Method
Tachless Hi (press “lock” button to program) - DEFAULT
Tachless Lo (press “unlock” button to program)
Tach Wire (press “trunk” button to program)
Data Tach (press “start” button to program)
Crank Only (press “lock” & “unlock” to program)
“Tachless Hi” sensitivity mode looks for a voltage increase of 0.3v after cranking. It
usesaxedcranktimedeterminedbyinstallerfeature#7.
“Tachless Lo” sensitivity mode looks for a voltage increase of 0.5v after cranking. It
usesaxedcranktimedeterminedbyinstallerfeature#7.

13
Installer Programmable Features (cont’d)
Feature #5 Satellite Relay Port Green Wire Function
Starter (press “lock” button to program) - DEFAULT
Pulse After Engine Start (press “unlock” button to program)
Status (press “trunk” button to program)
Domelight (press “start” button to program)
This feature changes the operation of the Green wire (negative) on the satellite relay
port.Thisgivesyoutheexibilitytoaccommodatecertainvehiclesthatrequireany
out-of-the-ordinary pulses or remote start timing.
Starter setting operates as a secondary START output. This will have the same
pulse timing as the large Violet wire on the main harness.
Pulse After Start setting will give a 0.8 second pulse immediately after the engine
starts and is running.
Status Output setting will behave like the ignition output except it turns on 1.5
seconds earlier than the primary ignition output..
Domelight setting turns the output on for 30 seconds after unlocking or after turning
the ignition key off.
Feature #6 Satellite Relay Port Blue Wire Function
Status (press “lock” button to program) - DEFAULT
Ignition (press “unlock” button to program)
Status - operates like the PINK ignition output except it turns on 1.5 seconds earlier
than the PINK ignition #1 output. This is best for activating bypass kits.
Ignition - operates with the same timing as the PINK ignition #1 output.
Feature #4 Gasoline Or Diesel Engine
Gasoline (press “lock” button to program) - DEFAULT
Diesel 15 Sec. Delay (press “unlock” button to program)
Diesel 20 Sec. Delay (press “trunk” button to program)
Diesel 30 Sec. Delay (press “start” button to program)
This feature changes the system’s timing of the ignition and starter output sequence
for gas or diesel engines. Gasoline: the starter output will occur 3 seconds after the
ignitions turn on. When in “Tachless” mode, the engine running status is determined
10 seconds after starting. Diesel: the starter output will occur 15, 20, or 30 seconds
after the ignitions turn on (allows for glow plug warming). When in “Tachless” mode,
the engine running status will be determined 40 seconds after cranking.
“Tach Wire” monitors the “Violet/White wire” (see the installation manual for the
Tach Learn Procedure). It will crank the engine until a tach signal is detected (3
seconds max).
“Data Tach” mode operates just like the “Tach Wire” setting except it takes its
reading from the D2D data port instead of using the Violet/White wire. Before using,
make sure this function is supported by the Databus Interface module.
“Crank Only” AKA “blind start” is similar to the “Tachless” settings however, it only
makes one start attempt and does not monitor engine running conditions. This is
useful for many “push-to-start” vehicles.

14
Installer Programmable Features (cont’d)
Feature #8 Doorlocking Output Functions
0.8 Second Outputs (press “lock” button to program) - DEFAULT
3 Second Outputs (press “unlock” button to program)
Double 0.8 Sec Unlock Output (press “trunk” button to program)
Total Closure Lock Output (press “start” button to program)
This single feature gives the installer several needed options, to match the system’s
doorlocking outputs to suit different vehicle requirements.
0.8 Second Outputs on both Lock and Unlock outputs.
3 Second Outputs on both Lock and Unlock outputs.
Double 0.8 Sec Unlock Output w/ single 0.8 sec Lock output.
Total Closure Lock Output gives a 28 second Lock output and a 0.8 second
unlock output.
Feature #10 Turbo Timer
Off (press “lock” button to program) - DEFAULT
Run 1 Minute (press “unlock” button to program)
Run 2 Minutes (press “trunk” button to program)
Run 3 Minutes (press “start” button to program)
Thisfeaturewhenturnedonconguresthesystemtoautomaticallykeeptheengine
runningbrieyafteritisturnedoff.Thisoperationisdesignedspecicallyforve-
hicles having turbocharged engines. This feature should only be programmed by the
installer, and the operation of this feature depends on the correct connection of the
neutral safety wire to the vehicle’s parking brake. Please refer to the “Black/White
wire” in the installation manual for the proper connection of this important wire.
Feature #11 Manual Transmission Remote Start
On (press “lock” button to program)
Off (press “unlock” button to program) - DEFAULT
Enabling this feature requires a “setup” procedure to be performed that ensures the
transmission is in neutral before remote start can be performed. See page 7 for
more information.
Feature #9 Remote Start Lock Control
Off (press “lock” button to program) - DEFAULT
Lock After Start (press “unlock” button to program)
Unlock Before start (press “trunk” button to program)
Unlock Before+Lock After Start (press “start” button to program)
This feature allows for OEM alarm/lock control in relation to remote start operations
thus eliminating extra wiring.
Feature #7 Starter Cranking Time
0.7 Second (press “lock” button to program) - DEFAULT
1.00 Second (press “unlock” button to program)
1.5 Seconds (press “trunk” button to program)
2.25 Seconds (press “start” button to program)
This feature determines the crank time of the 1st start attempt when in “Tachless” &
“CrankOnly”modes.Iftheenginedoesn’tstartontherstattempt,itwillretryupto
3 more times extending the crank time by 0.2 second with each attempt..

15
Programmable Features Matrix
This device complies with FCC Rules part 15. Operation is subject to the following two condi-
tions, (1) This device may not cause harmful interference and, (2) This device must accept
any interference that may be received, including interference that may cause undesired
operation.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modicationstothisequipment.Suchmodicationscouldvoidtheuser’sauthoritytooperate
the equipment.
Feature #12 Data Port Protocol
D2D (Trilogix) (press “lock” button to program) - DEFAULT
ADS (iData) (press “unlock” button to program)
This feature determines which data protocol is used on the data port. Choose this
based on the interface module protocol being used. NOTE: Intellikit modules only
support the D2D protocol. All OmegaLink modules support BOTH protocols
however, the ADS protocol is recommended for maximum capabilities.
User Feature Programming: Ignition on, off, press valet 5 times
# Feature Lock Button Unlock button Trunk button ”START” button
1 Engine Run Time 10 min 5 min 15 min 20 min
2 Steady/Flashing lights for RS Steady Flashing
3 Horn Honk Volume Low Hi On Demand OFF
4 Pulse Horn/Steady Siren Pulsed Lo Pulsed Med Pulse Hi Steady Siren
5 Doors Lock w/ Ign. ON ON OFF
6 Doors Unlock w/ Ign. OFF ON OFF
7 Unlock w/ Trunk Release ON OFF
Installer Feature Programming: Ignition on, off, press valet 10 times
1 RS Activation 1 press 2 presses 3 presses 4 presses
2 PINK/WHITE wire function Ignition Accessory Start
3 Engine Detection Tachless Hi Tachless Lo Tach Wire Datatach
Crank Only (Press Lock +Unlock)
4 Gas or Diesel Engine Gas Diesel
(15 sec delay)
Diesel
(20 sec delay)
Diesel
(30 sec delay)
5 Sat. Port Green Wire Starter Pulse After Start Status Domelight
6 Sat. Port Blue Wire Status Ignition
7 Crank Time 0.7 Sec 1.00 Sec 1.5 Sec 2.25 Sec
8 Doorlock Outputs 0.8 Sec 3 sec Double Unlock Total Closure
9 Remote Start Lock Control Off Lock After Start Unlock Before
Start Both
10 Turbo Timer OFF 1 min 2 min 3 min
11 Manual Transmission RS ON OFF
12 Data Port Protocol D2D (Trilogix) ADS (iData)

Back Cover
Color cover is in a
separate le.
