Exceptional Innovation STB-4000 User manual

STB-4000 User Guide
Manual Version Release 1.0

STB-4000 User Guide
ii
Copyright and Distribution Notice
December 2015
Copyright © 2015
Exceptional Innovation Inc.
ALL RIGHTS RESERVED
Exceptional Innovation Software and Hardware
This documentation, the Exceptional Innovation software and hardware products and services
it describes, and the information and know-how they contain constitute the proprietary,
condential and valuable trade secret information and sole property of Exceptional Innovation
Inc. and may not be used for any unauthorized purpose, or disclosed to others without the
prior written permission of the applicable Exceptional Innovation entity.
Duplication, in whole or in part, if and when permitted, shall bear this notice and Exceptional
Innovation copyright notice. As and when provided to any governmental entity, government
contractor or subcontractor subject to FARs, this documentation is provided with
RESTRICTED RIGHTS.
Third-Party Software and Hardware
Other product and company names or logos mentioned herein may be the trademarks of their
respective owners.
Distribution
Distribution of this document is limited to Exceptional Innovation employees, partners,
clients, or other third parties with whom a non-disclosure agreement has been reached. Any
distribution of this document external to Exceptional Innovation without the express consent
of one of its ofcers is strictly prohibited.
Inquiries
Mail Inquiries:
Exceptional Innovation Inc.
480 Olde Worthington Road
Suite 350
Westerville, Ohio 43082
Phone: [phone]
Fax: [phone]
Online Inquires:
www.exceptionalinnovation.com

STB-4000 User Guide iii
Table of Contents
Features, Specications,
and Safety Information ............................. 1-1
Overview...................................................................................1-1
About the STB-4000 .................................................................1-1
Unit Features ............................................................................1-2
Rear Panel Connections..............................................1-3
Care and Maintenance .............................................................1-4
Protection from Impact ................................................1-4
Cleaning ......................................................................1-4
Technical Specications ...........................................................1-5
Important Safety Information ....................................................1-6
Safety Instructions .......................................................1-6
Regulatory Information ................................................1-7
Warnings......................................................................1-8
Installation and Setup............................... 2-1
Overview...................................................................................2-1
Items Included with the STB-4000...............................2-1
Items Included in the STB-4000 Cable Kit...................2-1
Items Required for Installation ....................................2-1
Optional Items for Installation ......................................2-1
Install an STB-4000 ..................................................................2-2
Connect the STB-4000 to the network ........................2-2
Connect the STB-4000 to the TV.................................2-3
Connect the STB-4000 to Power.................................2-4
Set Up an STB-4000 ................................................................2-5
Other Rear Panel Connections.................................................2-6
A/V Connection to TV, Amp, or Receiver.....................2-6
Optical Audio Connection to TV, Amp, or Receiver .....2-7
Connection to USB Devices ........................................2-7

iv STB-4000 User Guide
IR Input Connection.....................................................2-8
IR Output Connection ..................................................2-8
HDMI Chromecast Connection to TV ..........................2-9
Troubleshooting and Maintenance ........... 3-1
Overview...................................................................................3-1
Troubleshooting Chart ..............................................................3-2
Website and Helpline................................................................3-3
Warranty and Returns .............................. 4-1
Overview...................................................................................4-1
Warranty ...................................................................................4-1
Returning Equipment for Repair or Replacement.....................4-1

1-1
Chapter 1 Features, Specications, and Safety Information
STB-4000 User Guide
1
Chapter
Features, Specications, and Safety
Information
Overview
This chapter discusses the features of the STB-4000 Set-Top Box and provides important information you
should read and understand before installing and using it.
Read the following sections to learn more about the STB-4000 features, care and maintenance,
specications, and related safety information:
• About the STB-4000
• Unit Features
• Rear Panel Connections
• Care and Maintenance
• Technical Specications
• Important Safety Information
About the STB-4000
The STB-4000 is a high-performance set-top box for hospitality applications. The STB-4000 provides digital
content delivery, streaming video, TV control, wireless operation, and several other features in a compact,
lightweight enclosure that can be mounted in a variety of locations.
This guide covers the following models:
• STB-4000

Chapter 1 Features, Specications, and Safety Information
1-2 STB-4000 User Guide
Unit Features
• Wireless Connectivity —The STB-4000 wireless option offers 802.11 wireless connectivity to
wireless network access points in hotels.
• USB —Two USB ports for connecting USB devices.
• HDMI —Two standard HDMI output ports for connecting audio/video to TV displays. One port is
dedicated to Chromecast A/V.
• Ethernet —Ethernet port for connecting to the hotel network.
• IR Input/Output —IR input/output ports for controlling non-hospitality TVs.
• Digital Audio —Digital optical port for connecting digital audio to AV receivers.
• MPI —MPI port for connecting to TVs with MPI interfaces.

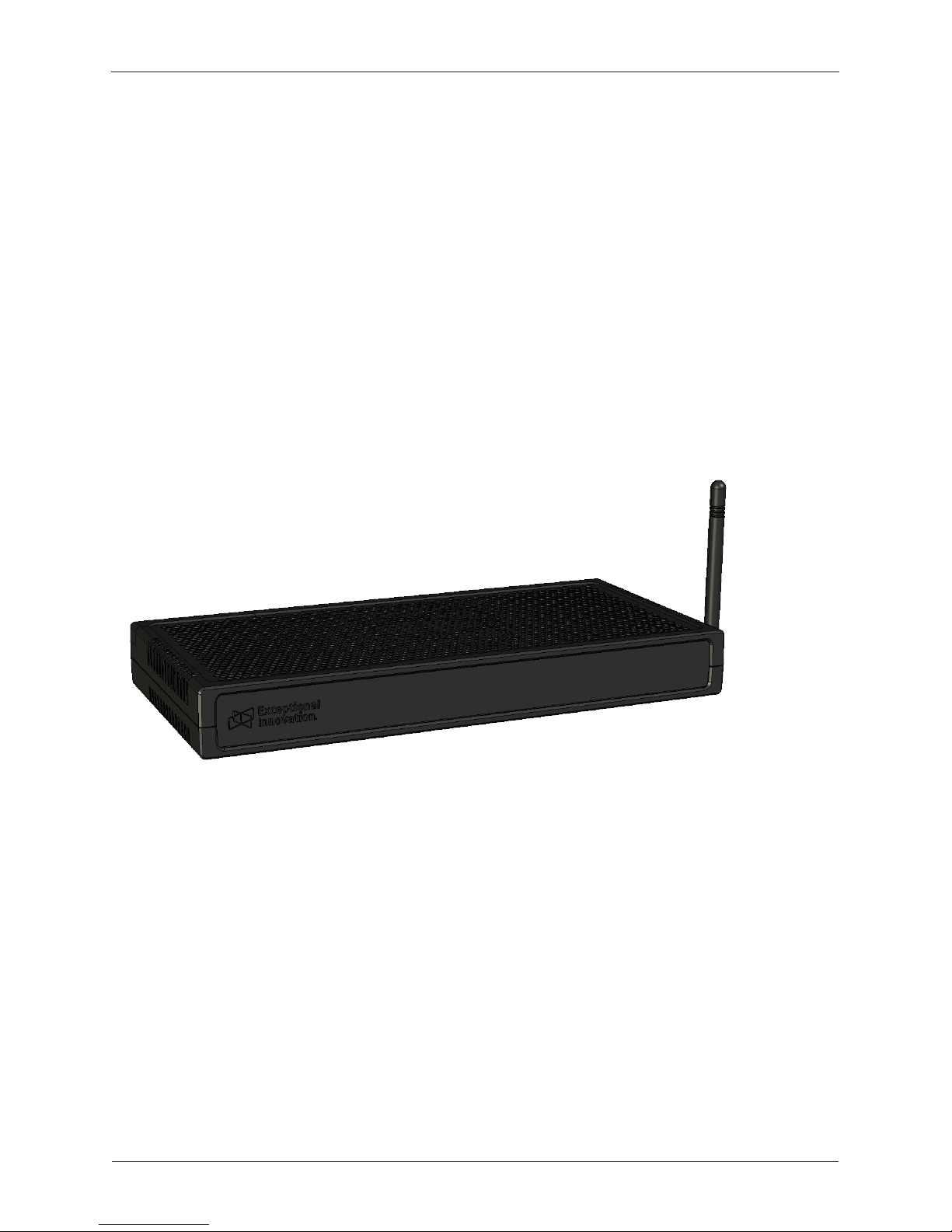

STB-4000 Set-Top Box

Chapter 1 Features, Specications, and Safety Information
1-3
STB-4000 User Guide
Rear Panel Connections
The rear-panel connections shown below include (from left to right):
• DC power input for 5V DC external power supply
• HDMI port for connecting A/V to TV HDMI input
• Ethernet port for connecting to the hotel network
• 3.5mm A/V port for connecting analog audio/video to TV
• Optical port for connecting digital audio/video to a receiver or amplier
• 2 USB ports for connecting USB devices
• IR input and output ports for IR devices
• MPI Adapter port for connecting to hospitality TV MPI port
• HDMI port for connecting Chromecast A/V to TV HDMI input
DC Power Input
The rear-panel 5V DC power input accepts the barrel-plug end of the 5-volt DC external power supply
required for use.
HDMI Output
The left-side rear-panel HDMI port accepts an HDMI cable for connecting audio and video to a standard
TV HDMI input.
Ethernet Port
The rear-panel Ethernet port accepts an Ethernet cable for connecting the STB-4000 to the hotel network.
A/V Analog Output
The rear panel includes a 3.5mm A/V port for connecting analog audio/video to TV.

Chapter 1 Features, Specications, and Safety Information
1-4 STB-4000 User Guide
Optical Audio Output
The rear-panel Optical Audio output port on the rear panel accepts a TOSLINK optical cable for
connecting digital audio to a receiver or amplier.
USB Ports
Two rear-panel USB ports accept a USB cable for connecting external USB devices.
IR Input/Output Ports
The IR Input/Output ports are to be used for non-hospitality TVs which do not have an MPI port. These
ports allow the STB-4000 to communicate with non-hospitality TVs using IR commands and the TV’s built-
in IR receiver.
The rear-panel IR Input port accepts an IR Receiver cable for receiving IR from a Remote Control when
the STB-4000 is not placed in line of sight of the remote. The IR output port accepts an IR Transmitter
cable for TVs which do not have MPI ports. The IR Transmitter is located close to the IR Receiver on the
TV so that the STB-4000 can transmit IR commands directly to the TV via IR.
MPI Port
The rear-panel MPI port accepts a cable for connecting to a room TV’s serial MPI control port.
HDMI Output for Streaming TV
The right-side rear-panel HDMI port accepts an HDMI cable for connecting audio and video to a TV
HDMI input. This port is dedicated to streaming video/audio using an internally mounted device such as
Chromecast.
Care and Maintenance
Taking simple precautions and observing guidelines for care and maintenance will help ensure that the
STB-4000 remains in good operating condition.
Protection from Impact
Make sure to place the unit in an area where there is little chance of direct impacts from objects.
Cleaning
The surfaces of the cabinet and the front-panel should be cleaned periodically with a soft, lint-free cloth to
remove ngerprints, oils, and dirt.

Chapter 1 Features, Specications, and Safety Information
1-5
STB-4000 User Guide
Technical Specications
The following are specications for the STB-4000 Set-Top Box (specications subject to change):
Dimensions
• 7.75 inches (W) x 1.71 inches (H) x 6.00 inches (D)
Weight
• 1 lb
Rear Panel Connections
• Power supply — Maximum 5V DC @ 3amps
• 2 HDMI outputs — 1 standard HDMI port for connecting HDTV audio/video to TV and 1 standard
HDMI port for Chromecast HDTV audio/video to TV
• Ethernet — 10/100/1000 Mb/sec (1 RJ45 port)
• A/V output — 3.5mm CVBS A/V analog output
• Optical — For connecting standard optical digital audio devices
• USB 2.0 — Two USB 2.0 ports for connecting USB devices
• IR Input/Output — 3.5mm ports for connecting to non-hospitality TVs.
• MPI port — RJ12 port for connecting to MPI input of Hotel TV
Internal Features
• GPU — 8-core 450MHz
• RAM — 2 Gbytes internal RAM
• Flash — 16 Gbytes FLASH
• Wireless — 802.11 a/b/g/n/ac
Power Requirements
• 5V DC 3-Amp external power supply.
Power Consumption
• Average: 6 watts
Minimum Wiring Requirements
• CAT5e cable for LAN connections
• Shielded HDMI cables for connection to TV

Chapter 1 Features, Specications, and Safety Information
1-6 STB-4000 User Guide
Important Safety Information
This section covers important safety information you should know before installing and using the
STB-4000 Set-Top Box.
Safety Instructions
The STB-4000 is designed and tested to meet the latest standards for safety. However, to ensure safe
use it is important to follow the safety instructions marked on the product and included in this manual to
help guard against personal injury and/or damage to the unit:
• Read and keep these instructions. Heed all warnings and follow all instructions.
• Do not use this unit near water or a heat source such as a radiator or heat duct. The unit should
not be operated in high-temperature or high-humidity environments.
• Refer all servicing to qualied service personnel. Servicing is required when the unit has been
damaged in any way, the power-supply cord or plug is damaged, liquid has been spilled into or
objects have fallen into the unit, or the unit has been exposed to rain or moisture, does not operate
normally, or has been dropped. If any of these conditions occur, unplug the unit from the power
source and refer servicing to qualied personnel.
• Never pull on the power cord. Disconnect the unit from DC power by removing the power plug from
the rear panel power input. Install the unit near an outlet that you can easily reach.
• This equipment is designed for 5V DC operation only. This unit should be operated only from the
type of power source indicated in the Technical Specications section of this guide. Connection to
any other power source will void the warranty.
• The front panel is susceptible to damage from impact. Locate the unit in an area where the
chance of direct impacts from objects is minimized. Take precautions to reduce the risk of objects
hitting the front panel.

Chapter 1 Features, Specications, and Safety Information
1-7
STB-4000 User Guide
Regulatory Information
Federal Communications Commission (FCC) Notice (U.S. Only)
NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 Subpart C of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a commercial and residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment causes harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV/data technician for help.
This device complies with Part 15, Subpart C of the FCC rules and with RSS-210 of Industry
Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le onctionnement.
NOTICE: Changes or modications made to this equipment not expressly approved by
Exceptional Innovation may void the FCC authorization to operate this equipment.
NOTICE: THIS INFORMATION TECHNOLOGY EQUIPMENT CONFORMS TO UL STD 60950-1 AND
IS CERTIFIED TO CSA STD C22.2 NO. 60950-1.
Radiofrequency Radiation Exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

Chapter 1 Features, Specications, and Safety Information
1-8 STB-4000 User Guide
For body-worn operation, this unit has been tested and meets the FCC RF exposure guidelines
when used with the Exceptional Innovation accessories supplied or designated for this product.
Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
Warnings
The lightning ash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufcient magnitude
to constitute a risk of electric shock to persons.
The device bearing the trade name and model specied above has been shown to comply with
the applicable technical standards as indicated in the measurement report and was tested in
accordance with the measurement procedures specied in European Council Directive - EMC
Directive 2004/108/EC. The device passed the test performed according to:
Standards:
EN 55022: 2010 and CISPR 22: 2008 (modied)

2-1
Chapter 2 Installation and Setup
STB-4000 User Guide
2
Chapter
Installation and Setup
Overview
This chapter describes how to install and set up an STB-4000 Set-Top Box.
Items Included with the STB-4000
Check to make sure the following items are included in the shipping carton:
• STB-4000 unit
• International auto-switching AC/DC Power Supply
Items Included in the STB-4000 Cable Kit
• Cat5e Ethernet LAN Cable
• 2 HDMI Cables
• 2 MPI Cables (for LG and Samsung Hospitality TVs)
• A/V Cable
Items Required for Installation
The following are required for installation:
• RJ45-terminated LAN network cable for connecting the unit to the hotel network. A Cat5e LAN Cable
is included in STB-4000 Cable Kit.
• Working network connection (Ethernet)
• HDMI Cable for A/V connection to TV. (2 HDMI Cables included in STB-4000 Cable Kit).
• MPI cable for communication with hospitality TV. (2 MPI Cables included in STB-4000 Cable Kit).
Optional Items for Installation
• A/V Cable for connection to A/V Receiver or TV. (A/V Cable included in STB-4000 Cable Kit).
• Digital Optical TOSLINK Cable for connecting digital audio to AV Receiver (NOT INCLUDED).
• IR Cables for communication with non-hospitality TVs (NOT INCLUDED).

Chapter 2 Installation and Setup
2-2 STB-4000 User Guide
Install an STB-4000
This section covers the steps to install an STB-4000 Set-Top Box before putting it into service:
1. Connecting the STB-4000 to the network
2. Connecting the STB-4000 to the TV
3. Connecting the STB-4000 to Power
Connect the STB-4000 to the network
Perform the following steps to connect the STB-4000 to the network. When you have completed these
steps, go to the next section.
Note: Use cabling long enough to avoid placing stress on the input or output connections.
1. Place the unit close to a network connection.
2. Connect one end of a LAN cable to the network connector on the wall, router, or hub device.
3. Connect the other end to the Ethernet port on the rear panel as shown below:
4. Continue to the next section.

Chapter 2 Installation and Setup
2-3
STB-4000 User Guide
Connect the STB-4000 to the TV
Perform the following steps to connect the STB-4000 to the TV using the HDMI and MPI ports. When you
have completed these steps, go to the next section.
Note: Use cabling long enough to avoid placing stress on the input or output connections.
1. Connect one end of the HDMI cable to the HDMI port on the STB-4000 rear panel as shown below.
2. Connect the other end of the HDMI cable to the HDMI port on the TV.
3. Connect the end of the MPI cable labeled STB to the MPI port on the rear panel as shown below.
4. Connect the end of the MPI cable labeled TV to the MPI port on the back of the TV.
5. Continue to the next section.

Chapter 2 Installation and Setup
2-4 STB-4000 User Guide
Connect the STB-4000 to Power
Perform the following steps to connect the STB-4000 to the 5V DC power supply.
Note: Use cabling long enough to avoid placing stress on the input or output connections.
1. Connect the 5V DC supply to the wall outlet.

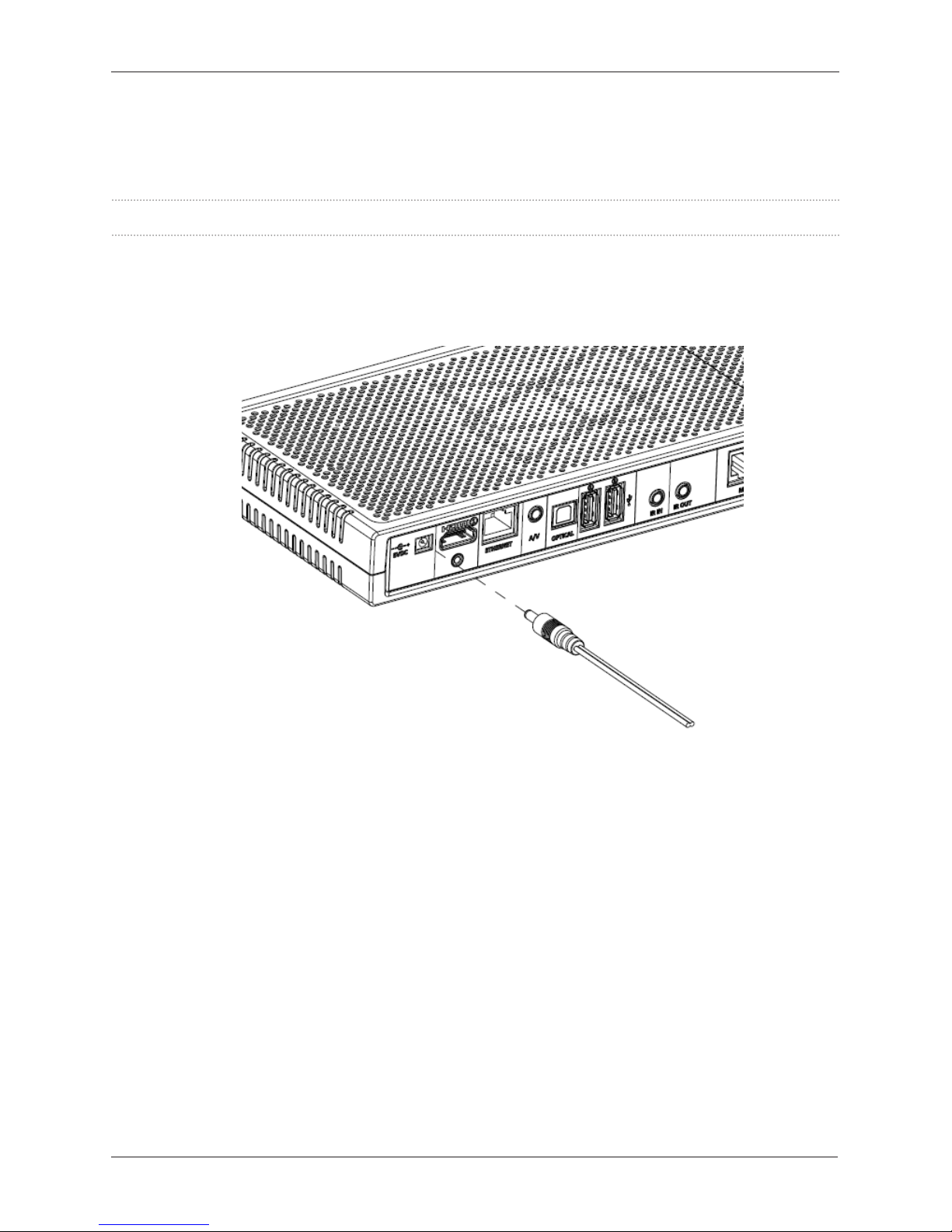

2. Connect the DC supply barrel plug to the power input on the left side of the STB-4000’s rear panel as
shown below:
3. Wait for the unit to go through its boot process. This can take up to 3 minutes to complete. When the
boot process completes, you will see a splash screen on the TV.
Note: If this screen does NOT appear, unplug power, wait 5 seconds and plug it back in. If the unit
does not show the splash screen after 3 minutes, call Support at 1-888-860-6090.
4. Continue to the next section.

Chapter 2 Installation and Setup
2-5
STB-4000 User Guide
Set Up an STB-4000
Once you have connected the STB-4000 to the network, TV, and power, you need to perform the setup
procedure.
Note: Setup typically takes from 5 to 10 minutes to complete, depending on updates.
Perform the following steps to set up the STB-4000.
Set Up Steps Go Here
Continue to the next section.

Chapter 2 Installation and Setup
2-6 STB-4000 User Guide
Other Rear Panel Connections
This section covers other rear panel connections for the STB-4000, including:
• A/V connection to an TV/Amp/Receiver
• Optical Audio connection to a TV/Amp/Receiver
• USB connection from/to USB devices
• IR input/output connections for non-hospitality TVs
• HDMI connection for streaming TV via Chromecast (requires Chromecast media device)
A/V Connection to TV, Amp, or Receiver

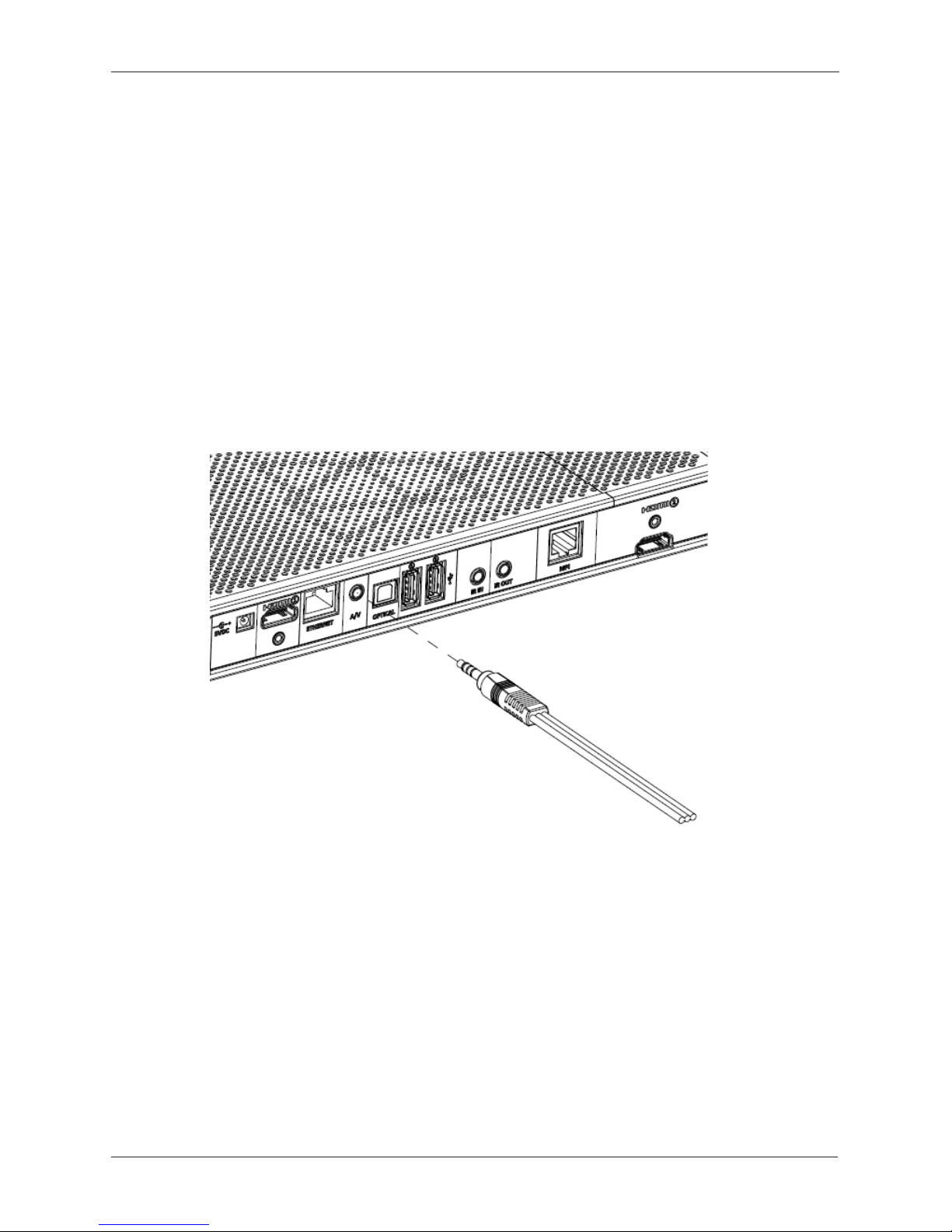

1. Connect the 3.5mm analog AV (4-conductor) cable to the AV port on the left side of the rear panel.
2. Connect the red and white RCA plugs on the other end to the audio input on the TV/Amp/Receiver.
3. Connect the yellow RCA plug on the other end to the video input on the TV/Amp/Receiver.

Chapter 2 Installation and Setup
2-7
STB-4000 User Guide
Optical Audio Connection to TV, Amp, or Receiver
1. Connect an optical cable to the Optical audio port on the left side of the rear panel.
2. Connect the other end of the optical cable to the TV/Amp/Receiver.
Connection to USB Devices
1. Connect a USB Type A cable to either USB port on the left side of the rear panel.
2. Connect the other end of the cable to the USB Device.

Chapter 2 Installation and Setup
2-8 STB-4000 User Guide
IR Input Connection
1. Connect the 3.5mm plug of an IR receiver cable to the IR IN port on the rear panel.
2. Place the bulb of the IR Receiver cable on the TV or in line of sight of the Remote control.
IR Output Connection
1. Connect the 3.5mm plug of an IR Transmitter cable to the IR OUT port on the rear panel.
2. Place the bulb of the IR Transmitter cable near the IR Receiver on the TV/Amp/Receiver to be
controlled.
