EXP PRO EXP48PRO User manual

EXP PRO Batteries
Hand-held Power
EXP48PRO & EXP96PRO
User Manual
Power to Explore

www.EXPPROPOWER.com
Table of Contents
General Battery information
1. Introduction
2. Appliance Description
3. Contents
4. How to Charge Your Battery
5. Other Information About Charging Your Battery
6. Charging Your Battery with the Optional 30 Watt Solar Panel
7. Capacity/Specifications
8. Powering From the DC Output Port
9. Pass-Through Technology
10. Parallel Connecting Batteries (Daisy Chaining)
11. Operating the White Light/Emergency Amber Flashing Light
12. Battery Management System (BMS)
13. Airline Travel
14. Battery Storage
15. Safe Use of Lithium Batteries
16. FAQs
CPAP User Information
17. Powering your PAP Machine from the DC Output Port
(Recommended)
18. PAP Machine DC Power Cords
19. Powering Your PAP Machine from the AC Output Port (Using a
Pure Sine Inverter)
20. PAP Machine Runtimes
21. Notes
Warranty Information
22. Limited Warranty

1. Introduction
Thank you for purchasing an EXP PRO Battery. This instruction
manual contains important information about usage and safety. Use
the product as described and keep this manual for future reference.
Before reading through the manual, you can begin to charge up
your EXP PRO Battery by connecting it to the AC power supply cord
provided and plugging into a wall socket.
2. Appliance Description

*Please note the EXP96PRO Battery has 2 DC Output Ports
3. Contents
●EXP48PRO or EXP96PRO Battery
●Protective Sleeve for Battery
●AC Charger: Input 110V-240V / Output 15V@2A (2000mA)
●DC Charger: Input 12V-24V / Output 15V@2A (2000mA)
●User Manual
4. How to Charge Your Battery
A. Select the method of charging. AC (plugs into the wall)
and DC (plugs into the car) cords are both included.
B. Plug the charging cable into the charging input port
located on the battery and the other end into the
appropriate power source.
C. Charging will begin automatically.
D. Battery is fully charged when all power indicator lights
have been solidly lit for at least 30 minutes.
5. Other Information About Charging Your Battery
•Never leave the battery unattended for long periods of time
while charging.
●Do not charge below 32°F. Optimum ambient charge
temperature is 40°F - 110°F.
●Do not charge the battery if the charge cord or battery has
obvious damage or if the battery appears to be bulging. A
bulging battery is a potential sign of damaged lithium cells.
●Do not charge the battery if it feels excessively hot. The

battery should not reach more than 120°F while charging or
discharging and should not feel hotter than a warm cup of
coffee to the touch.
6. Charging Your Battery with the Optional 30 Watt
Solar Panel
The EXP PRO 30 Watt Solar panel is designed to be a genuinely
portable charging solution for the EXP48PRO and EXP96PRO
Battery line. It is soft and foldable, allowing it to easily fit in most
backpacks to take with you on your outdoor adventures. The panel
will provide up to 18V @ 1.5A. It is ideally suited for outdoor life
and the unexpected power outage.
A. Open the solar panel and place it on a clean, dry, and
flat surface in direct sunlight.
B. Plug the solar charge cord into the Type-C Input/Output
Port on the battery using the included USB-C to 2.1mm
adapter.
C. Charging will begin automatically.
D. Expect longer charge times using the solar panel
compared to the AC or DC charge cords as sun
conditions will vary greatly.

7. Capacity/Specifications
Full capacity and specification information can also be found on the
back of each battery.
●DC Output Port: DC12V@10A Continuous / 15A Peak (5Min)
●Type C Input: DC5V@3A / 9V@3A / 15V@3A / [email protected]
●Type C Output: DC5V@3A / 9V@3A / 12V@3A / 15V@3A / 20.3V@3A
●USB Output 1: DC5V@2.4A
●USB Output 2: DC3.6V-6.5V@3A / 6.5V-9V@2A / [email protected]

EXP48PRO: 153.6-Watt Hours (Wh) / 12.8 Amp Hours
(Ah)
@ 12V / 48,000 Milli Amp Hours (mAh) @ 3.2V.
EXP96PRO: 307.2-Watt Hours (Wh) / 25.6 Amp Hours
(Ah)
@ 12V / 96,000 Milli Amp Hours (mAh) @ 3.2V.
8. Powering From the DC Output Port
A. Plug your device into the main round power port
ensuring a secure fit, using a 12V cigarette style plug that
is meant to power your device.
B. The port(s) will automatically turn on and provide power

to the connected device.
C. To turn off the device, simply unplug it from the power
port.
9. Pass-Through Technology
The EXP48PRO and EXP96PRO are equipped with “Pass Through”
technology. This allows you to charge devices connected to the
battery while the battery is being charged. The battery will
automatically detect a power outage and switch to battery power.
Please note that to get the most life out of your EXP PRO battery,
we suggest only using this option if there is a concern about a
power outage.
10. Parallel Connecting Batteries (Daisy
Chaining)
You can parallel connect no more than two batteries by plugging in
the provided DC charge cord to the charge port on one battery and
the main power port marked 12V/15A on the other battery in order
to double the available capacity.
11. Operating the White Light/Emergency Amber
Flashing Light
White Light: Press and hold the power button to turn on. Press
and hold the power button, again, to turn off.
Emergency Amber Flashing: Quickly press the power button
twice to turn on. Quickly press the power button twice, again, to
turn off.
12. Battery Management System (BMS)

The EXP PRO batteries contain a built-in BMS that controls
balanced charging and discharging of the individual Lithium cells
contained within. It also provides protection from:
●Over-Charging
●Over-Discharging
●Over-Current
●Over-Temperature
●Short Circuit
If the BMS has been tripped to protect the lithium cells and has
shut down the battery, simply plug in the AC charge cord as if
charging and the BMS will reset itself and resume normal operation.
13. Airline Travel
EXP48PRO:
Up to two of the EXP48PRO batteries can be brought with you in
your carry-on luggage. While the FAA regulations state the limit
is 160 watts, and the EXP48PRO only contains 154 watts per
battery, ultimately the final decision rests with the TSA officer on
whether an item is allowed through the checkpoint.
EXP96PRO:
The EXP96PRO contains 307 watts per battery and does not
meet FAA regulations for airline travel.
Please check current FAA regulations and the individual airline rules
prior to airline travel. Do not put EXP PRO Batteries or any other

lithium batteries or devices containing lithium batteries in checked
baggage of any type. If allowed by FAA regulations and individual
airline rules only take in carry-on baggage. Current FAA regulations
can be found on their website at www.faa.gov (search “Pack Safe
Lithium Batteries”). The major airlines list rules for lithium batteries
on their websites.
14. Battery Storage
Your battery is initially packed at roughly 50% charge. It Is best
practice to fully charge your battery before the first use. For
storage greater than 3 months, the general rule is to store at 40-
50% of capacity. We have provided a “Notes” section for you to
keep track of your battery maintenance.
15. Safe Use of Lithium Batteries
●Never expose the battery to liquids, especially saltwater. This
can cause internal corrosion and damage to the lithium cells
and/or the BMS, causing them to malfunction.
●Never drop the battery. This can damage the lithium cells, or
more likely the BMS, causing them to malfunction.
●Never operate the battery in direct sunlight. This is hard on
the BMS electrical components and the lithium cells.
Prolonged use in direct sunlight can damage the battery.
16. FAQs
How long will it take to charge my battery?
EXP48PRO: Approximately 6.5 hours ± @ 2A.
EXP96PRO: Approximately 13.0 Hours ± @ 2A.
Can I use an inverter?
An inverter can be used with EXP PRO Batteries. Please note

that using an inverter will draw up to 20 % more of your battery
power in the conversion process. Visit
www.EXPPROPOWER.com for more information.
How many life cycles should I expect from my EXP
PRO battery?
≤ 5,000
What are some common devices I can charge with
my EXP PRO battery?
Cell Phones, Go Pros, Laptops, Tablets, Bluetooth Speakers
Drones, LED Lights, CPAP machines, BiPAP machines, Cameras,
Air Pods and more.
Can I use a different charge cord other than the
two supplied with my battery?
Use of a different charge cord may damage the battery, and is
not recommended. Replacement cords may be available to
purchase through your battery retailer, or you can find them on
www.EXPPROPOWER.com.

CPAP Users
17. Powering Your PAP Machine From The DC
Output Port (Recommended)
A. Obtain the DC power cord for your PAP machine. This cord is
a 12V cigarette style plug that is meant to power your
specific PAP machine and is sold separately from this
battery.
B. Using the DC power cord specific to the individual PAP
machine being powered, plug your device into the DC
Output Port on the battery ensuring a secure fit.
C. The port(s) will automatically turn on and provide power
to the connected device.
D. To turn off the device, simply unplug it from the power
port.
E. To get the most run time from the battery we
recommend turning off all auxiliary features such as heat
and humidity.

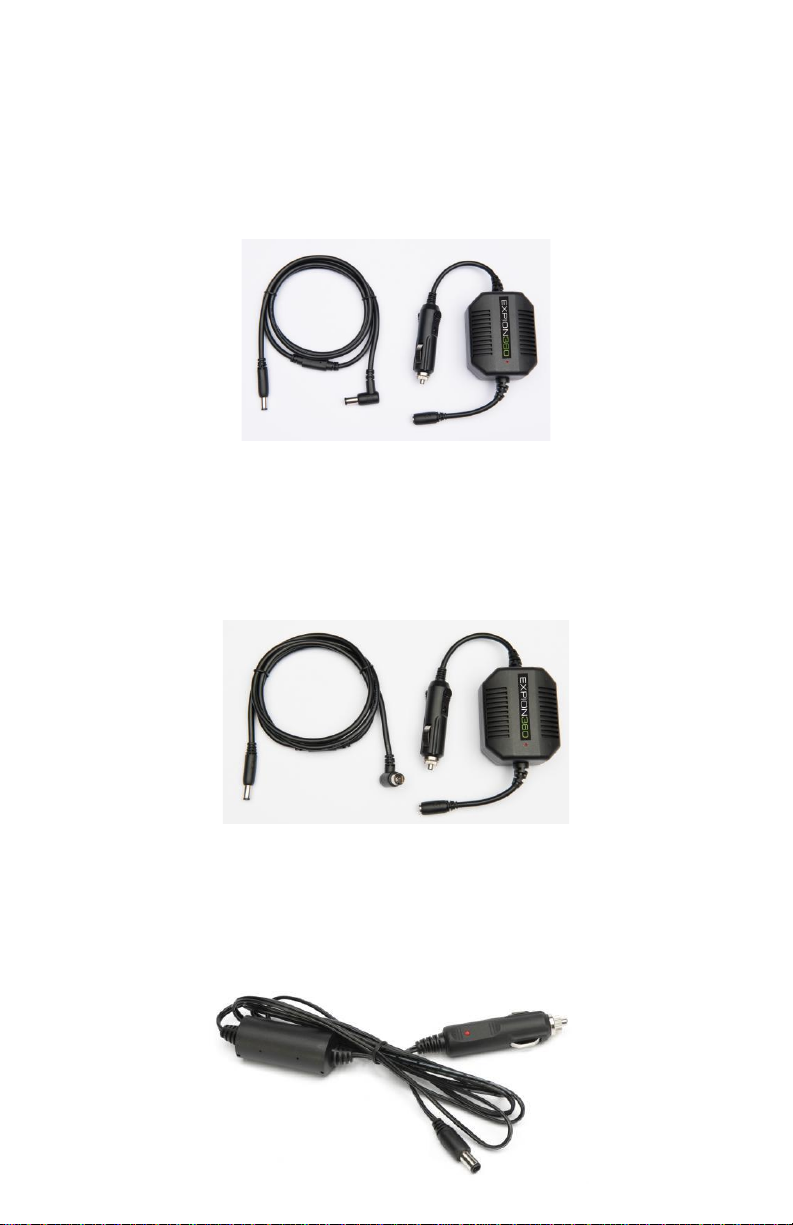

18. PAP Machine DC Power Cords

RM-10
Fits Models: Resmed Airsense 10 CPAP, Airsense
Elite CPAP, Airsense 10 Autoset CPAP, Airstart 10
CPAP, Airstart 10 Auto CPAP, Aircurve 10 S Bilevel,
Aircurve 10 Vauto Bilevel.
RM-9
Fits Models: Resmed S9 Escape CPAP with ERP, S9
Elite CPAP with ERP, S9 Autoset CPAP, S9 VPAP S
Bilevel.
DS-12V:
Fits Models: Philips Respironics Dreamstation CPAP,
Dreamstation Pro, Dreamstation Auto, Dreamstation
BiPAP & Auto.

S1-60:
Fits Models: Philips Respironics Remstar 60 Series,
Auto CPAP, Pro CPAP, Plus CPAP/C-Flex, SE CPAP,
BiPAP Pro/Bi-Flex, BiPAP Auto/Bi-Flex, BiPAP AutoSV
Advanced.
19. Powering Your PAP Machine From The AC
Output Port (Using a Pure Sine Inverter*)
A. Plug the AC power cord included with the PAP machine
into the AC outlet on a pure sine inverter.
B. Plug the pure sine inverter into the DC output port found
on the battery. The inverter will convert DC power from
the battery to AC power required for the factory AC
power cord.
C. Please note that using an inverter will draw up to 20%
more of your battery power than just using a DC power
cord.
*Please check with your PAP machine manufacturer
regarding the type of inverter to use to ensure
maintaining integrity of machine. Most recommend a
pure sine wave inverter as opposed to a modified sine
wave.
20. PAP Machine Runtimes

To get the most run time from the battery we recommend turning
off all auxiliary features such as humidity and heated hose if
possible.
These features use a large amount of amperage and will draw most
of the available power from the battery.
PAP machine nightly run times listed below for the EXP48PRO and
EXP96PRO are figured using the average night sleep in the US of 7
hours and with auxiliary features turned off. Power requirements
will vary greatly from one PAP machine to the next and with
different prescribed pressure settings. We recommend you test
your PAP machine with the battery prior to depending on it for
emergency or off-grid power use. It is important that your mask fits
properly. Air leakage will result in higher power consumption and
reduced run times.
EXP48PRO: 2-3 Nights
EXP96PRO: 4-6 Nights
21. Notes

22. Limited Warranty
EXP PRO warrants to the original consumer purchaser that the
EXP PRO product will be free from defects in workmanship and
material under normal consumer use during the applicable
warranty period identified in the “Warranty Period” section
below, subject to the exclusions set forth below. This warranty
statement sets forth EXP PRO’s total and exclusive warranty
obligation. We will not assume, nor authorize any person to
assume for us, any other liability in connection with the sale of

our products.
Warranty Period:
The warranty period is 2 years. In each case, the warranty
period is measured starting on the date of purchase by
the original consumer purchaser. The sales receipt from
the first consumer purchase, or other reasonable
documentary proof, is required in order to establish the
start date of the warranty period.
Remedy:
EXP PRO will repair or replace (at EXP PRO’s option) any
EXP PRO product that fails to operate during the
applicable warranty period due to defect in workmanship
or material. If a valid claim is made during the applicable
period, EXP PRO, at its options, will either (1) repair the
product, or (2) exchange the product with a product that
is of equal value. A replacement product assumes the
remaining warranty of the original product or ninety (90)
days from the date of replacement, whichever is greater.
Limited to Original Consumer Buyer:
The warranty on EXP PRO’s product is limited to the
original consumer purchaser and not to any subsequent
owner.
Exclusions:
EXP PRO’s warranty does not apply to (i) any product that

is misused, abused, modified, damaged by accident, or
used for anything other than normal consumer use as
authorized in EXP PRO’s current product literature, or (ii)
any product purchased through an online auction house.
EXP PRO’s warranty does not apply unless the battery cell
is stored at the proper charge level as discusses in section
14.
How to Receive Service:
To obtain warranty service, contact our customer service
team at [email protected]
The EXP48PRO and EXP96PRO batteries have passed UN testing and
meet the requirements of the UN Manual of Tests and Criteria, Sixth
Edition Amendment 1, Section 38.3 - Lithium metal and lithium ion
batteries recommendations on transport.
www.EXPPROPOWER.com
