ExtenHD XSW41 User manual
Operation Manual
©2007 Sima Products Corporation
140 Pennsylvania Ave. Bldg #5
Oakmont, PA 15139
www.extenhd.com
ExtenHD™ is a registered trademark of Sima Products Corporation
PN 21766
4-in 1-out
HDMI/ Digital Audio
Switcher
Model XSW41
TM
ExtenHD XSW41 User Manual ExtenHD XSW41 User Manual
One year Limited Warranty
Sima Products Corporation, (“Sima”) warrants that if the accompanying product
proves to be defective to the original purchaser in material or workmanship within
one (1) year from the original retail purchase, the Company will, at the its option,
either repair or replace same without charge (but no cash refund will be made).
What you must do to enforce Warranty
You must deliver, mail or ship the product, together with the original bill of sale, this
limited Warranty statement as proof of warranty coverage to:
Sima Products Corporation
Attn: Customer Service
140 Pennsylvania Ave., Bldg. #5,
Oakmont, PA 15139
Fax: 412-828-3775
It is recommended that you call Sima Products Corporation before sending the unit
in for service.
Limitation of Liability and Remedies
This warranty is void if any defects are caused by abuse, misuse, negligence
or unauthorized repairs. All liability for incidental or consequential damages is
specically excluded. The Company shall have no liability for any damages due to
lost prots, loss of use or anticipated benets, or other incidental, consequential,
special or punitive damages arising from the use of, or the inability to use, this
product, whether arising out of contract, negligence, tort or under any warranty,
even if the Company has been advised of the possibility of such damages. The
Company’s liability for damages in no event shall exceed the amount paid for this
product. The Company neither assumes nor authorizes anyone to assume for it
any other liabilities.
Some states do not allow for the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specic legal rights and you may have other rights, which
vary from state to state.
Caution:
IMPORTANT SAFEGUARDS FOR AUDIO PRODUCTS. PLEASE READ CAREFULLY THE
FOLLOWING IMPORTANT SAFEGUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT
1. Read instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow instructions - Follow all operating and use instructions.
5. Water and Moisture - the appliance should not be used near water - for example: near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement or near a swimming pool.
6. Ventilation - The appliance should be located so that its location or position does not interfere with proper ventilation. For
example: the appliance should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings.
7. Heat - keep away from heat sources such as radiators, registers, stoves or other heat-producing appliances .
8. Power sources - the appliance should be connected to a power supply only of the type described in the operating
instructions or as marked on the appliance.
9. Grounding or polarization. - Precautions should be taken so that the polarization or grounding means of the appliance is
not defeated. Caution: To prevent electric shock, match the wide blade of this plug to the wide slot, fully insert. Do not
use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent
blade exposure.
10. Power cord Protection - Power supply cords should be routed so they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and where they exit from
the appliance.
11. Cleaning - Wipe unit with a damp cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning
solvents or strong detergents.
12. Nonuse periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long
period of time.
13. Object and Liquid entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure
through openings.
14. Damage requiring service - The appliance should be serviced by qualied personnel when: the power cord has been
damaged, objects have fallen or liquids spilled into the appliance, the appliance has been exposed to rain, does not appear to
operate normally or exhibits a marked change in performance or the unit has been dropped or the enclosure damaged.
15. Service - The user should not attempt to service the appliance beyond that described in the operating manual. All other
servicing should be referred to qualied service personnel.
Notice to Users
The system may cause interference to a TV or radio even when it is operating properly. To determine whether the system is
causing the interference, turn it off. If the interference goes away, the system is causing the interference.
NOTE: This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be deter-mined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
•Contact your dealer for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two Conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment
©2007 by Sima Products Corp. All rights reserved. No part of this publication may be reproduced or
transmitted in any form or by any means without prior written permission from Sima Products Corp.
Page 2 Page 7
ExtenHD XSW41 User Manual ExtenHD XSW41 User Manual
STB

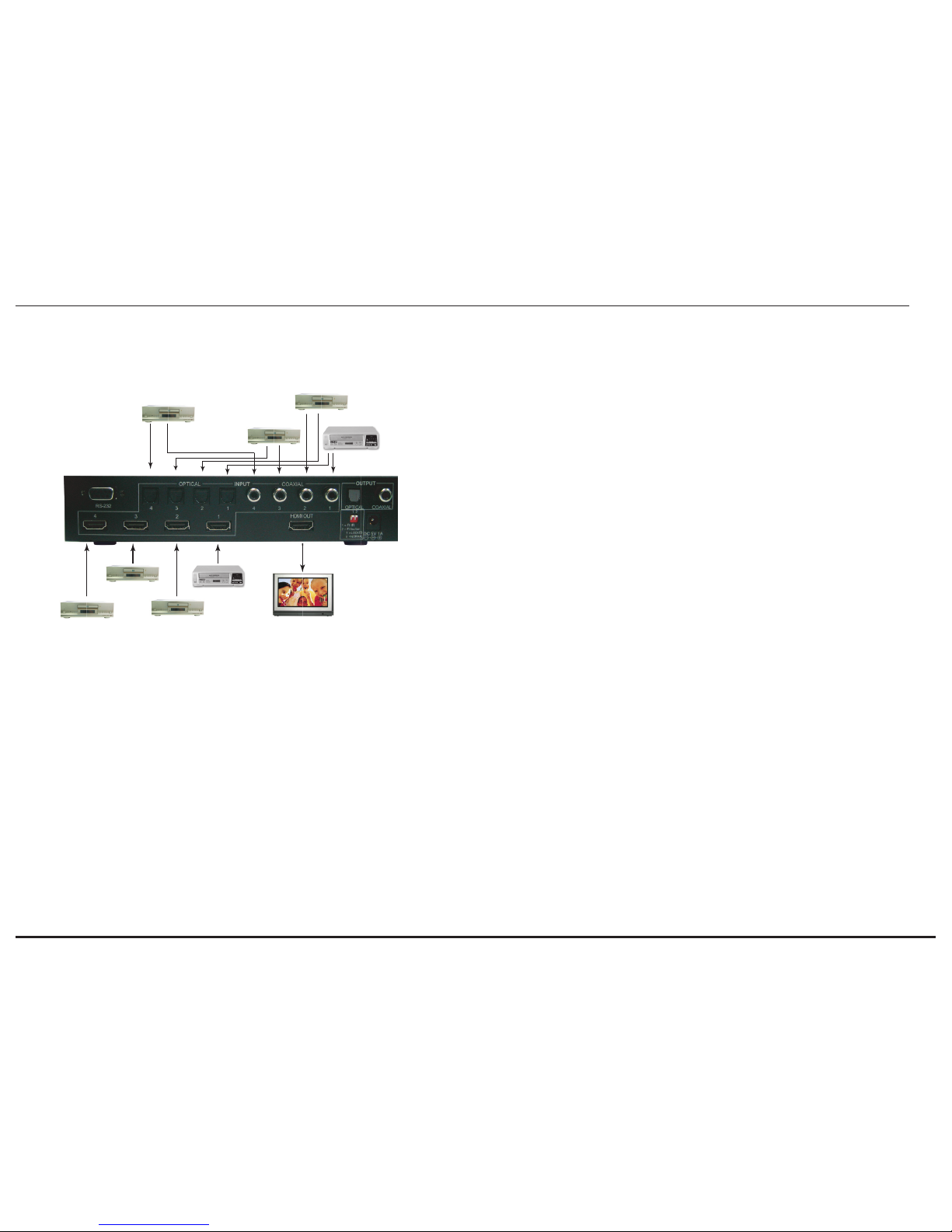

Connection and Installation
STB
LCD TV
DVD 1
DVD 2
DVD 3
DVD 2
DVD 1 DVD 3
Specications
Frequency bandwidth: 2.25Gbps(single link)
Inputs: - 4 x HDMI female ports (Type A connector)
- 4 x SPDIF digital inputs.
- 4 x toslink digital inputs.
Output: - 1 x HDMI female port (single link).
- 1 x SPDIF digital output.
- 1 x Toslink digital output.
Power: 5VDC power supply
Weight: 0.76kgs
Dimension: 215(W) x112(L) x 42(H)mm
Page 6 Page 3
HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
Signal Enhancement feature allows you to improve signal quality
after long distance transmission.
Optical and coaxial digital inputs and outputs.
LED indicators.
Ideal for home theater integration.
Supports high resolution input:PC: VGA, SVGA, XGA, SXGA, and
UXGA (1600 x 1200) & HDTV: 480i, 576i, 480p, 576p, 720p, 1080i,
and 1080p
Remote control.
Easy to install and simple to operate.
•
•
•
•
•
•
•
•
Features
XSW41 is a high performance HDMI switcher with separate digital
audio input and output. It allows your various HDMI sources to share
one HDTV display. Simply pressing one button to select your desired
HDMI source for display on the HDTV.
Introduction
ExtenHD XSW41 User Manual ExtenHD XSW41 User Manual
11 22 33 44
11 22 33 44 SIGNAL
ENHANCE
SIGNAL
ENHANCE
POWERPOWER
XSW41
4x1 Switcher
1
5
4
6
27 3
1
2
1
2
3
4
1234
DC 5V 1A
OUTPUT
OPTICAL
RS-232
HDMI OUT
1
234
INPUTOPTICAL COAXIAL
LOCKED
NORMAL
COAXIAL
PIN
1
2
3
4
5
6
7
8
9
Definition
NC
TxD
RxD
NC
GND
NC
NC
NC
NC
PIN
1
2
3
4
5
6
7
8
9
Definition
NC
RxD
TxD
NC
GND
NC
NC
NC
NC
Pins definition of
modem cable Remote Controller
"I" + "1"
"I" + "2"
"I" + "3"
"I" + "4"
"S" + "1"
"S" + "0"
"P" + "1"
"P" + "0"
PORT 1 ON
PORT 2 ON
PORT 3 ON
PORT 4 ON
ENABLE SIGNAL ENHANCE
ENABLE SIGNAL ENHANCE
POWER ON
POWER OFF
Command Code Comment
* Command:
Remote control sensor.
Input select/Indicators: Press the “ INPUT” button repeatedly to
switch to your desired input source and the LED will illuminate to
indicate which input source is being selected.
Signal Enhancement/Indicator: Press the “ Signal Enhance”
button to turn on this feature to improve signal quality after long
distance transmission. Press again to turn off. The LED will
illuminate when the signal is enhanced.
Power LED Indicator: The LED will illuminate when the power is
connected.
1.
2.
3.
4.
HDMI output: Connect the HDMI output to the HDMI input of your display using
HDMI cable.
HDMI inputs: Connect your various HDMI sources to each of the HDMI input of the
unit using HDMI cables.
Power: Plug the supplied 5VDC power supply into the unit.
Digital audio inputs: Connects your various toslink sources to each of the toslink
input of the unit using optical cables.Connects your various SPDIF sources to each
of the coax input of the unit using coax cables.
Digital audio output: Connects the toslink output to the toslink input of your display
using optical cable.Connects the digital SPDIF output to the digital coax input of the
display using coax cable.
RS232: 9-pin D-sub female connector for connecting to your other control console
for remote control
IR Remote Locked. Button control Locked.
1.
2.
3.
4.
5.
6.
7.
* RS-232 transmission format:
Baud Rate: 9600 bps
Data Bit : 8 bits
Parity : None
Stop Bit : 1 bit
1
2
Power: Press the button to turn on/off the unit.
Direct input selector:Press numerical number
button to select your desired input source.
1.
2.

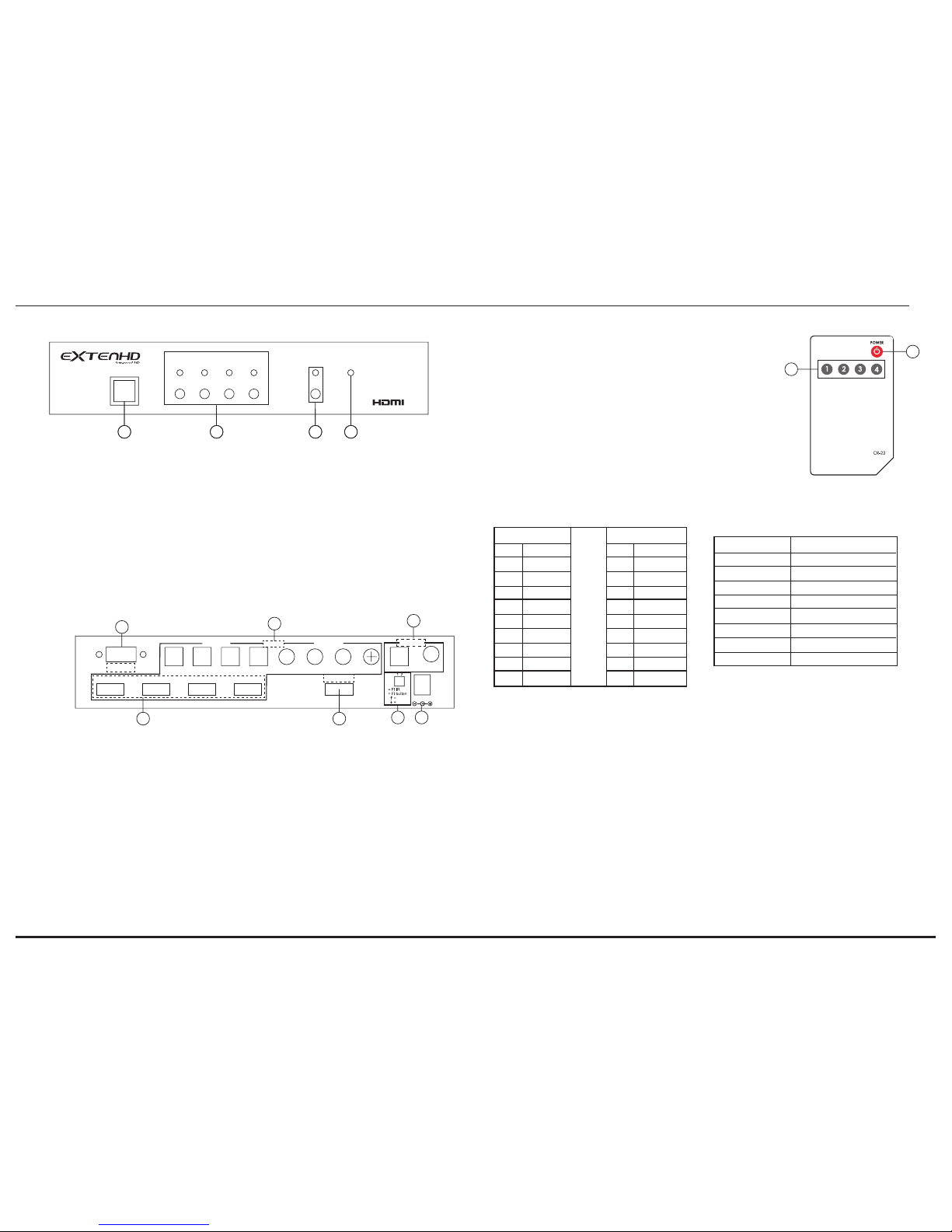

Front Panel
Operation Controls and Functions
Rear Panel
* The connection between XSW41 and remote controller through RS-232 modem cable.
RS-232 Remote Control Protocol
Remote Control
Page 4 Page 5
